HZS75 Modular Concrete Batching Plant engineer service available concrete batching plant in Philippine, Algeria, Africa
- Category: >>>
- Supplier: QUANZHOU HENGXING INDUSTRY MACHINERY CO. LTD
Share on (987436665):
Product Overview
Description
Product Description

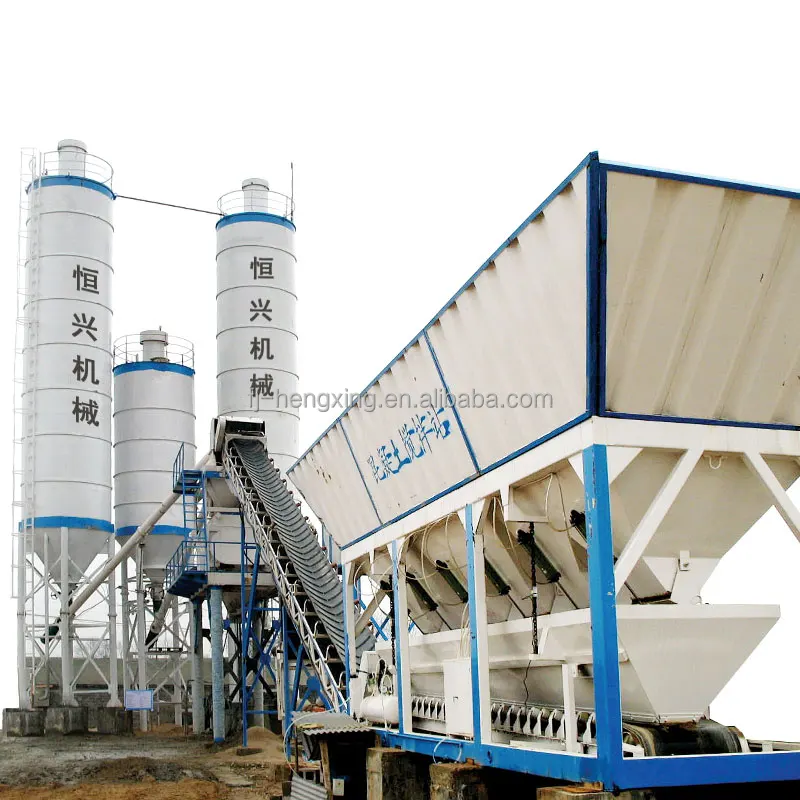

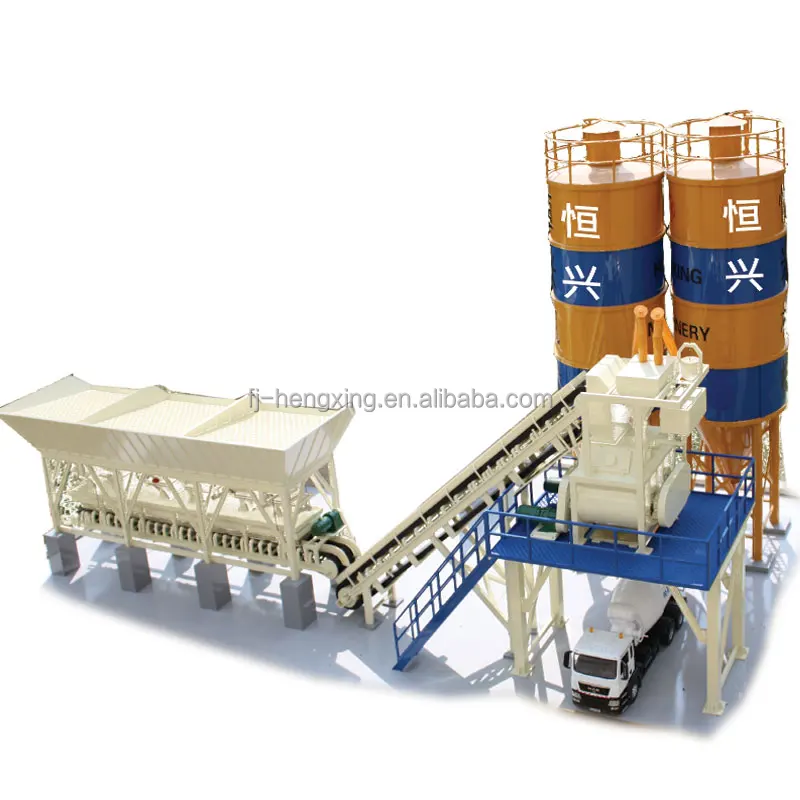

HZS75 Modular Concrete Batching Plant engineer service available concrete batching plant in Philippine, Algeria, Africa
Batching system:
Station is equipped with two or three bin and can be used for more than three kinds of aggregate gradation need. Loader, directly feeding are available, and each bin has a thick at the bottom of the two-stage pneumatic discharge door, cylinder accept the signal to open the door, with frequency operating as well, in order to weigh hopper at the bottom of the feeding.
Mixing system:
Dual-axial mixing machine, strong mixer ability, stirring evenly, quickly for all kinds of tower of concrete slump and it can achieve good mixing effect on the ratio of various mixture materials. Mixing blade, lining board adopts high chromium wear-resistant alloy materials. Outside support and the unique of the type of shaft end seal, greatly improving the service life of the host.
HZS75 Modular Concrete Batching Plant engineer service available concrete batching plant in Philippine, Algeria, Africa Technical Parameters:
HZS Concrete Bacthing Equipment Main Technical Specifications | |||||
Model | HZS50 | HZS75 | HZS 150 | ||
Productions(m3/h) | 50 | 75 | 150 | ||
Mixer | Type | JS1000 | JS1500 | JS3000 | |
Power | 2*22 | 2*30 | 2*55 | ||
Output(m3) | 1 | 1.5 | 3 | ||
Grain Size(mm) | ≤60 | ≤80 | ≤150 | ||
Batcher | Hopper Capacity(m3) | 3*9 | 2*30 | 4*20 | |
Hopper Quantity | 3 | 3 | 4 | ||
Conveyor Capacity(t/h) | 200 | 200 | 400 | ||
Weighing Scope Accuracy | Aggregate(kg) | 2500±2% | 3500±2% | 6500±2% | |
Cement(kg) | 600±1% | 900±1% | 1800±1% | ||
Water(kg) | 200±1% | 300±1% | 600±1% | ||
Admixture(kg) | 10±1% | 30±1% | 50±1% | ||
Power (kw) | 80 | 108 | 175 | ||
Discharge Height (m) | 3.8 | 3.8 | 3.8 | ||
Our Services
Pre-sale service: plant/site plan, solve technical problems and auxiliary configuration advice, revenue analysis.
Sale service: door-to-door installation, on-site training operation technology, user training mechanical and electrical maintenance personnel free of charge.
After-sales service, guarantee the supply of spare parts, product quality strictly implement five package, one year warranty, life-long after-sales service.
FAQ
Remarks:
1, Payment Terms: 30% as downpayment by T/T. the remaining 70% shall pay off before
all items being delivered
2, Delivery Way: FOB Xiamen
3, Delivery Time: 30-35 days after receiving your 30% down payment.
4, Warranty: within one year from delivery.
