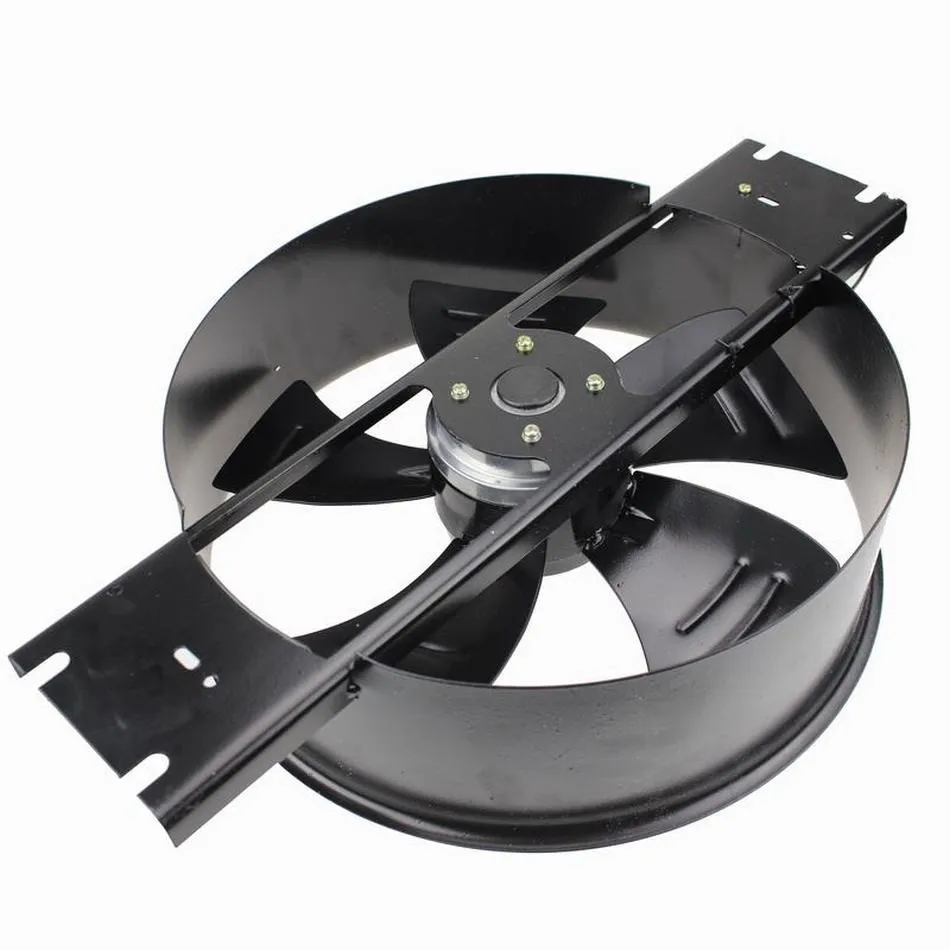

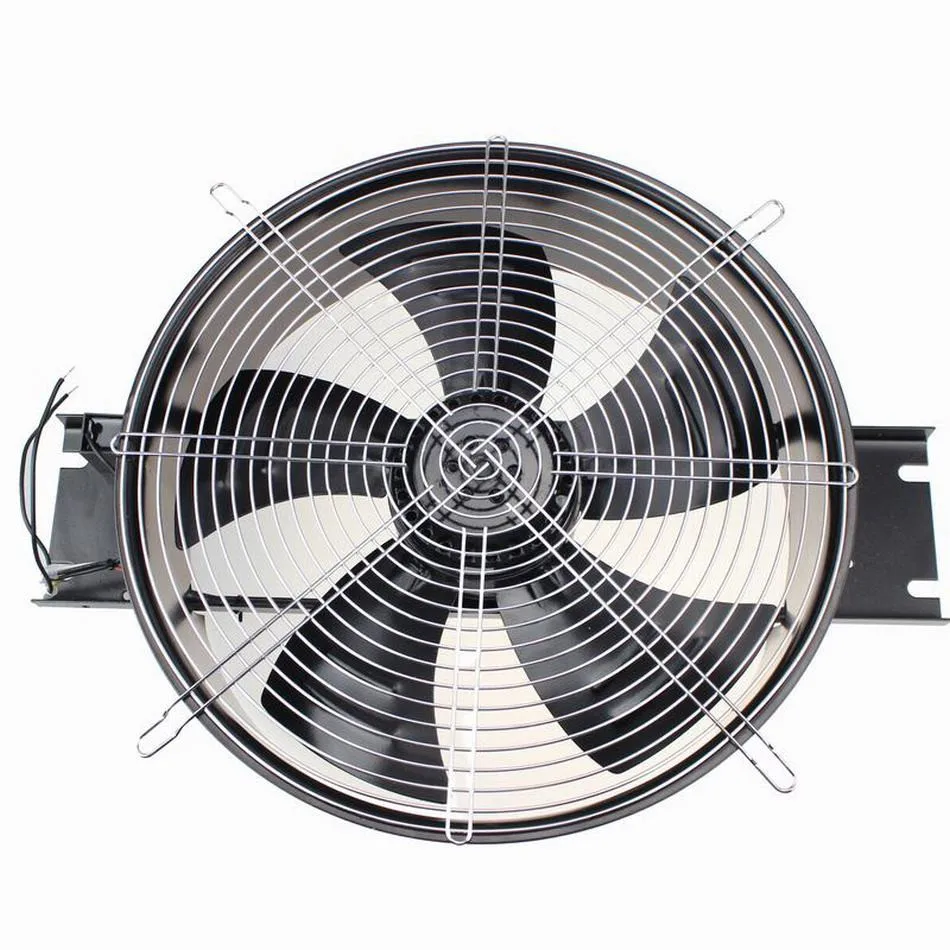

Gdstime 12 Inch 30cm Fireproof Temperature AC 300MM Exhaust Fan

Product Overview

Description

AC 220V  300FZY6 300x100mm Cooling Fan

parameter:
Connector:2/3 wire
Rated Voltage: DC 110-380V
Rated Current:0.2-0.8A
Bearing: ball

Frame: Aluminium Alloy

Impeller: Cast Iron

Fan Speed:1300/2600 RPM±10%
Noise Level: 55-68dBA±10%
Air Flow: 22-34 m3/min
Weight:3.8kg

Mounting Hole Distance:462MM

Fan size:300x300x100mm

advantage:
1.High quality Stable balance work.
2.High speed and large air flow.
3.Low noise and high efficiency.
4.Long life expectancy.
5.Ball and Sleeve bearing.

Parameter

Fan size L*W*H(mm)	Model	Bearing System	Rated Voltage	Phase	Power	Rated Current	Speed RPM	Air Flow m3/min	Freq(HZ)	capacitance	Niose Level dBA
300*100	300FZY2-D	B	220/240	1	80w	0.4	1300	22	50/60	2.4uf/500v	65
	300FZY3-D	B	380	3	80w	0.2	1300	22	50/60		65
	300FZY4-D	B	380	1	80w	0.22	1300	22	50/60	1.0uf/630v	65
	300FZY6-D	B	220	1	160W	0.8	2600	34	50/60	4uf/500v	70
	300FZY7-D	B	380	3	160W	0.45	2600	34	50/60		70
	300FZY8-D	B	380	1	160W	0.5	2600	34	50/60	1.2uf/800v	70
