electric portable sawmill

Product Overview

Description

Electric portable sawmill



Dear Customers:

Thank you for visiting for our website.

We are the top 3 of sawmill machine manufacturer in China.We have different

model of sawmill machine and we make the machine according to your demand ,

please let us know what working size do you need and other requirements,so

can we can recommend the suitable model to you.

Regards,



Zhiyang Machinery





Sawmill machine application:

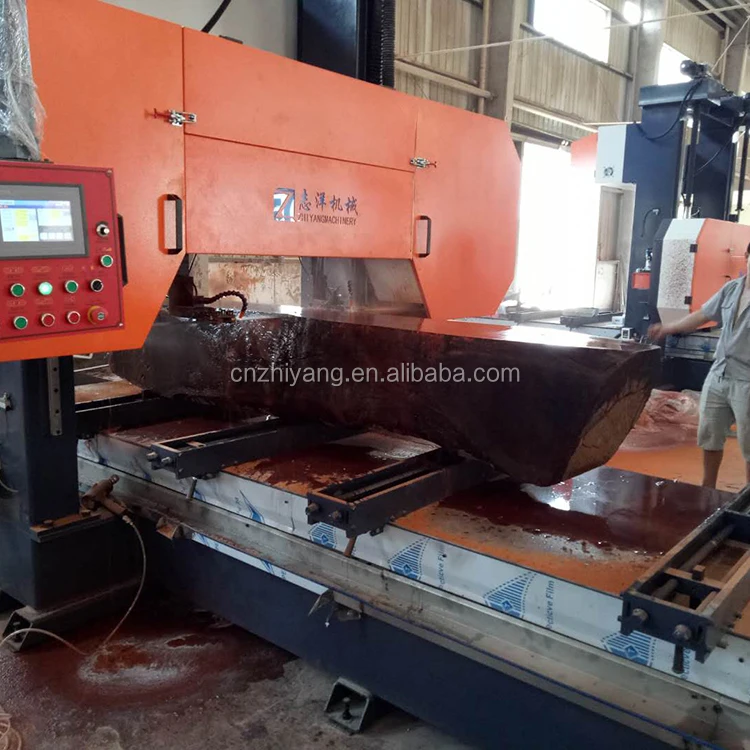

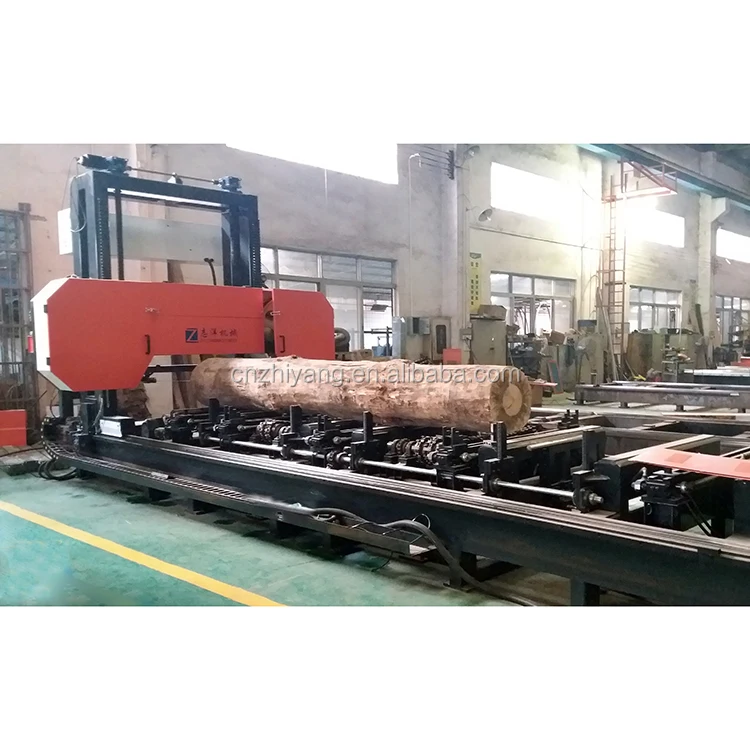

Horizontal Gantry Sawmill is a professional processing machine of all kinds of logs and square wood .Special good for red wood,teak wood,oak wood rosewood and others' rare wood.It's also can sawing finger joint board.



 Machine is heavey-duty,easy operation,high production and high precision.The saw load is thin so have a widely used in the expensive mandtory wood processing.just like all kind of red wood.To process the 400mm Burma pear can reach 3 meter/min and ensure a smooth saw-blade surface.



Our machine advantage:

Our sawmill machine is used the big saw wheel.using big size saw wheel,machine more precision and more save saw blade.Compared with other supplier,they only provide machine with small saw wheel,so price is much cheaper than us.

We want to lower the labors, greatly improve the speed and achieve the factory automatic prodution.

Sawmill machine feature:

.Humanized operation interface.Allows the operator to understand how to use the machine.

.We use imported precision screw guide, make the sawing more precision andmore accurated.

.The computerized calculation,automatic calculation of cutting effect,improve the utilization rate of materials.

.The inverter control saw blade rotation speed,for hard wood it can slowly,and for soty wood it can fast.in order to suitable for all kind of woods processing,save power and a widely using.

.The use of 90mm wide alloy saw blade,cutting speed faster,more durable and save cost.

Model sample:

Model	MJR1200*5000
Max processing size	5000x1200x1200mm
Fixed wood fixtures	5 pcs
feeding speed(adjustable)	0-8m/min
Return speed	12m/min
Saw wheel diameter	Φ960x82mm
Saw wheel motor	30KW(frequency conversion)
Lifting servo motor	1.96KW
Worktable servo motor	3.7KW
Saw line	1.6-1.7mm
Band dimensions (L*W*H)	7300x90x1.05mm
Dimensions	11000*3200*3200mm
Net weight	5500kg
