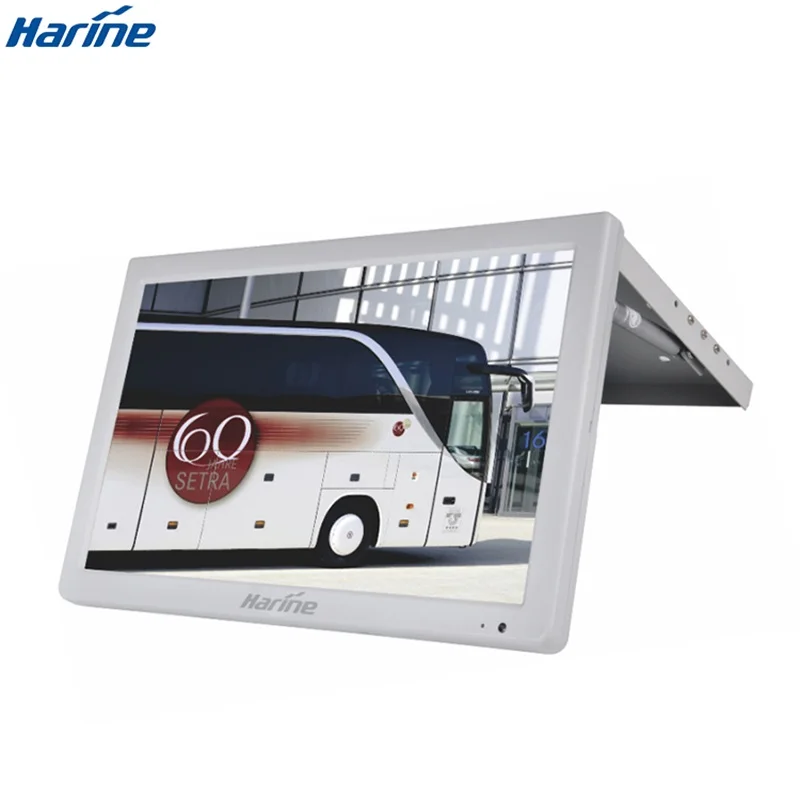

Product Name: 18.5 inch retracable roof mounted bus LCD Monitor (CM1915)
Feture:
1. Brightness uniformity, long life span and lower power supply & consumption
2. Thinner, light weight, suitable for vehicular environment, easy installation
3. Wide range of power supply DC+10.5-32V
4. Suitable for using in DC12V,DC24V vehicles

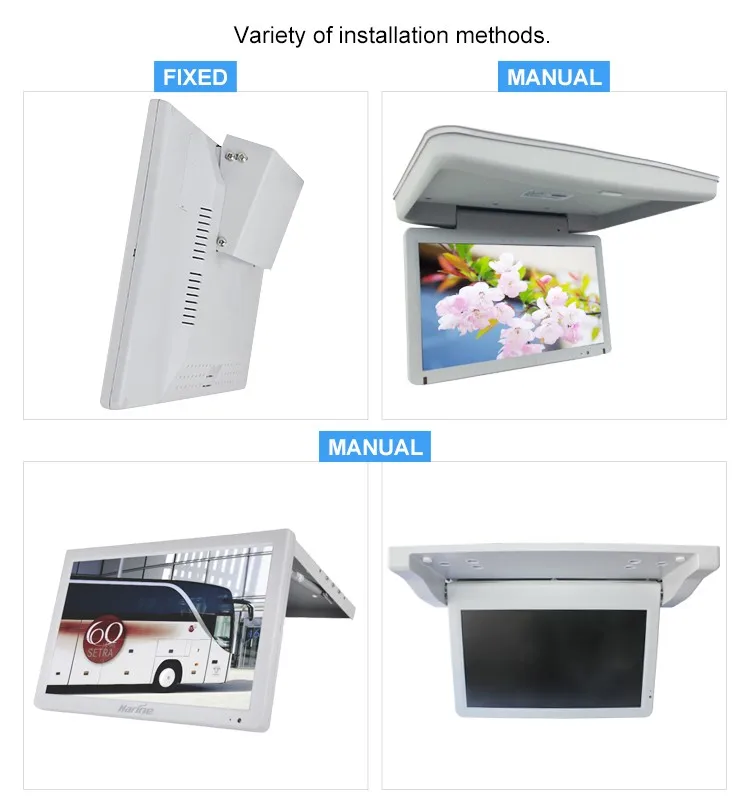

5. Hydraulic manual mounted monitor using gas spring and aluminum alloy lock card, more stable and reliable
Screen Size
18.5 Inch
LCD Screen
TFT LCD Screen
Aspect Ratio
16:9
Resolution
1366(H)×3(RGB)×768(V)
Contrast Ratio
1000:1
Brightness
250cd/m2
Response Period
5ms
View Angle
U:85/D:80 L/R: 85
Light Source
LED
OSD Language
OSD Multilingual optional
Analog Adjustments
Brightness, Contrast, Chroma(0~100)
Color System
PAL/NTSC optional
Video Input
CVBS input(VGA, YPbPr input optional)
Image Display(two)
16:9
Interface
RCA input or VGA input (optional)
Power Supply
DC 10.5~32V
Product Dimension
463mm×283mm×46mm
Net Weight
≤5.8KG
Operating Temperature
-20~60°C
Storage Temperature
-20~75°C
Power Consumption
Less than 25 W
Packaging & Shipping
Trade Terms
FOB,EXW, CIF, C&F, DDU
Port
Xiamen
Shipment
Air, Sea, Express
Payment Terms
L/C, T/T, Western Union
Payment Condition
Payment before delievery
Supply Capability
5000pcs per month
Sample Availability
Samples are available after payment
Sample Time
7 working days after payment
Packing
Export standard packaging (polyform+inner box+carton), or as per your request.
Shipping
According to customer's requirement.
