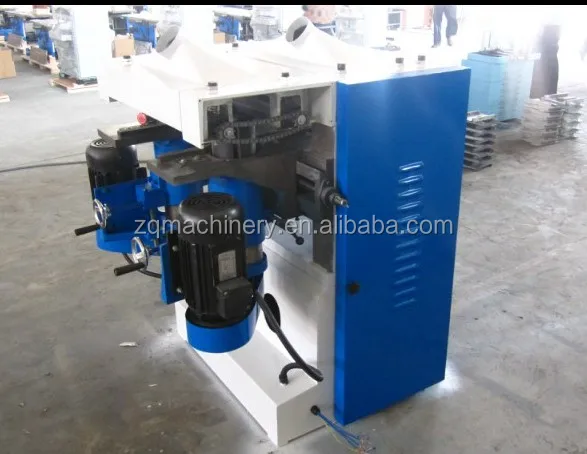

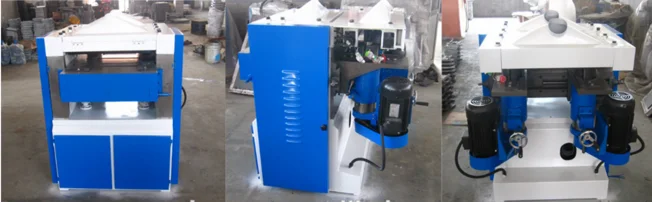

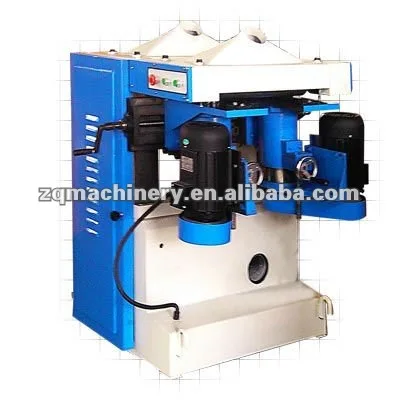

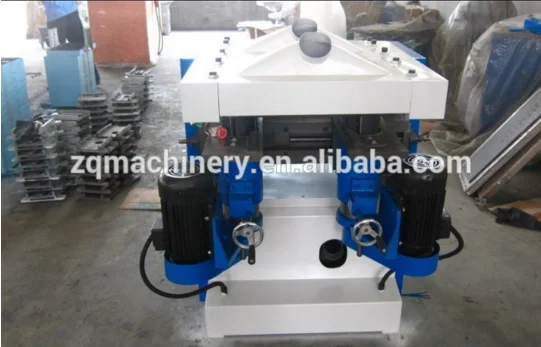

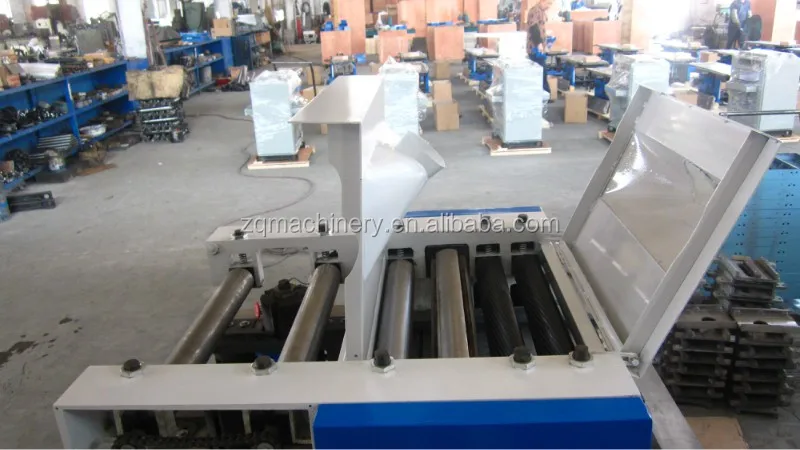

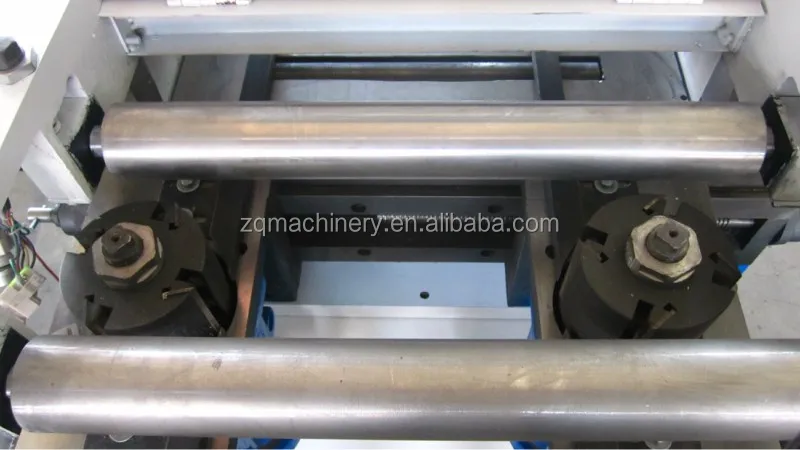

MB404 Four Side Woodworking planer Thicknesser
Description
MB404 Four side Wood working machine planer thicknesseer is the type woodworking thicknesser, developing from the traditional model;
it can be used for processing 3 or 4 sides of the timber in one time;
WOOD Thicknesser Features:
1. customers can choose the 3 or 4 sides model;
2. adopts double upper dust hooks and side dust outlet;
3. min. working width of this model can be 8mm;
WOOD Thicknesser Specifications
Max. planing width: 400mm
Max. working thickness: 120mm
Min. working thickness: 20mm
Min. working length: 300mm
Max. planing depth for up arbor: 5mm
Max. planing depth for down arbor: 3mm
Max. planing depth for right&left arbor: 5mm
Main arbor rotation speed: 8000rpm
Right and left arbor rotation speed: 7000rpm
Feeding speed: 7.5 / 9.2m/min
Main motor power: 5.5KW
Right and left motor power: 3KW
Total motor power: 11.5KW
Dimension: 1200 x 1052 x 1300mm
Weight: 620KGSFour arbors is standard, 3 arbors is optional
Customers label is available
Packing: plywood case
Delivery time: 30 days after payment
MOQ: 1pcs
