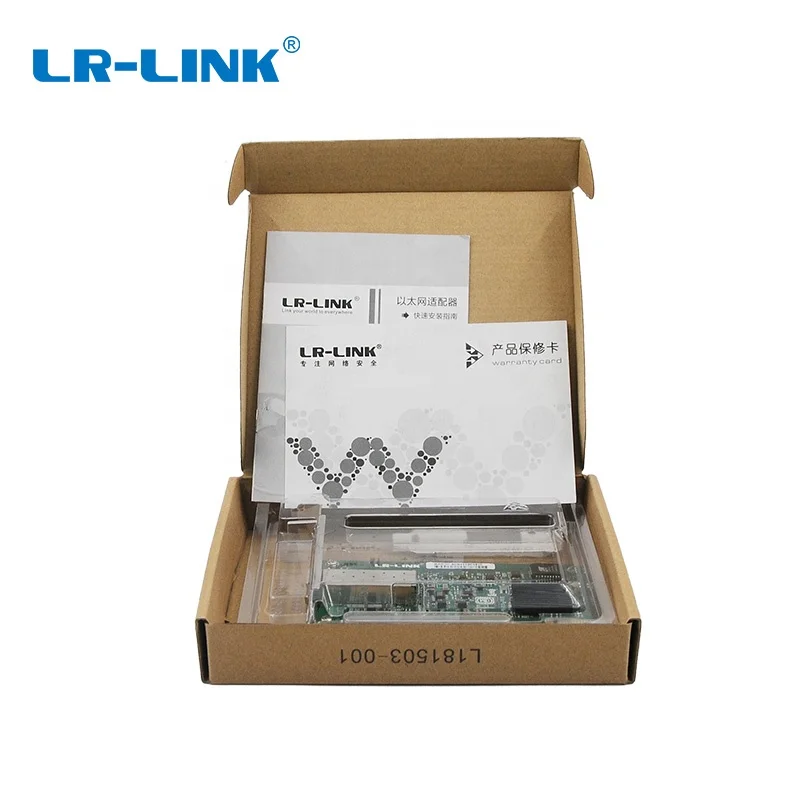

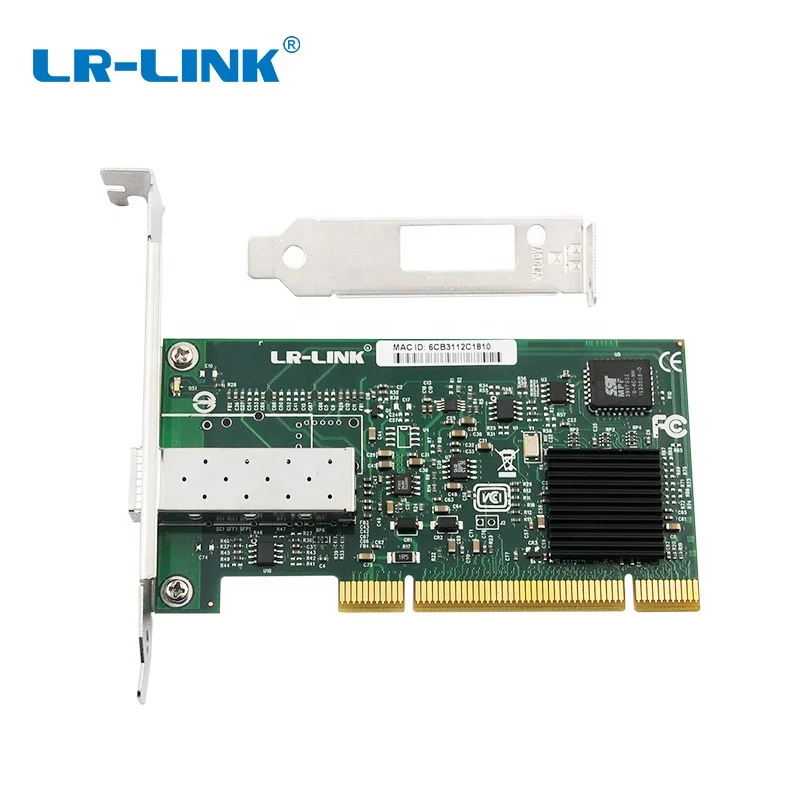

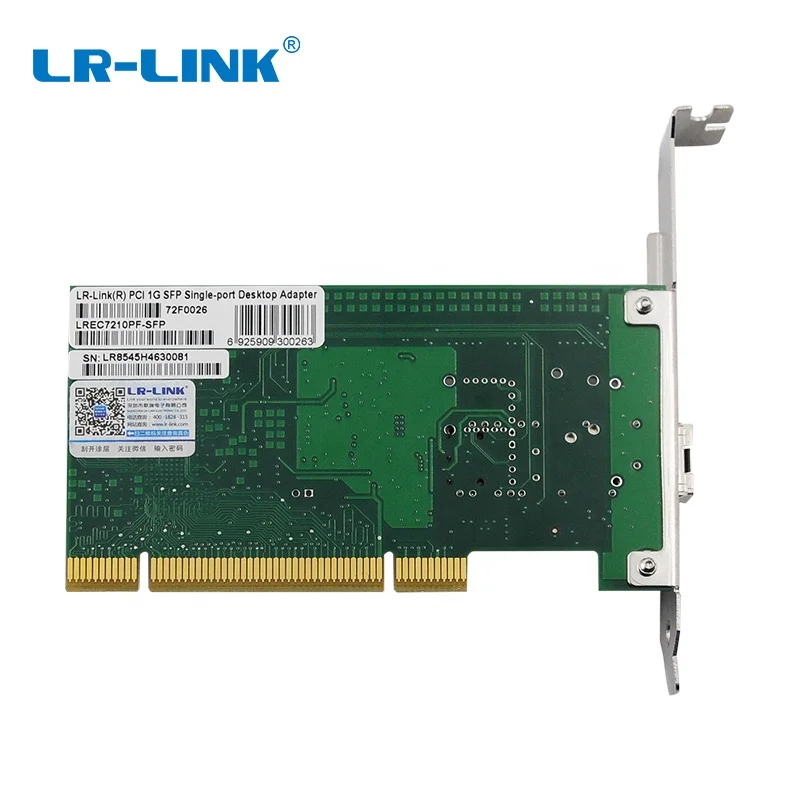

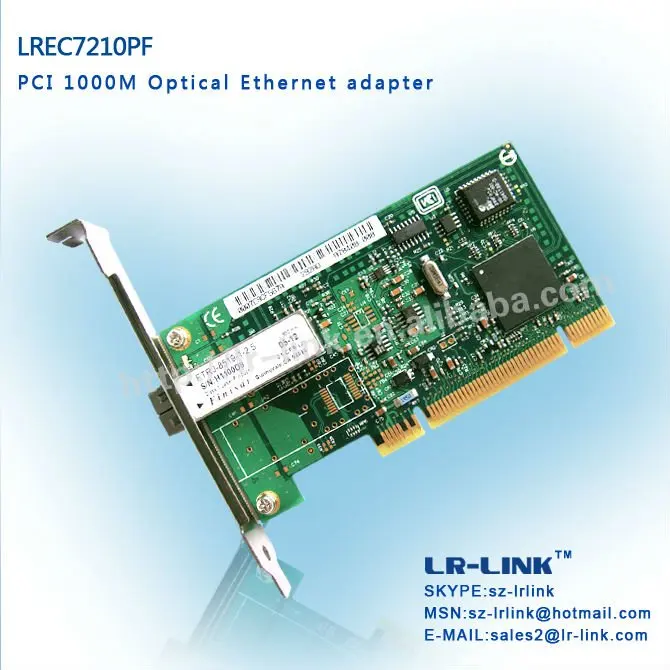

32bit PCI 1G SFP Port fiber optic network card, Intel 82545eb Controller Based

Features

  Benefits

 Support for most NOSs

 Enables widespread deployment

Supports 64- or 32-bit PCI-X 1.0 or PCI 2.2 buses

This flexible, auto-sensing adapter works in a variety of bus  types

Backward Compatibility with previous generations of Intel PRO/1000 Network Adapters

 Reduces support costs and simplifies installation and    maintenance

IEEE 802.3z Compatibility

Supports Gigabit Ethernet industry-wide networking standard

Full-height and low profile, screw-on brackets included with each adapter

Compatible with full-height and low-profile PCI slots—the standard, full-height bracket can be easily swapped out and replaced by the shorter, low-profile bracket, for installation in  high-density 1U and 2U servers that feature low-profile PCI slots

Interrupt Moderation

Delivers increased performance while significantly reducing CPU utilization

 Large Send Off-load/TCP Segmentation Off-load

Compatible with Large Send Off-load feature of Microsoft   Windows* Server 2003, 2000 and XP which enables wire speed performance with low CPU utilization

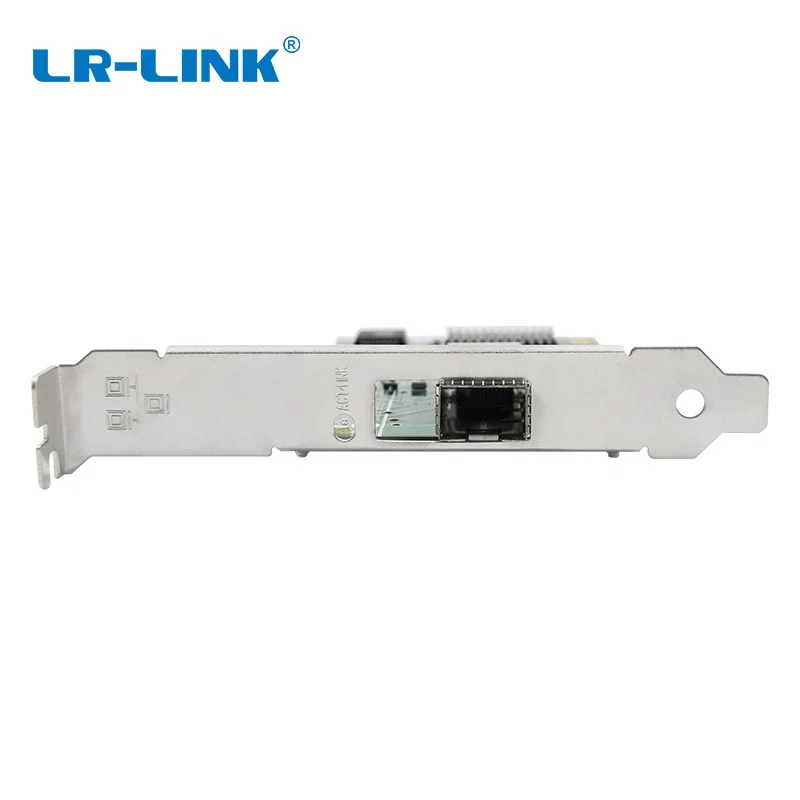

LC Connectors

This new, smaller connector design is compatible with the latest fiber-optic cabling standards

Connectors

LC Multi Fiber Optic

IEEE Standard/Network Topology

1000BASE-LX

Wiring

multi-mode/62.5um or 50um

Data Rate Supported per Port

1,000 Mbps

Bus Type

PCI

Length x Width

16.5cm x 6.4cm (6.6" x 2.5")

NOS SOFTWARE SUPPORT

Microsoft Windows Server 2003/2000
Microsoft Windows XP 32/64-bit Editions
Microsoft Windows NT 4.0
Linux* 2.4.x or later (32/64-bit)
FreeBSD 4.x or later
Novell Netware 4.11, 4.2, 5.0, 5.1, 6.0
SunSoft Solaris 7, 8
UnixWare 7.x, OpenUNIX 8 (ddi8) SCO5

 ADVANCED SOFTWARE FEATURES

Adapter Fault Tolerance
Switch Fault Tolerance
Adaptive Load Balancing
Receive Load Balancing
Gigabit EtherChannel
IEEE 802.3ad (Link Aggregation Control Protocol)
Test Switch Configuration
PCI Hot Plug and Active PCI
802.1Q VLANs
802.3x Flow Control
TCP Checksum Offload
IEEE 802.1p
TCP Segmentation/Large Send Offload
Interrupt Moderation
Save and Restore

NETWORK MANAGEMENT

Wired for Management (WfM) Baseline v2.0 Enabled for Servers
DMI 2.0 Support, WMI & SNMP-manageable
Offline Diagnostics
Intel Boot Agent
ACPI Power Management
PXE 2.0
