Factory price turbo rotodynamic vane type pump
Product Details: YB-50 Series Rotary Vane Pump
Main Features
YB series self-priming rotary vane pump is with by-pass valve built-in. The pump uses a rotor with sliding vanes to drive the liquid transfer. The material of construction is nodular cast iron with self-lubricating vanes. Due to its superior performance, the pump can handle viscous and volatile liquid and require less horsepower than other equivalent pumps. The pump has its obvious advantage in the transmission of high flow at low revolution.
Construction
Flow Rate
| Model | Size/Flow Rate/Speed | 650 RPM | 600RPM | 550 RPM | 500 RPM | 450RPM | 400 RPM | ||||||
| G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | G/min | L/min | ||
| YB-50 | 50mm/2'' | 80 | 300 | 72 | 270 | 64 | 240 | 56 | 210 | 48 | 180 | 40 | 150 |
| YB-65 | 65mm/2.5'' | 132 | 500 | 123 | 465 | 114 | 430 | 103 | 390 | 93 | 350 | 82 | 310 |
| YB-80 | 80mm/3'' | 265 | 1000 | 243 | 920 | 222 | 840 | 200 | 760 | 180 | 680 | 160 | 600 |
| YB-100 | 100mm/4'' | 505 | 1900 | 405 | 1530 | ||||||||
Performance Data
| Model | YB-50 | YB-65 | YB-80 | YB-100 | |
| Rated Speed | 640RPM | 640RPM | 640RPM | 640RPM | |
| Power | HP | 3.0 | 5.0 | 10 | 25 |
| KW | 2.2 | 4 | 7.5 | 18.5 | |
Application
Oil tank truck
Fleet refueling.
Lube oil
Aviation refuelers
Transmission of petrochemicals, gasoline, diesel, biofuel, solvent, etc.
Installation
With cardan shaft or hydraulic motor, the pump can be installed on oil tank trucks. And also it can be installed on metal baseplates with motor or diesel engine, using for high flow fuel dispensers and floating fuel equipments which are compose of pumps and flowmeters. Equipped with Teflon seals, the pump can also transfer a wide variety of solvent in the petrochemical industry.

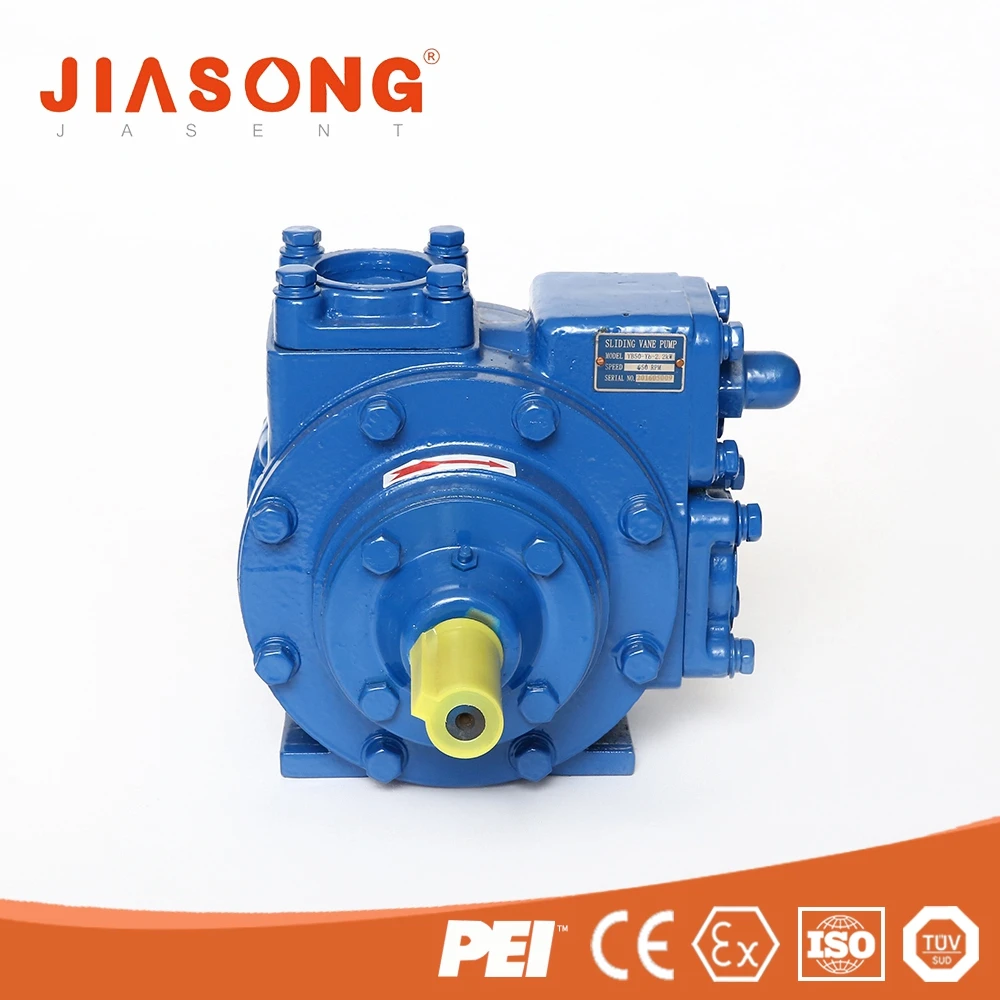

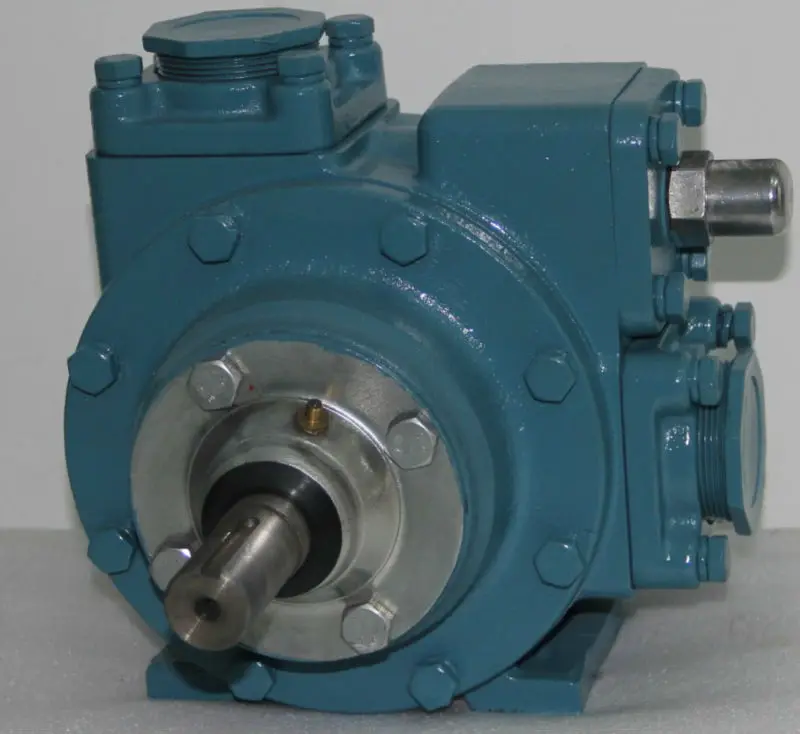

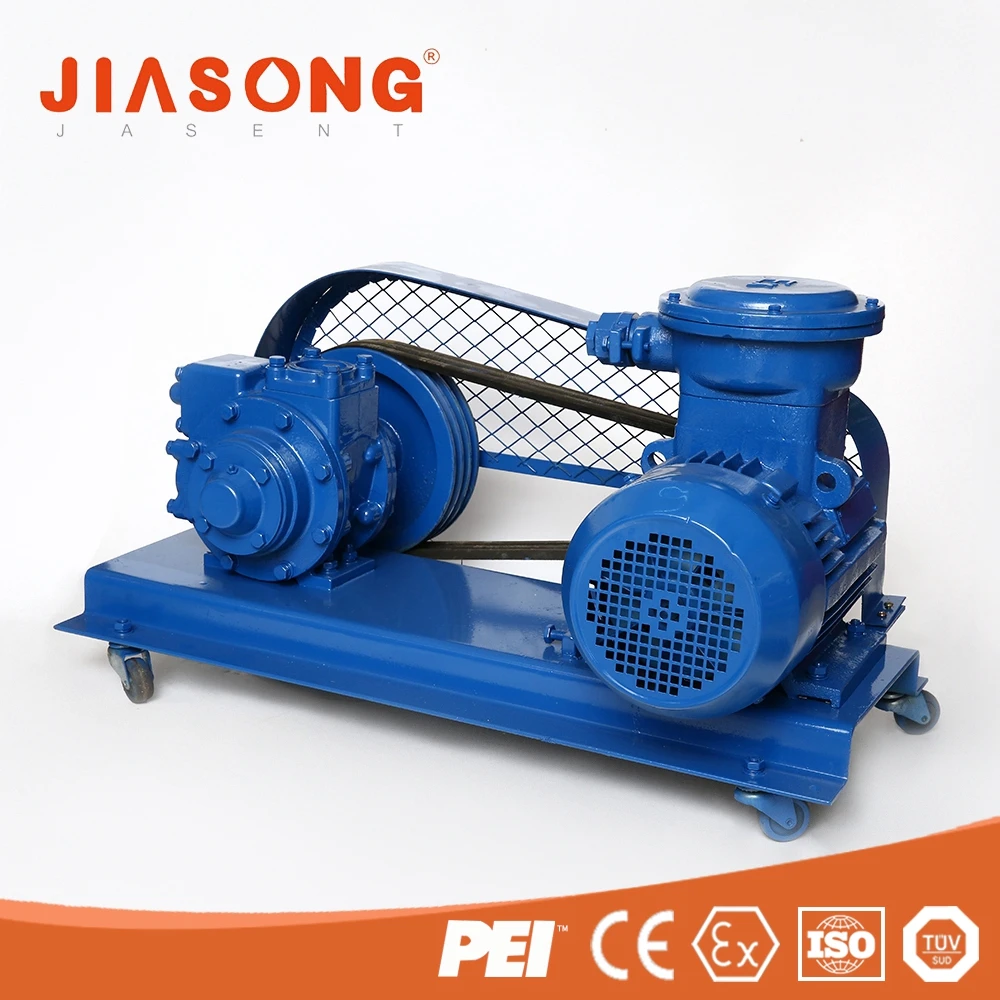

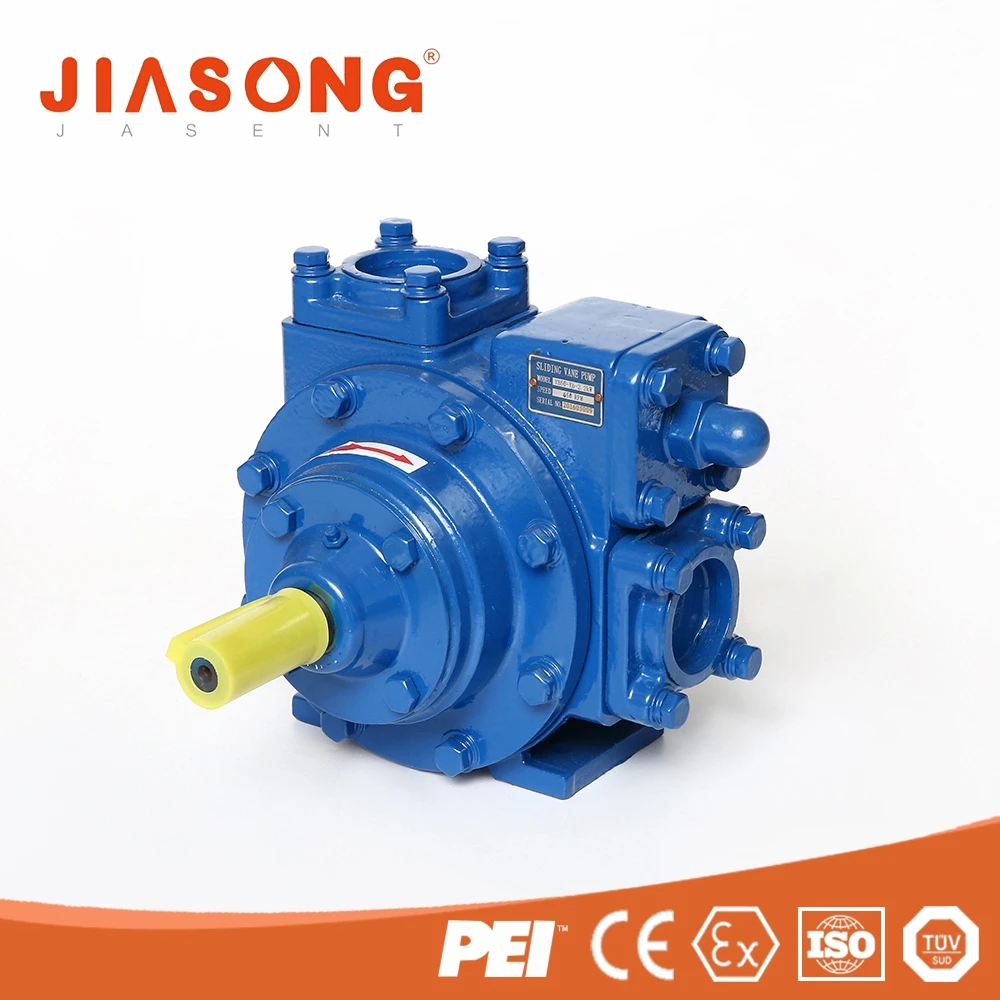

Product Images: YB-50 Series Rotary Vane Pump
Why choose jiasong ?
fashion design real meterials quality assure safty and friendy environment
be professional , rest assured
Can i negotiate the price
Yes ,we may consider discount for multiple container load of mixed goods or bulk order of individual products
pls contact with our sales and get the catalogue for your reference
