Product Overview

Description

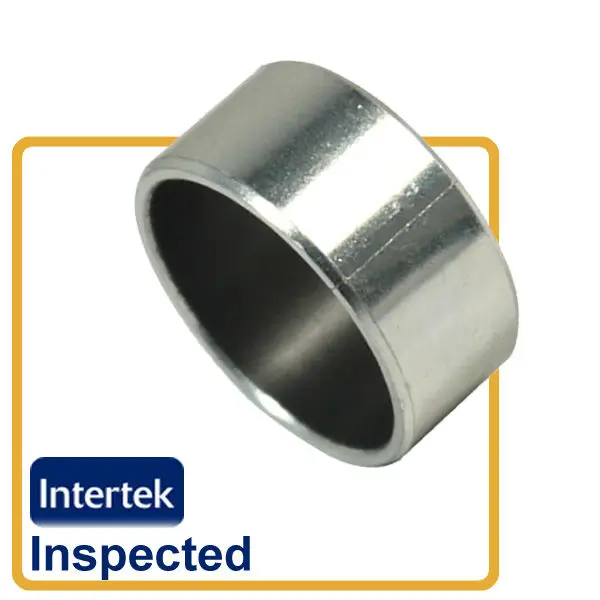

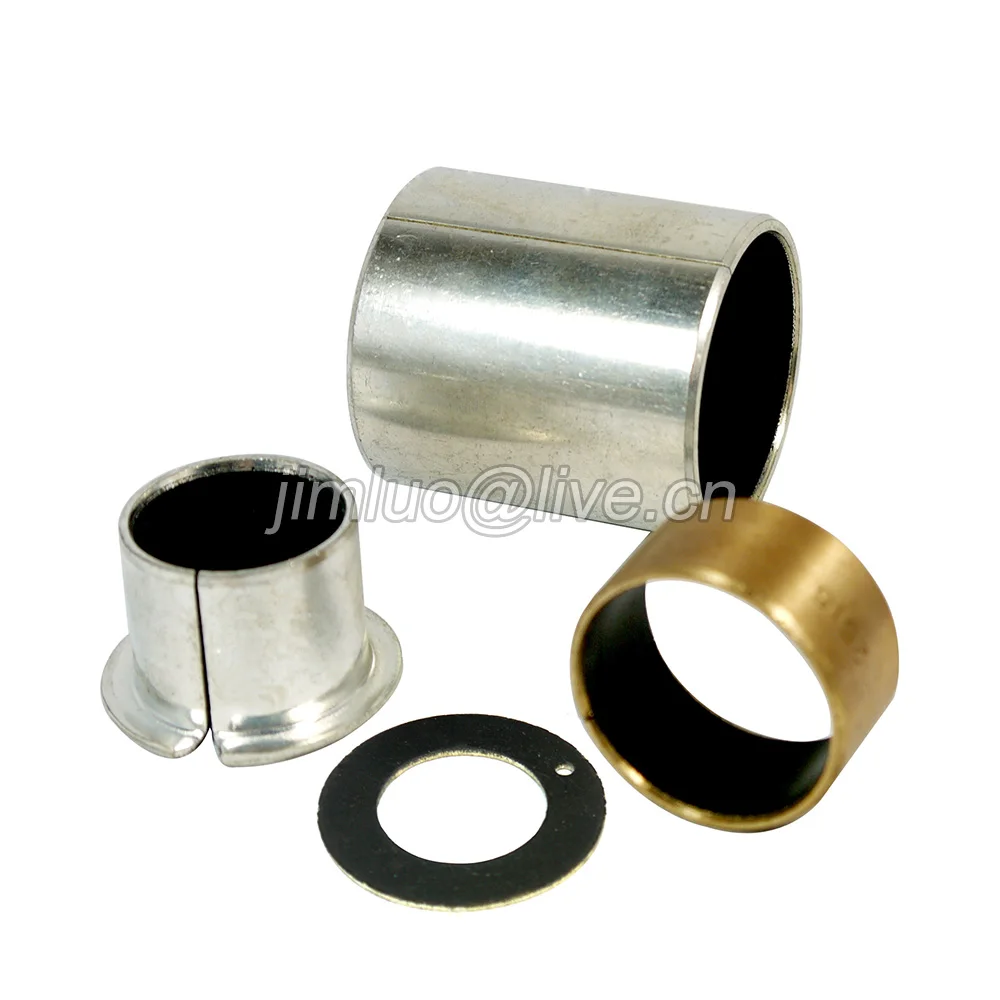

self lubricating bushing



  SF-1 is wall wrapped bushing made of triple layer composites material which be consisted of a steel backing a sintered prrous bronze particles interlayer and calendared with PTFE and Pb mixture as surface layer. It is of low friction coefficient, anti-wear , anti-corrosion and can be used without oil, or only a trace of oil if needed. Moreover, it is of low cost, low vibration and low noise, compacted and light, SF-1 is widely applied in various sliding articles of different kind of machines, such as textile machines, tobacco machinese, hydraulic vechicles, automobiles, agriculture and forests machinese and so on.



• Features:

1. It fits for low speed, heavy duty

2. Well anti-wear
3. Low vibration, low noise. compact and light





• Specifications:

Material	Steel backing	Steel+Sinterd Bronze powder+PTFE+Pb+Polymer
	Bronze backing	Bronze+Sinterd Bronze powder+PTFE+Pb+Polymer
	Stainless steel	S.S.+Sinterd Bronze powder+PTFE+Pb+Polymer
	Stainless steel	Stainless Steel+PTFE +Polymer
	Pb Free(RoHS)	All above types without Pb available
Load capacity	Static load	250N/mm2
	Dynamic load	140 N/mm2
	Oscillating	60 N/mm2
Speed Limit	Oil lubricating	5m/s
	Dry friction	2.5m/s
PV value limit	Oil lubricating	50N/mm2.m/s
	Dry friction	3.6 N/mm2.m/s
Friction coef		0.04¬0.20
Working temperature		-195~+280°C



• Cross of composit

General introduction of us



We are a professional manufactuer on various kind of bearings in China for over 14 years already.

With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.

Our experianced engineers and exporting team can answer your inquiry or comment at the first time,and providing professional service from factory visiting, making orders to deliver goods.



RIght now, we have over 100 skilled staff and different kinds of machines including automatic production lines,later machine,milling machine,CNC machine etc.





This picture showing our staff structure and basic machines list



This picture showing updated sintering machine and skilled workers in production





Our workshops are welcome you visiting:



This is our workshops buliding



We are using full new high quality raw materials only.

This is the bronze powder-steel backing sintereing line

This is a full automatic chamfering machine





Detail packing steps:



1.Clean bearings in anti-rust oil
2.Plastic films packing bearings to rollers
3.Bearings rollers put into plastic bag
4.Cartons with goods information label
5.Pallet for every 12ctns/24ctns/36ctns

Our packings are suitable for FCL or LCL sea shipping.



MOQ:1pc or 100pcs or 1000pcs

(Different model and size have different requirement)

Delivery: you can choose different delivery ways for different qty orders.



Our quality management:



We will make inter inspection on every step of production.

Also you can order inspection company monitoring our production in our workshops.



1.ISO/TS 16949 Production Quality Management Certification

2.We will make measure guages calibration every 6 months

3.Record of calibration in certified lab

4.Certificate of lab





Awaiting for your inquiry,we will response you at the first time!

Please contact us from this page or find our contacts from the Index page of our site.
