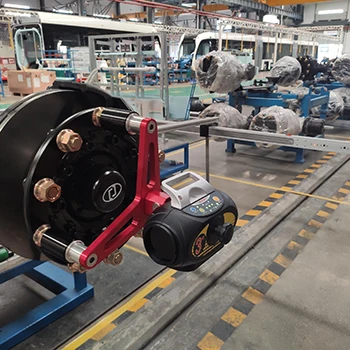

MILLER Truck/Bus/Trailer Wheel alignment machine with CE (ML TAR 3)

Product Overview

Description

MILLER Truck/Bus/Trailer Wheel alignment machine with CE (ML-TAR-3)







No Matter how big your truck , advance yet simple!

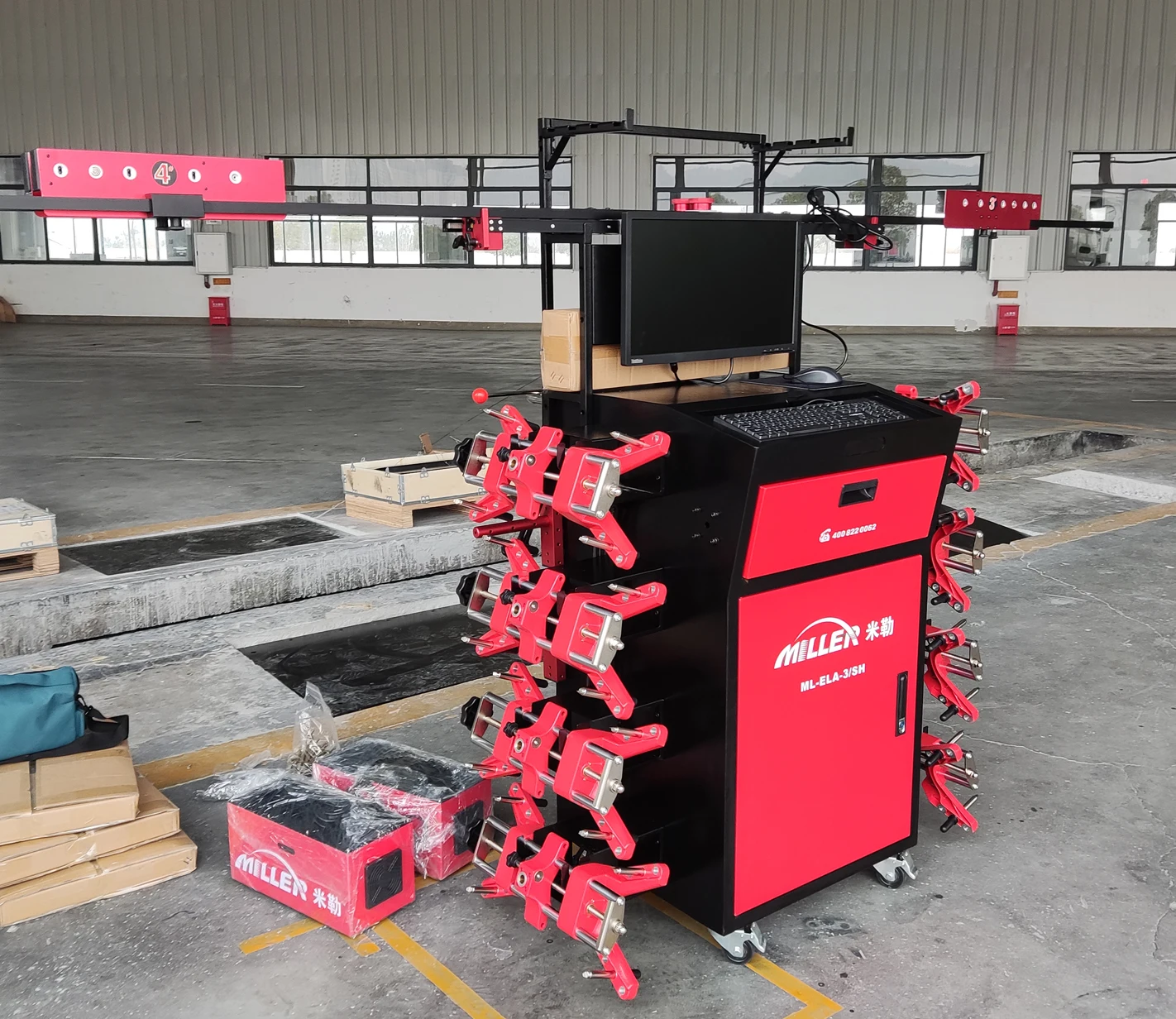

Eight clamps, Two Camera sensors! Look at this shining alignment machine:

it is our fastest truck alignment system. It can measure a truck,a bus or a trailor less

than six minutes!

It's a machine save your time and increase your margin!

____________________________________________________________________

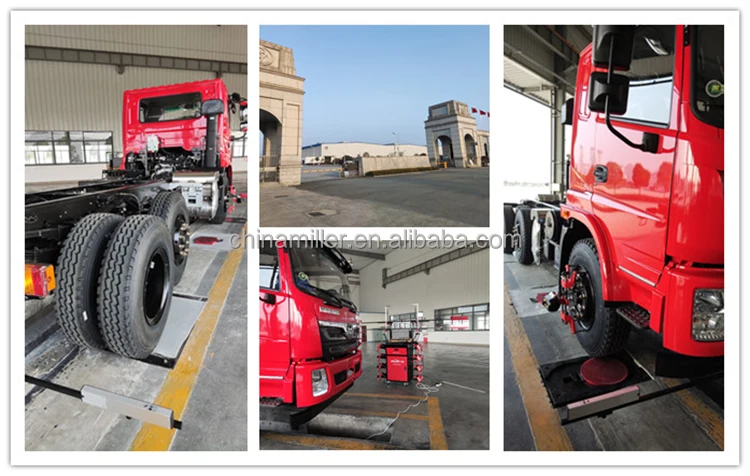

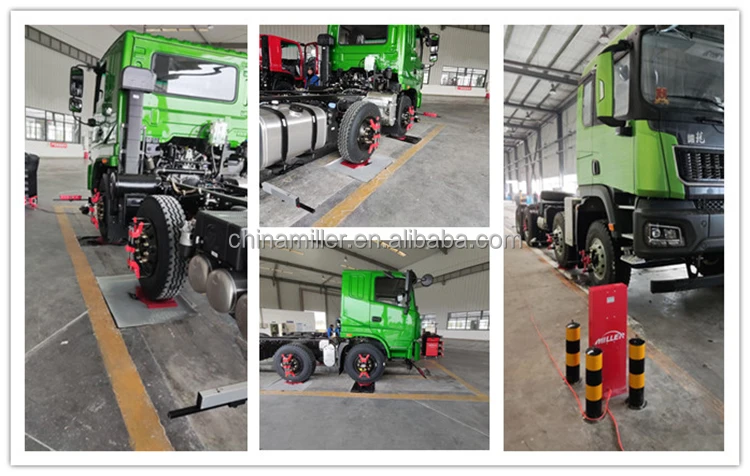

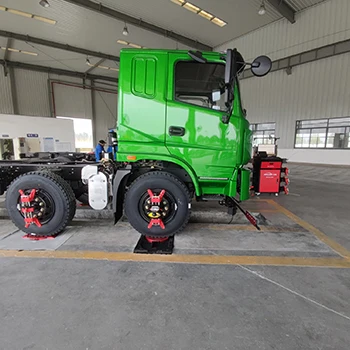

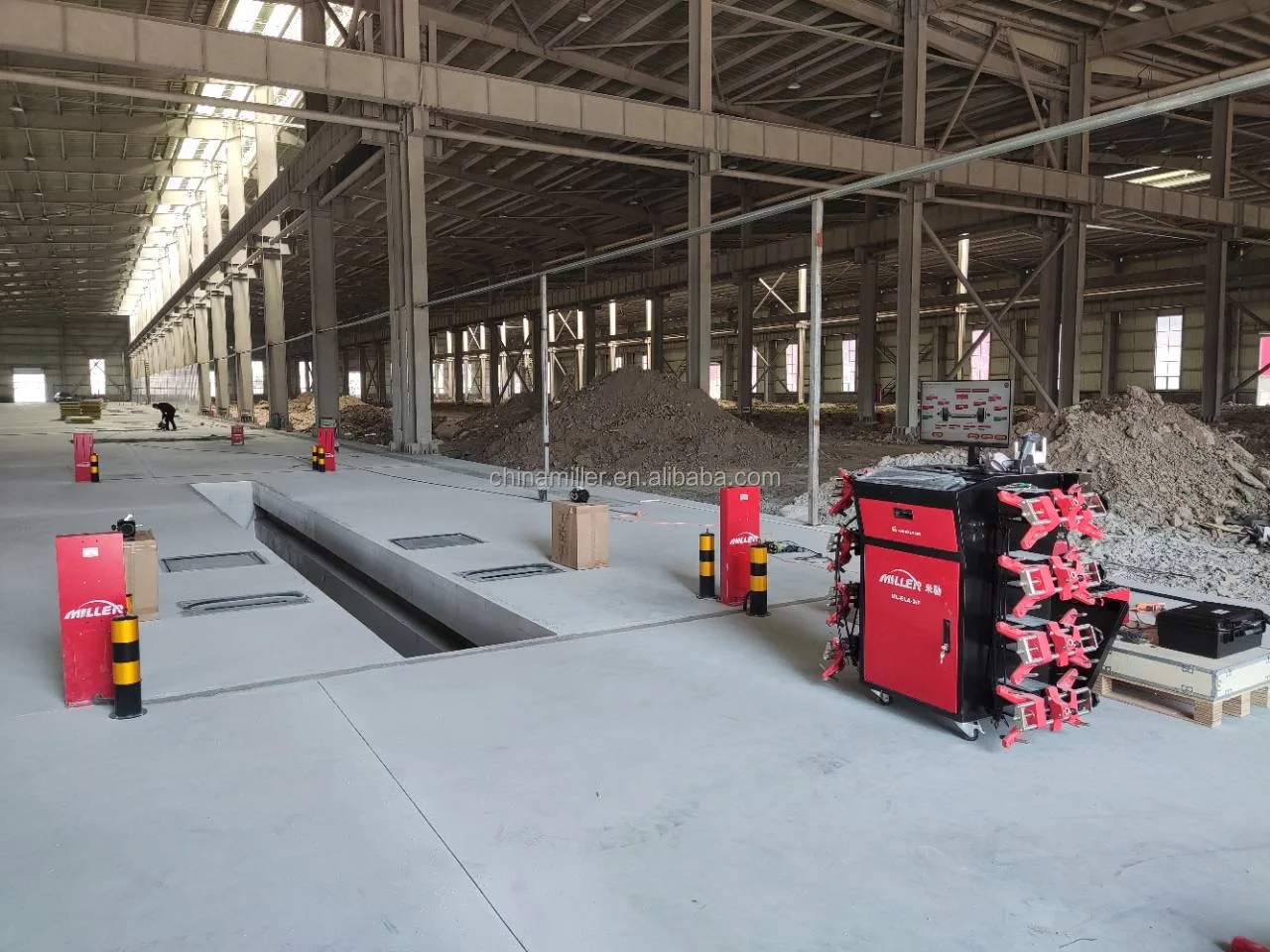

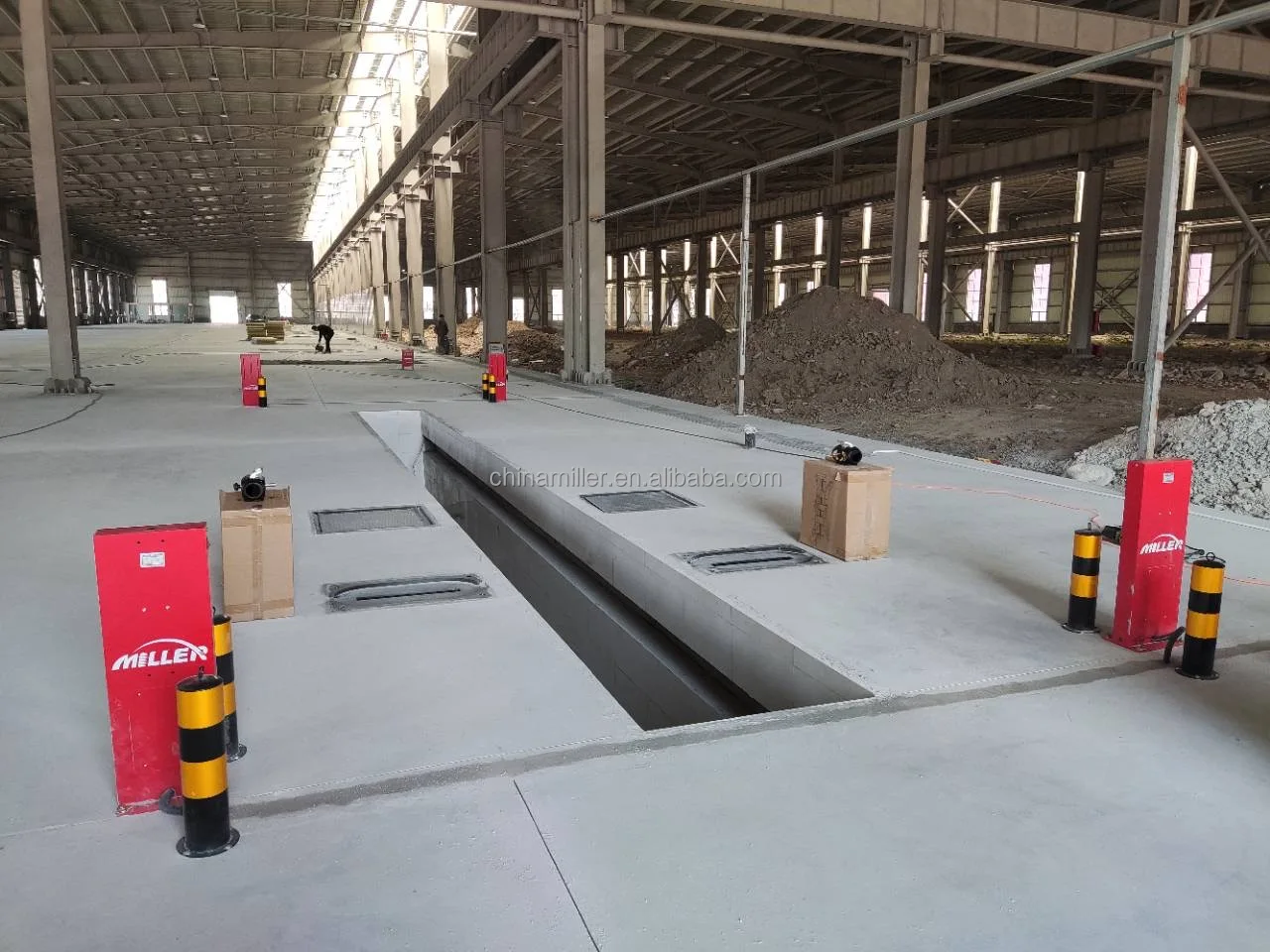

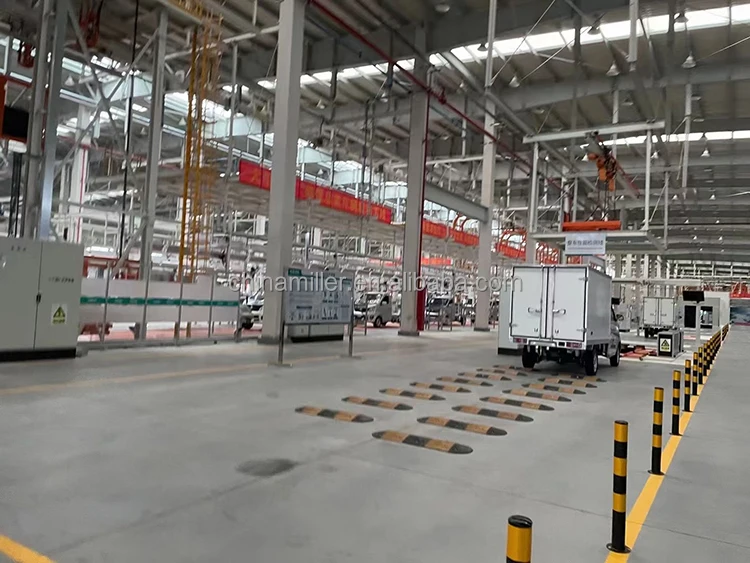

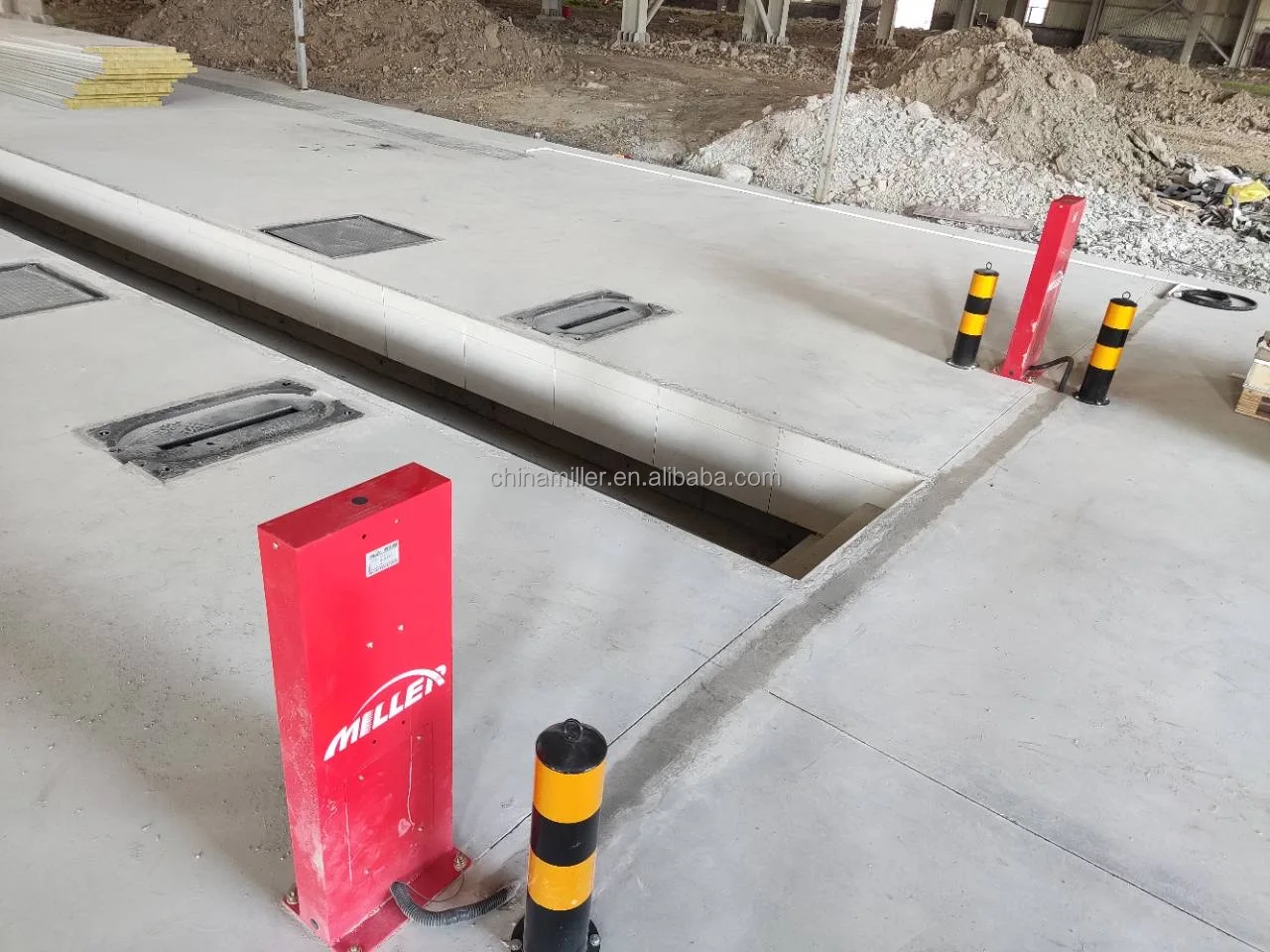

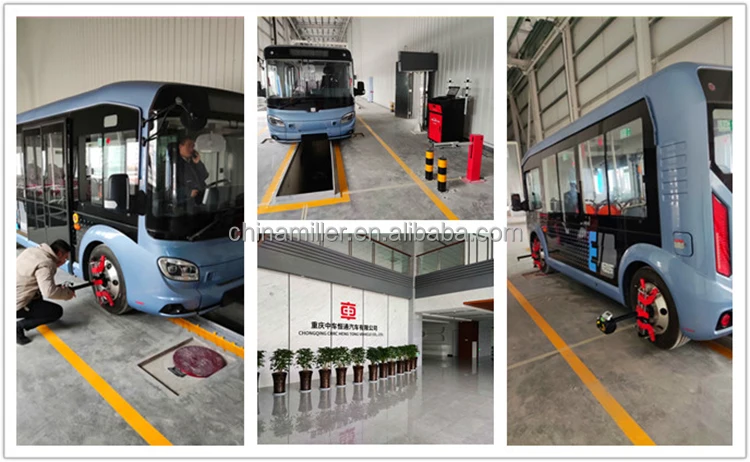

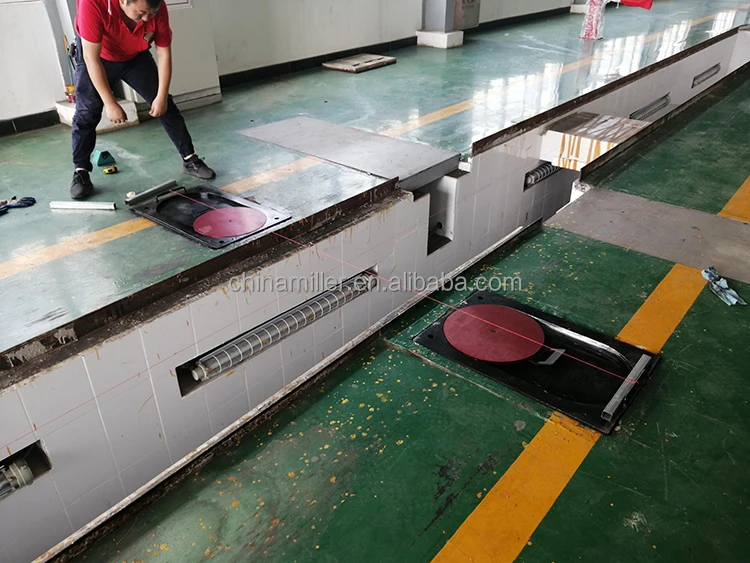

Our Project:





















ML-TAR-3 schematic

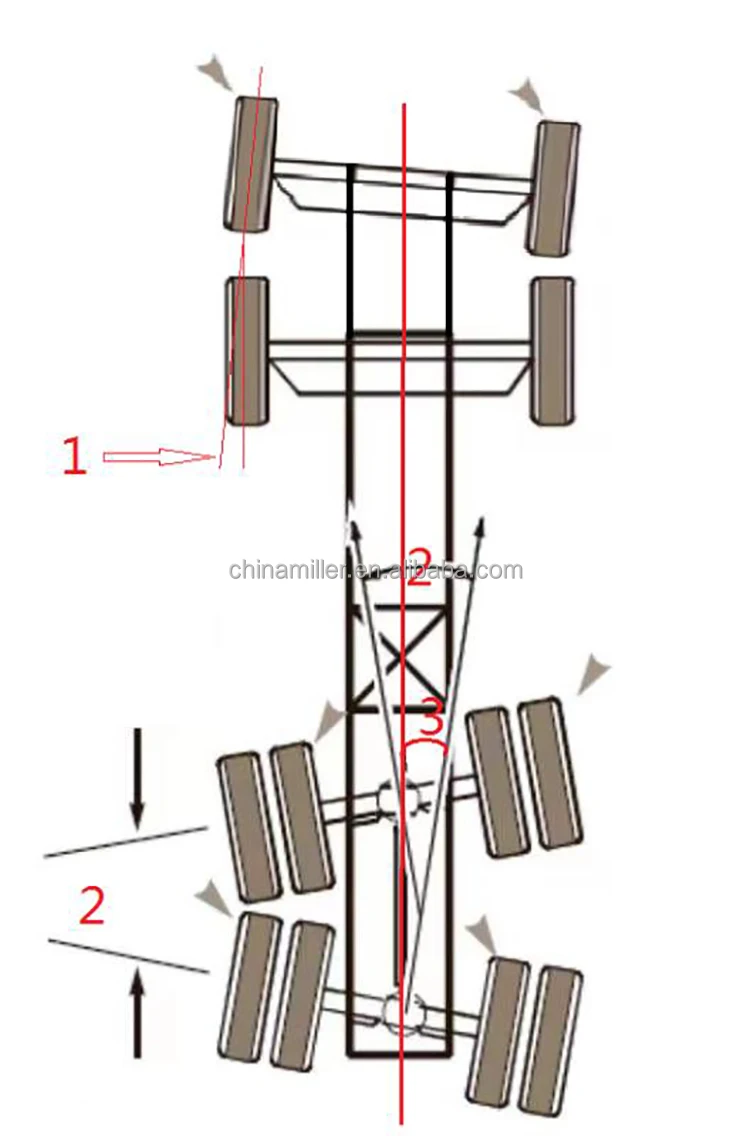

ML-TAR-3 MEASURABLE ANGLES







♦ Model No.:ML-TAR-III

♦ Product Details

√. Number of measurable axis: dual axis



√. Measurable vehicle length:   14m



√. Total toe-in of each axis: +10°~-10°(±0.02°)



√. Single toe-in of each axis: +5°~-5°(±0.01°)



√. Camber of each wheel:  +10°~-10°(±0.01°)



√. Caster of turning wheel: +25°~-25°(±0.03°)



√. K.P.I of turning wheel: +25°~-25°(±0.03°)



√. Nonperpendicular degree:  +10°~-10°(±0.02°)



√. Parallelism between main and vice turning wheels: +10°~-10°(±0.01°)



√. Parrallelism between main rear axle and vice rear axle: +10°~-10°(±0.01°)



√. Max. turning angle: +40°~-40°(±0.05°)



√. 20 degree anti toe-in: +5°~-5°(±0.03°)

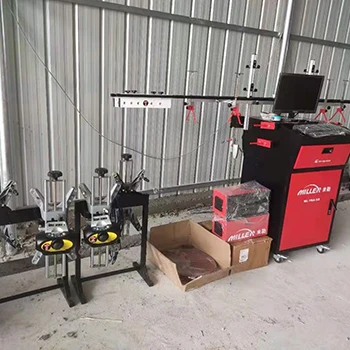

♦ Standard Configure

Measuring Heads		4pc
Cabinet		1pc
Computer		1pc
Keyboard and Mouse		1set
Monitor(19")		1pc
Clamps		4pc
Turntables		2pc
Hanging target		2 sets

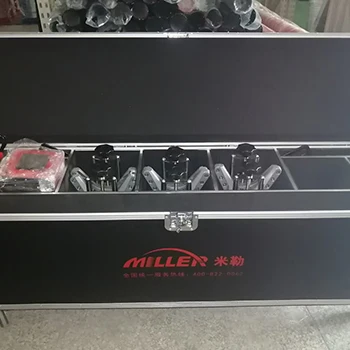

♦ Some Accessories Show

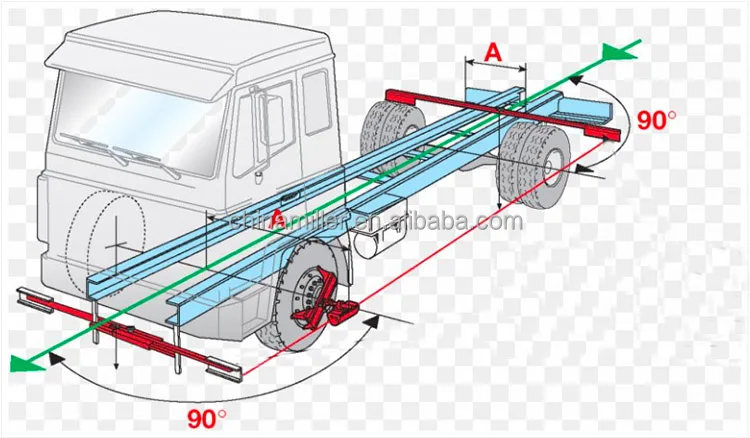

♦ Photo For Measurement Principle
