Product Overview
Description
Product Description

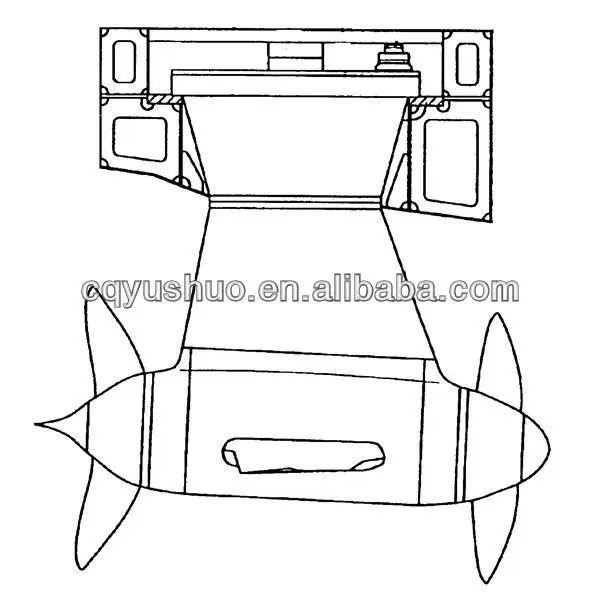

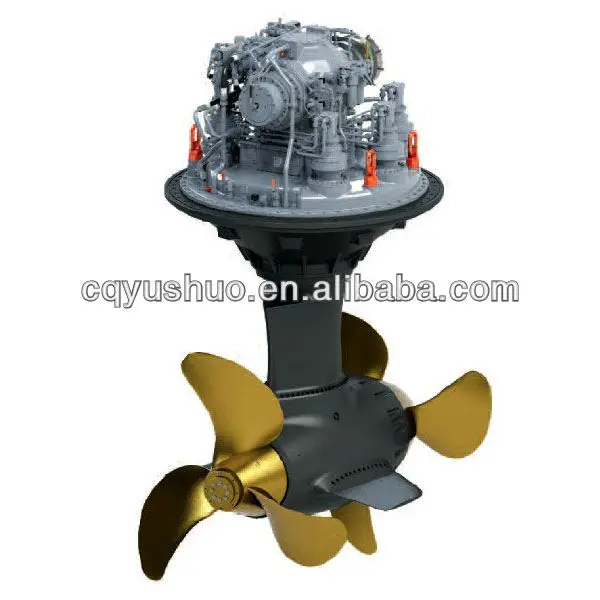

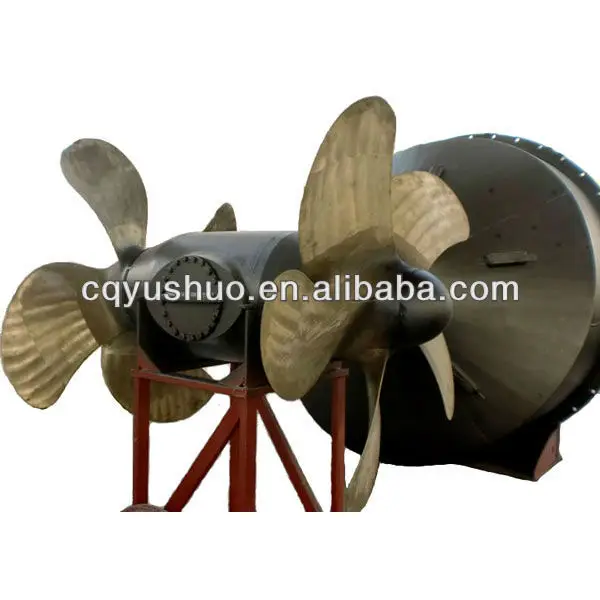

Marine Azimuth Thruster
The design and manufacture of our azimuth thruster is totally in accordance with the requirements of IMO, SOLAS, and Classification Societies. It can be well instalation type and deck installation type, according to its installation method.
Specification for Counter Rotating Azimuth Thruster:
| Type | Power Range (kW) | Input Speed (rpm) | Propeller Diameter (mm) | Propeller Type |
| YSZ160-CR | 80-240 | 1800/2000 | 600-650 | FP |
| YSZ250-CR | 200-240 | 1800/2000 | 750-860 | FP |
| YSZ450-CR | 350-710 | 1800/2000 | 1100-1200 | FP |
| YSZ700-CR | 600-850 | 1600/1800 | 1250-1350 | FP/CP |
| YSZ800-CR | 700-990 | 1600/1800 | 1350-1500 | FP/CP |
| YSZ900-CR | 800-1320 | 1600/1800 | 1350-1500 | FP/CP |
| YSZ1250-CR | 1200-1800 | 1600/1800 | 1600-1750 | FP/CP |
Application:
Container vessels, tankers, bulk carriers and dry cargo vessels , speed boat,etc.
Other Information:
We design and supply all marine equipments for container ships,cargo ships,tankers,bug boats,trawlers and fishing boats etc. Including Main engine,Gearbox,Shaftings,FPP,CPP,Rudder propellers,Tunnel thrusters,Azimuth thrusters,Water jets,also Main propulsion assembly,Deck machines,auxiliary machines,etc.
