16IR 10ABUT buttress threading inserts

Product Overview

Description

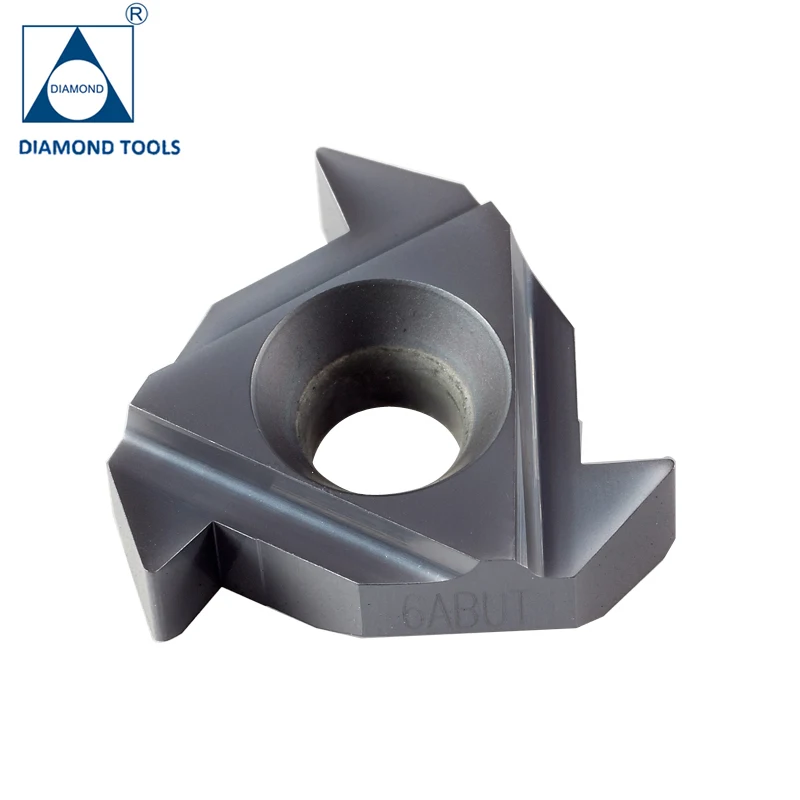

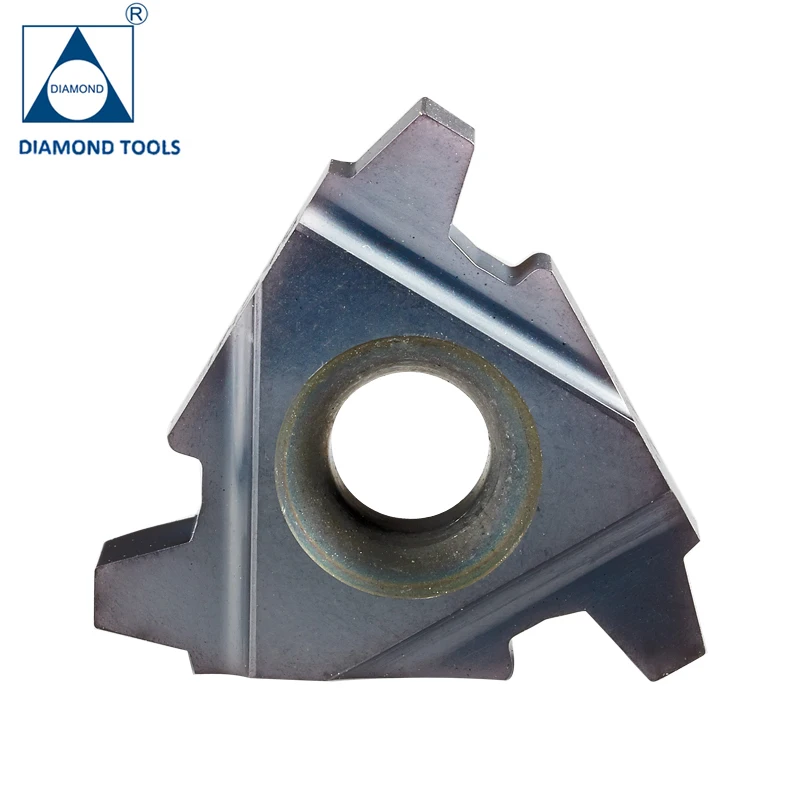

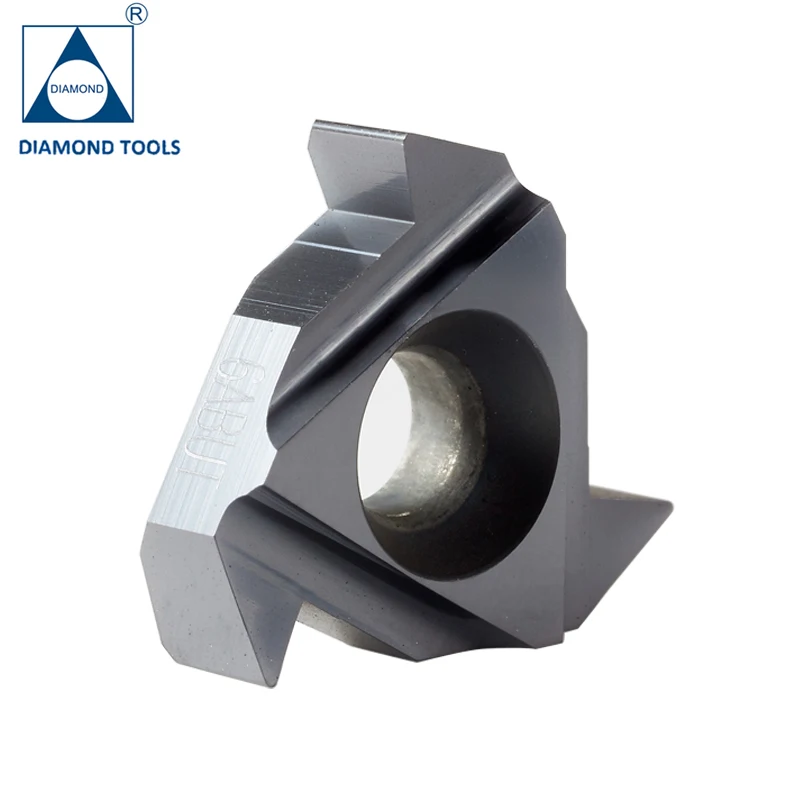

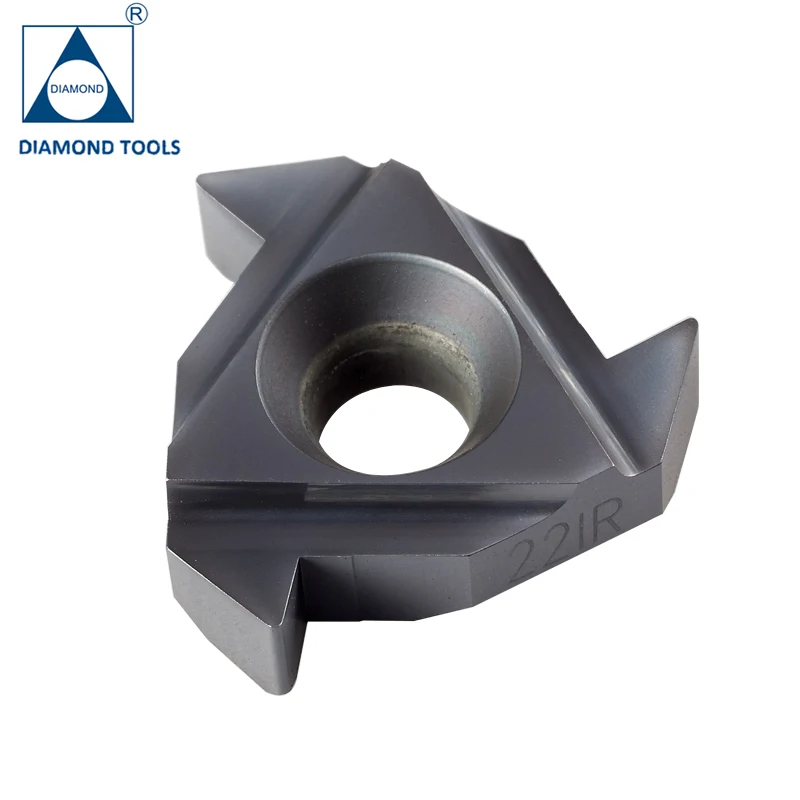

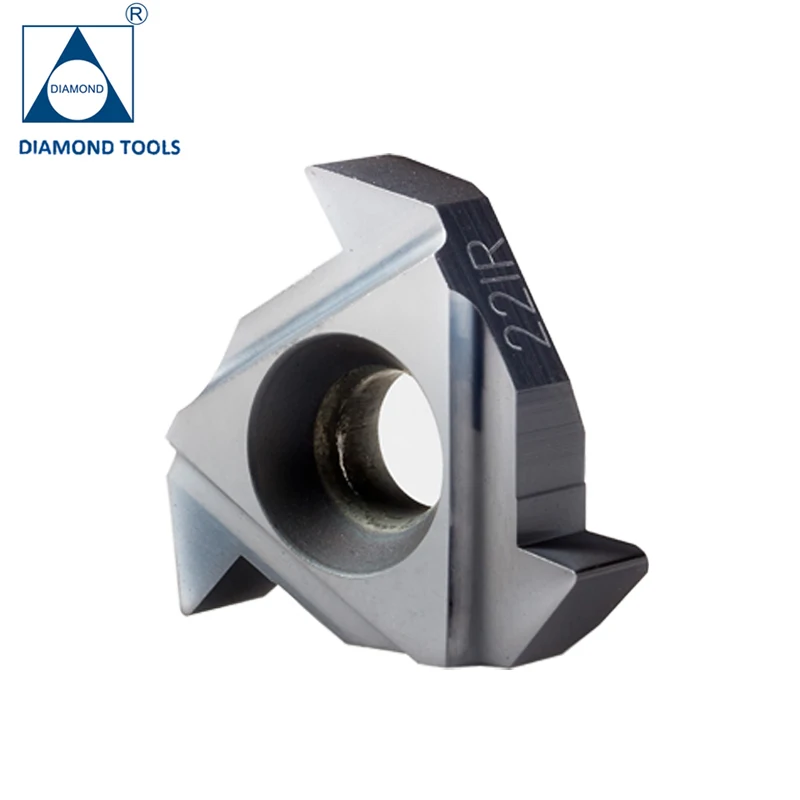

    16IR 10ABUT buttress threading inserts



1. Full profile design ensures the high precision of threads

2. Smooth rake face makes the chip removal easier

3. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the machining performance

4. We keep almost all standard types in stock

(partial file 55 and 60 degree, ISO, UN, UNJ, W, NPT, NPTF, BSPT, ACME, TR, ABUT, RD, API)



Specification

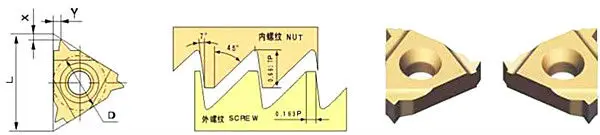

buttress threading inserts	D	Pitch	Designation		Dimension
		TPI	Right Hand	Left Hand	L	X	Y
ABUT	1/4"	20	11IR 20ABUT	11IL 20ABUT	11	1.0	1.4
		16	11IR 16ABUT	11IL 16ABUT		1.3	1.9
	3/8"	20	16IR 20ABUT	16IL 20ABUT	16	1.0	1.4
		16	16IR 16ABUT	16IL 16ABUT		1.3	1.9
		12	16IR 12ABUT	16IL 12ABUT		1.4	2.0
		10	16IR 10ABUT	16IL 10ABUT		1.5	2.3
	1/2"	8	22IR 8ABUT	22IL 8ABUT	22	2.0	3.2
		6	22IR 6ABUT	22IL 6ABUT		2.2	3.5

♥ Remark: For other models and external threading inserts, please contact us directly.



standard package

standard label



We can get discount shipping cost (80% off), save your cost!



Application

Coating	TIALN	TIN
Material processed	(m/min)	(m/min)
Low carbon steel or medium-carbon steel	80-130	80-140
High carbon steel	60-110	60-120
Alloy steel or Adjusting quality steel	60-110	60-120
Stainless steel	60-100	/
Cast steel	60-110	60-120
Cast iron	60-200	/
Aluminum alloy or Copper alloy	90-280	/



BALINIT® coatings (Oerlikon Balzers)
