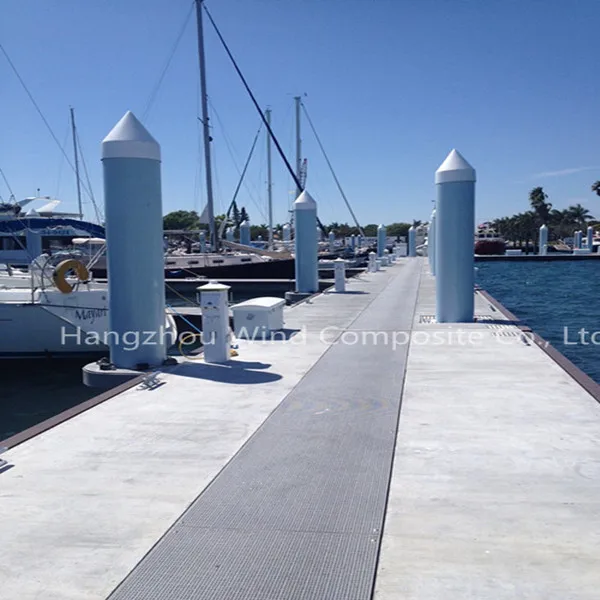

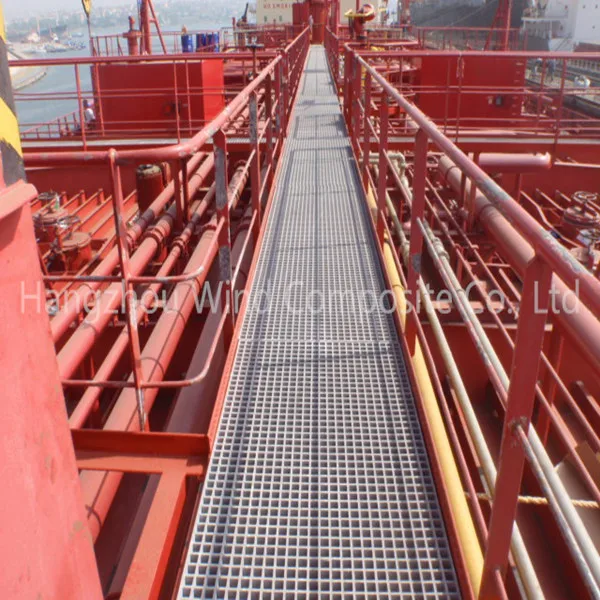

frp fiberglass grating walkway
- Category: >>>
- Supplier: Hangzhou Wind Composite Co. Ltd. [Zhejiang China]Hangzhou
Share on (997011529):
Product Overview
Description

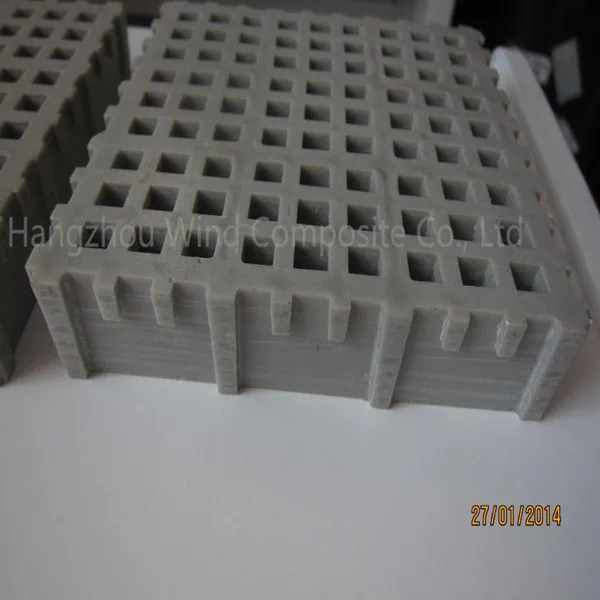

FRP Grating
Surface:
Raw material
1. Resin system
Resin system | Resin Type | Description | Application |
High flame resistant vinyl ester | Type HV | Superior corrosion resistance and enhanced fore retardant, flame spread rating ASTM E84 Class 1,10 or less, operation temperature-50°C~110°C. | Such gratings can be used in the environments with serious corrosion requiring better flame resistance. |
Isophthalic Polyester
| Type I | Industrial grade corrosion resistance and fire retardant, flame spread rating ASTM E84 Class 1,25 or less, operation temperature-50°C~105°C. | Such gratings can be used in the environments of middle concentration inorganic acid, inorganic alkali, etc. |
Food grade polyester | Type F | Food grade corrosion resistance and fire retardant, operation temperature-50°C~105°C. | Such gratings are often used in food plants or drinking water plants. |
Orthophthalic Polyester | Type O | Moderate corrosion resistance and fire retardant, flame spread rating ASTM E84 Class 1,25 or less, operation temperature50°C-100°C. | Such gratings are perfect for use in water/wastewater or air-aging application, light industrial applications, and in the wave zone areas of offshore platforms where the environment is moderate. Although Type O is the least chemical resistant resin, it still offers superior performance to traditional flooring products such as steel, aluminum and wood, and is the most economical resin available. |
2. Fiberglass
Ingredient | Specification | Property | Application |
E-glass | 2400TEX OR 4800TEX | Excellent soaking ability ensures solid combination with resin, thus perfect physical property and anti-corrosion property | For environments requiring high strength and corrosion resistance |
C-glass | 2400TEX | Excellent soaking ability ensures solid combination with resin and good anti-acid property. | For environments without alkali corrosion |

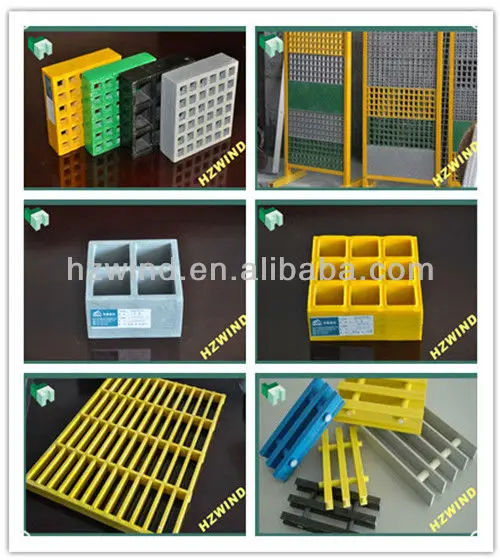

FRP grating specification
Model No. | Mesh Size (mm) | Thickness (mm) | Full Panel Size (mm) | Open Area | Net Weight (Kg/m²) | Noted |
WD-FG01 | 38*38 | 15 | 1262*3663 | 72 | 7.5 |
|
WD-FG02 | 50*50 | 15 | 1223*3663 | 65 | 6.5 |
|
WD-FG03 | 38*38 | 25 | 1223*3663 | 68.7 | 12.4 |
|
WD-FG04 | 100*25 | 25 | 1010*3010 | 65.7 | 12.4 |
|
WD-FG05 | 38*38 | 30 | 1223*4040 | 68.3 | 15.1 |
|
WD-FG06 | 19*19 | 30 | 1223*3663 | 39.6 | 21.5 | mini mesh |
WD-FG07 | 38*38 | 35 | 1223*3663 | 66.1 | 17.8 |
|
WD-FG08 | 38*38 | 38 | 1223*3663 | 66.1 | 19.3 |
|
WD-FG09 | 19*19 | 38 | 1223*3663 | 39.6 | 22.8 | mini mesh |
WD-FG10 | 40*40 | 40 | 1260*3690 | 69.6 | 19.3 |
|
WD-FG11 | 50*50 | 50 | 1223*3663 | 70.6 | 21.5 |
|
WD-FG12 | 19(19 | 25 | 1223*3663 | 39.6 | 16.8 | mini mesh |
Why Choose JingCheng FRP Grating
(1).Safety: FRP is recommended when corrosion protection and safety are your goal.
(2).Stability: Expansion and contraction is 24% and 50% less than aluminum and steel, providing greater dimensional stability.
3).Durability: Superior durability to Stainless Steel, Aluminum Gratings, especially in highly corrosive environments.
(4).Strength:50%higher tensile strength than hot rolled steel and better impact resistance.

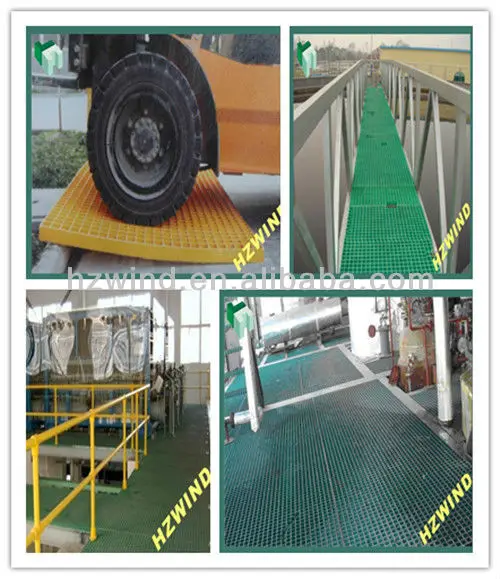

Product application

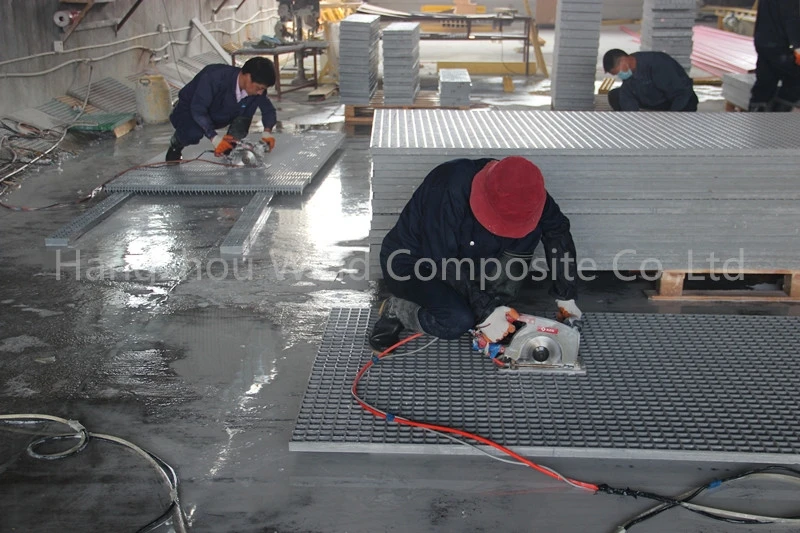

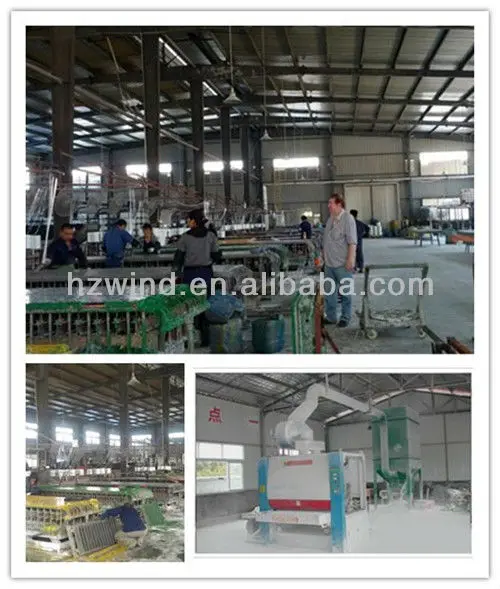

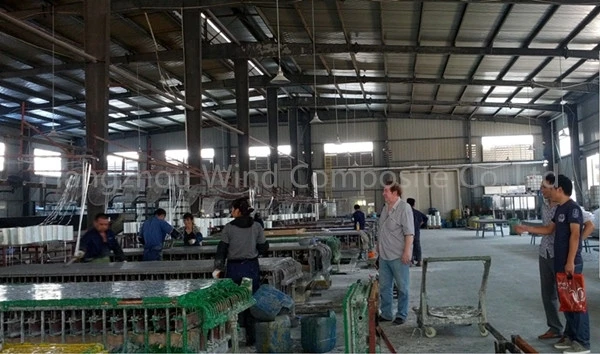

Manufacturing System Introduction
