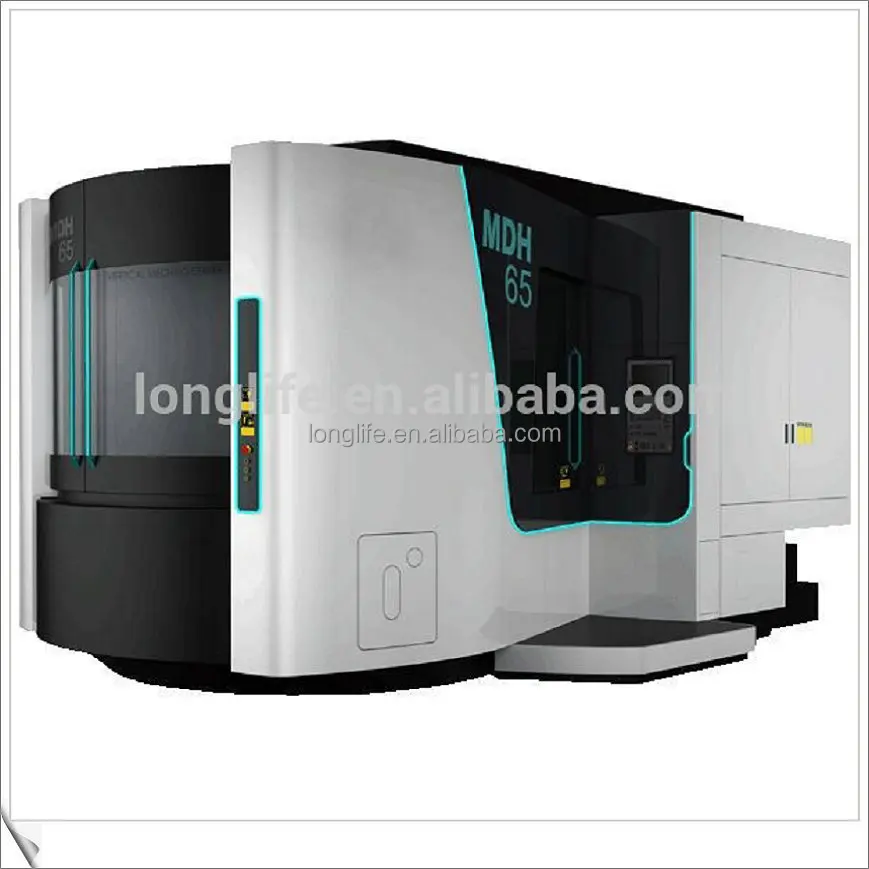

MDH65 CNC Horizontal Machining Center
Machine Featurers:
1. MDH Series cnc horizontal machining center is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.
2. The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.
3. The spindle design makes it particularly suitable for heavy power cutting while the excellent ball screw and spindle cooling system provide superb capability for flexible manufacturing.
4. High-speed High-power Spindle,
5. Compact Configuration and Unrivaled rigidity;
6. High-speed ATC,
7. High-speed APC
8. CE Standard and CE Certificate.

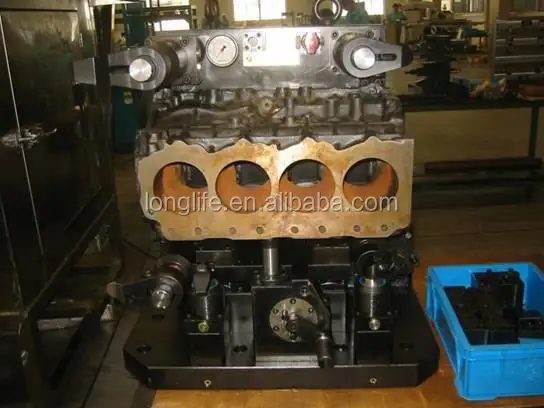

Detailed Photos
Main Technical Data
Specifications | Unit | Parameter |
Table size | mm | 630x630 |
Max. table load | kg | 1300 |
Workpiece range (diameter x height) | mm | Dia. 1110x1220 |
X/Y/Z axis coordinate travel | mm | 1050/900/900 |
Table top to spindle center distance | mm | 80~980 |
Table center to spindle front-end distance | mm | 200~1100 |
Spindle speed | rpm | 8000(Opt.12000) |
Spindle internal taper |
| No.50 (7:24) |
Spindle drive type |
| Electric spindle (OPT. gear spindle) |
Spindle power | kW | 18 (continuous) / 22(30min) |
Spindle maximum output torque | Nm | 214 (continuous)/232(30min) /292(40%) |
Tool storage capacity |
| 40 Chain tool changer (Opt.60,80,120 Chain tool changer) |
knife handle form |
| BT50-45° |
Max. tool weight | kg | 25 |
Max. tool diameter | mm | Dia. 115(Adjacent empty: dia. 270) |
Max. tool length | mm | 500 |
Time of tool change | s | 2 (T-T) |
Max. X/Y/Z axis cutting speed | m/min | 20 |
X/Y/Z axis fast feed speed | m/min | 54 |
Positioning accuracy | mm | 0.010(Full trip) |
Repeat positioning accuracy | mm | 0.006(Full trip) |
Main motor power
| kW | 22 |
X/Y/Z axis motor power | kW | 5.5/5.5/5.5 |
Machine dimensions L x W x H) | mm | 5145x3342x3355 |
Machine weight | kg | 18000 |
