Disposable slippers flow packing machine manufacturer
- Category: >>>
- Supplier: Foshan Suk Precision Machinery Co. Ltd.
Share on (997337525):
Product Overview
Description
Product Description
Product Application
1:Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.

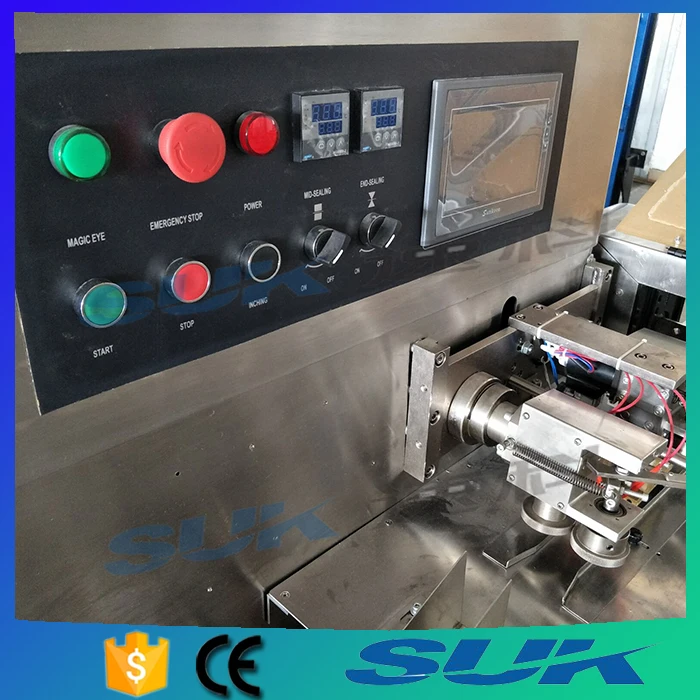

2:human-machine operation, convenient and quick parameter setting.
3:Self diagnosis failure function, clear failure display.

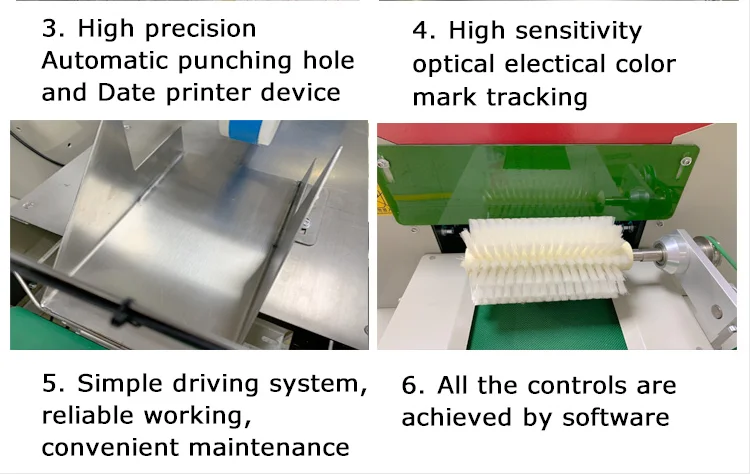

4:High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5: Separate PID control to temperature, suitable for various packing materials.
6:Stopping the machine in selected position, no sticking to the knife and no waste packing film.

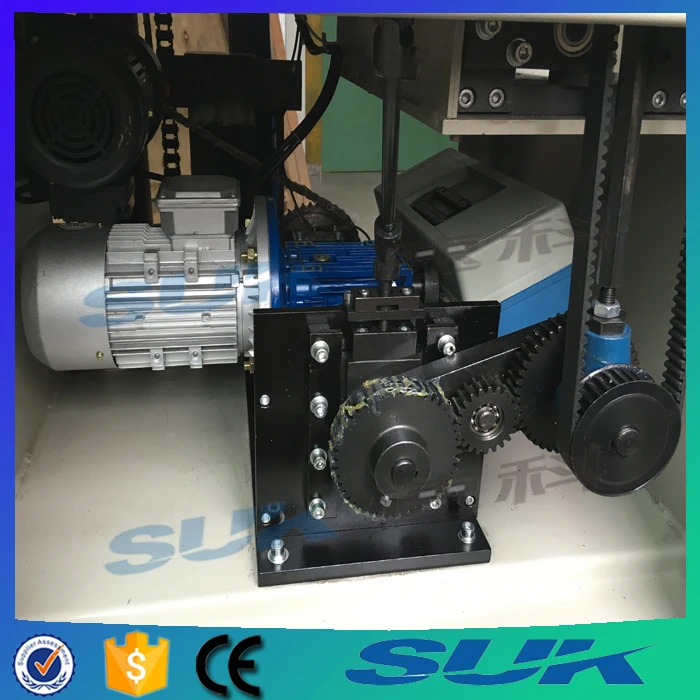

7:Simple driving system, reliable working, convenient maintenance.
8: All the controls are achieved by software, convenient for function adjusting and upgrading.

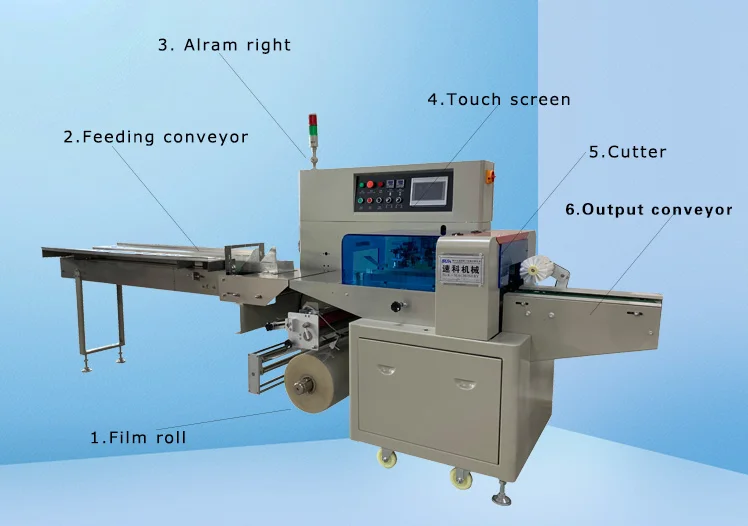

![K`3_]BNH6T%OQJEHUX`EXJW](http://sc03.alicdn.com/kf/Hd629b4e88d6040c08e5deacdd6fc4c84s/201972103/Hd629b4e88d6040c08e5deacdd6fc4c84s.png)
Application
Suitable for packaging various kinds of regular objects like :
Food : like Biscuits , Pies , Chocolates , Bread , Instant noodles, Cup Cakes ,Energy bar ,Ice cream bar,etc ...
Daily Appliances : Soap bar ,Sponge, Tissue etc ...
Medical Product: Medical marks ,gauze , abrasive, drugs ,Blood sampling device ,etc...
Stationery:ball pen ,color pen ,mark pen ,Transparent adhesive,rulers,books,paper cards ,etc..
different kinds of Hardware and decoration products.
Specification
Model | SK-250XD | SK-350XD | SK-450XD | SK-600XD | SK-700XD |
Film width | 250mm | 350mm | 450mm | 600mm | 700mm |
Bag length | 65-190mm or 100-300mm | 65-190mm or 100-400 mm | 100-450mm | 120-500mm | 120-500mm |
Bag width | 30-110mm | 50-160mm | 50-180mm | 100-280mm | 100-330mm |
Product’s height | max.45mm | Max.65mm | max.80mm | max.80mm | max.80mm |
Packing speed | 40-230bags/min | 30-300bags/min | 30-150bags/min | 30-150bags/min | 30-150bags/min |
Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW |
Machine dimension | 3920x670x1320 | 4020x720x1320 | 4020x820x1450 | 4020x920x1460 | 4020x980x1480 |
Machine weight | 500kg | 550kg | 580kg | 610kg | 680kg |

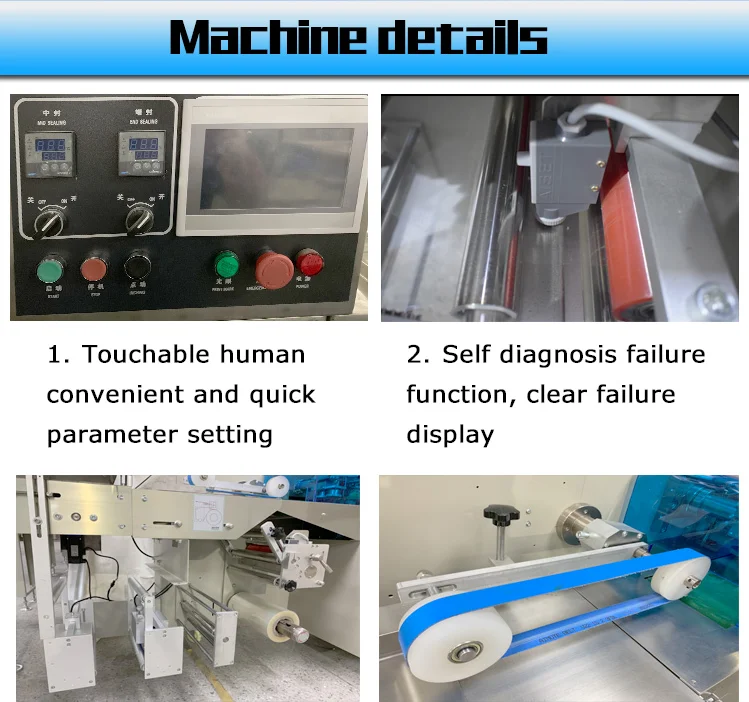

Detailed Images
![KB`XRA}[EK0RFCAPO2Z_8]2](http://sc03.alicdn.com/kf/H7f8fa9506415424ab43220cc51232c7es/201972103/H7f8fa9506415424ab43220cc51232c7es.png)
![F9]~Z`}R(%S[4__9NX$~]ZO](http://sc03.alicdn.com/kf/H1f327db21c4a46968a15f3c552e7daeaZ/201972103/H1f327db21c4a46968a15f3c552e7daeaZ.png)
Packing sample
Company Information
Foshan SUK Precision Machinery CO. ,Ltd (the former Foshan Huaxingyi Machinery Factory ) is a specialized manufacture of packaging machinery with design , manufacture and marketing as integration services , which has strong technical force and large market.
Through years of innovation and development ,relying on continuous exploration of advanced technology ,research and application as well as paying high attention to talents ,we rapidly rise in food packaging machinery industry in the short –term profits time .With more energy and wisdom into mainstream world of food machinery ,we make the China’s food processing industry to keep pace with the world .
At present ,we has developed into dozens of varieties of products with the characteristics of advanced design , excellent manufacture ,stable performance and easy operation ,which are widely used in food , medicine ,toys and hardware accessories, ect . We are expanding in the fierce market competition to make sales range cover the whole country and overseas ,which obtains a high quality and wins high praise of many clients!
Packaging & Shipping
![H2KERA2%0)59}])C{8NWCU.png](http://sc03.alicdn.com/kf/He4874e9cfdec41a6a4fc77bbb7e5fc2cT/201972103/He4874e9cfdec41a6a4fc77bbb7e5fc2cT.png)
