P3 Indoor Full Color LED Video TV Display billboards led wall
- Category: >>>
- Supplier: Shenzhen Topled Optotech Co. Ltd.
Share on (999535839):
Product Overview
Description
p3 Indoor Full Color LED Video TV Display billboards
Product Description
Characteristics
1. Gorgeous Picture: Non-reflective screen, which brings better viewing experience.
2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
3. Light Weight: The body uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive.
4. Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble.
5. Standard Size: We use professional buckles and standard modular panels which can snap together easily.
6. Easy Setup: Back modules are made easier for connection.
7. Energy -saving: Our products get low energy cost and high efficiency.
Application

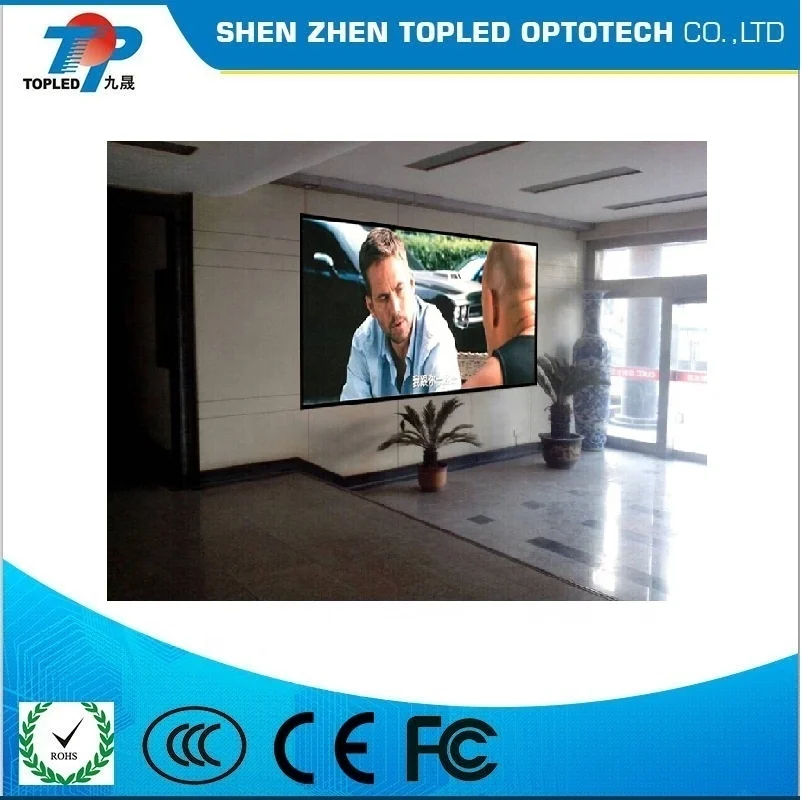

Indoor Small pitch Led Display has the ability to play monitor videos and graphic information in real time. It is widely used in far viewing distance , such as shopping mall, conference center, stock exchange. Hotel, supermarket, gymnasium, stadium, TV station etc.
Attention
In order to offer you a suitable solution, Please state general info about your project.
1. Pixel pitch or view distance you need.
2. Dimension
3. Location of installation. ( eg, on poles, on wall of building, ect)
4. Purpose. ( what are you going to do with the LED Screen)
Parameters
Name | Parameter |
Pixel Pitch(mm) | 3mm |
Physical Density | 111,111 |
LED Configuration | 1RGB |
LED type | SMD2121 |
Module Size | 192×192 |
Module Resolution | 64×64 |
Module Power Consumption | 18W |
Driving Mode | Constant Current IC |
Scanning Mode | 1/32 |
Horizontal Viewing Angle | 140 |
Vertical Viewing Angle | 140 |
Brightness | 1500 |
Grey Scale | 16bit |
Refresh Rate | >3840 |
Cabinet Resolution | 192×192 |
Cabinet Max Consumption | 160 |
Cabinet Average Power Consumption | 50 |
Cabinet Size | 576×576 |
Cabinet Weight(kg) | 10KG |
Cabinet Thickness | 85mm |
Cabinet Material | Iron/Aluminum |
Color | >16.7 |
Input Voltage | AC 110V~220V +/-10% |
Frame Frequency | 60 |
Protection Level | IP43 |
Working Temperature(℃) | -40° -+65° |
Storage Humidity Range(RH) | 10%~90% |
Life Span(H) | 100,000 hours |
