Фрезерный станок с ЧПУ 8 осей Сделано в
32 000,00 $ - 33 000,00 $
Сделано в Тайване маленький фрезерный станок с
- Категория: CNC Engraving & Milling Machine >>>
- Поставщик: YUH FIELD INDUSTRY CO. LTD.
Сохранить в закладки 10000000373204:
Описание и отзывы
Характеристики
Product Description
Video Description
Specification
item | value |
Condition | New |
Year | 2020 |
Max. Spindle Speed (r.p.m) | 8000r.p.m |
Spindle Motor Power(kW) | 3 |
Positioning Accuracy (mm) | ±0.01 |
Place of Origin | Taiwan, China |
Dimension(L*W*H) | 1845*1485*1950 |
X (Milling Head Horizontal Traverse) | 65mm to +145 mm |
Y (Milling Head Vertical Traverse) | 50mm to +240mm |
Z (Headstock Traverse) | 400mm |
Tool Post Stations | 16 |
Weight (KG) | 350 |
No. of spindles | 5 spindles |
Spindle taper | BT30 Taper |
Number of axis | 8 axis |
Max table load | 30 KG |
CNC control system | 3d printer controllers and use a touch screen Windows PC to run the software |
Voltage | Runs on standard Residential / Commercial power 110-240 volts, 50/60 Hz, single phase AC input. 3 prong plug Recommended using 220v for full spindle power |
Warranty | Under normal use, parts are provided with a one-year warranty |
After Warranty Service | Online support |
Applicable Industries | Hard materials, Precision Mold&Die |
Key Selling Points | Competitive Price |
Local Service Location | United States |
Showroom Location | Taiwan, Taichung California, USA |
Marketing Type | New Product 2020 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor |
Function | Milling Complex Lathe |
Keyword | Automatic CNC Lathe Machine |
Application | Steel Parts Processing |
Precision | High Precision Machine |
Spindle speed | 6000rpm |
Product Keywords | Cnc Machine Lathe |
Safety | Fully Enclosed Safe Guard |
Motor power | 3KW |
Purchase Process
Company Profile
When Perry Campbell, Founder and CEO of SwissMak LLC, was attending CU Boulder (the University of Colorado) on an engineering scholarship, he built a 3d printer so he could prototype products and designs he originated. He was frustrated with the jamming problem of the hotend (the part that squirts out hot plastic). So, he designed a new high performance hotend that could print any material and never jam. He prototyped it and applied for a patent on his new technology and then set up manufacturing, selling it
through his website.

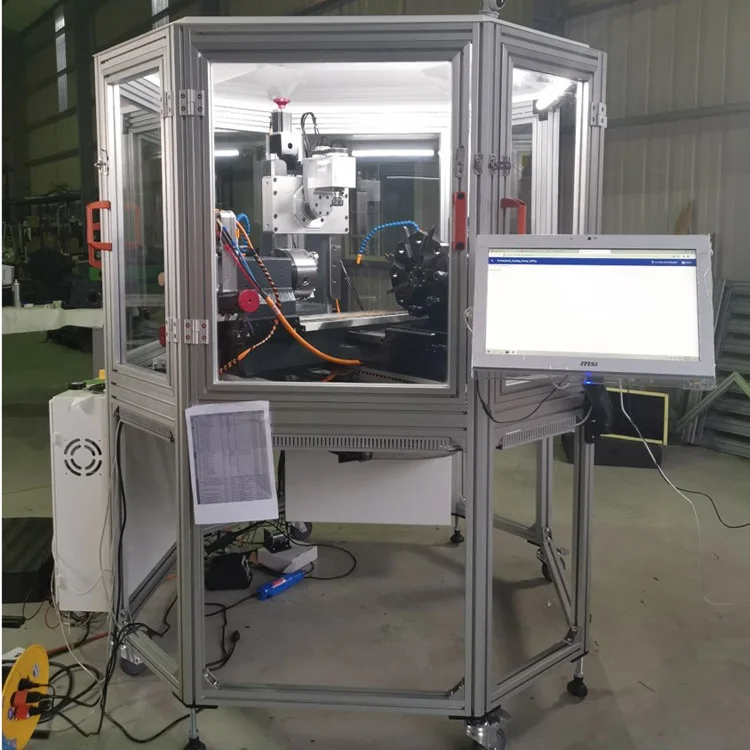

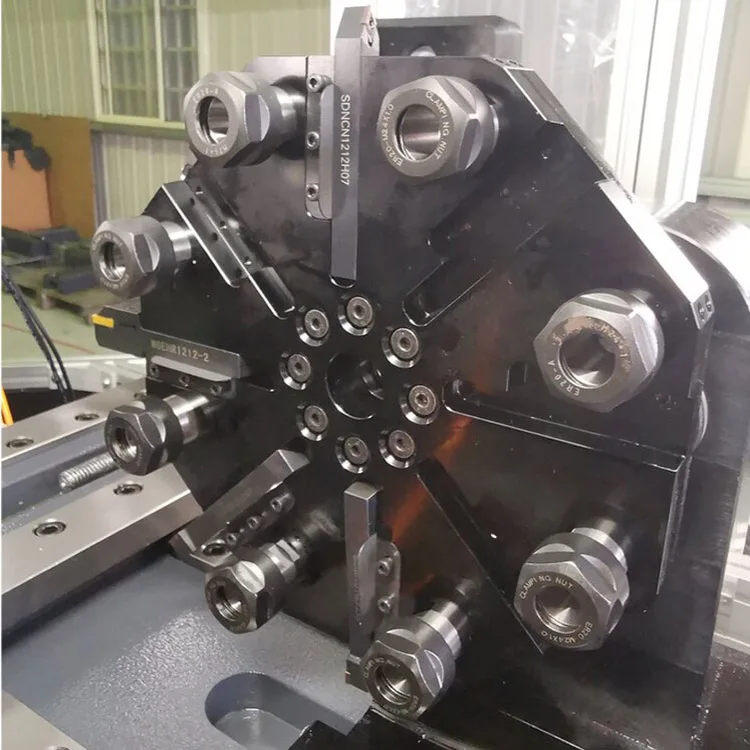

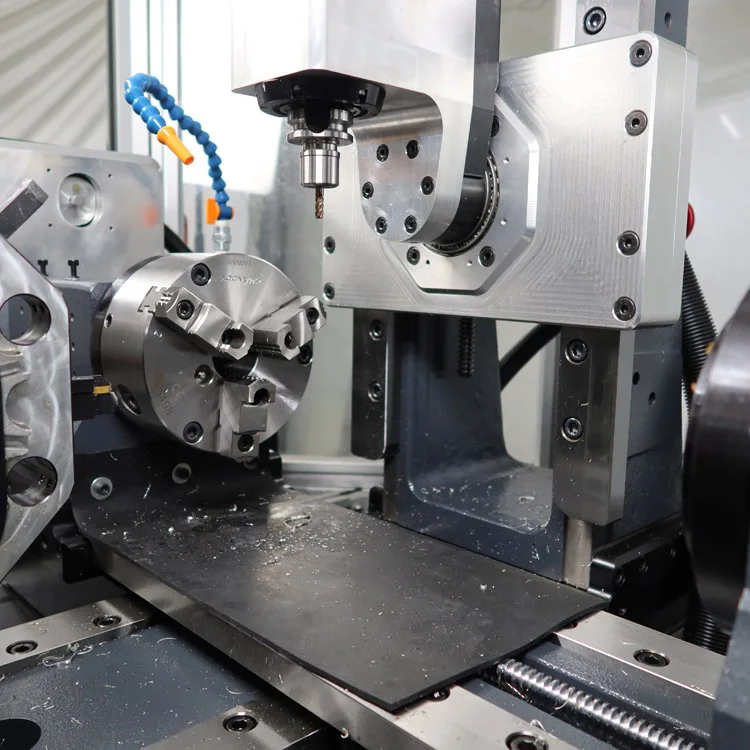

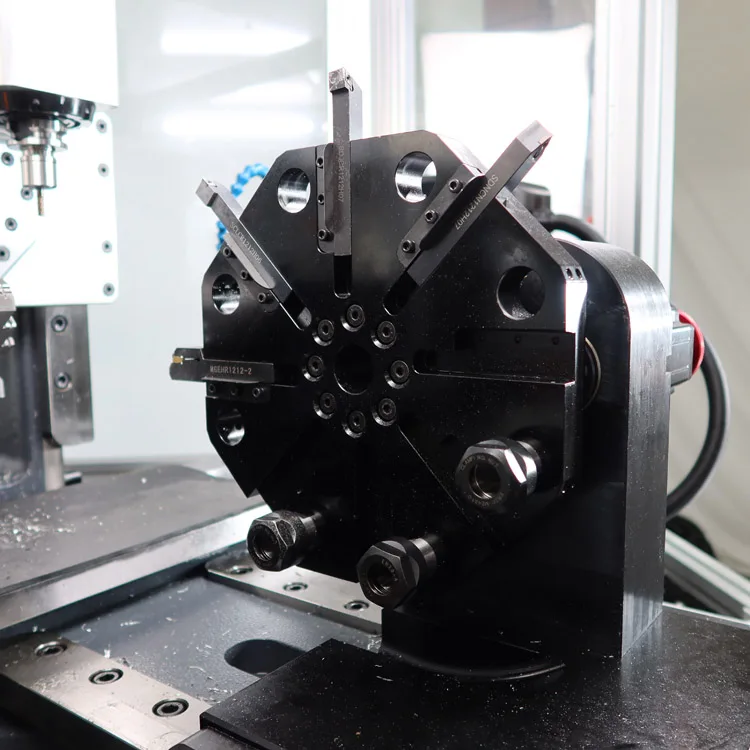

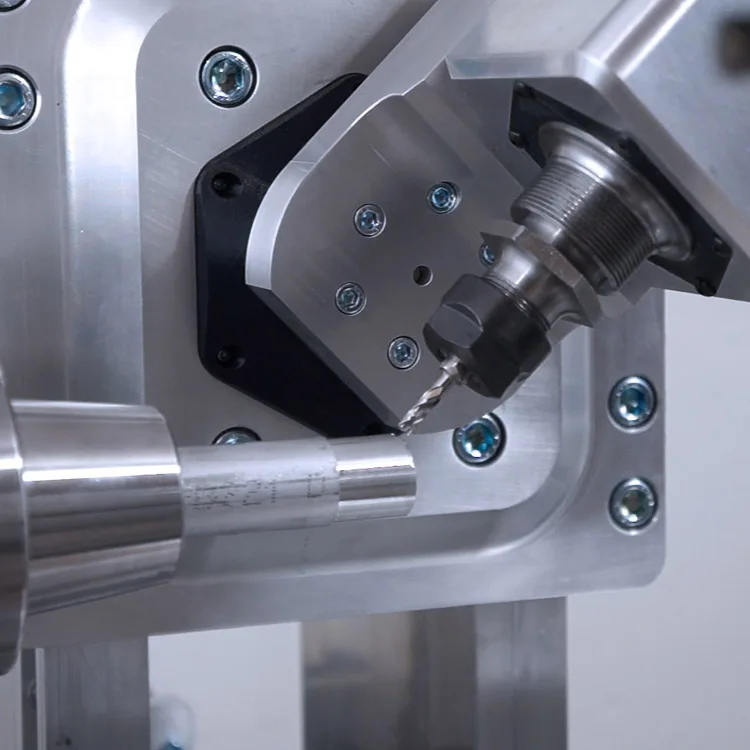

After that, Perry designed a new leading-edge technology that is set to evolve the world’s Makerspaces and small machine shops.The SwissMak combines all the functionality of both CNC lathes and CNC mills. Turning parts is quick and easy with the 16 station live tool turret, and the swiveling BT30 milling head lets you cut features at any angle. You can make any part geometry you want on a 5 axis mill-turn machine.
through his website.
After that, Perry designed a new leading-edge technology that is set to evolve the world’s Makerspaces and small machine shops.The SwissMak combines all the functionality of both CNC lathes and CNC mills. Turning parts is quick and easy with the 16 station live tool turret, and the swiveling BT30 milling head lets you cut features at any angle. You can make any part geometry you want on a 5 axis mill-turn machine.
FAQ
1.Axis Travels?
- Headstock travel (workpiece length) maximum is approx 220mm long with the 160mm 3 jaw chuck. You can double this length if your part fits between both chucks.
-The milling head vertical travel is 320mm, milling head cross travel is -78 to +125 mm
2.What is the total weight?
- Weight of the machine (without enclosure) is approx 720kg, weight with enclosure is approx 1000 kg.
3.Is the body made of steel?
- The machine base is cast iron, with hardened steel boxways. The headstocks are also solid cast iron. The harmonic
gears are steel, and the swivel head is aluminum.
4.Which materials can be processed?
- The machine can cut any metal, plastic, or wood. It cuts steel alloys just fine.
5.Can you process #45 steel, yellow steel or above steel?
- Yes, it can cut any steel.
- Headstock travel (workpiece length) maximum is approx 220mm long with the 160mm 3 jaw chuck. You can double this length if your part fits between both chucks.
-The milling head vertical travel is 320mm, milling head cross travel is -78 to +125 mm
2.What is the total weight?
- Weight of the machine (without enclosure) is approx 720kg, weight with enclosure is approx 1000 kg.
3.Is the body made of steel?
- The machine base is cast iron, with hardened steel boxways. The headstocks are also solid cast iron. The harmonic
gears are steel, and the swivel head is aluminum.
4.Which materials can be processed?
- The machine can cut any metal, plastic, or wood. It cuts steel alloys just fine.
5.Can you process #45 steel, yellow steel or above steel?
- Yes, it can cut any steel.
