ST/FC/LC/MU/SMA/MTRJ Fiber Optic Patch Cord
MT Style Ferrule With RJ-45 Style Housing With Insert-pull Coupling Mechanism MTRJ-SC UPC Dual Fiber MM 2.0mm Cable Fiber Jumper
Specification
Ordering options
1) Connector type: FC, SC, LC, ST, MPO, E2000,MTRJ
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um'OM1, OM2, OM3, OM4, OM5)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH.
Features:
MT style ferrule with RJ-45 style housing with insert-pull coupling mechanism which easy used for insert - pull of coarctation space One ferrule accommodates two fibers Small form connector - Half size of duplex SC connectors Duplex accessories available in standard and customized structure Comply with Telcordia GR-326-CORE specification and RoHS Standard
Applications:
CATV / Metro,
Active device termination,
Telecommunication networks,
Local Area Networks (LANs)Data processing networks,
Test equipment,
Premise installations,
Wide Area Networks (WANs)
Note:For more details, please contact our sales.

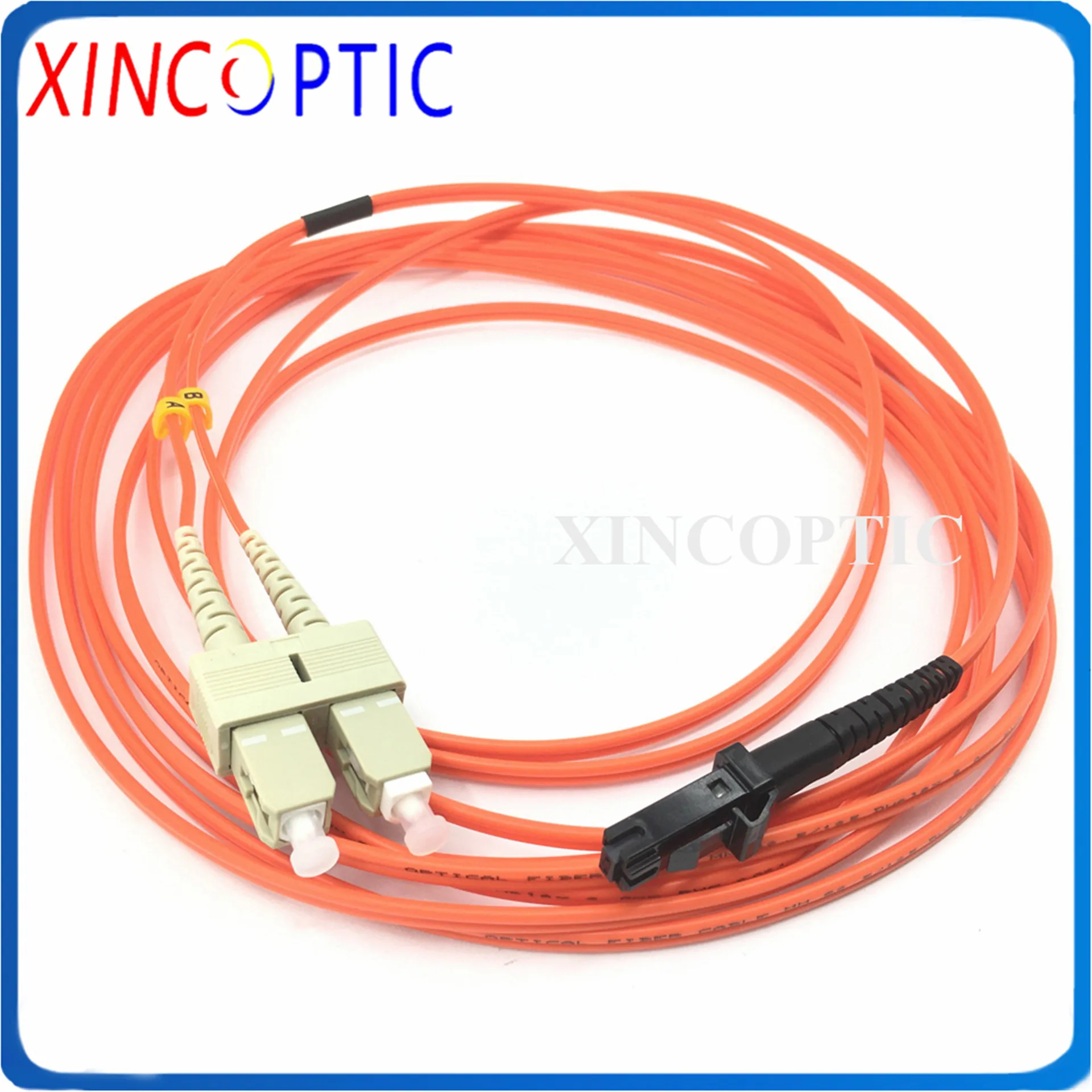

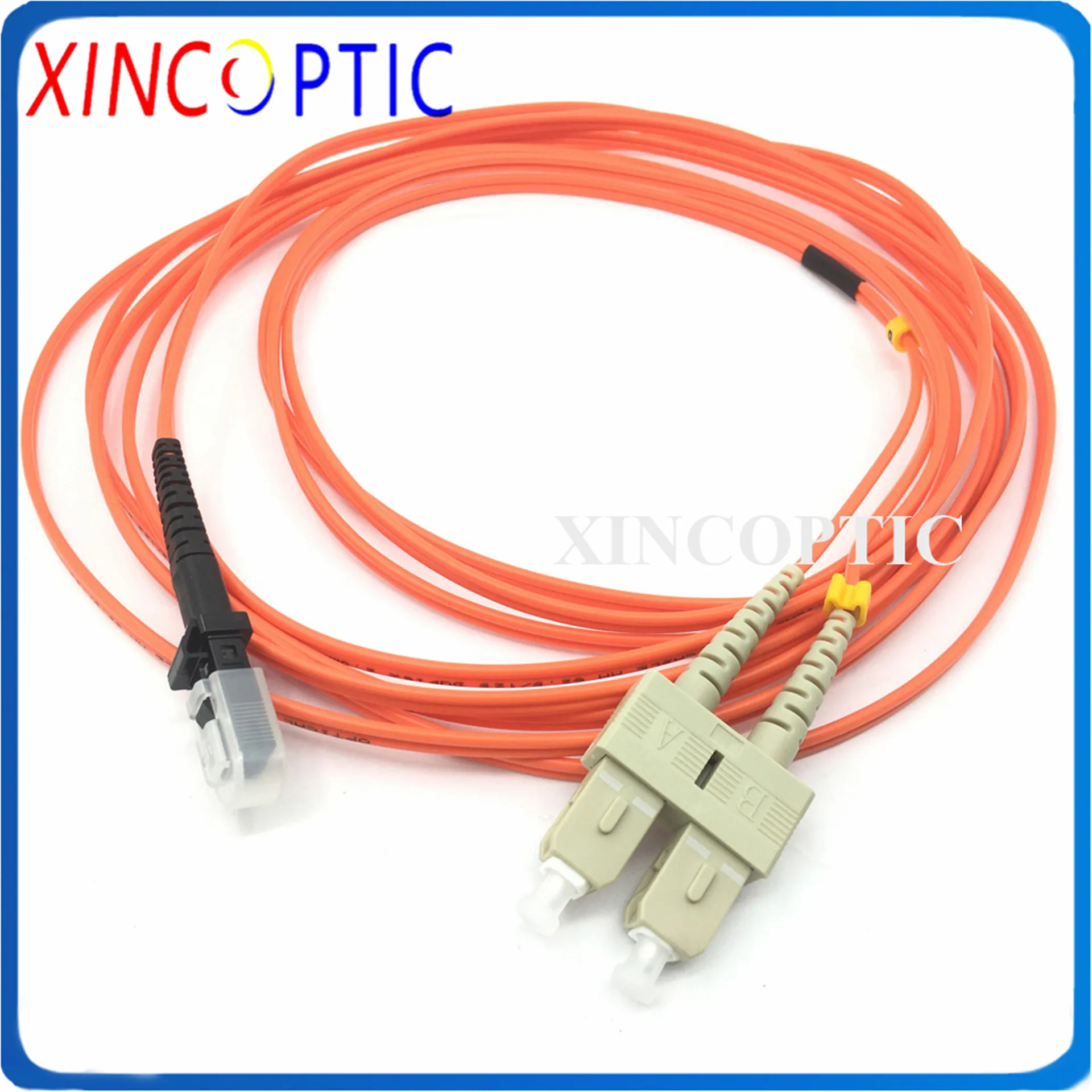

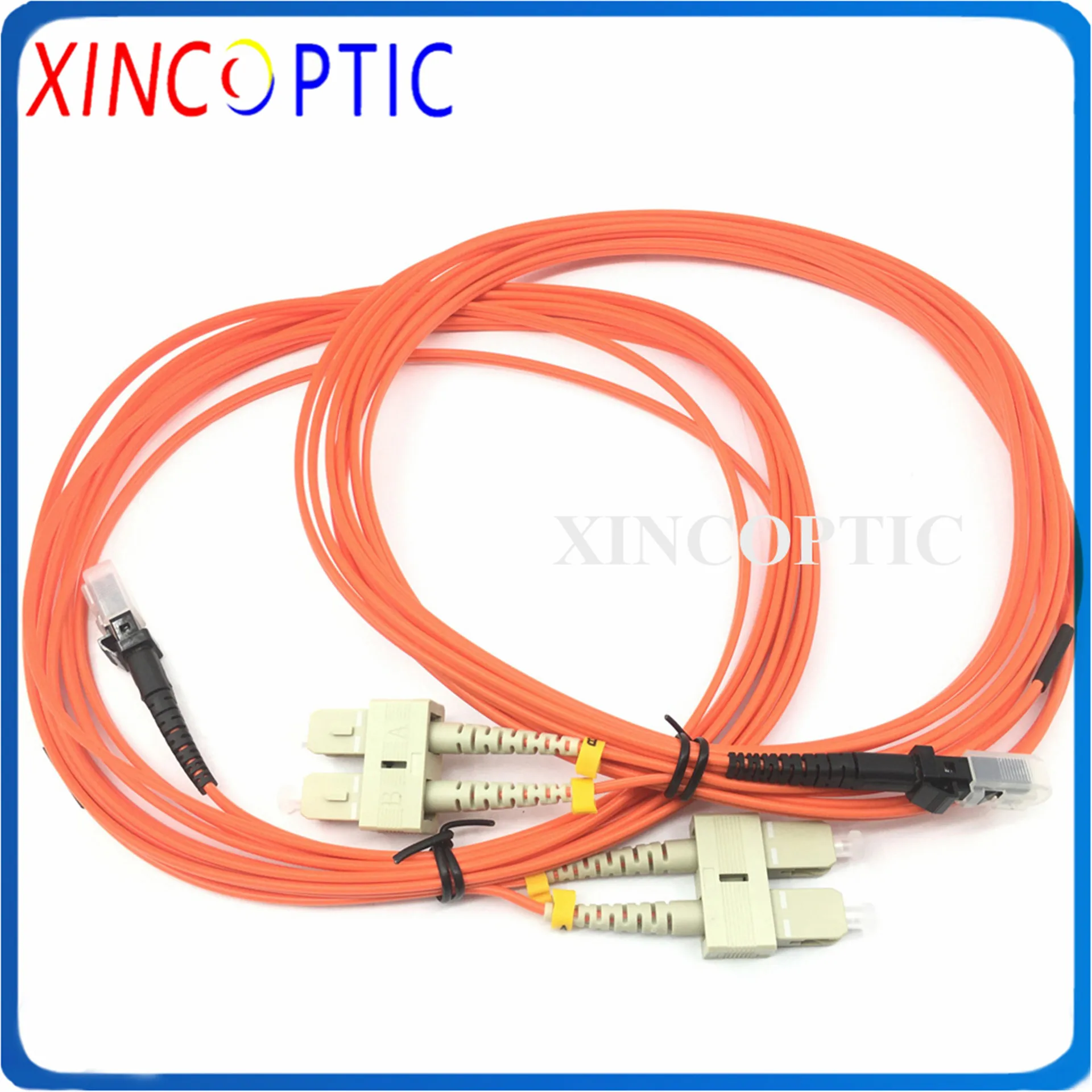

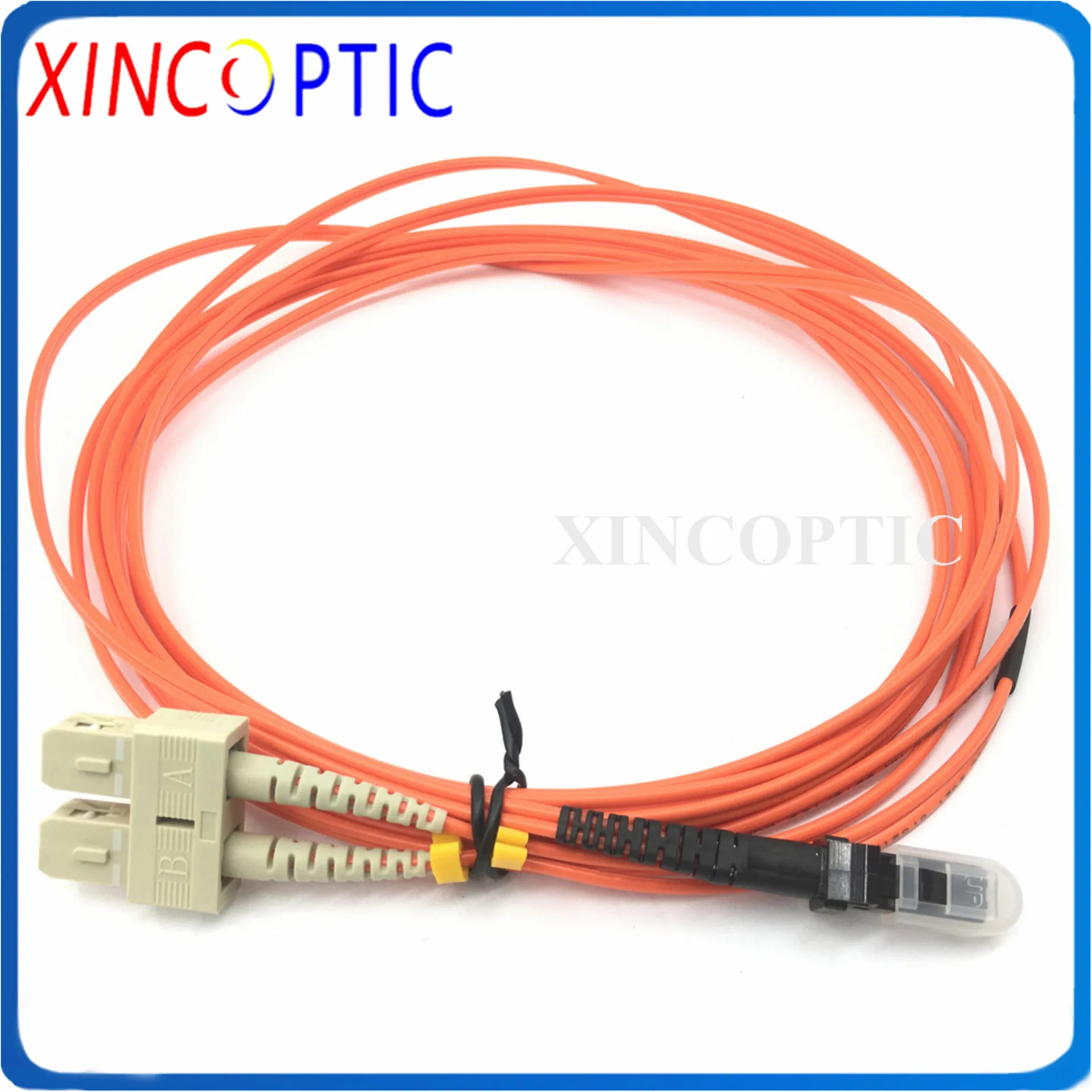

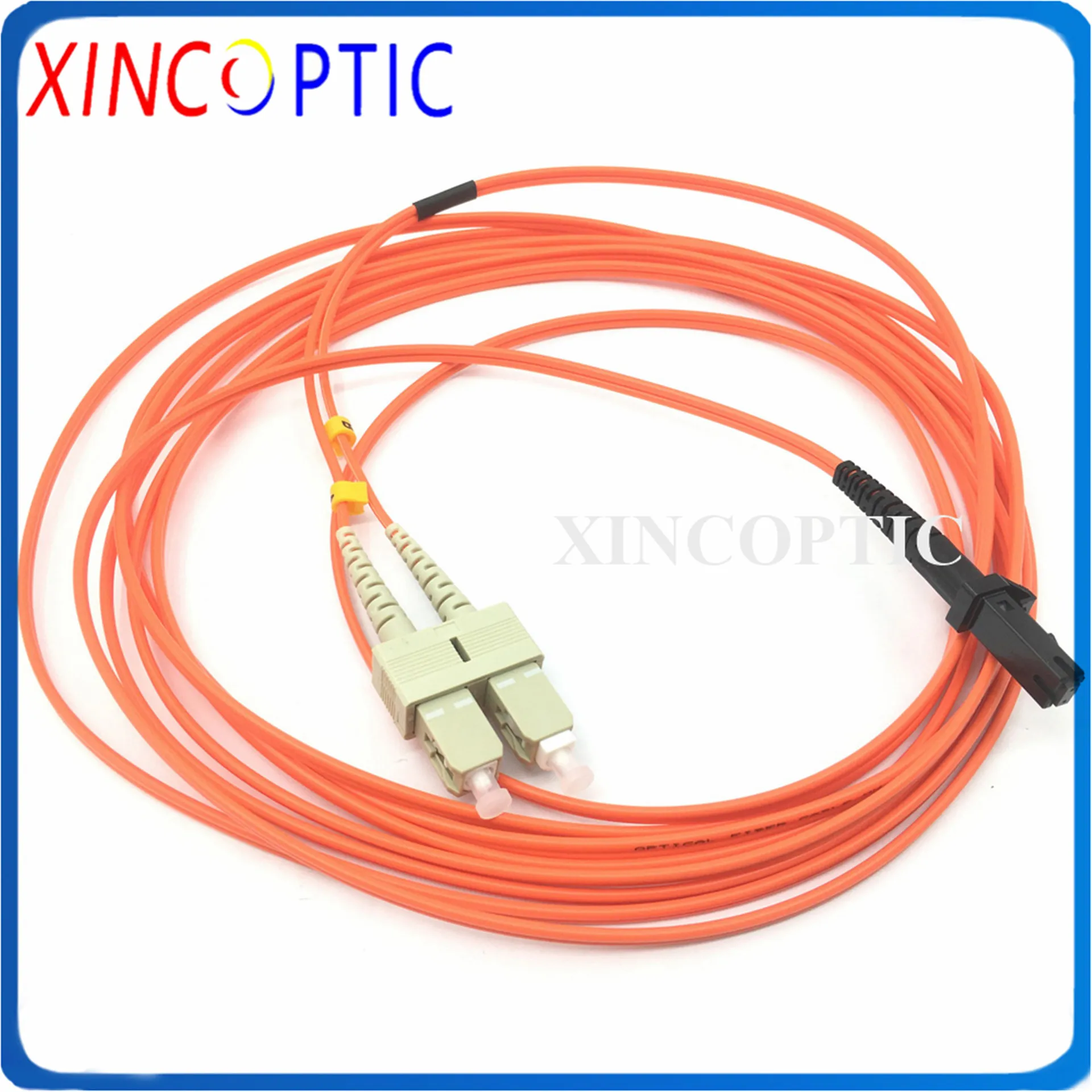

MTRJ to SC Duplex Multi Mode Fiber Optic Patch Cord
Insert Loss
≤0.3 dB
Return Loss
> 50 dB
Connector
SC, FC, ST, LC, MTRJ, MU, DIN, E2000, SMA,

Polish
PC: Physical Contact
UPC: Ultra pc
APC: Angled pc

Fiber
SM: Single Mode 9/125
MM: Multi Mode OM1 62.5/125 OM2 50/125 10G OM3 OM4

Jacket
LSZH
PVC
OFNR (UL Number E361917)
Outer Diameter
0.9mm/2.0mm/3.0mm

Cord Type
Simplex
Duplex
Length
Optional


Color Pantone
Cord jacket:Orange, Yellow, Rose, Aqua, White, Green, Purple,Black,Red
Connector body: Beige,White,Black,Red,Green,Blue
Connector boot color: Beige,White,Black,Red,Green,Blue

ITEM
PC
APC
FC 、SC、ST
LC
FC 、SC、ST、LC
R.O.C
10~25mm
7~25mm
5~12 mm
Offset
≤50um
≤50um
≤50nm
Angle
0°± 0.2°
0°± 0.2°
7.7°~8.3°
Fiber Height
-100~100nm
-100~100nm
-100~100nm

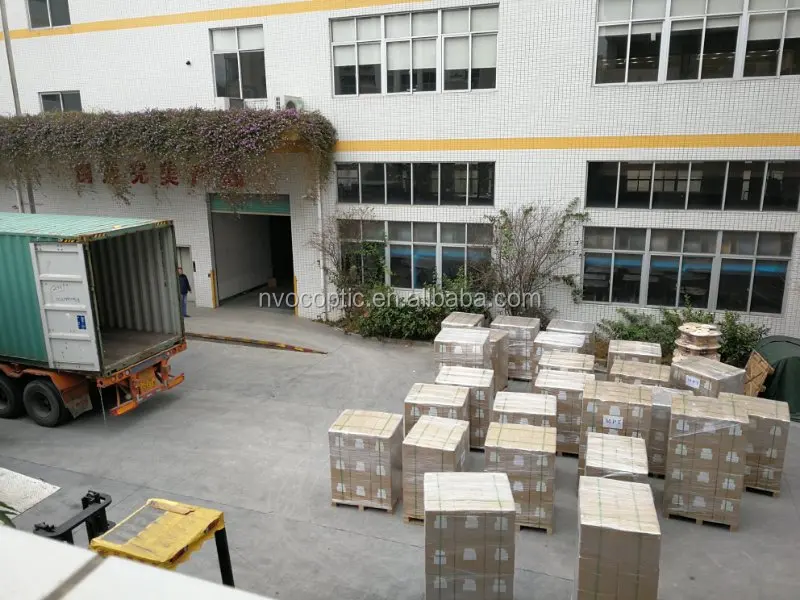

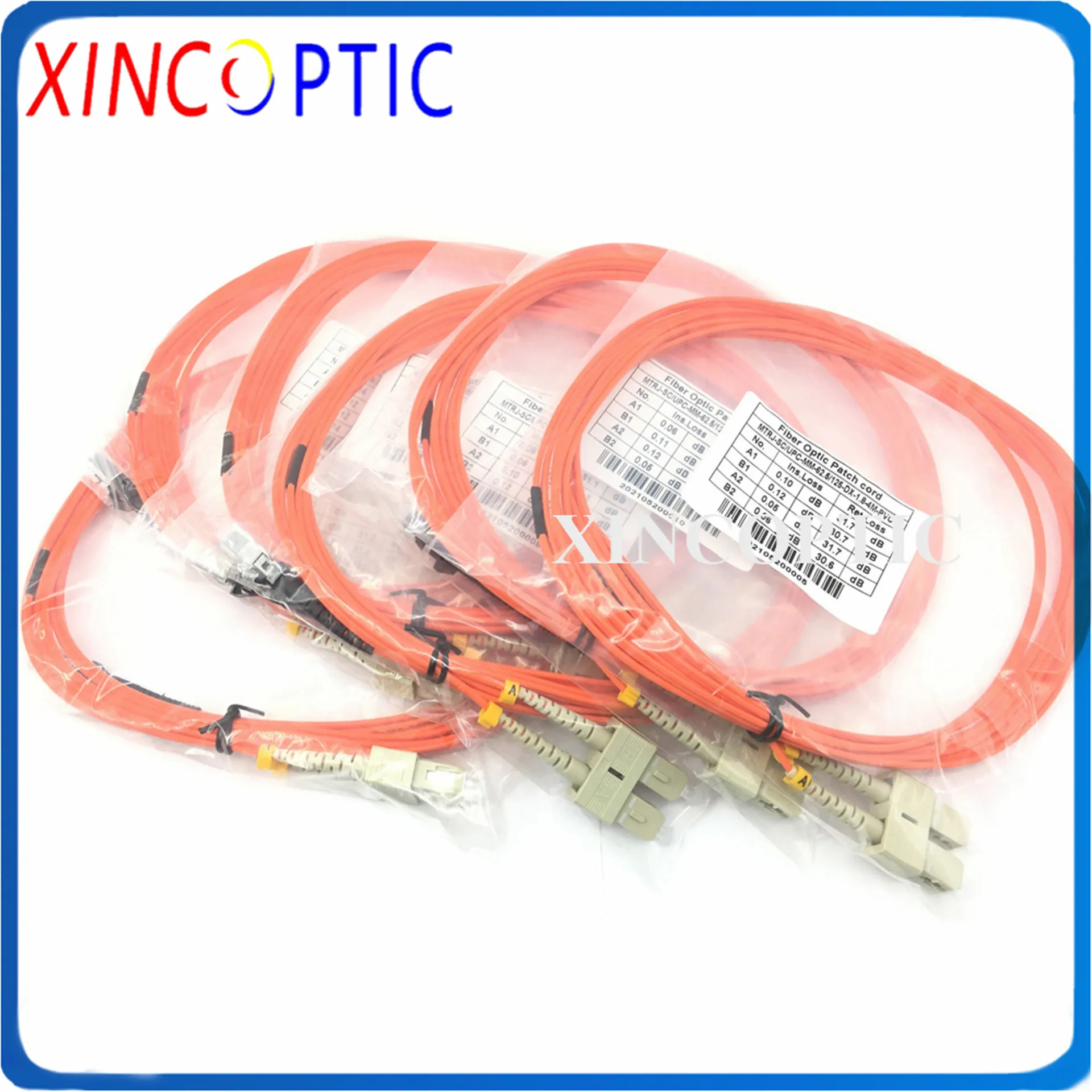

Packing & Delivery
Recommend Products

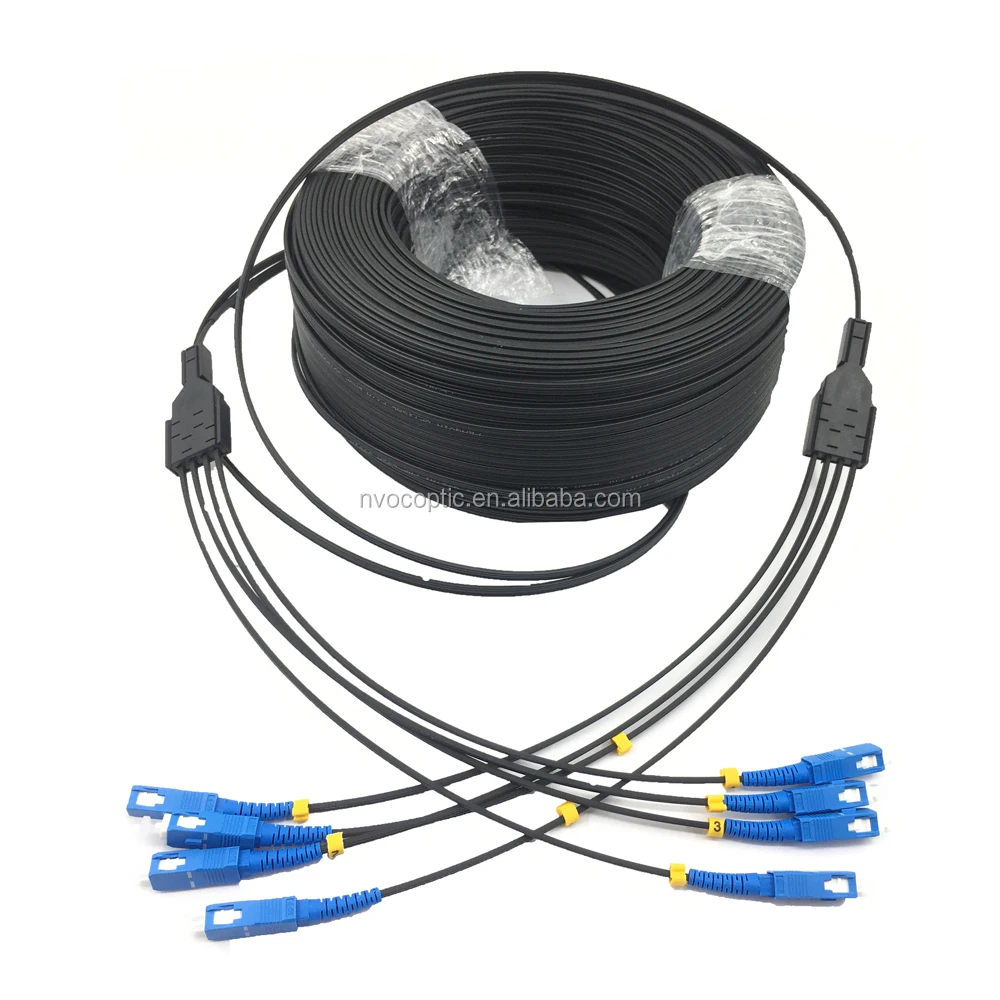

1/2/4C FTTH Indoor/Outdoor Patch Cord
1 - 4 Cores FTTH Drop Fiber Cable Bow Type Stranded Steel Type GJXFH / GJXH Patch Cord
Amored Fiber Patch Cord
2-12cores ST/FC/LC/SMA/MU/SC Multi Cores Military Tactical Armored Fiber Optic Patch Cord
ODC Fiber Patch Cord
2/4 ODC or ODC-LC Patch Cord
Temperature-sensitive optical cable
Indoor 1-48F CORE Multi-Purpose Fiber Optical Temperature-sensitive optical cable
GYXTW Fiber Patch Cord
2/4/6/8/12Core SC/LC/FC/ST GYXTW Outdoor Fiber Optic Patch Cord
OM5 Optical Fiber Optic Patch Cord
OM5 ST/FC/SC/LC Patch Cord wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm

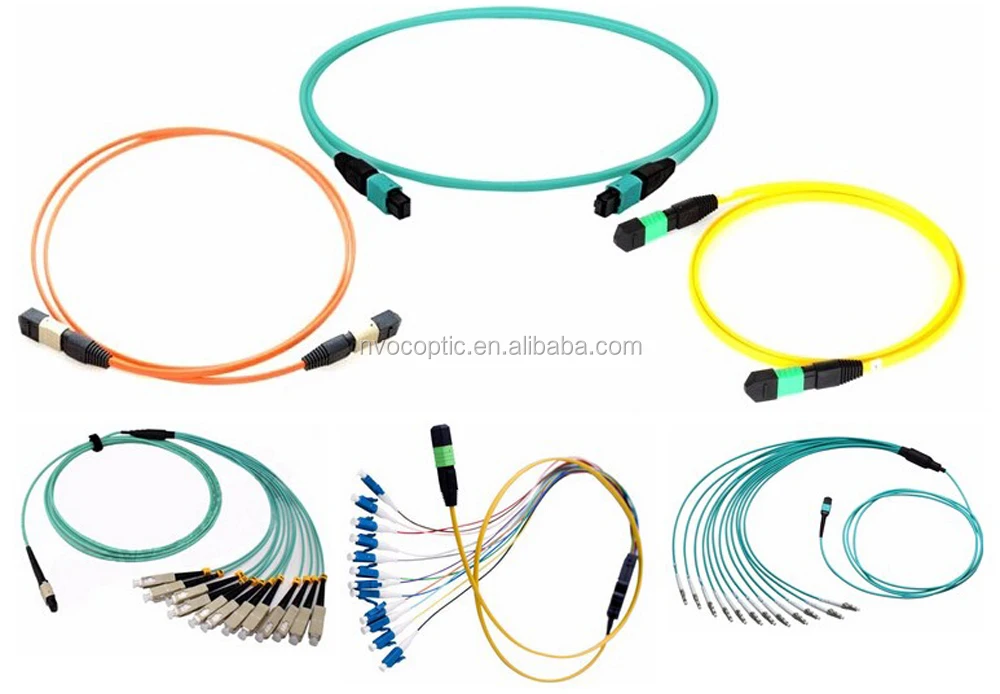

MPO Patch Cord
12 / 24 / 36 / 48 / 72 /96 /144 FIBERS MPO or MTP PATCH CORD & TRUNK CABLE

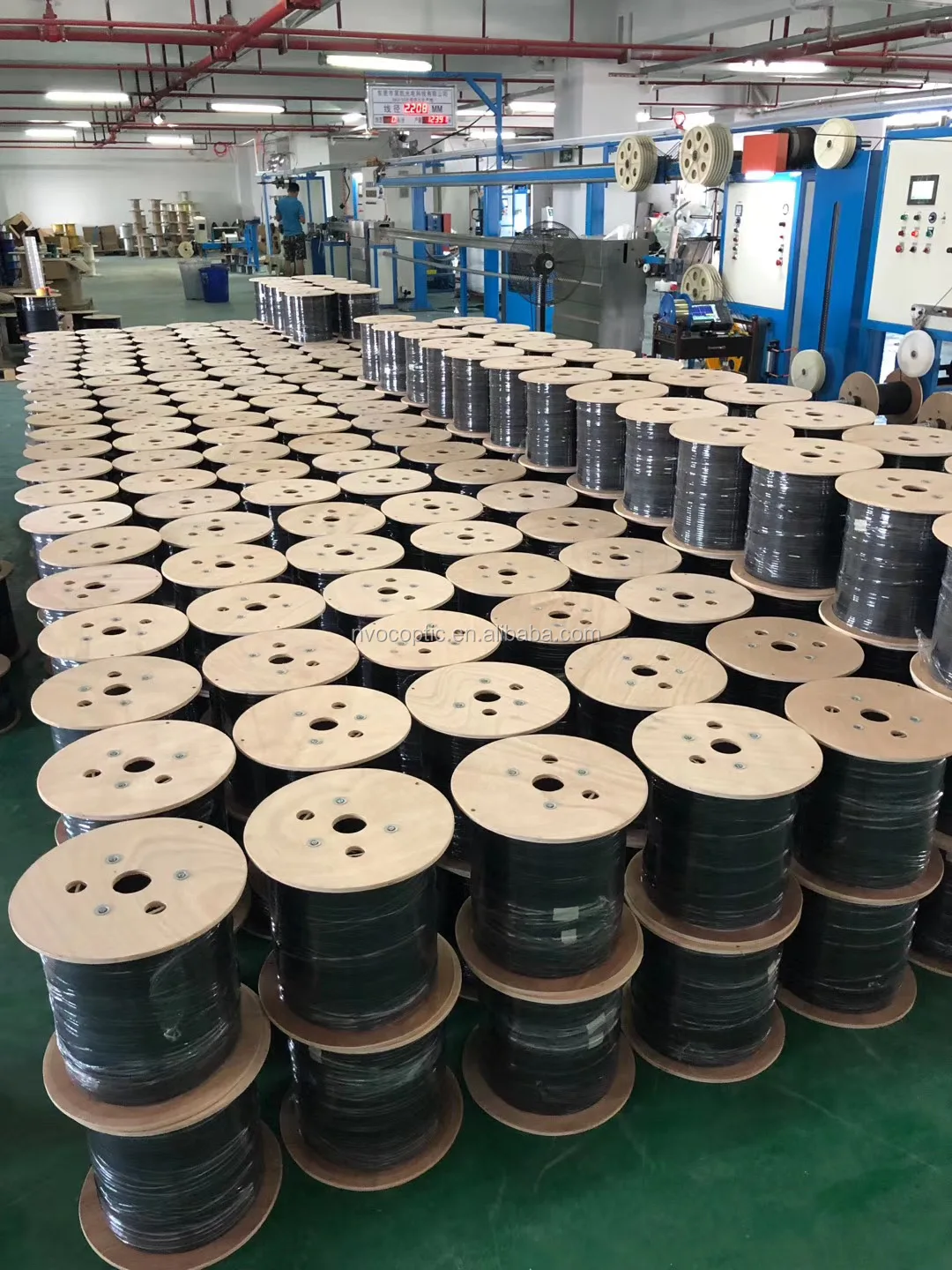

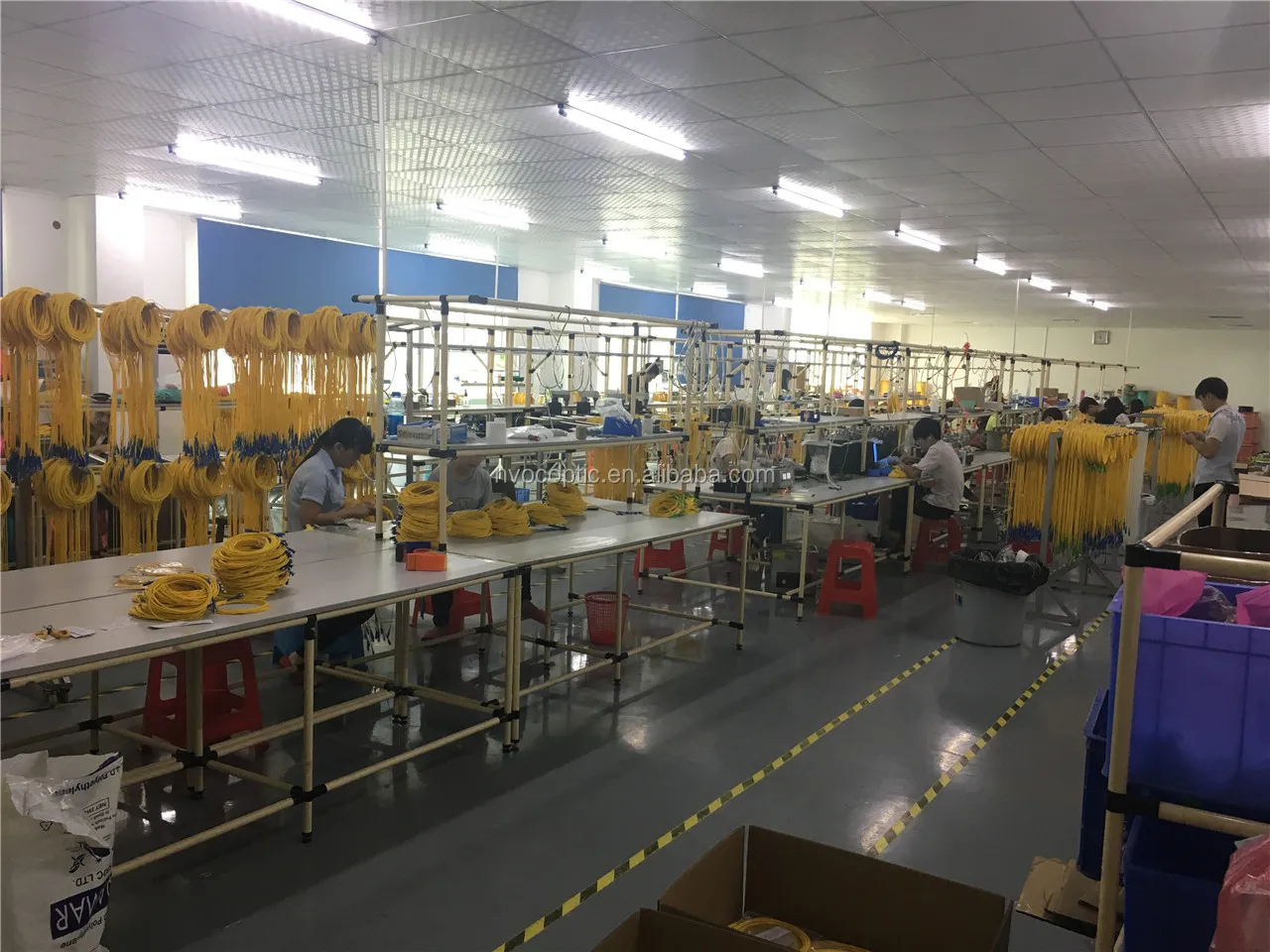

Our Workshop
Company Profile
Shenzhen Xinchuang Optical Communication Technology Co., Ltd. is one of the powerful and high-tech companies specialized in Optic fiber transmission, network communications equipment and the provision of fiber to the home (FTTH) products. All the products manufactured strictly carry out international and national relevant technical standards. ISO9001-2008 quality management system and ISO14001-2004 environment management system are implemented comprehensively. The products are widely used in telecommunication and electric power and optical fiber CATV and the transmission network of data optical fiber and optical fiber communication system and Security field of high-definition video.
Our major products are Communications Fiber cable, Power Fiber cable, FTTH fiber cable and Mobile fiber Cable; optic media converter, digital video optical transmission systems and Optical Transceiver Modules; HD HDMI / SDI video optical transceiver , optical transceiver modules, Ethernet fiber optic transceivers and fiber optic accessories.
Professional research ,design and production team,The concept of innovation and mutual benefit and win-win. The multiple OEM/ODM service is provided for famous brand of domestic and overseas. It is exported to America, Canada, Romania,Mexico, Argentina, Brazil, West Africa, Thailand, and Saudi Arabia

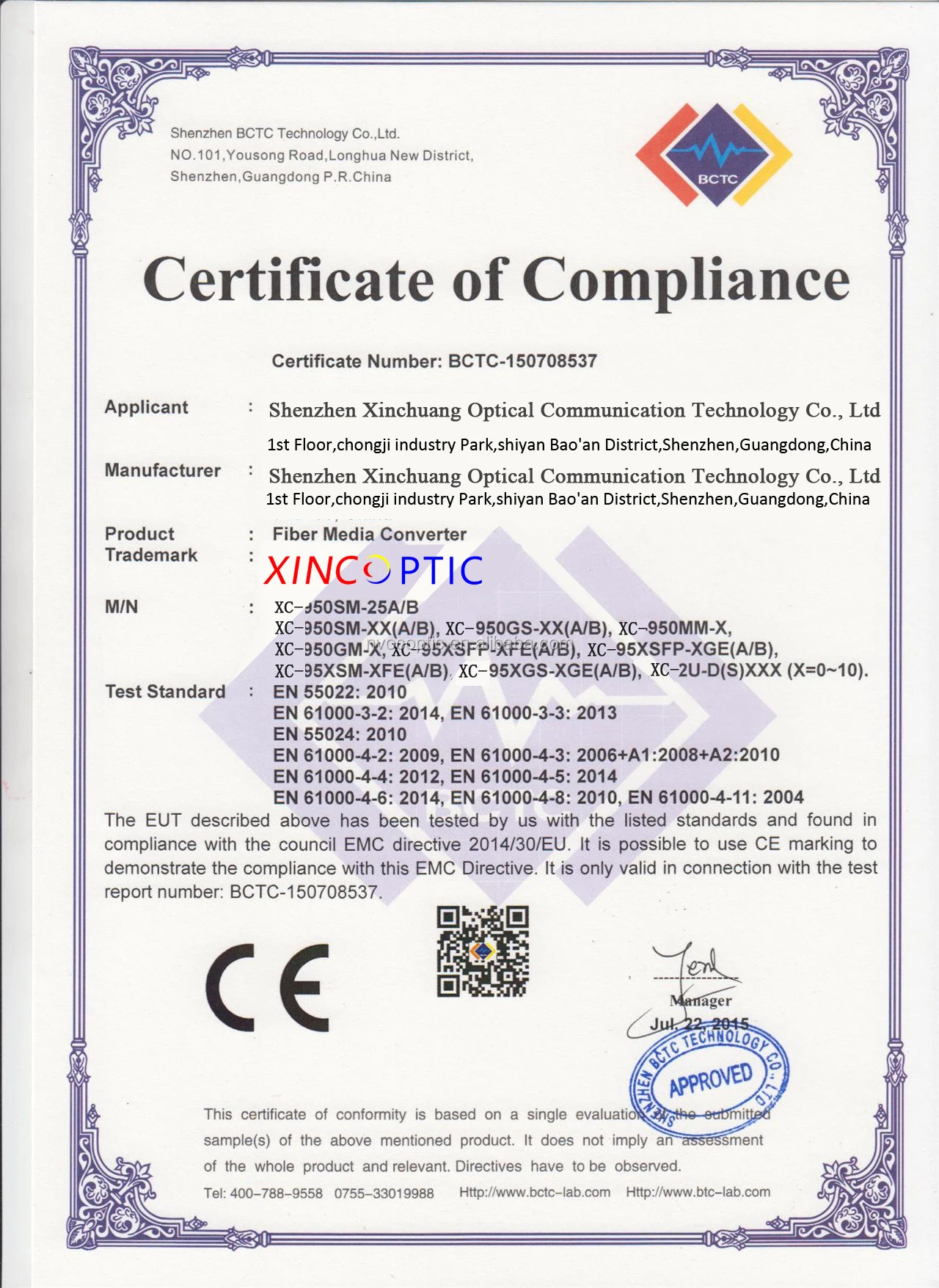

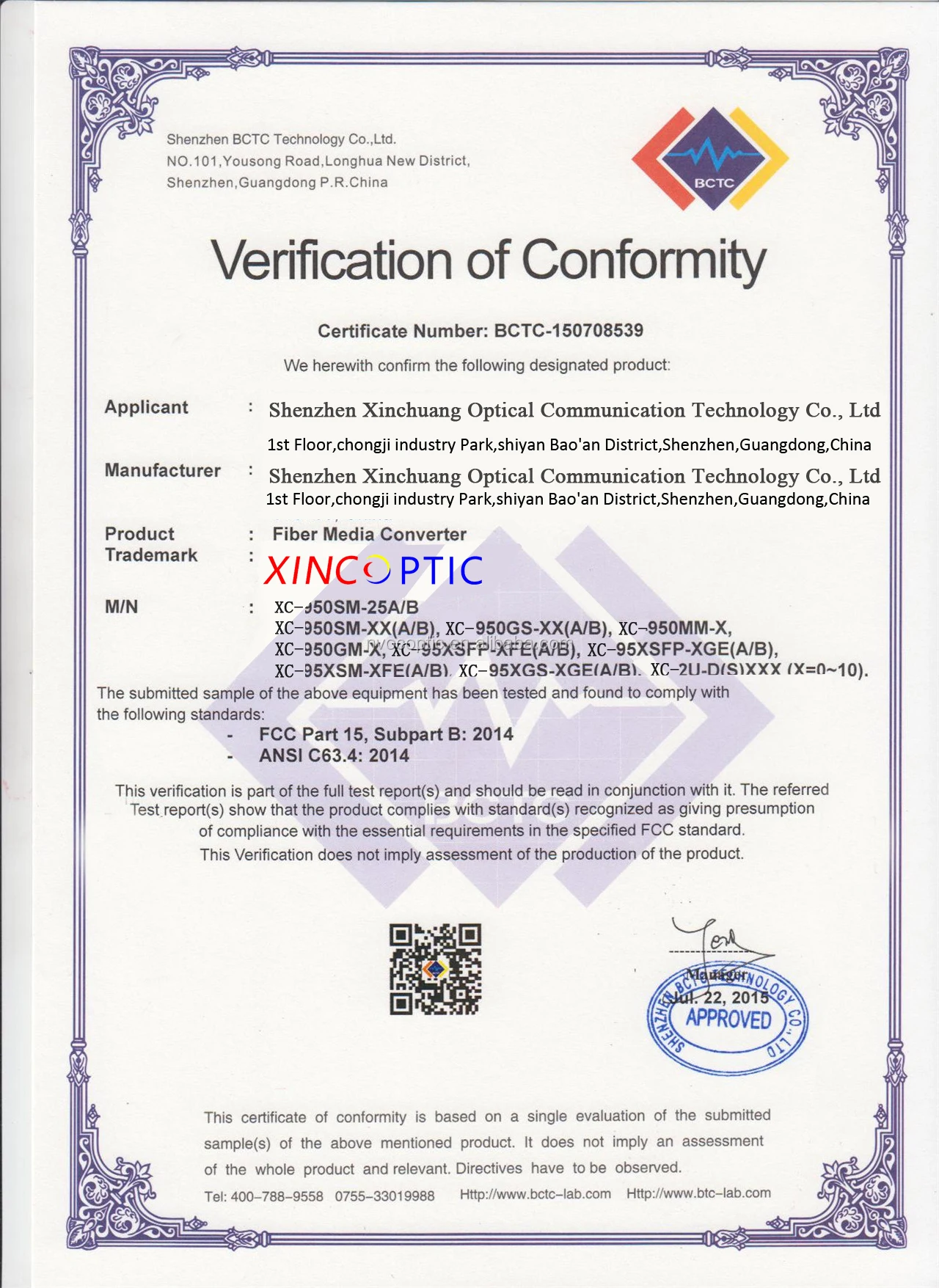

Certifications
