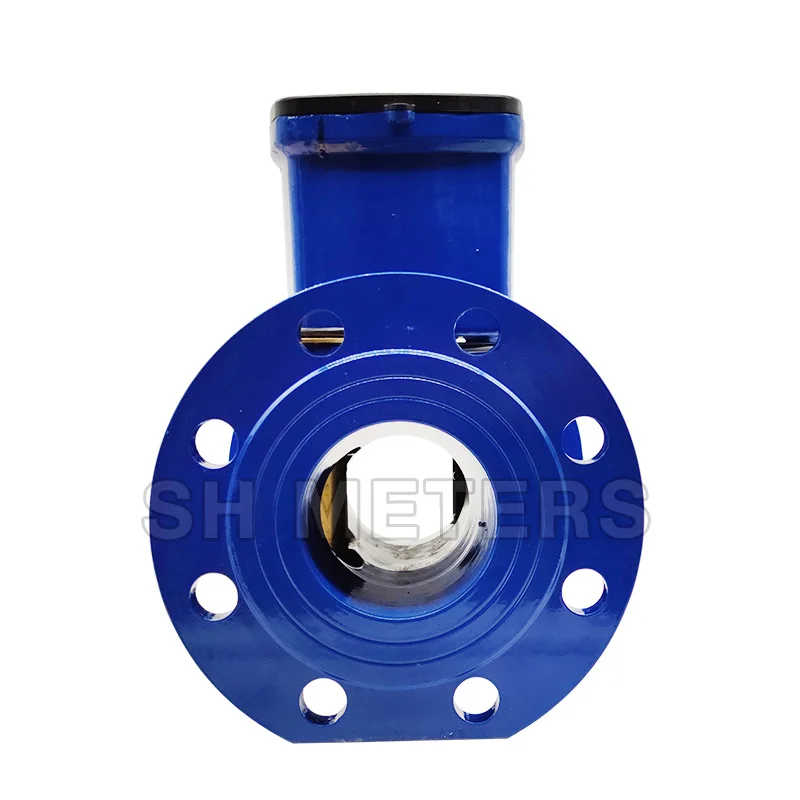

Хорошая цена dn300 ультразвуковой расходомер воды калибровка

AMI SYSTEM INTRODUCTION SIMPLE IS SMART…..

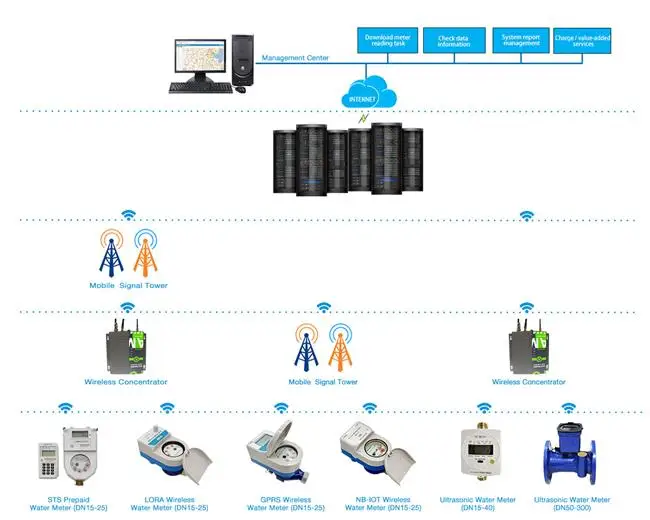

System structure diagram as follows

· server send commands to the data concentrator through network;

· concentrator transforms the received commands into radio signal and send the signal to the water meters;

· water meters respond and execute the commands accordingly;

· Water meters deliver the result or data back to the management center as per the original route after the actions finished.

Service

· Quality Gurantee: Water meter for 1 year;

· Support install guide & test in site;

· Date sheet can be sent to other management system easily.

Overview

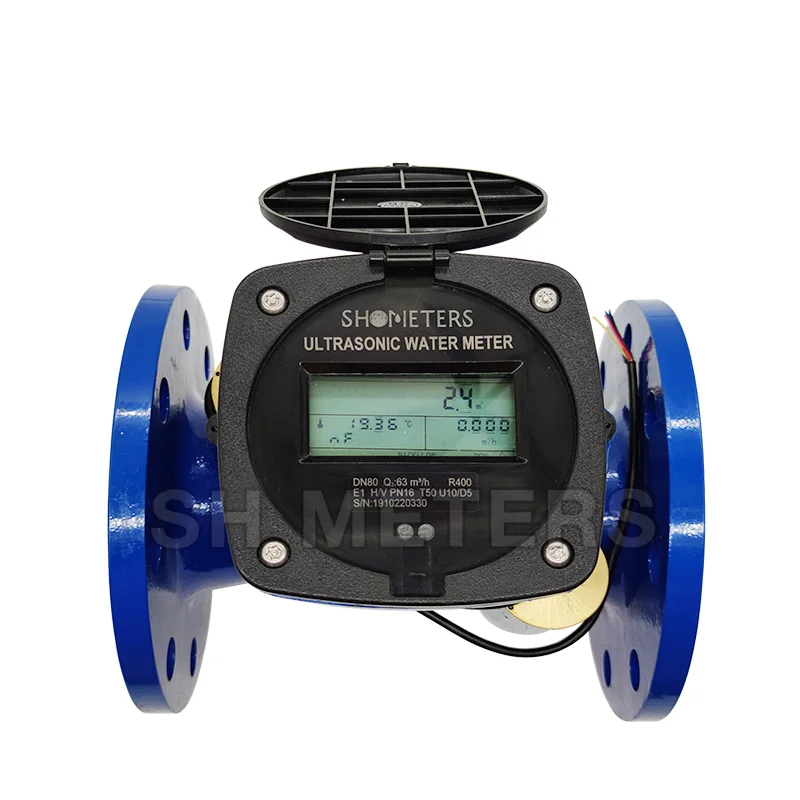

·Ultrasonic water meter's intelligent measuring instrument is consist by the temperature sensor , flow sensors and calculators.

·Could provide important application and data for many applications in the pipeline.

·Ultrasonic water meter is suitable for application environments requiring high range ratio(Q3/Q1)and forward and reverse metering.

·Calculator used sensor and through the time difference to collect temperature differences and sound waves to complete accurate measurement of water flow. And can provide important application and data for many applications.

·Features long service time and high accuracy

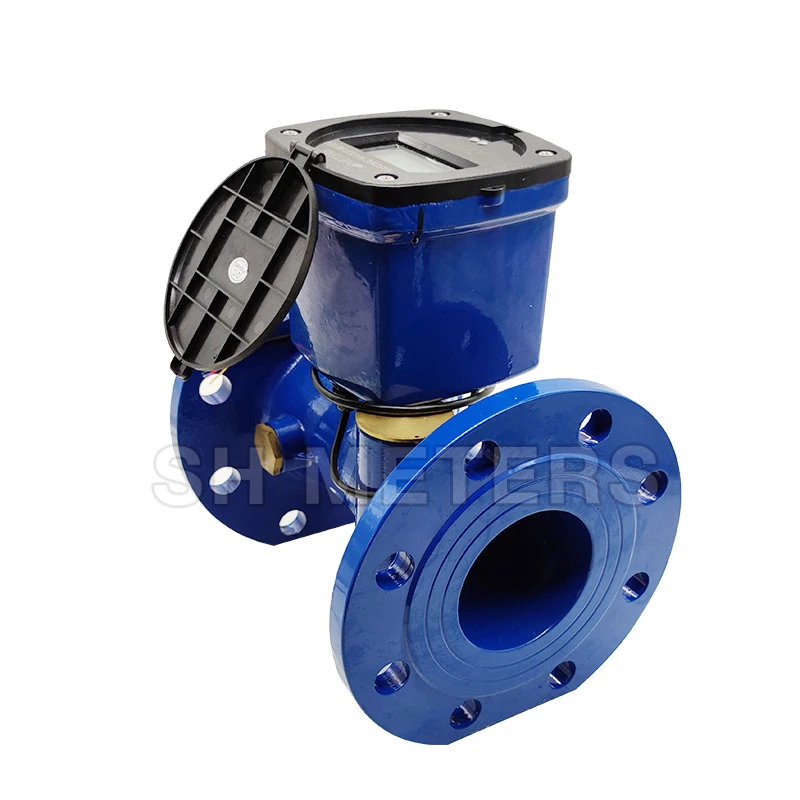

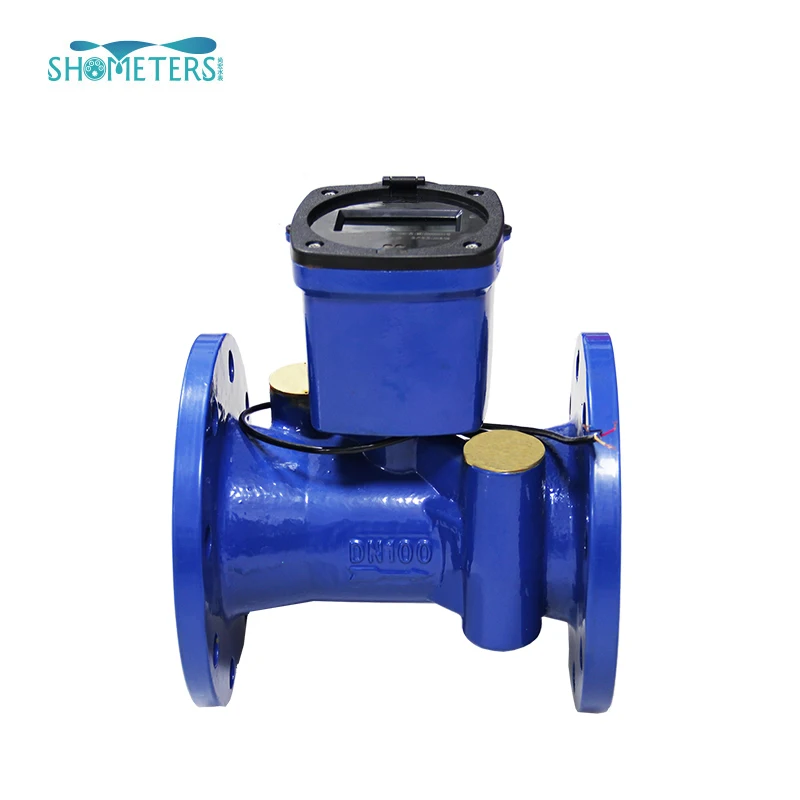

·Double-flange dry-type digital water meter, used in industrial pipelines, suitable for high pressure environment, can choose whether to install pulse output

·With remote transmission system software to support reading and monitoring

·Provide a complete software metering and charging solution

·Bulk Water Meter

Automatic leak measurement

Features

·Material:cast iron/ductile iron

·Applicable scene:home main pipe/apartment main pipe/domestic residential water supply main/leak/treatment plant/domestic residential/agriculture/irrigation/agricultural/irrigation /ground/aquaculture/commercial/general household/residential building/industrial/school/potable

·Technical data conform to international standard ISO 4064.

·communication:rs485 modbus/GPRS

·fitting:Pressure sensor/battery/lcd display/reading device/data logger/Flange set/liquid turbine/user interface unit

Working principle

The meter comprises the quality temperature sensor ,the flow sensor and the calculator. The temperature sensor to measure the temperature of water and the flow sensor to measure the volume of water that flow through the pipelines by the transit time difference.

The two data is sent to the calculator after being collected, the consumption water quantity is worked out, stored and indicated on the LCD finally.

Outline dimensional drawing

Outline dimension

Technical parameter

You need a good solution for water metering---Catering all your needs.

As the China’s professional manufacturer and distributor since 2013, we have developed a comprehensive water meter range and a complete solution for the Commercial ,agriculture, Industrial and Domestic market on Mechanical type water meter and smart water meters. Moving with the changes in technology and precision metering has been the mission of the company since its genesis and we are adding metering that can support water sustainability using. Since 2017, we start the export smart water meters to the whole world, and hope more and more countries and region people can save the water with us together with the smart technology and system. Nowadays, SHMETERS have already become one the main important exporter for water flow meters in China.
We will provide your product to your hand in timely manner and keep you informed of process with your order throughout the whole sales. From the strictly QC inspection, strictly cost control and five star quality services, we believe that you will own a more solution on water metering.
