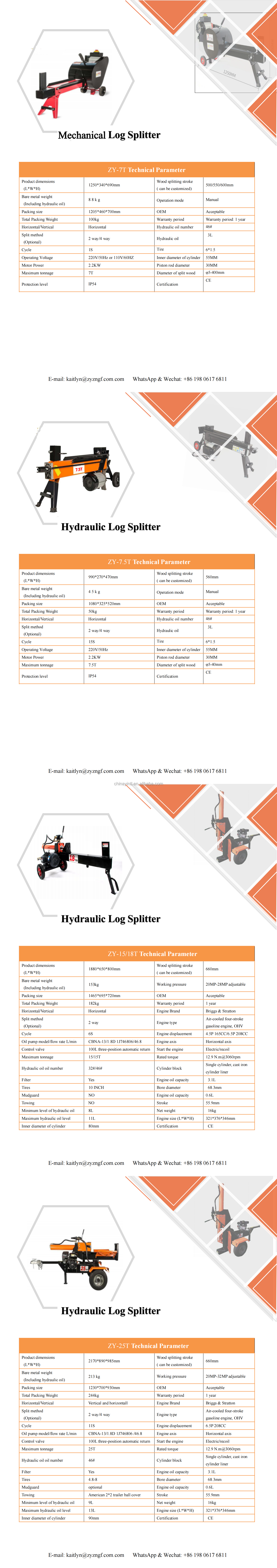

![Hydraulic Log Splitter_00.png]()
![]()
Before operating the log splitter, the Bleed Screw should be loosened by some
rotations until air can go in and out of the oil tank smoothly.
Air flow thru the Bleed Screwhole should be detectable during the log splitter is
under operations.
Before moving the log solitter, make sure the Bleed Screw is tightened to avoid oil
leaking from this point.
The diameter of the log is indicative- a small log can be difficult to split when it has
knobs or a particularly tough fiber.On the other hand ,it may not be diffcult to split logs
with regular fibers even if its diameter exceeds the max. figure indicated above.
Connect the main leads to a standard 230V+10% (50Hz+1Hz) electrical supply which has
protection devices of under-voltage,over-voltage,over-current as well as a residual current
device (RCD) which maximum residual current rated at 0.03A.
SET UP AND PREPARATION FOR OPERATION
1. Bolt the Support Leg to the Log Splitter,lift the log splitter by the handles at both ends
and place it on a 60 - 75cm high,stable, flat and level work surface.
2. Familiarize yourself with the controls and features of this log splitter in the illustrations.
