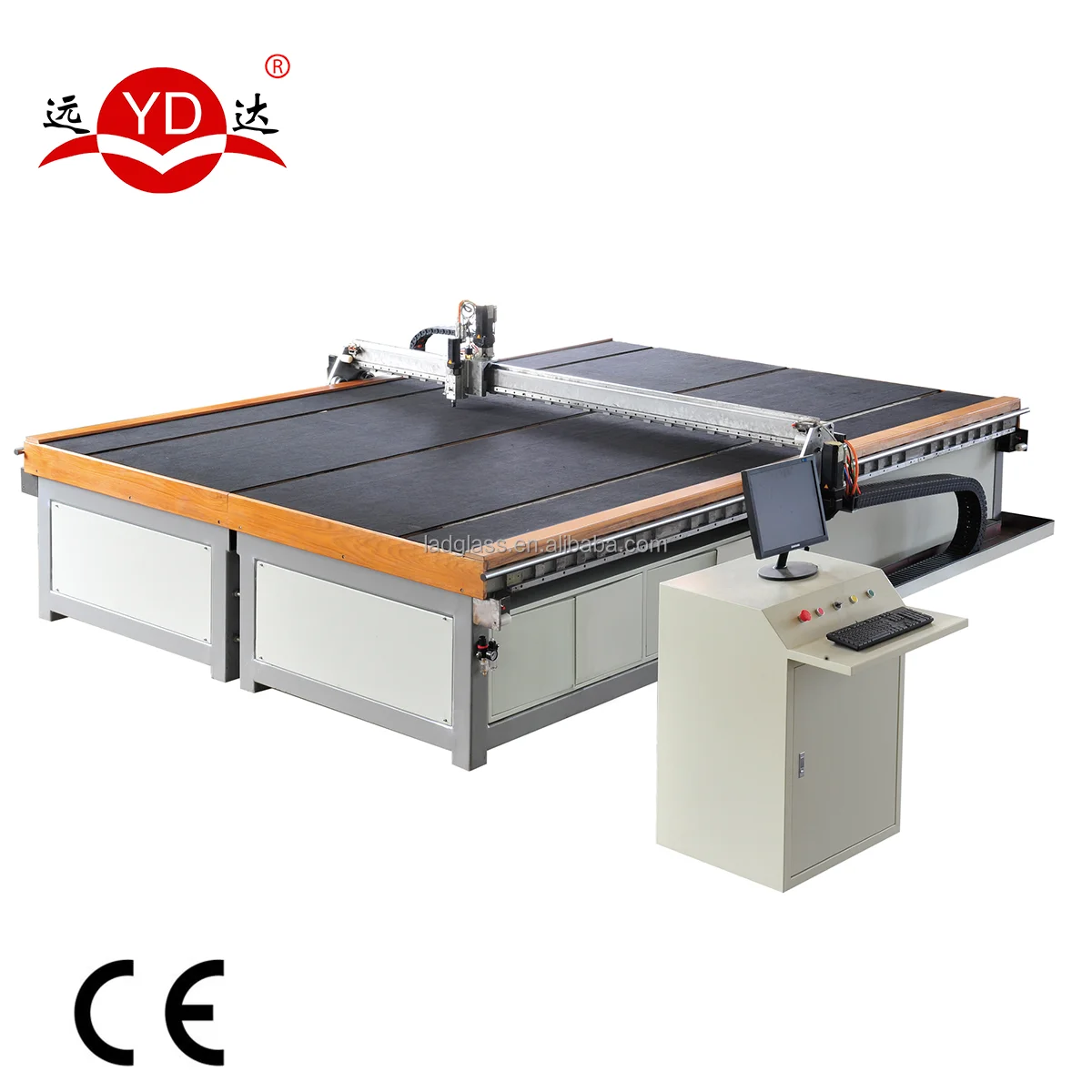

  Full automatic CE Glass CNC cutting machine

* Automatically load glass on table

* CNC fast cutting

* Air float in the machine

* With glass breaking table

* For various shape of glass cutting

* Machine size can be customized

* With the use of editable optimizing software

Full automatic glass cutting machine line

• With 4 loading arms to load glass automatically (single side or double side)


• Each arms has 3pcs suckers


• PC computer control, Microsoft windows interface


• Standard Chinese and English interface


• Controller:America GALI


• Rack/Gear:Japan KHK


• Cutter wheel / wheel clamp: Belgium


•  Low voltage electric parts: Schneider (France)


•  Optimize software


• Air float table for easy move

Machine specification:

Glass loading:

• Max loading size:4200*2800mm


• Loading glass thickness:3~19mm


• Fastest cycle loading time:40~50S


• Max loading depth:700mm


• Max loading weight:900KG


• Single side(double side) loading bars: 4 arms


• Suckers on each arms: 3 pcs


• Installation power:8KW


• Air compressor:0.3Mpa


• Vacuum pressure:-70~90Kpa(adjust by glass thickness)

Glass cutting:

• Max cutting glass layout: 4200*2800mm


• Working table height: 900±50mm


• Glass thickness: 3~19mm


• Linear parallel: ≤±0.20mm/m


• Diagonal accuracy: ≤±0.25mm/m(The above accuracy is base on glass before breaking)


• Cutting bridge speed: 0~280m/min(can be adjusted)


• Cutting bridge acceleration: ≥3.0m/s²


• Cutting head speed: ≥150m/min


• Cutting head acceleration: ≥6.0m/s2


• Cutting head positioning accuracy error: ≤±0.15mm


• Machine total power: 8KW


• Air compressor: 0.6MPA

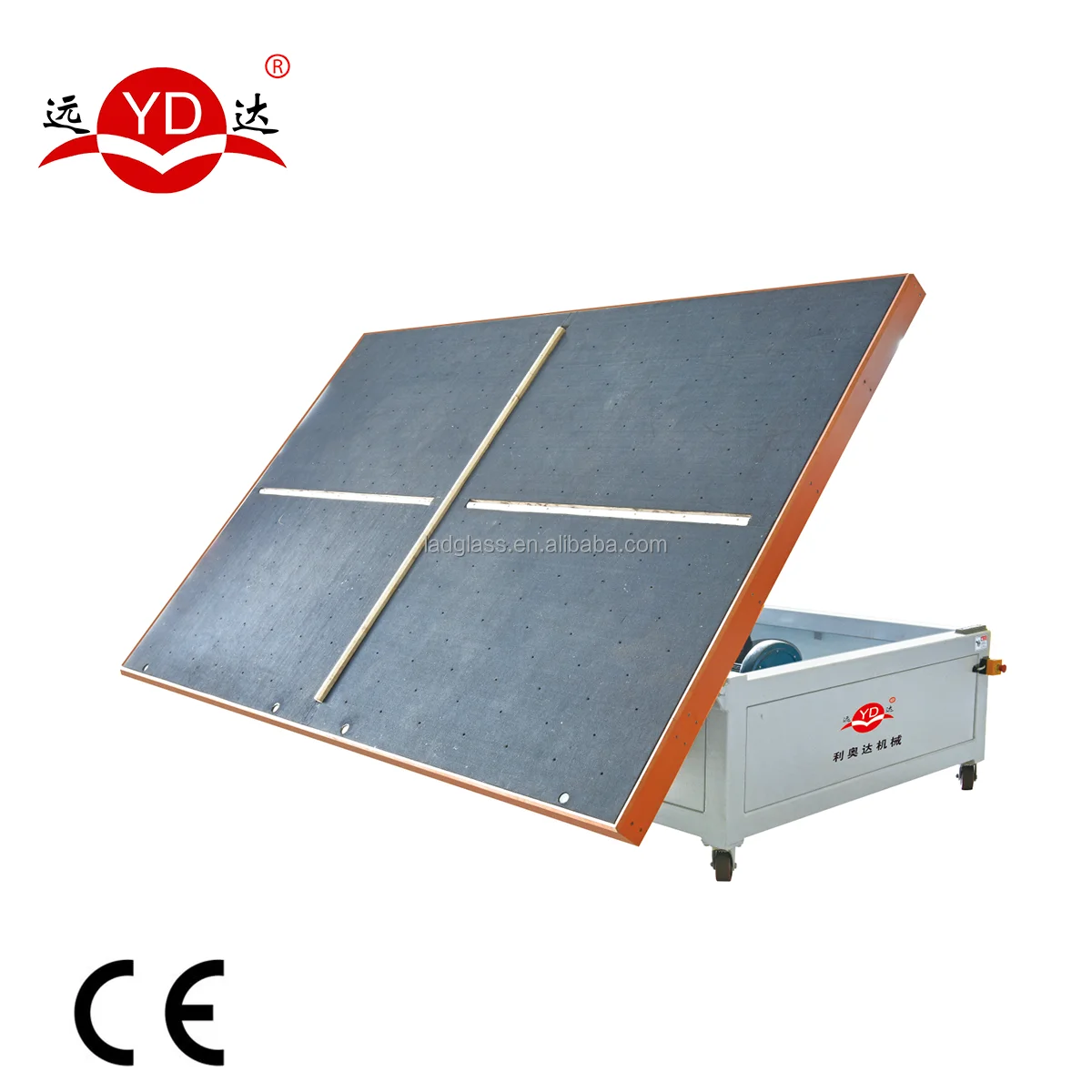

Glass breaking:4200*2800mm

• Max. glass size: 4200*2800mm


• Breaking bars: 1+2


• Air float function, MDF board


• Power: 6.6kw


• Multi point push rod contrl function, convenient and relaiable

Warranty and service:

• 1 year warranty for the machine


• Life time service available for parts and malfunctions


• 24 hours on line service


• Working video and installation video avaible


• Provide English operation manual


• Installation and trainning service

Payment term and shipping:

• By T/T, 30% deposit, balance paid before delivery


• Machine delivery after 30 days production.


• Machine loading in container or sending by  LCL cargo is permit


• Shipping agent will be offer if you required

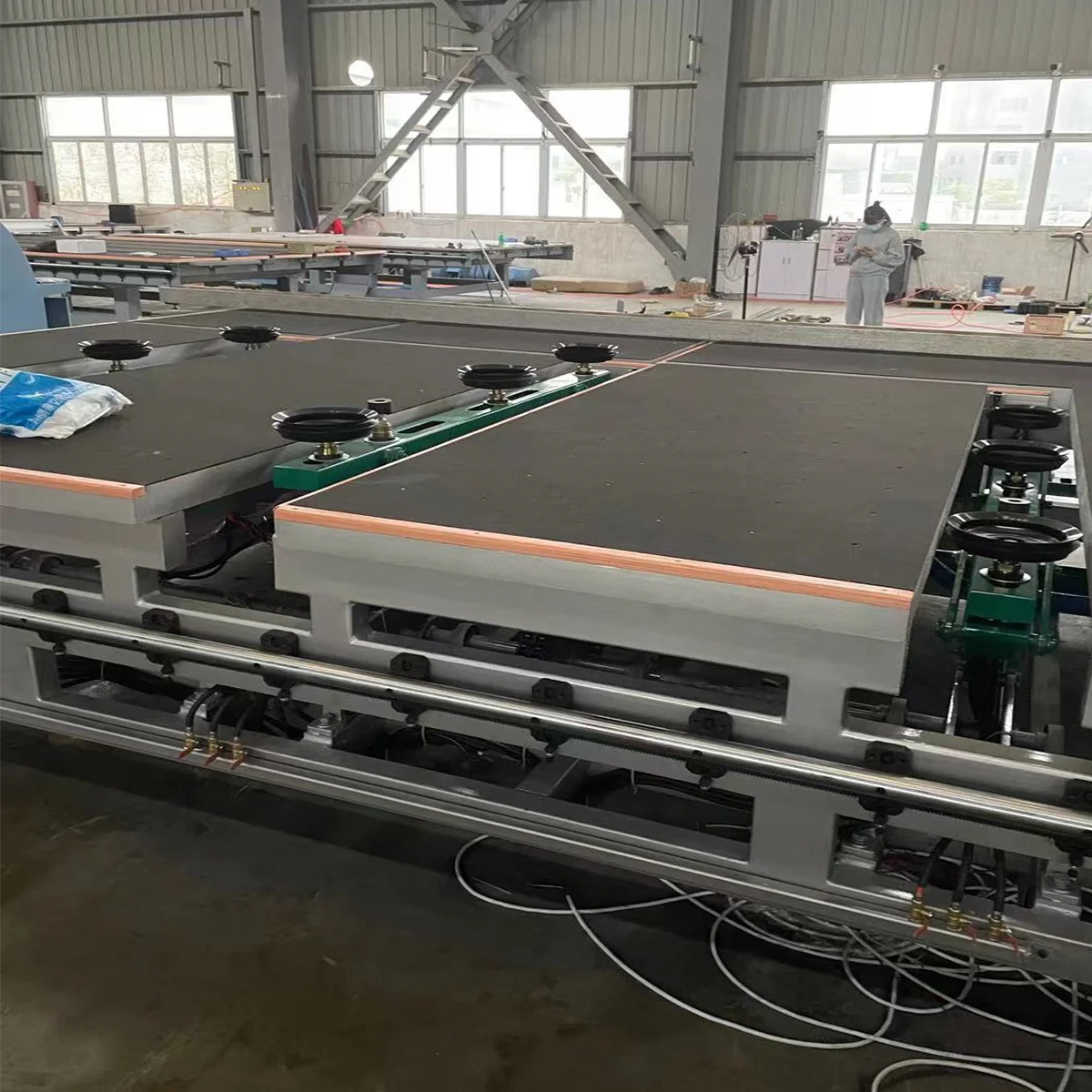

Machine at customer's factory (Uzbekistan)

Company introduction:

CE certifications:

Our customers

How to make an inquiry of glass processing plant?

We will need following information to make an offer and suggestions for your project:

1. Max. and Min. glass size of glass to be processed

2. Glass thickness range, especially the min. glass thickness

3. Glass type

4. Output requirement

5. Glass type
6. Power (Voltage and frequency)

7. Or tell your requirement we will recommand suitable machines to you!
