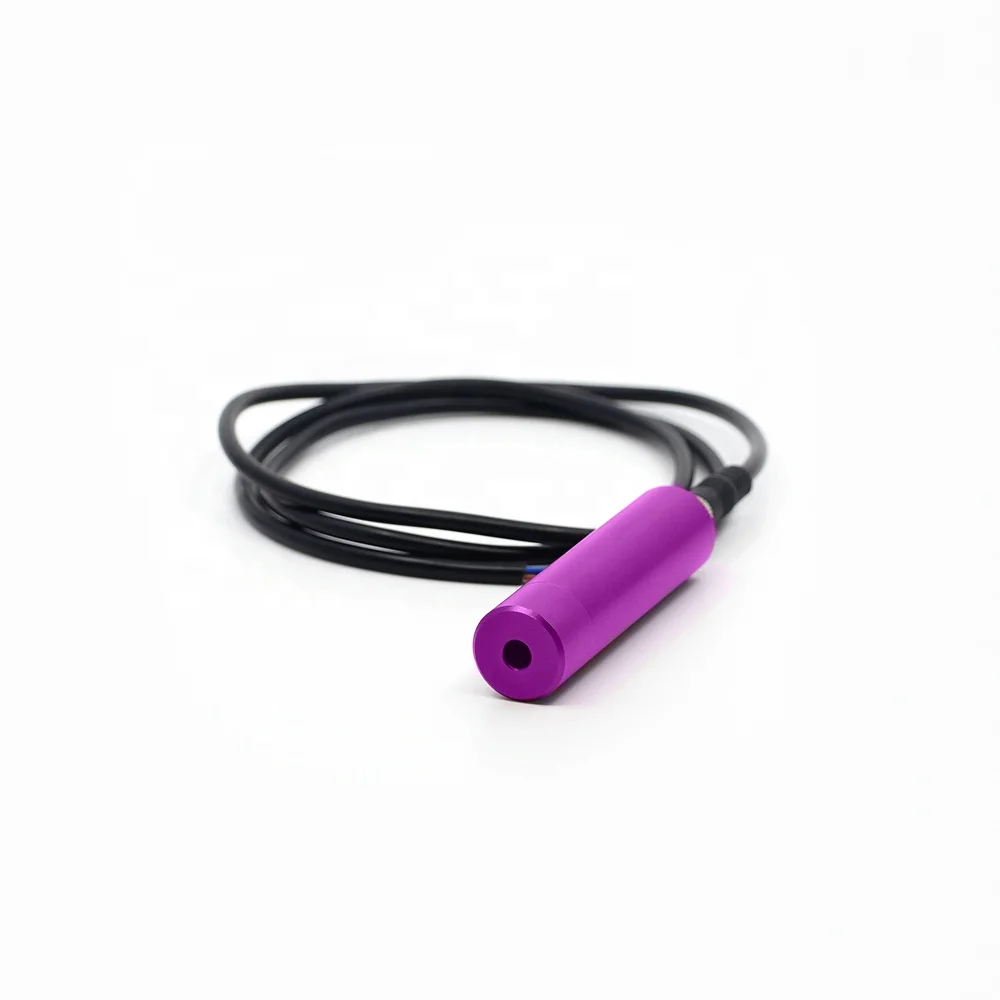

Круглый лазерный модуль DOE красный зеленый точечный 530 нм 635 650 850

Круглый лазерный модуль DOE красный зеленый точечный 530 нм 635 650 850

Категория: >>>
Поставщик: Elite Optoelectronics Co. Ltd.

Цена:2 093,96 ₽ - 4 408,34 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Specification

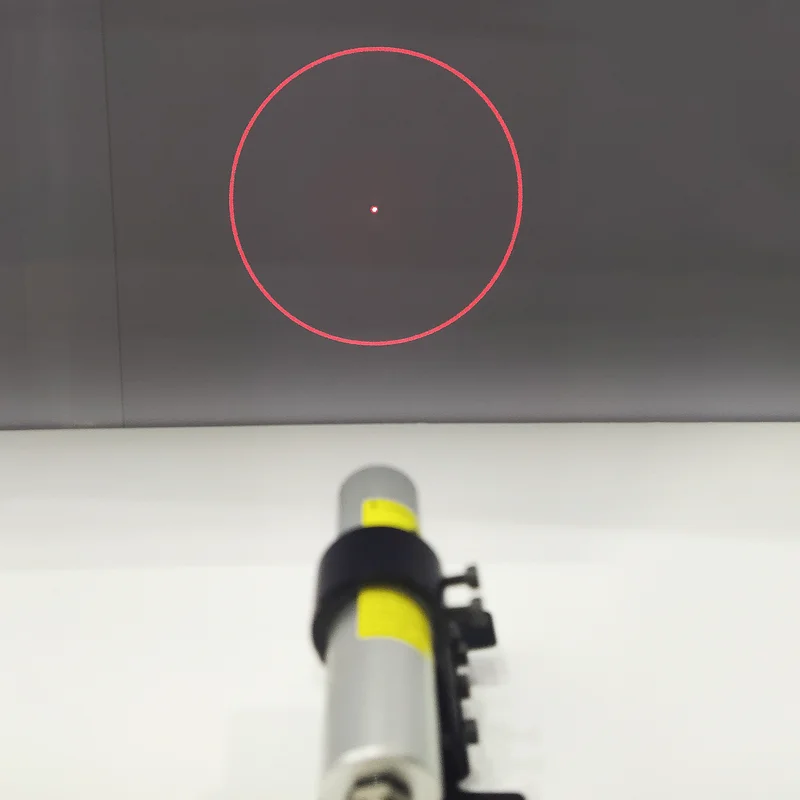

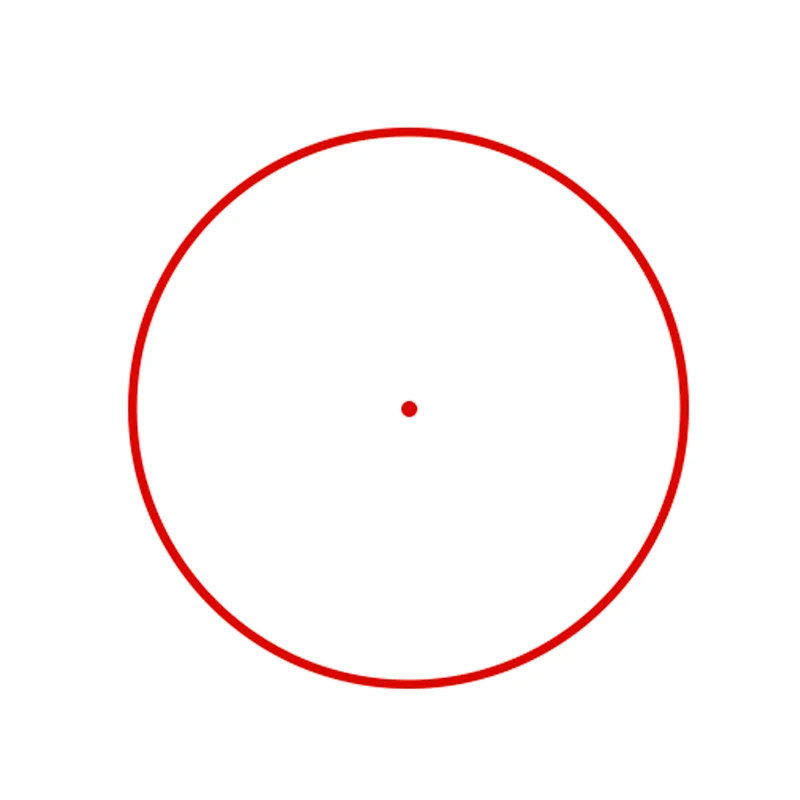

Solid Line Circle

Optimum Wavelength Range

488nm -600nm

Design Wavelength

488nm 520nm 592nm

Output Power(mW)

<150mW

Spatial Mode

Multi Transverse Mode

Pattern Size

@100mm Distance(@ Design Wavelength)

(488nm)a:77.0mm

(520nm)a:6.0mm

(592nm)a:55.8mm

Pattern Angles

(@ Design Wavelength)

α:42.1°(488nm)

α:3.4(520nm)

α:31.2(592nm)

Laser Drive Modes

CW, Analog Modulation, Digital Modulation, Computer Control

ESD Protection

Level 4

Operating Temperature

-20℃ to 60℃

Storage Temperature

-45℃ to 85℃

Diffractive Optical Elements(DOE)

The DOE used in imaging systems has many advantages, such as achromatization and thermal compensation besides the features of saving in mass and volume.

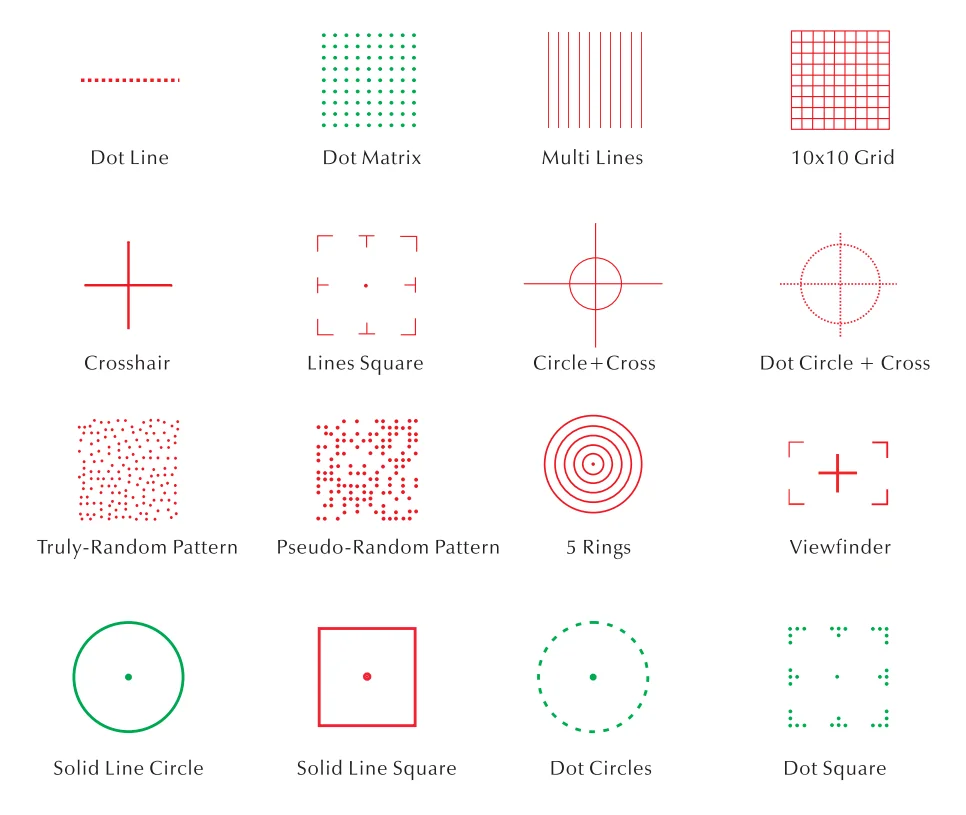

ELITE provides various pattern, such as dot matrix, multi lines, grid, rings, solid line circle, solid line square, etc.

DOE laser module

-Various patterns: can be customized

-MTBF ＞10,000hrs

-Brand new laser diode

-Drive PCB inside

-Static, Surge, and Reverse Polarity Protected

*We support all conventional modes of transportation*

SHIPPING PORTS: XI`AN ,SHANGHAI,BEIJING,TIANJING

FAQs

1. What's the way of shipping
Shipping via FedEx, DHL, TNT, UPS, and EMS.

2. What's the payment method?
Assurance payment on Alibaba

3. What's your MOQ?
1 Piece

4. What's the delivery time?
3 – 7 days for International Shipping

5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.

6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS.

7. How long is the warranty period?
12 months.
