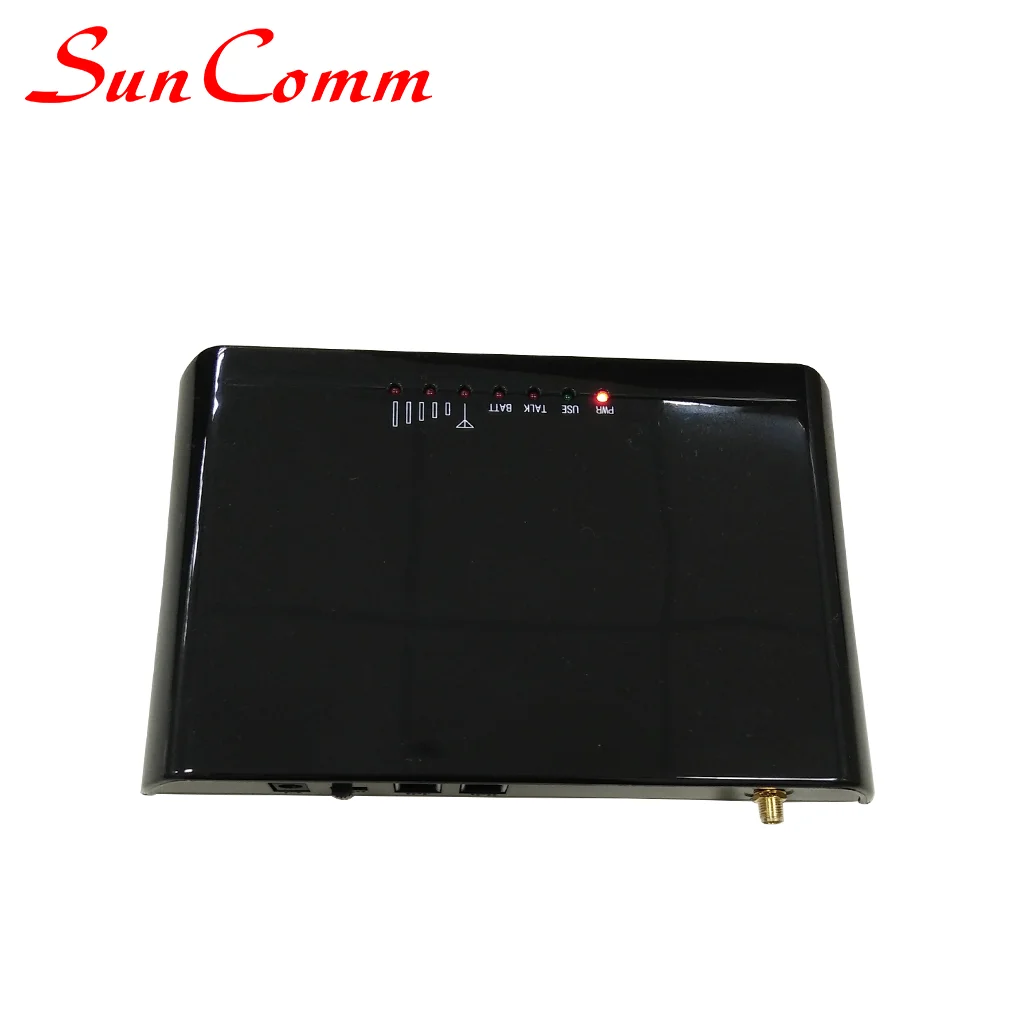

SC 800B 900 1800 МГц gsm fwt/gsm голосовые вызовы с мобильными микрoуправлением слушения
- Категория: Fixed Wireless Terminals >>>
- Поставщик: SUNCOMM TECHNOLOGY CO. LTD.
Сохранить в закладки 10000002242140:
Описание и отзывы
Характеристики

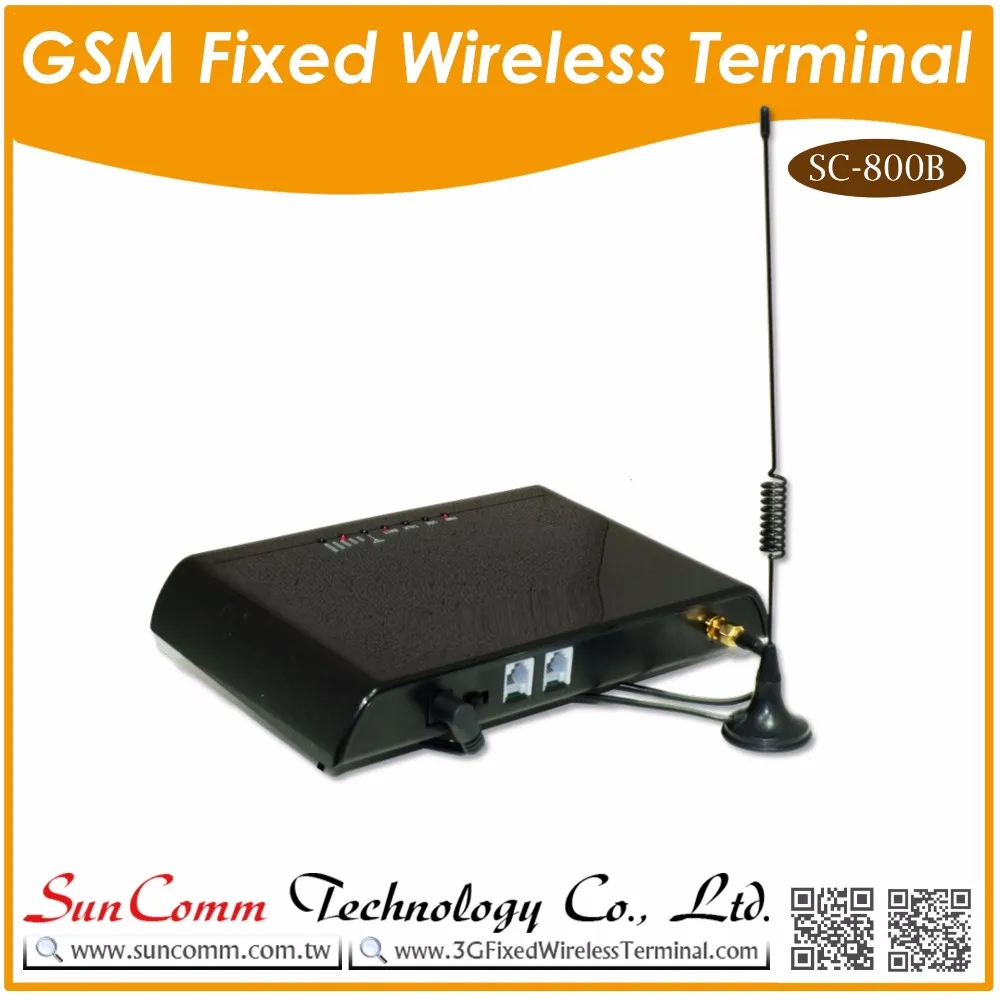

GSM to analog phone line converter GSM FWT Fixed Wireless Terminals
SC-800PB GSM Fixed Wireless Terminal with internal Battery is with LCR (Low Cost Routing) function to choose route automatically.
When you dial out from your SC-800PB, it will check the prefix Number You preset into the device, then it will call out through GSM or PSTN according to the Pre-setting rules and both GSM/ PSTN call in. When you are in phone call through GSM line, and at the same time another call to PSTN No., the caller will hear busy tone, and vice versa.
It will dial out from your mobile without distinguishing if you don’t connect the PSTN Line. and it will dial out from your PSTN without distinguishing if you don’t insert SIM Card or GSM network has no signal.
Product Description
Appearance and Structure
Material | ABS (Acrylonitrile Butadiene Styrene) |
|
Dimension | 170mm×118mm×30mm | Excluding antenna |
Weight | 400g | Weight of Main unit |
Power Switch | Rocker switch |
|
Power Socket | 12V DC input |
|
Phone interface | RJ11 | 2 RJ-11 ports |
Antenna interface | SMA-female |
|

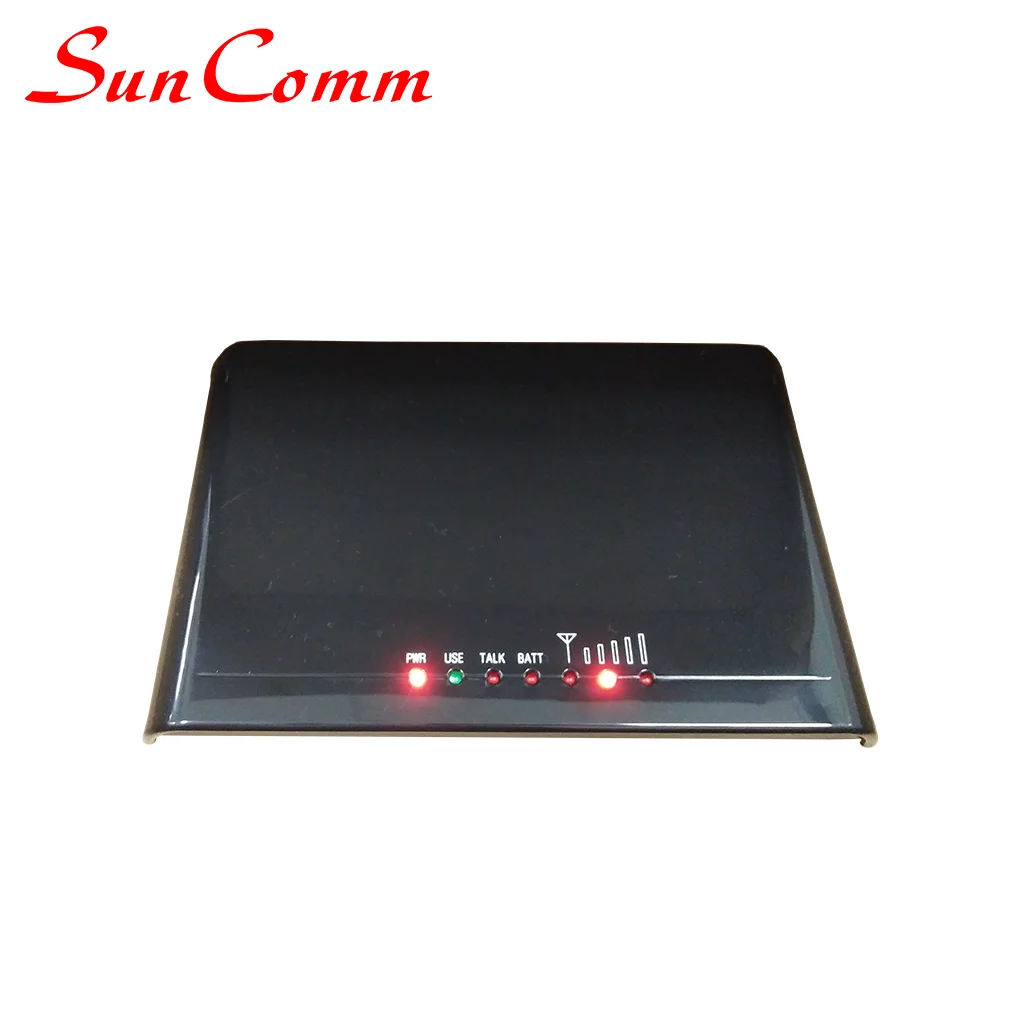

LED display | No.1: Power, No.2.in use, No.3, in talk, No.4, Battery, if have, No. 5-7, Signal strength | From left to right (front side view) |

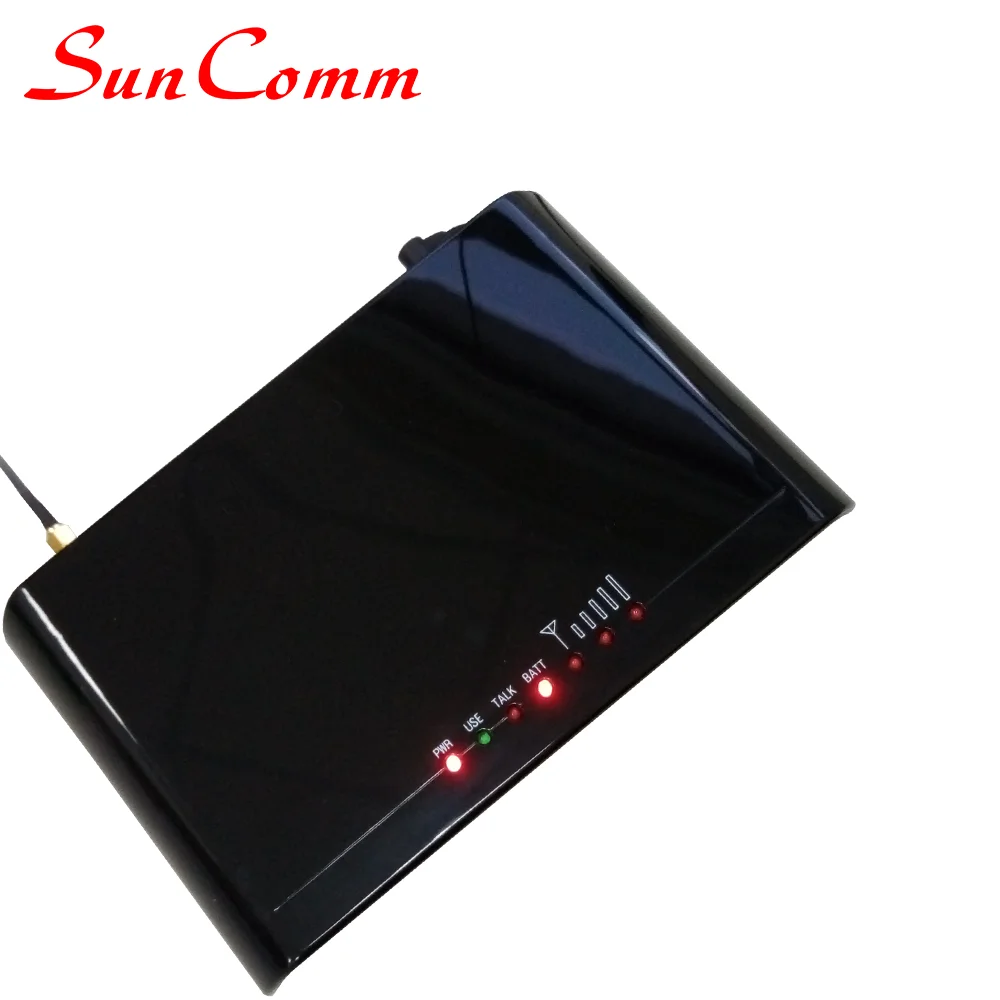

Front side | LEDs display for Signal strength, Power, Working Status, Talking and Battery indicator; |
|

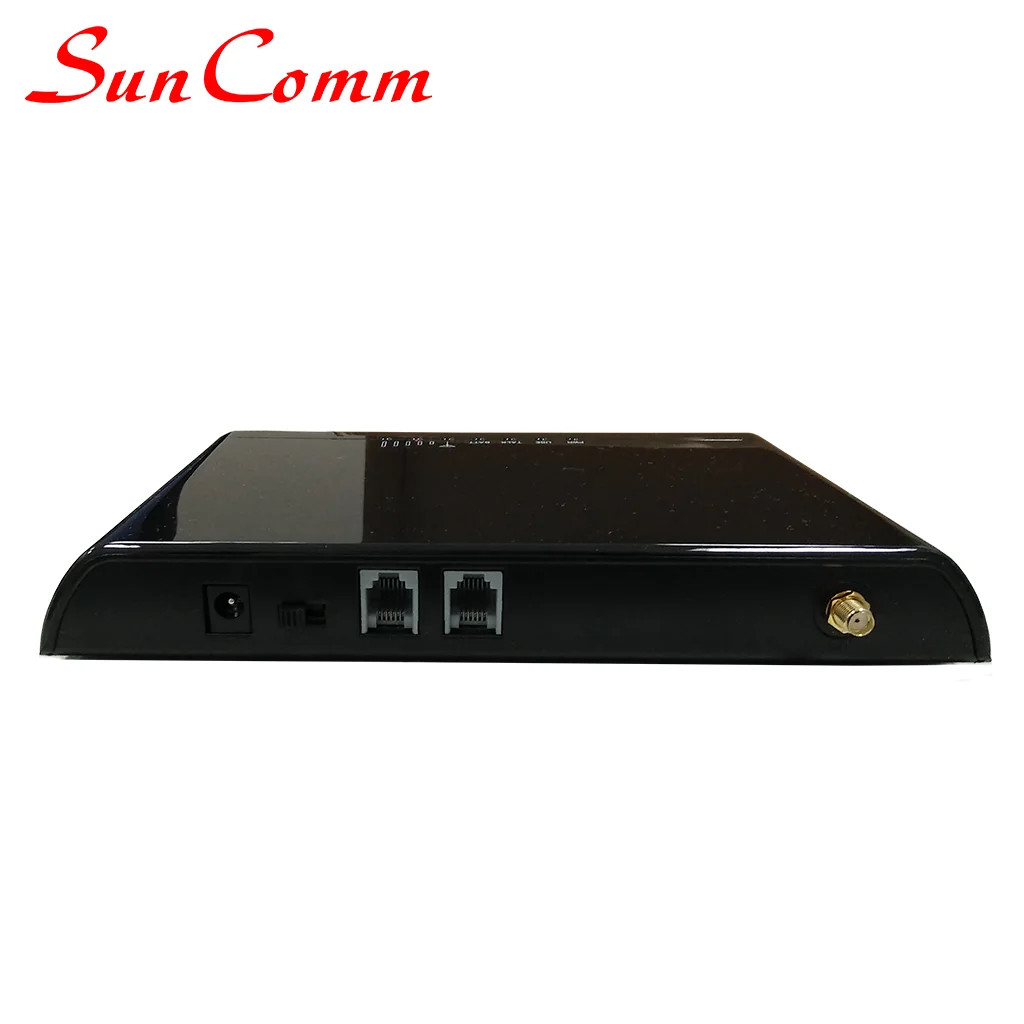

Rear side | 1pcs SMA antenna connectors, 2 RJ-11 output, Power port and switch; |
|
Bottom side | 1pcs SIM card holder slots, you can insert SIM card into the slot. |
|
2. Features and Functions:
♦ Auto-select economic route (Low cost routing-LCR function)
♦ GSM isn’t ready, call will be forced to dial out from PSTN.
♦ When not connecting to PSTN line, GSM will provide the forced dial-out function
♦ Simple to install and easy to maintain
♦ IMEI changeable
♦ Steady module and reliable design ensures good performance
♦ Provide optimized circuit directly connecting the exchange device for extensions.
♦ Compatible to most telephones, PBX device.
♦ Strong signals with high gain antenna
♦ Attractive plastic casing
♦ SIM card supported (1.8V,3V)
♦ Caller ID display
♦ Provides reversal polarity signal for metering
♦ No noise and clear voice
♦ Suitable for wide voltage range and low power consumption
♦ Suitable for all kinds of weather and environment
♦ RJ-11 ports (1 FXO for PSTN line and 1 FXS port)
♦ Locking PIN / network (optional)
4. Specifications:
♦ Air interface standard: GSM850/1900Mhz, 900/1,800Mhz phase 2+ full band
♦ Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
♦ Channel space: 200Khz
♦ User line, bell signal: in line with GB/T15279
♦ Max power: 0.25W / 0.5W
♦ Consumption:
a) Immobility: less than 25mAh
b) Transmission: less than 400mAh
♦ Sensitivity: ♦ 105dB
♦ Dial tone frequency: 450MHz (standard)
♦ Surrounding temperature:- 10℃ ~ +40℃
♦ Relative humidity: 45% ~ 90%(without frost)
♦ Atmosphere pressure: 86 ~ 106KPa
♦ Environment noise: <60dB
♦ Antenna amplifying: 3.5dB (omni directional),12dB(certain direction /chosen direction)
♦ AC power: DC 10V~20V
♦ Input: AC100~230V,50 / 60Hz
♦ Output: 12V 1A
♦ Switching type / transformer type AC adapter (optional)
♦ Connector of power:
♦ Dimensions (L × W × H)(average):185 ×135 ×22mm
♦ Weight:
a) FWT: 450g
b) Full set with AC adapter, antennal and box: 750g
♦ Colors: white / black (optional)
♦ Antenna connection: SMA antenna connection

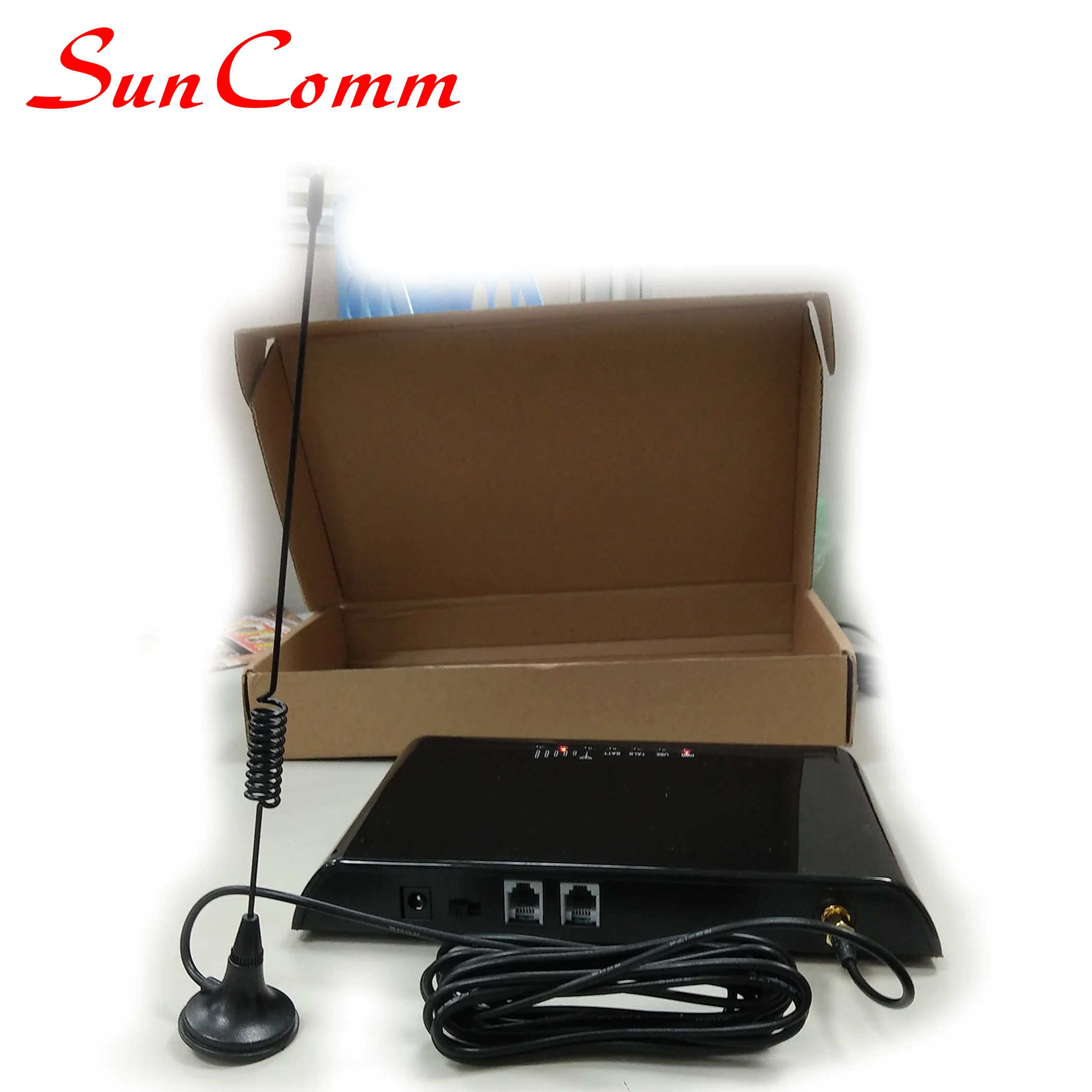

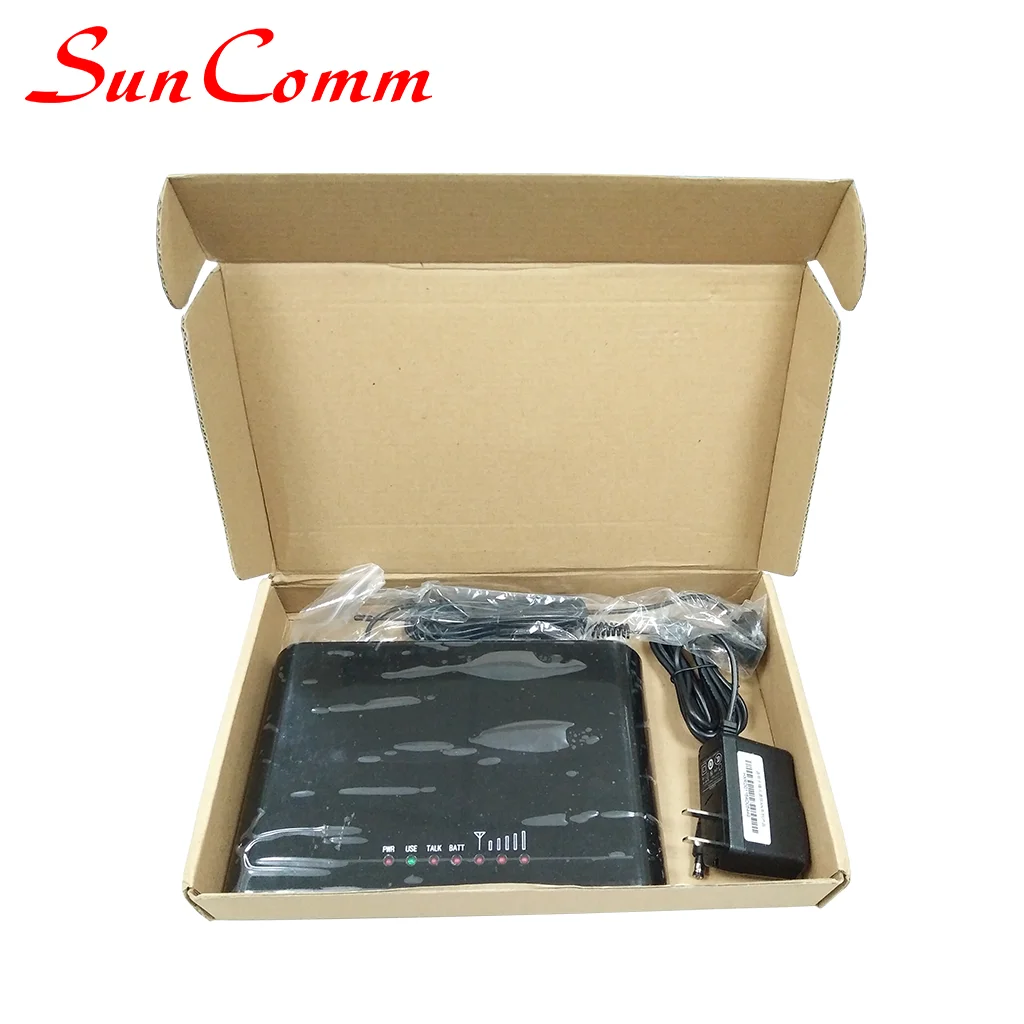

5. Packing List
| Name | Quantity | Remark |
| SC-800B | 1 PCS | Dual band or Quad band |
| Ac-adapter | 1 PCS | AC- 110-240V, DC12V/1A |
| Antenna | 1 PCS | Magnetic Antenna with 3m cable |
| User's Manual | 1PCS | English |
G.W: 0.75kg per unit. 20pcs/CTN, 16kg /CTN,CTN Size: 55cmX34.5cmX32.5cm
Our Factory
Certifications
We also have CE Certifications for SC-368W, SC-9039-3G, SC-396-GP3G/ SC-393-GP3G, SC-9068-GH3G, SCG-31/SCG-31P, SCG-4Qe/ SCG-8Qe, SC-9029-RA,SC-9079-3G, SC-9010-GP/GP2, SC-9029-RA -RoHS certificate ,Reach
Packaging & Shipping
Related Products
Welcome to Visit Us!
About SunComm
Based on the professional team members involving in computer & communication since 2001, SunComm supplies Corded and Cordless phones; Consumer, Communication & Wireless Networking devices, including but not limited to WIFI ATA WITH GSM/4G SIM CARD; 4G/3G/GSM VoIP Terminal, 4G/3G/GSM Gateway, Fixed Wireless Terminal (FWT/FCT), Fixed Wireless Phone (FWP/FCP), 4G/3G WCDMA Wireless Phone, Cellular/Telular Phone, 4G LTE
|
Outdoor Indoor CPE, WIFI IP Phone, Wifi ATA, Wifi AP Router etc.
More than 15 years’ experience in OEM/ ODM manufacturing, Marketing & exporting, which ensure SunComm can always follow closely the latest technology and match market requirement. Our markets include the USA, Latin American, Europe, South East Asia & Middle East Asia, Africa etc.
SunComm believes that cooperation and creation are the only way toward the win-win success with customers. Most products have been registered in target markets by SunComm or customers locally.
We’ve established great communications & cooperation with many business partners in the world. SunComm Technology Co., Ltd. was founded in Taiwan in 2001. SunComm (SHENZHEN) TECHNOLOGY CO., LTD. was established in Shenzhen. We have provided effective service and technical support from Taiwan and China. It is our solid mission to dedicate ourselves to the Highest Quality, Effective Service and Cost Saving Products to business partner to establish a reliable and fruitful long-term cooperation.
How to order?
