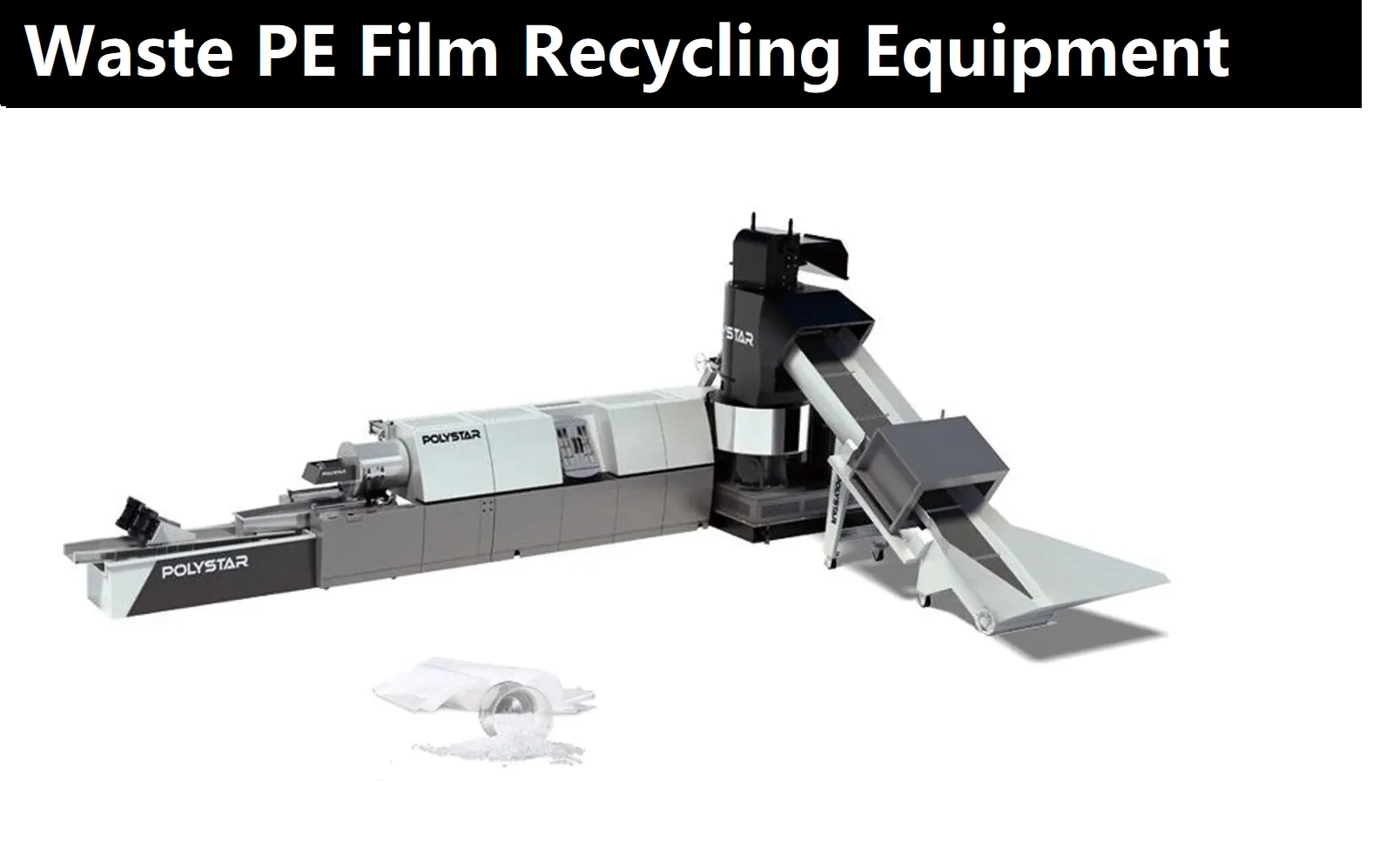

Waste PE Film Recycling Equipment
* One-step direct technology with cutting + extrusion + pelletizing
* Very easy to install, operate and perform maintenance
* In-house recycling at its best
* Output: 100-1200 kg/hr

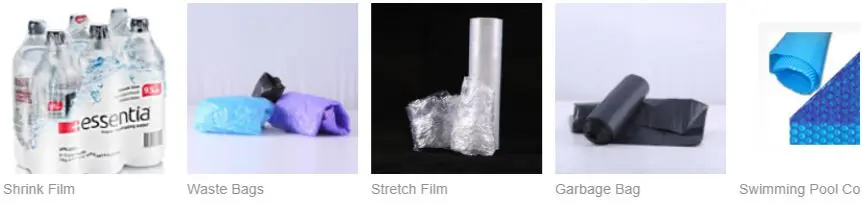

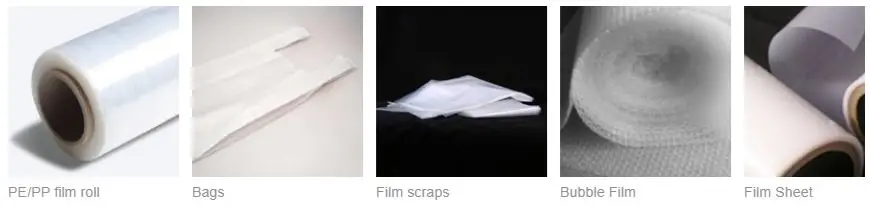

Recycling Materials


Waste PE Film Recycling Equipment
- Printed and non-printed PE, PP film, multi-layered film, shrink film, stretch film, PE and EPE foam.
- Thermoformed PS, PP.
- Soft irrigation pipe.
- Pre-shredded regrind.
- Washed and dried film flakes from washing line.






Model Comparision


Waste PE Film Recycling Equipment
Mode namel: Repro-Flex




Model
Repro-Flex65
Repro-Flex85
Repro-Flex100
Repro-Flex120
Repro-Flex150
Repro-Flex165
Repro-Flex180
Output
80-120 Kg/hr
150-250 kg/hr
300-400 kg/hr
400-600 kg/hr
700-800 kg/hr
850-1000 kg/hr
1000-1200 kg/hr
A
(Standard)
5250
5950
6600
7550
8550
8800
9100
A
(With all option)
6000
7000
8000
9000
10000
11000
12000
B
(Standard)
7300
8200
9400
15000
16000
17500
18000
B
(With all option)
10000
12000
12000
15500
16500
18000
19000
C
2900
3100
3200
3400
3500
3600
3700


The machine layout (picture) is for reference only. The actual layout changes depending on the optional devices (metal detector, centrifugal dryer, nip roll feeder, venting option, filter option and machine cover option) that the customer chooses.


Product info


Simple in Design, Flexible in Operation
Waste PE Film Recycling Equipment
* One-step direct technology with cutting + extrusion + pelletizing
* Very easy to install, operate and perform maintenance
* Fast change between different types of material

POLYSTAR’s Repro-Flex LDPE Printed Baby Diaper Film Pelletizing Machine is designed for reprocessing polyethylene (HDPE, LDPE, LLDPE) and polypropylene (PP) flexible packaging material, printed and non-printed. This cutter integrated pelletizing system of LDPE Printed Baby Diaper Film Pelletizing Machine eliminates the need of pre-cutting material, requiring less space and energy consumption while producing high-quality pellets at a highly productive rate.





How Waste PE Film Recycling Equipment works
Simple in Design . Flexible in operation






Our Advantages


Advantage - Waste PE Film Recycling Equipment


One Step, All-in-One direct recycling

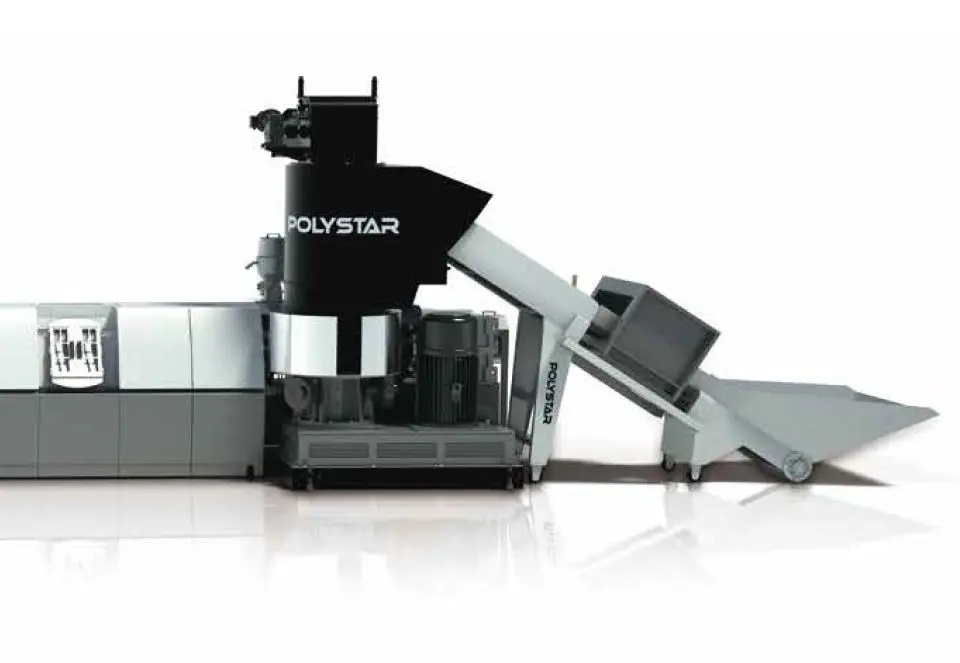

The Repro-Flex Waste PE Film Recycling Equipmentcombines cutting , extrusion and pelletizing into one compact and efficient recycling line. The cutter compactor of Waste PE Film Recycling Equipment prepares (pre-conditions) the material into an ideal condition for the extrusion process and feed the material directly into the extruder with a centrifugal force. Comparing to the conventional recycling machines, this integrated system does not require a separate crusher, and therefore, eliminates the problem of inconsistent feeding (over-feeding or insufficient feeding)


Easy material feeding without the need for pre-cutting

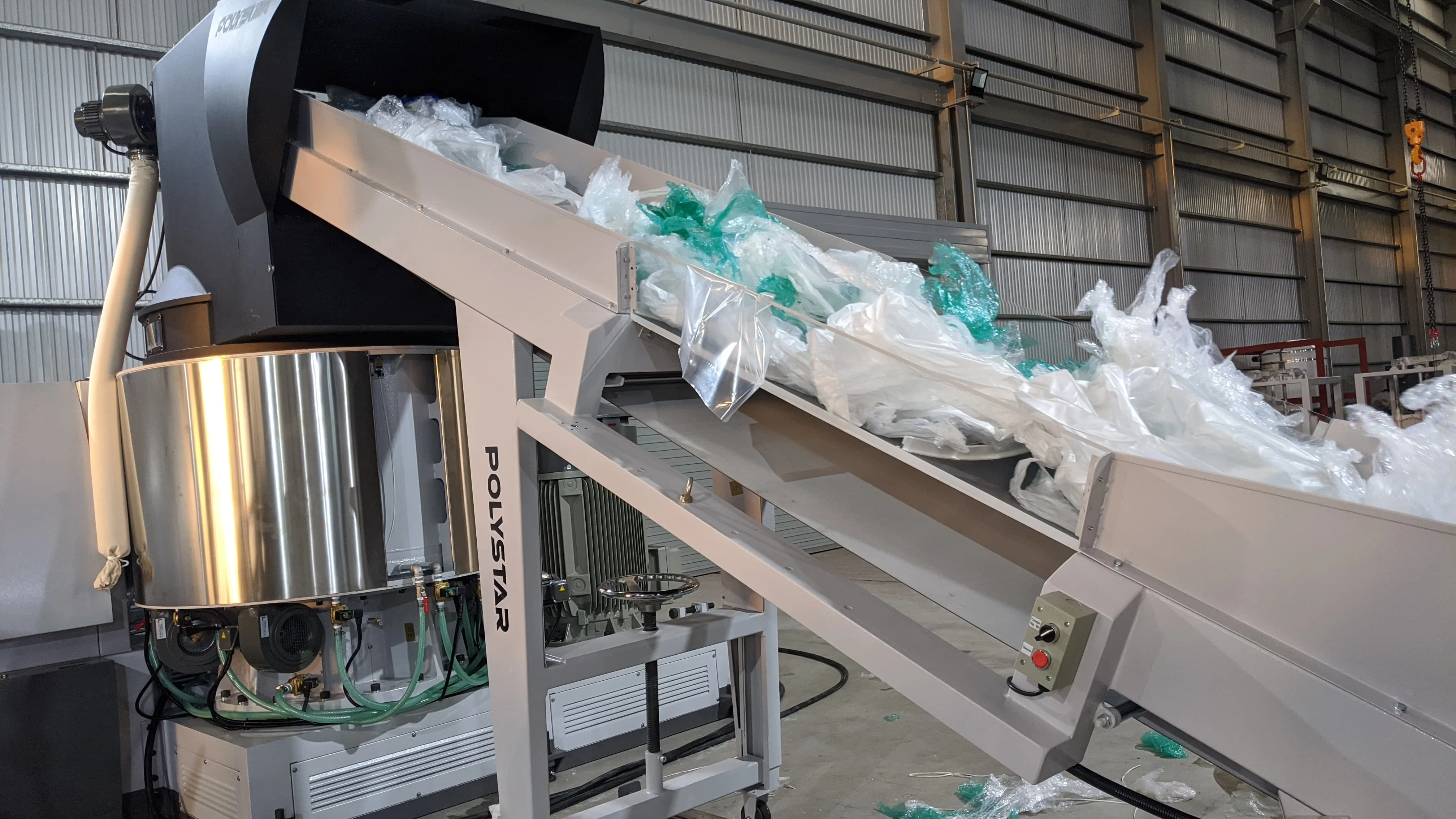

The waste material enters the machine from the belt conveyor (for film scraps and rigid plastic regrind) and the nip roll feeder
(for complete film rolls) at the same time. An extra silo tank can also be added to store and feed pre-washed film flakes. The
feeding is controlled automatically based on how full the cutter compactor is. The cutter compactor then cuts, dries and compacts the material into a semi-molten condition (just below the agglomeration point), which is optimal for the extrusion process that follows. The cutter compactor then feeds the material directly and consistently into the extruder screw.


Higher output capacity
The integration of the cutter compactor and extruder ensures extremely fast and stable feeding, the tangentially connected extruder is continuously filled with pre-compacted material. This results in a much higher production output comparing to other types of recycling systems on the market.

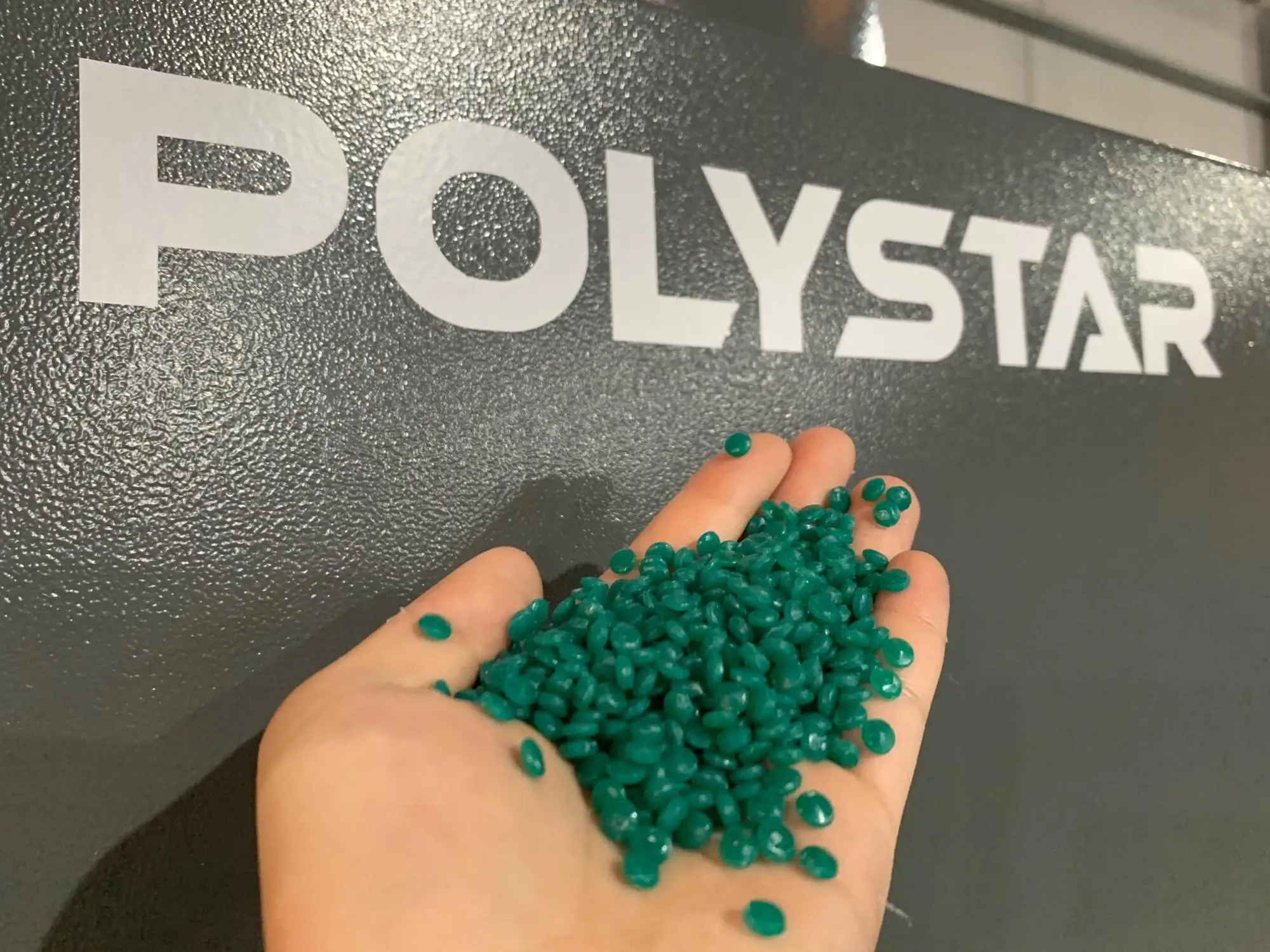

Higher pellets quality

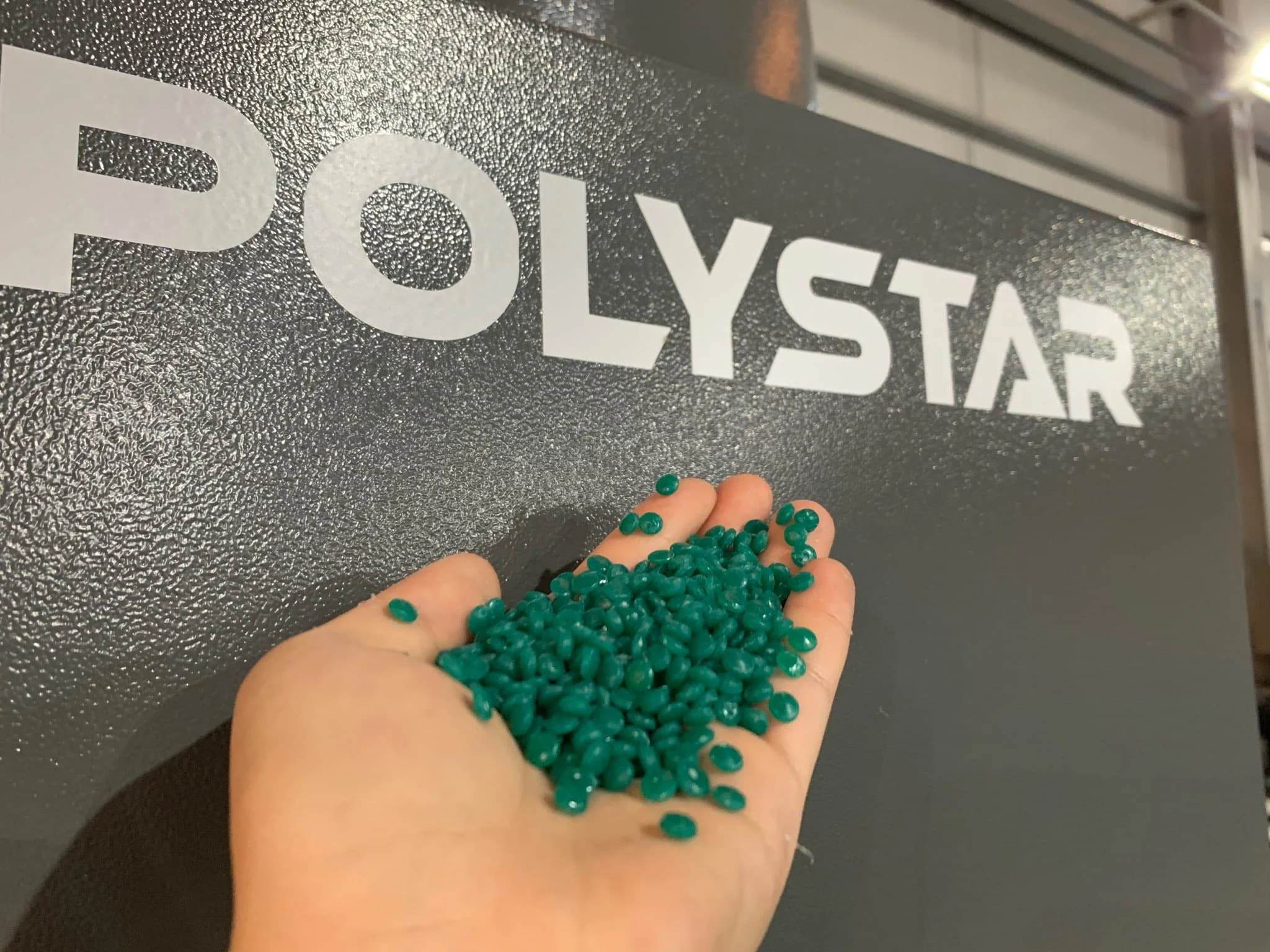

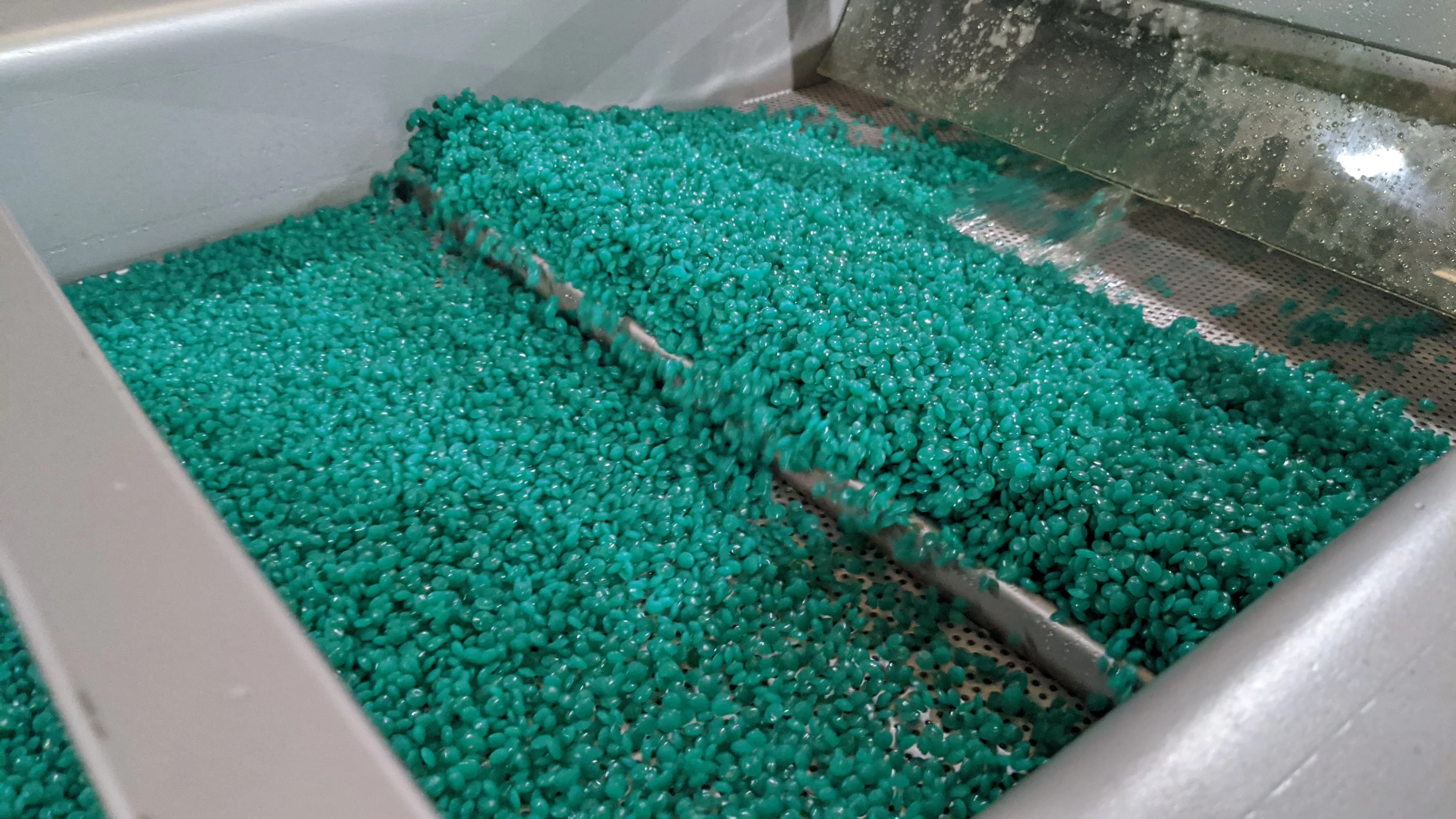

The stable material feeding together with the hot die face pelletizer produce round-shaped, uniformed size pellets that are higher in value and optimal for reproduction (extrusion processes).



Suitable industry
Waste PE Film Recycling Equipment






Work with POLYSTAR
Waste PE Film Recycling Equipment






An experienced market leader in the recycling field, especially for the recycling of packaging film
* More than 1,700 Polystar plastic recycling machines have been installed worldwide since 1988
* Proven success and positive feedback from satisfied customers in 103 countries
* Flexible, personalized machine design to meet your specific requirement and factory layout
* Top quality components used for the machines: Energy saving and high performance motors
* Cost-effective machine: Lower investment cost for a high quality and durable machine



Worldwide Presence
Waste PE Film Recycling Equipment

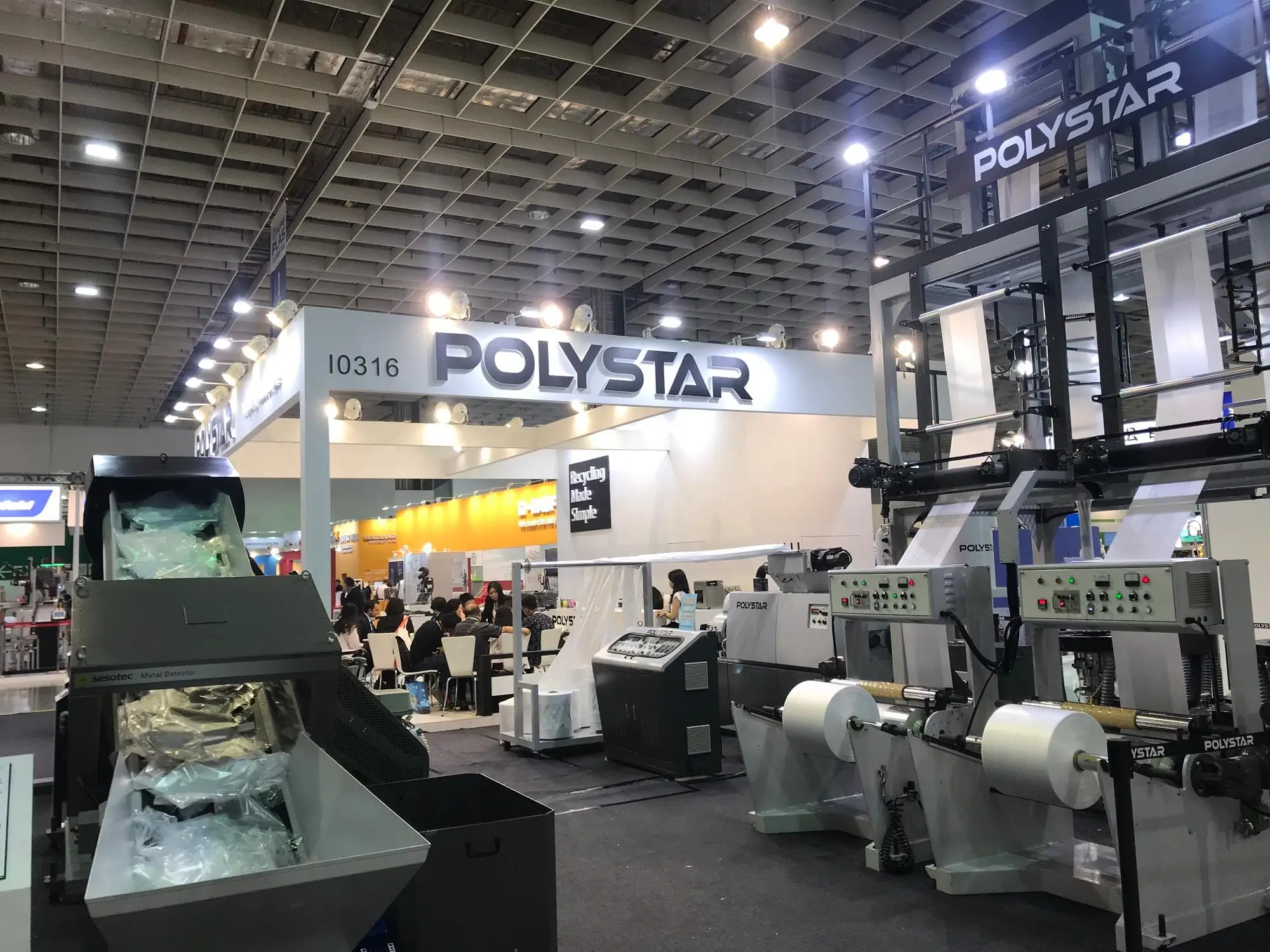

Exhibition


Find POLYSTAR Waste PE Film Recycling Equipment in worldwide exhibitions.








Contact POLYSTAR



POLYSTAR Official Website:
https://www.polystarco.com/en/products_i
_Plastic_film_recycling_machine.html

POLYSTAR Youtube Channel:
https://www.youtube.com/user/Polystarco

POLYSTAR Email:
sales@polystarco.com

Contact us for more info of Waste PE Film Recycling Equipment


Recommend Products


Model Name: Repro-Print
Cutter compactor recycling machine for processing up to 95% printed surface material.
Model Name: Repro-One
Single shaft shredder integration for one-step process of PP raffia and hard-to-grind material PP raffia, woven, non woven, FIBC/jumbo bags. Blown and cast film star-up lumps, film scraps.
Model Name: Repro-Direct
A flexible recycling line for both hard and soft material
