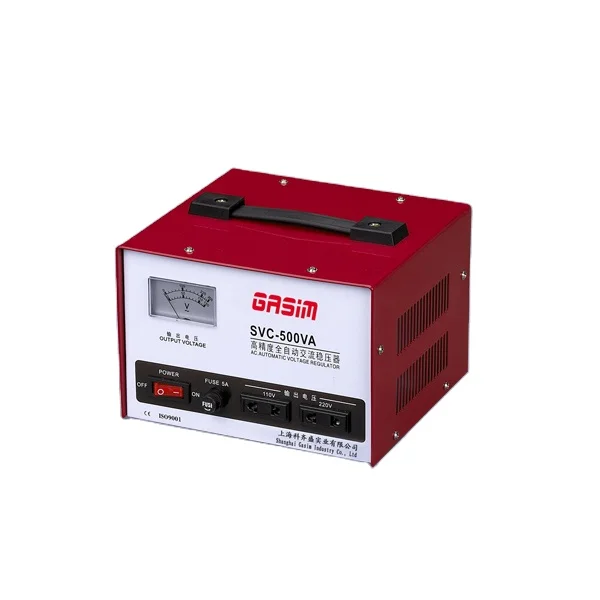

Малый размер 220 ва 1 кВт 230 В в AC SVC стабилизатор регулятора напряжения AVR
19,80 $ - 22,45 $
Полипропиленовая смазка 520*470*370 мм устройство для сбора жира в ловушке OV 0 75 50 автоматическая сборка кафе
- Категория: >>>
- Поставщик: StroiSnabResurs LLC
Сохранить в закладки 10000002779366:
Описание и отзывы
Характеристики
Product Description
What is a grease trap of the "Auto collection" series? The grease trap for the car wash of the Auto collection series is a special equipment made of polypropylene, which is equipped with an automatic fat collection device, in order to exclude mechanical cleaning of the grease trap, and is also designed to separate fats and eliminate them from wastewater.
The grease trap of the Auto collection series is a sealed plastic container. Separation plates and a removable garbage collection tray are installed inside it. To prevent unpleasant odors from coming out, as well as for ease of maintenance, the grease trap is closed with a lid with clamps and a rubber seal. The grease trap for the car wash of the Auto collection series is equipped with an automatic fat collection device, in order to exclude mechanical cleaning of the grease trap, and is also designed to separate fats and eliminate them from wastewater. Specifications: Capacity, m3 / h-0.75, Peak discharge, l-50, Length, mm-520, Width, mm-470, Height, mm-370, Inlet height, mm-290, Outlet height, mm-260, Pipe diameter-50, Weight, kg-11.8
Advantages of the fat catcher "Auto collection":
- Reliability. Breakdowns are extremely rare
- Saving money. Fat traps of the "Auto collection" series are much cheaper than imported analogues.
- Practically does not require maintenance. Now you do not need to clean the grease trap manually, or spend money on the services of professionals. It is enough just to replace the canister in which fats accumulate.
Technology
The grease trap of the Auto collection series is a sealed plastic container. Separation plates and a removable garbage collection tray are installed inside it. To prevent unpleasant odors from coming out, as well as for ease of maintenance, the grease trap is closed with a lid with clamps and a rubber seal.
- Saving money. Fat traps of the "Auto collection" series are much cheaper than imported analogues.
- Practically does not require maintenance. Now you do not need to clean the grease trap manually, or spend money on the services of professionals. It is enough just to replace the canister in which fats accumulate.
Technology
The grease trap of the Auto collection series is a sealed plastic container. Separation plates and a removable garbage collection tray are installed inside it. To prevent unpleasant odors from coming out, as well as for ease of maintenance, the grease trap is closed with a lid with clamps and a rubber seal.
The scheme of the grease trap for the car wash of the "Auto collection"series
The principle of operation
The principle of operation of the Grease trap of the "AvtoSbor" series is as follows. Waste water, flowing through the inlet pipe, enters a removable tray, in which large garbage is separated.
Then the water flow enters the separation chamber of the grease trap. Here, fine solid particles are deposited and non-emulsified fats and oils are enlarged.
In the settling chamber, the fat that has accumulated on the surface of the water is collected from the rotating shaft using a scraper. Then, through the gutter, it enters a free-standing waste canister. After the canister is filled, it can be easily replaced with a new one.
And as a result, the purified water enters the general sewer network through the distribution pocket through the discharge pipe.
Mounting
It is recommended to install the grease trap of the Autosbor series by a qualified specialist.
The grease trap is installed on the floor under the washing bath or near it, in a convenient place for maintenance.
Recommended procedure for installing a grease trap:
1. Install the grease trap on the site planned for installation.
2. Disconnect the sewer at the place where the grease trap will be connected.
3. Connect the corrugation of the washing bath with the inlet pipe of the grease trap.
4. Connect the discharge pipe of the grease trap and the drain point to the sewer with a sewer pipe.
5. Open the faucet in the washing bath and fill the grease trap with water.
6. Check the connection points of the grease trap for the absence of leaks.
7. Connect the grease trap to the 220 V network (via the power supply and the timer socket).
The auto-assembly operation mode is set using a timer. To do this, turn the dial of the timer socket clockwise so that the pointer stops at the mark with the current time. The clock is marked along the edge of the disk in 24-hour format. Each division between the digits corresponds to 15 minutes.
It is necessary to set the switch of the socket-timer to the symbol "clock".
For the effective operation of the car assembly, we recommend turning on the device for 15-30 minutes at the end of the shift. This is necessary so that a large amount of water does not get into the fat container.
The timer is set by pressing one segment located around the dial (which corresponds to turning on the auto assembly for 15 minutes daily).
The frequency of switching on the fat collection device should be no more than 3 times a day.
The time of continuous operation of the car assembly can not exceed 30 minutes.
The grease trap is installed on the floor under the washing bath or near it, in a convenient place for maintenance.
Recommended procedure for installing a grease trap:
1. Install the grease trap on the site planned for installation.
2. Disconnect the sewer at the place where the grease trap will be connected.
3. Connect the corrugation of the washing bath with the inlet pipe of the grease trap.
4. Connect the discharge pipe of the grease trap and the drain point to the sewer with a sewer pipe.
5. Open the faucet in the washing bath and fill the grease trap with water.
6. Check the connection points of the grease trap for the absence of leaks.
7. Connect the grease trap to the 220 V network (via the power supply and the timer socket).
The auto-assembly operation mode is set using a timer. To do this, turn the dial of the timer socket clockwise so that the pointer stops at the mark with the current time. The clock is marked along the edge of the disk in 24-hour format. Each division between the digits corresponds to 15 minutes.
It is necessary to set the switch of the socket-timer to the symbol "clock".
For the effective operation of the car assembly, we recommend turning on the device for 15-30 minutes at the end of the shift. This is necessary so that a large amount of water does not get into the fat container.
The timer is set by pressing one segment located around the dial (which corresponds to turning on the auto assembly for 15 minutes daily).
The frequency of switching on the fat collection device should be no more than 3 times a day.
The time of continuous operation of the car assembly can not exceed 30 minutes.
Maintenance and operation
Maintenance of the equipment consists in the mechanical removal of fat and mechanical impurities from the grease trap.
Maintenance is performed in the following sequence:
1. Open the lid of the grease trap.
2. Remove the removable trays for collecting large debris and fat from the grease trap and clean them from accumulated dirt. After each cleaning, it is recommended to wash the trays with warm water using cleaning agents, in order to prevent the formation of fat and organic deposits.
3. Remove fat from the surface and walls of the separation and settling chambers.
4. Clean the bottom of the chambers from silt, if necessary, clean the inlet and outlet pipes.
5. Clean the shaft and the plate to remove grease from dirt.
6. Insert the removable trays into place.
7. Close the lid of the grease trap.
The frequency of maintenance is set by the operating organization independently, depending on the degree of contamination of the source wastewater and the operating mode of the kitchen, but at least once a month.
For more efficient operation of the grease trap, as well as reducing the amount of accumulated dirt and odor, it is recommended to use biological products. They help to decompose complex organic pollutants into simple and safe substances.
Maintenance of the equipment consists in the mechanical removal of fat and mechanical impurities from the grease trap.
Maintenance is performed in the following sequence:
1. Open the lid of the grease trap.
2. Remove the removable trays for collecting large debris and fat from the grease trap and clean them from accumulated dirt. After each cleaning, it is recommended to wash the trays with warm water using cleaning agents, in order to prevent the formation of fat and organic deposits.
3. Remove fat from the surface and walls of the separation and settling chambers.
4. Clean the bottom of the chambers from silt, if necessary, clean the inlet and outlet pipes.
5. Clean the shaft and the plate to remove grease from dirt.
6. Insert the removable trays into place.
7. Close the lid of the grease trap.
The frequency of maintenance is set by the operating organization independently, depending on the degree of contamination of the source wastewater and the operating mode of the kitchen, but at least once a month.
For more efficient operation of the grease trap, as well as reducing the amount of accumulated dirt and odor, it is recommended to use biological products. They help to decompose complex organic pollutants into simple and safe substances.
Specification
Capacity, m3 / h | 0,75 |
Peak discharge, L | 50 |
Entrance height, mm | 290 |
Exit height, mm | 260 |
Diameter of the pipes | 50 |
Length, mm | 520 |
Width, mm | 470 |
Height, mm | 370 |
Weight, kg | 11,8 |
Recommend Products
Company Profile
"Ecoseti" LLC - is a manufacturer of sewage treatment equipment. We produce oil and sand catchers, sorption filters for gas stations, shopping centers and car washes. We offer a range of grease traps for public catering facilities: from small traps that is beneath your sink to industrial ones. Since last year we've been successfully manufacturing aeration and sewage stations, septic tanks for private households, which purify up to 95%. We also produce plastic swimming pools, fully equipped cellars, tanks for storing liquids and caissons.
The production of equipment began in 2014. Over the years we have been able to gain a reputation not only as a reliable supplier of plastic products, but also as a qualified manufacturer. Therefore, we carefully monitor both the process of goods production and test samples in our own laboratory, but also guarantee the high quality of raw materials because we have been cooperating only with reliable suppliers for years.
Eco-networks. Manufacturer of grease traps, septic tanks, plastic products
The production base of the Ecoset company is located in the city of Cheboksary, Chuvash Republic at the address: 75 Grazhdanskaya str – it is a modern and technological extrusion equipment, processing machines (cutting, welding, extrusion), as well as production including:
- extrusion welding site;- heat treatment site;
- more than 5 assembly sites;
- storage facilities;
- the laboratory.
Contact Information
Похожие товары
Новинка 2021 г., модульный чехол для дивана с принтом молочного шелка, Г-образный шезлонг, угловой чехол для дивана

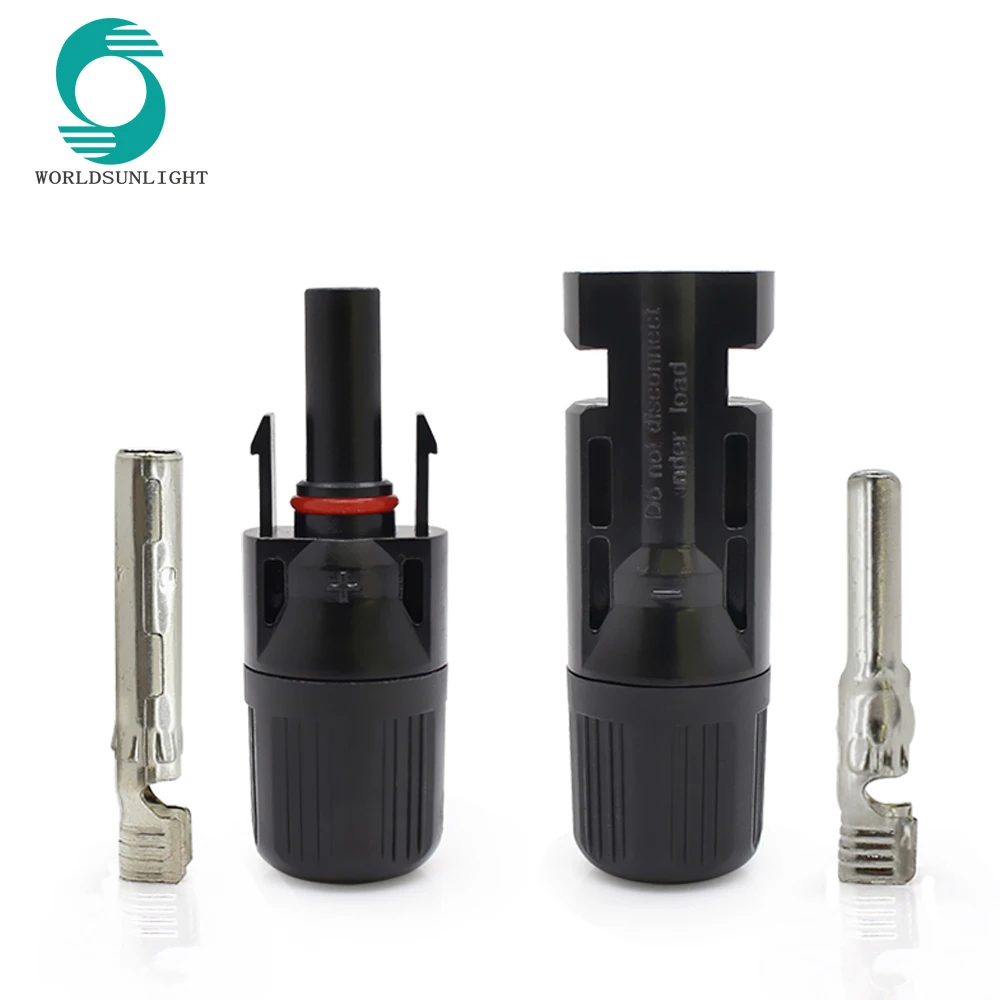

Параллельное соединение PV 30 А, 1000 В, электрическая Солнечная фотоэлектрическая панель, кабель, соединитель
17,10 ₽

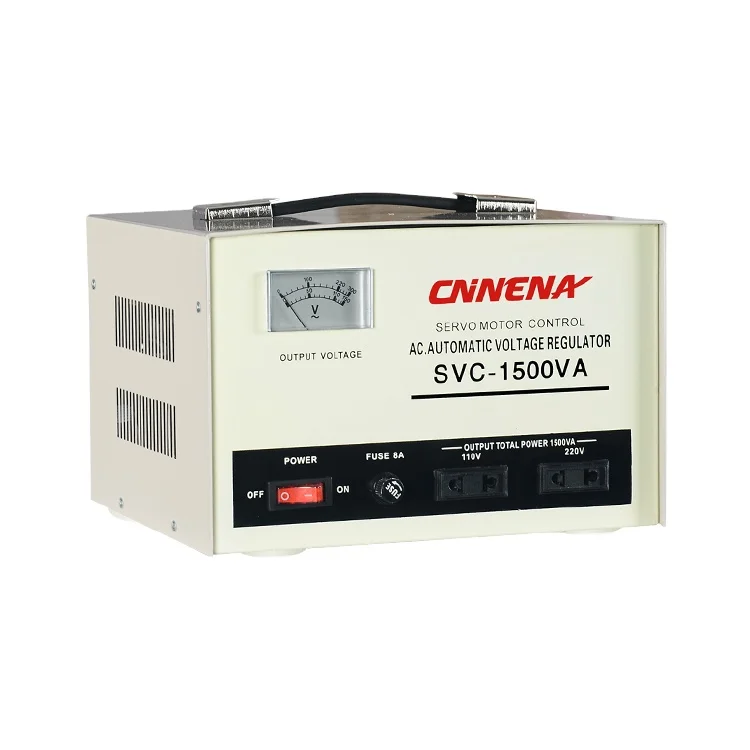

Svc 5000 Вт 220 В Серводвигатель медь AC мощность домашнего использования протектор стабилизатор напряжения
27,30 $

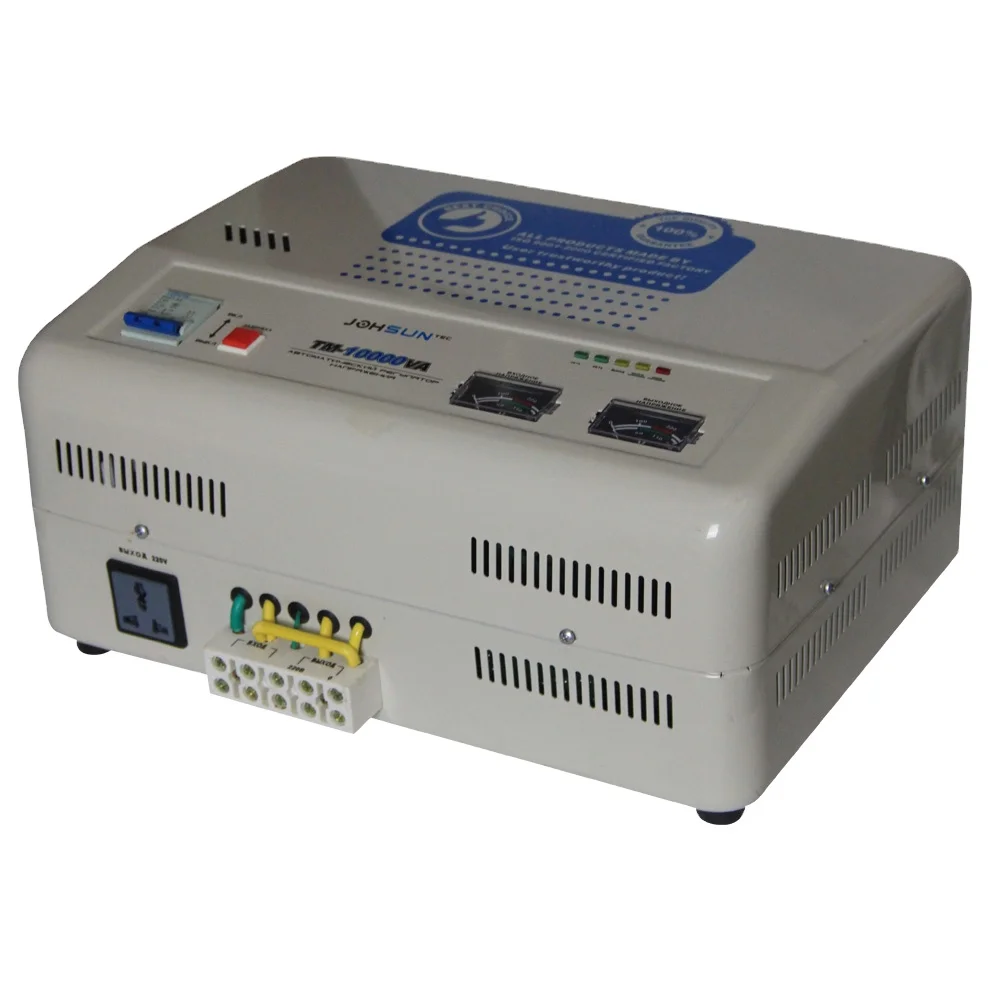

Кондиционер настенное крепление TSD-10KVA 220V для того чтобы придать форму чашки тип автоматический стабилизатор напряжения
