Маршрутизаторы cpe 5g поставка Wi Fi роутеров оригинальный производитель беспроводной маршрутизатор 4g LTE FDD
- Категория: >>>
- Поставщик: Shenzhen Manunited Electronics Co. Ltd.
Сохранить в закладки 10000002859684:
Описание и отзывы
Характеристики
Product Description
Product Name | 5g & WiFi-6 intelligent wireless access router (CPE) |
5G Chip | Qualcomm® Snapdragon™ X55 Modem-RF System |
5G Network Mode | FDD, TDD, SA (standalone), NSA (non-standalone) |
5G Technology | SA, NSA, 5G NR FDD, 5G NR TDD |
4G Technology | LTE FDD, LTE TDD including CBRS support, LAA, LTE Broadcast |
Communication Standard | 3GPP Release 15 |
5G Transmission Rate | 3.4Gbps/250Mbps（Actual rate depends on the operator） |
4G Transmission Rate | 2.0Gbps/150Mbps（Actual rate depends on the operator） |
Antennas Type | built-in 5G/4G main and diversity antennas |

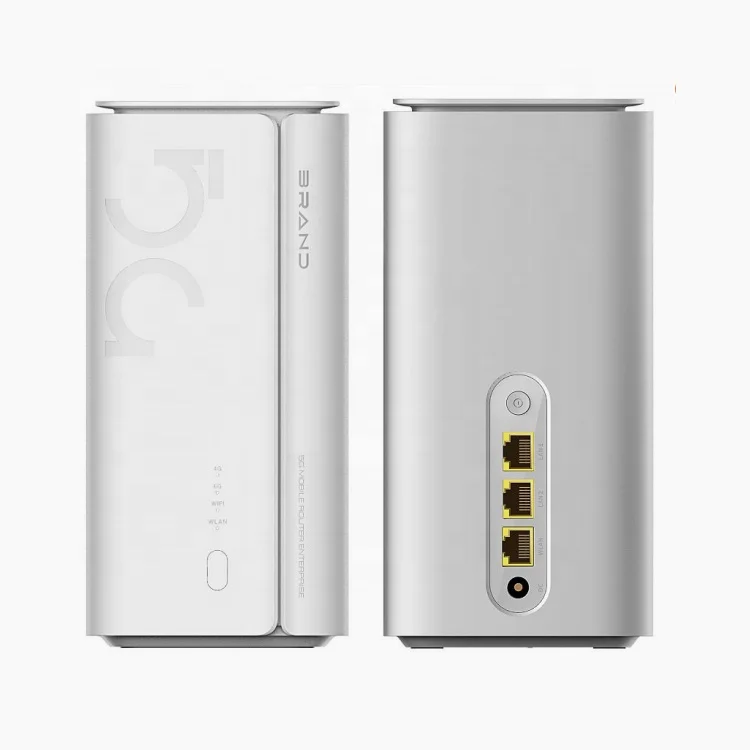

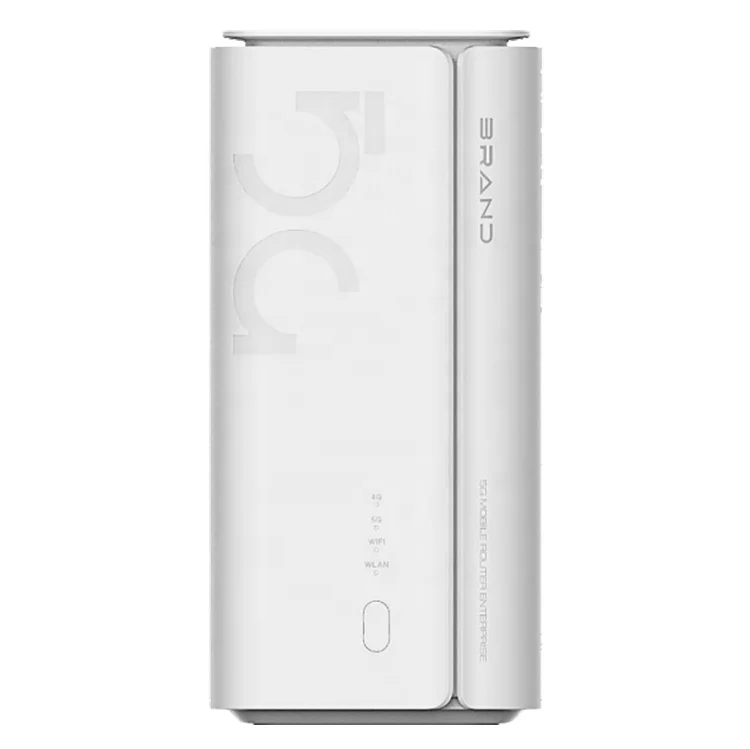

5g & WiFi-6 intelligent wireless access router (CPE) specification
Based on the new hardware platform development, it can meet the growing access needs of mobile
terminals and IOT nodes, and greatly improve the user satisfaction Wireless Internet experience.
Details Images
CPE is fully compatible with NSA / SA dual-mode, in line with the Ministry of industry and information
technology telecom product access standards. Provide up to Gigabit air optical fiber access capability to meet the requirements of the transmission bandwidth requirement of VR / Ar / 4gk / 8K online video stream
technology telecom product access standards. Provide up to Gigabit air optical fiber access capability to meet the requirements of the transmission bandwidth requirement of VR / Ar / 4gk / 8K online video stream
5G Cellular Access
Integrated with Qualcomm snapdragon sdx55 baseband, it provides excellent 5g network access capability. It supports the true 5g
standard of all China Netcom and can access the Gigabit Internet by simply inserting the SIM card.
Integrated with Qualcomm snapdragon sdx55 baseband, it provides excellent 5g network access capability. It supports the true 5g
standard of all China Netcom and can access the Gigabit Internet by simply inserting the SIM card.
Enhanced technology of WiFi 6 (802.11ax)
OFDMA and DL mu-mumi technology can provide more stable and high-speed wireless transmission channel, schedule multiple users to send and receive simultaneously, reduce network delay and improve network utilization efficiency.
More space, more capacity
Dual band 6 space streams, bandwidth up to 3100mbps (600 + 2475), let you enjoy UHD streaming video, real-time online games. At the same time, it can provide more access capabilities of mobile terminals to meet the full scene access needs of future smart home rich nodes.
Product Usage
Packing list
1.5G CPE *1
2.Cat 5e cable *1
3.Power adapter *1
4.Quick Manual *1
Other Parameters
Wireless WiFi
1) RFID： #1: 600Mbps @ 2.4GHz； #2: 2475Mbps @ 5.0-5.8GHz
2) TCM：1024-QAM / OFDMA
3) Peak Connection Performance：Not less than 500 terminals
4) Wi-Fi Standard：WiFi6 Downward Compatibility WiFi5
5) Antennas Type：built-in 6 High Performance Wi-Fi Antennas，Equipped with 12 signal amplifiers
►Routing & Switching
1) Mobile Network（5G/4G）reset（Support of Private Network）
2) Gigabit Ethernet access
3) Cascading Technology：MESH+Hybrid Networking
4) 2.4G/5Ghz WiFi Self-Adaption
5) High Level Firewall
6) MAC Address Filtering
7) WiFi Encryption Authenticated
8) VPN Tunnel/VPN Penetration
9) IPV4/IPV6
10) Wepage/APP Management
11) Firmware Upgrade
► Physical Characteristics
1) Processor：Quad-core ARM Cortex A53 @ 1.0 GHz
2) RAM：16MB Flash + 128MB NAND + 2* 256MB DDR3
3) Network Port：1 Wan/Lan Adaptive gigabit Port、1 gigabit Lan Port、1 2.5G Ethernet LAN Port、1 SIM Card Slot（Nano-SIM）
4) Reset & Lock Button （Multiplex）
5) LED Indicator
– State breathing lamp
– 4G Network Indicator
– 5G Network Indicator
– Internet Indicator
6) Environmental Parameter
– Power Dissipation：<23W
– AC/DC Power：AC：100V-240V 50Hz/60Hz，DC：12V/2A
– Temperature：Operating Temperature：0℃～40℃，Storage Temperature：-20℃～+70℃
– Humidity：5%～95%（non-condensing）
– Size：108X108X216MM
– Weight: TBD
Accessories:
• 5G CPE：1（Standard Configuration）
• Power Adapter：1（Standard Configuration）
•Quick Start：1（Standard Configuration）
• Ethernet Cable：1（Standard Configuration）
1) RFID： #1: 600Mbps @ 2.4GHz； #2: 2475Mbps @ 5.0-5.8GHz
2) TCM：1024-QAM / OFDMA
3) Peak Connection Performance：Not less than 500 terminals
4) Wi-Fi Standard：WiFi6 Downward Compatibility WiFi5
5) Antennas Type：built-in 6 High Performance Wi-Fi Antennas，Equipped with 12 signal amplifiers
►Routing & Switching
1) Mobile Network（5G/4G）reset（Support of Private Network）
2) Gigabit Ethernet access
3) Cascading Technology：MESH+Hybrid Networking
4) 2.4G/5Ghz WiFi Self-Adaption
5) High Level Firewall
6) MAC Address Filtering
7) WiFi Encryption Authenticated
8) VPN Tunnel/VPN Penetration
9) IPV4/IPV6
10) Wepage/APP Management
11) Firmware Upgrade
► Physical Characteristics
1) Processor：Quad-core ARM Cortex A53 @ 1.0 GHz
2) RAM：16MB Flash + 128MB NAND + 2* 256MB DDR3
3) Network Port：1 Wan/Lan Adaptive gigabit Port、1 gigabit Lan Port、1 2.5G Ethernet LAN Port、1 SIM Card Slot（Nano-SIM）
4) Reset & Lock Button （Multiplex）
5) LED Indicator
– State breathing lamp
– 4G Network Indicator
– 5G Network Indicator
– Internet Indicator
6) Environmental Parameter
– Power Dissipation：<23W
– AC/DC Power：AC：100V-240V 50Hz/60Hz，DC：12V/2A
– Temperature：Operating Temperature：0℃～40℃，Storage Temperature：-20℃～+70℃
– Humidity：5%～95%（non-condensing）
– Size：108X108X216MM
– Weight: TBD
Accessories:
• 5G CPE：1（Standard Configuration）
• Power Adapter：1（Standard Configuration）
•Quick Start：1（Standard Configuration）
• Ethernet Cable：1（Standard Configuration）
Packing&Shipping
DHL Fedex shipping
OEM ODM service supported
Company Introduction
Founded in 1997,China Shenzhen, we are a professional EMS company, which provides one-stop or partially turnkey contract electronic manufacturing service(EMS) including PCB board manufacturing and PCB assembly
With our ISO 9001:2008 certified plant, 7 high-speed SMT production lines from Yamaha and sony, to meet customer’s need. Also, we have s strict system for quality control.Each and every PCB board has to be tested via AOI after SMD process. And before DIP soldering, one completed sample is a must to test its function
With our ISO 9001:2008 certified plant, 7 high-speed SMT production lines from Yamaha and sony, to meet customer’s need. Also, we have s strict system for quality control.Each and every PCB board has to be tested via AOI after SMD process. And before DIP soldering, one completed sample is a must to test its function
Похожие товары

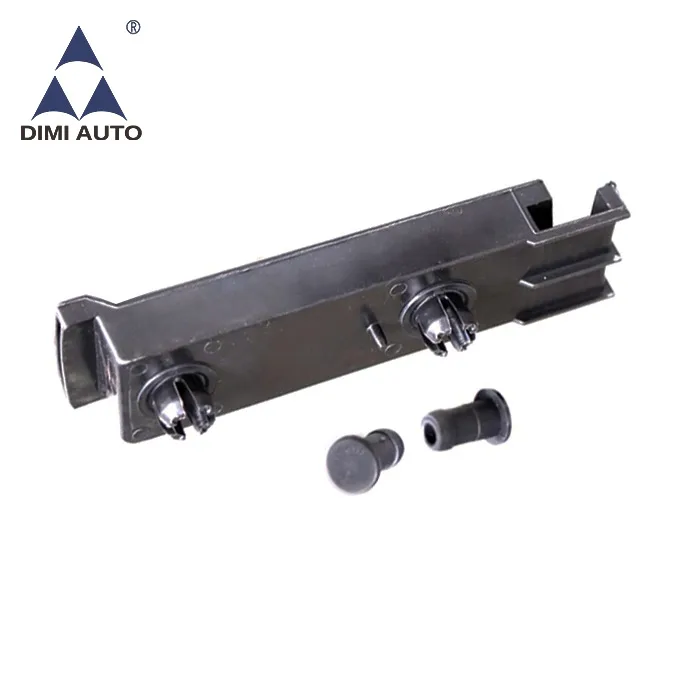

Высококачественный кронштейн переднего бампера 9018850014 9018800114 A9018850014 A9018800114 для Mercedes Benz Sprinter 1995-2006 W901 W902
Оптовая продажа, 700 мл, пустой прозрачный цилиндр, Квадратная бутылка для вина, специальная форма, стеклянная бутылка для водки с серебристой алюминиевой пробкой
0,52 $ - 0,54 $
Производство, гарантия 10 лет, компрессионный пакет, продукт для взрослых, путешествий, пляжа, гостей, трехскладной матрас из пены
40,00 $ - 90,00 $
Жидкий белый клей для творчества по заводской цене, 1 л ПВА, жидкий школьный моющийся белый клей для творчества
71,72 ₽

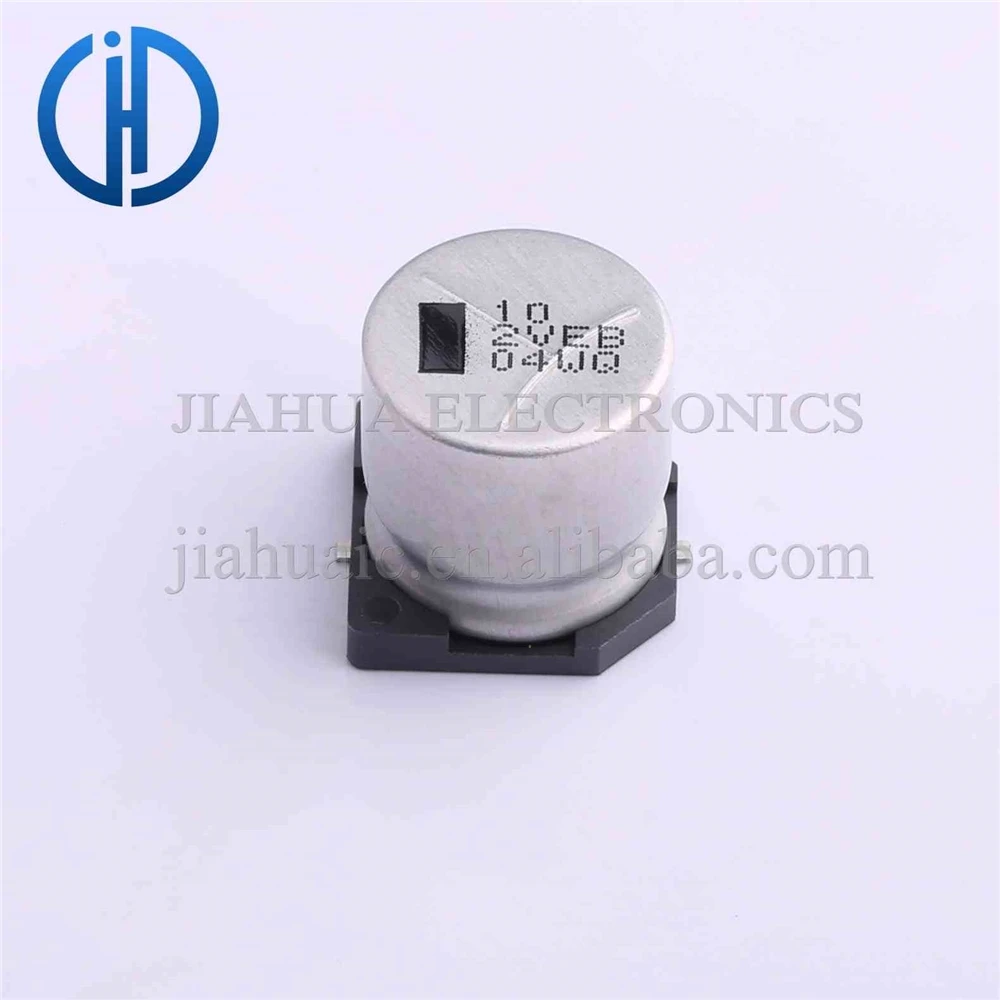

merchandise on hand SMD aluminum electrolytic capacitors 10uF 100 350V EEVEB2V100SM Package SMD16x16.5mm JG12.54 ZL7.688g 125
0,01 $
Скатерть из эва с цветочным дизайном
0,23 $

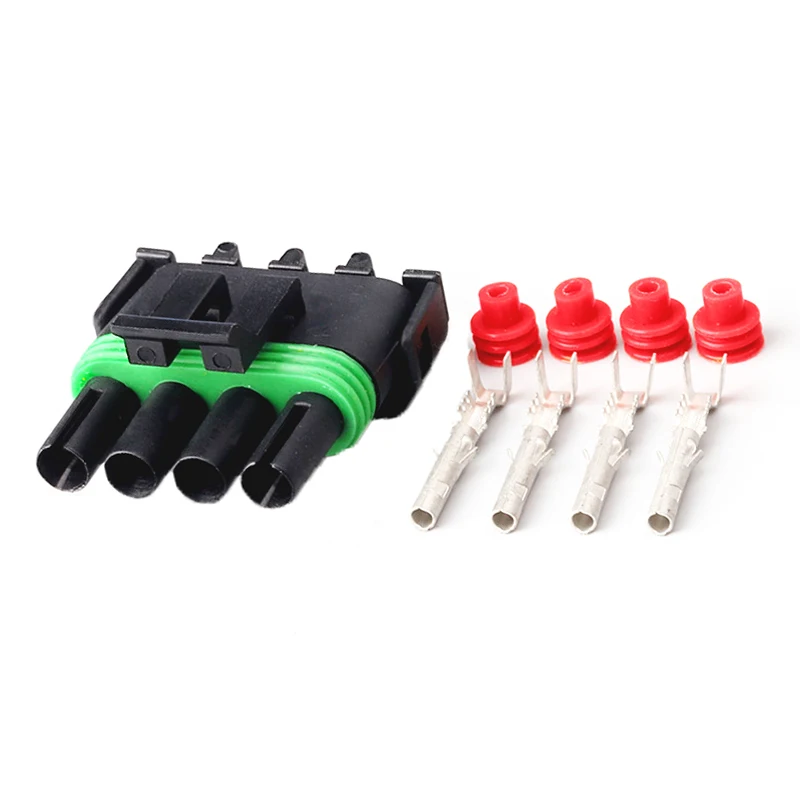

Auto head light 2.5mm delphi Connector 12015797 With terminals wire seals
