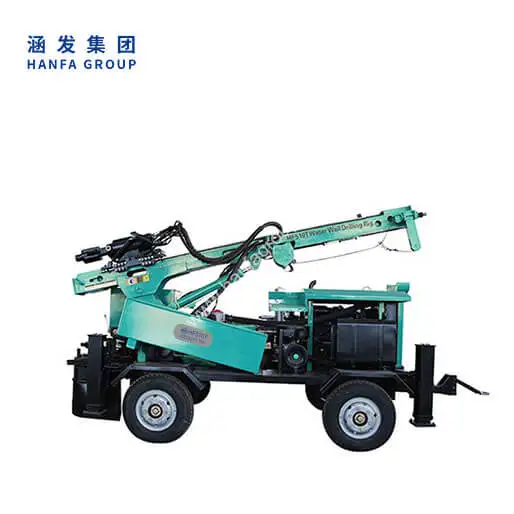

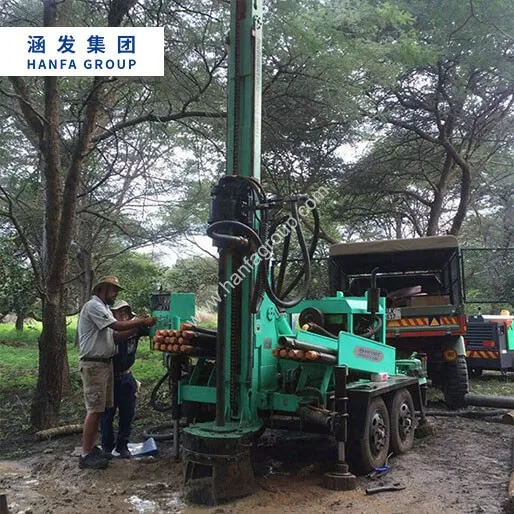

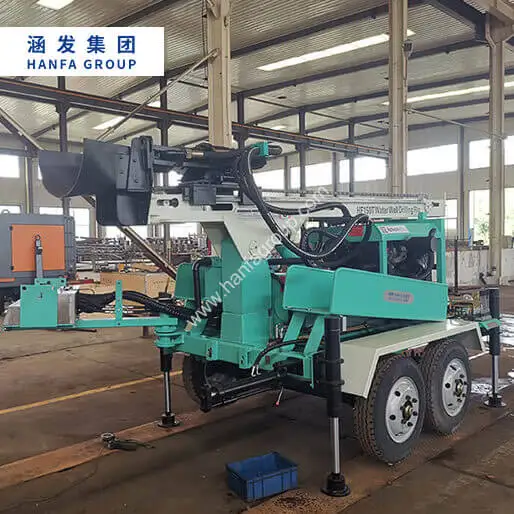

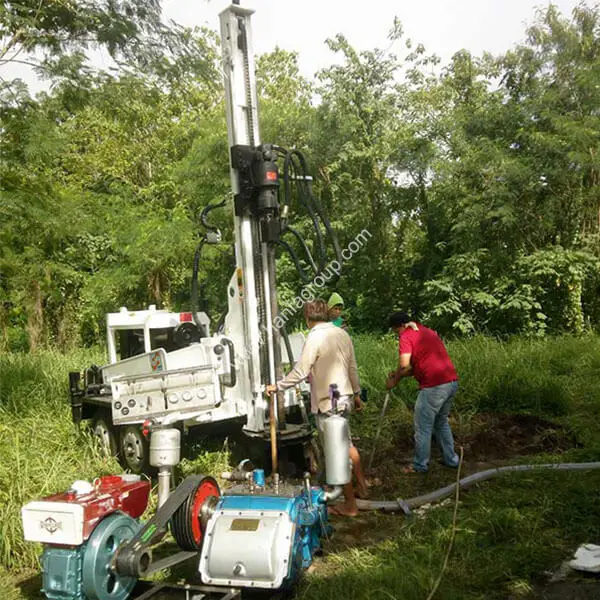

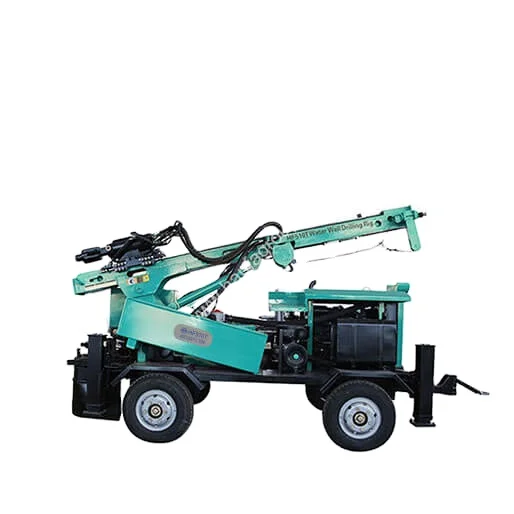

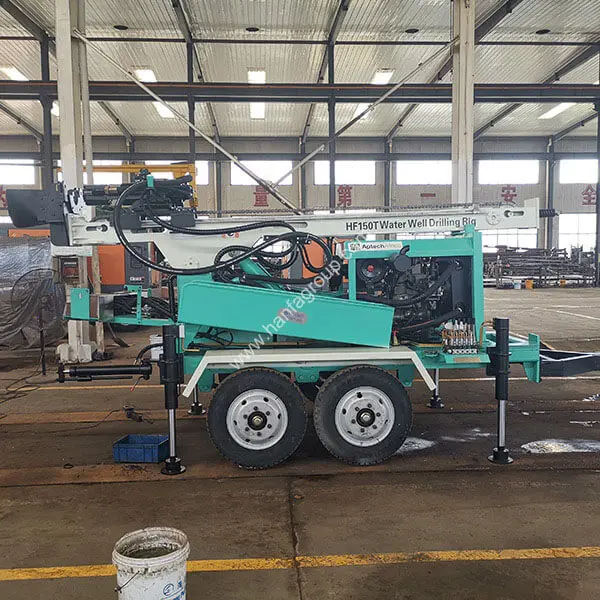

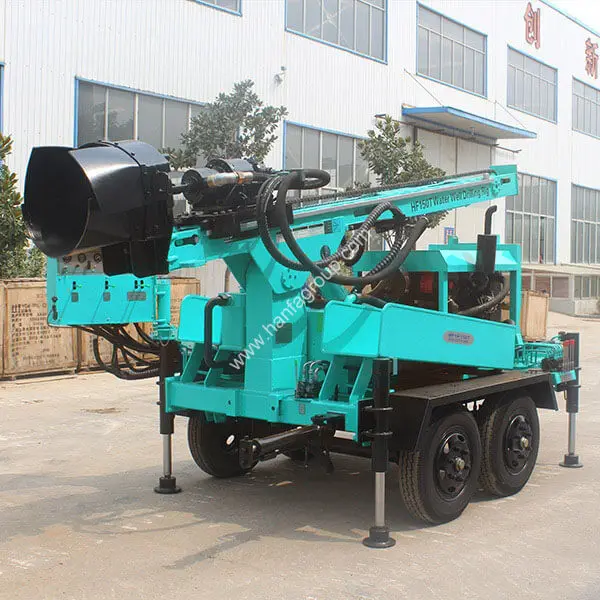

HFT510T грузовик полностью гидравлический портативный колесный буровой станок для бурения скважин подземных вод буровая установка шахты на продажу
- Категория: >>>
- Поставщик: Zhengzhou Hanfa Imp & Exp Trading Co. Ltd.
Сохранить в закладки 10000002941535:
Описание и отзывы
Характеристики
HF510T Truck-mounted Full Hydraulic portable wheel borehole electric underground water drilling machine rig for sale
Product Description
Product Introduction:

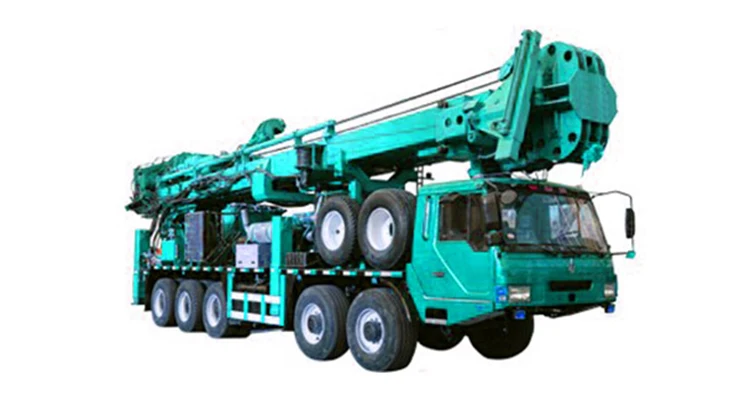

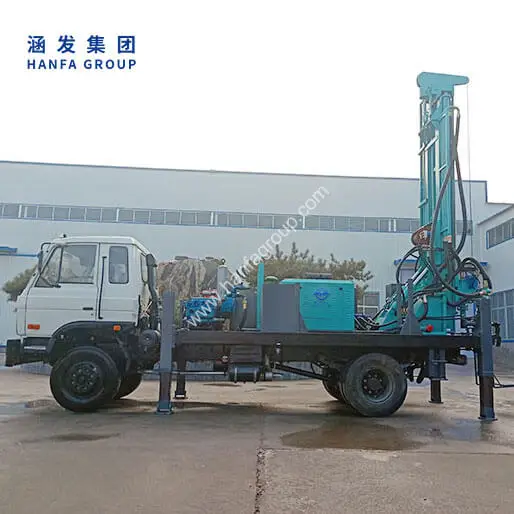

HFT1500 truck-mounted drilling rig is a drilling rig with hydraulic (top driven) rotary head, which is a national product and
equipped by movable air compressor from Sullair of U.S. The rig is equipped U.S. Sullair portable air compressor systems duplex state. HFT1500 can meet the compressed air drilling, foam drilling and construction of drilling mud drilling. Has good mobility,
high efficiency, good quality drilling, pollution and so on. Floor area for coal gas extraction wells construction, construction
of shallow wells for oil and hydrology can also be used in mine rescue drilling and construction.
equipped by movable air compressor from Sullair of U.S. The rig is equipped U.S. Sullair portable air compressor systems duplex state. HFT1500 can meet the compressed air drilling, foam drilling and construction of drilling mud drilling. Has good mobility,
high efficiency, good quality drilling, pollution and so on. Floor area for coal gas extraction wells construction, construction
of shallow wells for oil and hydrology can also be used in mine rescue drilling and construction.
The main features:
1)High drilling efficiency. The average penetration rate is up to 20m / h
2) Can meet the vertical wells, horizontal wells, cluster wells, wells feathery branches to process requirements.
3) Mobility, off-road, and can be quickly arrived at the scene.
4)Ability to meet the compressed air drilling, foam drilling and mud drilling requirements.
5) Enhance the capacity up to 1000kN, and maximum torque of 25kN.m.
6) With automatic switching clubs function, power head can be tilted.
2) Can meet the vertical wells, horizontal wells, cluster wells, wells feathery branches to process requirements.
3) Mobility, off-road, and can be quickly arrived at the scene.
4)Ability to meet the compressed air drilling, foam drilling and mud drilling requirements.
5) Enhance the capacity up to 1000kN, and maximum torque of 25kN.m.
6) With automatic switching clubs function, power head can be tilted.
Drilling rig type | |||
Type | WS5545 | ||
Drive type | 10×6 | ||
Gears | 9 advances，1 back | ||
Max.speed | 70km/h | ||
Power | 276kw/2200r/min | ||
Weight | 17550kg | ||
Max.hoisting ability | 800kN | ||
Max.feeding ability | 180kN | ||
lifting speed | 30m/min | ||
Lowering speed | 59m/min | ||
Slow feeding speed | 7.1m/min | ||
Power bit | Max output torque | 15kN.m | |
Output rotate speed | 0-150r/min | ||
Spindle dia | Φ76mm | ||
Stroke | 15m | ||
Standard drilling rod model | Φ114 | ||
Rotating drilling | 1500 m | ||
Max open hole caliber | Φ711mm | ||
Hydraulic pump | 32Mpa3+3+2 | ||
Air/mud line | diameter | Φ76.2mm | |
Rated working pressure | 20MPa | ||
Jib boom stroke | 1m | ||
Input force | 38kN | ||
Output force | 20kN | ||
Rotary bit rotating system | 25MPa | ||
Normal drilling system | 24MPa | ||
Fast hoisting system | 32MPa | ||
Type | QSX15-600 | ||
Power | 447kW | ||
Rotate speed | 2100r/min | ||
Weight | 51000kg | ||
Dimension(transport) | 13.70×2.85×4.19m | ||
Type | DLQ1250XHH/1525XH | ||
Air displacement | 35.4/43.2m³/min | ||
Discharge pressure | 3.45/2.41MPa | ||
Engine from CATERPILLAR | C18ACERT rier3 | ||
rated input power | 522kW | ||
Dimension | 5500×2180×2230mm | ||
Weight | 9000kg | ||

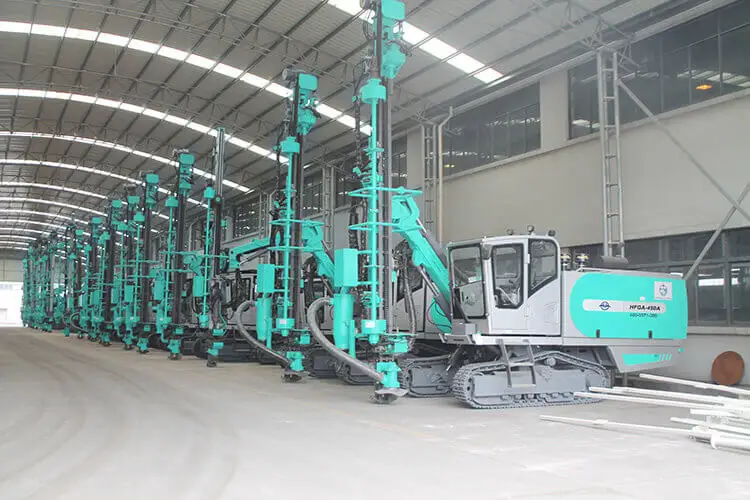

Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway andhighway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 20 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
Services provided during the sale
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
After-sale services
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
FAQ
1, Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Our Customers
Похожие товары
Американские студенческие хлопковые флисовые куртки, спортивные хлопковые флисовые куртки, школьные командные хлопковые флисовые куртки

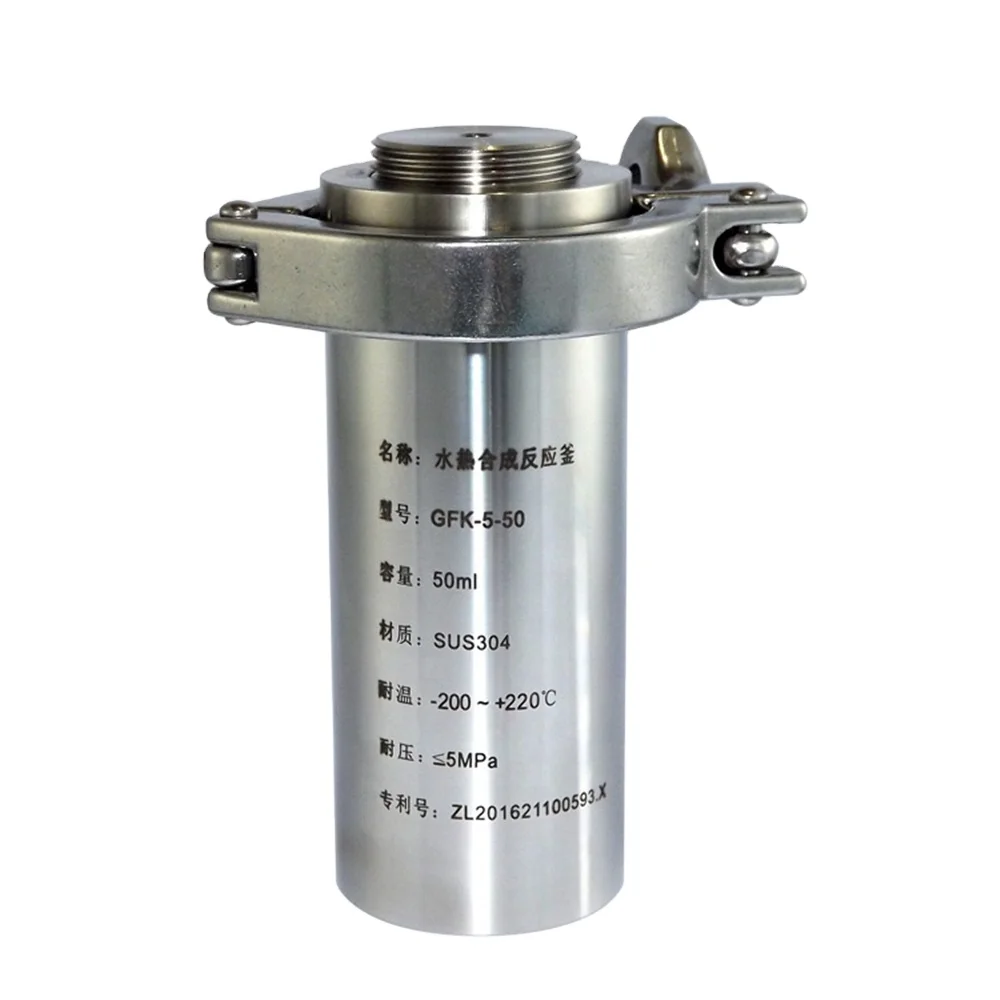

Взрывозащищенный Гидротермический синтезирующий автоклав 25-1000 мл химический ПТФЭ PPL изолирующий реактор ex-Proof

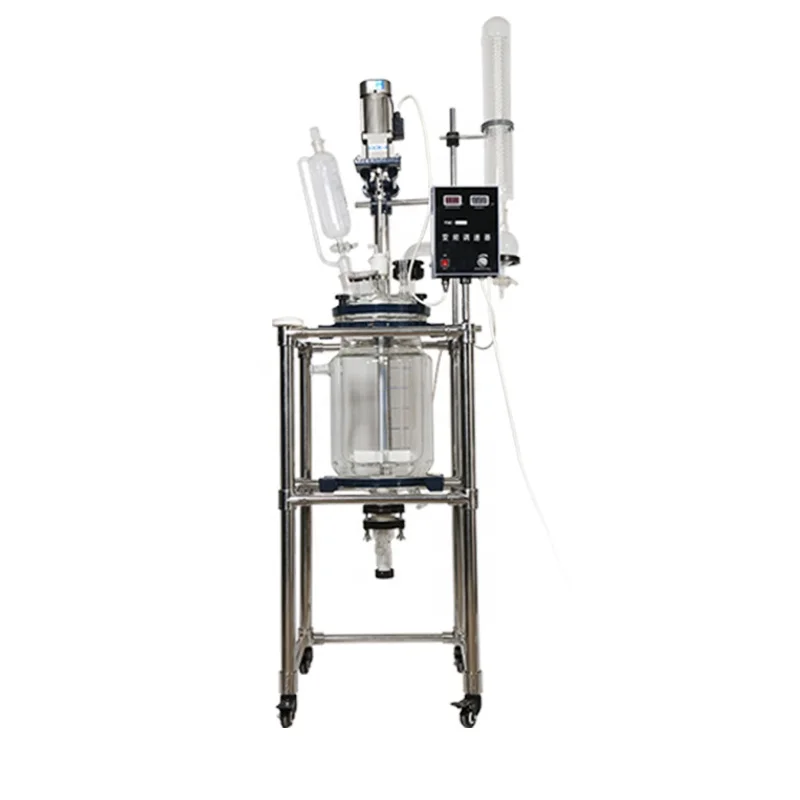

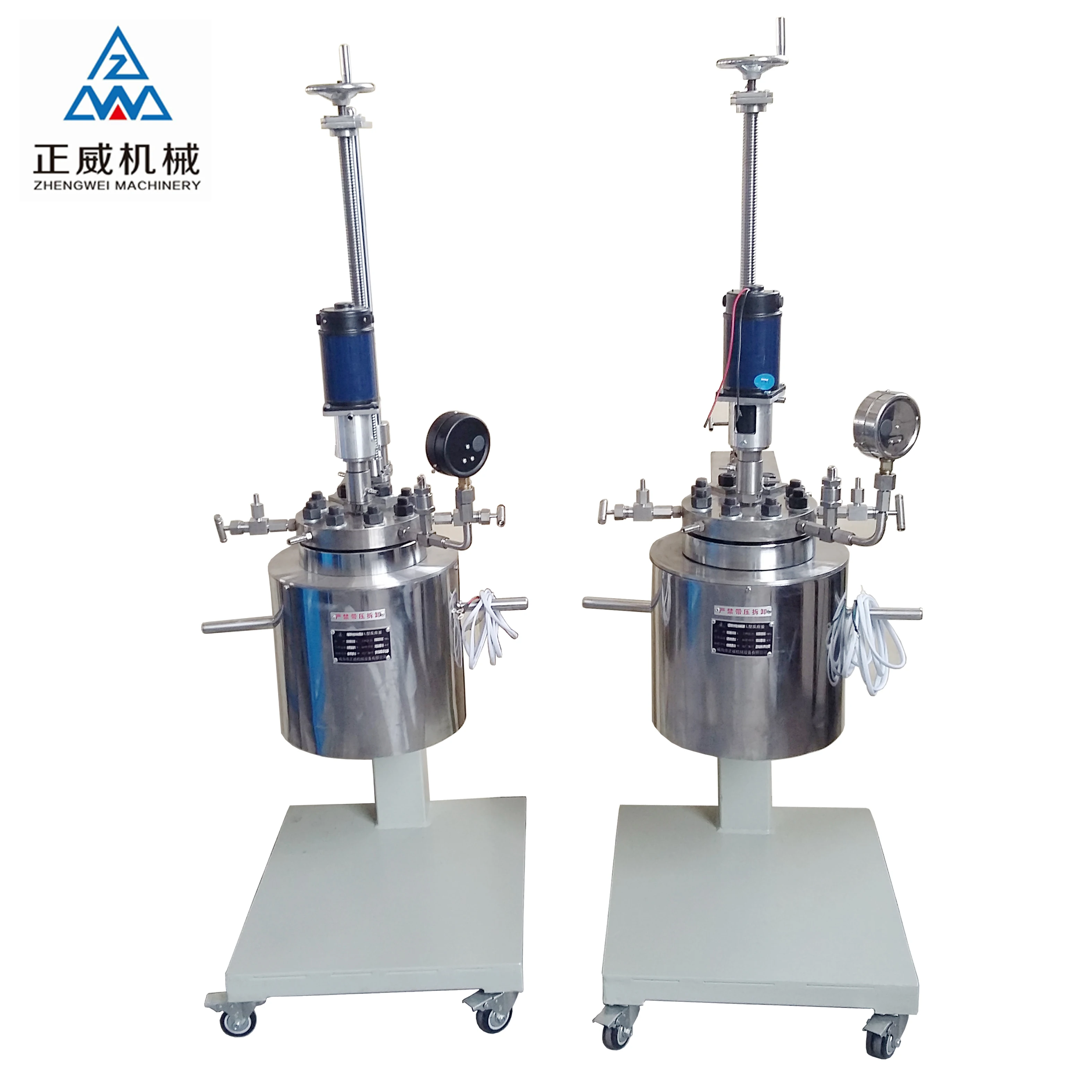

Лабораторный параллельный термореактор высокого давления для нескольких функций
