Products Description

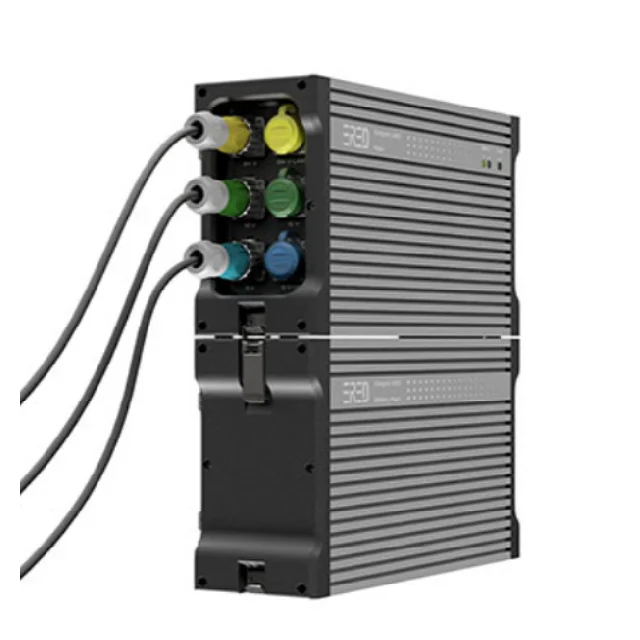

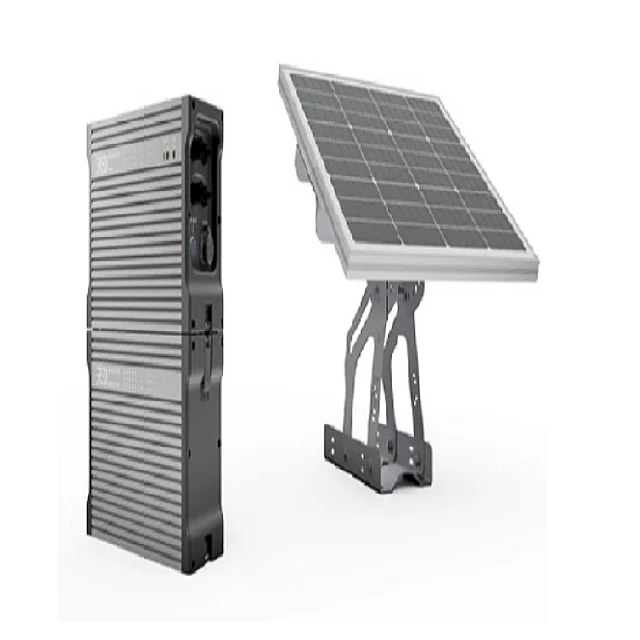

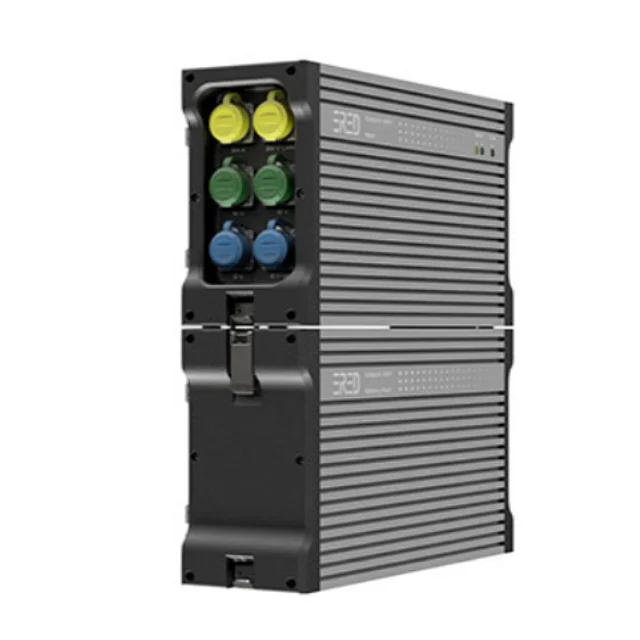

ERED Dotgrid600 Solar-powered multi purpose energy supply system
DotGrid 600 is a multipurpose power supply system harvesting solar energy, storing it to battery and providing electricity to various electrical appliances at off-grid and unreliable grid.
Charging:
- Expendable connection of solar panels from 60W to 240W or from 1 solar panel to 2 solar panels
- When connected to grid, charging by grid connection will be activated only if the photovoltaic
DotGrid 600 is a multipurpose power supply system harvesting solar energy, storing it to battery and providing electricity to various electrical appliances at off-grid and unreliable grid.
Charging:
- Expendable connection of solar panels from 60W to 240W or from 1 solar panel to 2 solar panels
- When connected to grid, charging by grid connection will be activated only if the photovoltaic
energy charging is not available
Storage:
- Expendable up to 2 battery packs up to 1,024W capacity of storage
- Easy to exchange battery packs when the battery packs are needed to be changed
- The two battery packs are independently operated to prevent excessive flow of current between
Storage:
- Expendable up to 2 battery packs up to 1,024W capacity of storage
- Easy to exchange battery packs when the battery packs are needed to be changed
- The two battery packs are independently operated to prevent excessive flow of current between
battery packs when they are connected in parallel
Discharge:
- DC 5V 2 ports including 1 USB port, with Max 5A output in total
- DC 12V 2 ports with Max 10A output in total
- DC 24V 2 ports including 1 lighting port having auto turn-on, turn-off, and dimming with Max 15A
Discharge:
- DC 5V 2 ports including 1 USB port, with Max 5A output in total
- DC 12V 2 ports with Max 10A output in total
- DC 24V 2 ports including 1 lighting port having auto turn-on, turn-off, and dimming with Max 15A
output in total
Installation:
- Selection of vertical, horizontal surface and pole mount according to the user's need and
Installation:
- Selection of vertical, horizontal surface and pole mount according to the user's need and
condition of the venue
- Adjustable solar panel angle facing the sun to optimize harvesting solar power at the location of
- Adjustable solar panel angle facing the sun to optimize harvesting solar power at the location of
installation
Protection:
- IP 66
- Wind resistance up to 50m/s wind
- Using rust free and anodized aluminum extruded enclosures and engineering plastics for housing
Protection:
- IP 66
- Wind resistance up to 50m/s wind
- Using rust free and anodized aluminum extruded enclosures and engineering plastics for housing
Product Specification
Product specification | ||||||||
Product Name | Solar powered multipurpose energy supply system | |||||||
Model Name | Dotgrid600 | |||||||
DC input (solar module) | Connector | MC4 | ||||||
PV1 | Maximum allowable voltage: 28V, Maximum allowable current: 10A | |||||||
PV2 | Maximum allowable voltage: 28V, Maximum allowable current: 10A | |||||||
AC input | Connector | 3 Pin latching lock metal connector | ||||||
20A Current rating | ||||||||
500V Operating voltage | ||||||||
14~12 AWG 3core cable | ||||||||
IP65(capped) IP67(connected) | ||||||||
Voltage | 100~240VAC(50~60Hz) | |||||||
SMPS(AC -> DC) | 6.75A, 24VDC | |||||||
Battery pack | Type | LiFePO4(512Wh) | ||||||
Rated voltage | 12.8V | |||||||
Rated capacity | 40Ah | |||||||
Max. charge | 14.6V | |||||||
Cut-off discharge | 10V | |||||||
Charging temperature | 0°C~55°C | |||||||
Discharge temperature | -20°C~60°C | |||||||
DC output | Connector | 3 Pin latching lock metal connector | ||||||
25A Current rating | ||||||||
500V Operating voltage | ||||||||
14~12 AWG 2core cable | ||||||||
IP65(capped) IP67(connected) | ||||||||
5V | 2-port(with 1 USB port), 2A | |||||||
Fast charging USB port - IOS, Android device charging - 3V~12V automatic variable output, maximum 24W output | ||||||||
12V | 2-port, 10A | |||||||
24V | 2-port(with 1 port for solar street light only), 15A | |||||||
Port only for solar street light - Automatically turns on and off at sunrise and sunset - 50% dimming after 4 hours when connected to a 60W light - Maximum daily lighting time: 15 hours | ||||||||
Main system | Material of housing | Extruded and anodized Aluminum, ABS | ||||||

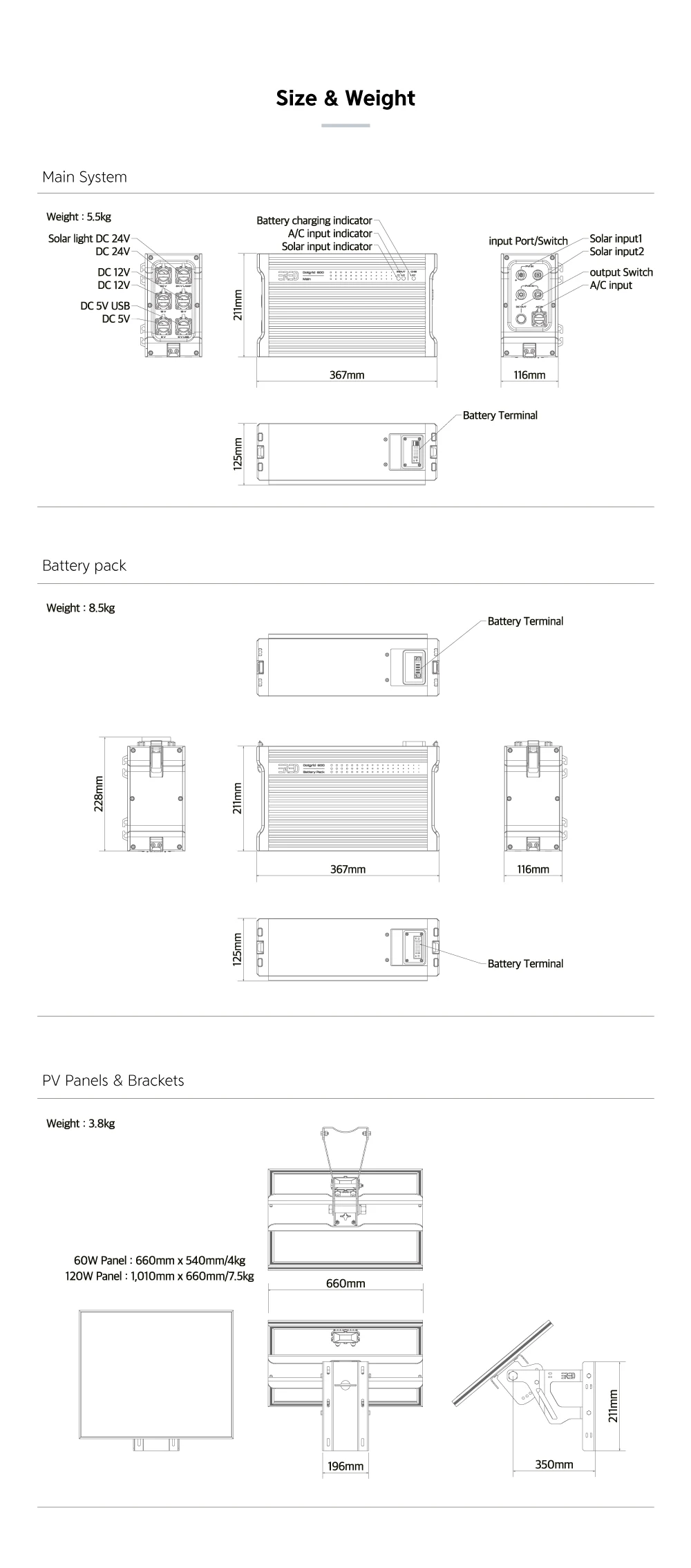

size and weight | 367*211*125(mm) , 5.5kg | |||||||
Battery pack | Material of housing | Extruded and anodized Aluminum, ABS | ||||||
size and weight | 367*211*125(mm), 8.5 kg | |||||||
60W Solar module | Type | Monocrystalline | ||||||
Open circuit voltage(VOC) | 21.57V | |||||||
Short circuit current(ISC) | 3.71A | |||||||
Max power voltage(Vmp) | 17.26V | |||||||
Max power current(Imp) | 3.48A | |||||||
Cable type, diameter and length | 1x4mm², TUV certified, 3000mm, MC4 Connector | |||||||
size and weight | 660x540x30, 4kg | |||||||
120W Solar module (option) | Type | Monocrystalline | ||||||
Open circuit voltage(VOC) | 21.57V | |||||||
Short circuit current(ISC) | 3.71A | |||||||
Max power voltage(Vmp) | 17.26V | |||||||
Max power current(Imp) | 3.48A | |||||||
Cable type, diameter and length | 1x4mm², TUV certified, 3000mm, MC4 Connector | |||||||
Size and weight | 1010x660x30, 7.5kg | |||||||
Product Protection | IP rating | IP66 | ||||||
Wind resistance | 50m/sec (180km/h) | |||||||
Certification | KC, UN38.3, MSDS, IEC62133(Battery) | |||||||
- Eco friendly packing using recyclable carton, paper cushioning, and craft tapes
- Packing detail: 1pcs/CTN
- Lead Time: 7 working days for sample order, 15~25 day working days for mass order after received
- Packing detail: 1pcs/CTN
- Lead Time: 7 working days for sample order, 15~25 day working days for mass order after received
payment
- Shipment: by express, by air, by sea
- Payment term:100% T/T in advance
- Payment method: T/T, Western Union, Paypal
- Shipment: by express, by air, by sea
- Payment term:100% T/T in advance
- Payment method: T/T, Western Union, Paypal
OUR SERVICES
- Before delivery to users, our products are manufactured, inspected and shipped to maintain optimal performance according to quality control procedures.
- ERED provides a detailed user manual instructing step by step installation, operation, and troubleshooting for end-users.
- For DIY users, a basic toolset to assemble the Dotgrid is included in the starter pack except for general tools and wires easy to get by users.
- For wholesalers, components of Dotgrid for repairing and maintenance are provided at a competitive price.
- Professional personnel will provide product specifications, installation methods, and maintenance methods.
- ERED provides Dotgrid technological maintenance and guarantee within one year if any quality problem happens to our products.
- ERED provides a detailed user manual instructing step by step installation, operation, and troubleshooting for end-users.
- For DIY users, a basic toolset to assemble the Dotgrid is included in the starter pack except for general tools and wires easy to get by users.
- For wholesalers, components of Dotgrid for repairing and maintenance are provided at a competitive price.
- Professional personnel will provide product specifications, installation methods, and maintenance methods.
- ERED provides Dotgrid technological maintenance and guarantee within one year if any quality problem happens to our products.
Company Profile
FAQ
1.Why we have to choose you?
We are specialists focused on developing and manufacturing solar powered multipurpose energy storage system enabled through R&D, production and sales forces.
2. Can you accept sample order?
Yes, we can. Before large orders, we can provide paid samples for your testing.
3. Is it possible to purchases additional components?
Yes. It is possible to purchase extra battery packs, mounting brackets and solar panels.
4. what kind of application can be powered by this energy storage system?
Dotgrid600 can power wide range of electric appliances for home, commercial and industrial usages.
5. What is your payment terms?
T/T, western union, and PayPal in advance
6. What's the warranty of products?
1 years warranty
7. Can we get support if we have our own market position?
please inform us your details market demand .we will discuss and propose helpful suggestion for you to find the best solution for you.
We are specialists focused on developing and manufacturing solar powered multipurpose energy storage system enabled through R&D, production and sales forces.
2. Can you accept sample order?
Yes, we can. Before large orders, we can provide paid samples for your testing.
3. Is it possible to purchases additional components?
Yes. It is possible to purchase extra battery packs, mounting brackets and solar panels.
4. what kind of application can be powered by this energy storage system?
Dotgrid600 can power wide range of electric appliances for home, commercial and industrial usages.
5. What is your payment terms?
T/T, western union, and PayPal in advance
6. What's the warranty of products?
1 years warranty
7. Can we get support if we have our own market position?
please inform us your details market demand .we will discuss and propose helpful suggestion for you to find the best solution for you.
Похожие товары
Система солнечных батарей с зеленой энергией, генератор для дома, Поддержка питания, зарядка, электроэнергия
Hengda 3kw 5kw 7kw планет использовать ТАТА вне сеточной солнечной системы фотографии заводы солнечной системы игрушки цены по прейскуранту завода-изготовителя
0,60 $ - 0,80 $
OEM доступная Эффективная Мини-система опускания Бочков
10,00 $ - 15,39 $
Ребра для системы заземления солнечной панели, заземление для дома
0,35 $ - 0,62 $
Маленькая портативная солнечная панель BULLBAT 500 Вт

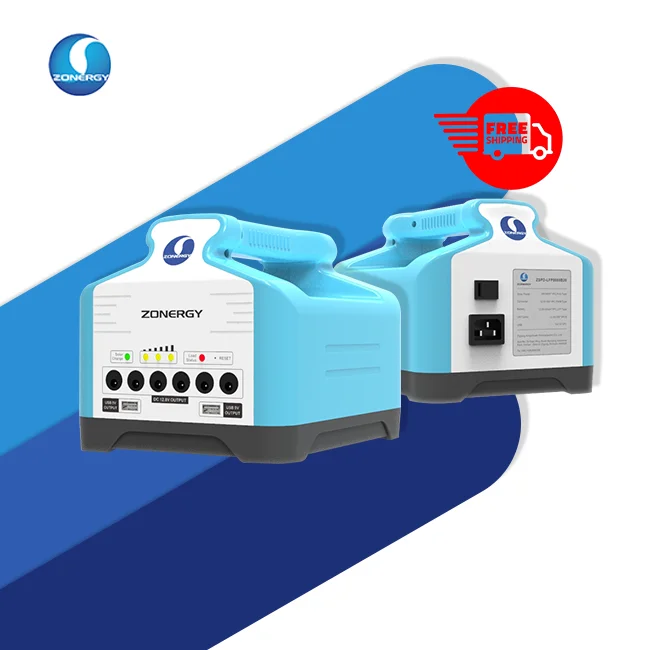

Портативный комплект солнечного освещения Zonergy, переносной мини-светильник на солнечной батарее
