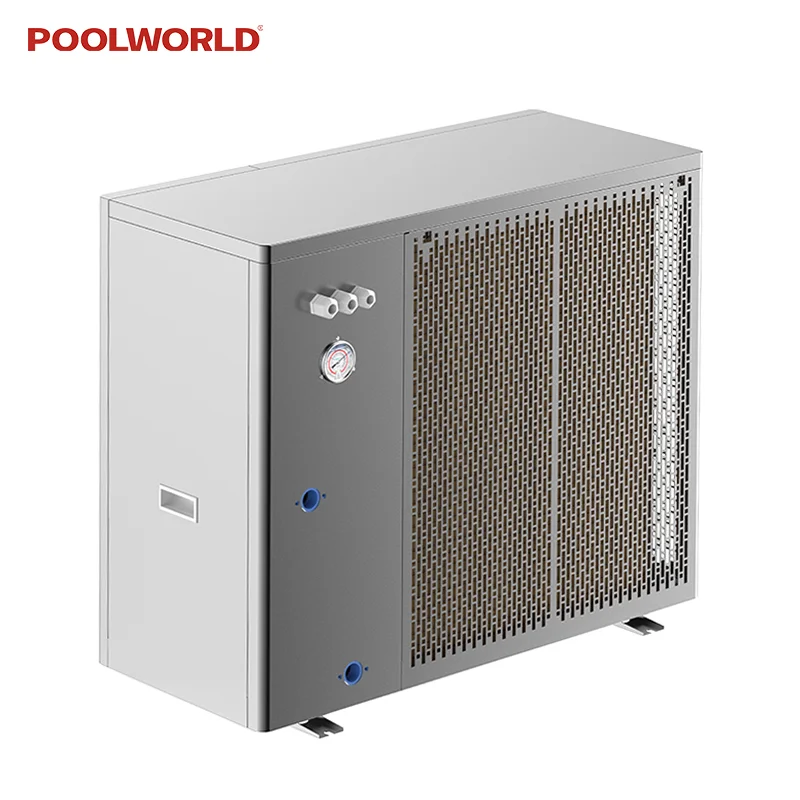

TUV Titaniummini R32 тепловой насос для бассейна
158,00 $ - 184,00 $

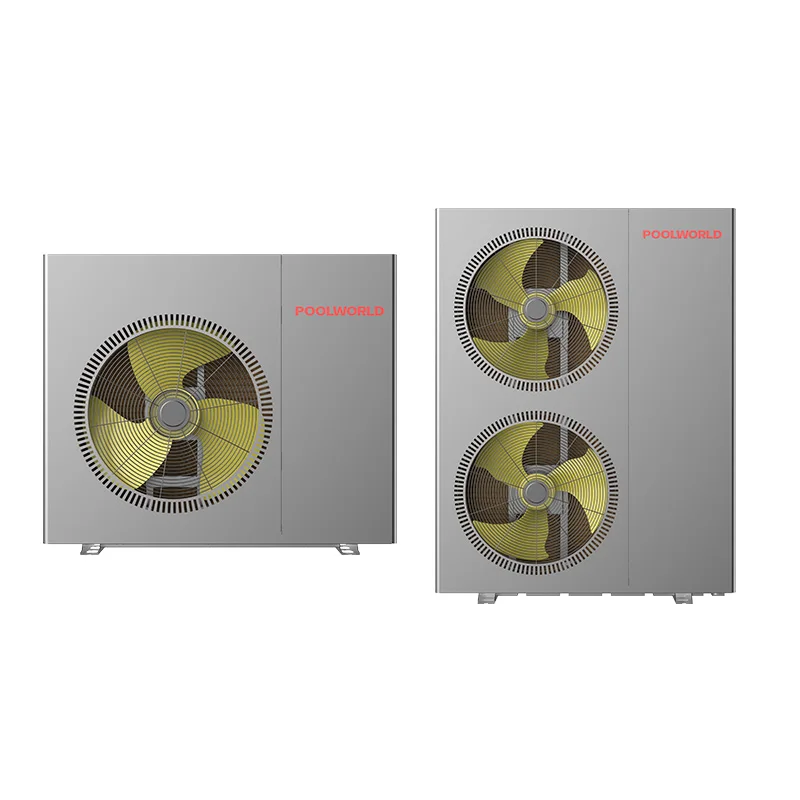

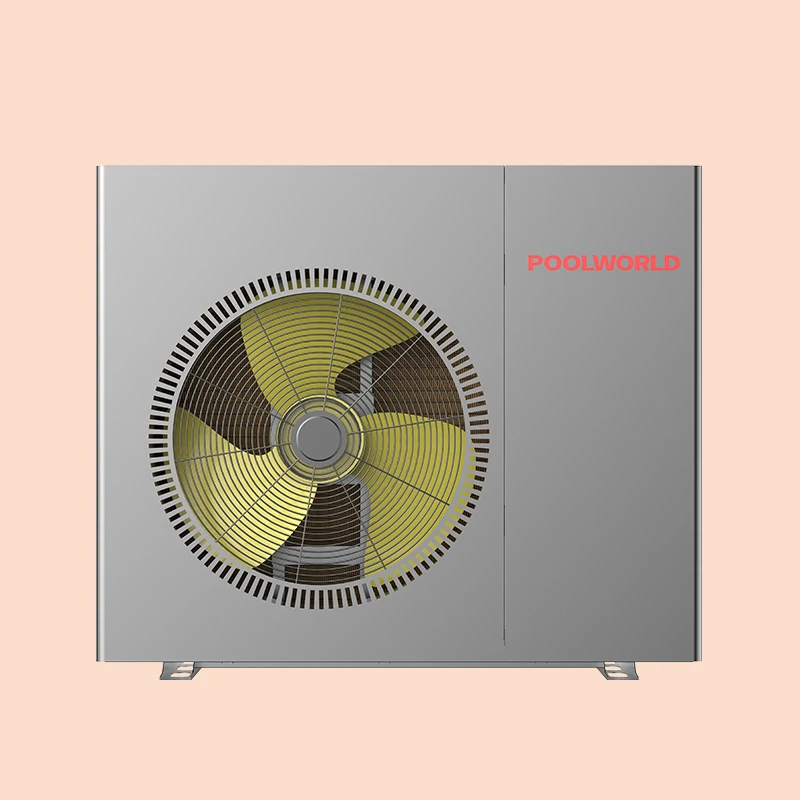

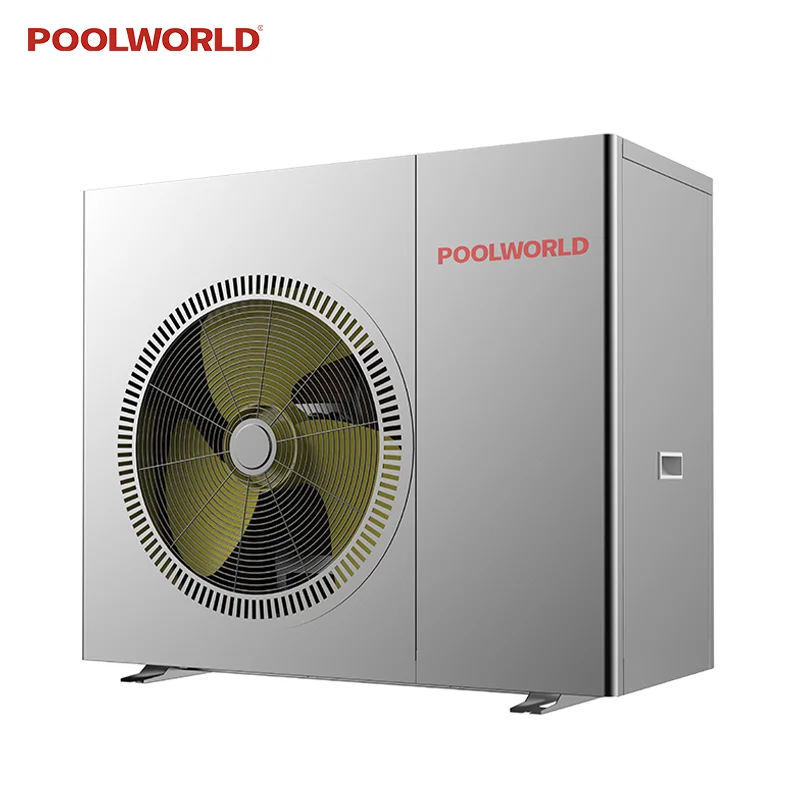

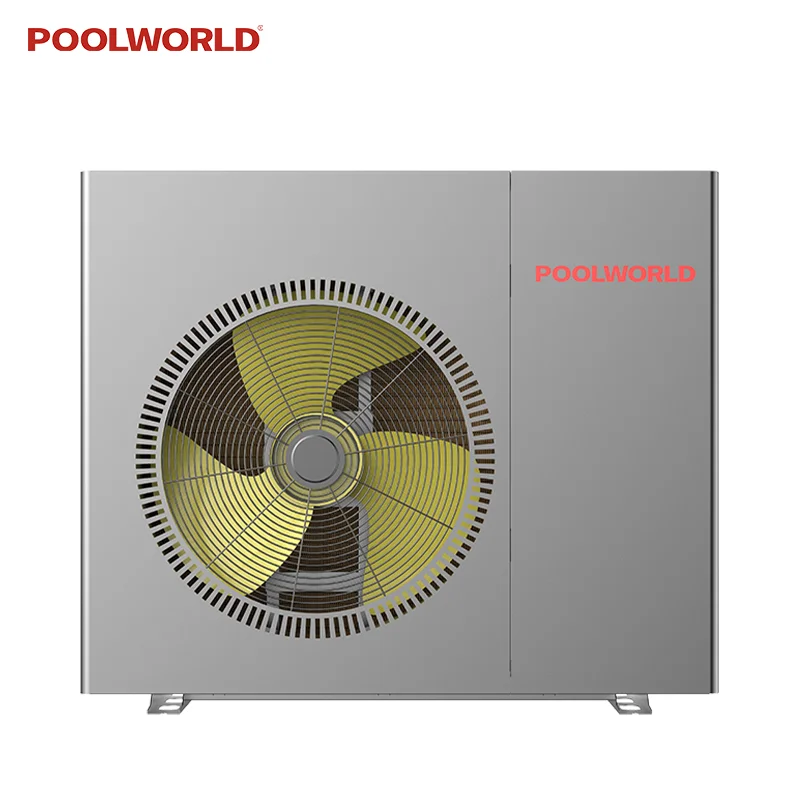

Домашнее отопление охлаждение воздушный тепловой насос моноблок R32 инвертор постоянного тока в
- Категория: Water Heaters >>>
- Поставщик: Guangzhou Pool World Environmental Technology Co. Ltd.
Сохранить в закладки 10000003232185:
Описание и отзывы
Характеристики
Products Description

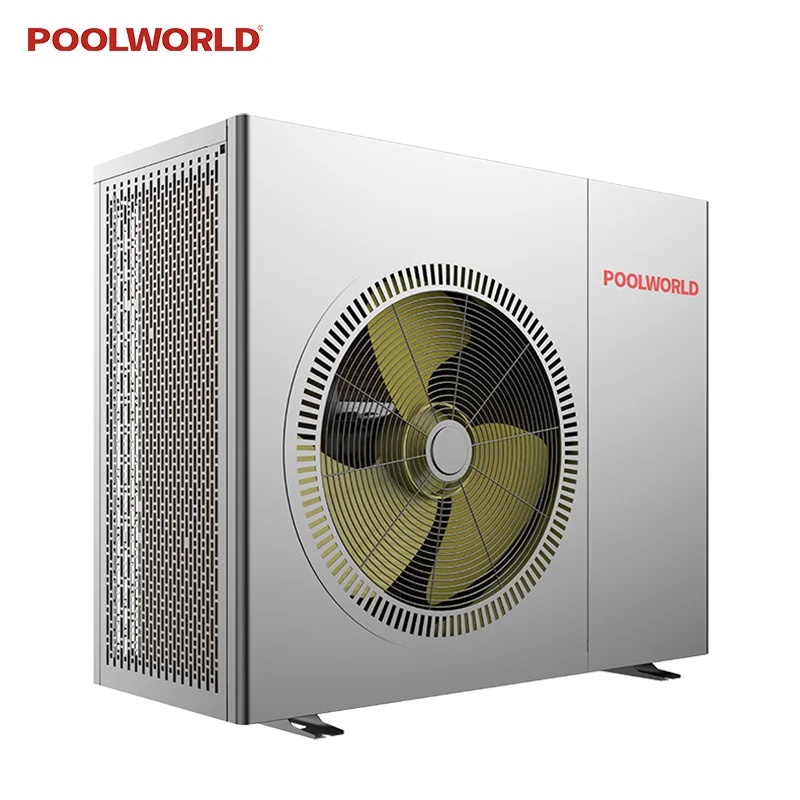

EVI DC Inverter Heat Pump
- A+++ Energy Label
Pool World EVI DC Inverter Heat Pump is a multifunctional unit, creatively combining environmentally friendly R32 refrigerant, with extremely cost-effective EVI full frequency conversion technology, especially with the A +++ ERP energy label, which can be used in areas with extremely low climate temperatures. The temperature of heating/cooling and domestic hot water is as low as -25°C. The free WiFi function and clear smartphone APP can be operated, indicating that it can be easily and intelligently controlled anytime and anywhere.
Features:
1. Super high efficiency A+++ energy label.
2. Intelligent full inverter control system.
3. R32 low GWP refrigerant.
4. With suction EVI technologies gas cooled twin rotary compressor.
5. Wide running range of ambient temp. from -25℃ to 43℃.
6. Multi-function with 5 modes: A. Heating; B.Cooling; C. Domestic hot water; D. Heating+DHW; E.Cooling+DHW.
7. Wi-Fi module/Smartphone APP easy and clear control remotely.
8. Efficient defrosting system.
9. Water flow switch is standard.
10. Coated metal casing or SUS#304 stainless steel cabinet.
2. Intelligent full inverter control system.
3. R32 low GWP refrigerant.
4. With suction EVI technologies gas cooled twin rotary compressor.
5. Wide running range of ambient temp. from -25℃ to 43℃.
6. Multi-function with 5 modes: A. Heating; B.Cooling; C. Domestic hot water; D. Heating+DHW; E.Cooling+DHW.
7. Wi-Fi module/Smartphone APP easy and clear control remotely.
8. Efficient defrosting system.
9. Water flow switch is standard.
10. Coated metal casing or SUS#304 stainless steel cabinet.
Our Advantages
A+++ Energy Level
Pool World DC inverter technology enables the heat pump to adjust its frequency from 30Hz to 90Hz according to actual heating requirements. With this technology, the Pool World EVI DC inverter heat pump (capacity range from 1.28kw to 30.7kw) reached the energy level of A+++ according to the ERP directive.
DC Inverter EVI Technology
The twin-rotor Panasonic compressor with full DC inverter EVI technology, ensures the unit running stably at ambient temperature from -25°C to 43°C based on different requirements of heating/cooling, DHW, and working voltage range from 170V-254V(1ph) and 320V-460V(3ph).
Multi-Function Operation
There are 5 optional operations as follows, which help to offer the users comfortable house heating/cooling and stable hot water supply(by a 3-way valve) all year round based on their demands.
A. Single space heating;
B. Single domestic hot water;
C. Single space cooling;
D. Space heating+DHW(hot water priority);
E. Space cooling+DHW(hot water priority).

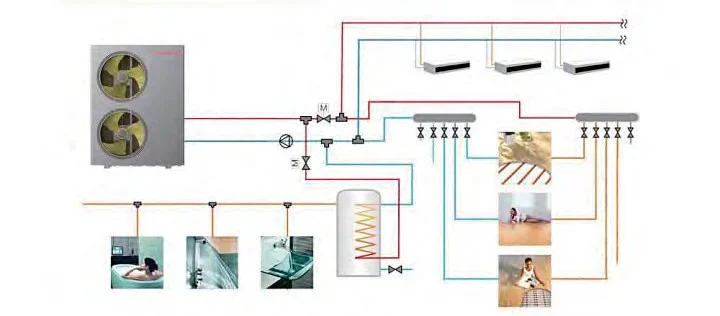

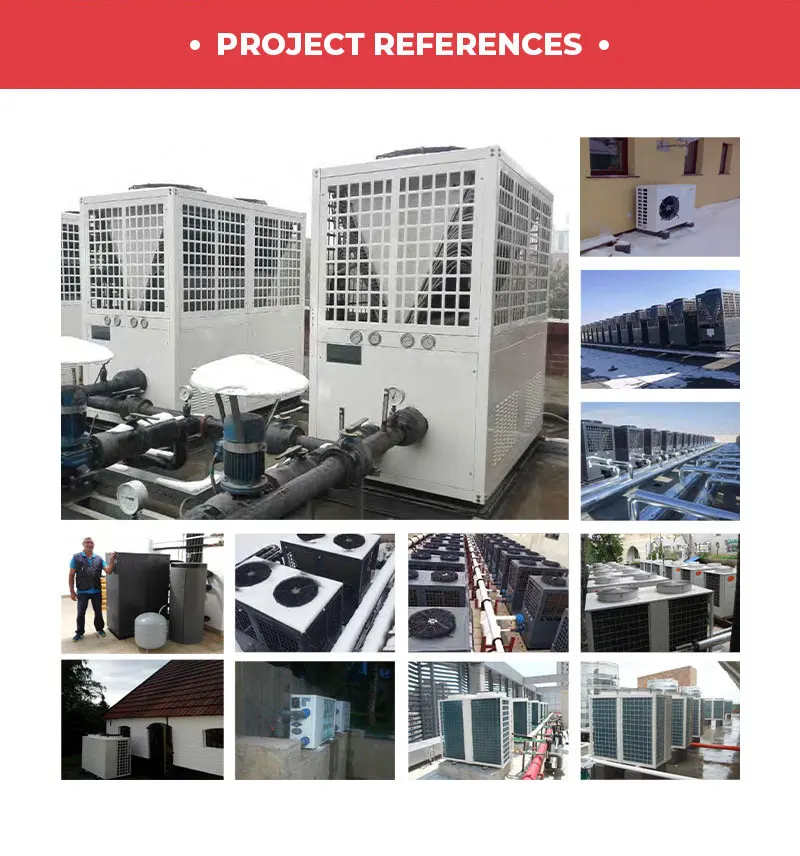

Installation Reference

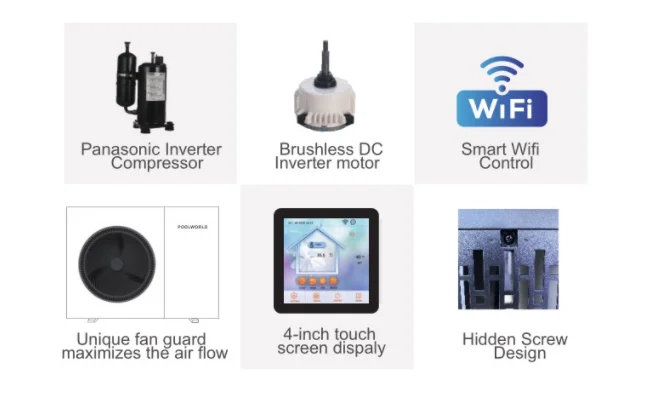

Components Details

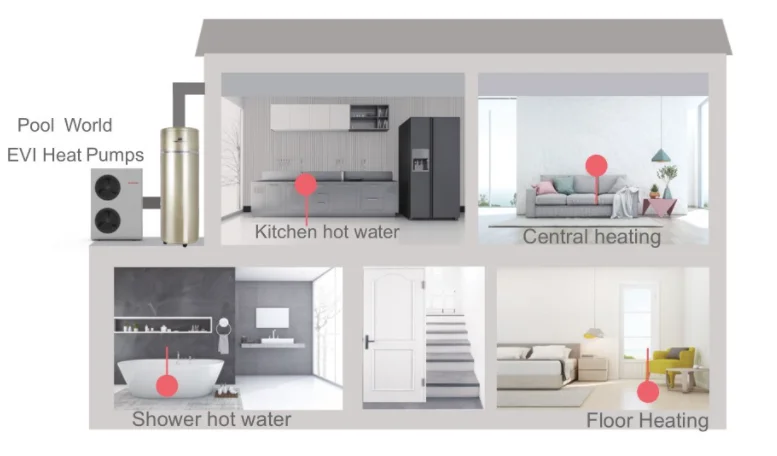

Application
1. Heating , Cooling and DHW functions for all year round running.
2. EVI technology ensures smooth operation from -25 ℃ to 43℃
3. Various capacity selection from 8-30kw for dfferent houses.
4. Wide voltage range (170-254v for single phase,320-460v for 3 phase)
Product Paramenters
Model | PD30-CRL-DC | PD40-CRL-DC | PD50-CRL-DC | PD60-CRL-DC | PD80-CRL-DC | PD100-CRL-DC | ||||||||
Heating | Heating Capacity Range (kW) | 1.57~8.40 | 4.40~13.00 | 5.9~18.2 | 7.5~23.0 | 9.6~26.1 | 11.2~30.8 | |||||||
Heating Input Range (kW) | 0.32~1.87 | 0.90~3.02 | 1.20~4.11 | 1.53~5.23 | 1.98~6.11 | 2.30~7.15 | ||||||||
Current Range (A) | 1.42~8.30 | 1.39~4.68 | 1.86~6.37 | 2.37~8.11 | 3.54~10.92 | 4.11~12.78 | ||||||||
COP Range | 4.49~4.91 | 4.30~4.90 | 4.43~4.92 | 4.40~4.90 | 4.27~4.85 | 4.31~4.87 | ||||||||
Cooling | Cooling Capacity Range (kW) | 0.99~6.22 | 2.80~8.20 | 3.81~11.53 | 4.73~14.6 | 10.1~18.1 | 11.8~22.8 | |||||||
Cooling Input Power(kW) | 0.29~2.18 | 0.85~3.31 | 1.11~4.05 | 1.39~5.14 | 2.98~6.68 | 3.47~8.35 | ||||||||
Current Range (A) | 1.28~9.67 | 1.32~5.13 | 1.72~6.28 | 2.16~7.97 | 5.33~11.94 | 6.20~14.93 | ||||||||
EER Range | 2.85~3.41 | 2.48~3.29 | 2.85~3.43 | 2.84~3.40 | 2.71~3.39 | 2.73~3.40 | ||||||||
DHW | Heating Capacity Range (kW) | 1.28~6.81 | 3.52~10.50 | 4.80~14.72 | 6.1~18.5 | 10.7~22.6 | 11.5~30.7 | |||||||
Heating Input Range (kW) | 0.31~2.13 | 0.88~3.39 | 1.17~4.60 | 1.53~5.97 | 2.61~7.06 | 2.88~9.90 | ||||||||
Current Range (A) | 1.38~9.45 | 1.36~5.26 | 1.82~7.15 | 2.37~9.26 | 4.67~12.62 | 5.15~17.69 | ||||||||
COP Range | 3.2~4.1 | 3.1~4.0 | 3.2~4.1 | 3.1~4.0 | 3.2~4.1 | 3.1~3.99 | ||||||||
Refrigerant | R32 | |||||||||||||
Power Supply | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | ||||||||||||
Working Area | -30~43℃ | |||||||||||||
Water Circulation (m³/H) | 1.4 | 2.2 | 3.1 | 4.0 | 4.5 | 5.3 | ||||||||
Water Pressure Drop (kPa) | 31 | 25 | 35 | 45 | 50 | 55 | ||||||||
IP Grade (Level of protection) | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | ||||||||
Anti-electric Shock Rate | I | I | I | I | I | I | ||||||||
Noise (dB(A)) | ≤53 | ≤55 | ≤57 | ≤58 | ≤61 | ≤63 | ||||||||
Net Weight/Gross Weight(kg) | 110/120 | 140/150 | 170/180 | 180/190 | 210/220 | 210/2220 | ||||||||
Water Connection | G1' | G1' | G1' | G1' | G1¼' | G1¼' | ||||||||
Body Size(W*D*H) (mm) | 970×475×835 | 1100×475×985 | 1050×480×1330 | 1050×480×1330 | 1050×520×1380 | 1050×520×1380 | ||||||||
Packing Size(W*D*H)(carton) | 1028×520×974 | 1120×515×1108 | 1100×530×1470 | 1100×530×1470 | 1100×570×1430 | 1100×570×1430 | ||||||||
Packing Size(W*D*H)(Polywood) | 1048×520×974 | 1140×515×1110 | 1120×530×1470 | 1120×530×1470 | 1100×570×1430 | 1100×570×1430 | ||||||||
Loading QTY(20GP/40GP/40HQ) | 44/88/88 | 44/88/88 | 22/42/42 | 22/42/42 | 22/42/42 | 22/42/42 | ||||||||
ErP Level (35°C) | A++ | A++ | A++ | A++ | A++ | A++ | ||||||||
ErP Level (55°C) | A++ | A++ | A++ | A++ | A++ | A++ | ||||||||
Compressor Type/QTY | Twin-rotary/1 | |||||||||||||
Condensor Type | High efficiency tank | |||||||||||||
Fan Motor | DC type | |||||||||||||
Defrosting | By four-way valve | |||||||||||||
Throttle Device | Electronic expansion valve | |||||||||||||
Operating Water Temp. (℃) DHW | 9~60℃ | |||||||||||||
Operating Water Temp. (℃) Heating | 9~50℃ | |||||||||||||
Operating Water Ttemp.(℃) Cooling | 7~35℃ | |||||||||||||
Remark: Heating working condition: Inlet/Outlet water temp. 30℃/ 35℃, Dry/Wet bulb temp. 7℃/6℃. Cooling working condition: Inlet/Outlet water temp. 12℃/ 7℃, Dry/Wet bulb temp. 24℃. DHW working condition: Inlet/Outlet water temp. 15℃/55℃, Dry/Wet bulb temp. 7℃/ 6℃. | ||||||||||||||
