Product Overview

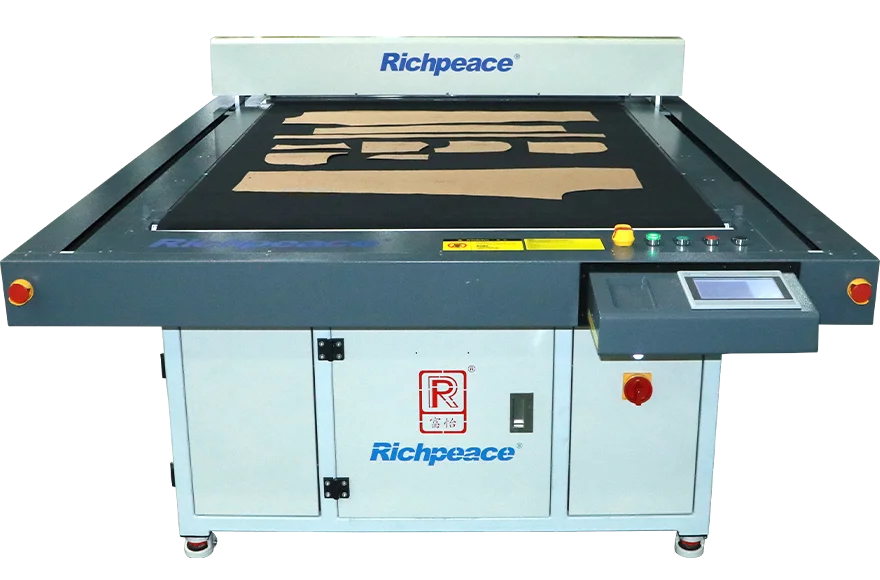

Richpeace Flatbed Scanning Digitizer
Applicable for clothing, furniture, automotive, hometextile, bags & suitcases, shoe-making, toys, medical industries, etc. All kinds of paper pattern and physical product's panel shape digital input.
FEATURES AT A GLANCE
Feature
1. Adopt line scanning mode, no need extra light compensation, all-weather reliable use.
2. One button to start after placing scanning pieces, can automatically film attaching-vacuum adsorption-auto scanning-auto transmission-auto film withdrawal.
3. According to different models, support ultra-long width scanning. Scanning speed up to 7200mm/minute.
4. Scanning resolution 150-300DPI, high definition panoramic 1:1 image to ensure effective identification of various contours/notches/inner holes.
5. According to the actual sample, the scanning height can be set through the touching screen, to adapt the different thickness of the material.
6. According to the color of scanning pieces, background color can be quickly switched, flexibly respond to different materials.
7. Output general DXF file format, compatible with most of CAD software in the market.
PRODUCT SPECIFICATIONS
Recommended Models | ||||||||
Model | Working Area (mm) | Net Weight | Power | Installation Area(L×W×H) | ||||
RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220 | 1000*1200 | 400kg | 2kw | 2300mm×1750mm×1300mm | ||||
RPFP-NM-DI-1-1500×1200-SGSF-NA-1P220 | 1500*1200 | 480kg | 2kw | 2800mm×1750mm×1300mm | ||||
RPFP-NM-DI-1-2000×1200-SGSF-NA-1P220 | 2000*1200 | 560kg | 2kw | 3300mm×1750mm×1300mm | ||||
RPFP-NM-DI-1-1500×1600-SGSF-NA-1P220 | 1500*1600 | 600kg | 3kw | 2800mm×2150mm×1300mm | ||||
RPFP-NM-DI-1-2000×1600-SGSF-NA-1P220 | 2000*1600 | 700kg | 3kw | 3300mm×2150mm×1300mm | ||||
RPFP-NM-DI-1-2500×1600-SGSF-NA-1P220 | 2500*1600 | 800kg | 3kw | 3800mm×2150mm×1300mm | ||||
Scanning Resolution | 150-300DPI | 36×48 inches | Scanning Speed | Max. 7200mm/min | ||||
Identification Accuracy | ≤1mm | Scanning Pieces Fixation | Vacuum sectional adsorption | |||||
Operating System | Microsoft Windows WIN7/WIN10 | Scanning Background | Dark/Light background switchable | |||||
Operating Mode | Linear scanning | Air Pressure | 0.6MPa | |||||
Data Interface | USB 2.0 | Power Supply | Single phase AC220V±10% 50/60Hz | |||||
Software Connection | Compatible with most of garment CAD software in the market | Working Temperature | 0-40℃ | |||||
Air Machine | Quiet mode air pump | Working Humidity | ≤85%（at 25℃, no condensation） | |||||
