Эдвардса RV5 двойной пластинчато роторный механический окончательное давление 1 5X10 3 мм рт вакуумные машины вакуумный насос

Сохранить в закладки 10000003392326:


Цена:500,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description

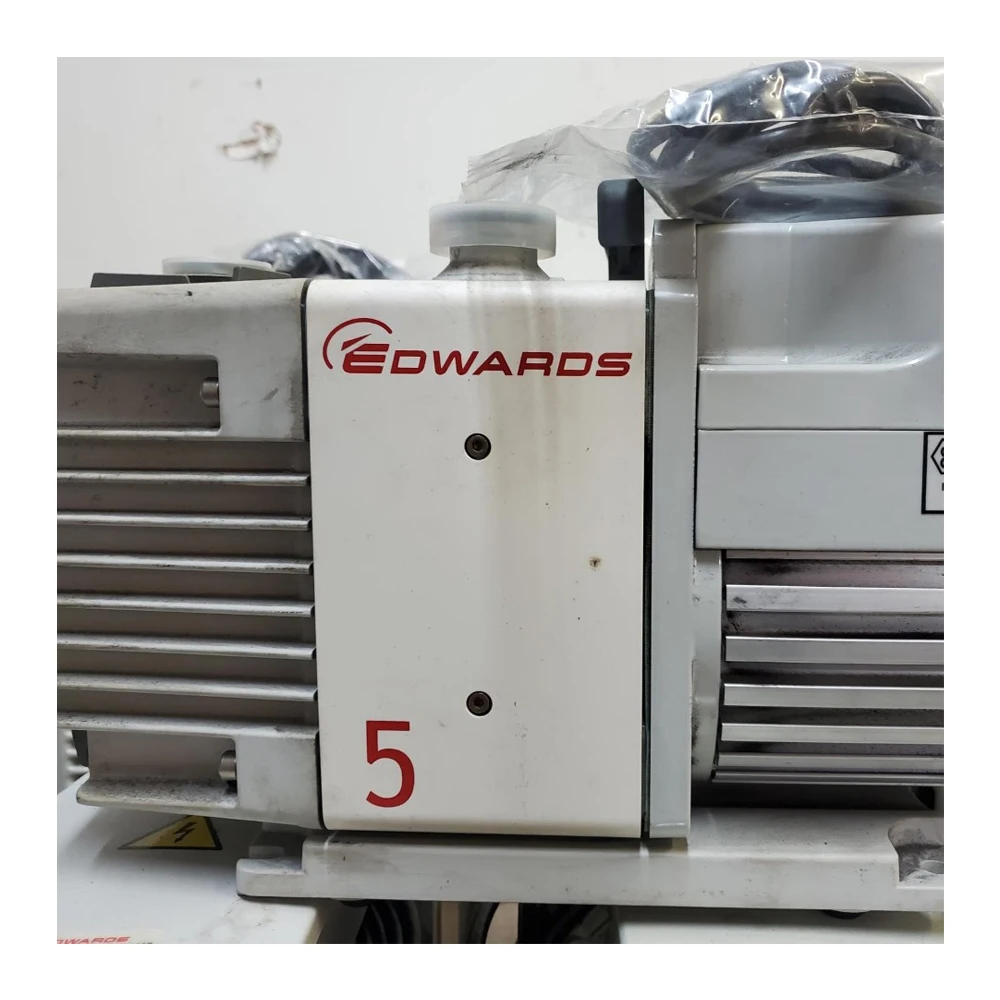

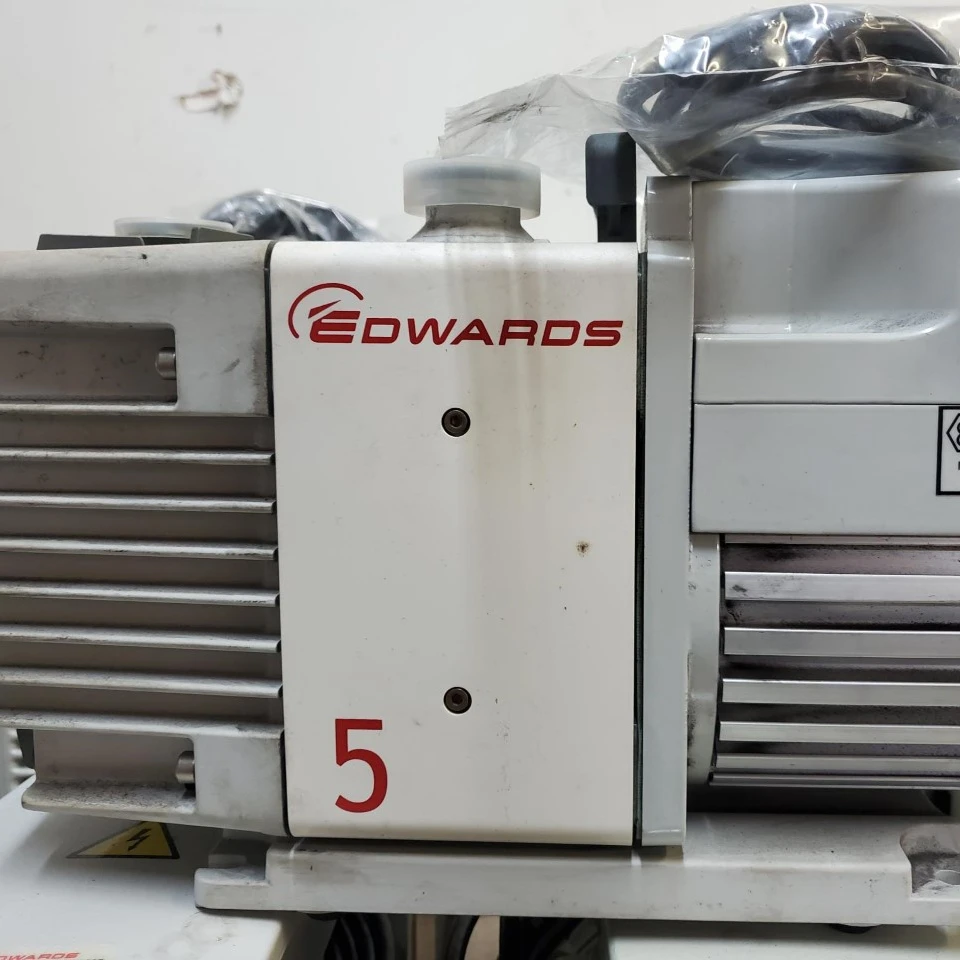

The Edwards RV5 dual-stage rotary vane mechanical vacuum pump has a pumping speed displacement at 60Hz of 4.1 cfm and an ultimate pressure of 1.5 X 10 -3 Torr. The max water vapor inlet pressure of the Edwards Vacuum pump is 38 torr. The Edwards RV5 rotary vane pump weights about 47 pounds and has an operating temperature range of 12 to 40 degrees Celsius.

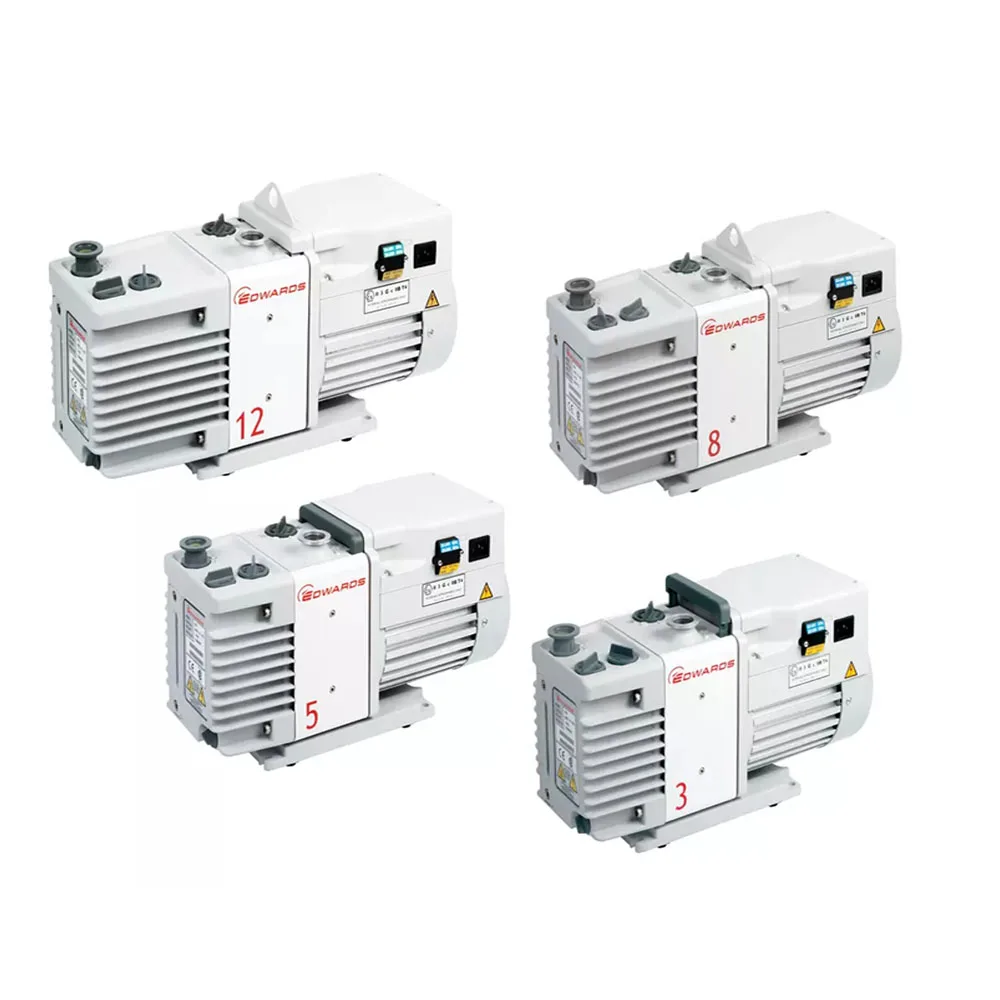

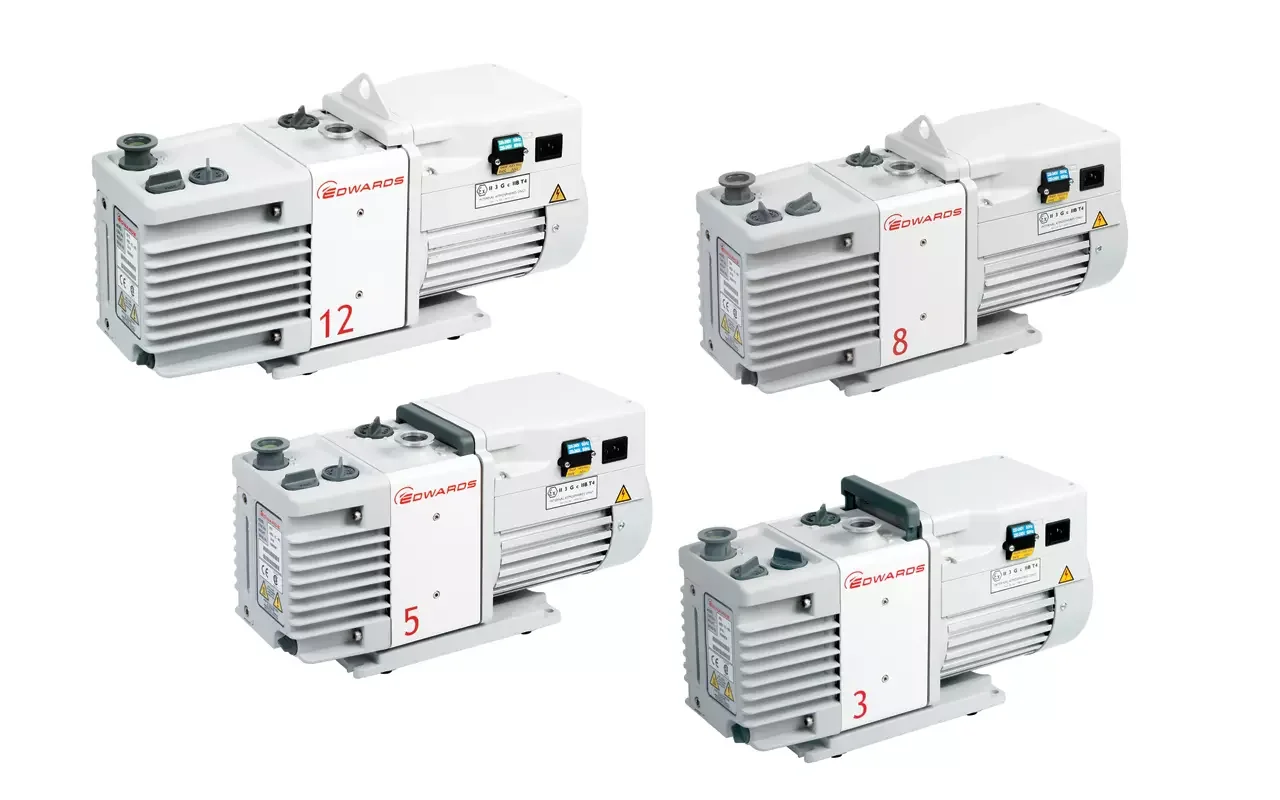

Edwards Rotary Vane Pumps RV5

Our RV series rotary vane pumps are rugged pumps that offer you an excellent ultimate vacuum with good pumping speeds, as well as superior vapour handling capabilities and quiet operation.

Applications in high vacuum include TV tube priming, backing turbo pumps, analytical instruments, physics research, electron microscopes, and leak detection. Applications in high throughput include distillation, backing vapor pumps, mass spectrometer inlet systems, solvent concentration, laboratory furnaces, freeze drying, and other drying applications.Pump comes as 115V, can be 230V.


Specification


Place of origin
United States
Operating temperature range
12 – 40 °C
Electrical Supply
1 Ph, 100-120/200-230 VAC 50/60 Hz
Nominal rotation speed 50/60Hz
1500 / 1800rpm
Weight (without oil)
25 kg / 55 lb
Oil capacity min/max
0.42/0.7 litres
Recommended oil
Ultragrade 19
Inlet flange
NW25
