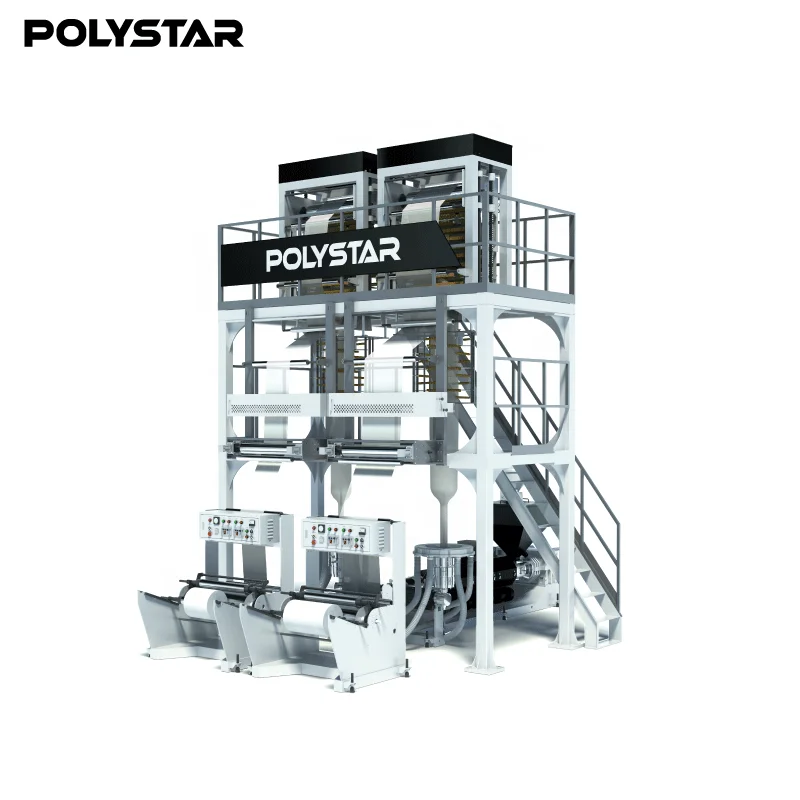

Двойная головка 650 мм машина для выдувания пленки HDPE LDPE

Двойная головка 650 мм машина для выдувания пленки HDPE LDPE

Категория: >>>
Поставщик: POLYSTAR MACHINERY CO. LTD.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Descriptions

Bag Production. Double The Efficiency

● Fast output of small film and thin film- Bag on-roll (star-sealed), shopping bags, flat bags, T-shirt bags and etc.
● Designed for HDPE, LDPE, LLDPE
● Good mixing of recycled material and CaCO3
● Separate controls of temperatures, extrusion output, take up and winding speed on each line of the machine for precise control and easy operation.

• High Production Capacity
With a bigger single extruder, it is especially efficient to produce smaller width films, which lowers the costs but increases the output.

• Twin Head for Producing Different Film Widths

Double die heads allow producers to produce HDPE/LDPE films in different widths at the same time.

• Special Screw Design

The special screw design provides good mixing of pellets and allows a higher percentage of recycled material and CaCO3 compound.

How to Work

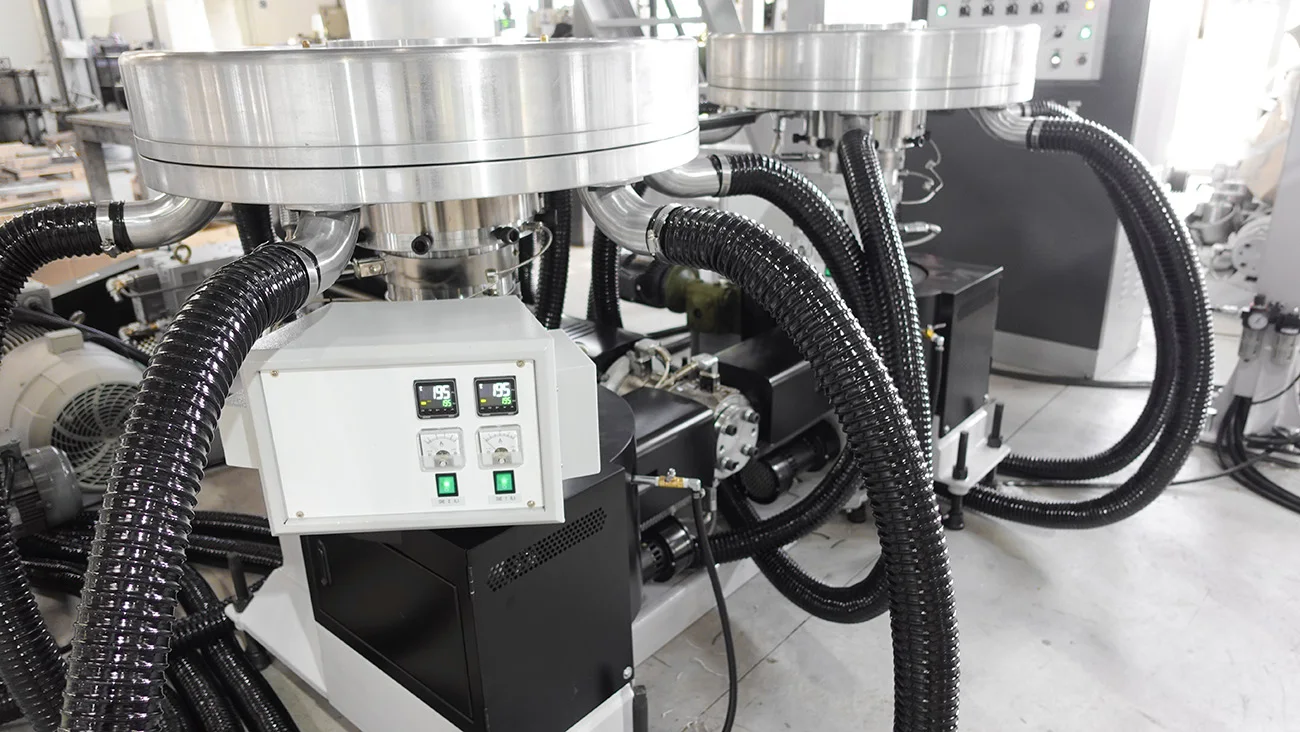

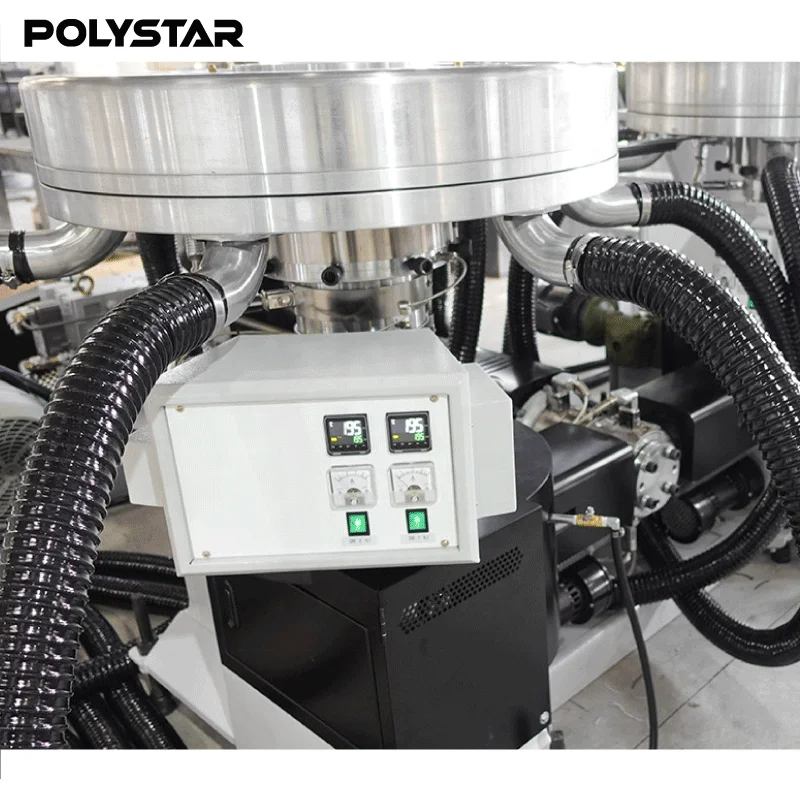

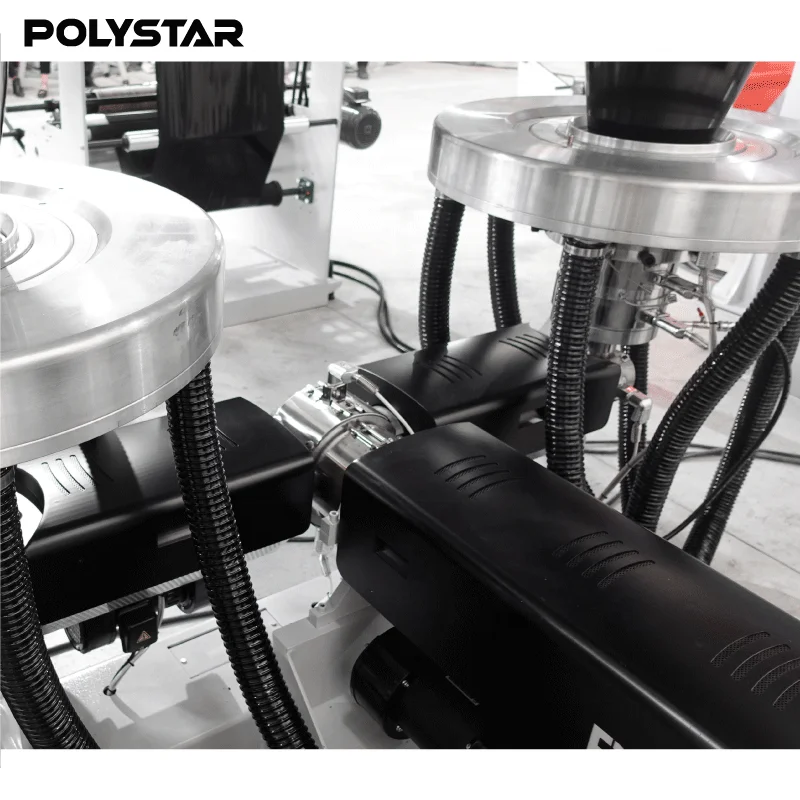

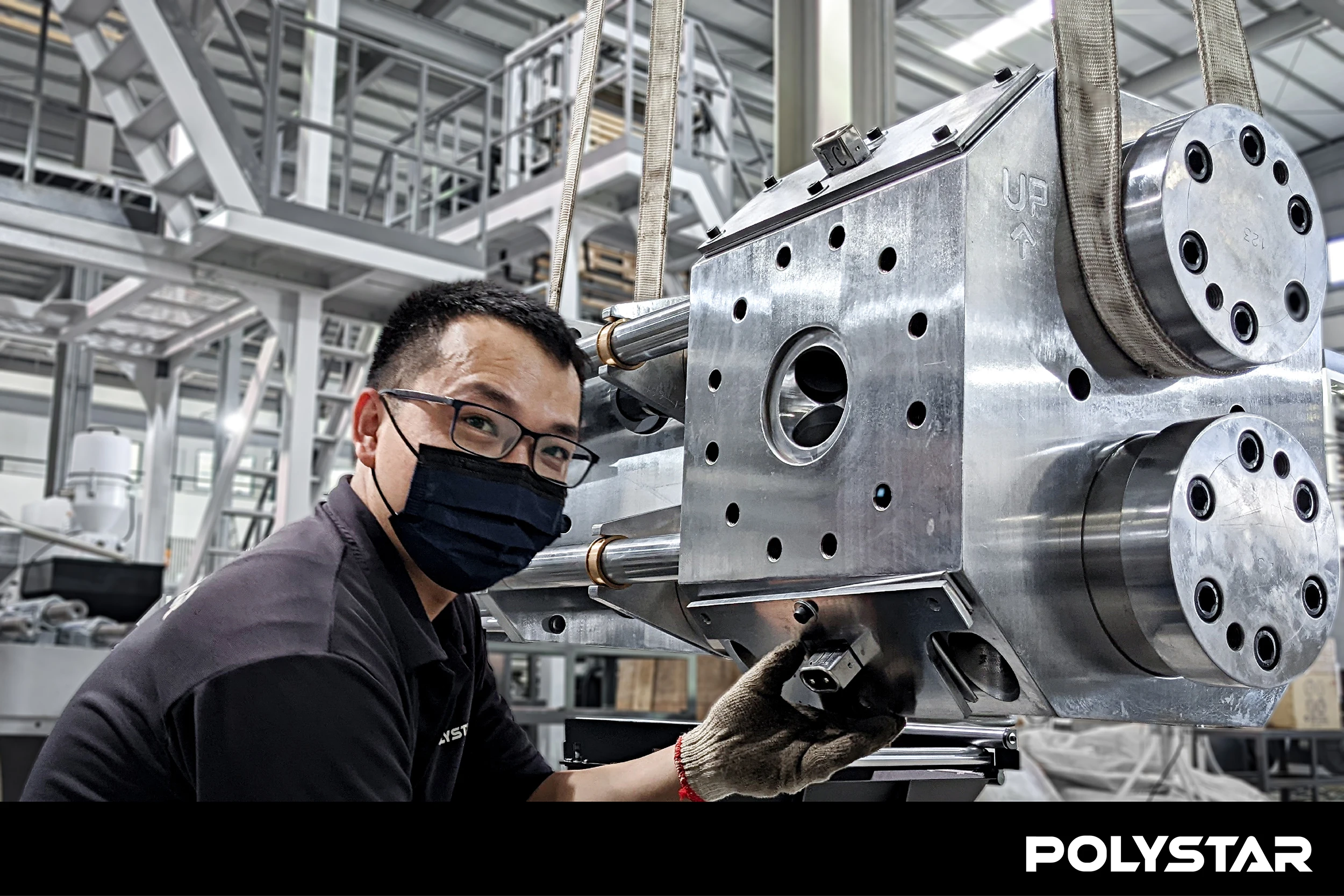

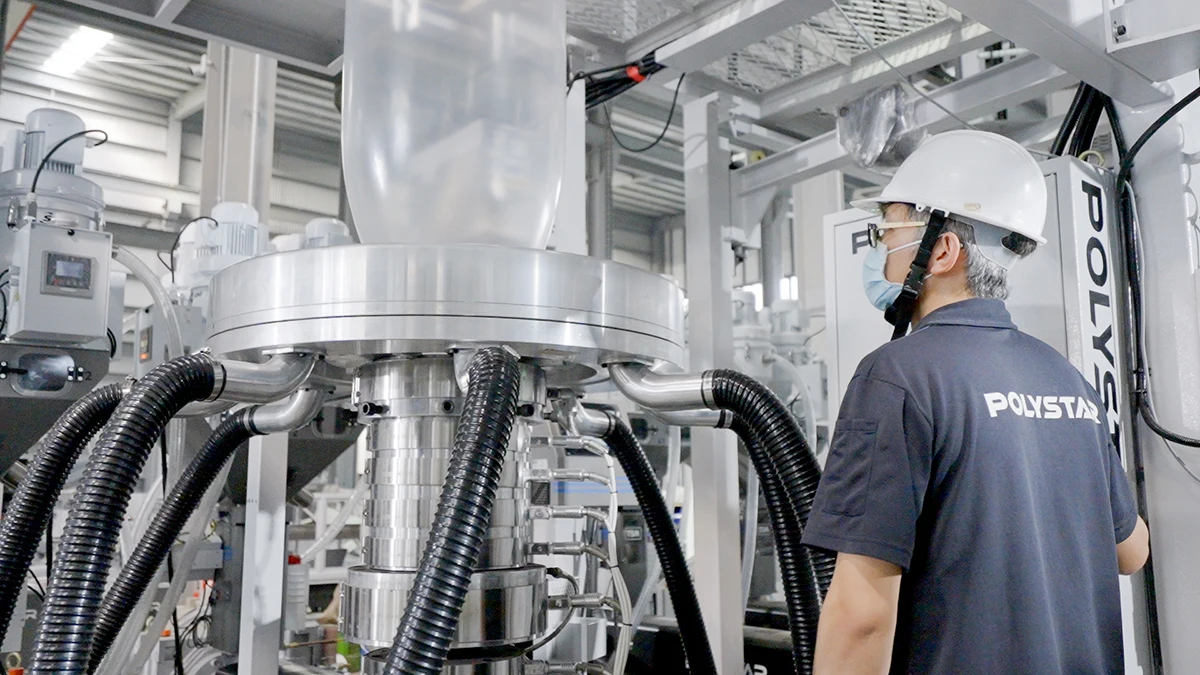

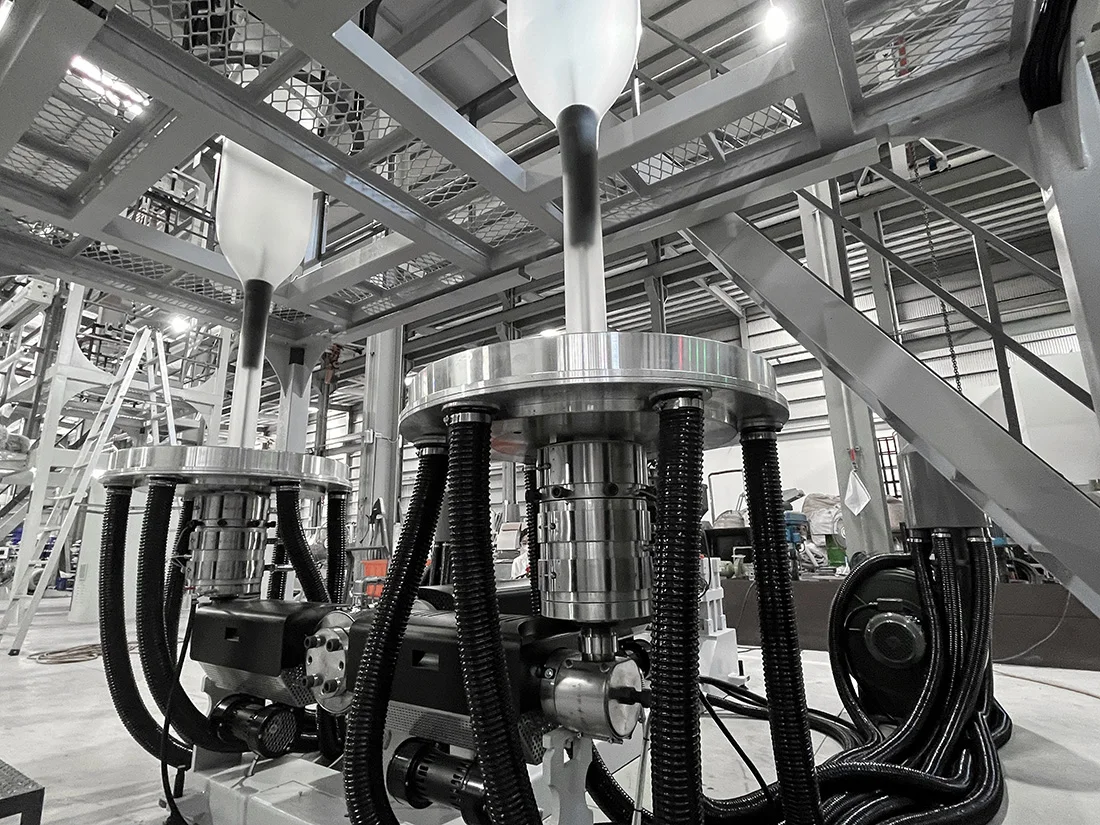

1. Twin Die Heads

For producing different film widths at the same time.

2. Rotary Die Device

For making more uniform and smoother shrink film.

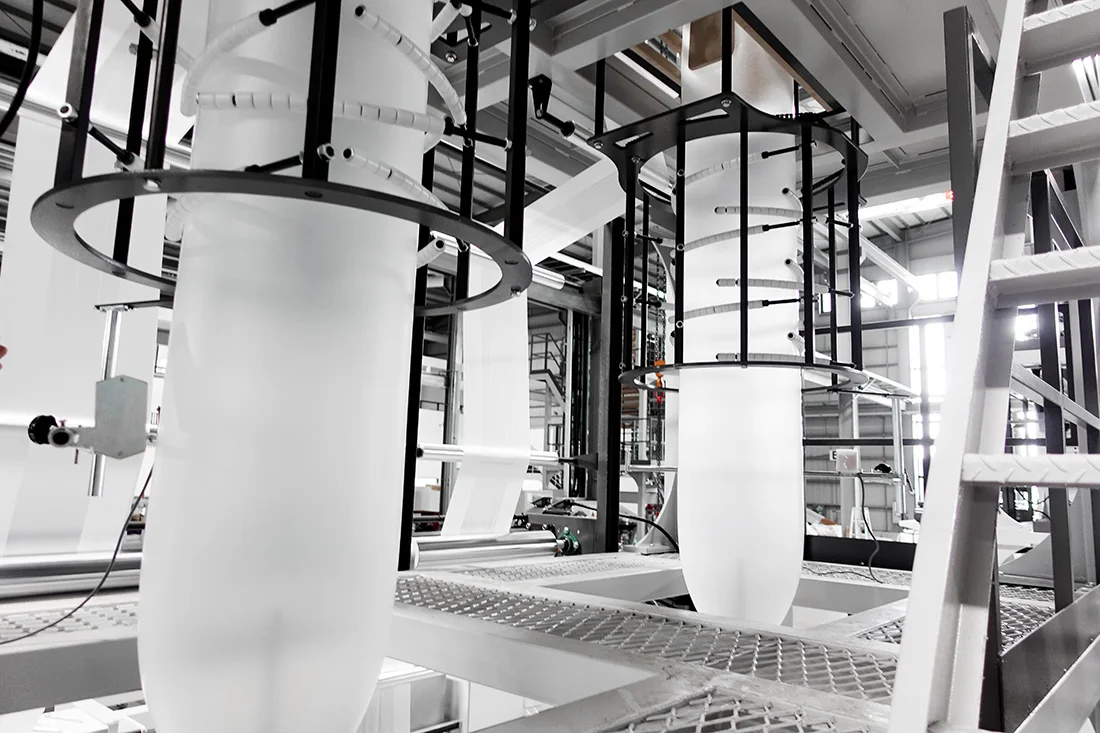

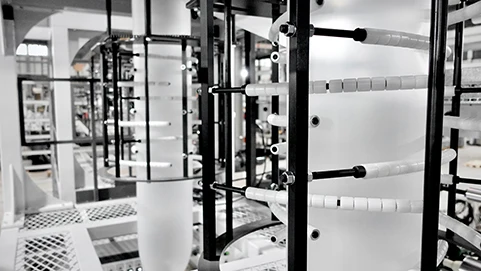

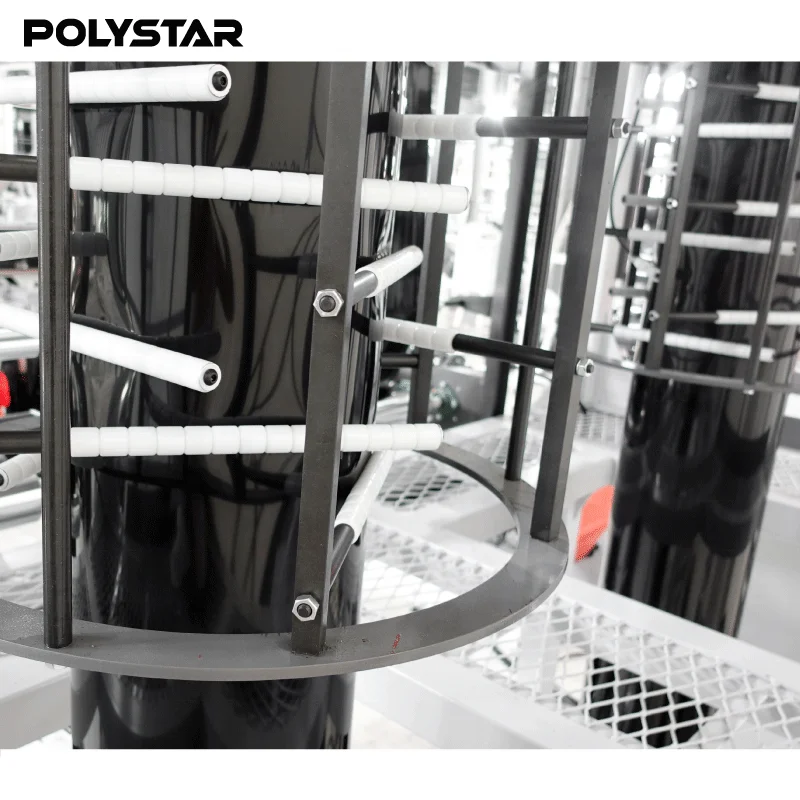

3. Bubble Controller

For better controlling the width of the shrink film.

4. Embossing Roller

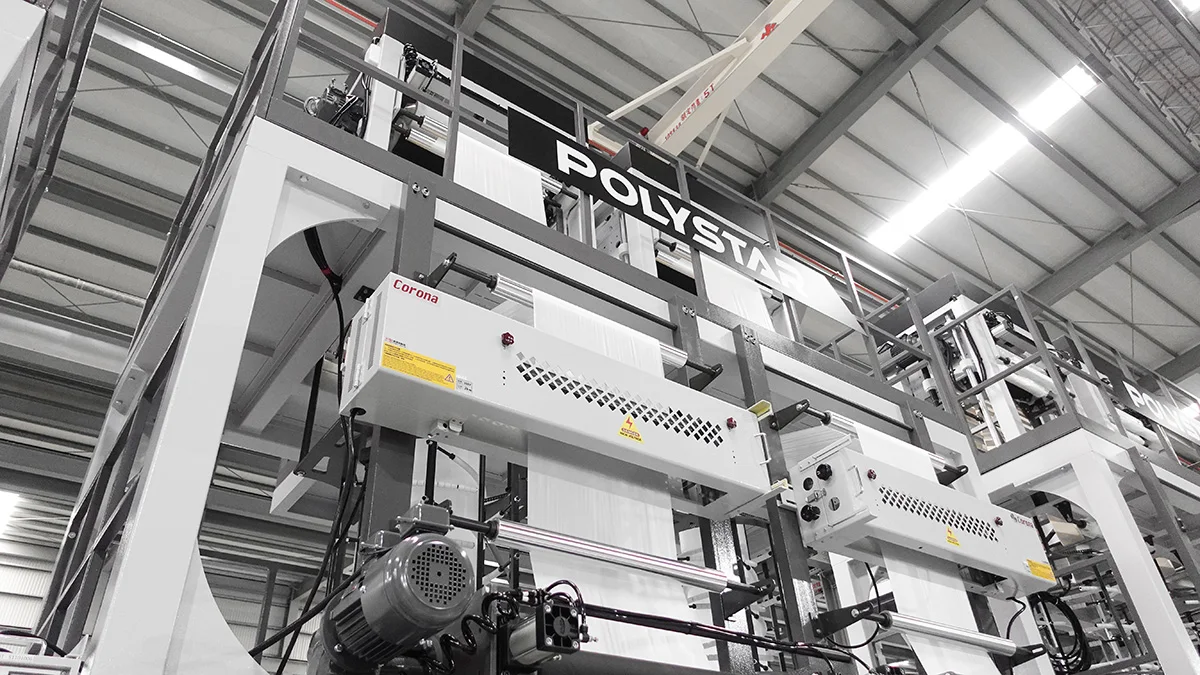

5. Corona Treater

To increase a material's surface tension in an effective way.

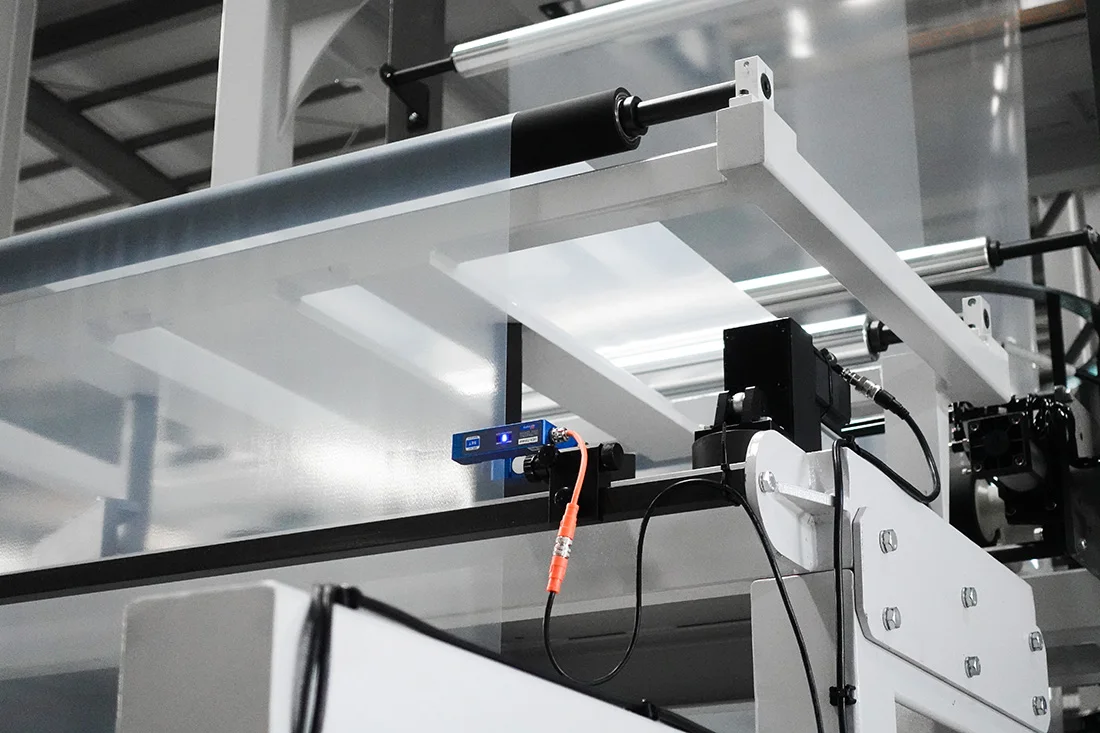

6. EPC (Edge Position Control)

Automatically control the edge to the right position by multi-degree moving.

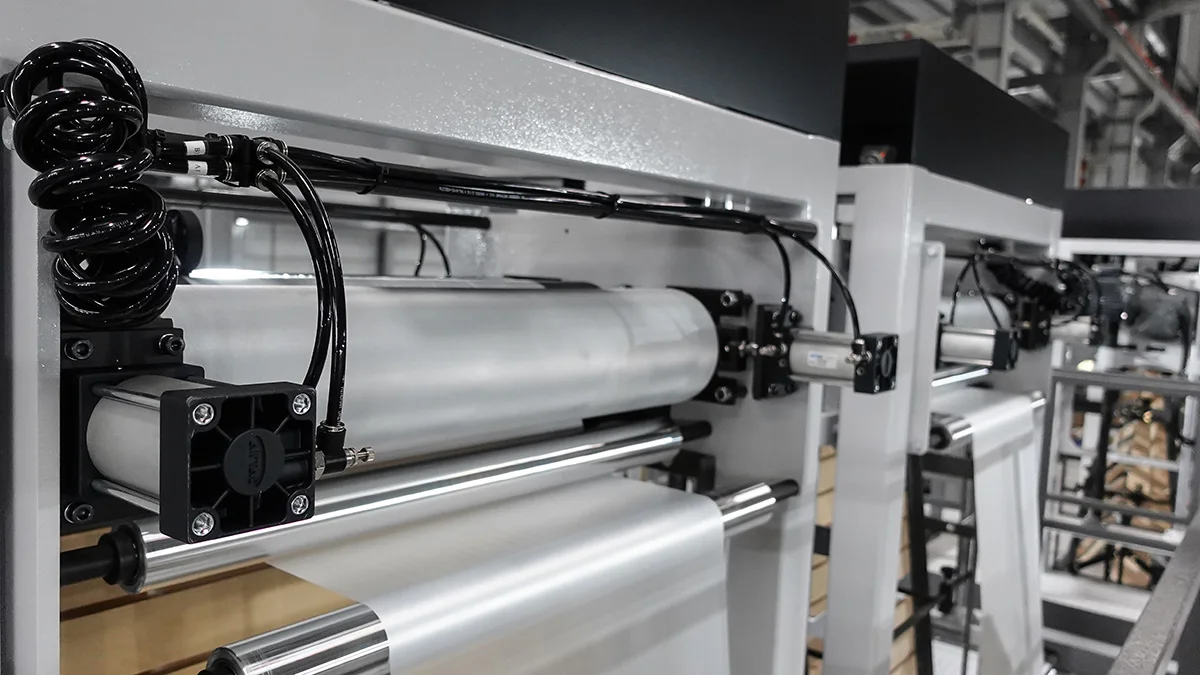

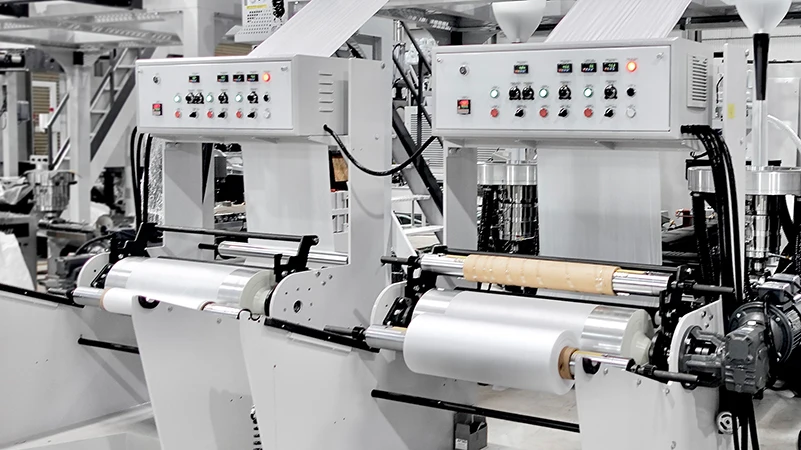

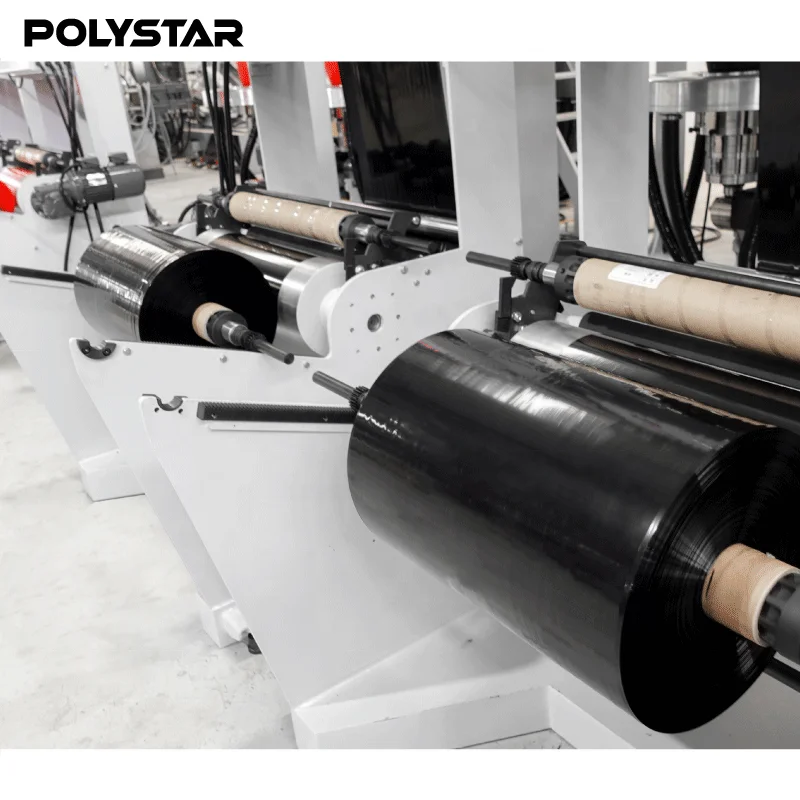

7. Winding Section

Customizate components:
1. Manual double winding

2. Automatic single or double winding

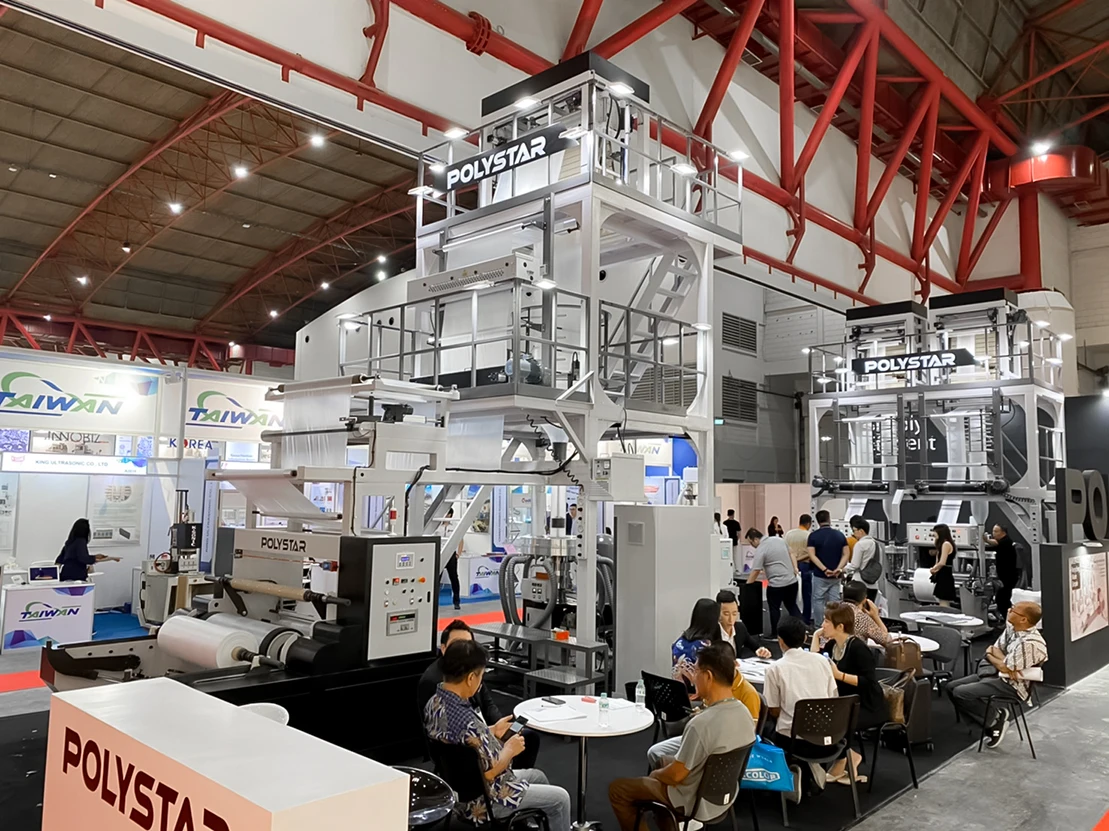

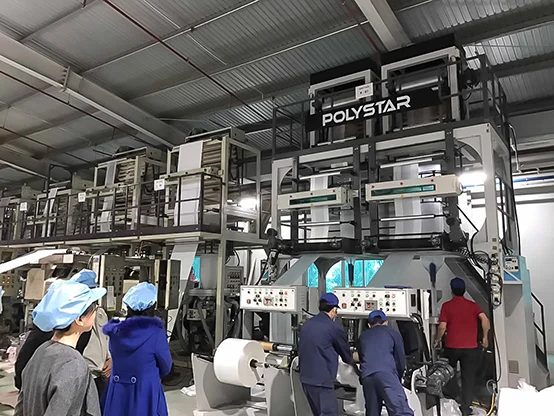

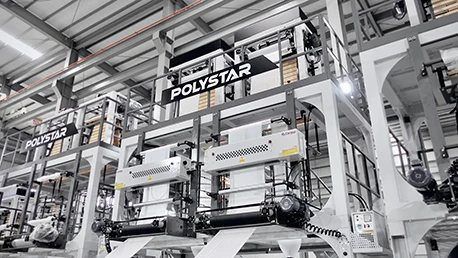

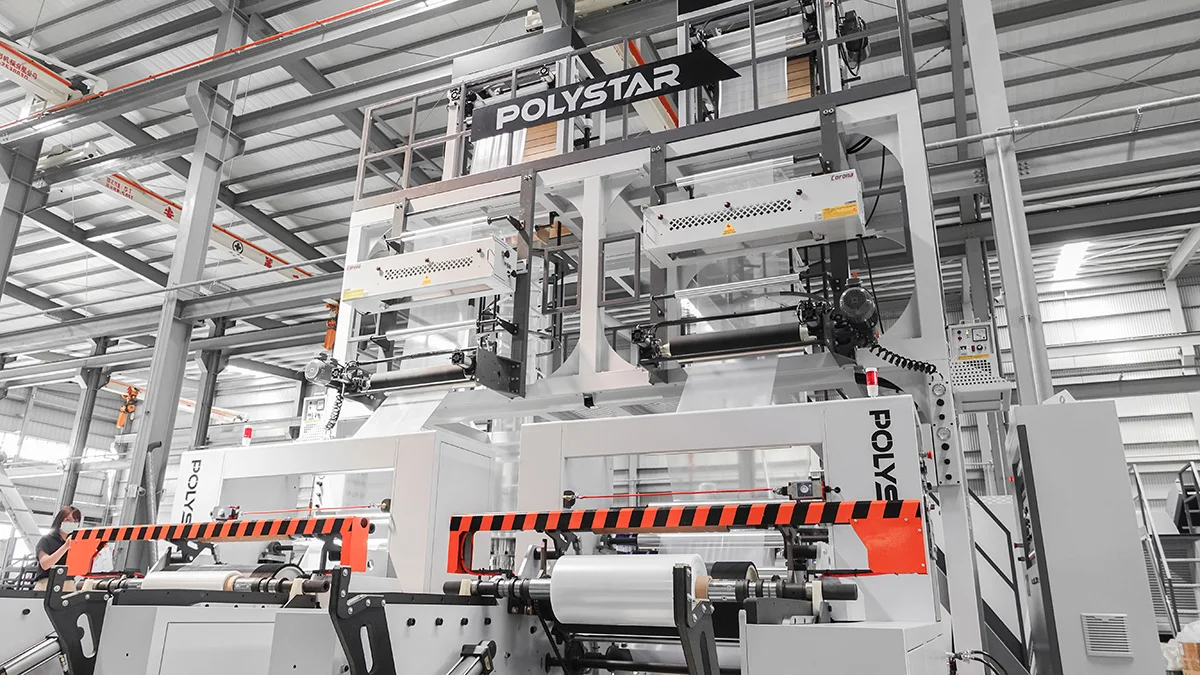

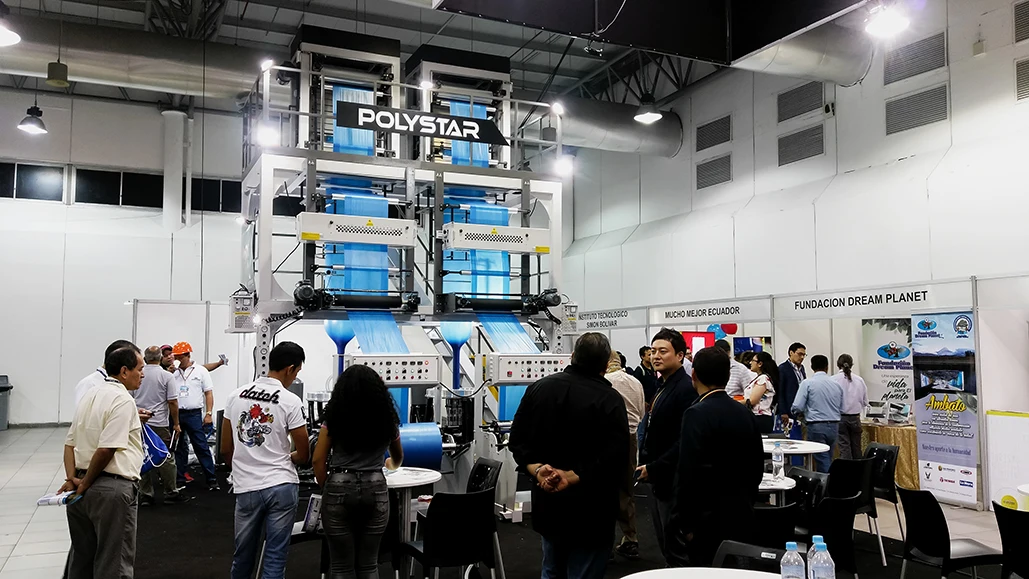

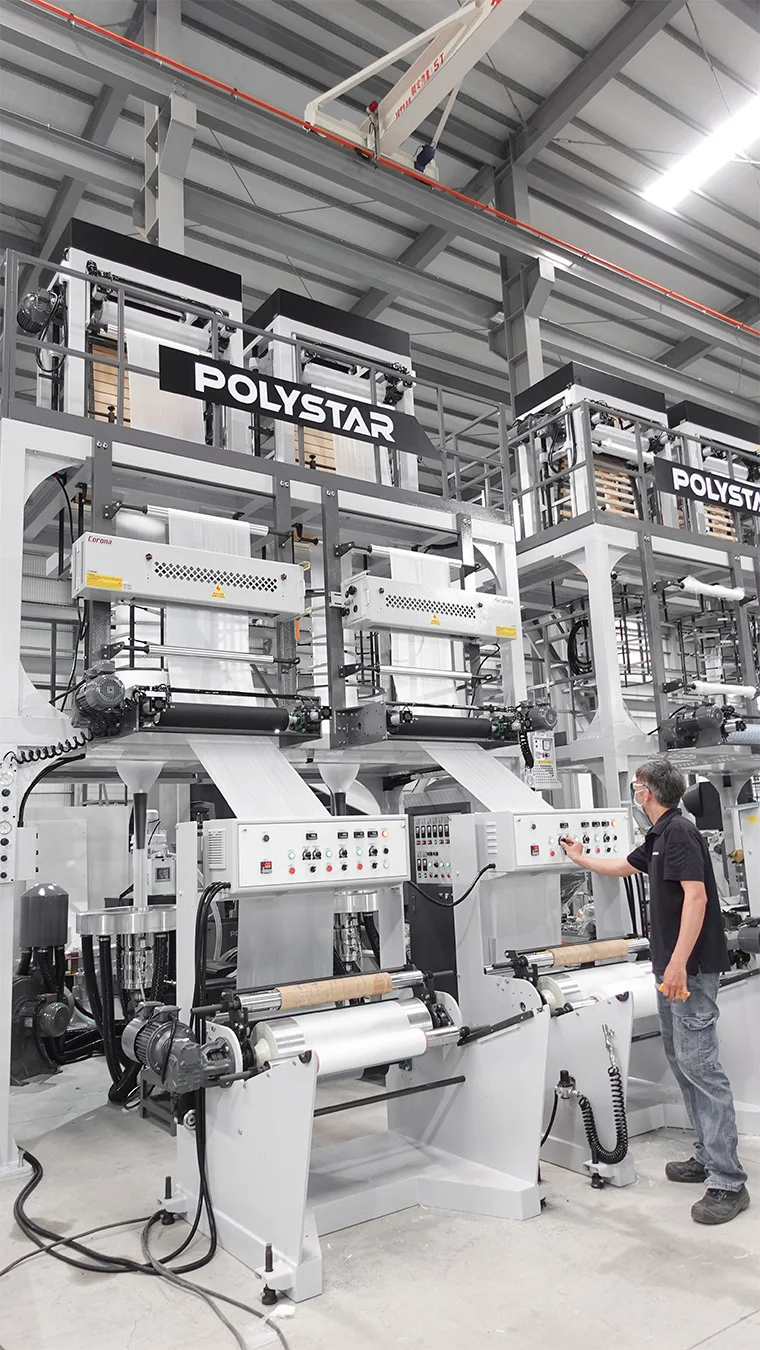

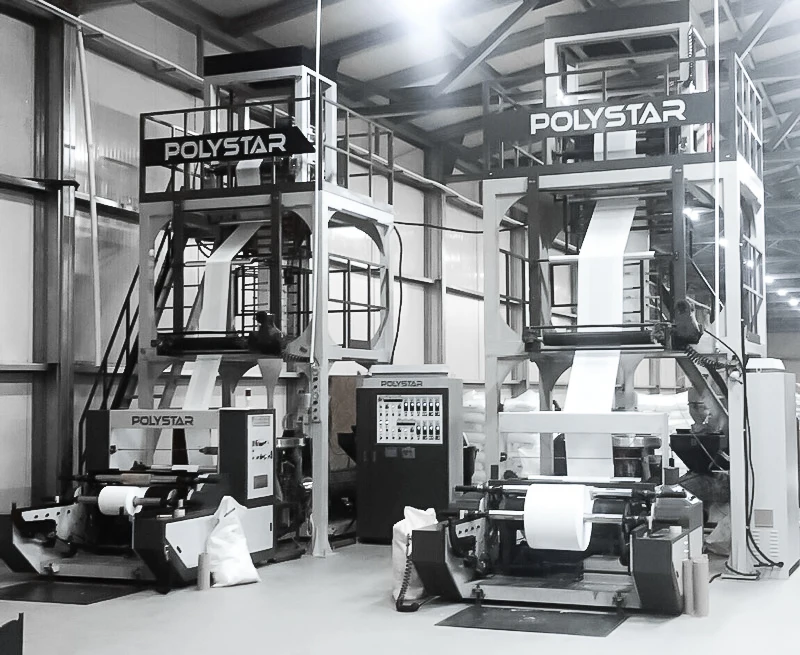

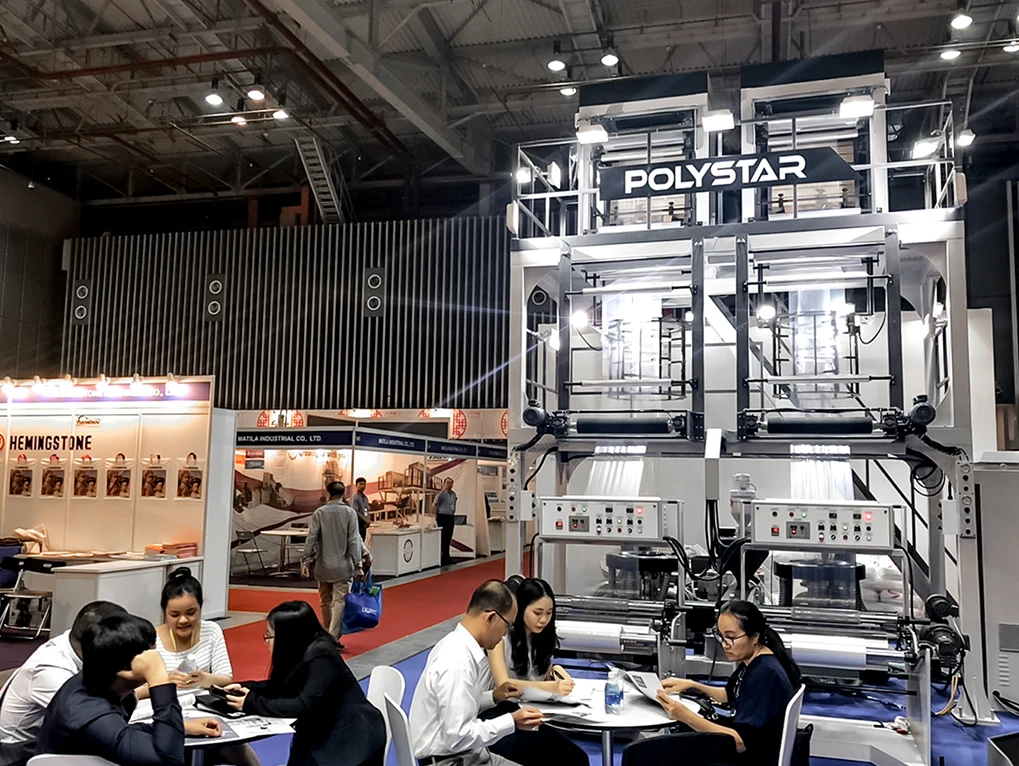

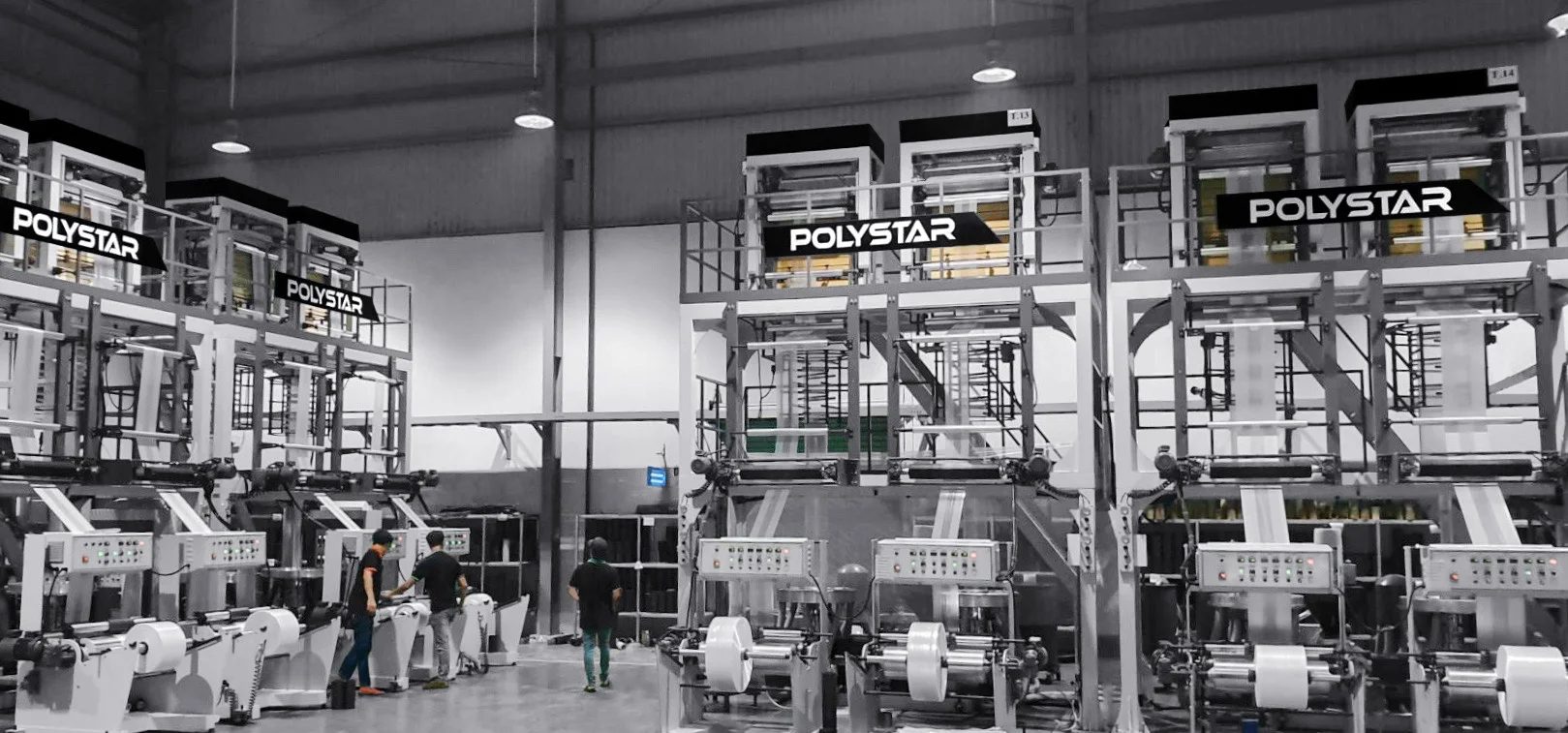

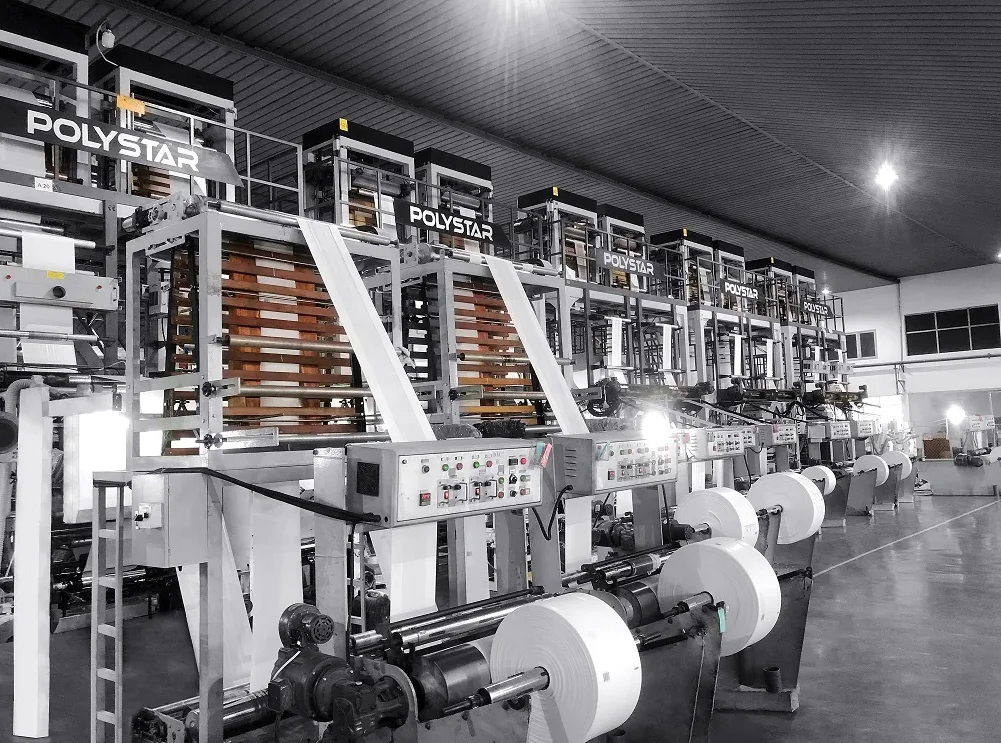

Customer Installations

Specifications

Model Name	Duo-X Twin Dies Mono-layer Blown Film Machine
Final Product	HDPE, LDPE, LLDPE Film
Application	Flexible packaging bags, T-shirt bag, garbage bag, shopping bag
Recycling Material	HDPE,LDPE,LLDPE, PP, BOPP, PA, PC, PS, PU, EPS,ABS
Output Range	80kg~ 1200 kg/hr
Material Used	HDPE, LDPE, LLDPE virgin raw material, recycled material, CaCO3 compound, biodegradable material, masterbatch and additives
Output Range	30-140 kg/hr (depends on extruder size)
Film Layer	Mono Layer (One Layer)
Screw Diameter	40~75mm (customized)
Screw L/D	28/1,30/1 (customized)
Screw Material	SACM-465
Width	50~1000mm
Thickness	0.008~0.1mm
Optional Devices	Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treater, embossing roller, automatic winder, double winder
Delivery Time	60~75 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas
