Индивидуальный размер FFU Hepa потоковая бленда для производства

Индивидуальный размер FFU Hepa потоковая бленда для производства

Категория: >>>
Поставщик: AIR CLEAN DEVISER TAIWAN CORP.

Цена:66 688,08 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

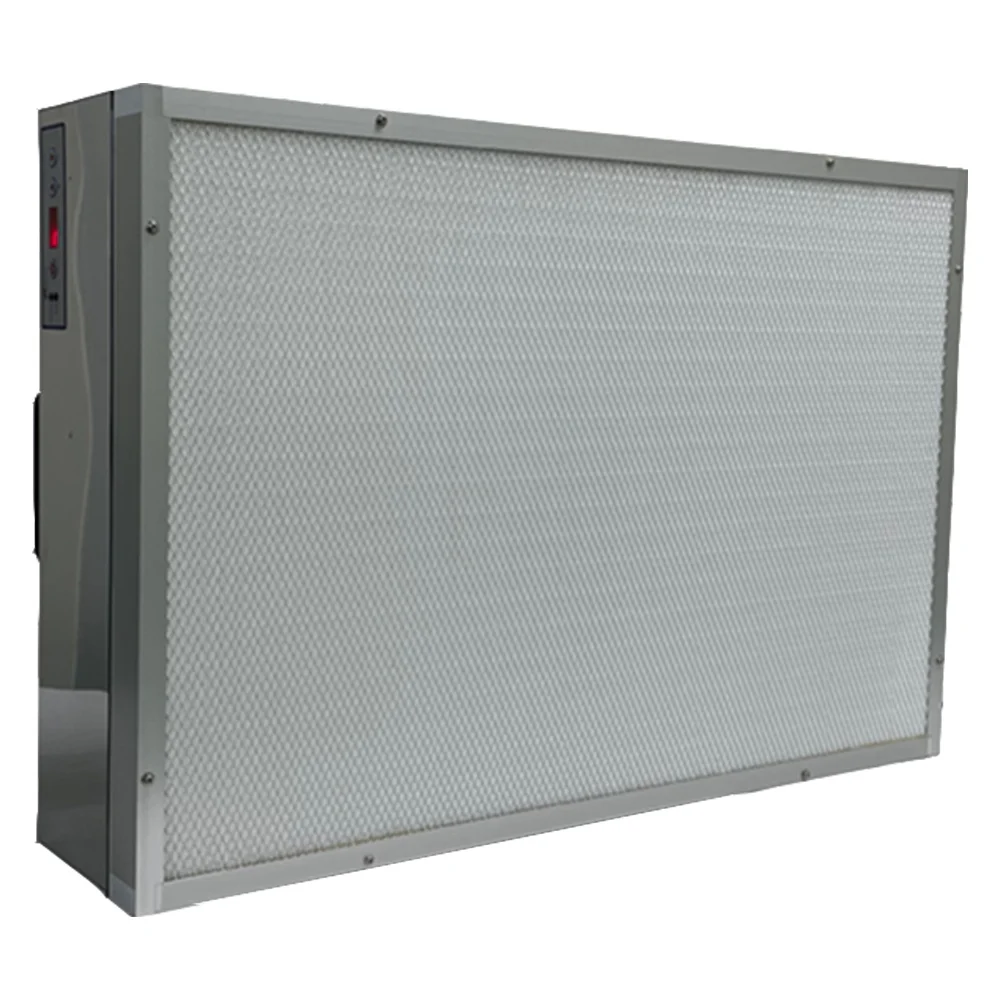

STAND TYPE FFU

FOR MUSHROOM FARM

Feature

◎ Stable Design

The surrounding sides of the FFU are flat, with this design, it can make sure the FFU can be put on any kind of surface and does not wobble or tilt.

◎ Enhanced Sealing
By using a special gasket and a specific fixing method, it can prevent possible air leakage from where the housing and filter meet, thereby ensuring the best filtration performance.

◎ Function
FFU is an air filter equipment that can supply purified air to maintain a clean environment.

◎ Applicable Industry
Can be used in various industries, including semiconductors, electronics, medical, biotechnology, and more.

◎ Customized Service
Our products can be customized to meet customers' air filtration requirements.

Product Paramenters

Stand Type FFU

◎ Energy-saving EC brushless frequency converter motor with low noise level

(compared to AC motor)

◎ Can be customized to meet customers' air filtration requirements

◎ Standard Certification: CE, RoHs, EN1822

◎ Optional Certification: UL, SEMI

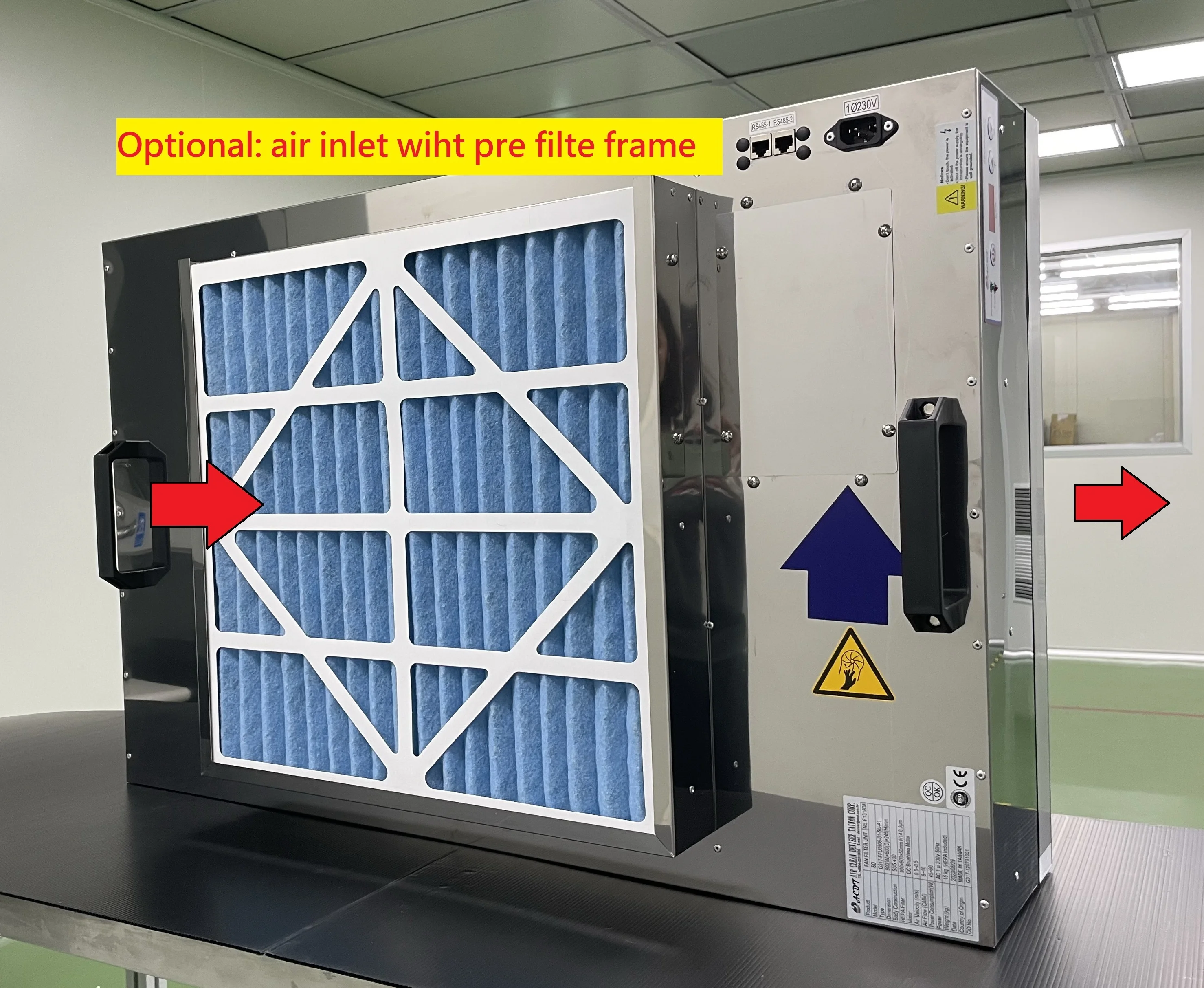

◎ Optional Filter: ULPA Filter, Pre-filter

Technical Specification

2x2

3x2

4x2

4x3

4x4

External Dimension (mm)

W570

D570

H250

W900

D600

H250

W1170

D570

H250

W1170

D900

H300

W1170

D1170

H350

Material of Construction

SUS 430

HEPA Filter

Size (mm)

570*570

900*600

1170*570

1170*1170

Features

Aluminum frame, Filtration efficiency 99.995% at 0.3um

Air Velocity (m/s)

0.3 ~ 0.5

Air Volume (cmm)

6 ~ 10

9 ~ 16

12 ~ 20

19 ~ 31.8

25 ~ 41

Power Supply

AC 1Ø 220V 50/60Hz

Power Consumption (W)

40 ~ 80

45 ~ 100

55 ~ 115

80 ~ 185

100 ~ 250

Motor

EC brushless frequency converter motor

Total Weight (kg)

Comparison Chart
Brand	ACDT	OTHERS
Motor	EC Motor Energy-saving	AC Motor High power consumption
Gasket	Special Gasket Increase Air-tightness	Normal Gasket
Housing Design	No Air Leak Design No air leakage from where the housing and filter meet	Use buckles to lock the housing and filter Can not stand straight Have air leakage from where the housing and filter meet
Housing Design			Stable Design Can stand on table and does not wobble or tilt
Material	Stainless Steel	Galvanized Steel
Filter Efficiency	H14 99.995% @ 0.3 um	H13 99.97% @ 0.3 um
Pre-filter	Pre-filter w/ frame, easy change (Optional)	N/A
Size	Can customized according to requirement	Can not customized

Other Recommendation

Certificate of Compliance

ACDT's FFUs have not only the UL certification but also CE and RoHS certifications. Additionally, our company has passed ISO 9001, ISO 13485, and ISO 14001 international standard certifications! This indicates that our quality management system, medical device quality management system, and environmental management have met international standards while taking responsibility for environmental protection and actively reducing the impact during operation.

Our Products

Certificate

Manufacturing license of the medical devices

License No. QMS2094

In order to get the manufacturing license, our company has passed the inspection against the Medical Device Quality Management
System Regulations.

QMS, Quality Management System also known as GMP.
It is to ensure our device is able to be consistently produced and controlled by the proper quality standards.

We are the only Taiwan company in our industry to pass the QMS inspection.

ISO 13485: 2016

ISO 13485 is an international standard that specifies requirements for quality management systems for manufacturers.

The purpose is to ensure the we can provide high standards of quality assurance and product safety for our products and services,
increase consumer trust and loyalty, and enhance corporate image and market competitiveness.

Less than 1% of Taiwan companies in our industry register.

ISO 9001: 2015

ISO 9001 is an international standard that specifies requirements for quality management system.

This standard helps us to provide products and services with consistent quality.

ISO 14001: 2015

ISO 14001 is an international standard that focuses on how businesses and organizations manage their environmental impacts.

The standard provides a framework for establishing an effective Environmental Management System (EMS) to help us achieving
environmental objectives and reduce the impact on the environment.

UL 507

UL 507 is a standard issued by Underwriters Laboratories for electric fans and electric fan accessories.

Our FFU is a critical product widely used in cleanroom environments, such as medical, semiconductor, and other high-purity
applications.

By achieving this certification, our FFU proves that it meets the strictest safety and performance requirements, providing
customers with higher quality and more reliable products.

Our customers can confidently use our product, knowing that it meets the highest safety and performance standards.

SEMI

The SEMI Standard is internationally used in aspects of semiconductor, photovoltaic (PV), LED, MEMS, and flat panel display (FPD) manufacturing industries. By achieving this standard, it ensures our reliability and productivity.

SEMI S2 - Environmental, Health, and Safety Guideline for Semiconductor Manufacturing Equipment

SEMI S8 - Safety Guideline for Ergonomics Engineering of Semiconductor Manufacturing Equipment

SEMI S22 - Safety Guideline for the Electrical Design of Semiconductor Manufacturing Equipment

EN 12469

In laboratories, safety is very important. EN 12469 is an international standard to ensure our equipment meet the safety regulations. This standard makes sure that our Biological Safety Cabinets provide a safe and controlled environment for working with dangerous biological agents.
