Product Description

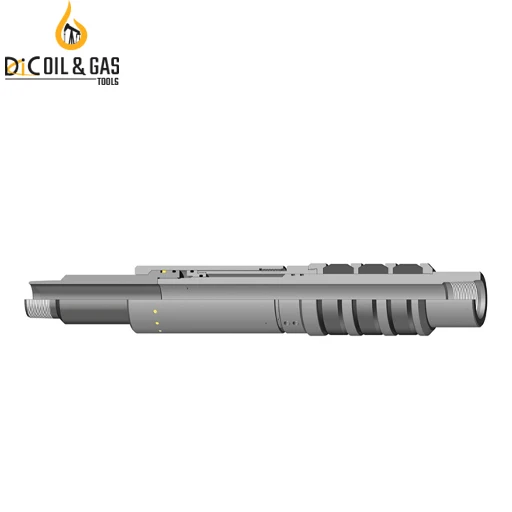

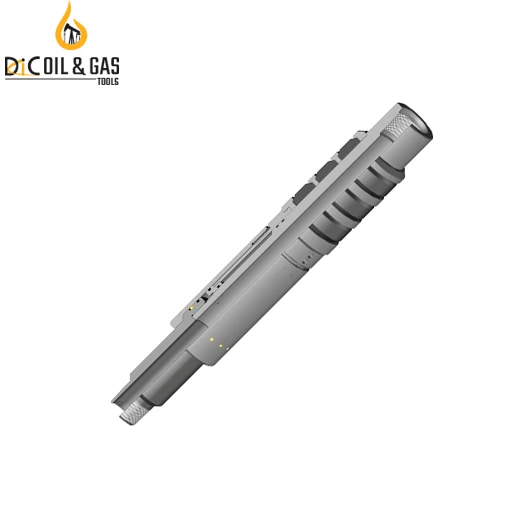

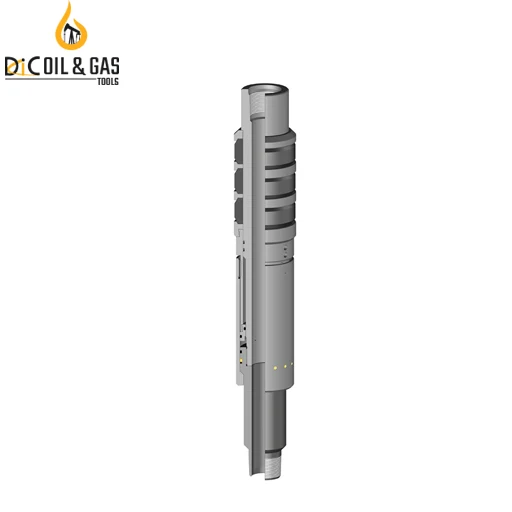

HYDROSET IV PACKER
The Hydroset IV Packer is a hydraulic set single string retrievable packer. Tubing pump pressure is used to set the packer and the setting force is locked into the packer by a body lock ring. Its design allows for multiple zone completions. It can be run with other hydraulic packers or mechanical set packers. This packer is ideal to run as a tandem packer with double grip packers that will lock the tubing in place. This packer is released with a straight pull to shear releasing screws. This packer features a three element packing arrangement, a lock ring mechanism to lock in setting force, and field adjustable shear screws to allow adjustment of setting initiation and releasing force required to release the packer.
Details Images
Specification
Casing | Casing Range (inches) | Tool OD (inches) | Tool ID (inches) | Thread Connection Box Up / Pin Down | ||||
Size (inches) | Weight (lbs/ft) | |||||||
3-1/2 | 7.7 - 10.2 | 2.922 - 3.068 | 2.781 | 1.25 | 1.900 NUE | |||
4 | 9.5 - 11.0 | 3.476 - 3.548 | 3.250 | 1.75 | 2-3/8 EUE | |||
12.95 | 3.340 | 3.187 | 1.75 | 2-3/8 EUE | ||||
4-1/2 | 9.5 - 13.5 | 3.920 - 4.090 | 3.750 | 2.00 | 2-3/8 EUE | |||
5-1/2 | 14.0 - 20.0 | 4.778 - 5.012 | 4.625 | 2.00 | 2-3/8 EUE | |||
2.38 | 2-7/8 EUE | |||||||
6-5/8 | 17.0 - 24.0 | 5.921 - 6.135 | 5.750 | 2.50 | 2-7/8 EUE | |||
3.00 | 3-1/2 EUE | |||||||
24.0 - 32.0 | 5.675 - 5.921 | 5.500 | 2.50 | 2-7/8 EUE | ||||
3.00 | 3-1/2 EUE | |||||||
7 | 17.0 - 26.0 | 6.276 - 6.538 | 6.000 | 2.50 | 2-7/8 EUE | |||
3.00 | 3-1/2 EUE | |||||||
20.0 - 29.0 | 6.184 - 6.456 | 5.938 | 2.50 | 2-7/8 EUE | ||||
26.0 - 32.0 | 6.094 - 6.276 | 5.875 | 2.50 | 2-7/8 EUE | ||||
3.00 | 3-1/2 EUE | |||||||
7-5/8 | 24.0 - 29.7 | 6.875 - 7.025 | 6.672 | 2.50 | 2-7/8 EUE | |||
3.00 | 3-1/2 EUE | |||||||
33.7 - 39.0 | 6.625 - 6.765 | 6.453 | 2.50 | 2-7/8 EUE | ||||
3.00 | 3-1/2 EUE | |||||||
