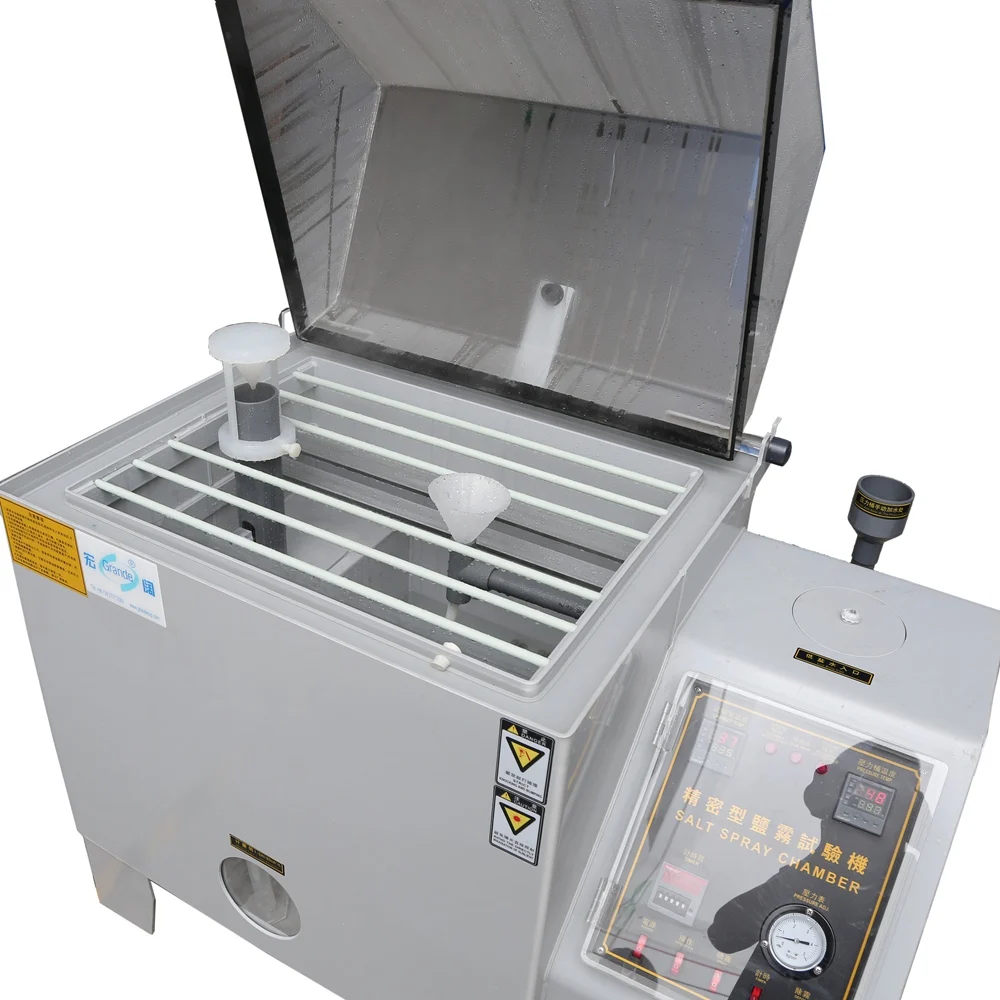

Устройство для контроля температуры и влажности соли 5%
- Категория: >>>
- Поставщик: Guangdong Grande Automatic Test Equipment Limited
Сохранить в закладки 10000004112862:
Описание и отзывы
Характеристики
Product Description
Specification
Model No | GSSP-108 | GSSP-270 | GSSP-600 | GSSP-800 | GSSP-1000 | |||||
Description | Salt Spray Prohesion Test Chamber Conventional salt spray and Prohesion tests | |||||||||
Temp Range | 10℃~ +65℃ | |||||||||
Humid Range | NO | |||||||||
Inner Size(mm) | W600* H400* D450 | W900* H500* D600 | W1200* H500* D1000 | W1010* H640* D1140 | W2000* H500* D1000 | |||||
External Size(mm) | W1070* H580* D1030 | W1380* H800* D1150 | 1700* H900* D1500 | W1660* H840* D1510 | W2800* H1250* D1600 | |||||
Model No | GSST-108 | GSST-270 | GSST-600 | GSST-800 | GSST-1000 | |||||
Description | Salt Spray Prohesion Test Chamber Conventional salt spray, Prohesion, and 100% humidity | |||||||||
Temp Range | 10℃~ 65℃ | |||||||||
Humid Range | RH100% | |||||||||
Inner Size(mm) | W600* H400* D450 | W900* H500* D600 | W1200* H500* D1000 | W1010* H640* D1140 | W2000* H500* D1000 | |||||
External Size(mm) | W1070* H580* D1030 | W1380* H800* D1150 | 1700* H900* D1500 | W1660* H840* D1510 | W2800* H1250* D1600 | |||||

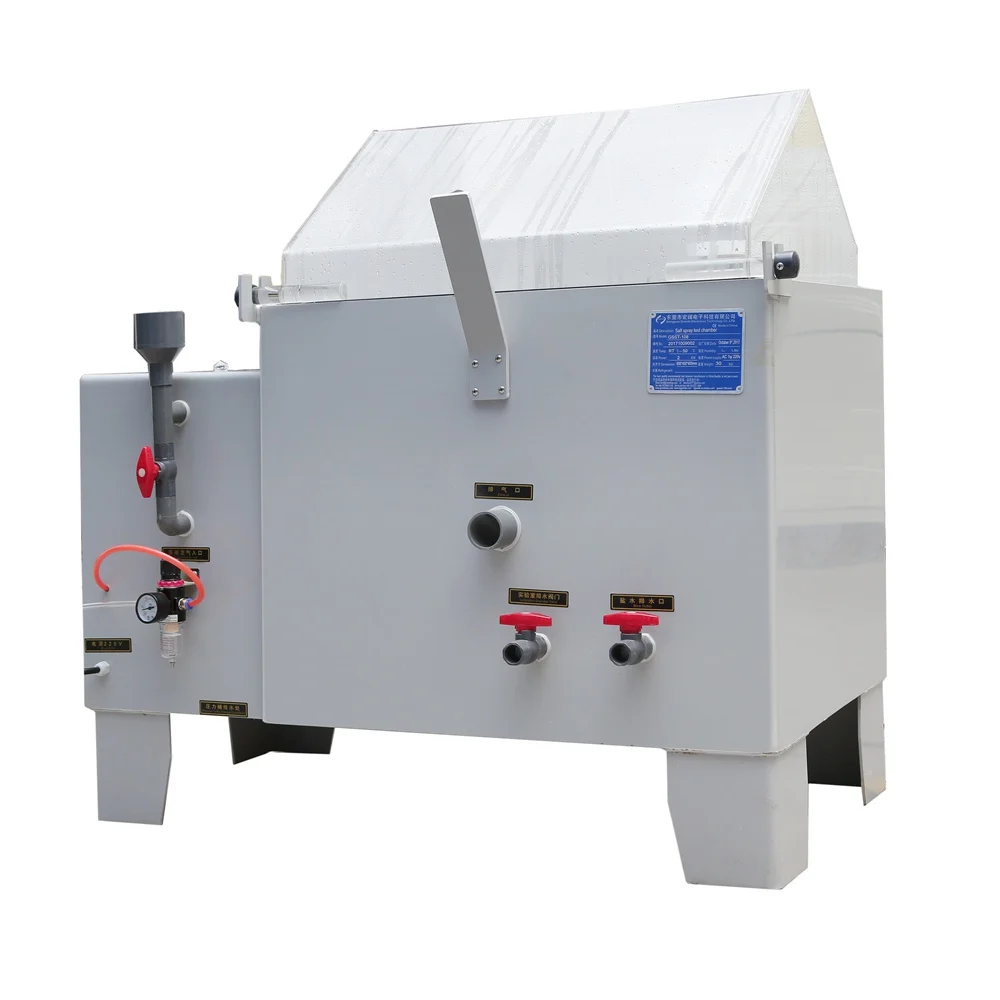

Salt Spray Prohesion Test Chamber
Cyclic corrosion testing provides the best possible laboratory simulation of natural atmospheric corrosion. Research indicates that test results are similar to outdoors in resulting structure, morphology, and relative corrosion rates.
Cyclic corrosion chambers from GRANDETOP® can run traditional salt spray, Prohesion, and most cyclic automotive tests.Chambers are available in different sizes to fulfill a wide range of testing requirements.
Cyclic corrosion testers are the simplest, most reliable, and easiest to use corrosion testers available.
Overview
Cyclic Corrosion Testing
Prior to cyclic corrosion testing, conventional salt spray (a continuous salt spray at 35˚C), was the standard way to simulate corrosion in a lab. Because conventional salt spray methods failed to mimic the natural wet/dry cycles of the outdoors, test results frequently provided poor correlation to outdoors.
In a cyclic corrosion tester, specimens are exposed to a series of different environments in a repetitive cycle that mimics the outdoors. Simple cycles, such as Prohesion, may consist of cycling between salt fog and dry conditions. More sophisticated automotive methods may call for multi-step cycles that incorporate humidity or condensation, along with salt spray and dry-off.
Within one chamber, it is possible to cycle through a series of the most significant corrosion environments. Even extremely complex test cycles can easily be programmed with the controller.
Corrosion test chambers are available in two types. Model GSSP performs traditional salt spray and Prohesion tests. Model GSST performs salt spray, Prohesion, and 100% humidity for most cyclic automotive tests.

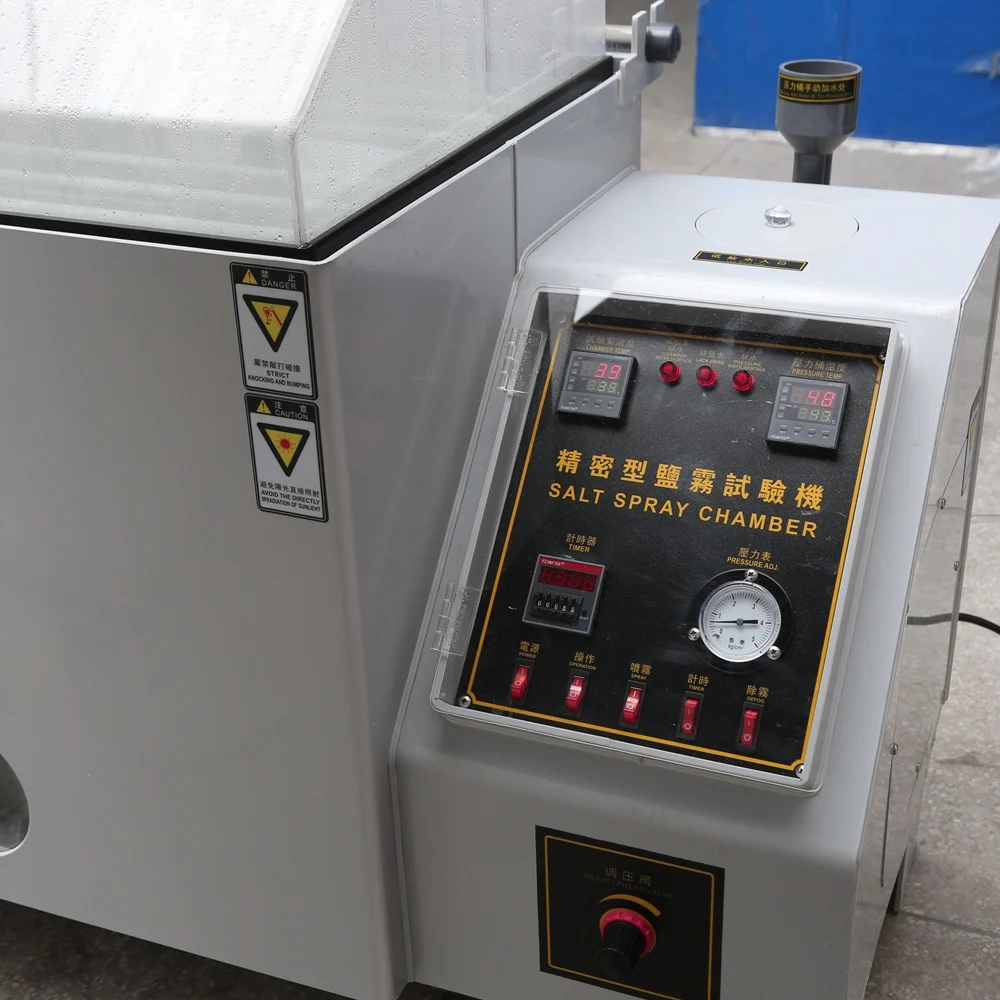

Easy Programming and Sample Mounting
The test chamber is designed to cycle between four conditions: Fog, Dry-Off, 100% Humidity (Model GSST only), and Dwell.Test conditions, time, and temperature are controlled by a built-in microprocessor.A remarkably simple user interface allows for easy user programming and operation.The operator can quickly create new cycles, or run any of the programmed cycles.The controller includes complete self-diagnostics, including warning messages, routine service reminders and safety shut down.
The tester has a low belt line and an easy opening lid for easy sample mounting. The GSSP-600 and GSST-600 models have a capacity of about 160 test panels of 75mm x 150mm in size. The GSSP-1100 and GSST-1100 models have a capacity of 240 test panels.
Precise Control of Fog Dispersion
The cyclic corrosion chamber has superior fog dispersion compared to conventional systems, which cannot vary volume and distance independently. A variable speed peristaltic pump controls the amount of corrosive solution delivered to the spray atomizer, while the air pressure regulator controls the distance of the “throw.”Note that purified water is required for proper operation of corrosion testers.
Internal Solution Reservoir
Space utilization is maximized and maintenance is minimized with the tester's internal solution reservoir. The 120 liter reservoir has enough capacity for running most tests for 7 days or more. The reservoir has an integral salt filter and a built-in alarm to alert the operator when the solution is low.
Fast Cycling
Testers can change temperatures exceptionally fast because of their unique internal chamber heater and their high volume cooling/dry-off blower. An additional air heater allows very low humidity dry-off exposures. Conventional chambers with water jackets cannot cycle rapidly because of the thermal mass of the water, nor can they produce low humidity.
Affordable
Cyclic corrosion testers offer state of the art corrosion testing technology, reliability, ease of operation and easy maintenance – all at a remarkably affordable price.
Models (also see Features Tab)
GSSP-108:cconventional salt spray and Prohesion tests, 108 liter chamber volume
GSSP-270:conventional salt spray and Prohesion tests, 270 liter chamber volume
GSSP-600: conventional salt spray and Prohesion tests, 640 liter chamber volume
GSSP-1000: conventional salt spray and Prohesion tests, 1103 liter chamber volume
GSST-108:conventional salt spray, Prohesion, and 100% humidity, 108 liter chamber volume
GSST-270:conventional salt spray, Prohesion, and 100% humidity, 270 liter chamber volume
GSST-600: conventional salt spray, Prohesion, and 100% humidity, 640 liter chamber volume
GSST-1100: conventional salt spray, Prohesion, and 100% humidity, 1103 liter chamber volume
Features
Model GSSP for Prohesion or Conventional Salt Spray Tests
Numerous accelerated corrosion tests may be performed in GSSP
corrosion tester including Prohesion, ASTM B117 and G85, BS 3900 F4 & F9, DIN 50.021 and ISO 9227.
The Prohesion test uses fast cycling, rapid temperature changes, a low humidity dry-off cycle and a different corrosive solution to provide a more realistic test. Many researchers have found this test useful for industrial maintenance coatings.
Continuous salt spray exposures are widely specified for testing components and coatings for corrosion resistance. Applications include plated and painted finishes, aerospace and military components, and electrical/electronic systems.
Most of these tests are performed to particular specifications such as ASTM B117 (Salt Spray), and BS 3900 F4. These tests are widely used for relative corrosion testing. They are typically run at an elevated temperature and do not incorporate a dry-off cycle. They require heated, humidified air for the spray.
Model GSST for Corrosion Research and Cyclic Automotive Tests
The GSST has all the advantages of the model GSSP, but adds the flexibility of including 100% humidity.
Today’s automotive corrosion test methods typically call for exposing specimens to a repetitive cycle of salt spray, high humidity, low humidity dry-off, and ambient conditions. These test methods were originally developed as labor intensive manual procedures. The multi-functional GSST corrosion tester is designed to perform these cyclic tests automatically in a single chamber.
Accessories
Specimen Holders
Optional test panel holders are available which allow the user to mount specimens at a 15 degree angle, holding panels up to 102mm x 304mm on 38mm centers.
Odd shaped parts (e.g. large three-dimensional specimens), can be mounted on special 20mm hanging rods.
GSSP-600 or GSST-600 Test Panel Holder Kit, set of 8
GSSP-1100 or GSST-1100 Test Panel Holder Kit, set of 10
GSSP-600 or GSST-600 20mm (3/4”) Hanging Rod Kit, set of 6
GSSP-1100 or GSST-1100 20mm (3/4”) Hanging Rod Kit, set of 8
Cyclic corrosion testing provides the best possible laboratory simulation of natural atmospheric corrosion. Research indicates that test results are similar to outdoors in resulting structure, morphology, and relative corrosion rates.
Cyclic corrosion chambers from GRANDETOP® can run traditional salt spray, Prohesion, and most cyclic automotive tests.Chambers are available in different sizes to fulfill a wide range of testing requirements.
Cyclic corrosion testers are the simplest, most reliable, and easiest to use corrosion testers available.
Overview
Cyclic Corrosion Testing
Prior to cyclic corrosion testing, conventional salt spray (a continuous salt spray at 35˚C), was the standard way to simulate corrosion in a lab. Because conventional salt spray methods failed to mimic the natural wet/dry cycles of the outdoors, test results frequently provided poor correlation to outdoors.
In a cyclic corrosion tester, specimens are exposed to a series of different environments in a repetitive cycle that mimics the outdoors. Simple cycles, such as Prohesion, may consist of cycling between salt fog and dry conditions. More sophisticated automotive methods may call for multi-step cycles that incorporate humidity or condensation, along with salt spray and dry-off.
Within one chamber, it is possible to cycle through a series of the most significant corrosion environments. Even extremely complex test cycles can easily be programmed with the controller.
Corrosion test chambers are available in two types. Model GSSP performs traditional salt spray and Prohesion tests. Model GSST performs salt spray, Prohesion, and 100% humidity for most cyclic automotive tests.
Easy Programming and Sample Mounting
The test chamber is designed to cycle between four conditions: Fog, Dry-Off, 100% Humidity (Model GSST only), and Dwell.Test conditions, time, and temperature are controlled by a built-in microprocessor.A remarkably simple user interface allows for easy user programming and operation.The operator can quickly create new cycles, or run any of the programmed cycles.The controller includes complete self-diagnostics, including warning messages, routine service reminders and safety shut down.
The tester has a low belt line and an easy opening lid for easy sample mounting. The GSSP-600 and GSST-600 models have a capacity of about 160 test panels of 75mm x 150mm in size. The GSSP-1100 and GSST-1100 models have a capacity of 240 test panels.
Precise Control of Fog Dispersion
The cyclic corrosion chamber has superior fog dispersion compared to conventional systems, which cannot vary volume and distance independently. A variable speed peristaltic pump controls the amount of corrosive solution delivered to the spray atomizer, while the air pressure regulator controls the distance of the “throw.”Note that purified water is required for proper operation of corrosion testers.
Internal Solution Reservoir
Space utilization is maximized and maintenance is minimized with the tester's internal solution reservoir. The 120 liter reservoir has enough capacity for running most tests for 7 days or more. The reservoir has an integral salt filter and a built-in alarm to alert the operator when the solution is low.
Fast Cycling
Testers can change temperatures exceptionally fast because of their unique internal chamber heater and their high volume cooling/dry-off blower. An additional air heater allows very low humidity dry-off exposures. Conventional chambers with water jackets cannot cycle rapidly because of the thermal mass of the water, nor can they produce low humidity.
Affordable
Cyclic corrosion testers offer state of the art corrosion testing technology, reliability, ease of operation and easy maintenance – all at a remarkably affordable price.
Models (also see Features Tab)
GSSP-108:cconventional salt spray and Prohesion tests, 108 liter chamber volume
GSSP-270:conventional salt spray and Prohesion tests, 270 liter chamber volume
GSSP-600: conventional salt spray and Prohesion tests, 640 liter chamber volume
GSSP-1000: conventional salt spray and Prohesion tests, 1103 liter chamber volume
GSST-108:conventional salt spray, Prohesion, and 100% humidity, 108 liter chamber volume
GSST-270:conventional salt spray, Prohesion, and 100% humidity, 270 liter chamber volume
GSST-600: conventional salt spray, Prohesion, and 100% humidity, 640 liter chamber volume
GSST-1100: conventional salt spray, Prohesion, and 100% humidity, 1103 liter chamber volume
Features
Model GSSP for Prohesion or Conventional Salt Spray Tests
Numerous accelerated corrosion tests may be performed in GSSP
corrosion tester including Prohesion, ASTM B117 and G85, BS 3900 F4 & F9, DIN 50.021 and ISO 9227.
The Prohesion test uses fast cycling, rapid temperature changes, a low humidity dry-off cycle and a different corrosive solution to provide a more realistic test. Many researchers have found this test useful for industrial maintenance coatings.
Continuous salt spray exposures are widely specified for testing components and coatings for corrosion resistance. Applications include plated and painted finishes, aerospace and military components, and electrical/electronic systems.
Most of these tests are performed to particular specifications such as ASTM B117 (Salt Spray), and BS 3900 F4. These tests are widely used for relative corrosion testing. They are typically run at an elevated temperature and do not incorporate a dry-off cycle. They require heated, humidified air for the spray.
Model GSST for Corrosion Research and Cyclic Automotive Tests
The GSST has all the advantages of the model GSSP, but adds the flexibility of including 100% humidity.
Today’s automotive corrosion test methods typically call for exposing specimens to a repetitive cycle of salt spray, high humidity, low humidity dry-off, and ambient conditions. These test methods were originally developed as labor intensive manual procedures. The multi-functional GSST corrosion tester is designed to perform these cyclic tests automatically in a single chamber.
Accessories
Specimen Holders
Optional test panel holders are available which allow the user to mount specimens at a 15 degree angle, holding panels up to 102mm x 304mm on 38mm centers.
Odd shaped parts (e.g. large three-dimensional specimens), can be mounted on special 20mm hanging rods.
GSSP-600 or GSST-600 Test Panel Holder Kit, set of 8
GSSP-1100 or GSST-1100 Test Panel Holder Kit, set of 10
GSSP-600 or GSST-600 20mm (3/4”) Hanging Rod Kit, set of 6
GSSP-1100 or GSST-1100 20mm (3/4”) Hanging Rod Kit, set of 8
Other Accessories

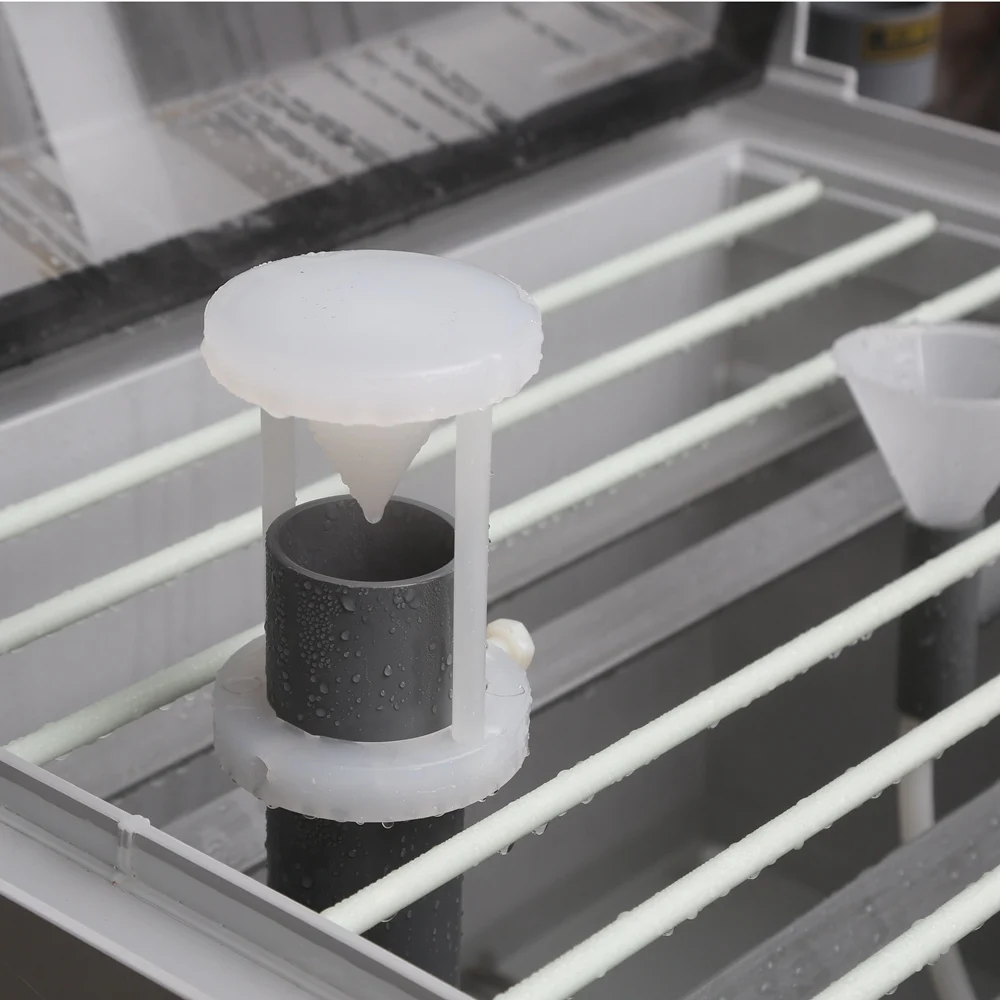

GRANDE offers a fog collection kit for the tester, which consists of a set of six graduated cylinders, o-rings, and collection funnels.
Also available is a one-year maintenance parts kit, which consists of eight pump tubes, one air filter, two solution filters elements, and a handy hex wrench.
Salt corrosion spray test chamber
Configured for your specific tests
Grande makes rain and spray testing easier by offering a standard chamber capable of published and OEM proprietary test methods.
The standardized design can be configured for the rain/spray tests you need, eliminating the guesswork in buying a chamber. The system is based on the specification requirements, and can also accomplish individual automaker’s tests, as well as electrical-enclosure tests.
Our Design
Grande's modular design allows you to add on additional features, depending on the number and type of tests required. One possible choice is to integrate the spray system with a regular temperature and humidity chamber to save money and floor space, while also creating an opportunity to simulate actual operating conditions your product may experience.
Our system uses multiple control solenoids to vary the water's spray volume/pressure. A holding tank prepares the water to the desired temperature, if required. A pump ensures the water is delivered in the proper pressure range. The water is fed to a motorized manifold that rotates the spray arms. Each spray arm has an adjustable valve to allow finer control of the spray.
Packing & Delivery
Strong wooden case
Company Profile
About GRANDE
Grande Electronics Tchonology Limited is Professional R&D,Manufacture,Global sales service and After-
sales Service,Maintenance of Environmental and Climatic Simulation Test Chamber,Mechanical Tester,Ultra Freezers.,etc.
Grande always adhere to China Price,Germany Quality.Quality is not just a word.Our engineers are available to provide After-sales,Installation,Training,Service Oversea.Warranty 2 Years.
To help our customers improving the testing requirements,Grande has established strategic cooperative partnership with first-class Universities,whose Cryogenics and Test Centers possess the the world's leading inspection techniques,cryogenics,mechanic inspections,equipments,test chambers,testers and instruments.
As an enterprice responsible for society,environment and safety,Grande has initially built ISO9001 2015 International Quality Management Systems,ISO1400 2004 Environmental Management System and GB/T28001 2001 Occupation and Health Safety Management System.Besides,Grande Adheres to the Operation Principle of The best Quality Environmental Test Chamber Manufacturer in China.Quality is not just a word.
Our products are widely used in electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions and so on.Our products have been exported to more than 100 countries and regions, such USA, Canada, Germany, Spain, Russia, Argentina, Brazil, India,Indonesia.,etc.Our main market includes Asia,North America,South America,Europe,Middle East,Africa,Australia.
Our import and export team can serve you with fluent Chinese,English,Spanish,Japanese and Indonesian.We have been to more than 30 countries for Installation,Training,After-sales Service.
We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget.We also provide timely delivery.
We are recruiting agents over the world. If interested, please feel free to contact us.
More information,pls kindly check our website www.grandetop.com
Pls feel free to contact us for any question,we are glad to be any help to you and you are welcome to visit our company any time.
We are looking forward to have a long-term good business relationship with you in near future.
Grande Electronics Tchonology Limited is Professional R&D,Manufacture,Global sales service and After-
sales Service,Maintenance of Environmental and Climatic Simulation Test Chamber,Mechanical Tester,Ultra Freezers.,etc.
Grande always adhere to China Price,Germany Quality.Quality is not just a word.Our engineers are available to provide After-sales,Installation,Training,Service Oversea.Warranty 2 Years.
To help our customers improving the testing requirements,Grande has established strategic cooperative partnership with first-class Universities,whose Cryogenics and Test Centers possess the the world's leading inspection techniques,cryogenics,mechanic inspections,equipments,test chambers,testers and instruments.
As an enterprice responsible for society,environment and safety,Grande has initially built ISO9001 2015 International Quality Management Systems,ISO1400 2004 Environmental Management System and GB/T28001 2001 Occupation and Health Safety Management System.Besides,Grande Adheres to the Operation Principle of The best Quality Environmental Test Chamber Manufacturer in China.Quality is not just a word.
Our products are widely used in electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions and so on.Our products have been exported to more than 100 countries and regions, such USA, Canada, Germany, Spain, Russia, Argentina, Brazil, India,Indonesia.,etc.Our main market includes Asia,North America,South America,Europe,Middle East,Africa,Australia.
Our import and export team can serve you with fluent Chinese,English,Spanish,Japanese and Indonesian.We have been to more than 30 countries for Installation,Training,After-sales Service.
We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget.We also provide timely delivery.
We are recruiting agents over the world. If interested, please feel free to contact us.
More information,pls kindly check our website www.grandetop.com
Pls feel free to contact us for any question,we are glad to be any help to you and you are welcome to visit our company any time.
We are looking forward to have a long-term good business relationship with you in near future.

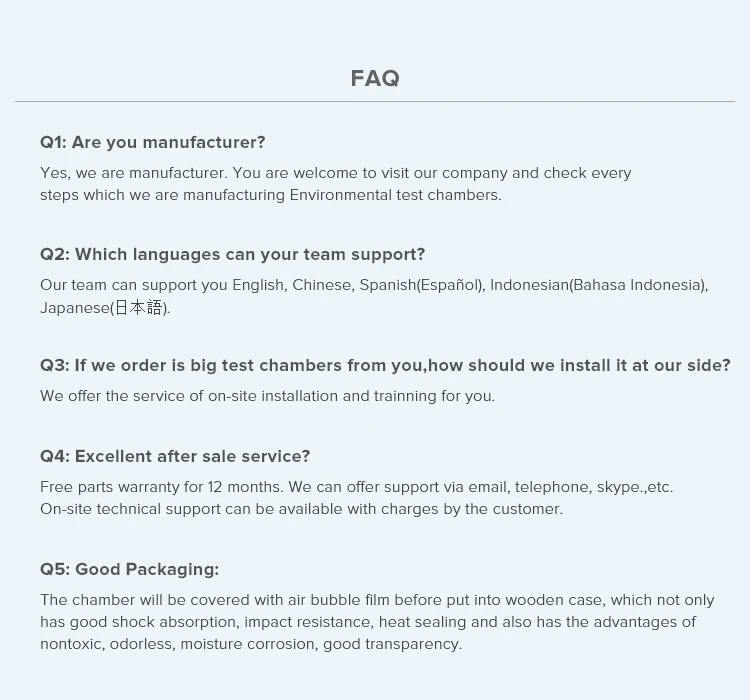

FAQ
