1.5*2.7m economic small mini glass tempering machine

Photo taken in Turkey

Application

This type of machine is to process flat glass (heat enforced safety glass), the finished prSaoducts are mainly used for furniture, home use application and building.

Machine specification

Total length of the machine:13m,main body: 2M, cooling fan:30-40m2

Machuine Parmameters

Max. glass dimension: 1500mm×2700mm (4-19mm)

Min. glass dimension: 100mm×300mm

Glass thickness range: 4~19mm

Output: 57 square meters/hour (5mm float glass, loading rate 85%)

Glass type

Transparent float glass or flat glass

Mass color float glass or flat glass

Single side printed glass

On line low-e glass

Off line low-e glass (convection type furnace)

Quality Standard of glass
The product meets to Chinese national quality standard<GB 15763.2-2005>

Glass stress equilibrium, particle even

Quality of all finished glass are the same

Heat resistance: confront to international standard

1. Easy and human friend control system.

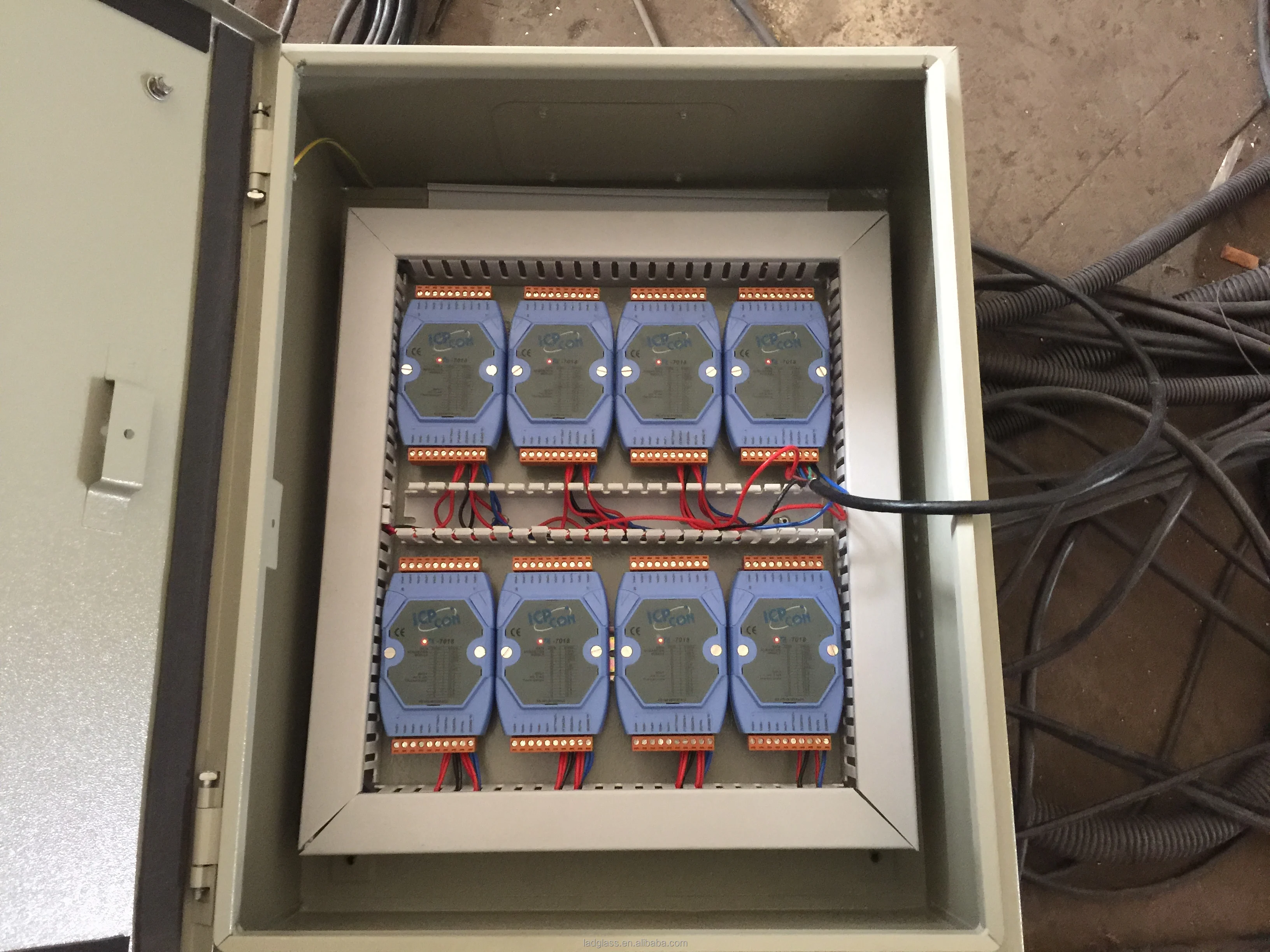

• The machine use Beckhoff control system with very intelligent and easy operation page. All parameter can be set on screen page;



• For each type of glass, the operator can save the relating parameter as a formular, save it into the computer. Can select and use it for next production.


2. Energy saving.

• The machine use advance arrangement of heating wires, reasonable distance from heating wire to glass, DIN heating control system to enable energy saving. Less than 4kw/m2 for 5mm thickness glass.



• It also can design passing section for 4mm or 5mm thickness glass to save energy when the machine process glass over 6mm.



• With converter for blowers.



• Use of high quality heating protect brakes to prevent heating escape.

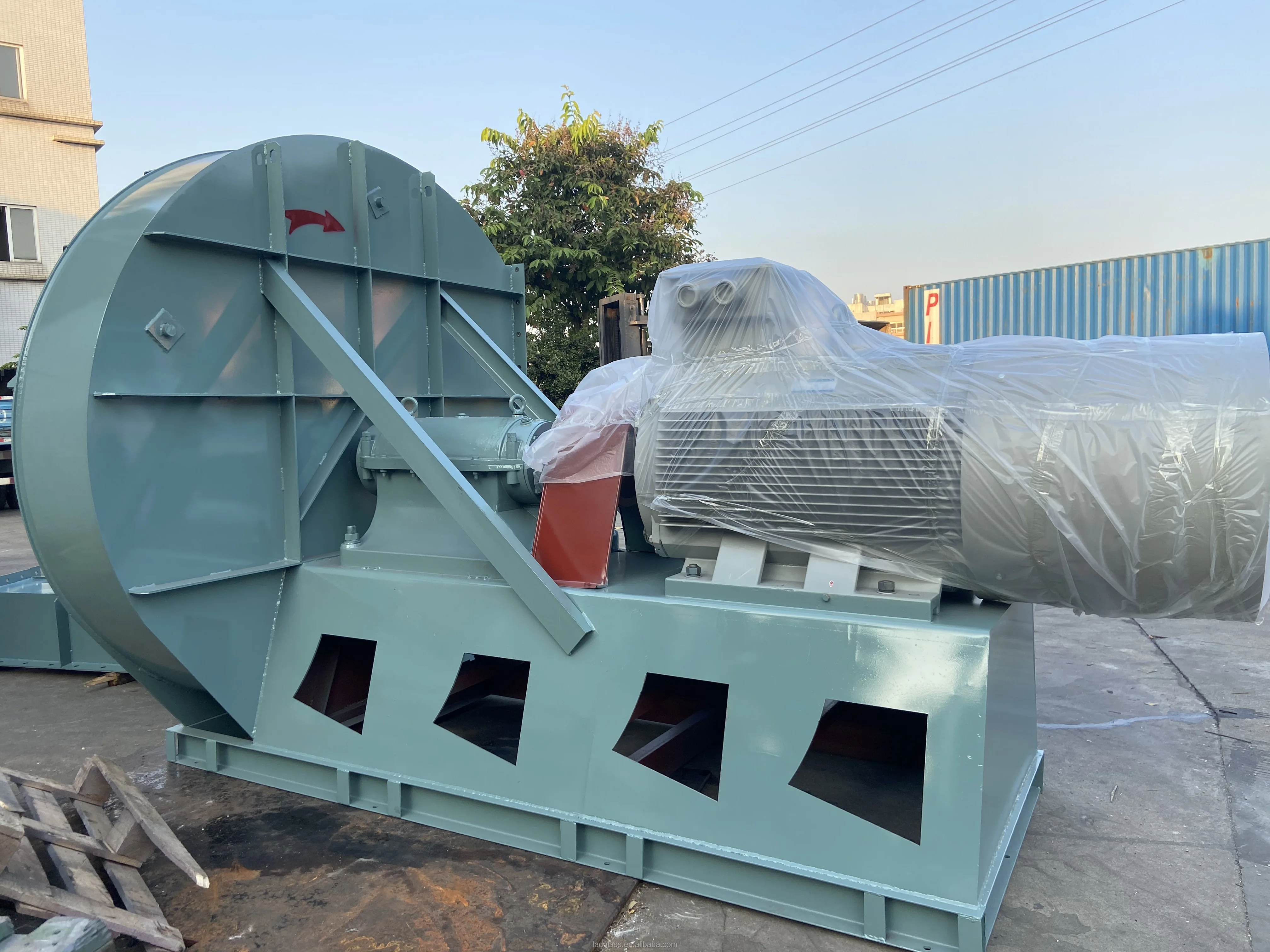

• Use 2-3 blowers for quenching and cooling of thin glass.

3. High quality glass

• The tempered glass meet with Chinese high standard of tempered glass GB15763-2005 for tempering glass used for building.



• Breaking particles: in a position of 50*50mm, the breaking pieces shoud over 50pcs for 4-12mm glass and over 40pcs for glass over 15mm. (The actual breaking rate may higher than this)



• Surface stress of glass will not less than 90MPa.



• Can understand 200 degree teperature difference


4.  High quality parts used on the whole machine

• The whole machine ues high quality steel, heating wires, ceramic rollers, electric parts, heating provent parts.


5. Full experience in new glass processing factory supply.

Assisted customer in Romania, Guetemala, Saudi Arabia, Egypt etc to build the new glass processing factory.

Enginers for machine set up

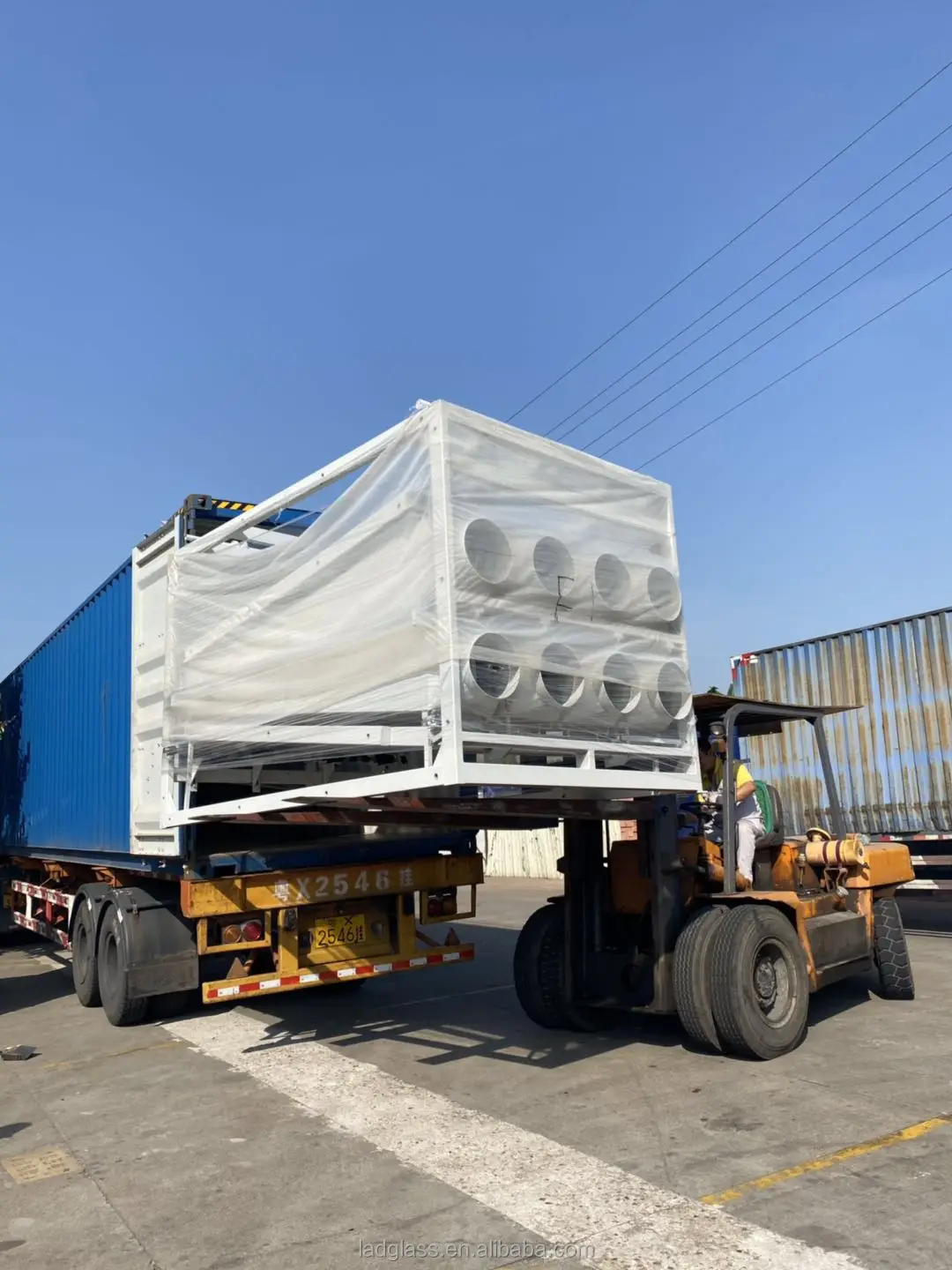

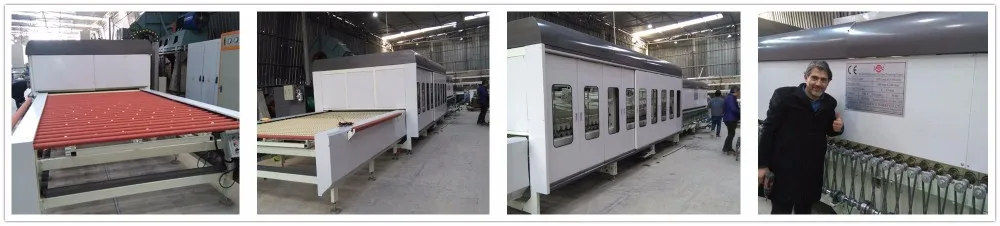

Succesful project recently:

Machine in Egypt 2021

Machine in USA

Machine in Guatamala

Machine in Uzbecstan

Machine in Turkey 2.8*6m

Machine in Romania

Warranty: Warranty period of the whole machine: one year

Machine commissioning and training: Send engineers to set up and commissioning at buyer’s factory.

Aftersales service:

Life time techical and parts support.

On port techcial training or problem solving when necessary
