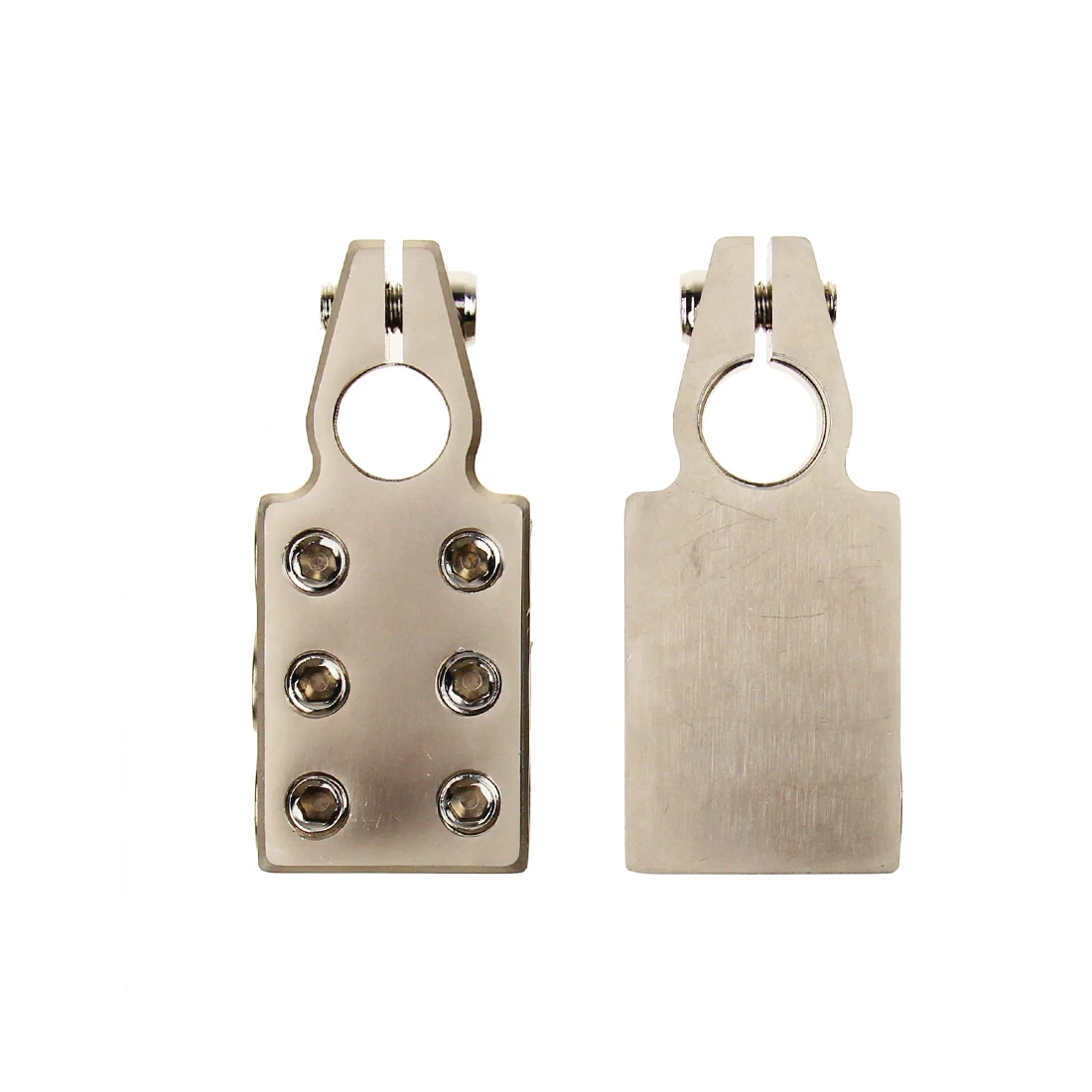

Шина JASSN с 6 шипами для Раздвоенной фазы
- Категория: Battery Accessories >>>
- Поставщик: Shenzhen Seplos Technology Co. Ltd.
Сохранить в закладки 10000004292105:
Описание и отзывы
Характеристики
Products Description

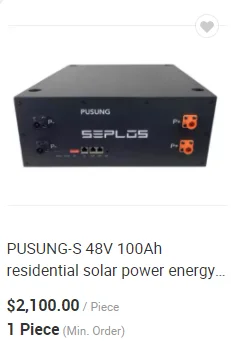

Seplos Solar energy household Storage—PUSUNG-S
Product parameters
PBasic Parameters | PUSUNG-S |
Nominal Voltage (V) | 51.2V |
Nominal Capacity (Ah) | 100Ah |
Nominal Power (Wh) | 5.12KWh |
Dimension (mm) | 565*450*170mm |
Weight (Kg) | 56.2KG |
Discharge Cut-off Voltage (V) | 41.6V |
Charge Voltage (V) | 54.5V |
Max. Charge/Discharge Current (A) | 100A |
Communication Interface | CANBUS,RS485 |
Configuration | 16S1P |
Working Temperature | 0～50℃(Charge) /-10～50℃(Discharge) /-20～55℃ |
Cell chemistry | Lithium iron phosphate (LiFePO4) |
≥80% capacity state after 4800 cycles at 0.5C, 25℃, 100≥80% capacity state after 4800 cycles at 0.5C, 25℃, 100Cycle life | ≥80% capacity state after 4800 cycles at 0.5C, 25℃, 100 |
IP level | IP 20 |
Certificates | CE, ROHS, MSDS, UN38.3 |
1.High depth cycle time Grade A battery,≥80% capacity state after 4800 cycles at 0.5C, 25℃, 100% DOD
2.Automotive safety structure design,more safe
3.A product continuously ploughed, continuously upgraded, visible details improve.
4.Up to 16 battery packs can be connected in parallel to form 82KWh energy storage power station, suitable for home or commercial use
5.CANBUS communication, active upload battery data to the inverter, more secure
6.Rest assured after sales: Europe in Germany, Austria, California, Australia have after-sales points. One payment, 10 years rest assured
7.Do you have concerns about the safety of lithium-ion batteries? Would you like to have a look at the inner structure of our product? Here we will production process transparent, from screws to finished all the installation details of the battery pack, you can see, we constantly update safety design, for more security, we want customers to buy back is not a cold iron box, do not need to open it, then to him like the palm of his hand, see the security of customers for our products more understanding, the more trust.
4.Up to 16 battery packs can be connected in parallel to form 82KWh energy storage power station, suitable for home or commercial use
5.CANBUS communication, active upload battery data to the inverter, more secure
6.Rest assured after sales: Europe in Germany, Austria, California, Australia have after-sales points. One payment, 10 years rest assured
7.Do you have concerns about the safety of lithium-ion batteries? Would you like to have a look at the inner structure of our product? Here we will production process transparent, from screws to finished all the installation details of the battery pack, you can see, we constantly update safety design, for more security, we want customers to buy back is not a cold iron box, do not need to open it, then to him like the palm of his hand, see the security of customers for our products more understanding, the more trust.
8.If you want to know more product details of our product,please click this Youtube channel Link: https://www.youtube.com/c/seplostechnology
Product principle and application
Production process
Do you want to know more product details,please click this link to our Youtube channel ,you will get it.
https://www.youtube.com/channel/UCTh9ZWzDt8pBb1BMNxjrBvA
https://www.youtube.com/channel/UCTh9ZWzDt8pBb1BMNxjrBvA
Hot products
Company Introduction
Shenzhen Seplos Technology Co., Ltd. was established on June 8, 2017, by SmartBli, Yihua, Zhongxi, Biliyuan and ihigee
, WTT company investment, was rated as an international brand
, WTT company investment, was rated as an international brand
Establish the Seplos Manufacturing Group in China. In this group, Seplos With prismatic battery factory, BMS factory,
Packaging factory and r & D company. Seplos focuses on the development of solar cell storage systems for home use and provides some great solutions for both products.
The main markets for SEplos are ERU, the United States and Australia.
Packaging factory and r & D company. Seplos focuses on the development of solar cell storage systems for home use and provides some great solutions for both products.
The main markets for SEplos are ERU, the United States and Australia.
Lithium-ion batteries are becoming a way of life, gradually replacing lead-acid batteries in essential applications such as
electric vehicles and energy storage. However, having been engaged in the lithium-ion battery industry for a long time, and
hearing the terrible news of lithium-ion battery explosions and fires randomly, Seplos Technology is fully aware of the safety issues of lithium-ion battery applications. Therefore, Seplos chose lithium iron Phosphate (LiFePO4, or LFP) to develop our product line, which is proven to be one of the safest chemicals in all lithium-ion batteries.
Seplos is committed to providing high quality low voltage storage batteries with the principle of "safety first". To achieve this goal, Seplos has assembled a team of professional engineers, optimized our supply chain, and developed regional agents to provide timely service.
If you want to learn more about Seplos technology, check out our Facebook, YouTube, and LinkedIn pages. Alternatively, you can email us with any questions at info@seplos.com.
electric vehicles and energy storage. However, having been engaged in the lithium-ion battery industry for a long time, and
hearing the terrible news of lithium-ion battery explosions and fires randomly, Seplos Technology is fully aware of the safety issues of lithium-ion battery applications. Therefore, Seplos chose lithium iron Phosphate (LiFePO4, or LFP) to develop our product line, which is proven to be one of the safest chemicals in all lithium-ion batteries.
Seplos is committed to providing high quality low voltage storage batteries with the principle of "safety first". To achieve this goal, Seplos has assembled a team of professional engineers, optimized our supply chain, and developed regional agents to provide timely service.
If you want to learn more about Seplos technology, check out our Facebook, YouTube, and LinkedIn pages. Alternatively, you can email us with any questions at info@seplos.com.
Customer Praise
FAQ
Q：What certification d you have for your battery packs?
A：Now we have CE,MSDS,ROHS and UN38.3 certification. Next, we plan to make German VDE certification, North American UL certification and Australian CEC certification
A：Now we have CE,MSDS,ROHS and UN38.3 certification. Next, we plan to make German VDE certification, North American UL certification and Australian CEC certification
Q：What brand of inverter can your battery pack connect to?
A：This is the inverter brand we have actually tested,they are work well together,and our BMS can work without communicating with the inverter.
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：Your battery life is only 4800 cycles. Is that A Grade A battery? I've seen others have over 6000 cycles?
A：Yes,Our battery is Grade A cell,this is because the standards are different. Our 4800 cycles are measured under the condition of 0.5C charging ratio of 100%DOD,
and when we use 0.25C charging ratio, our cycles can reach more than 6000+.
and when we use 0.25C charging ratio, our cycles can reach more than 6000+.
Похожие товары
Черный держатель для батареи No.7 ABS 2X AAA
5,13 ₽ - 5,86 ₽

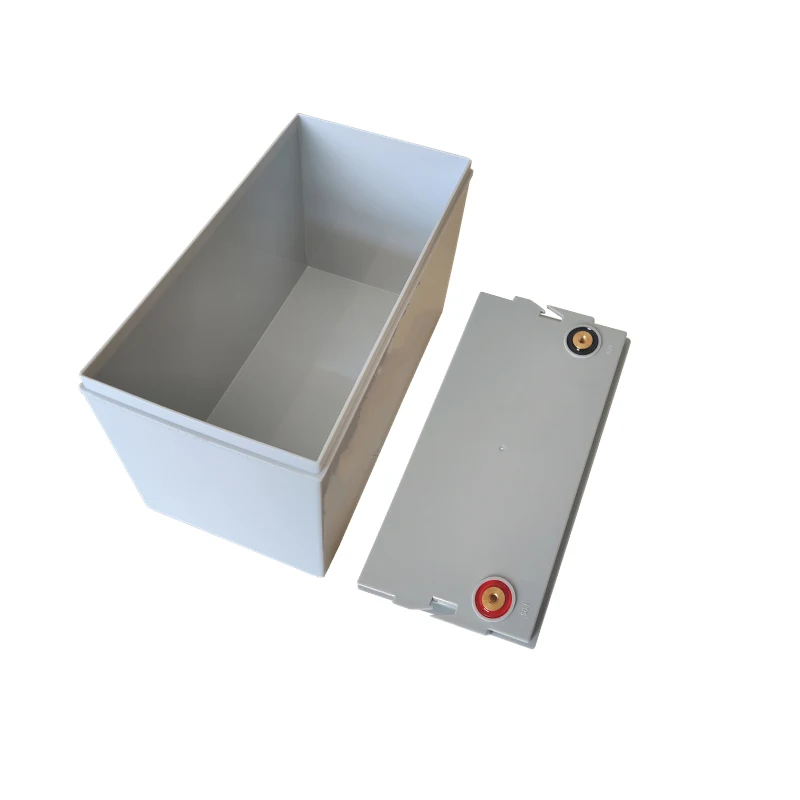

Прямая продажа с фабрики 12V100Ah литиевая батарея коробка корпус 18650 32650 батарея с пластиковой оболочкой батареи
13,50 $ - 19,20 $
Автомобильный Электрический положительный разъем из цинкового сплава для отрицательной батареи

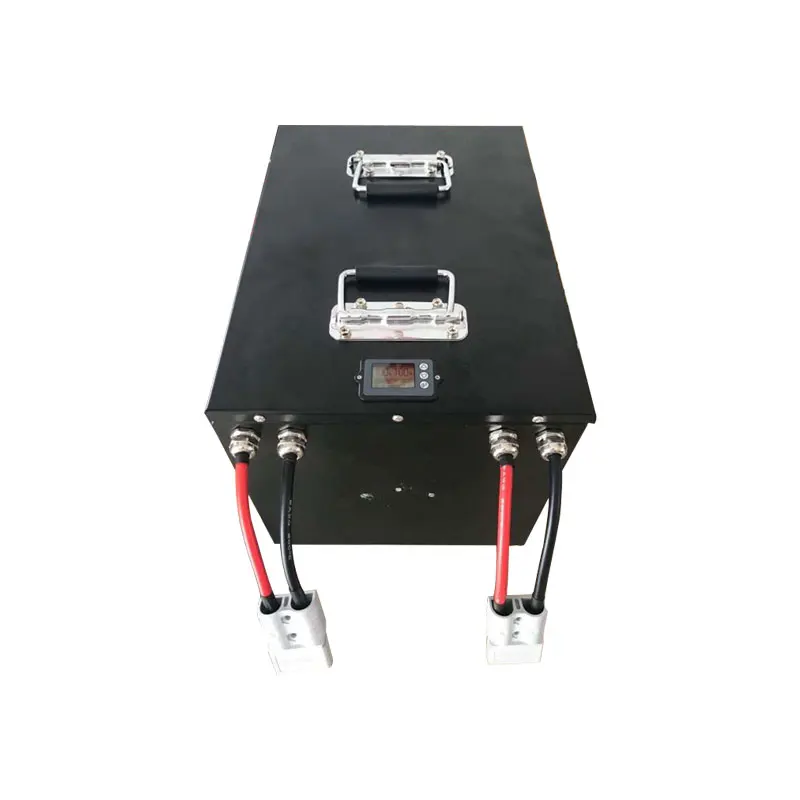

Индивидуальные металлические корпуса 12 В, 24 В, 48 В, 150 Ач, 200 ач, 280 Ач, 560ач для литий-железо-фосфатных аккумуляторов
