Products Description
T40
➤ High-definition highlight dual touch screen, while expanding the touchpad
➤ The joystick system can be mapped freely and supports traditional RC access
➤ Soft key setting
➤ Support all links in the market
➤ Aviation aluminum housing weighs only 5.98KG
➤ Support external H/D/M/I port video input
➤ Highly integrated
➤ The joystick system can be mapped freely and supports traditional RC access
➤ Soft key setting
➤ Support all links in the market
➤ Aviation aluminum housing weighs only 5.98KG
➤ Support external H/D/M/I port video input
➤ Highly integrated
HD highlight dual touch screen, while expanding the touchpad
Using dual LCD screens, the upper screen displays images, and the lower screen displays the ground station system interface.
The upper screen is an industrial-grade 13.3-inch ultra-bright LCD screen with an image resolution of 1920*1080.
The lower screen is a 12.1-inch LCD screen with 1500 nits, which allows you to read clearly even in the brightest sunlight.
Equipped with an ultra-sensitive screen, which can be controlled by ten-finger touch to avoid interference caused by accidental touch.
The upper screen is an industrial-grade 13.3-inch ultra-bright LCD screen with an image resolution of 1920*1080.
The lower screen is a 12.1-inch LCD screen with 1500 nits, which allows you to read clearly even in the brightest sunlight.
Equipped with an ultra-sensitive screen, which can be controlled by ten-finger touch to avoid interference caused by accidental touch.
Support all links in the market
T40 integrates a long-distance map numerical control integrated data link, the maximum bandwidth can reach 40M;
The network port expansion switch can provide up to 8 channels of video return;
The data control station supports two independent SBUS uplinks, serial ports and other connectors, allowing real-time two-way data transmission.
The integrated link eliminates frequency interference and incompatibility issues, and simplifies system installation and commissioning.
The network port expansion switch can provide up to 8 channels of video return;
The data control station supports two independent SBUS uplinks, serial ports and other connectors, allowing real-time two-way data transmission.
The integrated link eliminates frequency interference and incompatibility issues, and simplifies system installation and commissioning.
The joystick system supports traditional RC access
Soft key setting, each function key can realize single state, double state, three state control, add combination keys, super combination press function, you can use the keys to simulate the linear output function and multi-function function switching.
The data of the remote control system supports two sets of SBUS output locally, and is directly transmitted to the airborne terminal through the link;
The PC system can be obtained through COM5 or USB HID, and the original USB HID channel remapping function is created to satisfy users' more flexible applications.
The data of the remote control system supports two sets of SBUS output locally, and is directly transmitted to the airborne terminal through the link;
The PC system can be obtained through COM5 or USB HID, and the original USB HID channel remapping function is created to satisfy users' more flexible applications.
Aluminum alloy shell weighs only 5.98KG
It adopts aerospace aluminum alloy shell and refined machine tools. Each material is carefully studied. The weight is only 5.98KG, which is the lightest model in the industry.
Product Paramenters
Product Name | T40 |
Weight | 5980g |
Size | 354(l)*280(w)*80(h)mm |
Channel | 27 channel |
Remote Control Distance | 5km-20km |
Auxiliary Channel | Main joysticks*2(industrial joysticks with hall sensors) |
Sub joysticks*4 | |
Key button*12 | |
Simulate keystrokes*7 | |
Remote Control Delay | 30ms |
Battery Capacity | 16.8V/17000mAh(external battery also supported) |
Battery Life | 3.5h |
Display Screen | 13.3inch 1920*1080 1000CCD(The upper screen) |
12.1inch 1280*800 1500CCD(The lower screen) | |
Touch | Capacitive 10-finger multi-touch display |
Processor | 8565U/10500U |
RAM | 8G |
Storage Capacity | 256GB SSD |
Operating System | Win 7/Win10/Linux |
Network Interface | Wifi/Bluetooth/4G |
External Interface | USB3.0/LAN/H/D/M/I in/VGA out/Hi-fi |
Serial Interface | S232*3/SBUS out/in |
Working Temperature | -20~+60℃ |
Company Profile
Exhibition
Certifications
Packing&Delivery
Recommend Products
FAQ
1.Who are we?
We are based in Guangdong, China, start from 2016,sell to Domestic Market(30.00%),Mid East(20.00%),South
America(15.00%),North America(15.00%),Eastern Europe(10.00%),Western Europe(10.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Wireless HD Video Transmitter,Codec Module,Antenna,Video/Data/Rc Transmission System,Long Range Video Transmission
4. Why should you buy from us not from other suppliers?
Our core R&D team comes from the first-class university in China, major in communication engineering.We believe that wireless
connection will keep on developing in professional markets in the future.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese
America(15.00%),North America(15.00%),Eastern Europe(10.00%),Western Europe(10.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Wireless HD Video Transmitter,Codec Module,Antenna,Video/Data/Rc Transmission System,Long Range Video Transmission
4. Why should you buy from us not from other suppliers?
Our core R&D team comes from the first-class university in China, major in communication engineering.We believe that wireless
connection will keep on developing in professional markets in the future.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese
Похожие товары
1626-1 Bluetooth5.0 Fm Transmitter Usb Car Charger Adapter Dual Port BT Music OEM car mp3 player bluetoo
0,86 $ - 2,08 $

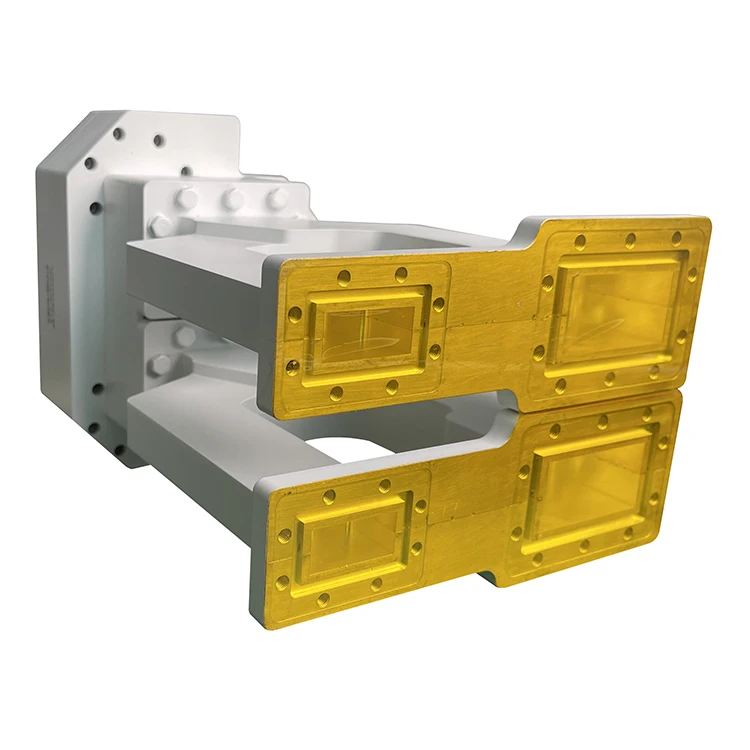

Customized C Band 4 port Diplexer Duplexer Satellite communications antenna feed system

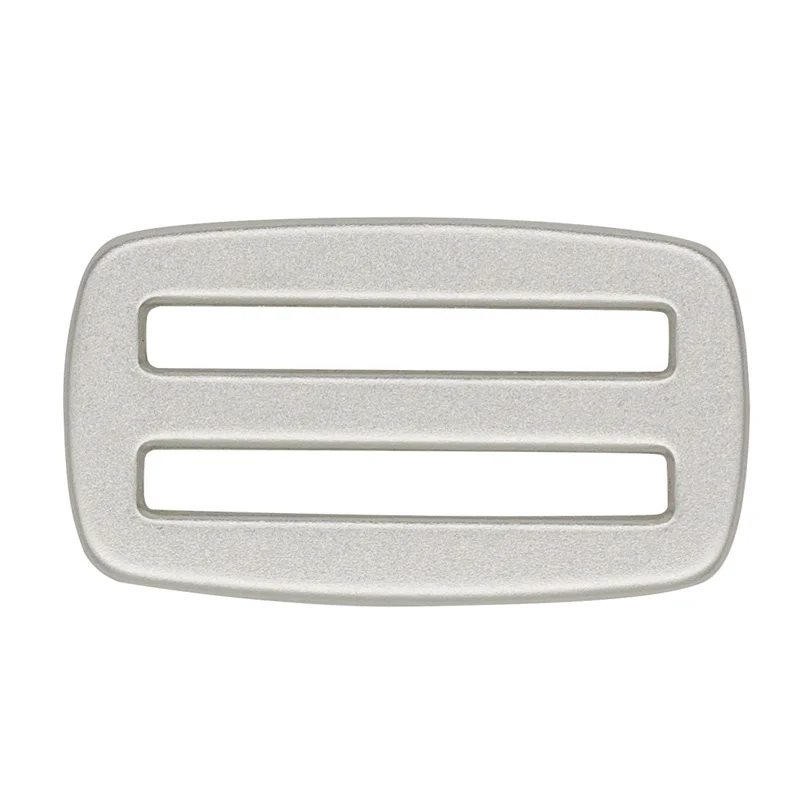

Заводская изготовленная на заказ Сверхлегкая 44 мм алюминиевая пряжка для ремня Пряжка высокого напряжения
0,34 $ - 0,58 $

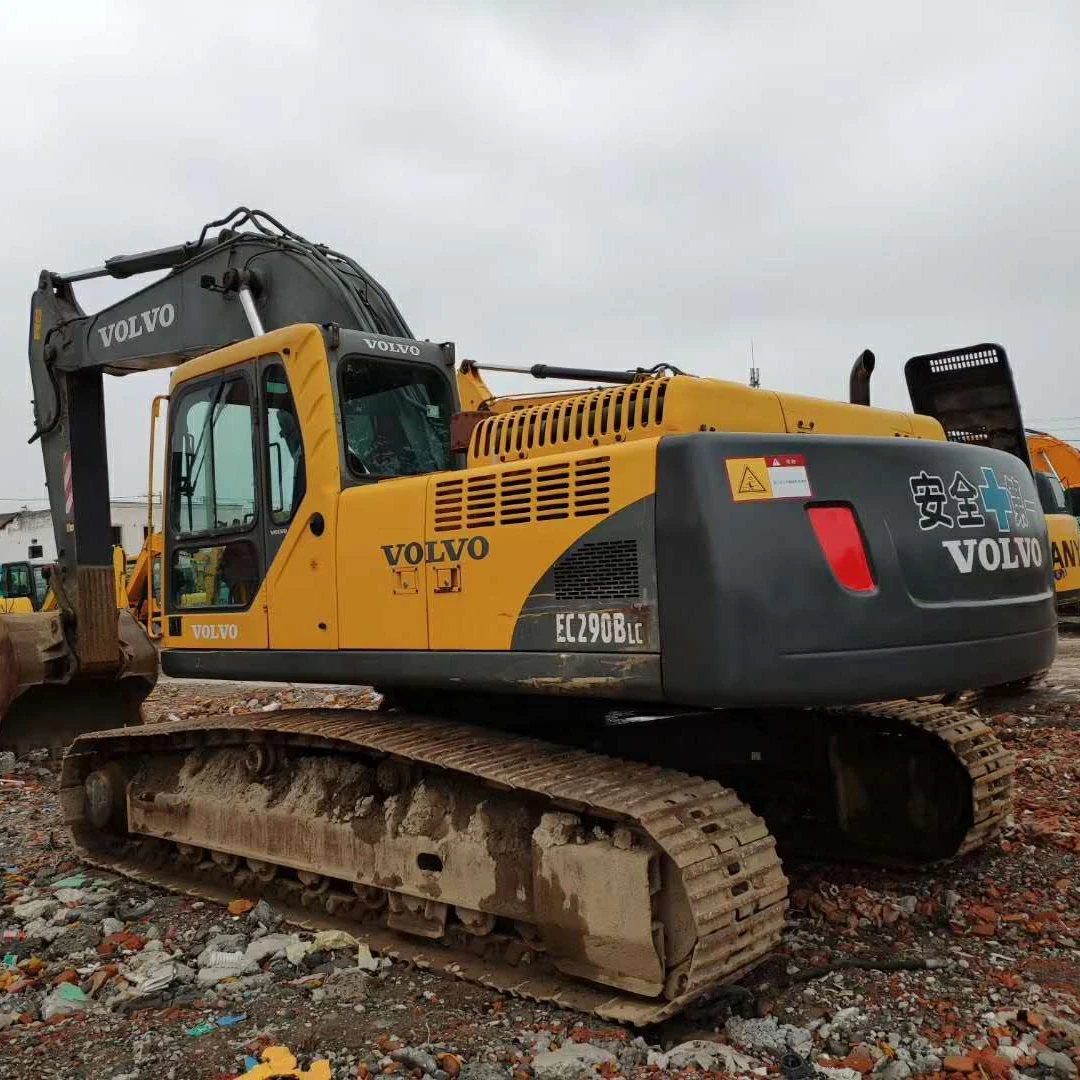

Б/у оригинальный экскаватор volvo 290

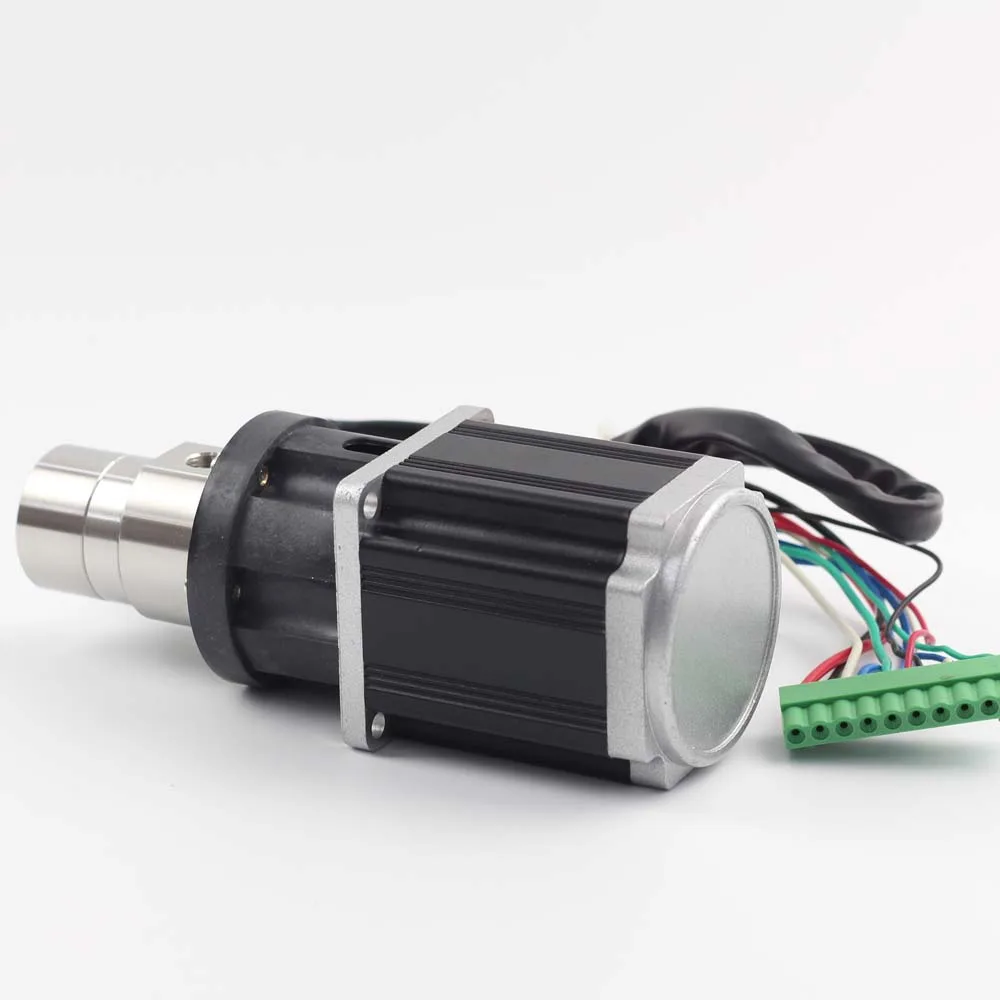

Прямая продажа с завода, Шестеренчатый насос высокого давления 24 В из нержавеющей стали
