Буровая установка DTH пневматическая на гусеничном ходу для карьеров и известняковых шахт 30 м

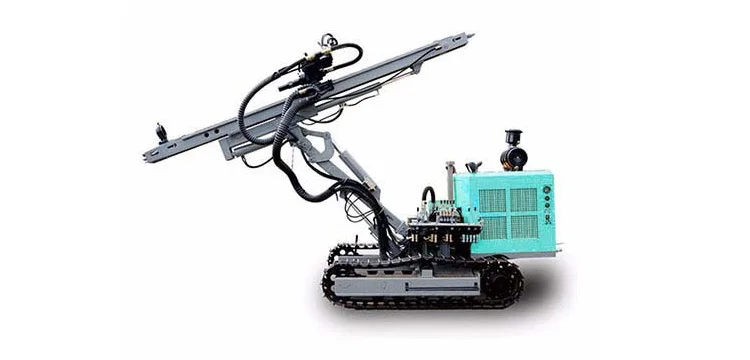

HFH725B2 Separated DTH Drilling rig

Drilling Diameter:83-115mm

Drilling Depth:30m

Engine Power:40kW

Rotary Torque:1400N.m

Features

• Equipped with two motors and planetary gear gyrator, has the characteristics of large rotary torque, high efficiency and durable.


• Multi-way valve adopts two layers of double entrystructure, location is reasonable, easy to operate. New type of hydraulic system, propulsion, rotary speed, can shorten the auxiliary time of operation. With double motor two-speed gyrator, meet the requirements of different working conditions The prefilter, oil bath type air filter and air filter level 3, for the diesel engine working under high dust environment provides the guarantee.


• The prefilter, oil bath type air filter and air filter level 3, for the diesel engine working under high dust environment provides the guarantee.


• In order to adapt to different work environment and customer demand, adopting multiple specifications of the diesel engine and electric motors to meet the various needs.


• Drill arm, novel structure, convenient adjustment, greatly improve the area of drilling, apply to drill horizontal hole low. The lowest level hole height 300 mm.


• 6Power output gear box with double gear structure of mercury.


• Using engineering with walking motor, strong gradeability, low failure rate.

Technical parameters

Jiaozuo Hanfa Industrial Co., Ltd. belongs to Hanfa Group. Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market. It has experienced engineers, professional R&D team, special after service team, world class sophisticated Machine and advanced technology guarantee the best quality drilling Machine and best service to its customers.

We pursue high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH Drilling Equipment, horizontal directional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc.

Pre~Sales Service                                                           After~Sales Service

  » Inquiries and consulting support                                  » Training how to instal machine

  » Customized service                                                     » Accessories service

  » View our factoty                                                           » Engineers available to service overseas

Jiaozuo Hanfa Industrial Co., Ltd

Kindly inform us the following information:

1. Application

2. Drilling object(rock/soil/sand, etc)

3. Drilling diameter

4. Drilling depth

Then we could recommend the suitable model with favorable price.
