Перистальтический насос с высоким потоком, 2 дюйма
410 011,64 ₽ - 431 591,20 ₽

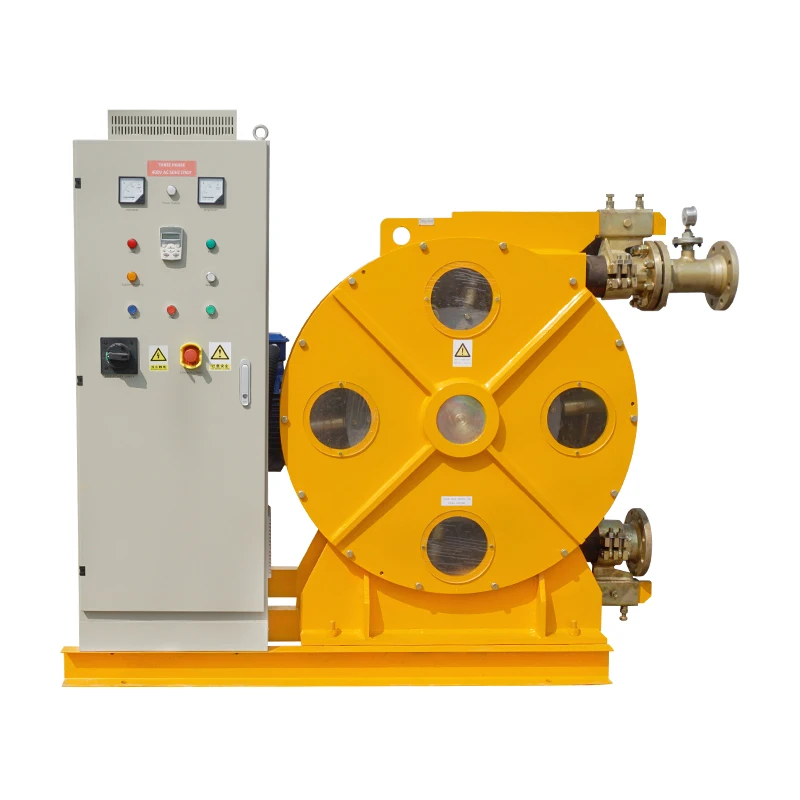

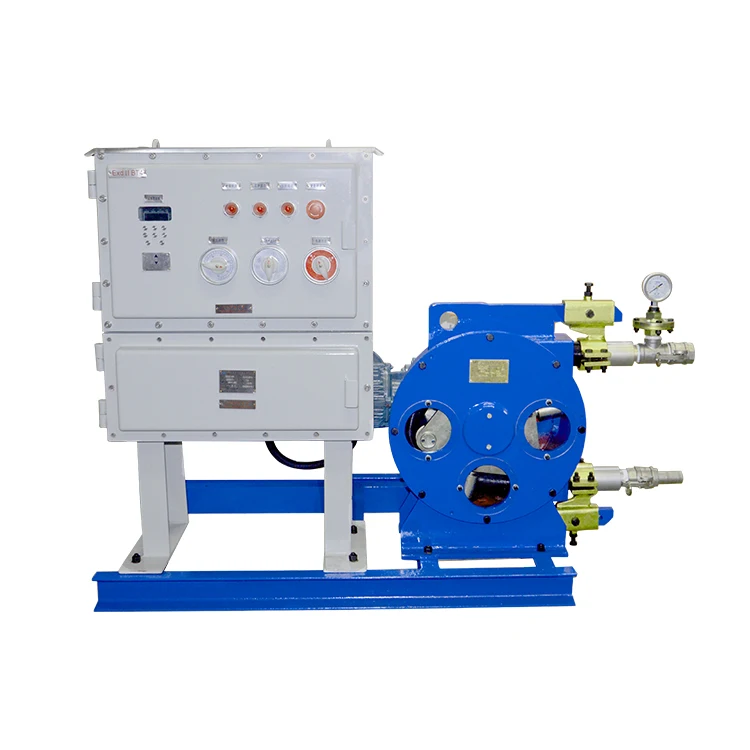

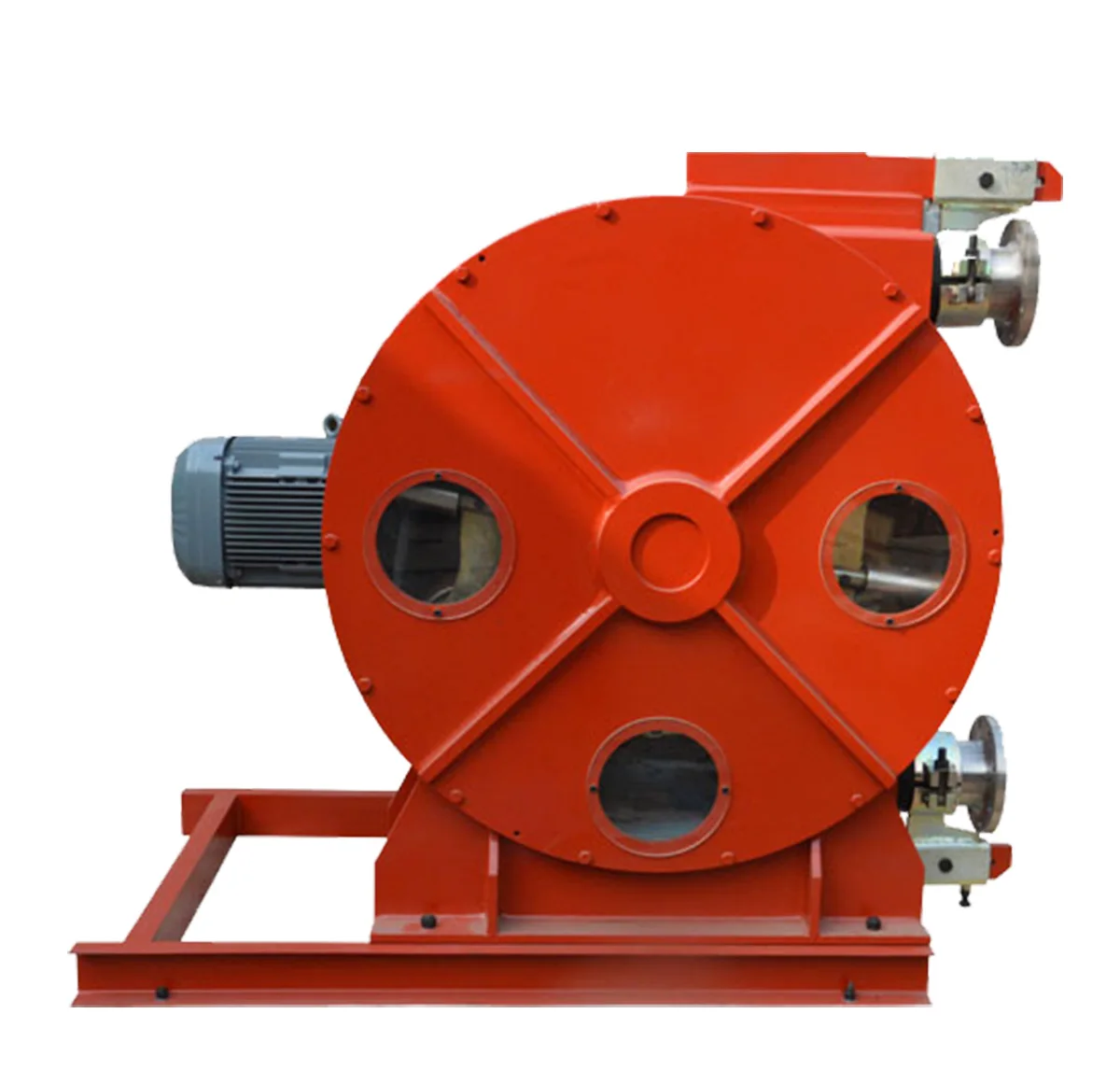

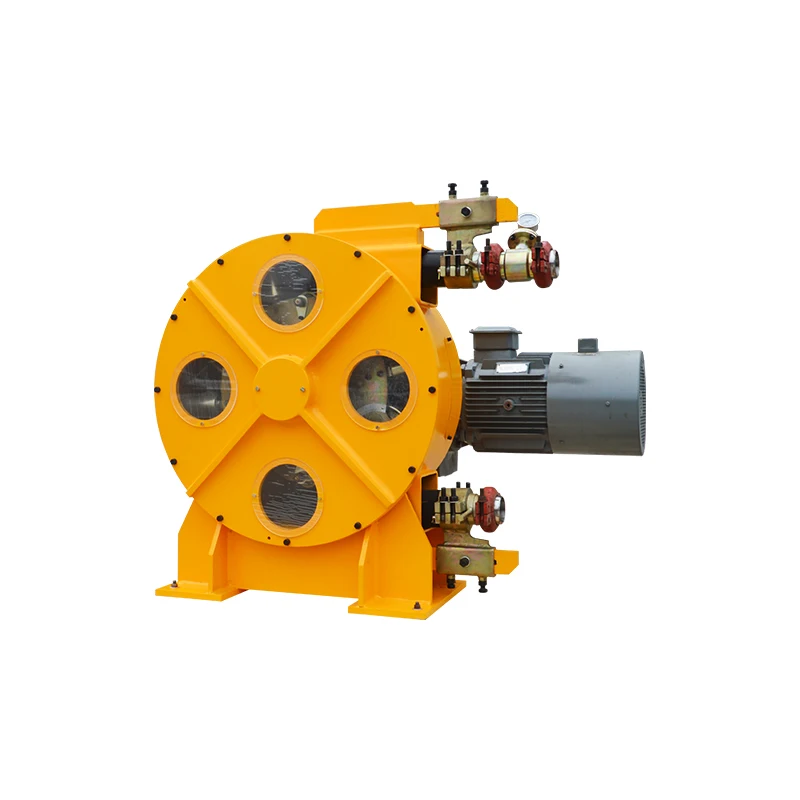

Прочные промышленные Перистальтические Насосы для откачки пенного легкого бетона
- Категория: >>>
- Поставщик: Gaode Equipment Co. Ltd.
Сохранить в закладки 10000004635236:
Описание и отзывы
Характеристики
Products Description

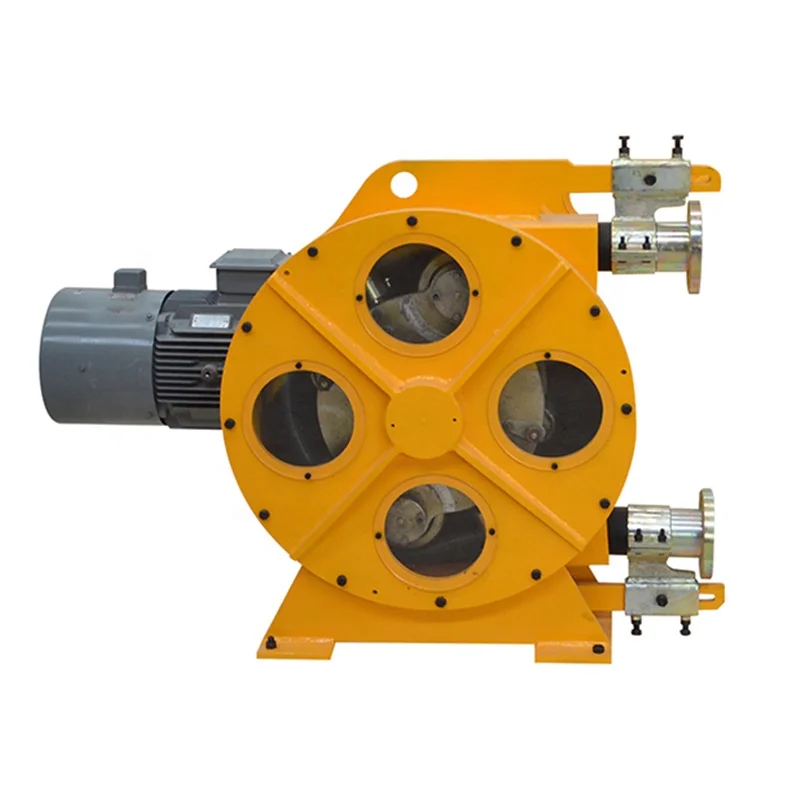

GH Peristaltic Hose Pump
Gaodetec GH series heavy-duty industries peristaltic pump (squeeze pump) is a kind of hose pump, which is suitable for handling aggressive, high viscosity, high density products, such as abrasive slurries, corrosive acids, gaseous liquids, sand/cement mortar, liquid accelerator, etc. and then also is used widely for dosing pump with 1% repeat precision.
GH series peristaltic pumps working pressure from 0.6-3 Mpa, output from 0.01-50 m3/h, which includes GH10, GH15, GH25, GH32, GH38, GH50, GH65, GH76, and GH100 series peristaltic pump. We can design the suitable hose pump according to the requirements of customer, For more detailed information, please see the specification.
GH series peristaltic pumps working pressure from 0.6-3 Mpa, output from 0.01-50 m3/h, which includes GH10, GH15, GH25, GH32, GH38, GH50, GH65, GH76, and GH100 series peristaltic pump. We can design the suitable hose pump according to the requirements of customer, For more detailed information, please see the specification.
Model | Output capacity | Pressure | Rotate Speed | Squeeze Hose ID | Motor Power | |||||
GH15-200 | 0.3m3/h | 1.5Mpa | 60rpm | 15mm | 0.75Kw | |||||
GH25-265 | 0.6m3/h | 1.5Mpa | 36rpm | 25mm | 1.5Kw | |||||
GH32-330 | 1.3m3/h | 1.5Mpa | 36rpm | 32mm | 2.2Kw | |||||
GH38-430B | 2.2m3/h | 1.5Mpa | 32rpm | 38mm | 3Kw | |||||
GH50-445B | 4.6m3/h | 1.5Mpa | 38rpm | 50mm | 4Kw | |||||
GH50-558B | 6m3/h | 1.5Mpa | 40rpm | 50mm | 5.5Kw | |||||
GH50-680B | 6.4m3/h | 1.5Mpa | 34rpm | 50mm | 7.5Kw | |||||
GH65-600B | 8m3/h | 1.5Mpa | 34rpm | 65mm | 7.5Kw | |||||
GH65-680B | 13m3/h | 1.5Mpa | 41rpm | 65mm | 11Kw | |||||
GH76-770B | 18m3/h | 1.5Mpa | 38rpm | 76mm | 18.5Kw | |||||
GH100-915B | 32m3/h | 2.5Mpa | 32rpm | 100mm | 45Kw | |||||
GH125-915B | 55m3/h | 0.6Mpa | 35rpm | 125mm | 22Kw | |||||
GCP15H-E | 15m3/h | 2.5Mpa | 37rpm | 75mm | 22Kw | |||||
GCP40H-E | 45m3/h | 2.5Mpa | 39rpm | 100mm | 45Kw | |||||
We could customize the hose pump according to output capacity and working pressure of clients' requirement. | ||||||||||
GH hose peristaltic pump features
1. Adopts 2 or 3 squeeze rollers according to the requirements;
2. Pump house adopt steel plate welded;
3. Squeeze roller and pump core adopt galvanized process, avoid rust;
4. Bearings adopts China Famous Brand Harbin full sealed bearings;
5. The joint adopts carbon steel safety joints, and the clamp adopts concrete pump special high pressure and quick clamp.
2. Pump house adopt steel plate welded;
3. Squeeze roller and pump core adopt galvanized process, avoid rust;
4. Bearings adopts China Famous Brand Harbin full sealed bearings;
5. The joint adopts carbon steel safety joints, and the clamp adopts concrete pump special high pressure and quick clamp.

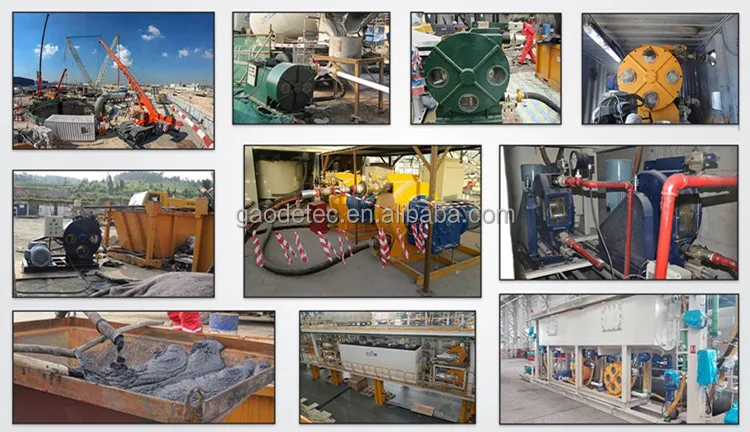

Application
GH series hose pump application
Best price controlling peristaltic pumps for pumping heavy fuel oil sludge are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, paper making, ceramic, etc.
Fields of Application
1. Construction
Pumping fine grain concrete, foam concrete and mortar.
2. Water Treatment
Pumping water or waste water.
3. Paper Making
Pumping pulp, color and glues.
4. Food Project
Pumping beer, wine, milk, juice etc.
5. Mining
Conveying of mineral waste residue.
6. Underground Engineering
For TBM, pumping bentonite.
Pumping fine grain concrete, foam concrete and mortar.
2. Water Treatment
Pumping water or waste water.
3. Paper Making
Pumping pulp, color and glues.
4. Food Project
Pumping beer, wine, milk, juice etc.
5. Mining
Conveying of mineral waste residue.
6. Underground Engineering
For TBM, pumping bentonite.

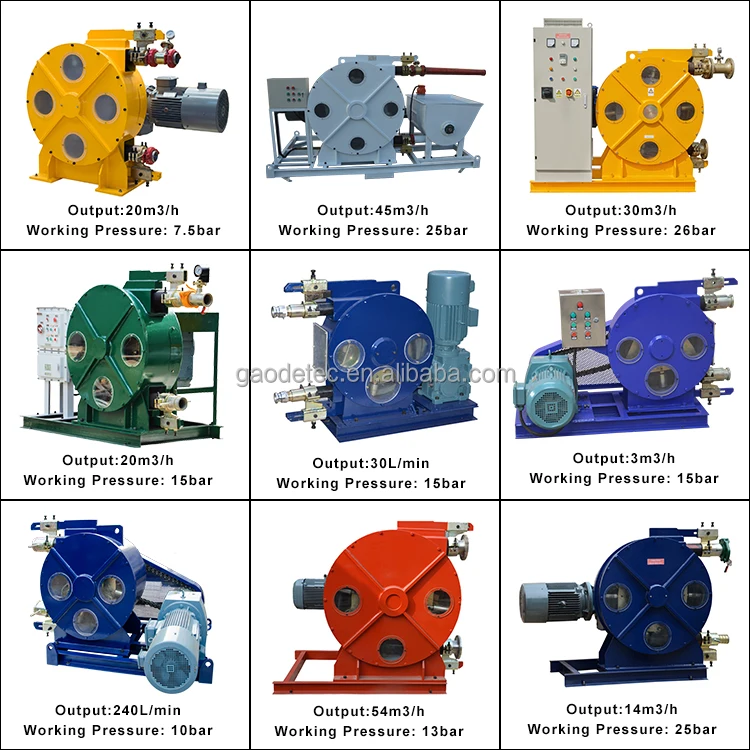

Details Images
GH peristaltic squeeze hose pump advantages
1. No seals.
2. No valves.
3. Self-priming.
4. Only squeeze hose to replace.
5. Dry-running without damage.
6. Reversible.
7. No contact between product and mechanical parts.
8. Able to pump products with solid parts inside.
9. Easy maintenace, low-cost, short down time.
2. No valves.
3. Self-priming.
4. Only squeeze hose to replace.
5. Dry-running without damage.
6. Reversible.
7. No contact between product and mechanical parts.
8. Able to pump products with solid parts inside.
9. Easy maintenace, low-cost, short down time.

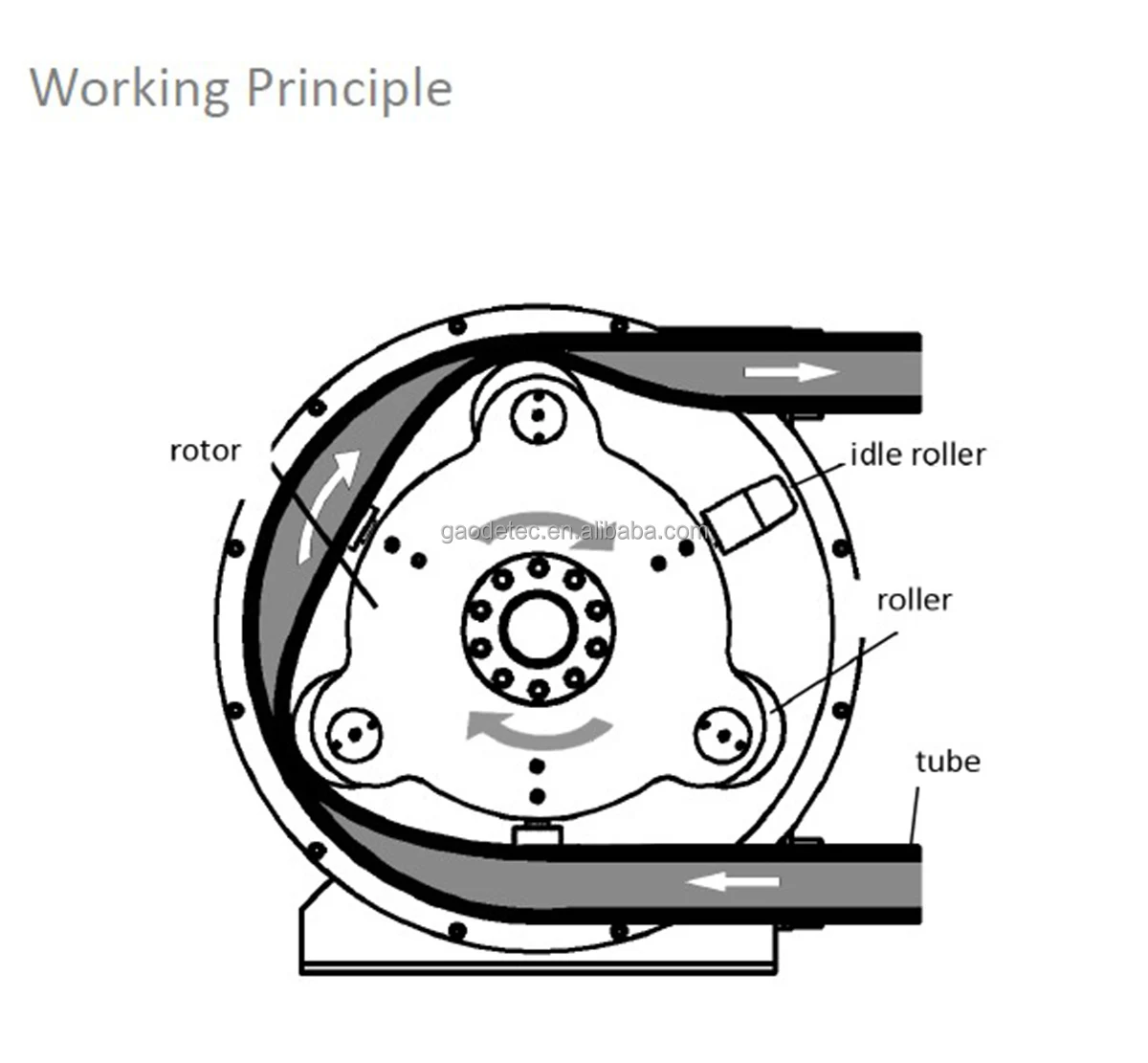

Working Princple
GH series hose squeeze peristaltic pump working princple
GH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller's push, finally forms pressure conveying of slurries.
Customization

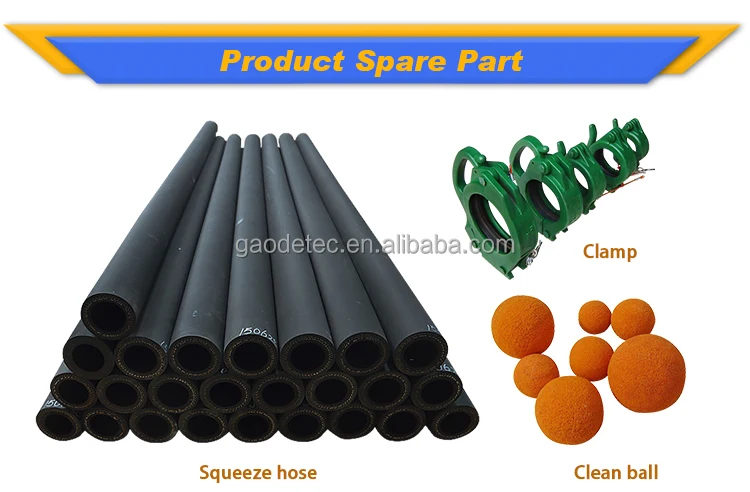

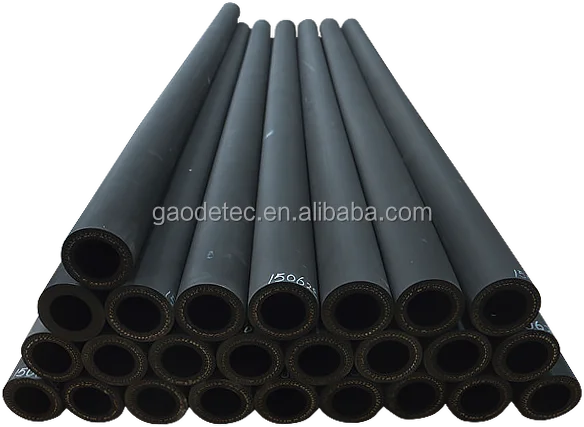

Different materials squeeze hose for option
1. Natural Rubber;
Outstanding abrasion resistance. Generally resistant to diluted acids and alcohols
2. NBR;
Resistant to oils, greases, alkalis and detergents
3. EPDM;
Outstanding abrasion resistance. Generally resistant to diluted acids and alcohols
4. Food Grade;
5. France Import Trelleborg Squeeze Hose.
Outstanding abrasion resistance. Generally resistant to diluted acids and alcohols
2. NBR;
Resistant to oils, greases, alkalis and detergents
3. EPDM;
Outstanding abrasion resistance. Generally resistant to diluted acids and alcohols
4. Food Grade;
5. France Import Trelleborg Squeeze Hose.

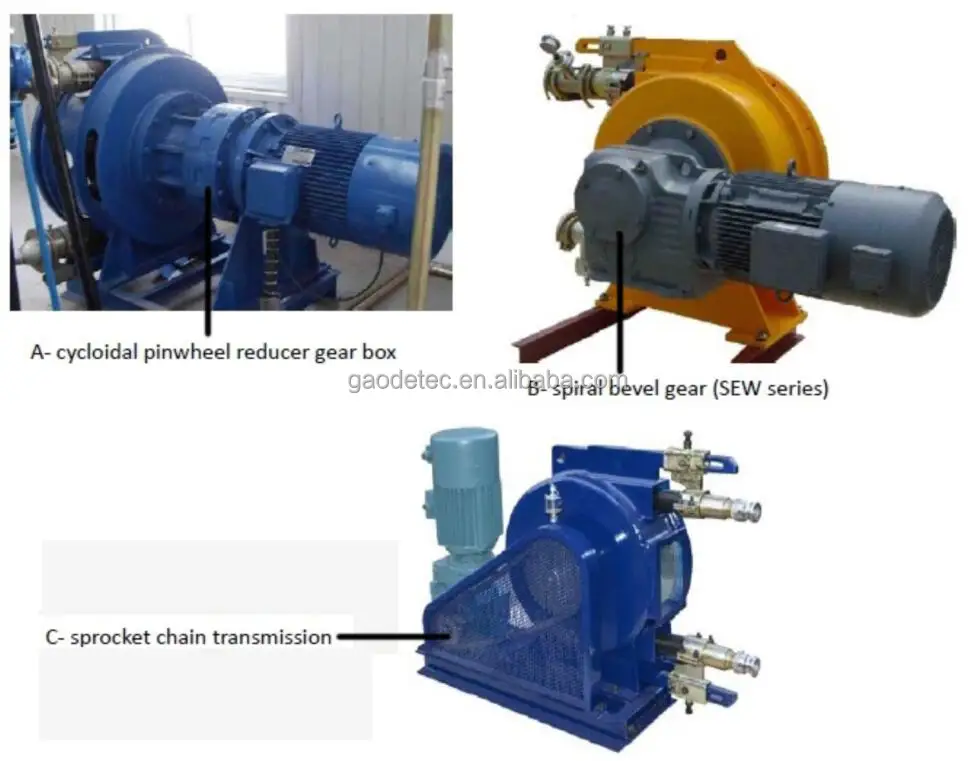

Different Transmission Type
A- Cycloidal pinwheel gear box
B- Spiral bevel gearbox
C- Sprocket Chain Transmission
B- Spiral bevel gearbox
C- Sprocket Chain Transmission

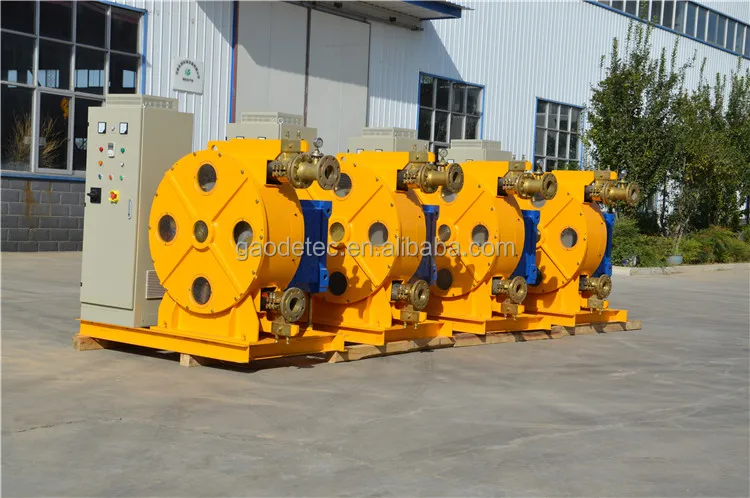

Related Product
We are a professional manufacturer of industrial hose pumps, we have now developed full series of products with tens of models, working pressure from 6-30 bar, output from 0.01-50m3/h, NR, NBR and EPDM squeeze hoses are available options for customization.

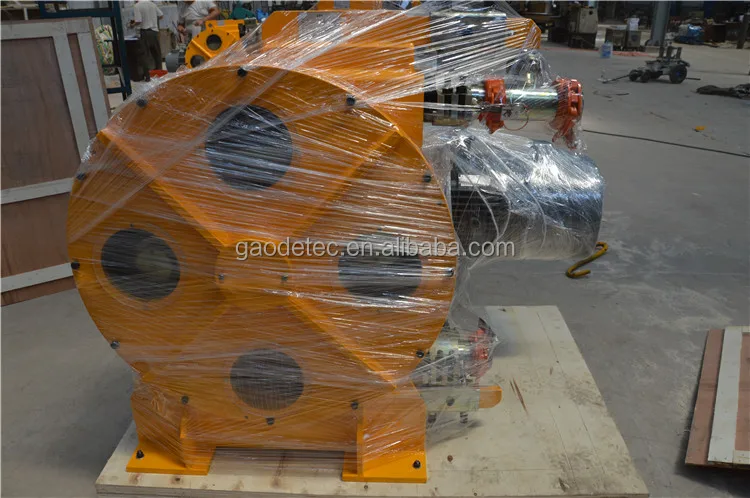

Packaging&Shipping
In order to protect our squeeze peristalic pump and avoid damdge during transport, our hose pump adopts plywood boxes packaging. And we also provide customized package as your requirement.
Company Profile
Contact Us
Contact us for hose peristaltic pump price
Before we send quotation, please let me know the following question:
1. What is the project with our peristaltic pump, is it for pumping concrete or others?
2. What is the pressure and output you require?
3. What is the local voltage you require? here the voltage 380V, 50HZ, 3phase, is it ok for you?
4. What is Max. aggregate size in the slurry?
1. What is the project with our peristaltic pump, is it for pumping concrete or others?
2. What is the pressure and output you require?
3. What is the local voltage you require? here the voltage 380V, 50HZ, 3phase, is it ok for you?
4. What is Max. aggregate size in the slurry?
