NPRT 2200 Base Unit w/ 2 Frequency
- Категория: Signal Generators >>>
- Поставщик: Tescom
Сохранить в закладки 10000004745289:
Описание и отзывы
Характеристики
Product Description

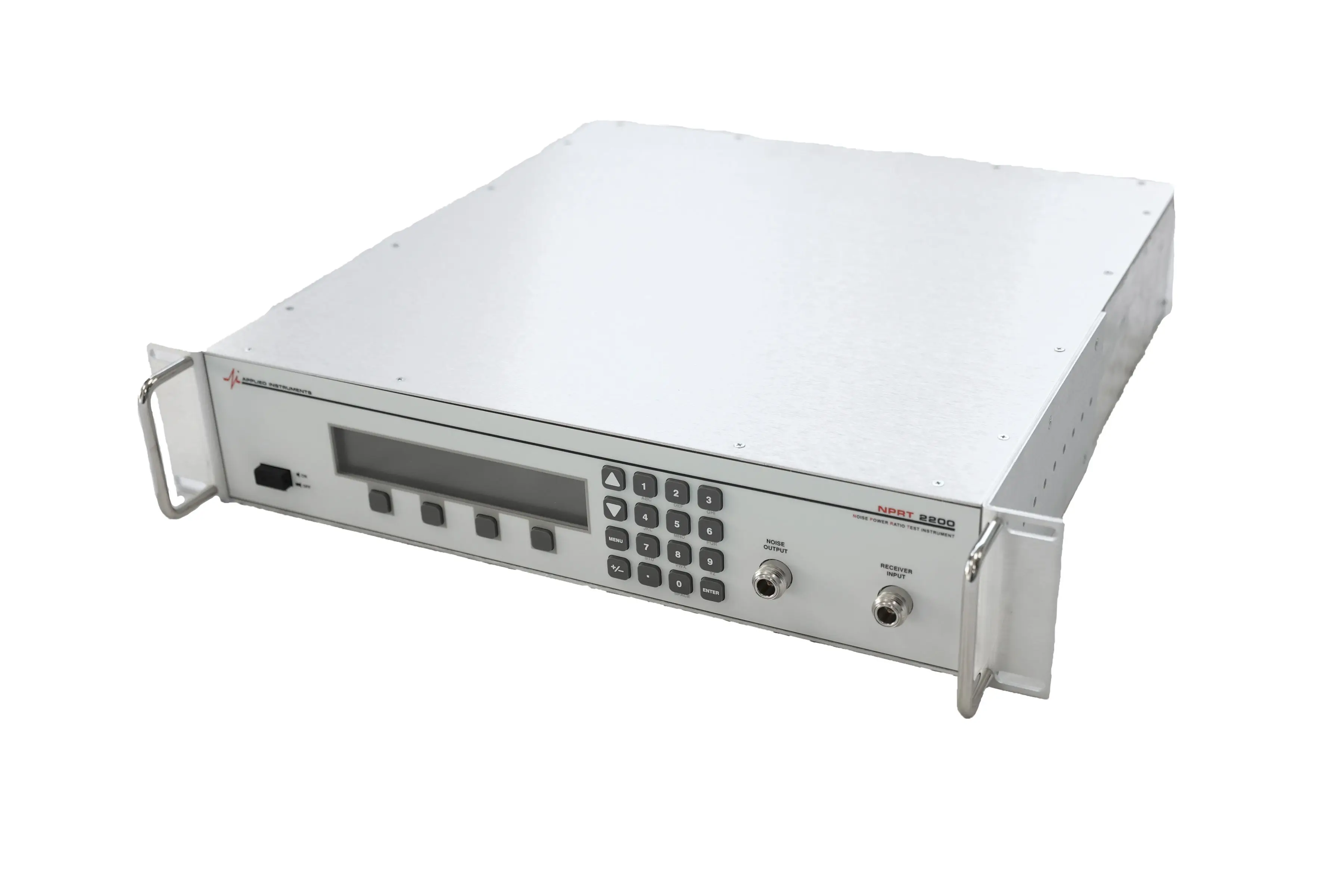

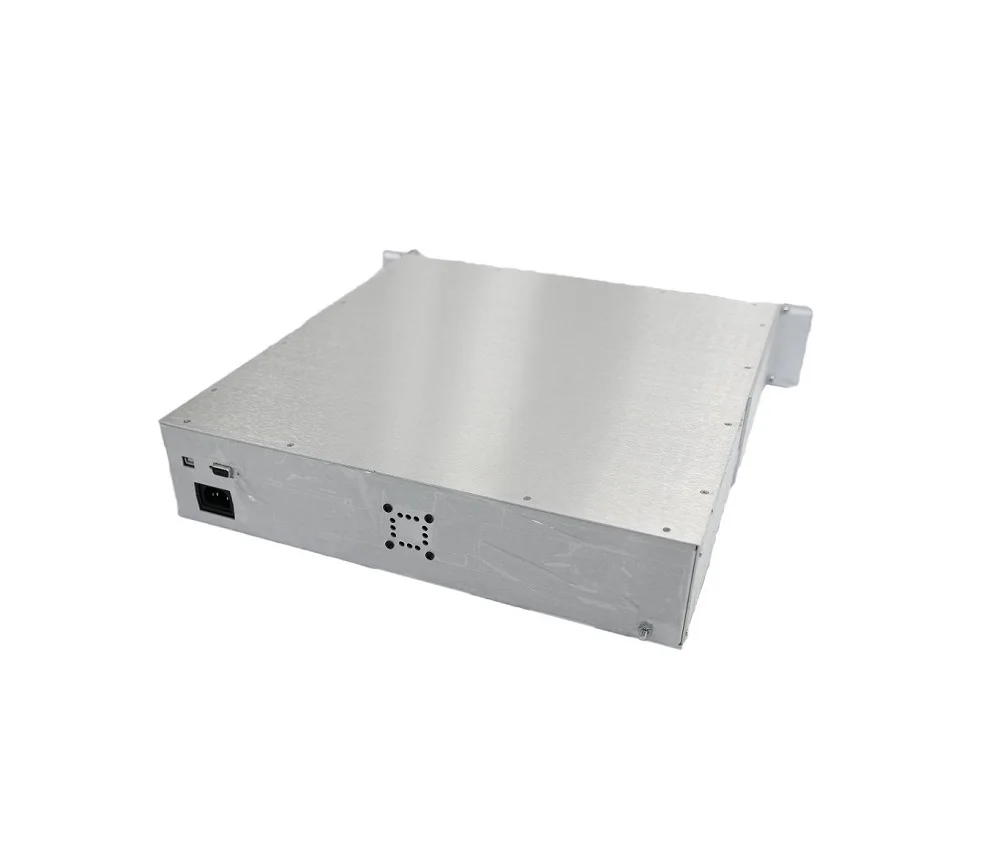

NPRT 2200 Base Unit w/ 2 Frequency Bands
The NPRT 2200™ measures the NPR of a device across a range of power levels. This test quantifies intermodulation distortion and determines the dynamic range of optical transmitters, amplifiers and other active HFC network devices. The included PC software uses predefined test setups to run a “Power Sweep” series of NPR measurements and graph the results. The measurements are compared to a threshold value to determine the acceptable operating power or dynamic range of the device. Results may be stored on the PC for further analysis and the graphs may be printed. The NPRT 2200™ inserts calibrated levels of White Gaussian Noise (WGN) through a Device Under Test (DUT), and then measures the noise level at a frequency where a notch filter is located. The NPR is the ratio of the output power without the notch compared to the power with the notch filter. A graph of NPR versus input power illustrates the linear dynamic range and intermodulation distortion characteristics of the DUT. Our NPRT 2200™ performs the measurements outlined in the SCTE 119 spec, but in an easier and more automated manner. The NPRT 2200™ maintains constant total power with notch in and out. And with the included NprGraph program on the PC, the measurements are automatic and the program plots out the curve and calculates the dynamic range. For HFC Active Components the NPRT 2200™ comes in a compact two-rack unit enclosure that is well suited for laboratory and factory ATE production environments. The NPRT 2200’s low cost and unsurpassed accuracy provide an unprecedented value.
Specification
item | value |
Warranty | N/A |
Place of Origin | USA |
Brand Name | Applied Instruments |
Model Number | 2200 |
Feature1 | Need to select frequency for band |
Feature2 | Comes with 4 notch filter options |
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
TesCom has been serving the Telecommunications and CATV Industry for over 35 years. TesCom was founded in 1982. We continue to follow three simple business principles that formed the basis for the company:
We provide the services and products our customers need.
We perform services and manufacture products with the high quality.
We give the customer exceptional value.
Today our company is divided into three divisions:
Manufacturing and Sales Divisions: We manufacture Applied Instruments satellite and CATV test equipment. We manufacture Tiempo timing and synchronization clocks. Everything we sell is guaranteed and certified by our internal Laboratories so our customers are assured of high quality products and full warranty coverage after the sale.
Calibration Laboratories: We have an ISO 17025 accredited laboratory in Austin, TX. Our services include Calibrating General Electronic Laboratory Test Sets, RF, Optical and Physical/Dimensional Equipment.
Repair Laboratories: With three repair labs located in Texas, California, and Indiana, our North American footprint provides regional service capabilities throughout the US. We service a broad range of equipment including general electronic lab equipment, fiber optic, transmission, broadband, telecom, power supplies and much more. If it's used to maintain a carrier network, or if it's used by manufacturers to design/build products, we repair it.
We provide the services and products our customers need.
We perform services and manufacture products with the high quality.
We give the customer exceptional value.
Today our company is divided into three divisions:
Manufacturing and Sales Divisions: We manufacture Applied Instruments satellite and CATV test equipment. We manufacture Tiempo timing and synchronization clocks. Everything we sell is guaranteed and certified by our internal Laboratories so our customers are assured of high quality products and full warranty coverage after the sale.
Calibration Laboratories: We have an ISO 17025 accredited laboratory in Austin, TX. Our services include Calibrating General Electronic Laboratory Test Sets, RF, Optical and Physical/Dimensional Equipment.
Repair Laboratories: With three repair labs located in Texas, California, and Indiana, our North American footprint provides regional service capabilities throughout the US. We service a broad range of equipment including general electronic lab equipment, fiber optic, transmission, broadband, telecom, power supplies and much more. If it's used to maintain a carrier network, or if it's used by manufacturers to design/build products, we repair it.
FAQ
1. who are we?
We are based in Indiana, United States, start from 1999,sell to North America(90.00%),Western Europe(4.00%),South America(2.00%),Eastern Europe(2.00%),Southeast Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
NPRT
4. why should you buy from us not from other suppliers?
Under construction****
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,PayPal;
Language Spoken:English
We are based in Indiana, United States, start from 1999,sell to North America(90.00%),Western Europe(4.00%),South America(2.00%),Eastern Europe(2.00%),Southeast Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
NPRT
4. why should you buy from us not from other suppliers?
Under construction****
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,PayPal;
Language Spoken:English
Похожие товары
Генератор сигналов 1 Гц ~ 150 кГц цифровой дисплей ШИМ-импульсный Частотный рабочий коэффициент регулируемый прямоугольный генератор прямоугольной

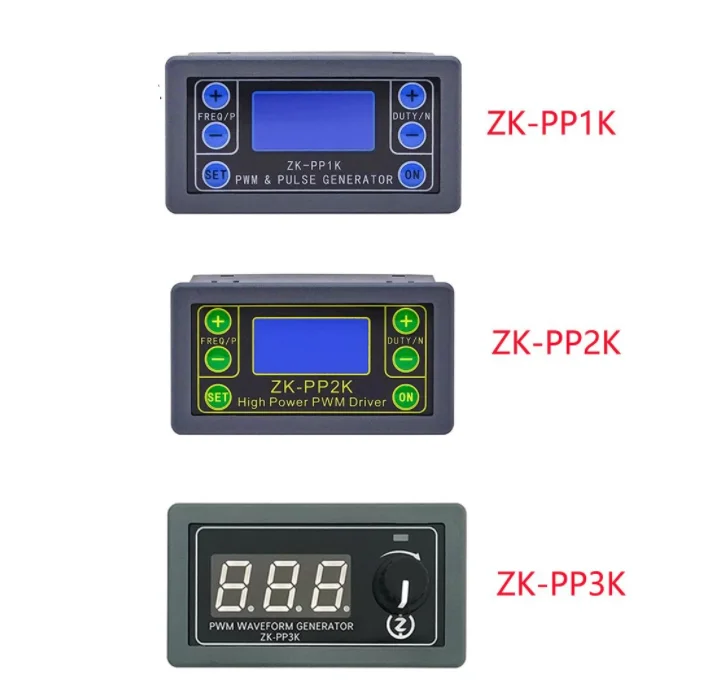

ZK-PP1K двойной режим генератор сигналов ZK-PP2K PWM контроллер скорости двигателя ZK-PP3K ШИМ цифровой дисплей
Генератор сигналов с синусоидальным/треугольным/квадратным выходом, 1 Гц-1 МГц, Регулируемая частота, функция амплитуды, генератор сигналов, Комплект «сделай сам»

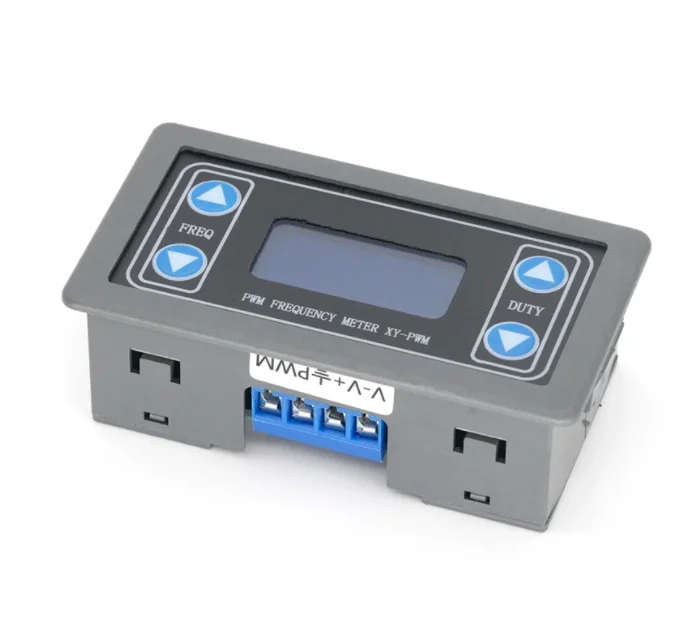

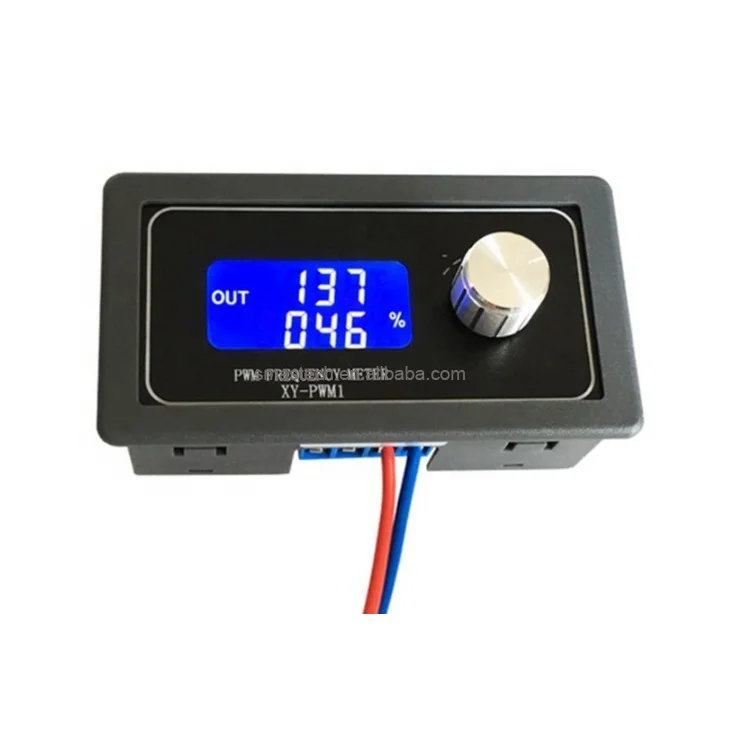

XY-PWM1 генератор сигналов Модуль Регулируемый PWM частота импульсов рабочий цикл квадратной волны

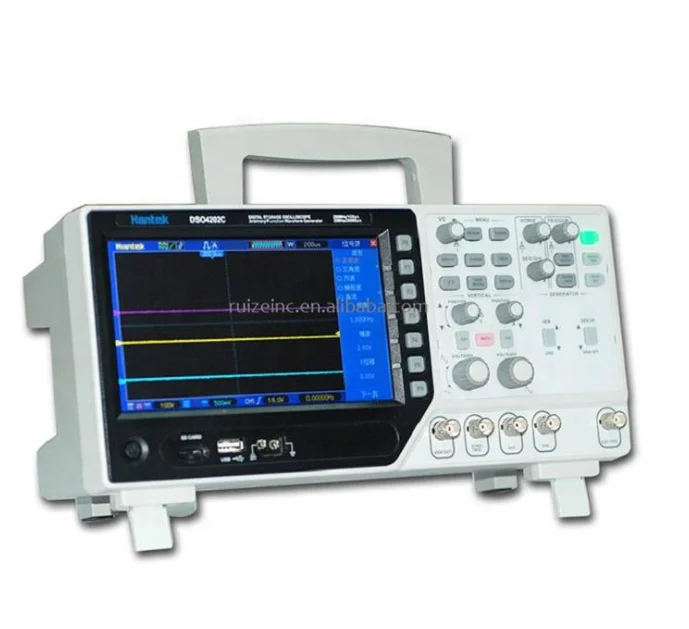

DSO4202C 2 канальный цифровой осциллограф 1 канал произвольные/функция генератор сигналов
Лидер продаж, двухканальный генератор произвольной формы

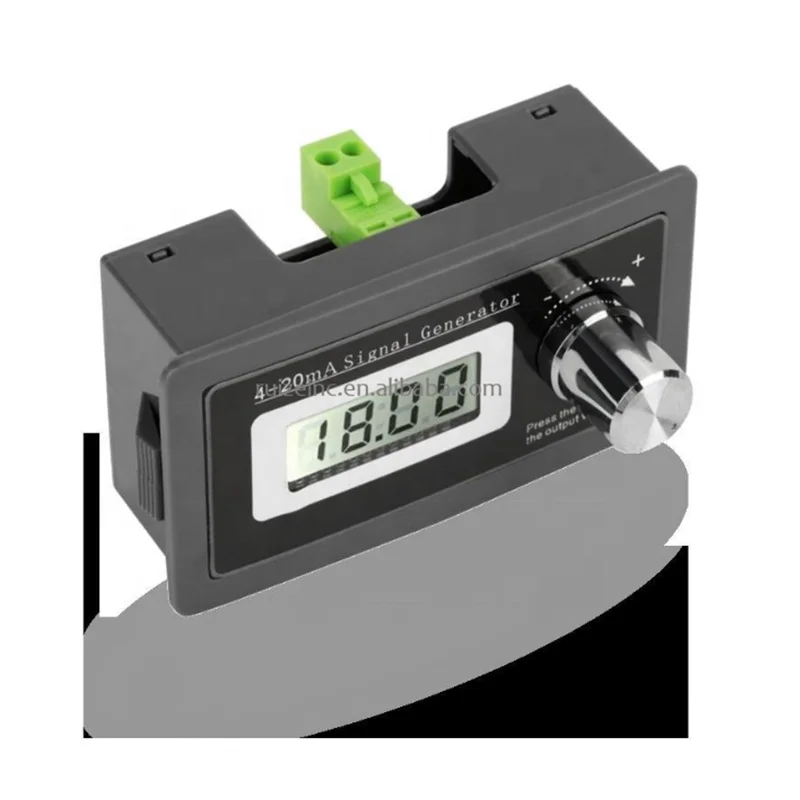

Инструмент PLC, ЖК-дисплей, два провода, выход 4-20 мА, Датчик тока, тестер нагрузки, генератор сигналов
