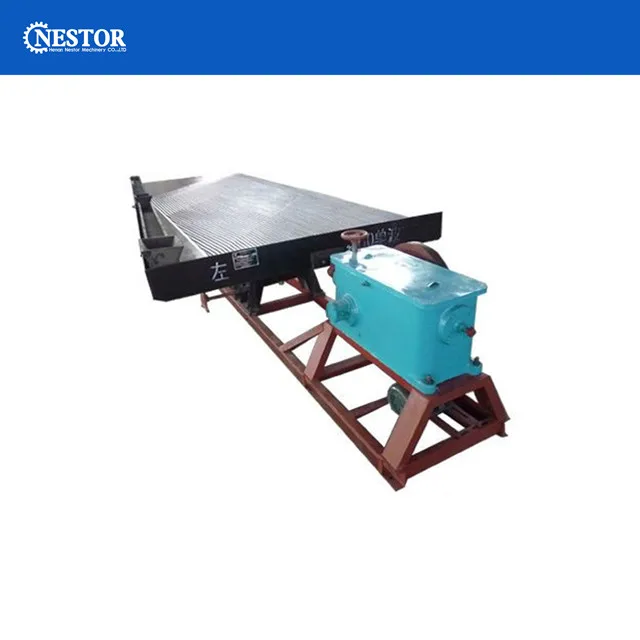

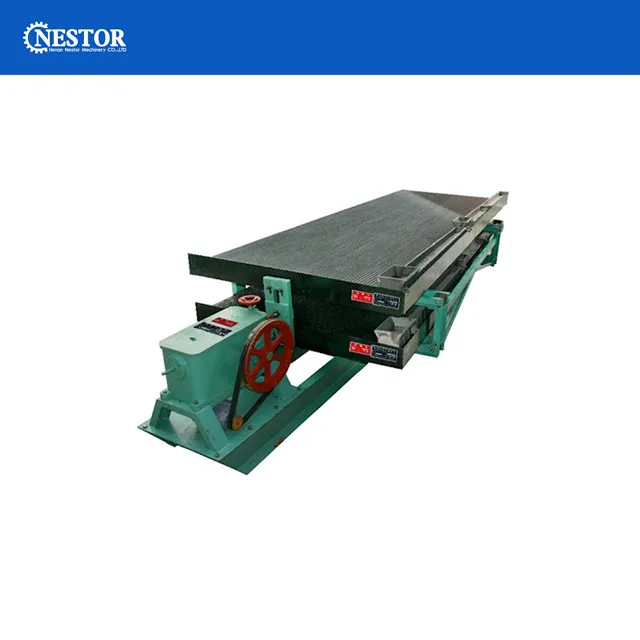

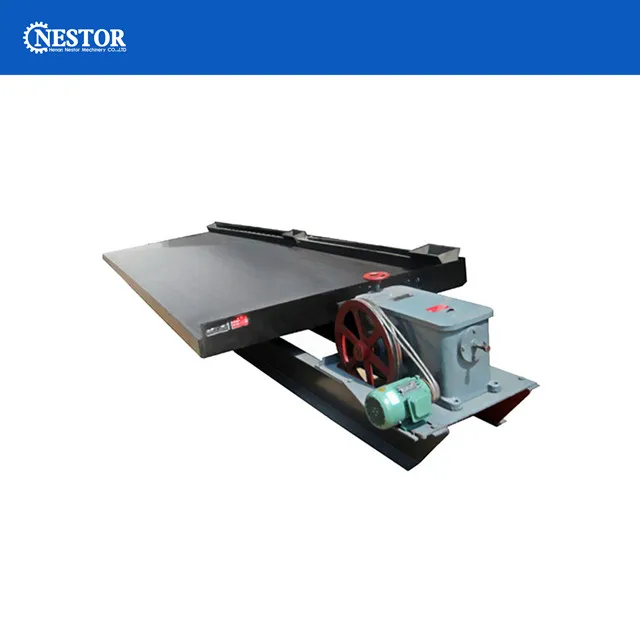

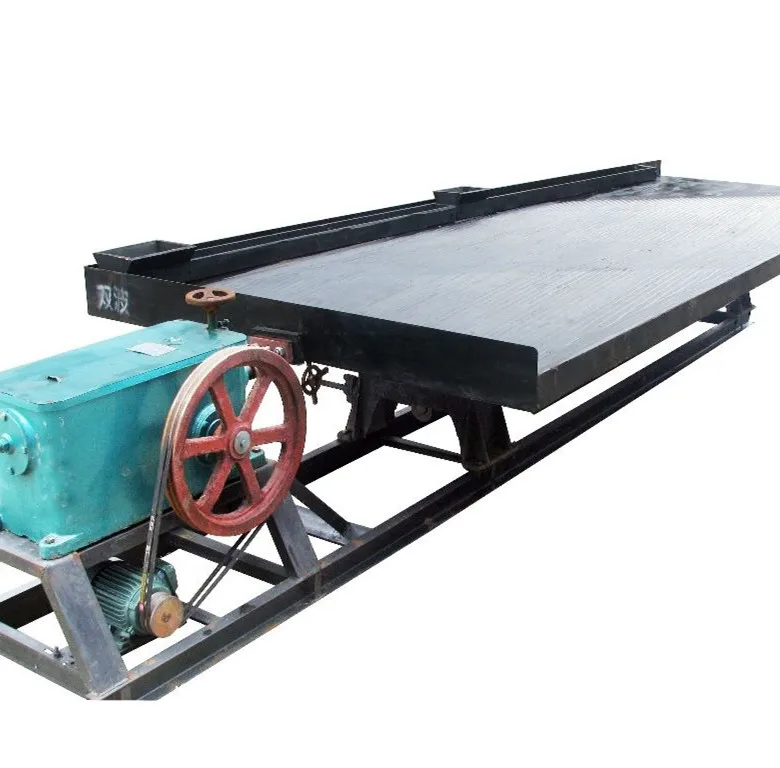

Изысканное золото извлечение золота оборудование для панорамирования маленький золотой встряхивающий стол продажи
- Категория: >>>
- Поставщик: Henan Nestor Mechinery Co. Ltd.
Сохранить в закладки 10000004776261:
Описание и отзывы
Характеристики
Products Information

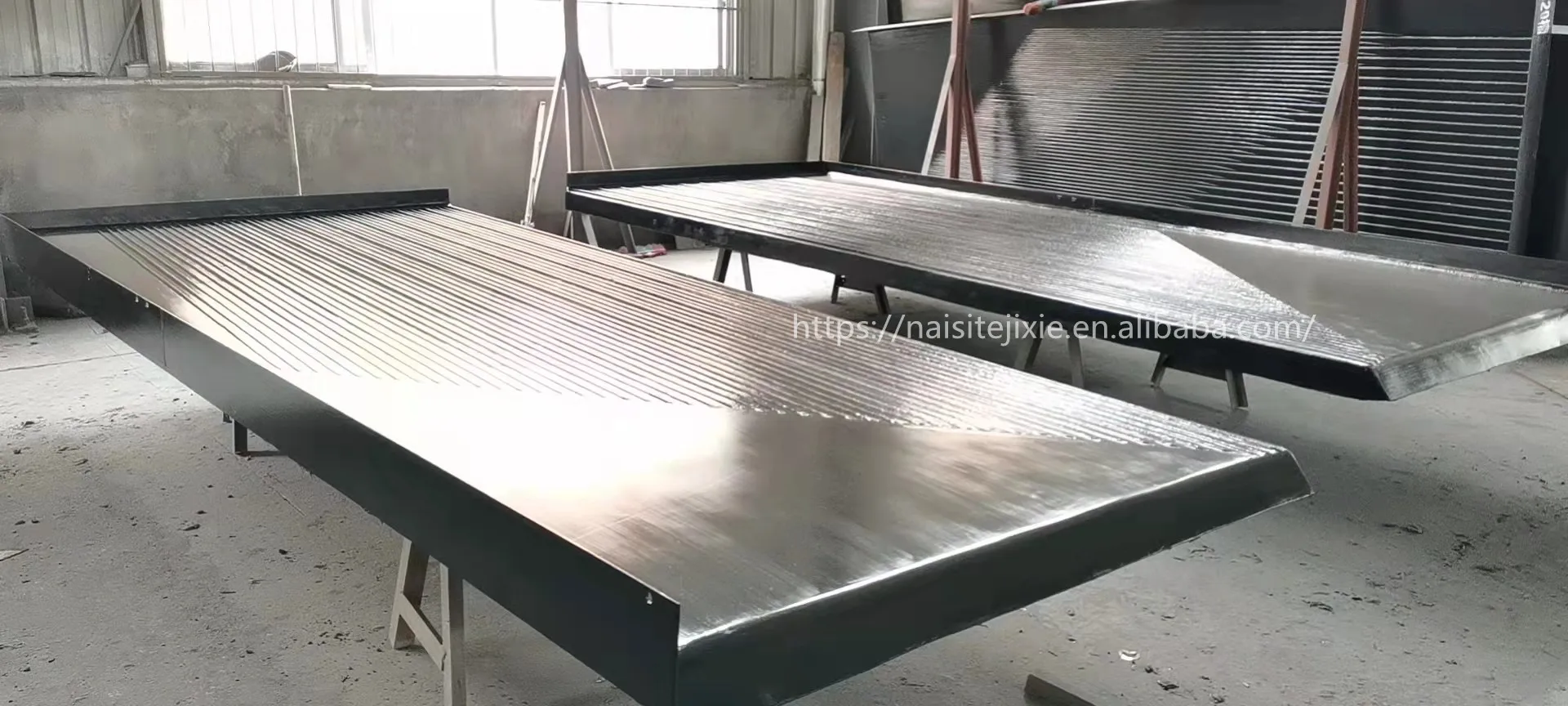

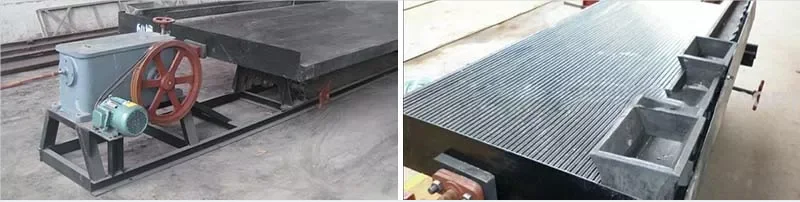

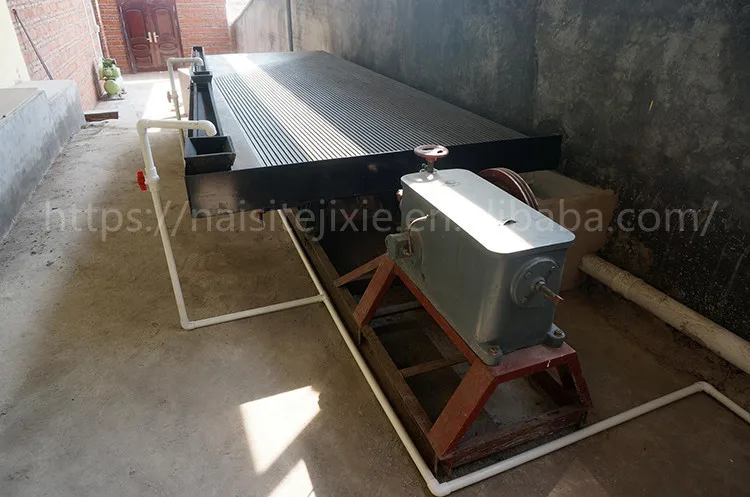

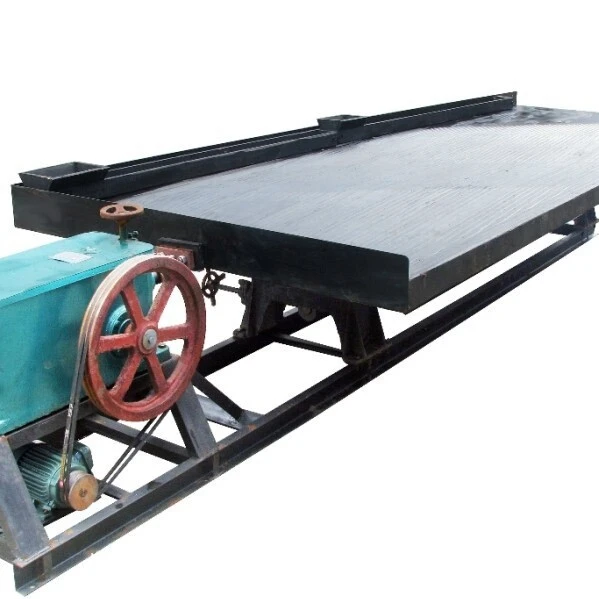

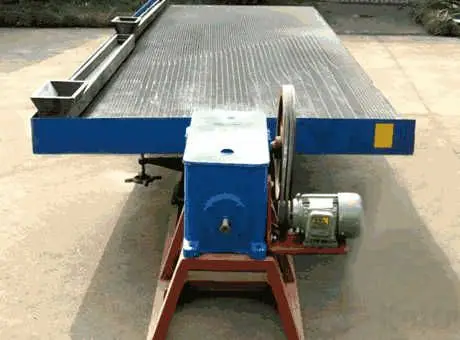

Introduction of Gold Shaker table

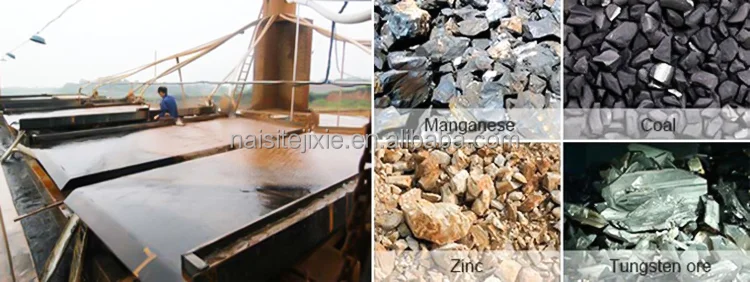

Shaking Table is designed to wet gravity-based separation of minerals and other granular materials. There are many applications where the concentrating table is of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.
FEATURES OF GOLD SHAKER TABLE
1) Get concentrate and gangue at one time
2) Fine water-resistance, chemical resistance, corrosion resistance, abrasion resistance, etc;
3) We can simplify the repair and painting process, which directly reduces the maintenance cost, greatly increases recovery rate, and prolongs the life of ore concentration tables.
4) High enrichment ratio, good selection effect, easy operation
5) Low energy consumption, competitive price
2) Fine water-resistance, chemical resistance, corrosion resistance, abrasion resistance, etc;
3) We can simplify the repair and painting process, which directly reduces the maintenance cost, greatly increases recovery rate, and prolongs the life of ore concentration tables.
4) High enrichment ratio, good selection effect, easy operation
5) Low energy consumption, competitive price

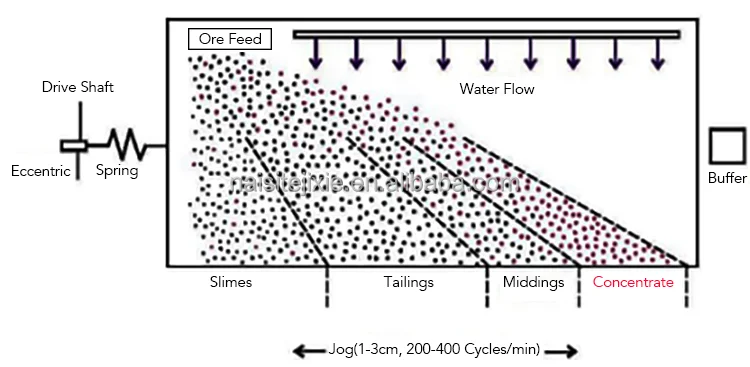

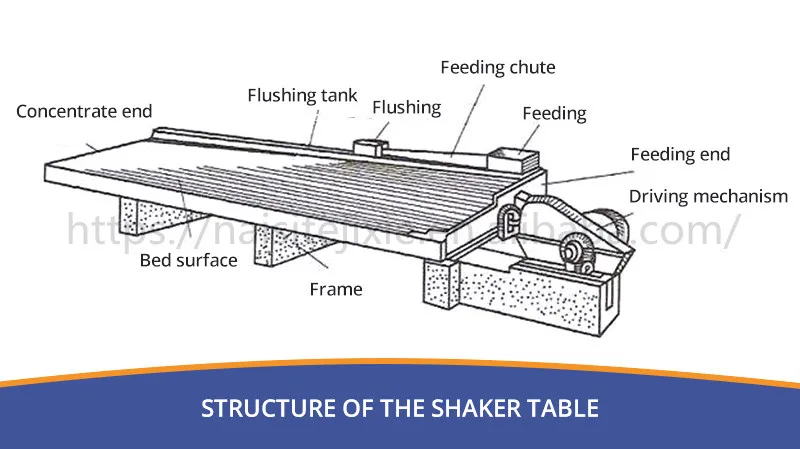

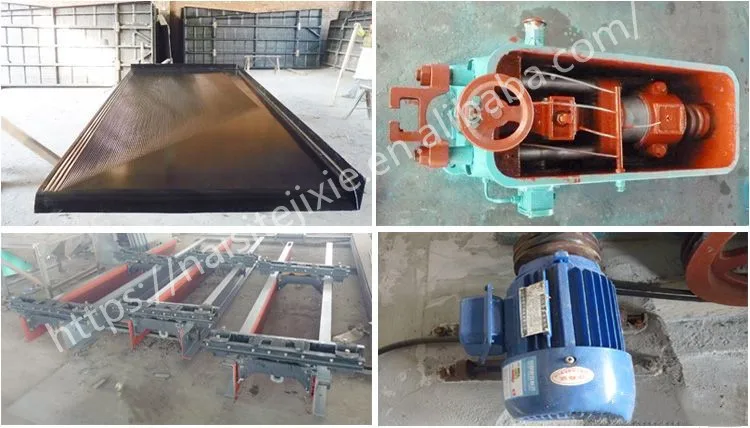

WORKING PRINCIPLES
Shake table is on the lean table board with raffles. The ore material is fed in by the feeding chute upper table board; meanwhile, the water is fed by water feeder transversely. Under the impact of vibrating wave, the materials go on vertical and horizontal movement as per the different proportion and granularity. The ore material with different proportion and granularity move down in ladder shipped state along with their own movement, then discharge from the fine concentrate end and tailings end, finally they are separated out to fine concentrate, middle concentrate and tailings.
PRODUCT SPECIFICATIONS
Model | Stroke (mm) | Cross Slope (°） | Feed size （mm） | Feed Density (%) | Water Consumption (t/h) | Capacity (t/h) | Power (KW) | Weight (KG) |
6S-4450*1855*1546 | 8-22 | 1-4 | 2-0.074 | 15-30 | 0.4-1 | 0.6-1.8 | 1.1 | 800 |
LY-3000*1620*1360 | 6-30 | 0-10 | 2-0.074 | 10-30 | 0.3-1.5 | 0.4-1.5 | 1.1 | 550 |
LY-2100*1050*850 | 12-28 | 0-8 | 2-0.074 | 10-30 | 0.2-1 | 0.3-0.8 | 1.1 | 350 |
LY-1100*500*430 | 9-17 | 0-10 | 2-0.074 | 10-30 | 0.1-0.5 | 0.05-0.2 | 0.55 | 150 |

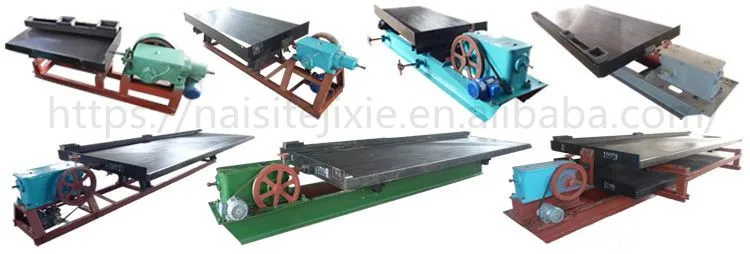

SIMILAR PRODUCTS

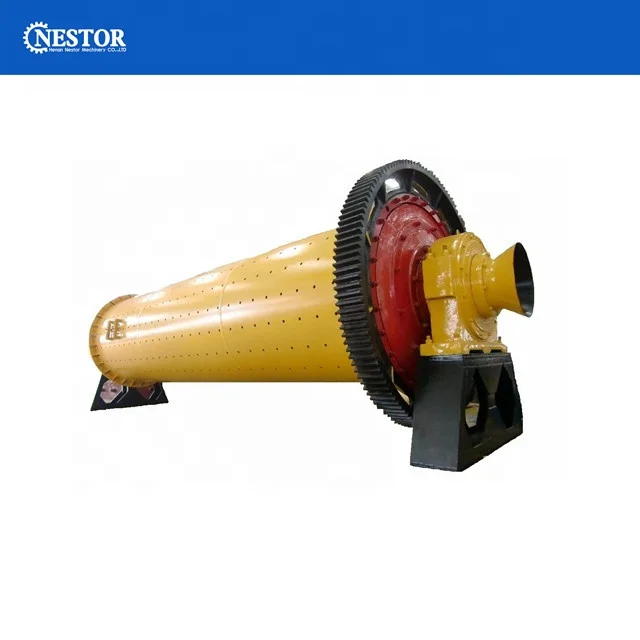

ENERGY-SAVING BALL MILL

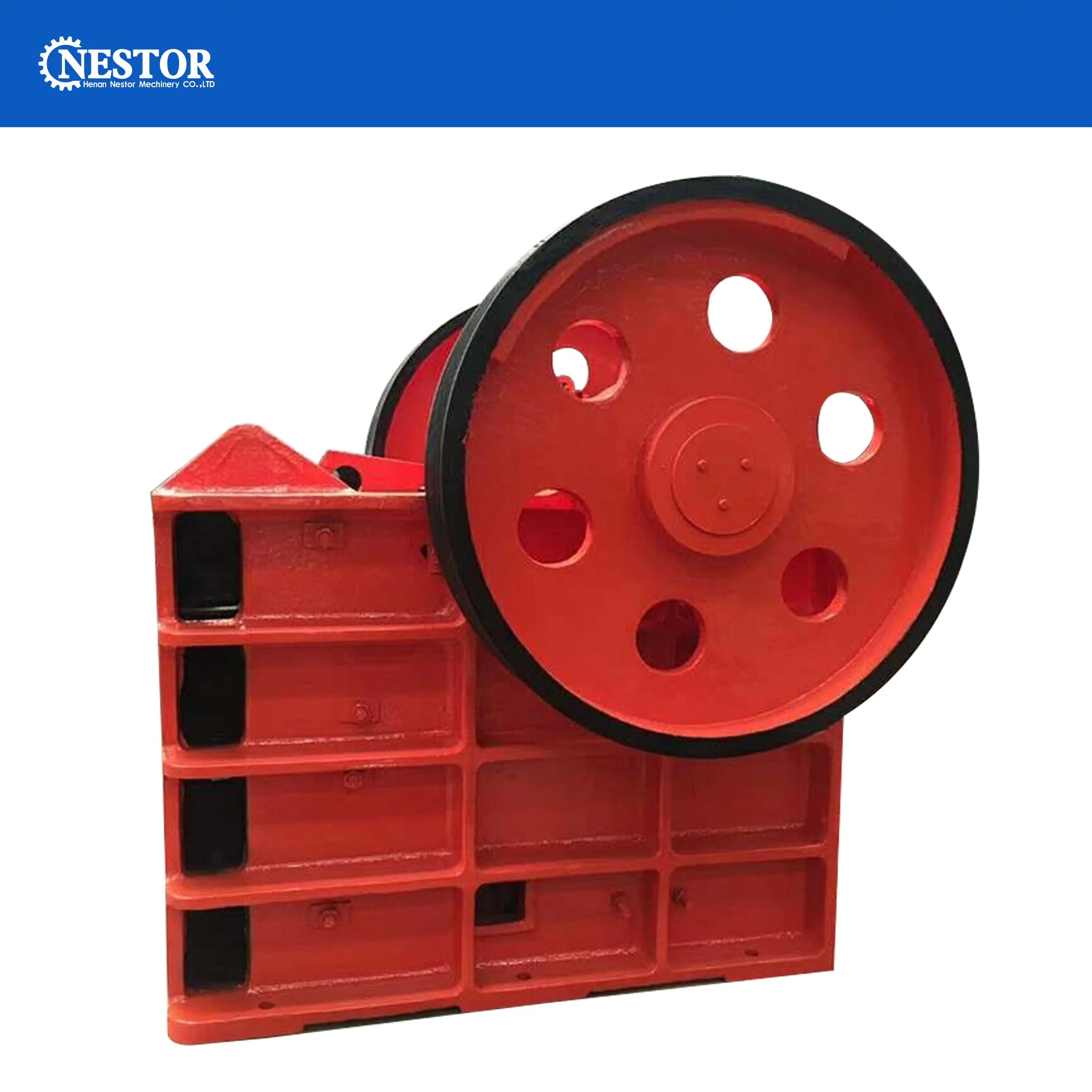

JAW CRUSHER

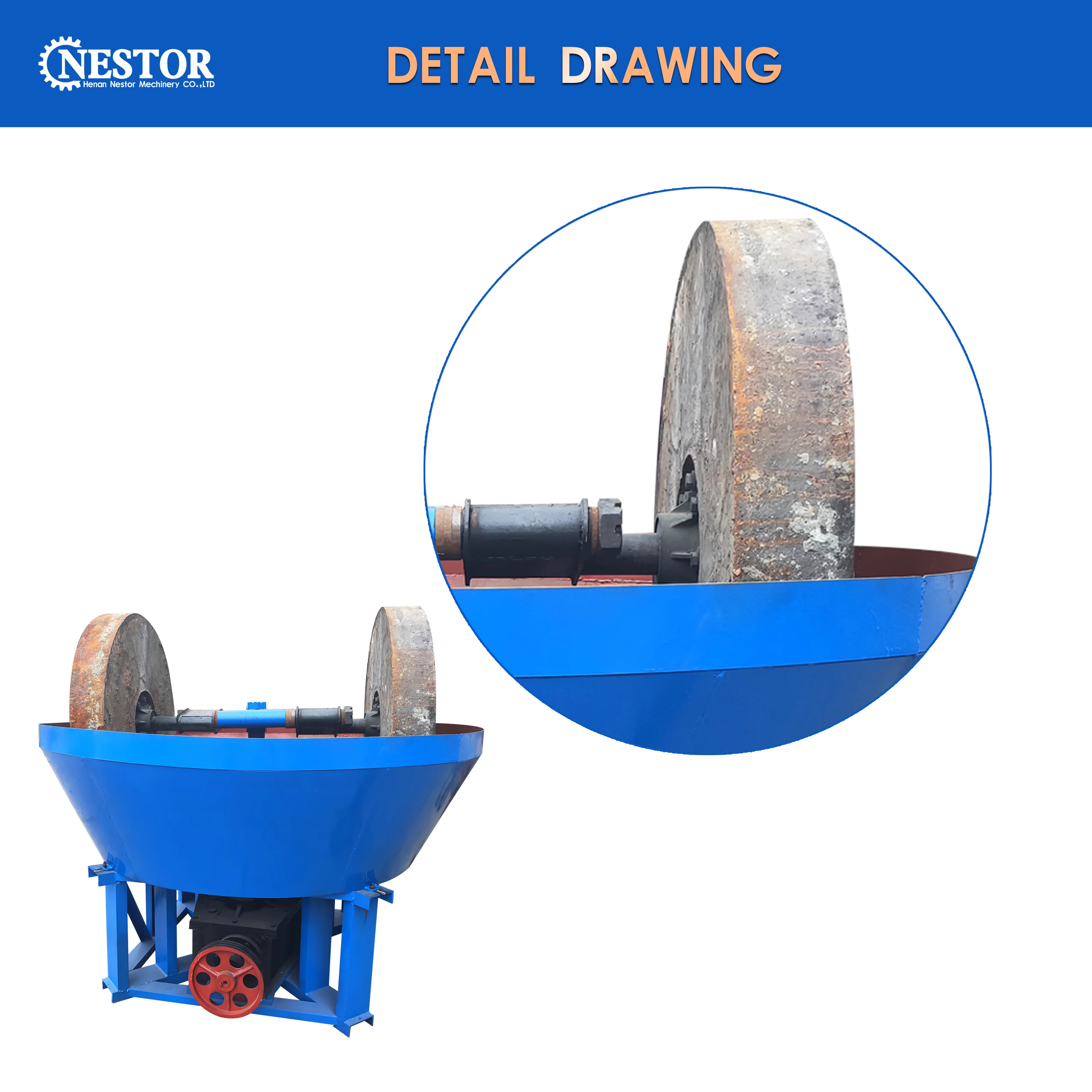

WET PAN MILL

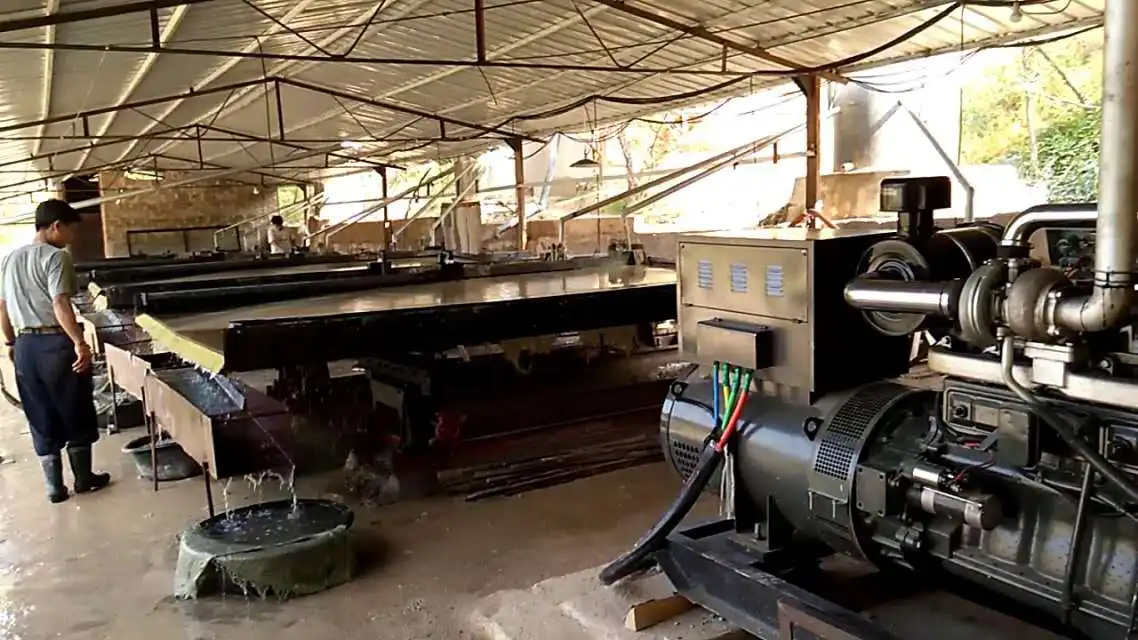

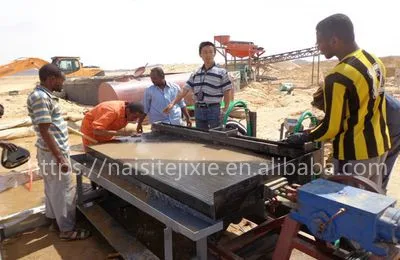

Customer Case

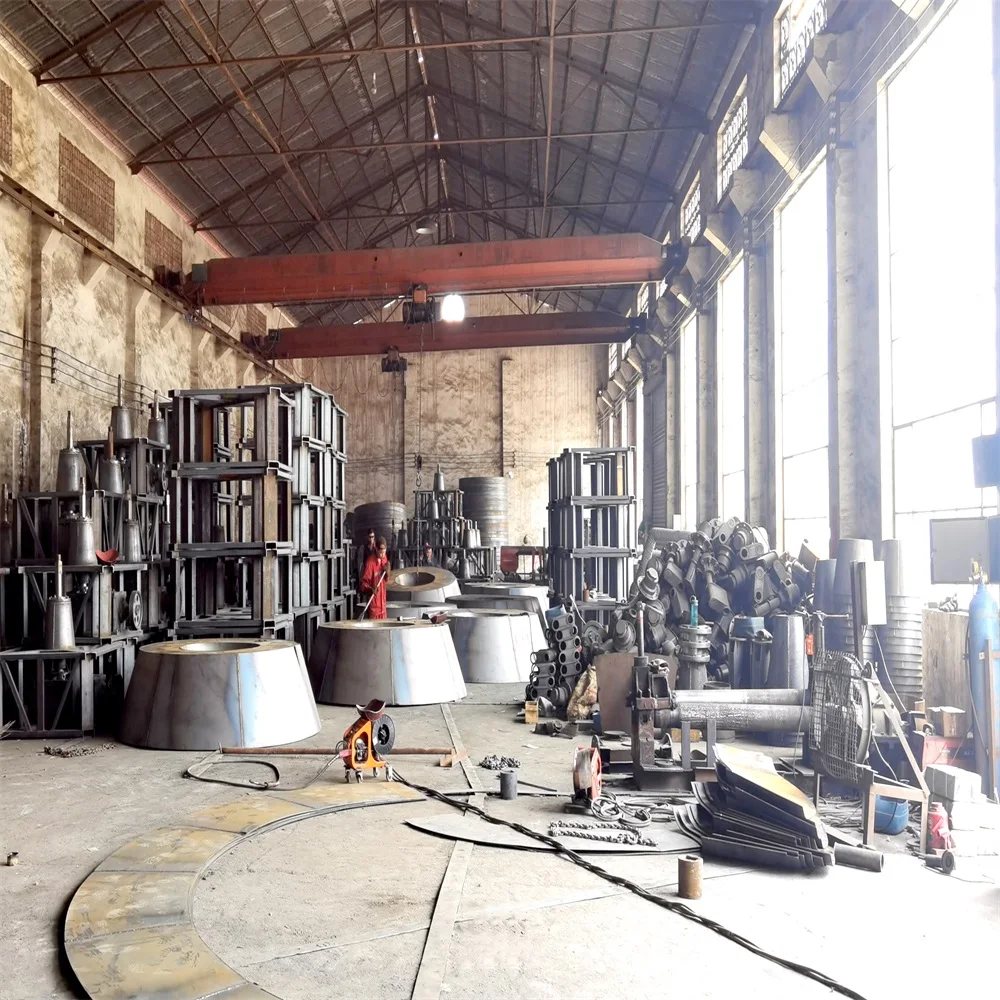

Company Profile

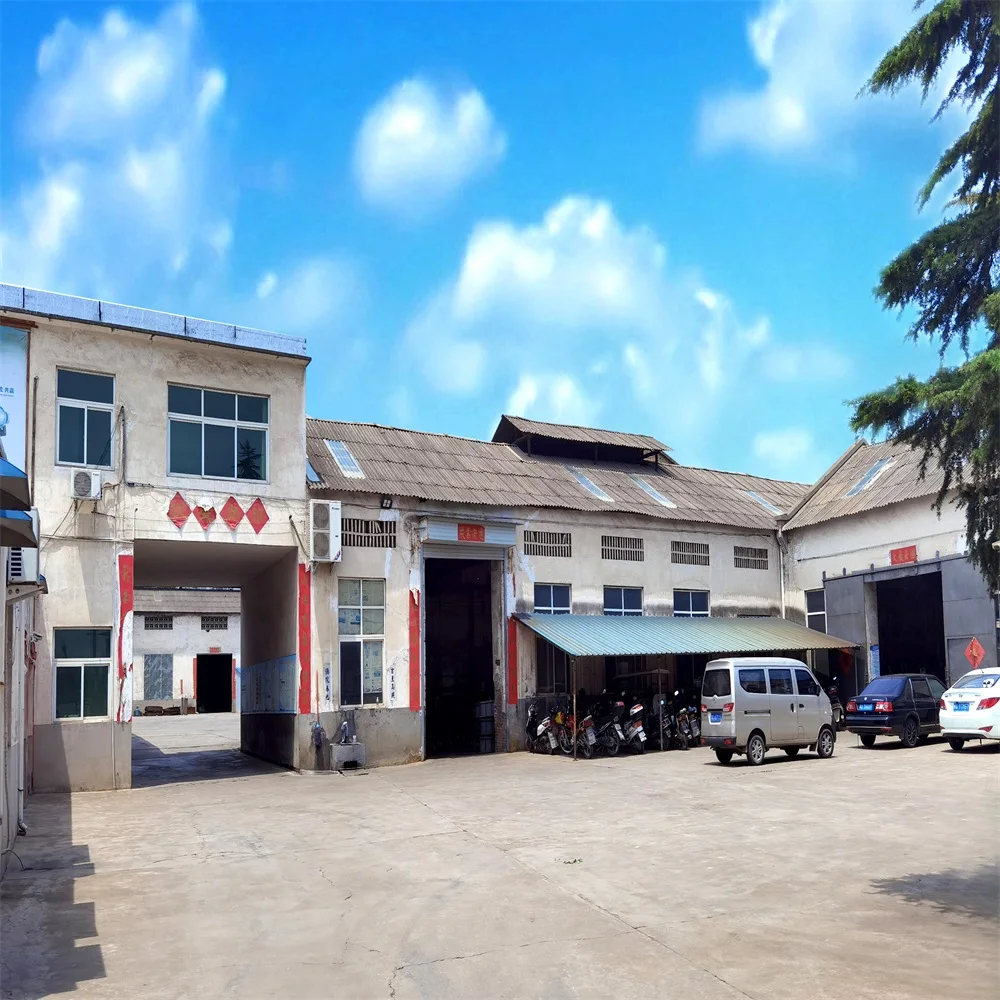

Henan NESTOR Machinery CO., LTD
Henan Nestor Machinery Equipment Co , Ltd. ,founded in 1980. It is located in the West Development Zone of Gongyi city with convenient, transportation, well-equipped enterprises, high-quality employees. Our factory is engaged in mineral processing equipment research, design, production for forty years. Our products are exported all over the world.
We produce various types of ball mills, crushers, wet mills, magnetic separators, classifiers, flotation machines and other
mineral processing equipment, mainly used for gold, silver, lead, zinc, iron, molybdenum, antimony and other ore selection. We also produce Impact crusher, Hydraulic cone crusher, Heavy hammer crusher, Rotary crusher, Compound crusher, Double shaft shredder, Mobile crushing station, Ball mill, Sand-making and sand-washing equipment, fine sand recycling machine, belt conveyor, vibrating screen, dryer, rotary kiln, cement brick machine, etc. . And we also undertake the complete set of stone sand production lines, mineral processing production lines and mineral separation production line. Our products are qualified by State Mine Machinery Quality Supervision and Inspection Center.
We produce various types of ball mills, crushers, wet mills, magnetic separators, classifiers, flotation machines and other
mineral processing equipment, mainly used for gold, silver, lead, zinc, iron, molybdenum, antimony and other ore selection. We also produce Impact crusher, Hydraulic cone crusher, Heavy hammer crusher, Rotary crusher, Compound crusher, Double shaft shredder, Mobile crushing station, Ball mill, Sand-making and sand-washing equipment, fine sand recycling machine, belt conveyor, vibrating screen, dryer, rotary kiln, cement brick machine, etc. . And we also undertake the complete set of stone sand production lines, mineral processing production lines and mineral separation production line. Our products are qualified by State Mine Machinery Quality Supervision and Inspection Center.

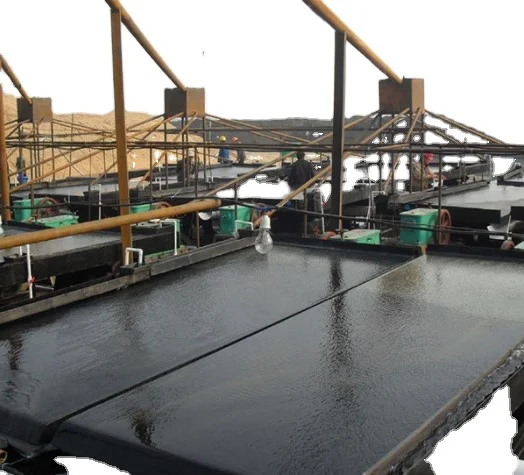

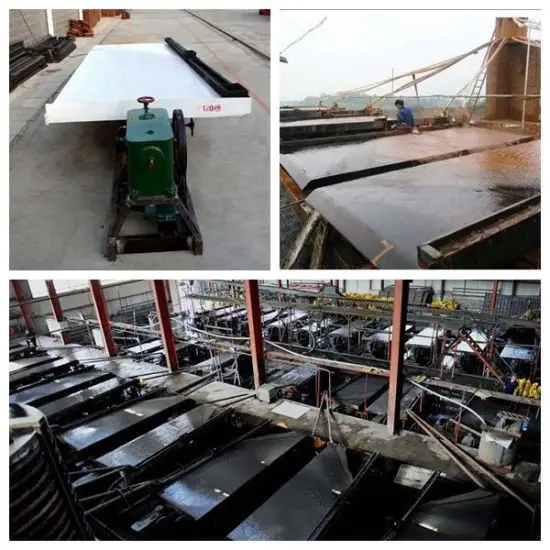

Customer Photos
Some customers visit shows
Our products were selled to all of the world, main markets are Sudan, Egypt, USA, Canada, Peru, MTN, Kongkong and so on.
FAQ
Q1: Are you fatory or trade company?
A1: We are factory in China .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3.Our senior engineer will supply installation and training service on-line or on-site .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China.
Q5: What about after -sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us, leave your whatsapp and email , our sales manager will contact you within 1 hours.
A1: We are factory in China .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3.Our senior engineer will supply installation and training service on-line or on-site .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China.
Q5: What about after -sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us, leave your whatsapp and email , our sales manager will contact you within 1 hours.
Похожие товары
Минеральная отдельные Добыча Золота виброплощадке, горнодобывающего оборудования
1 260,00 $
Новинка кВт 1 кВт 1 т/ч низкая цена золотой встряхивающий стол для продажи цена VOSTOSUN
1 600,00 $ - 1 800,00 $

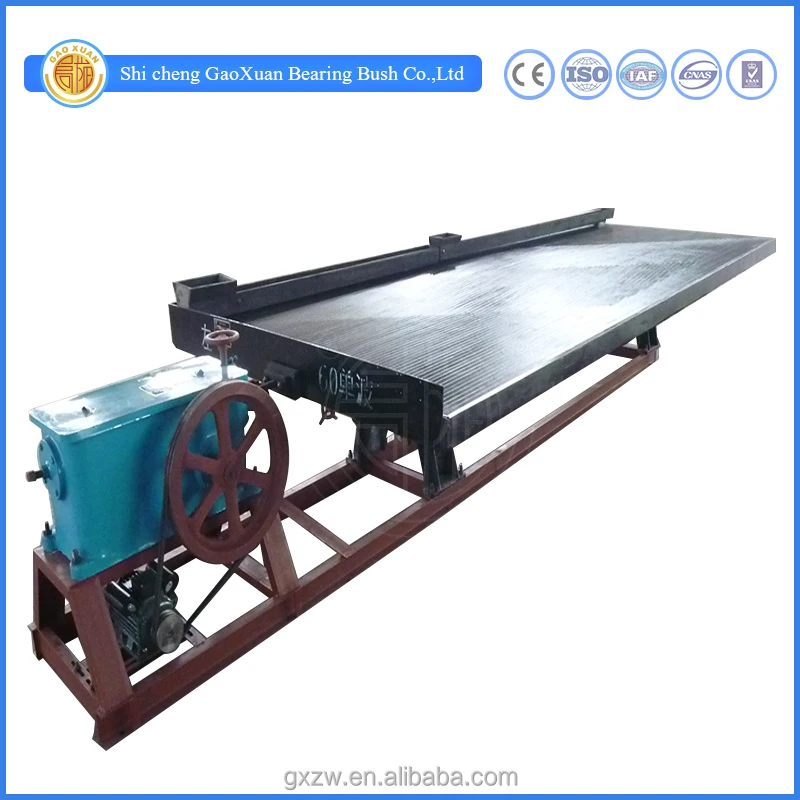

Китай высокопроизводительный гравитационный сепаратор встряхивающий стол 6-S для продажи
