Мини станок для лазерной резки из закаленного стекла 5060 co2

Сохранить в закладки 10000004928715:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

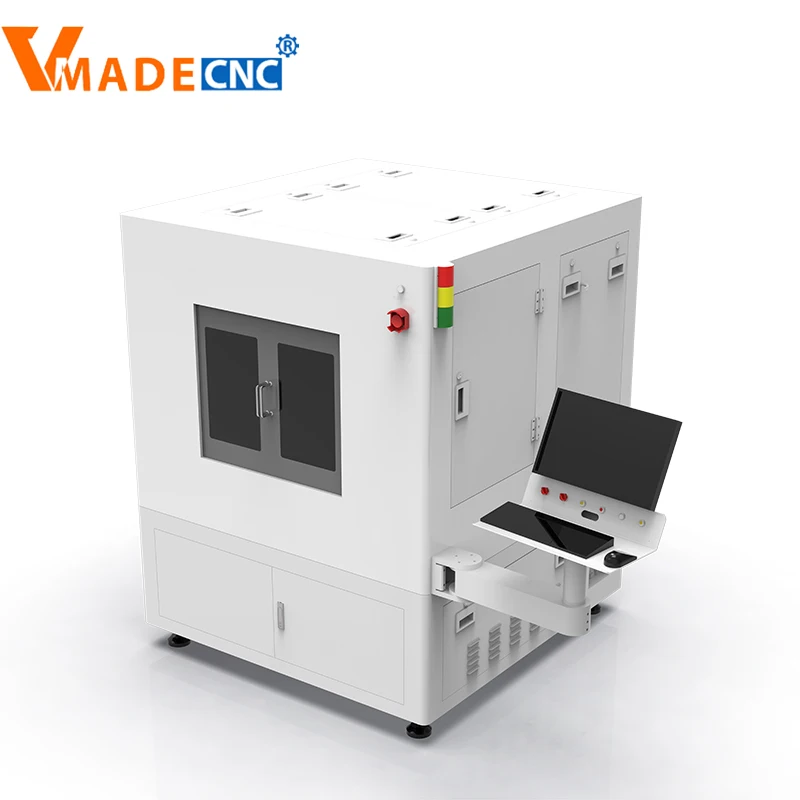

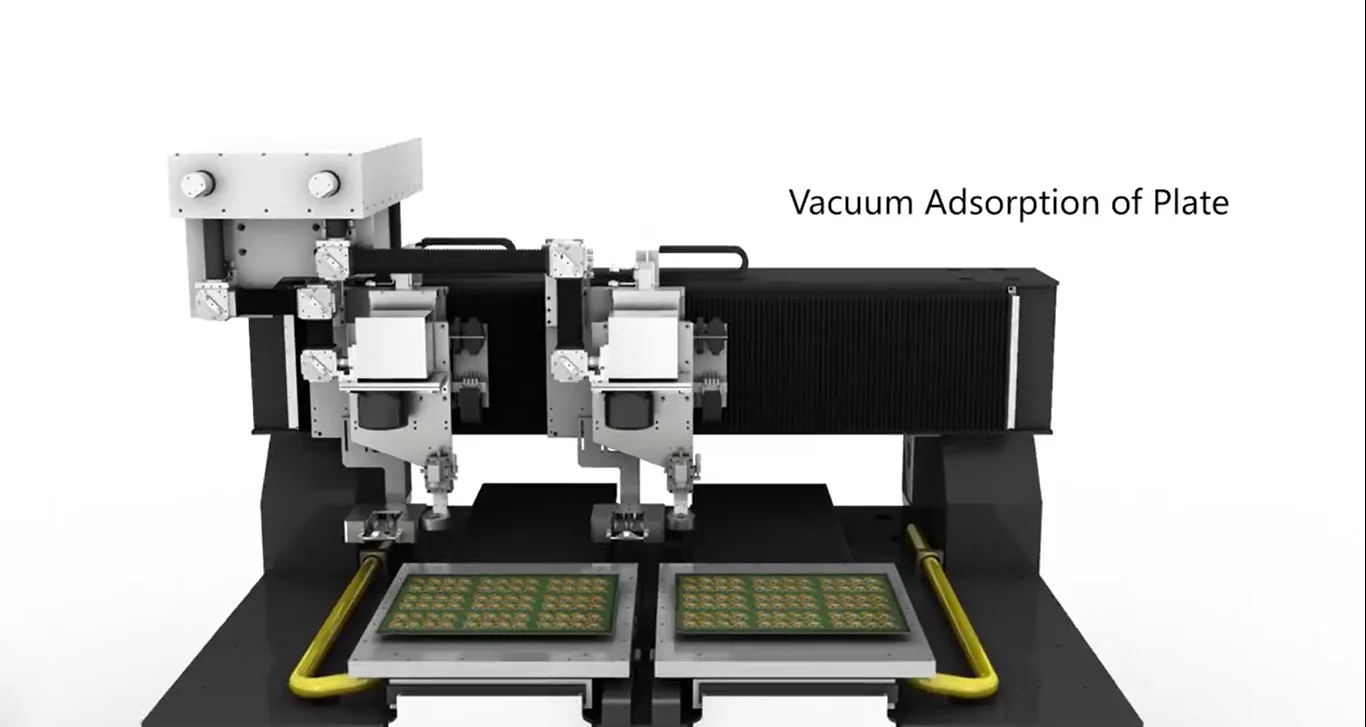

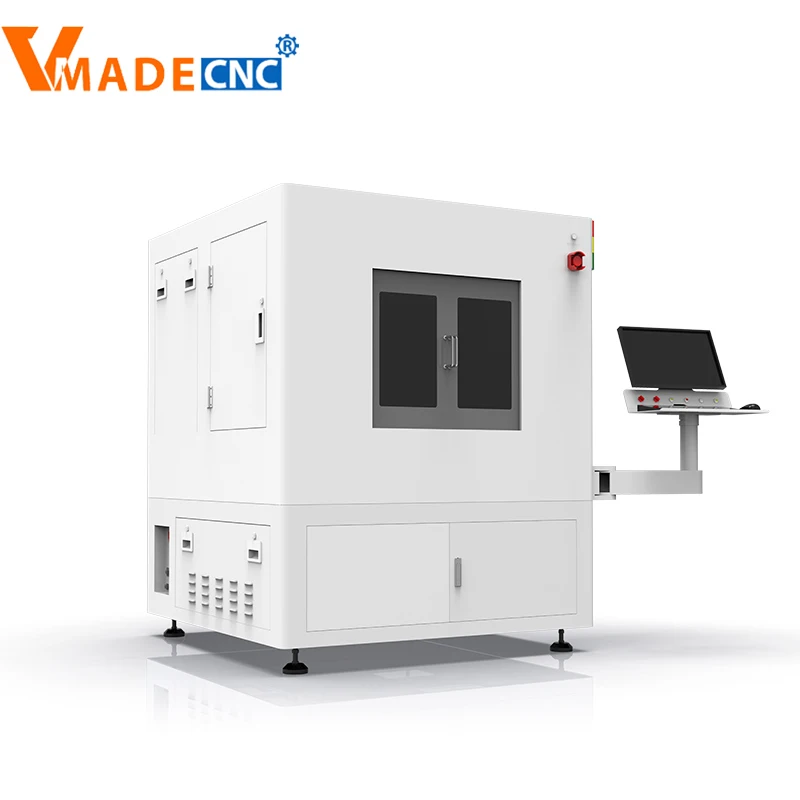

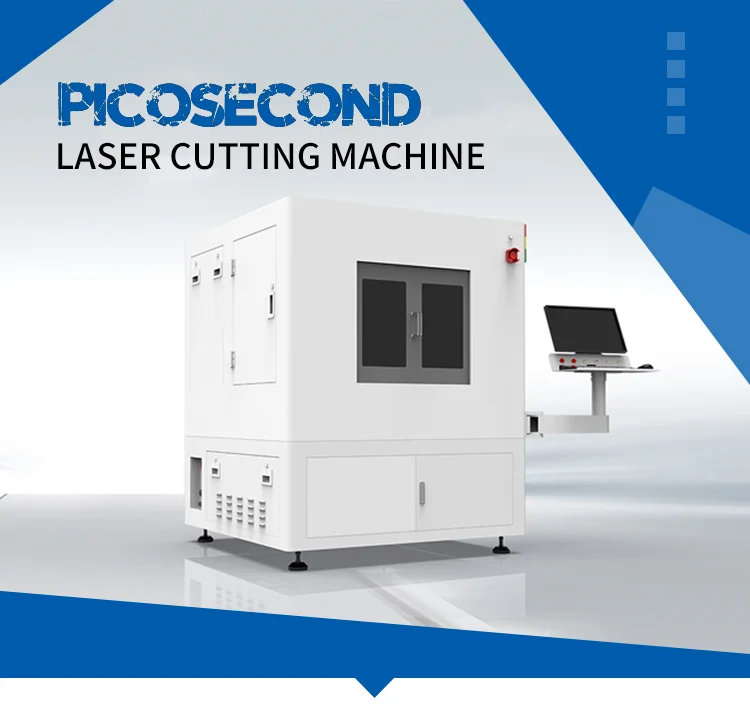

                           Picosecond cutting Machine


Product discription

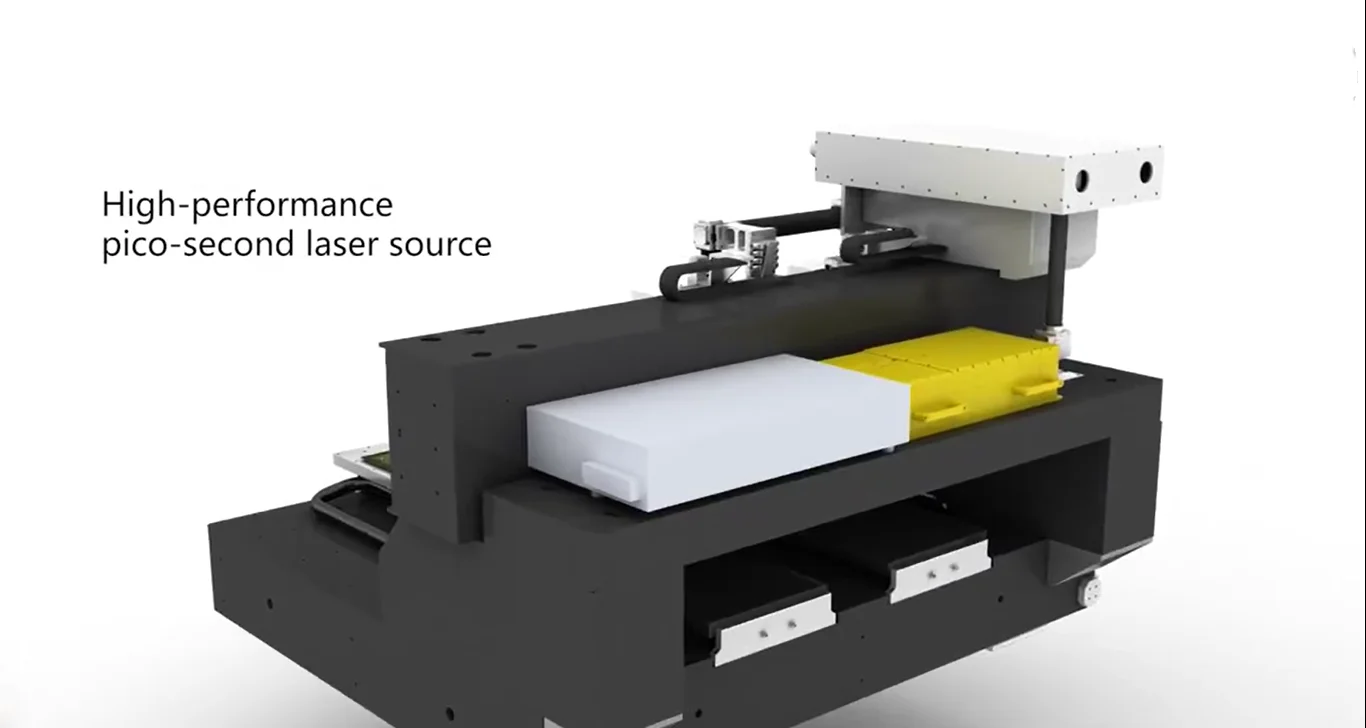

Adopted Picosecond IR Ultra-fast Lasers are robust and affordable, it produces high energy pulses with durations below 10 ps. The laser is based on a hybrid optical amplier architecture that combines the advantages of fiber laser technology with solid state diode pumped multi-pass ampliers. Compact and water-cooled, this laser is low maintenance and never needs realignment. With burst mode optional, it could be suitable for variety applications with low cost!





1


BL6050_02BL6050_03BL6050_04





Paramter


























































Machine model



BL6050



Laser source power



30W 50W 70W



Machine structure



X,Y,Z Marble Table



Max. stroke



600mm*500mm*100mm



Re-positioning accuracy of motion platform



±1um



positioning accuracy of motion platform



±2um



Supported files



DXF,PLT,DWG



CCD Vision positioning accuracy



±3um



Laser source wavelength



1064nm



Beam quality



M²<1.3



Minimum focus spot



∅3um



Cooling type



Constant temperature water cooling



Processing speed



0-500mm/s adjustable






 Samples



paste-pic-dp_uuid_k8qpn













2 (2)



contact details





Please tell us what you need
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ?





If you have any questions, Please contact


Whatsapp /wehcat : + 86 18769725653
