Сертифицированный синхронный гидравлический цилиндр двойного действия 200 тонн 400 500 800 1000 для перемещения
- Категория: Tools & Hardware >>>
- Поставщик: Gaode Equipment Co. Ltd.
Сохранить в закладки 10000004975563:
Описание и отзывы
Характеристики

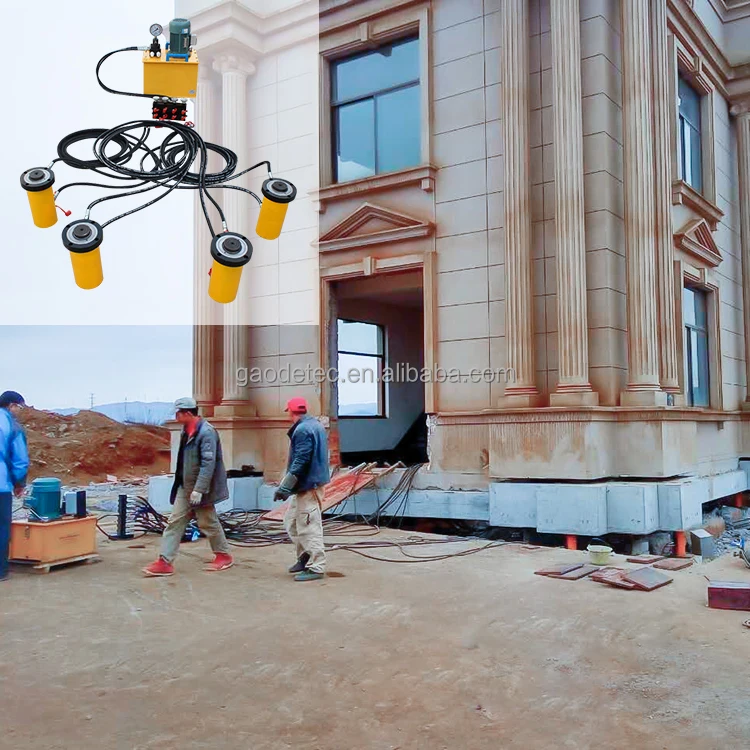

Synchronized jacks to move buildings
Moving a house with synchronized jacks requires some expertise and experience, the following are the general steps:
1. Determine the removal route and destination, as well as the weight and dimensions of the building that needs to be moved.
2. Get all the necessary tools and equipment ready, including synchronized jacks, planks, steel pipes, ropes, safety belts, gloves and hard hats, etc.
3. Install synchronized jacks on the four corners of the building, making sure they are firmly anchored to the ground.
4. Install planks and steel pipes on the synchronized jacks to support the building and make sure they are securely fastened to the synchronized jacks.
5. Use ropes to secure the building to synchronized jacks to ensure it doesn't move or tip.
6. Start slowly moving the sync jack up and down so that the building slowly moves to its destination.
7. During the movement, the stability and balance of the building need to be constantly checked and necessary adjustments and corrections made.
8. When the building reaches its destination, it needs to be carefully placed on the ground, with supports to ensure its stability.
9. Finally, it is necessary to dismantle the synchronous jacks and supports, and carry out cleaning and finishing work to ensure the safety and tidiness of the site.
It should be noted that the use of synchronous jacks to move buildings requires professional skills and experience, and unskilled operation may lead to serious safety accidents, so it is recommended to seek the help of a professional moving company.
1. Determine the removal route and destination, as well as the weight and dimensions of the building that needs to be moved.
2. Get all the necessary tools and equipment ready, including synchronized jacks, planks, steel pipes, ropes, safety belts, gloves and hard hats, etc.
3. Install synchronized jacks on the four corners of the building, making sure they are firmly anchored to the ground.
4. Install planks and steel pipes on the synchronized jacks to support the building and make sure they are securely fastened to the synchronized jacks.
5. Use ropes to secure the building to synchronized jacks to ensure it doesn't move or tip.
6. Start slowly moving the sync jack up and down so that the building slowly moves to its destination.
7. During the movement, the stability and balance of the building need to be constantly checked and necessary adjustments and corrections made.
8. When the building reaches its destination, it needs to be carefully placed on the ground, with supports to ensure its stability.
9. Finally, it is necessary to dismantle the synchronous jacks and supports, and carry out cleaning and finishing work to ensure the safety and tidiness of the site.
It should be noted that the use of synchronous jacks to move buildings requires professional skills and experience, and unskilled operation may lead to serious safety accidents, so it is recommended to seek the help of a professional moving company.
Products Description

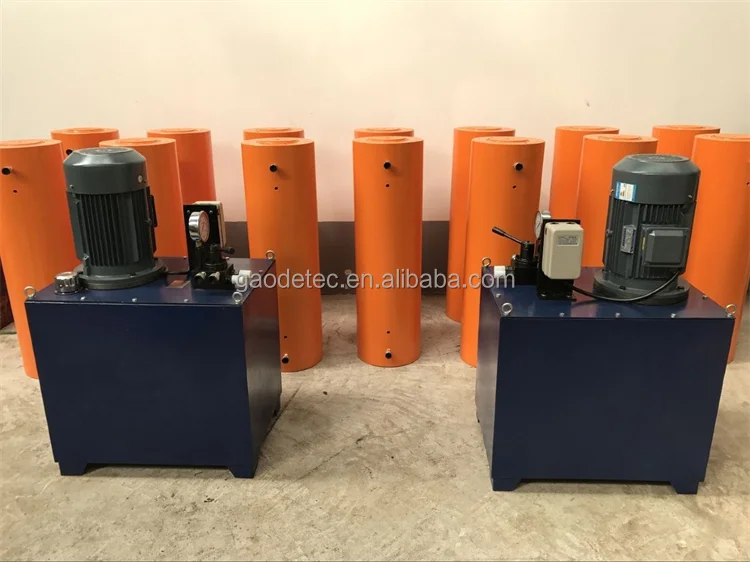

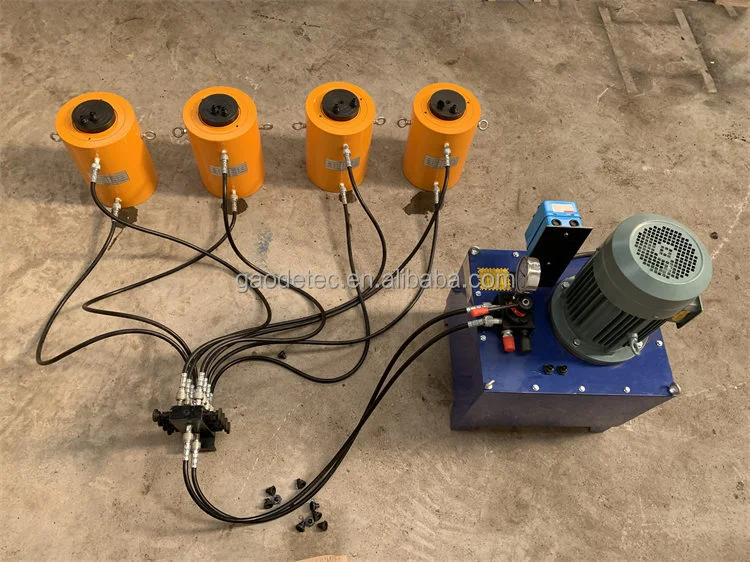

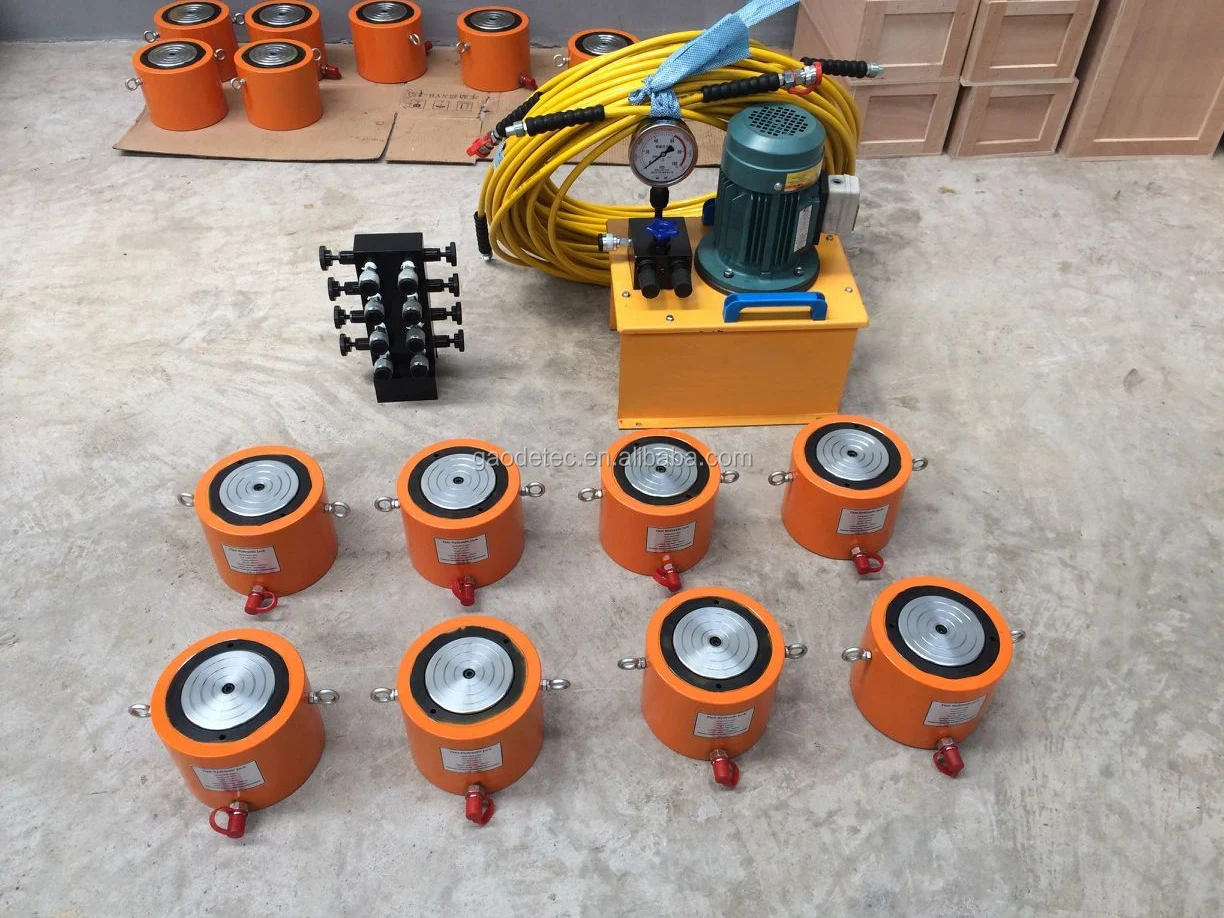

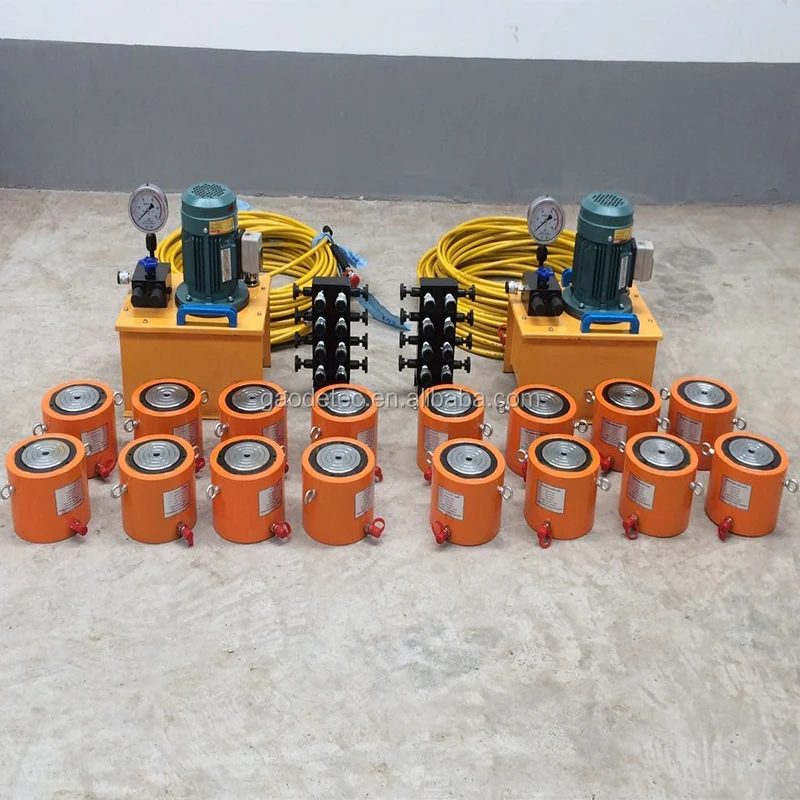

Description of synchronous control hydraulic jack
Synchronous control hydraulic jack can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment.
1. High pressure synchronous control hydraulic jack is powered by ZB series of high pressure electric oil pump, the function for oil pressure rebound, overflow.
2. The synchronous jack is equipped with a safety protection supercharger to protect against emergency overpressure. The special structure design can protect the oil cylinder.3. Hydraulic cylinder can bear partial loading is 5% of rated pressure.
Product parameters
Model | Tonnage T | Stroke mm | Closed height mm | Extend height mm | Outer diameter of oil cylinder mm | Dimension of plunger mm | Dimension of oil pump mm |
STQ50 | 50 | 100-500 | 225-625 | 325-1125 | 127 | 70 | 100 |
STQ100 | 100 | 100-500 | 250-650 | 350-1150 | 180 | 100 | 140 |
STQ150 | 150 | 100-500 | 260-660 | 360-1160 | 219 | 125 | 180 |
STQ200 | 200 | 100-500 | 285-685 | 385-1185 | 240 | 150 | 200 |
STQ320 | 320 | 100-500 | 310-710 | 410-1210 | 330 | 180 | 250 |
Model | Tonnage T | Stroke mm | Closed height mm | Extend height mm | Outer diameter of oil cylinder mm | Dimension of plunger mm | Dimension of oil pump mm |
STQ400 | 400 | 100-500 | 355-755 | 455-1255 | 380 | 200 | 290 |
STQ500 | 500 | 100-500 | 360-760 | 460-1260 | 430 | 200 | 320 |
STQ630 | 630 | 100-500 | 417-817 | 517-1317 | 500 | 250 | 360 |
STQ800 | 800 | 100-500 | 488-898 | 588-1398 | 560 | 300 | 400 |
STQ1000 | 1000 | 100-300 | 530-760 | 630-1060 | 600 | 320 | 450 |
All the tonnage, stroke, height can be customized according to client’s requirements, we will supply the best quality and serve. Our warranty period is 2 years.
Application

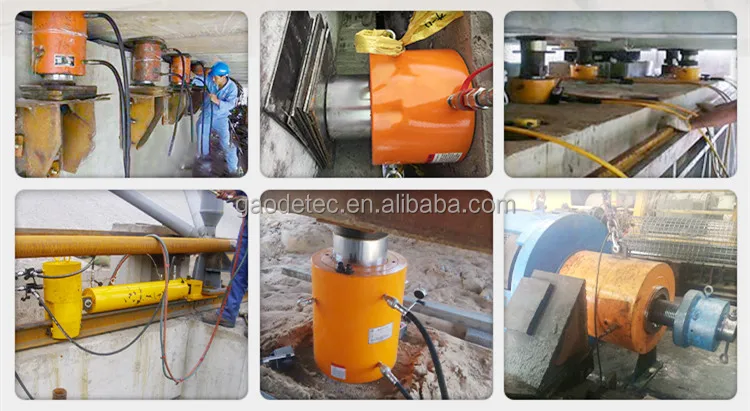

Application of synchronous control hydraulic jack
1. Lifting Bridge, pushing tunnel;
2. Installing and debugging heavy equipment;
3. Lifting ship body, install or disassemble propeller, and install main machine;
4. Lifting or moving existing buildings;
5. Lifting and measuring drilling platform;
6. The synchronous press machine, horizontally move load, etc.
2. Installing and debugging heavy equipment;
3. Lifting ship body, install or disassemble propeller, and install main machine;
4. Lifting or moving existing buildings;
5. Lifting and measuring drilling platform;
6. The synchronous press machine, horizontally move load, etc.
Feature
Features of synchronous control hydraulic jack
1. High pressure alloy cylinder is very durable, especially in the larger project.
2. It is easily to be operated and control.
3. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.
3. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.
Related Product
How to choose suitable hydraulic jack?
1. If you need large capacity works and piston return, you could choose large tonnage double acting hydraulic jack (50-2000 tons).
2. You could choose double acting hollow jack when you need to go through pc strand, steel wire or anchors (50-2000 tons).
3. If you want to install jack on the some working platforms, you need a flange type hydraulic jack (10-630 tons).
4. Single acting hydraulic jack is used for smaller tonnage and stroke works (10-100 tons).
5. Matching with special tool to go through cable or rabar, you could choose single acting hydraulic hollow jack (12-100 tons).
6.Single acting hydraulic jack with lock nut can be used for long time keep pressure work site (55-200 tons).
7. Ultra thin hydraulic jack is used for narrow work space (10-200 tons).
8. Electric oil pump is matched with kinds of hydraulic jacks, it has double acting and single acting for options.

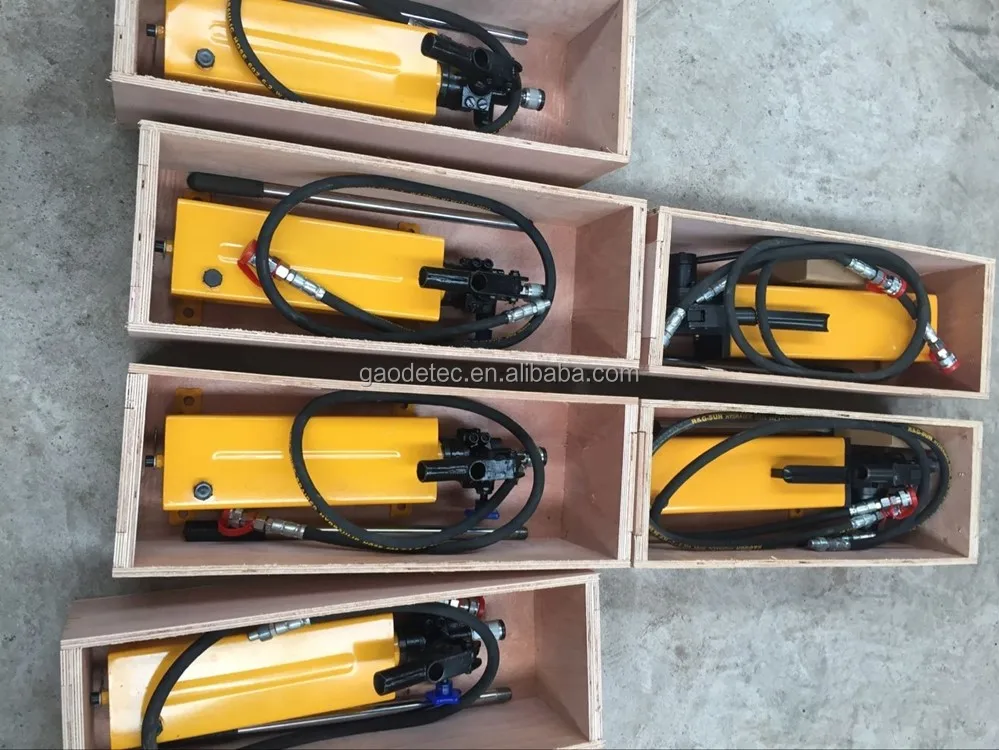

9. Hydraulic hand pump is also used for matching with hydraulic jack, clients don’t have requirement for work efficiency.
All the tonnage, stroke, height can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.
2. You could choose double acting hollow jack when you need to go through pc strand, steel wire or anchors (50-2000 tons).
3. If you want to install jack on the some working platforms, you need a flange type hydraulic jack (10-630 tons).
4. Single acting hydraulic jack is used for smaller tonnage and stroke works (10-100 tons).
5. Matching with special tool to go through cable or rabar, you could choose single acting hydraulic hollow jack (12-100 tons).
6.Single acting hydraulic jack with lock nut can be used for long time keep pressure work site (55-200 tons).
7. Ultra thin hydraulic jack is used for narrow work space (10-200 tons).
8. Electric oil pump is matched with kinds of hydraulic jacks, it has double acting and single acting for options.
9. Hydraulic hand pump is also used for matching with hydraulic jack, clients don’t have requirement for work efficiency.
All the tonnage, stroke, height can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.

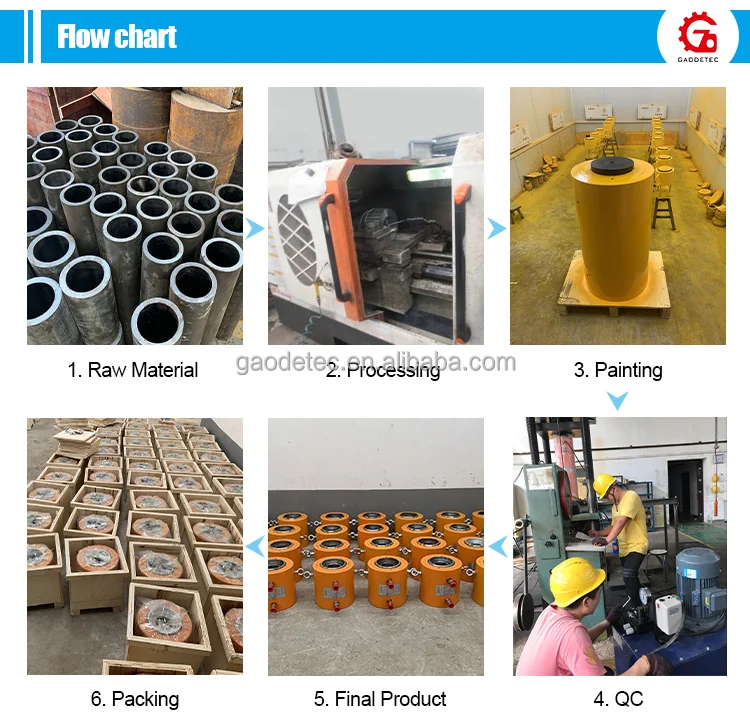

Production Process

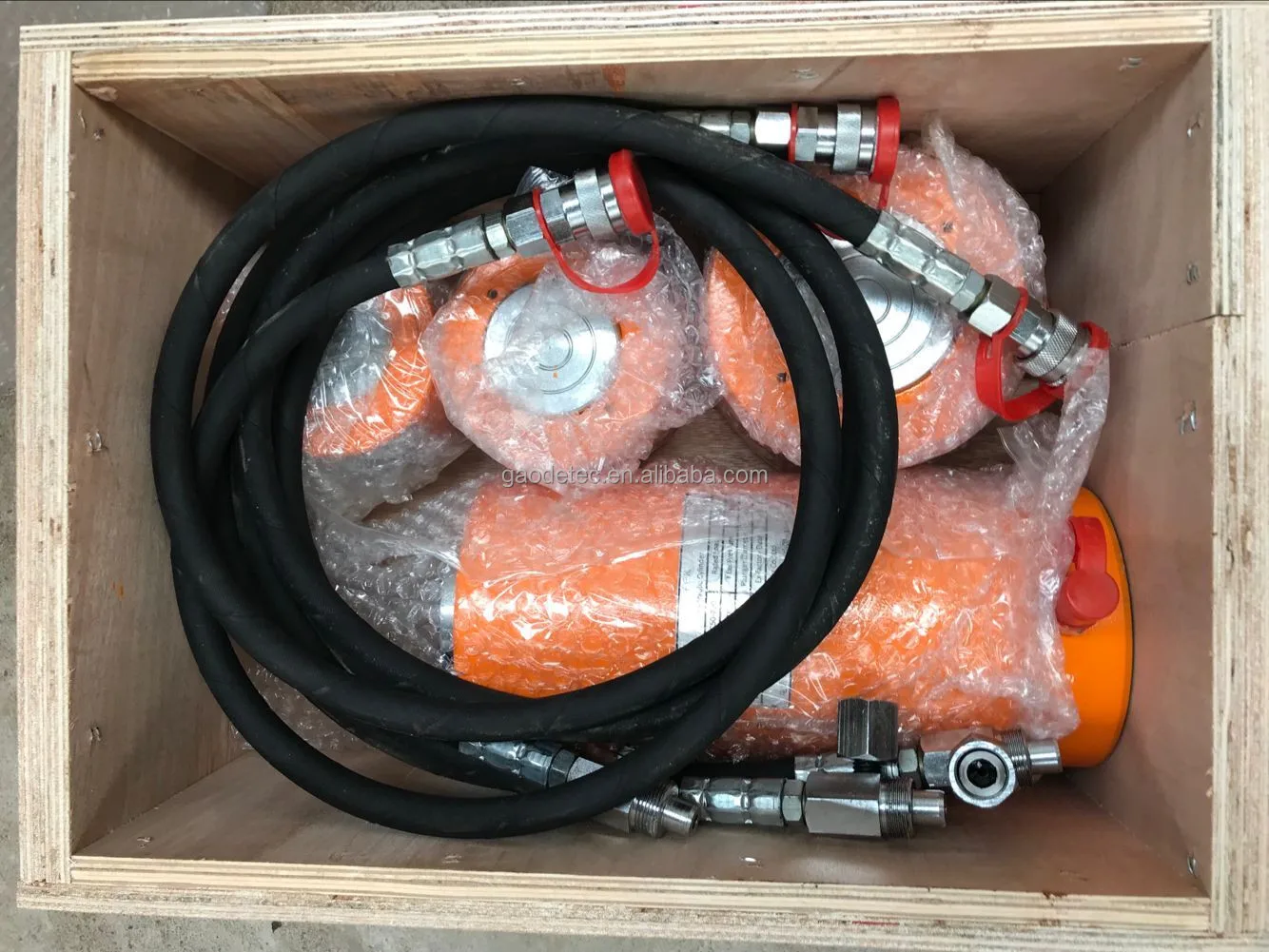

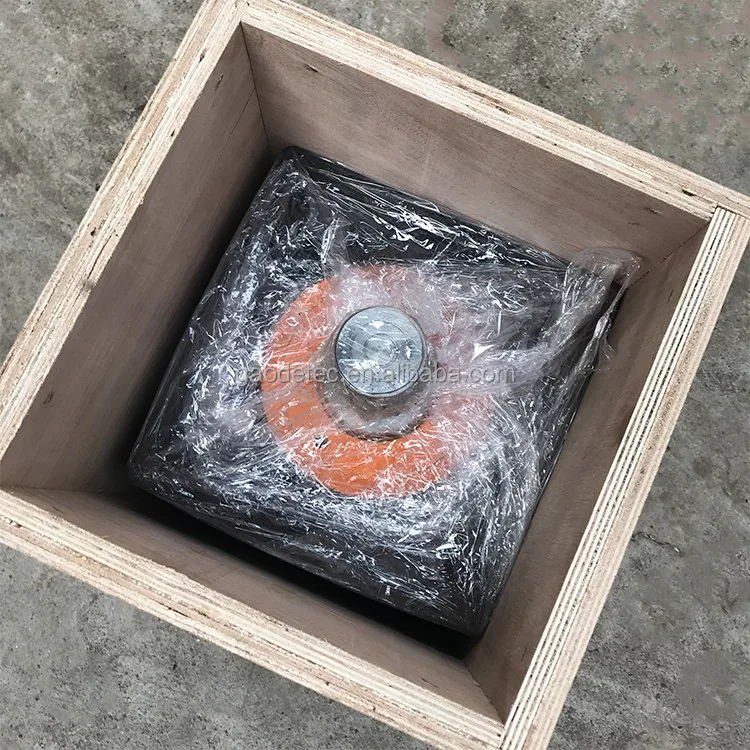

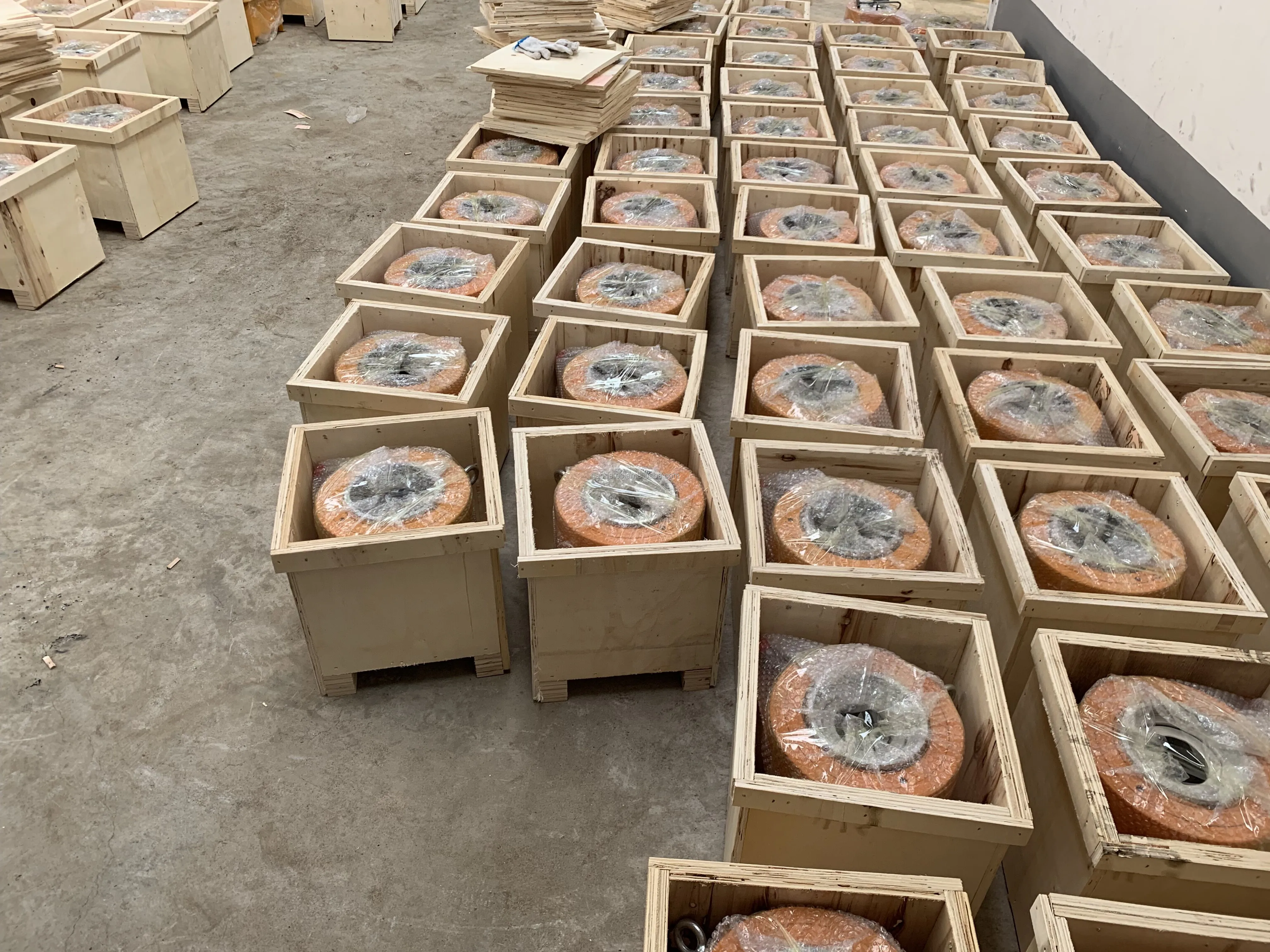

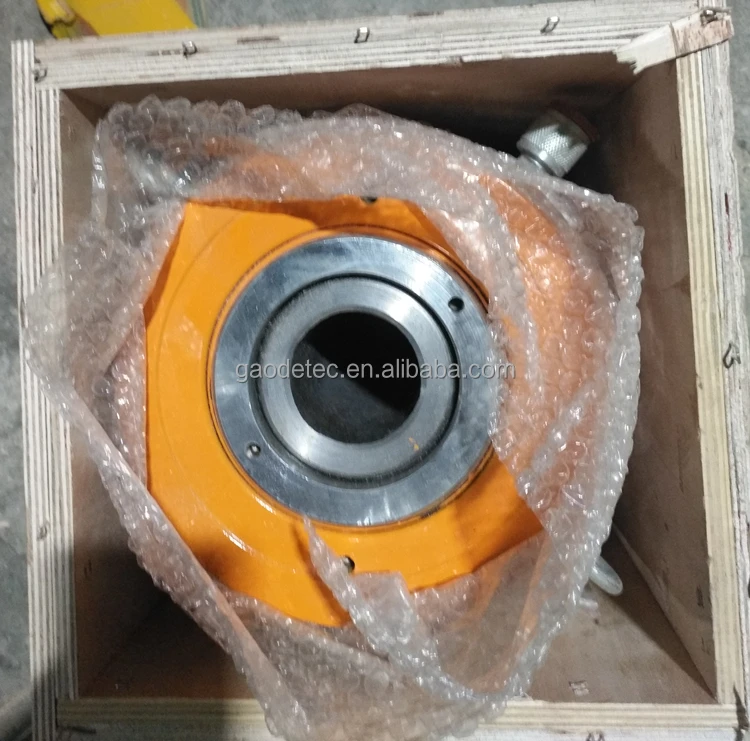

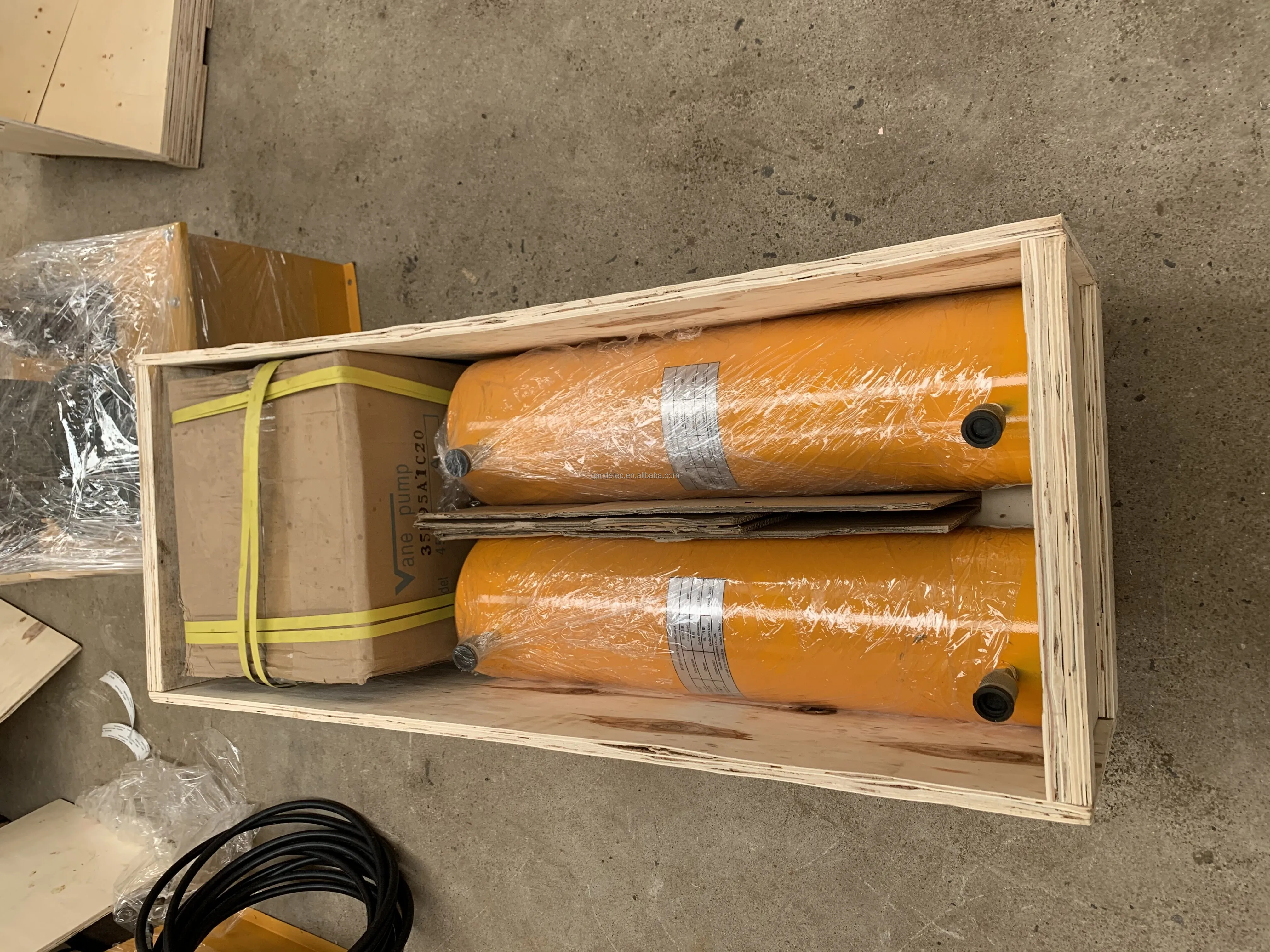

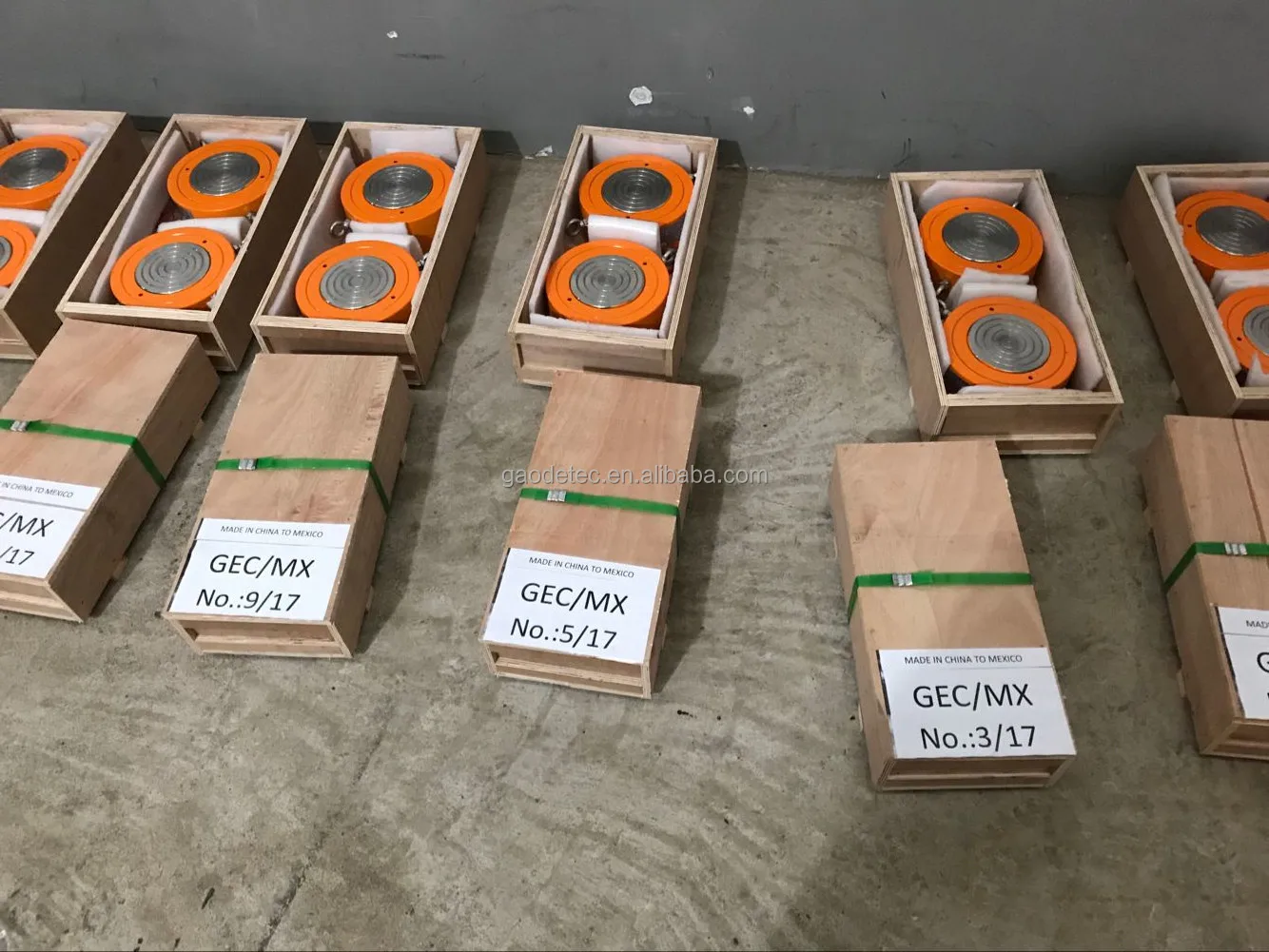

Packaging&Shipping
Company Profile
Contact Us
Contact us for price
Before we send quotation, please let me know the following question:
1. What is the tonnage and stroke do you need? We could customize as per your requirement.
2. Do you need single acting or double acting? Hollow or solid?
3. Do you need electric pump for the jack? If you need, what's the voltage in your local?
2. Do you need single acting or double acting? Hollow or solid?
3. Do you need electric pump for the jack? If you need, what's the voltage in your local?
Похожие товары
Набор щеток из витой стальной проволоки и кружек, 9 шт., с латунным покрытием, Набор щеток для чашек, 1/4 дюйма, набор железная проволока с хвостовиком
108,44 ₽ - 195,19 ₽
Высококачественная пила для резки стали, высокоскоростная пила 12 дюймов 300 мм, ножовка с двухметаллическим лезвием и алюминиевой ручкой
494,47 ₽ - 528,09 ₽
Электрический и дизельный и гидравлический двигатель BW250, буровой грязевой насос
195 184,62 ₽ - 216 871,80 ₽
4 дюйма, 1,5 л.с., 220 В переменного тока, электрический скважинный глубокий погружной водяной насос bomba de agua sumergible 3 л.с. для орошения
7 156,77 ₽ - 7 807,39 ₽
Высококачественный стетоскоп чехол с разделителем и отделением для удостоверения личности для 3 м Littmann Classic III с карманом для медсестры аксессуары 7 видов цветов
271,09 ₽ - 314,47 ₽

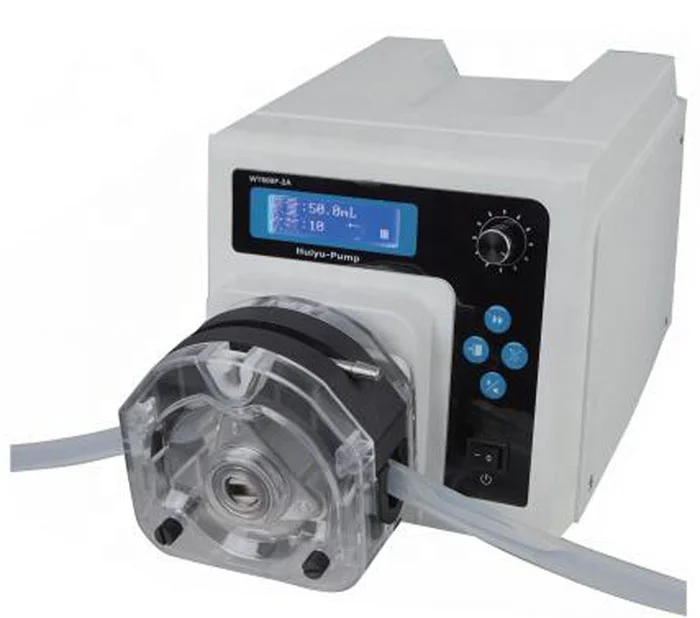

Rs485 отказаться от перистальтический насос WT600F-2A для разлива
