Машина для экструдирования филамента 3D принтера производственная линия производства PLA PETG ABS TPU TPE Polycarbonate PA nylon 3D
- Категория: >>>
- Поставщик: Hunan Yasin Technology Co. Ltd.
Сохранить в закладки 10000005640184:
Описание и отзывы
Характеристики
Product Description

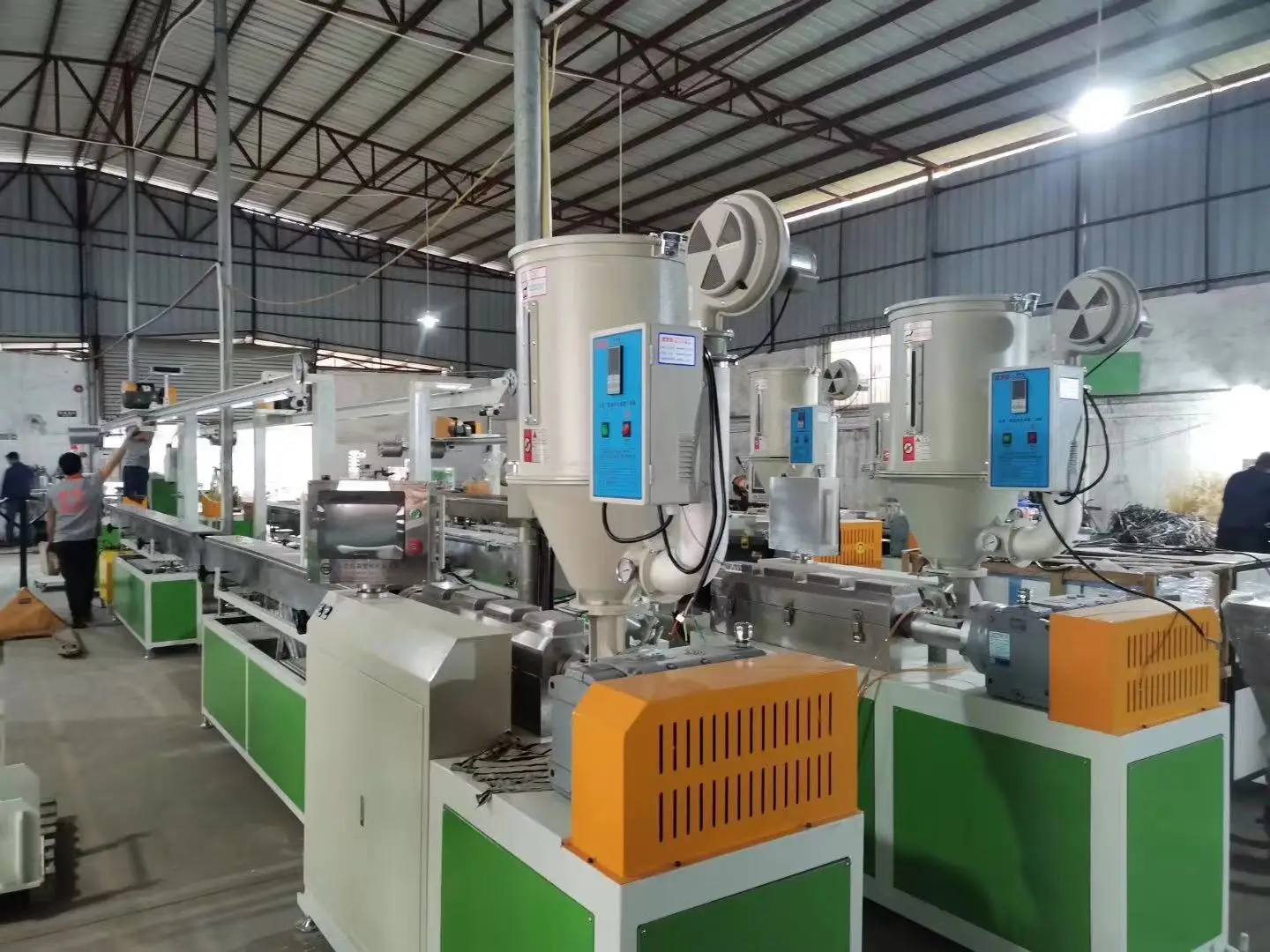

Work Flow of the Extrusion Line：
100KG Mixer Machine →50KG Hopper Dryer→ 45 Single Screw Extruder → 3D Extrusion Die Head →2.5m Stainless Steel Warm Water Trough
with Water Circulation Tank→4m Stainless Steel Water Cooling Trough →Laser Gauge Online→Haul-off Machine→Horizontal Accumulator
Machine→Double Station Winding Machine → Vacuum Packing Machine
Remarks: red color characters are auxiliary machines. Price in the 5-6pages
1. Application：

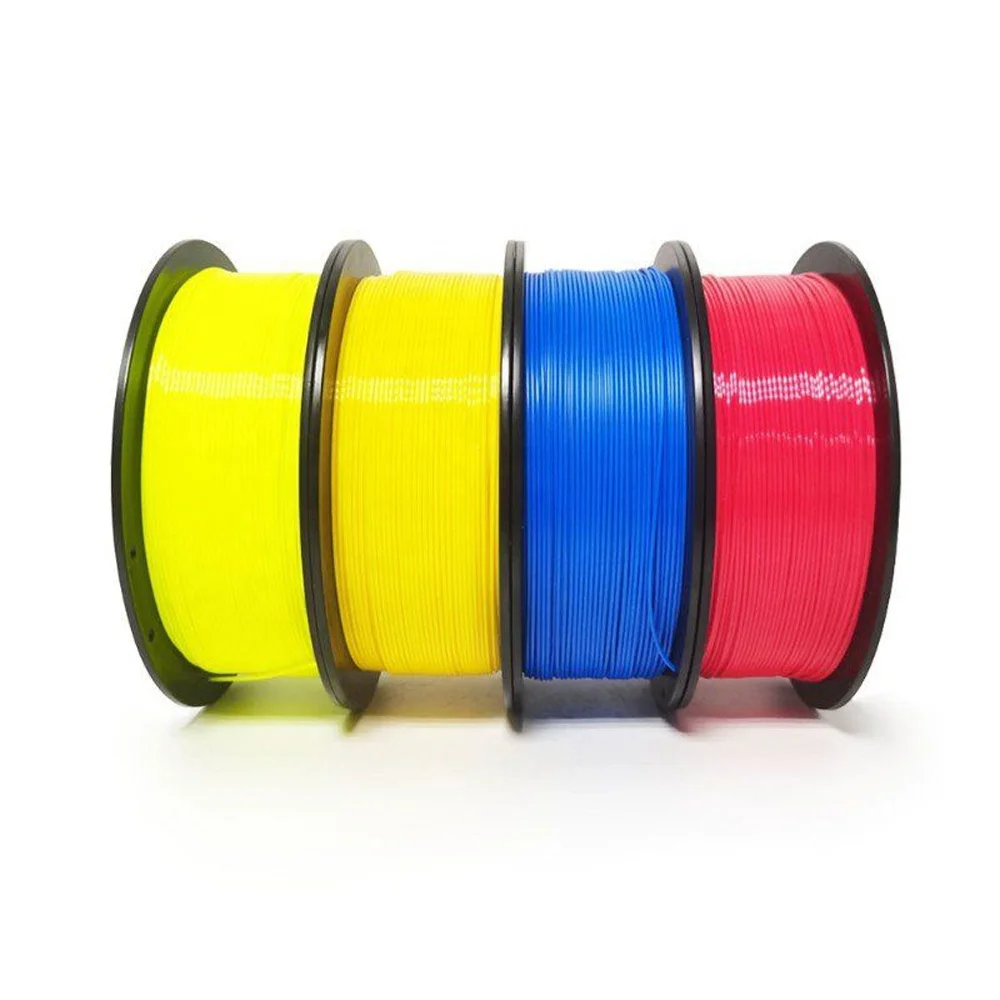

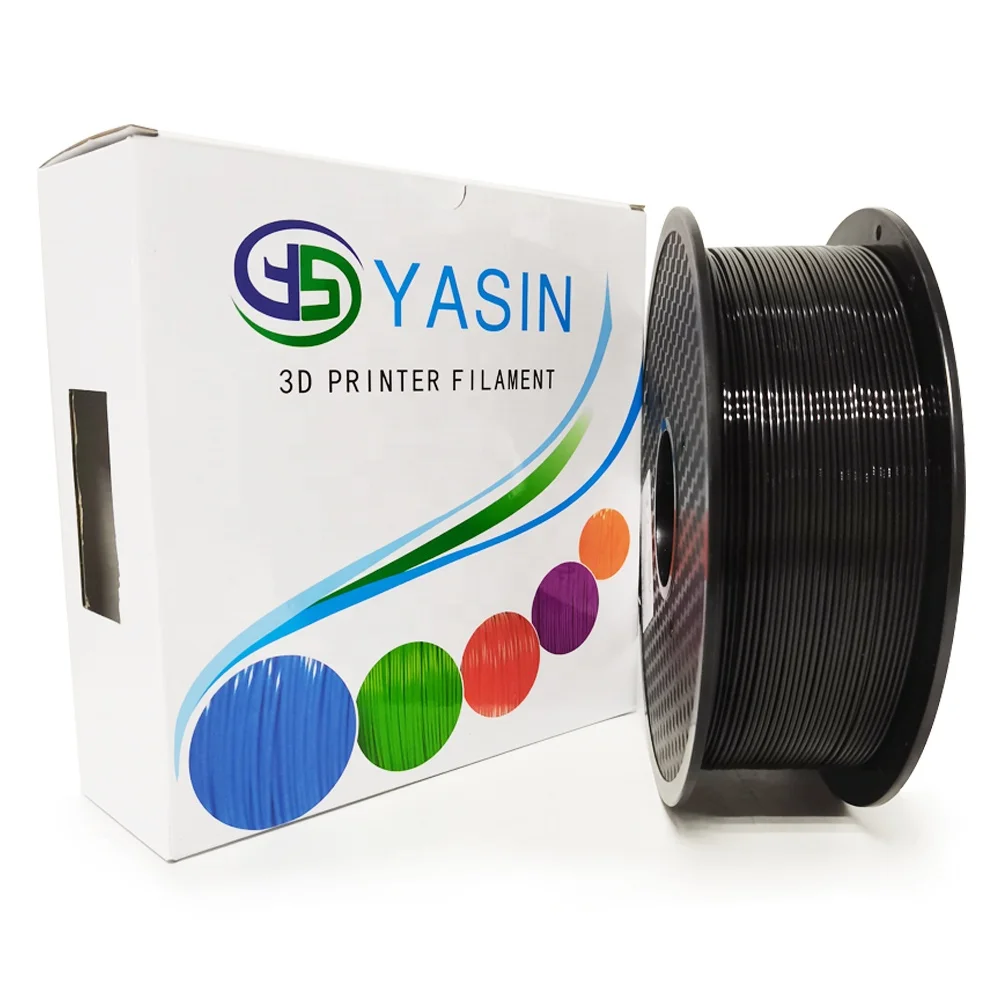

3D filament mainly used for 3D Printer.
The Filament Extruder Machine used to manufacture: 1.75mm, 3.00mm ABS/PLA/PA/HIPS/PET 3D filament.
100KG Mixer Machine →50KG Hopper Dryer→ 45 Single Screw Extruder → 3D Extrusion Die Head →2.5m Stainless Steel Warm Water Trough
with Water Circulation Tank→4m Stainless Steel Water Cooling Trough →Laser Gauge Online→Haul-off Machine→Horizontal Accumulator
Machine→Double Station Winding Machine → Vacuum Packing Machine
Remarks: red color characters are auxiliary machines. Price in the 5-6pages
1. Application：
3D filament mainly used for 3D Printer.
The Filament Extruder Machine used to manufacture: 1.75mm, 3.00mm ABS/PLA/PA/HIPS/PET 3D filament.
Specification
No | Item | Specification | QTY/Set | Remarks |
1 | ¢45mm 3D Printer Filament Extrusion Line | 1.75-3.0mm | 1 | 12-20kg/Hrs |

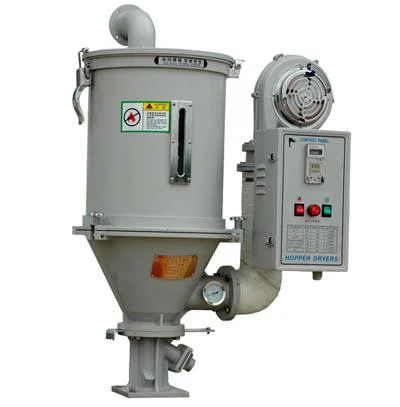

2 | 50KG Hopper Dryer | 50KGS | 1 | |
3 | 45 Single Screw Extruder | Φ45*28D | 1 | |
4 | 3D extrusion Die Head | 1.75-3.0mm | 1 | |
5 | Stainless steel warm water trough | 2.5M | 1 | |
6 | Stainless steel water cooling trough | 4M | 1 | |
7 | Haul-off Unit | Full-Roll | 1 | |
8 | Laser Gauge Online | 1 | Single axis | |
9 | Horizontal Accumulator | 8M | 1 | |
10 | Double-station Winding Machine | Standard |

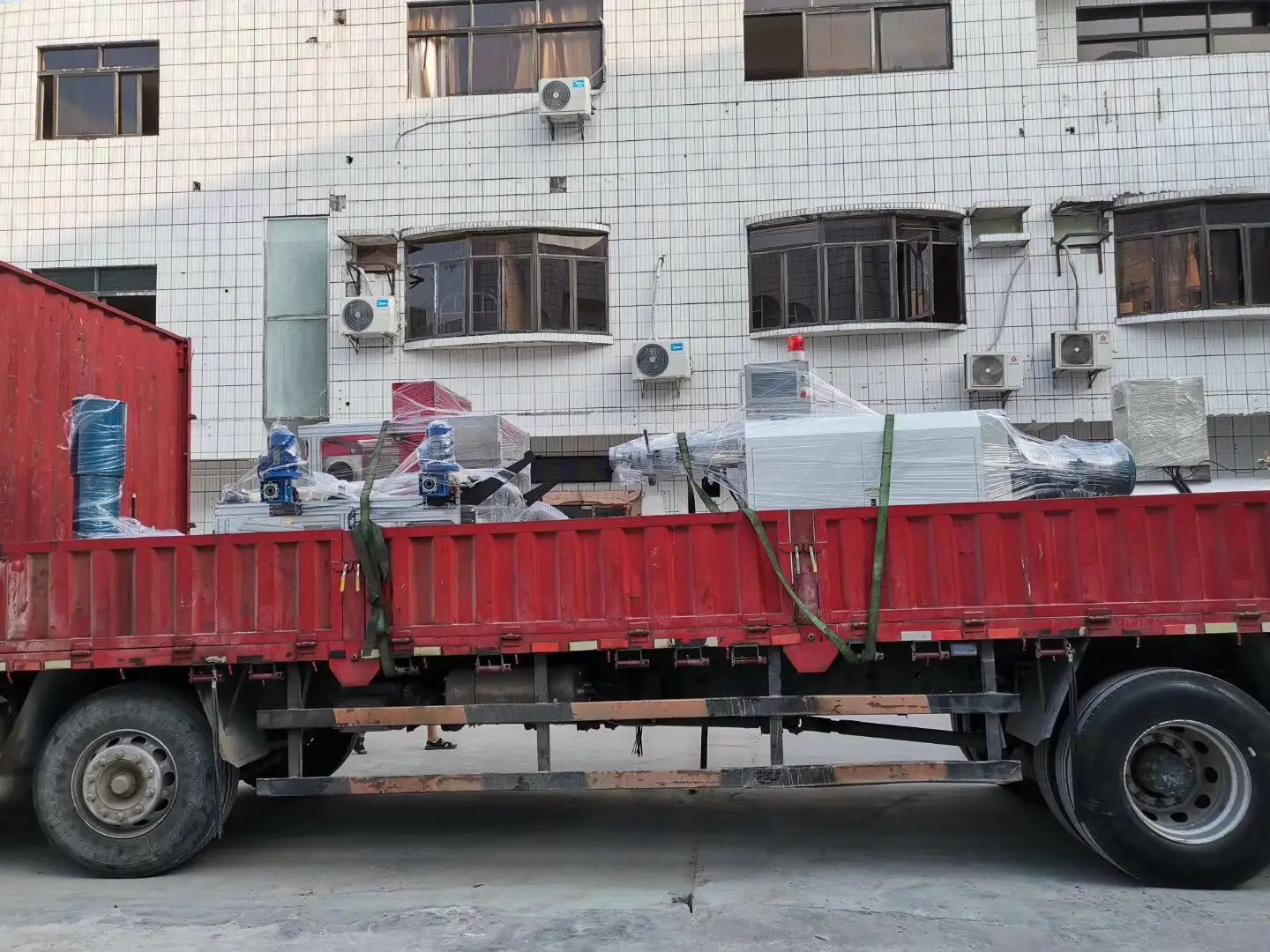

Packing & Delivery
3. Main Technical Parameters：
3.1 Screw Diameter：45mm
3.2 L/D: 28:1;
3.3 Screw Rated Speed: 0-90rpm (adjustable)
3.4 Capacity: 10-15kg/hr;
3.5 Center-Height: 1000mm±50mm
3.6 Motor (AC): variable frequency motor
3.7 Main Motor Power: 11kw
3.8 Inverter: Delta (Taiwan)
3.9 Temperature-controlled Meter: High precision master temperature controlled meter, Tolerance: ±1 centigrade degree.
3.10 Dimension of the line: about12000mm*1200mm*2050mm
3.11 Tri-phase Voltage: 450V/60 Hz (can be customized)
3.12 Start Power of the line：40kw
3.14 Tolerance: ±0.05mm
3.15 Package: wrapped by film, 1*20GP container
3.1 Screw Diameter：45mm
3.2 L/D: 28:1;
3.3 Screw Rated Speed: 0-90rpm (adjustable)
3.4 Capacity: 10-15kg/hr;
3.5 Center-Height: 1000mm±50mm
3.6 Motor (AC): variable frequency motor
3.7 Main Motor Power: 11kw
3.8 Inverter: Delta (Taiwan)
3.9 Temperature-controlled Meter: High precision master temperature controlled meter, Tolerance: ±1 centigrade degree.
3.10 Dimension of the line: about12000mm*1200mm*2050mm
3.11 Tri-phase Voltage: 450V/60 Hz (can be customized)
3.12 Start Power of the line：40kw
3.14 Tolerance: ±0.05mm
3.15 Package: wrapped by film, 1*20GP container

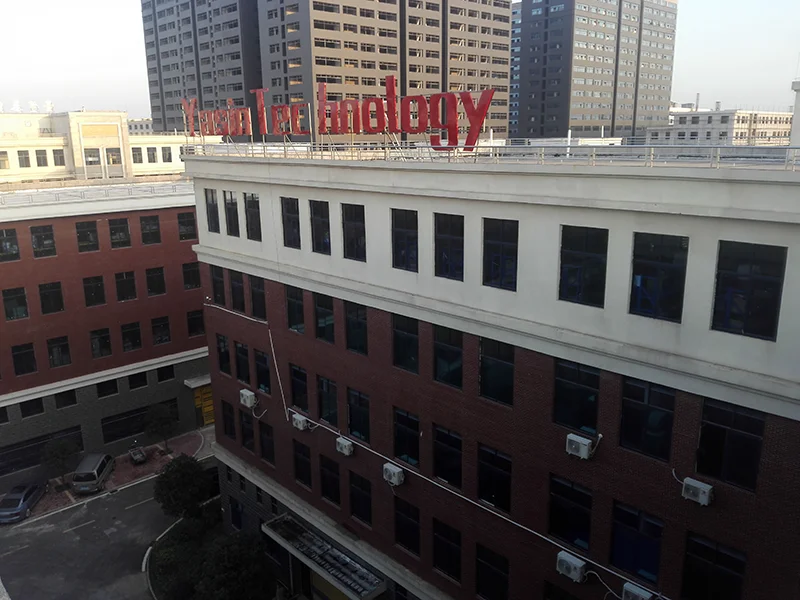

Company Profile
Φ45mm Single Screw Extruder : One set
Screw Diameter: 45mm
L/D: 28:1
Screw Material: 38CrMoALA Nitriding Chrome plated, mirror polish treatment.
Motor: Siemens Beide Brand
Motor: Siemens Beide Brand
Driving power: 11kw
Inverter: Taiwan Delta
Control mode：Frequency control
Heating Zone: 7 zones
Radiating mode: 4zones
Reduction Gearbox: Extruder exclusive use
3D Extrusion Die Head ： One set
Mater: S-136 thermo-stabilization mirror surface steel，short runner, no dead angle, brightness surface without dark spot. Precision dimension
Size: 1.75mm, 3.00mm
Tolerance: +/-0.05mm
Size: 1.75mm, 3.00mm
Tolerance: +/-0.05mm
Stainless Steel Warm Water Trough: one set
Length: 2.5M
Water trough material: 2.0mm thickness stainless steel
Centre height: 1000mm±50mm
Adjustment mode: three-dimensional, flexible operation with concise and beautiful appearance.
Power of the water pump: 0.37kw
Stainless Steel water Circulation Tank: one set
Water trough material: 2.0mm thickness stainless steel
Centre height: 1000mm±50mm
Adjustment mode: three-dimensional, flexible operation with concise and beautiful appearance.
Power of the water pump: 0.37kw
Stainless Steel water Circulation Tank: one set
Stainless Steel Water Cooling Trough: one set
Length: 4M
Water trough material: 2.0mm thickness stainless steel
Centre height: 1000mm±50mm
Water trough underbed: one set
Material: square steel
Water blower equipment: Nylon material, sealed water blower, no water splash.
Water trough material: 2.0mm thickness stainless steel
Centre height: 1000mm±50mm
Water trough underbed: one set
Material: square steel
Water blower equipment: Nylon material, sealed water blower, no water splash.
Haul-off Unit: one set
Haul off Roll: Four-Roll
Haul-off roller: PU Rubber Covered
Linear guard rail for up and down
Transmission type: Bevel gear
Haul-off power: 1.5kw
Control style: Taiwan Delta
Haul-off speed: 0-100m/minute
Haul-off roller: PU Rubber Covered
Linear guard rail for up and down
Transmission type: Bevel gear
Haul-off power: 1.5kw
Control style: Taiwan Delta
Haul-off speed: 0-100m/minute
Online diameter measurement system: one set
Brand name: Laser Online
Model No: LST-25
Measuring range: 0.1-25mm
Accuracy: ±0.002mm
Resolution: 0.001mm
Model No: LST-25
Measuring range: 0.1-25mm
Accuracy: ±0.002mm
Resolution: 0.001mm
Horizontal Accumulator Machine: one set
Whole length: 8m
Height: 1.9m
Accumulator rolls: 10+11 pcs
Storage Meter: 150m around
Pulley slide mechanism
Adjustable
Magnetic powder clutch: 5kg
Height: 1.9m
Accumulator rolls: 10+11 pcs
Storage Meter: 150m around
Pulley slide mechanism
Adjustable
Magnetic powder clutch: 5kg
Double-Station Winder: one set
Coil: 2pcs
AC Motor: 2 sets
Flat cable: automatic traverse unit
Control power: 0.37kw*2
Control Mode: frequency control, winding tension adjustable, easy operation, shortcut and simple ness closing session.
AC Motor: 2 sets
Flat cable: automatic traverse unit
Control power: 0.37kw*2
Control Mode: frequency control, winding tension adjustable, easy operation, shortcut and simple ness closing session.
Electric control boxes: one set
Japanese Omron temperature control meter, Taiwan Yangming Solid State Relay, Taiwan Delta, Japanese Mitsubishi Servo motor, electrical wiring in alignment, color and clear, accuracy mark number.
Remark：
1. Main Brands: Siemens BEIDE Main Motor, Taiwan Delta Inverter, Extruder Exclusive Gear box. etc.
2. Payment means: T/T in Advance, 40% deposit, the balance will be paid after confirm the machine test result before machinery delivery fromour factory.
3. One year warranty period. The only promise is that the user must not violate the operation regulations. The parts are limited to screw, barrels, motor, inverter, gearbox, servo motor, PLC controlling system.
4. The seller can dispatch technicians to give necessary guidance at the installation and training workers at the buyer’s place upon receipt of requirement from the buyer, if the related expenses are on the buyer’s side.( related expenses: airplane freight, food and accommodation fee)
5. Delivery date: 45 working days after the advance payment reaching the seller’s account book.

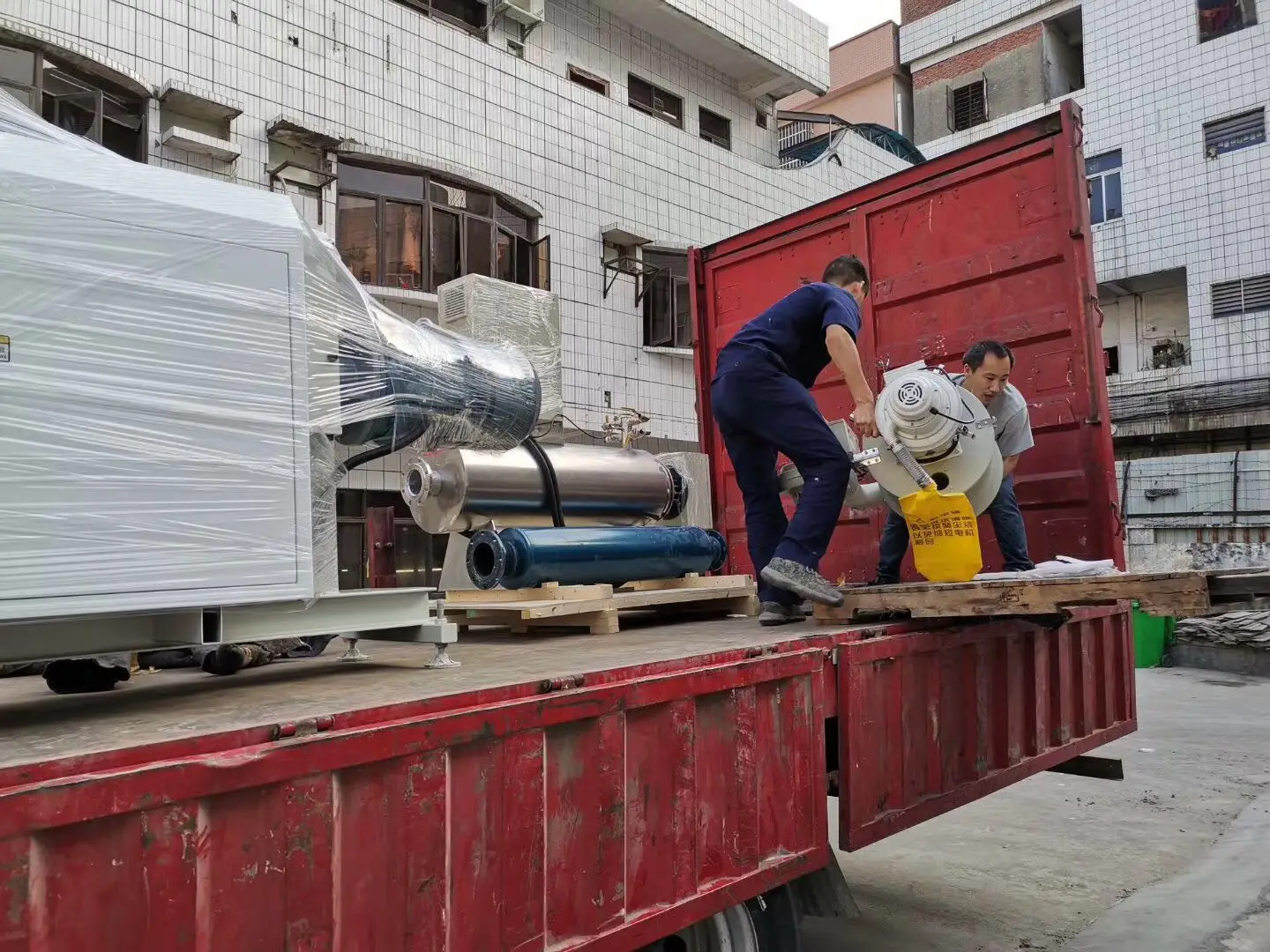

6. Packing: wrapped by film, fragileparts by plywood, 1*20GP container.
7. Transportation way: FOB Shenzhen, China
8. Valid period of the offer: 30 days.
FAQ
If there is any further question pls feel free to ask me at anytime,then we will try our best for you ,Thank you !!
Похожие товары

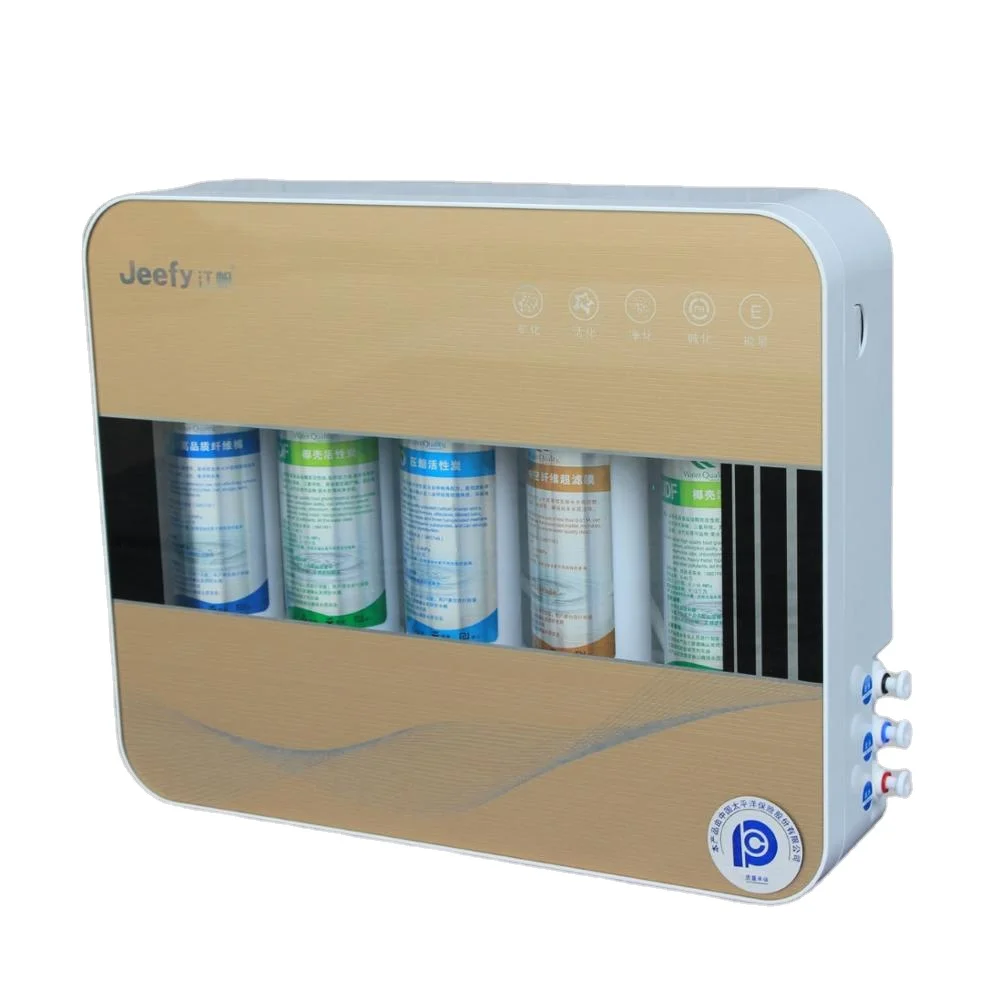

Для домашнего использования UF система фильтрации воды фильтр очиститель 5-ти ступенчатый
