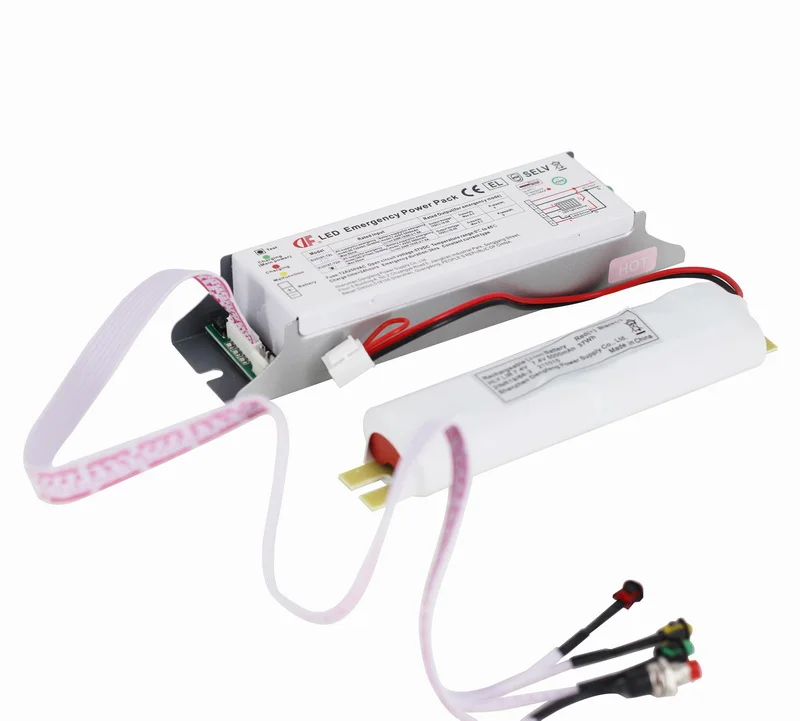

DF168-30D светодиодный аварийный источник питания комплект для 40-200W лампы аварийного освещения с ионно-литиевая аккумуляторная батарея
18,00-18,30 $

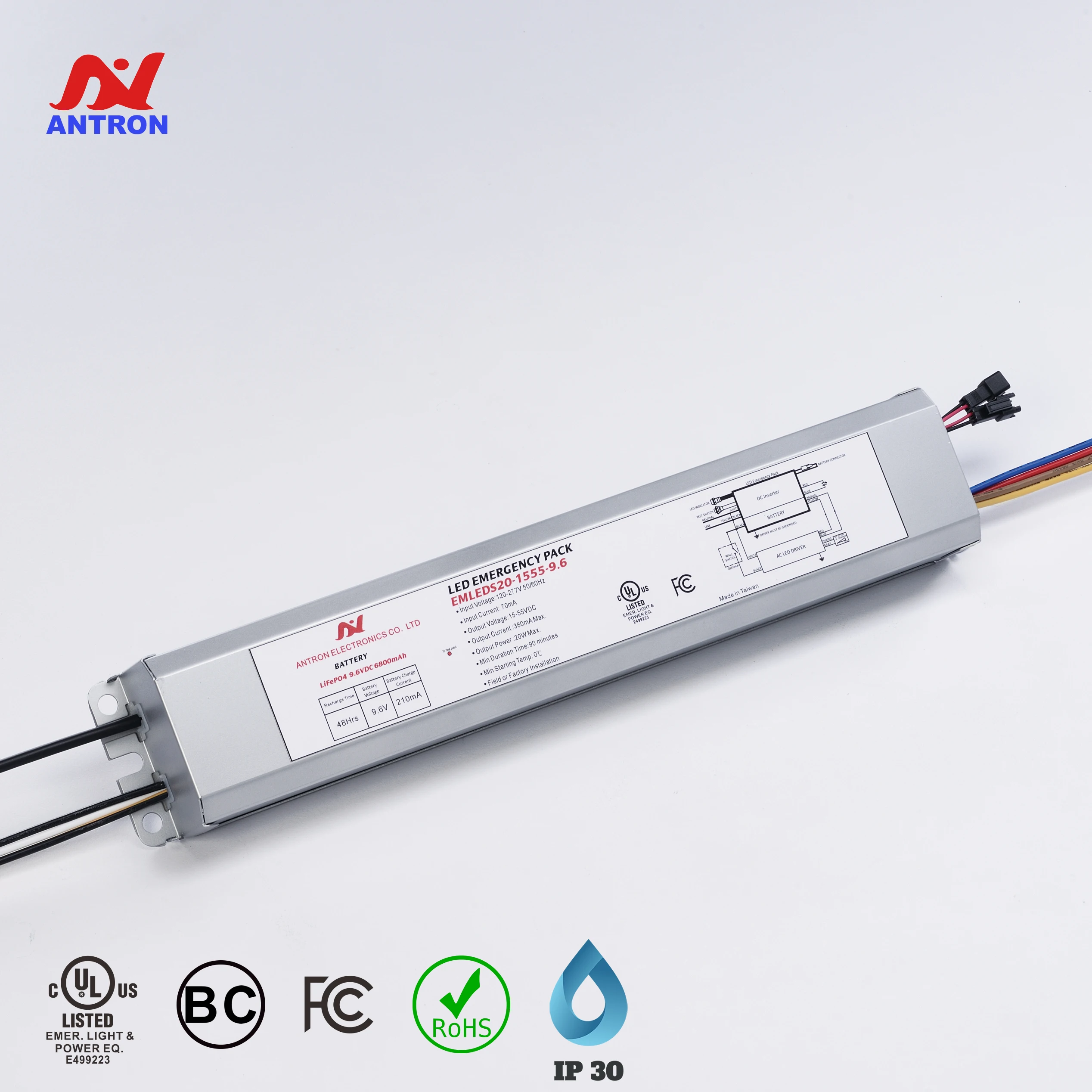

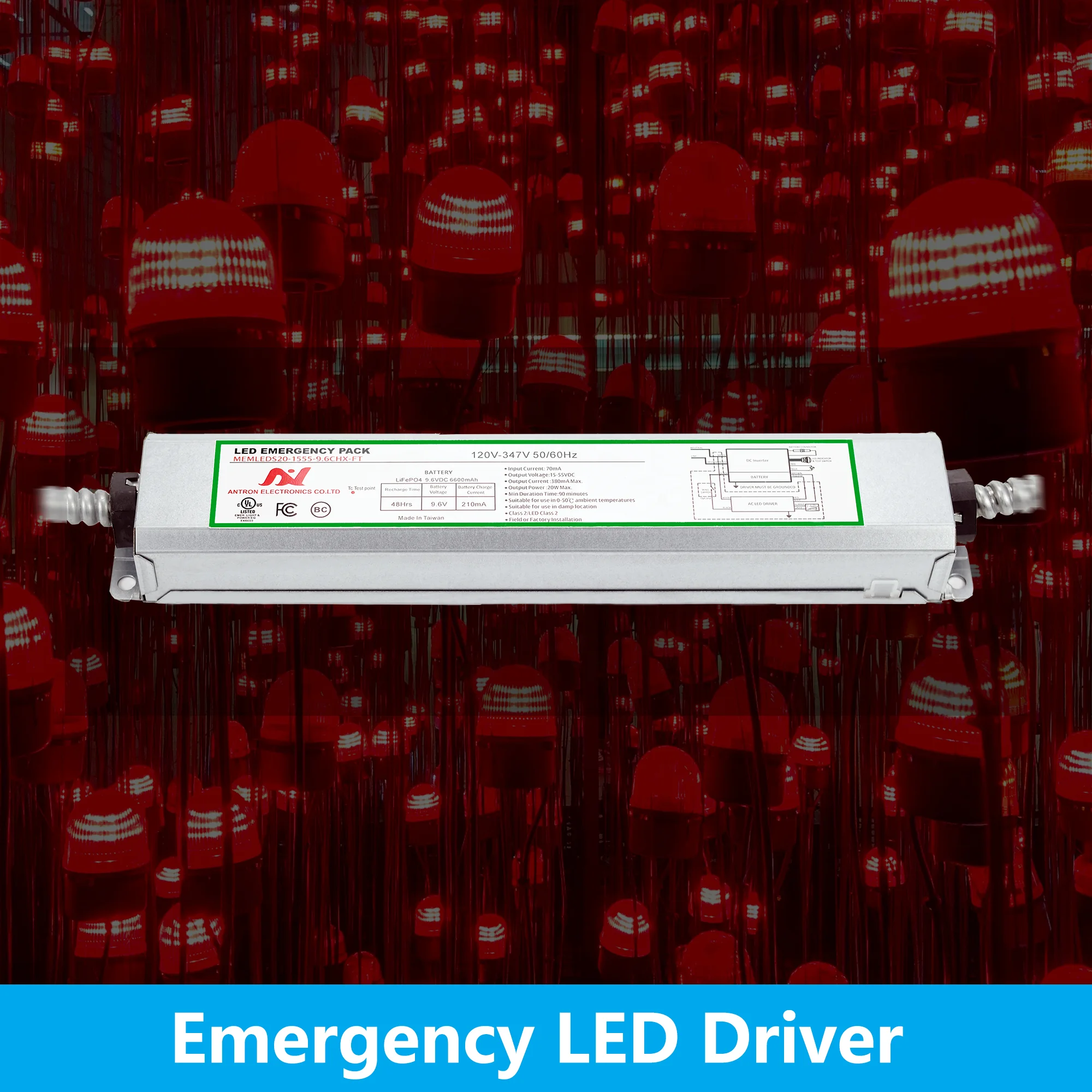

Светодиодный аварийный драйвер с постоянной мощностью 20 Вт и батареей
- Категория: >>>
- Поставщик: ANTRON ELECTRONICS CO. LTD.ANTRON LTD.
Сохранить в закладки 10000005876804:
Описание и отзывы
Характеристики
Product Series
Electrical Ballast
Antron has established reputation in fluorescent ballasts in the market on T5, T8, T10, T12, CFL, Biax PLL and UV lamp ballasts. Our ballast meet UL, CE, FCC and RoHs regulations.
LED Driver
Antron developed, manufactured and customized LED drivers that were highly valued by worldwide customers. Our driver meet UL, CE, CEC, FCC and RoHs regulations.
Product Features
- Universal input voltage 120-277Vac

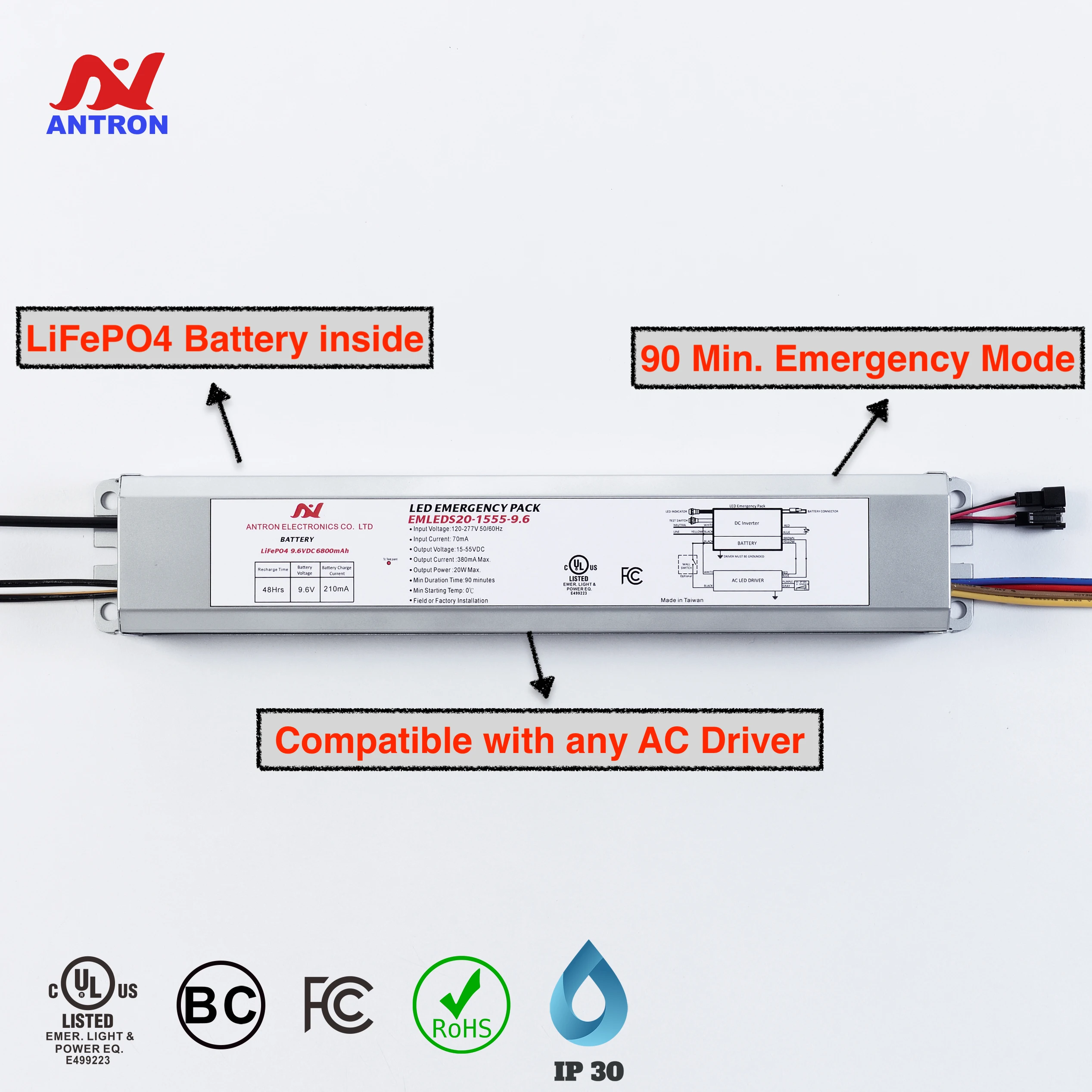

- At least 90 minutes in emergency mode
- Emergency pack is compatible with any AC driver
- High quality LiFePO4 battery inside

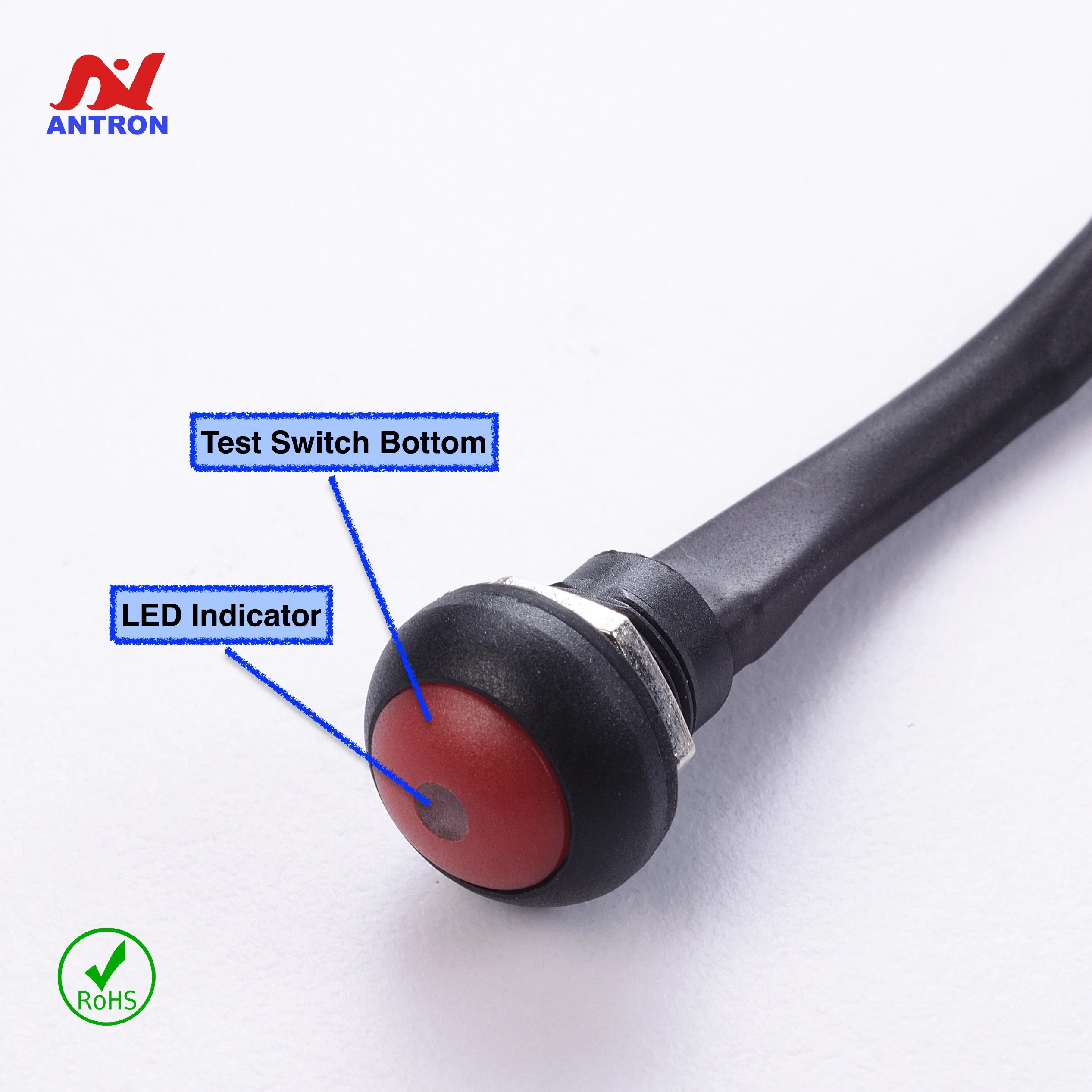

- Easy diagnose design via test switch
- Open/Short/Over-Voltage/Over-Temperature protection
- Suitable for UL dry and damp location
- UL listed and CEC title 20 approval
- 5 years warranty
Electrical Spec
Model Series | MEMLEDS28-80176-9.6CHX | ||
AC Input | Input Voltage | 120-277Vac | |
Input Frequency | 60Hz | ||
Leakage Current | <0.75mA | ||
Turn On Time | <1s | ||
Emergency | Output Current | 1.33-0.363A | |
Output Voltage | 15-55V | ||
Output Power | 20W | ||
Battery | LiFePO4 | ||
Battery Charge Current | 0.21A | ||
Battery Voltage | 9.6V | ||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over-Voltage | Output current decade mode, recovers automatically after fault condition is removed. | ||
Over-Temperature | Shut down o/p voltage, re-power on to recover. | ||
Surge | 3kV | ||
Environment | Operation Temperature | Tcase=0°C~70°C | |
Storage Temperature | Tcase=0°C~80°C | ||
Humidity | 10%~90% | ||
Safety | Safety Approval | UL924, CEC tilte20 | |
UL/cUL Class 2 | V | ||
UL/cUL Class P | V | ||
Withstand Voltage | I/P-O/P: 2.0K Vac, I/P-FG: 2.0K Vac, O/P-FG: 0.5K Vac | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100Mohm/500VD | ||
Noise | Sound Rating Class A | ||
EMC | EMI | FCC Part 15 class A, UL924, ICES-005 Issue 4 | |
EMS | FCC Part 15 class A, UL924, ICES-005 Issue 4 | ||
Model Series | Case Code | L | W | H | Unit |
EMLEDS20-1555-9.6CHP | AM60 | 338 | 62 | 38 | mm |
Packing & Delivery
Packing Information
5 to 40 pieces per carton depends on model.
Individual packing is optional.
Our Company
Why Choose Antron
Excellent Quality
Our LED drivers and ballasts are highly reliable with overall return rate below 0.3%. Antron promise we can return two placements for one fail with the new order. We are confident our products is reliable and you can enjoy the high quality of powered by Antron.
Note:
1. The policy is exclusive for Alibaba customers.
2. OEM/ODM is not applicable.
Note:
1. The policy is exclusive for Alibaba customers.
2. OEM/ODM is not applicable.
Experienced R&D and QC System
Founded in 1984, Antron has established reputation in fluorescent ballasts and continuously dedicated to be the leading expert in LED drivers globally. With more than 30 years of experience in lighting power supply, Antron developed, manufactured and customized LED drivers, fluorescent ballasts and emergency LED drivers that were highly valued by worldwide customers.
Product Warranty and Liability
To start with, Antron has more than 30 years of experience in the lighting industry. Most of our competitors only accept mass order rather than low-volume orders. But to us, any amount of order is great order. We do not discriminate. We are proud of our top-quality product, most of our products also have 5 years warranty. Besides, we have $5 millions product liability insurance that secures our clients’ rights and interests.
We can do more.
In addition to our current products, Antron specializes in adapting our products to meet individual specifications that represented by the rapid mass market. If our existing products assortment does not meet your exact needs, we can quickly and economically modify, adapt and design.
Certifications
FAQ
Why should I choose Antron?
We are a professional LED driver manufacturer with more than 32 years experience. We have an experienced R&D team, high-quality production line, mature QC control process. Quality, Service and Innovation are the core value of Antron.
We are actively looking for long term partner and welcome you to join us.
What is your minimum order quantity (MOQ)?
There is no minimum order restriction.
What is your lead time?
The delivery time will be 1~45 days depends on the product and quantity.
Can we be your distributor?
We are very welcome you can become our family.
Can you provide OEM/ODM service?
OEM and ODM are welcome.
We have a strong R&D team can quickly design and modify what you need.
Похожие товары
(LED Drivers) HVG-480-24B
0,10-1,00 $
Продавать источники питания с максимальной мощностью 200 Вт и диапазоном выходного напряжения 29-56
12,22 $
EU US UK SAA 3-штекер 100 Вт Светодиодный драйвер Водонепроницаемый IP67 источник питания для светодиодов наружного использования
С коротким замыканием разомкнутой цепью и другими функциями защиты эффективность источника питания может достигать ≥ 87-90%
2,78 $
Светодиодный драйвер Smps 12v Ac Dc 100v до 265v Oem высококачественный производитель 16.6a 200w черный тонкий источник питания

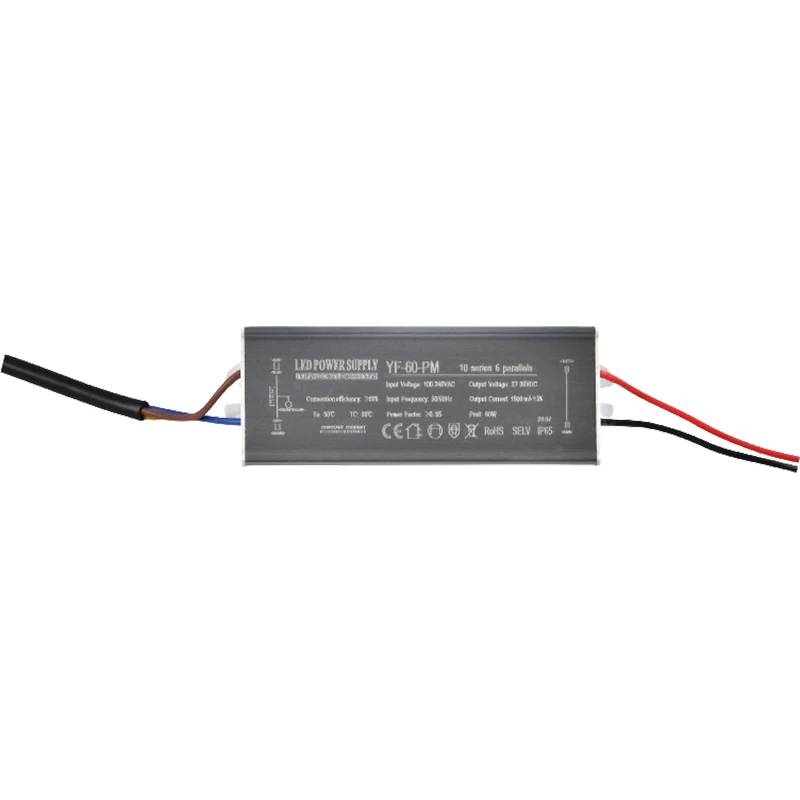

2024 горячий ультратонкий водонепроницаемый источник питания IP67 60 Вт DC12/24vAC90-265v Светодиодный
3,70-3,85 $

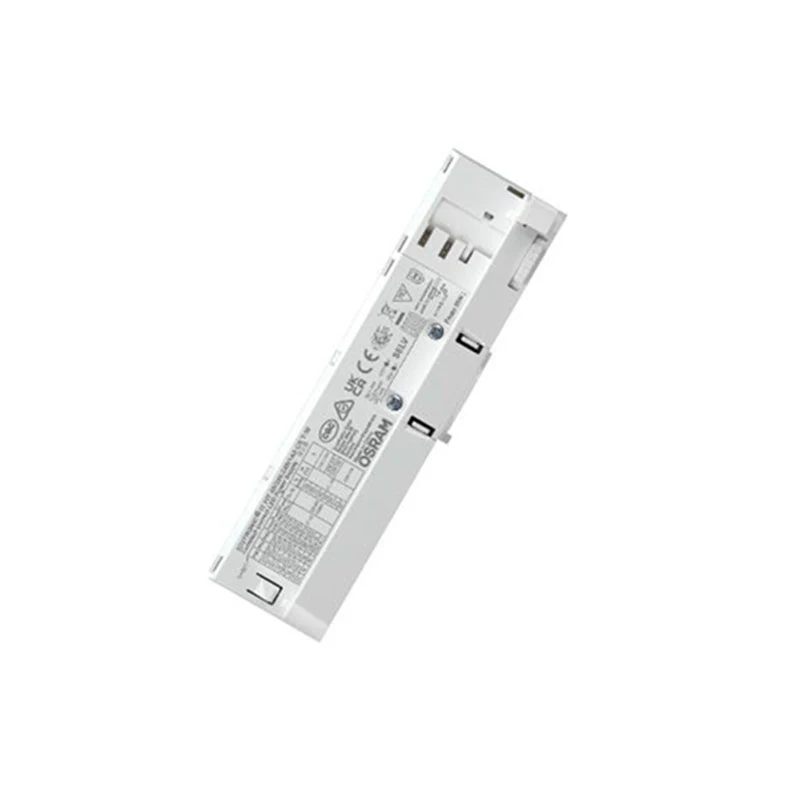

AMS -OSRAM светодиодный привод с низким уровнем пульсации 30 Вт дорожка 4 белого черного серого цвета источник питания oslon
