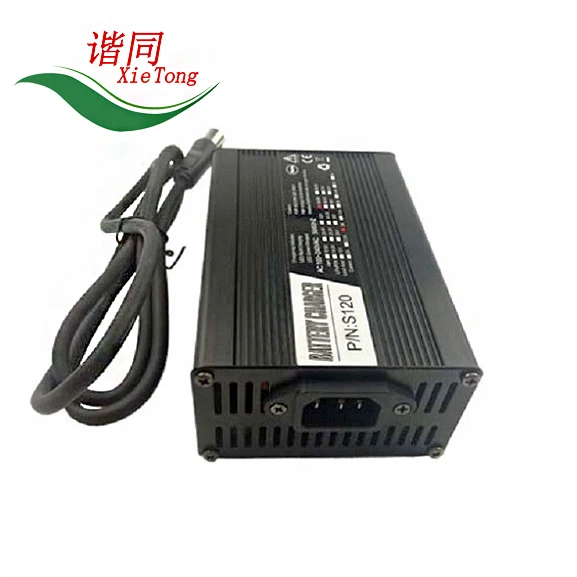

Зарядное устройство, 60 в, литий-полимерный аккумулятор со светодиодным дисплеем 16S 67,2 в 2A, зарядное устройство LiFePO4 для скутера, детского автомобиля, садового инструмента
15,00 $ - 18,00 $

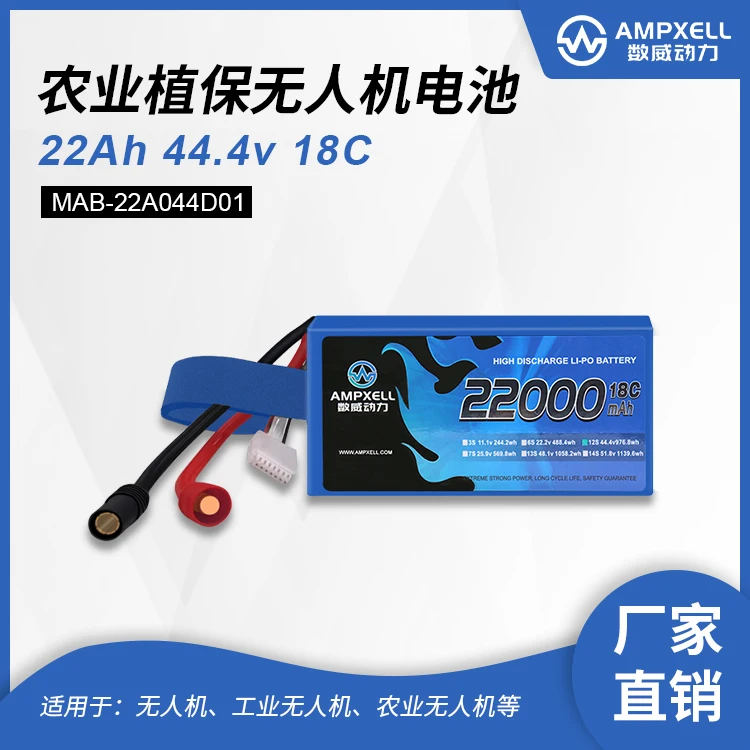

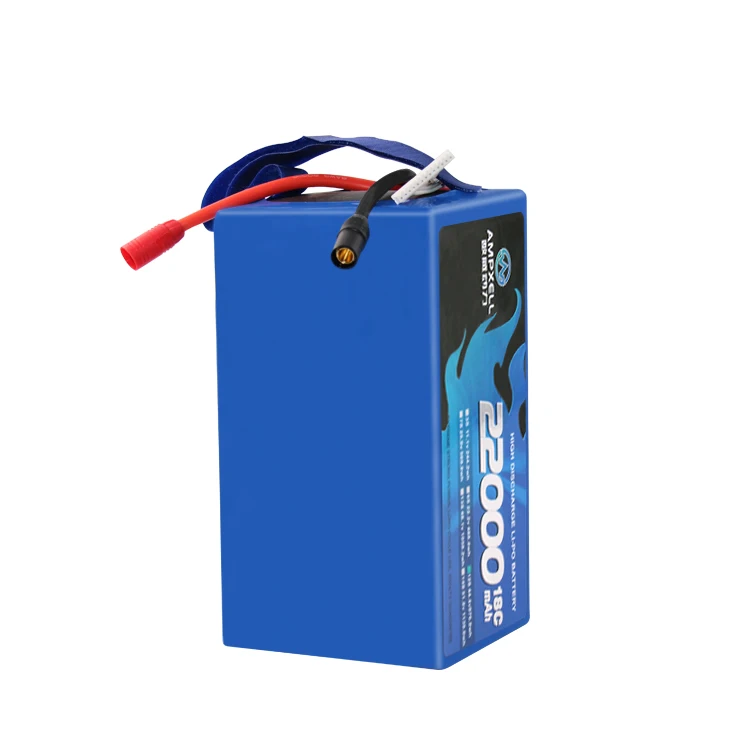

AMPXELL 22000mah 51 8 v 14s 15C lipo сельскохозяйственный Дрон с аккумуляторным опрыскивателем
- Категория: >>>
- Поставщик: Huizhou Shuwei Technology Co. Ltd.
Сохранить в закладки 10000005898899:
Описание и отзывы
Характеристики
Product Description
LiCoO2 Li-Po High Power Drone Battery series
High Power series are the professional power of battery operated multi-rotor drones , perfectly for heavy load agricultural spray drone, photographic UAV, power grid inspection drone, geological survey drone , RC model plane, helicopter, etc
Advantages and features:
● Support max 2C fast charge, complete charge in 30 minutes;
● Higher energy density and lighter weight, stable and long lasting;
● Good thermal stability and superior powerful;
● Long cycle life even in high speed drain;
● Long cycle life even in high speed drain;
● Good performance in -20℃ low and 60℃ high temperature;
● (Optional)Intelligent BMS with battery level indicator, bluetooth communication;
● Withstand deep discharge, deepth of discharge(DOD) 100% at 1c discharge, 90% DOD at 5C discharge;
GREAT POWER IN SMALL PACKAGE
PVC Heat Shrink pack
*Lighter weight
*High energy density up to 290Wh/kg
*Cost effective
Aluminum Case pack
*With better protection from mechnical shock
*With optinal intelligent BMS, communication functions, LED indicator
18650 Pack
* cost effective
* High energy density up to 250Wh/kg
Often Used Terminals :
How to Charge the Battery
Connect battery's negative Θ (black wire) to charger's negative poleΘ , battery positive ⊕ (red wire) connect to charger postive⊕ pole;
Important:
If the battery has a exposed balance charger wire cord, the battery must be charged by a charger with balance charge pllug.
Any question please contact us.
Battery Performance
application-
Photographic UAV multirotor drones
application-
Agricultural spray drones
application-
RC model plane, helicopter
application-
Power grid inspection drones
High Power series Li-po batteries
Professional Drone Battery Catalog:
Item description | max discharge current | Dimension | Weight | max charge current | Pack material | |||||
8.3Ah 22.2v 6S 30C | 240A | 203*68*41 | 1.1kg | 2C | PVC heat shrink | |||||
10Ah 22.2v 6S 25C | 250A | 203*68*52 | 1.4kg | 2C | PVC heat shrink | |||||
12Ah 22.2v 6S 25C | 300A | 185*72*63 | 1.68kg | 2C | PVC heat shrink | |||||
16Ah 22.2v 6S 18C | 280A | 186*76*73 | 2.08kg | 2C | PVC heat shrink | |||||
18Ah 22.2v 6S 15C | 270A | 193*73*76 | 2.11kg | 2C | PVC heat shrink | |||||
22Ah 22.2v 6S 15C | 320A | 201*100*69 | 2.83kg | 2C | PVC heat shrink | |||||
27Ah 22.2v 6S 15C | 400A | 229*101*70 | 3.18kg | 2C | PVC heat shrink | |||||
8.3Ah 44.4v 12S 30C | 166A | 203*68*76 | 2.1kg | 2C | PVC heat shrink | |||||
10Ah 44.4v 12S 25C | 250A | 203*68*99 | 2.7kg | 2C | PVC heat shrink | |||||
12Ah 44.4v 12S 25C | 300A | 185*72*122 | 3.25kg | 2C | PVC heat shrink | |||||
16Ah 44.4v 12S 18C | 320A | 186*76*143 | 4.1kg | 2C | PVC heat shrink | |||||
18Ah 44.4v 12S 15C | 324A | 193*73*146 | 4.07kg | 2C | PVC heat shrink | |||||
22Ah 44.4v 12S 15C | 440A | 201*100*134 | 5.55kg | 2C | PVC heat shrink | |||||
27Ah 44.4v 12S 15C | 486A | 229*101*132 | 6.26kg | 2C | PVC heat shrink | |||||
16Ah 44.4v 12S 18C | 320A | 218*162*88 | 4.7kg | 2C | Aluminum case(smart BMS) | |||||
22Ah 44.4v 12S 15C | 440A | 246*162*111 | 6.2kg | 2C | Aluminum case(smart BMS) | |||||
16Ah 44.4v 12S 18C | 320A | 218*162*88 | 4.7kg | 2C | Aluminum housing | |||||
22Ah 44.4v 12S 15C | 440A | 246*162*111 | 6.2kg | 2C | Aluminum housing | |||||
12.5Ah 52v 14S 15C | 100A | 84*149*185 | 2.55kg | 2C | Aluminum case(smart BMS) | |||||
20Ah 52v 14S 5C | 100A | 246*162*111 | 6.25kg | 2C | Aluminum case(smart BMS) | |||||
20Ah 52v 14S 5C | 100A | 92*147*210 | 5.60kg | 2C | PVC heat shrink | |||||
28Ah 52v 14S 5C | 140A | 246*162*111 | 7.95kg | 2C | Aluminum case(smart BMS) | |||||
28Ah 52v 14S 5C | 140A | 92*155*250 | 7.45kg | 2C | PVC heat shrink | |||||
30Ah 48v 14S 5C(HV) | 150A | 100*139*213 | 6.00kg | 2C | PVC heat shrink | |||||
30Ah 48v 14S 5C(HV) | 150A | 246*162*111 | 6.55kg | 2C | Aluminum case(smart BMS) | |||||
36.8Ah 21.6V 6S 3C | 100A | 75*125*188 | 3.5Kg | 1C | PVC heat shrink(sanyo 18650) | |||||
36.8Ah 21.6V 6S 3C | 150A | 70*140*530 | 10.2Kg | 1C | PVC heat shrink(sanyo 18650) | |||||
33.5A 43.2V 6S 3C | 100A | 75*205*205 | 6.4Kg | 1C | PVC heat shrink(sanyo 18650) | |||||
If couldn't find the one in above sheet, please contact us for more information.
Learn more >>>>>
About us
AmpXell Technology Co, Ltd.
is a leading high discharge rate li-po battery manufacturer in the industry. A high-tech enterprise specializing in the production of high discharge rate and high energy, and low temperature lithium polymer includiing LiCoO2, LiFePO4 NCM cell, BMS, pack assembly.
Has ability to design, produce and sell cell, battery pack, BMS, and has a complete battery performance test laboratory, and safety / reliability test center, which can ensure the stable and controllable quality of each product in all aspects of R & D, production and after-sales.
The products are used in various application fields such as electric tools, smart home, UAV drones, robot, industrial energy
storage system, power battery system, etc., with a experienced team of battery chemistry system, battery pack technology
development, battery BMS development, which can meet the customized development of battery application of customers in differentfields and provide system solution of lithium-ion battery.
Adhering to the craftsmanship spirit of focusing on products, we strive to provide customers in various industries with
high-quality and cost-effective green energy solutions.
The products are used in various application fields such as electric tools, smart home, UAV drones, robot, industrial energy
storage system, power battery system, etc., with a experienced team of battery chemistry system, battery pack technology
development, battery BMS development, which can meet the customized development of battery application of customers in differentfields and provide system solution of lithium-ion battery.
Adhering to the craftsmanship spirit of focusing on products, we strive to provide customers in various industries with
high-quality and cost-effective green energy solutions.
composed of 40 engineers , surface: 2000m2
Li-po cell / pack production lines
capable to produce LiFePO4, LiCoO2, NCM type cells, with automatic and semi-automatic equipment at key position, assure stable quality;
Factory certifications
ISO9001 ISO14000 GJB9001 QC080000 HSPM
Battery certifications
CB UL KC UN38.3 RoHs MSDS, etc.
333
Package pattern and shipping
F.A.Q
Q1: Are you trading company or manufacturer ?
Q1: Are you trading company or manufacturer ?
A1: We are battery manufacturer. you will get first-hand product and service.
Q2: How long is your delivery time?
A2:Generally it is 10-15 days, it is according to quantity.
Q3: Do you accept sample order or small order , or customize production?
A3: Yes, we accept sample order and small orders. customize or OEM production is welcome.
Q4: What is the terms of payment ?
A4: For bulk order,30% T/T down payment , balance 70% before shippment. For sample order,100% payment prior to production.
Q5:What after sales service would you provide ?
A5: Free exchange for defective product, any questions about using, troubleshooting, feel free to contact us,we have 24 hours service.
Q2: How long is your delivery time?
A2:Generally it is 10-15 days, it is according to quantity.
Q3: Do you accept sample order or small order , or customize production?
A3: Yes, we accept sample order and small orders. customize or OEM production is welcome.
Q4: What is the terms of payment ?
A4: For bulk order,30% T/T down payment , balance 70% before shippment. For sample order,100% payment prior to production.
Q5:What after sales service would you provide ?
A5: Free exchange for defective product, any questions about using, troubleshooting, feel free to contact us,we have 24 hours service.
Похожие товары
Алюминиевое зарядное устройство для литий-ионных аккумуляторов Deligreen 36 в 10 А, быстрое автомобильное зарядное устройство для литий-ионных аккумуляторов
29,00 $ - 36,50 $
Набор прозрачных стеклянных контейнеров для хранения посуды
1,75 $ - 2,50 $

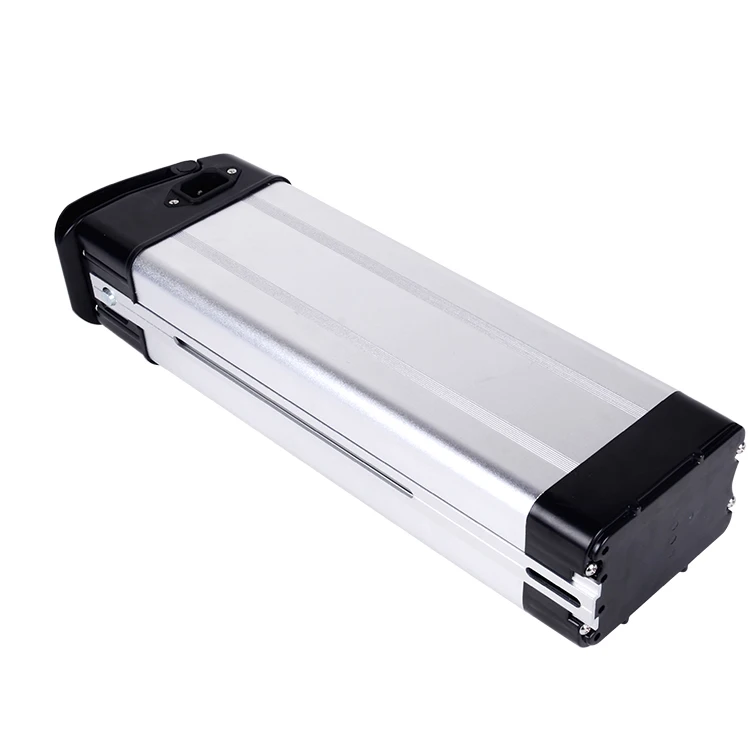

Аккумуляторная батарея 24 В, 16,8 в, 18 В, 24 В, 30 В, 36 В, 48 В, 60 В, 10 Ач, 20 Ач, 10000 мАч, электровелосипед, скутер, индивидуальный аккумулятор 18650 Lipo
Низкая цена Совместимость Замена Pad зарядки аккумуляторной батареи липо литиевых

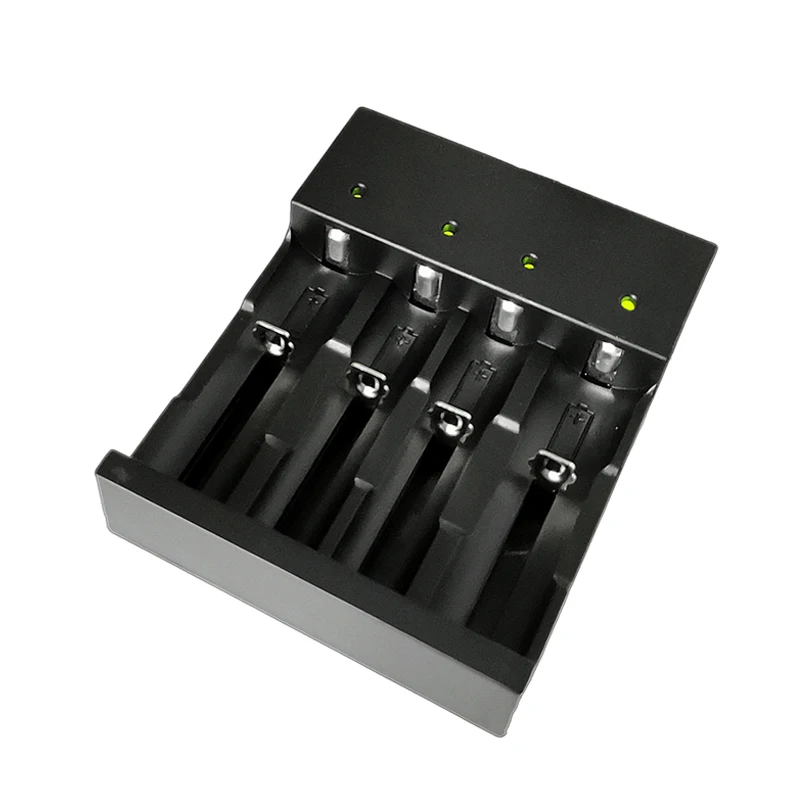

Зарядное устройство PUJIMAX с 4 слотами для литий-полимерных аккумуляторов и светодиодным дисплеем, USB-зарядное устройство для 18650 26700 26650 21700 14500 аккумуляторных батарей
1,90 $ - 2,20 $

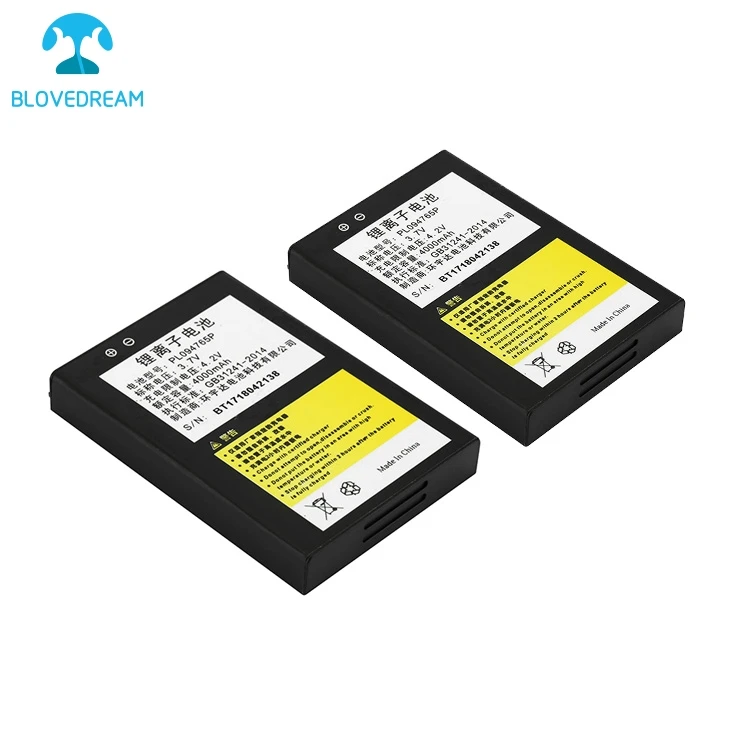

Перезаряжаемая литий-ионная батарея, литий-полимерная батарея для бытовой электроники
