Слиток из цинкового сплава Прямая поставка с завода слиток по низкой цене
- Категория: >>>
- Поставщик: Hebei Yichuang Metallurgical Material Co. Ltd.
Сохранить в закладки 10000006161513:
Описание и отзывы
Характеристики
Products Description
Zinc alloy is based on zinc and other elements of the alloy, often added alloy elements are aluminum, copper, magnesium, cadmium,
lead, titanium and so on. Zinc alloy has low melting point, good fluidity, easy fusion welding, brazing and plastic processing,
corrosion resistance in the atmosphere, the disabled material is easy to recover and remelt, but the creep strength is low, easy
to occur natural aging caused by size changes. Prepared by melting method, die casting or pressure processing.
Zinc alloy can be divided into casting zinc alloy and deformation zinc alloy according to the manufacturing process. Casting zinc
alloy has good fluidity and corrosion resistance, suitable for die casting instrument, automobile parts shell and so on.
Chinese name zinc alloy
Foreign name Zinc alloy
Body: zinc based alloy with other elements added
Classification: cast zinc alloy, deformed zinc alloy
species
The traditional die-casting zinc alloy has 2, 3, 4, 5, 7 alloy, the most widely used is no. 3 zinc alloy. In the 1970s, zA-8,
ZA-12 and ZA-27 alloys were developed.
Zamak 3: Good fluidity and mechanical properties.
Used for casting with low mechanical strength requirements, such as toys, lamps and lanterns, decorations and some electrical
parts.
Zamak 5: Good fluidity and good mechanical properties.
Applied to castings with certain requirements on mechanical strength, such as automobile parts, electromechanical parts,
mechanical parts, electrical components.
Zamak 2: used for mechanical parts with special requirements for mechanical properties, high requirements for hardness, good wear
resistance and general requirements for dimensional accuracy.
ZA8: It has good impact strength and dimensional stability, but poor fluidity.
It is suitable for die casting workpiece with small size, high precision and high mechanical strength, such as electrical parts.
Superloy: best fluidity, suitable for die casting thin-walled, large size, high precision, complex shape workpiece, such as electrical components and their boxes.
Different zinc alloys have different physical and mechanical properties, which provides choice space for die casting design.
Zinc alloy can be divided into casting zinc alloy and deformation zinc alloy according to the manufacturing process. The yield of cast alloy is much higher than that of deformed alloy.
lead, titanium and so on. Zinc alloy has low melting point, good fluidity, easy fusion welding, brazing and plastic processing,
corrosion resistance in the atmosphere, the disabled material is easy to recover and remelt, but the creep strength is low, easy
to occur natural aging caused by size changes. Prepared by melting method, die casting or pressure processing.
Zinc alloy can be divided into casting zinc alloy and deformation zinc alloy according to the manufacturing process. Casting zinc
alloy has good fluidity and corrosion resistance, suitable for die casting instrument, automobile parts shell and so on.
Chinese name zinc alloy
Foreign name Zinc alloy
Body: zinc based alloy with other elements added
Classification: cast zinc alloy, deformed zinc alloy
species
The traditional die-casting zinc alloy has 2, 3, 4, 5, 7 alloy, the most widely used is no. 3 zinc alloy. In the 1970s, zA-8,
ZA-12 and ZA-27 alloys were developed.
Zamak 3: Good fluidity and mechanical properties.
Used for casting with low mechanical strength requirements, such as toys, lamps and lanterns, decorations and some electrical
parts.
Zamak 5: Good fluidity and good mechanical properties.
Applied to castings with certain requirements on mechanical strength, such as automobile parts, electromechanical parts,
mechanical parts, electrical components.
Zamak 2: used for mechanical parts with special requirements for mechanical properties, high requirements for hardness, good wear
resistance and general requirements for dimensional accuracy.
ZA8: It has good impact strength and dimensional stability, but poor fluidity.
It is suitable for die casting workpiece with small size, high precision and high mechanical strength, such as electrical parts.
Superloy: best fluidity, suitable for die casting thin-walled, large size, high precision, complex shape workpiece, such as electrical components and their boxes.
Different zinc alloys have different physical and mechanical properties, which provides choice space for die casting design.
Zinc alloy can be divided into casting zinc alloy and deformation zinc alloy according to the manufacturing process. The yield of cast alloy is much higher than that of deformed alloy.

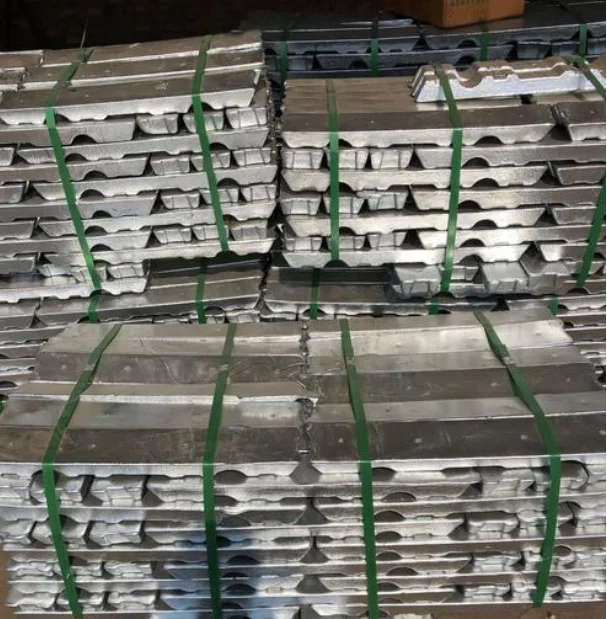

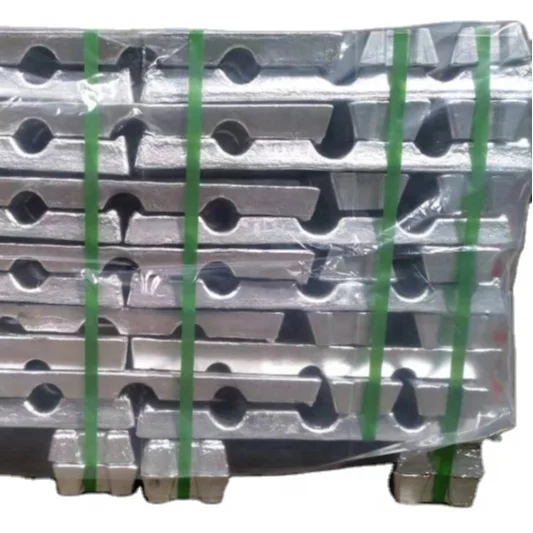

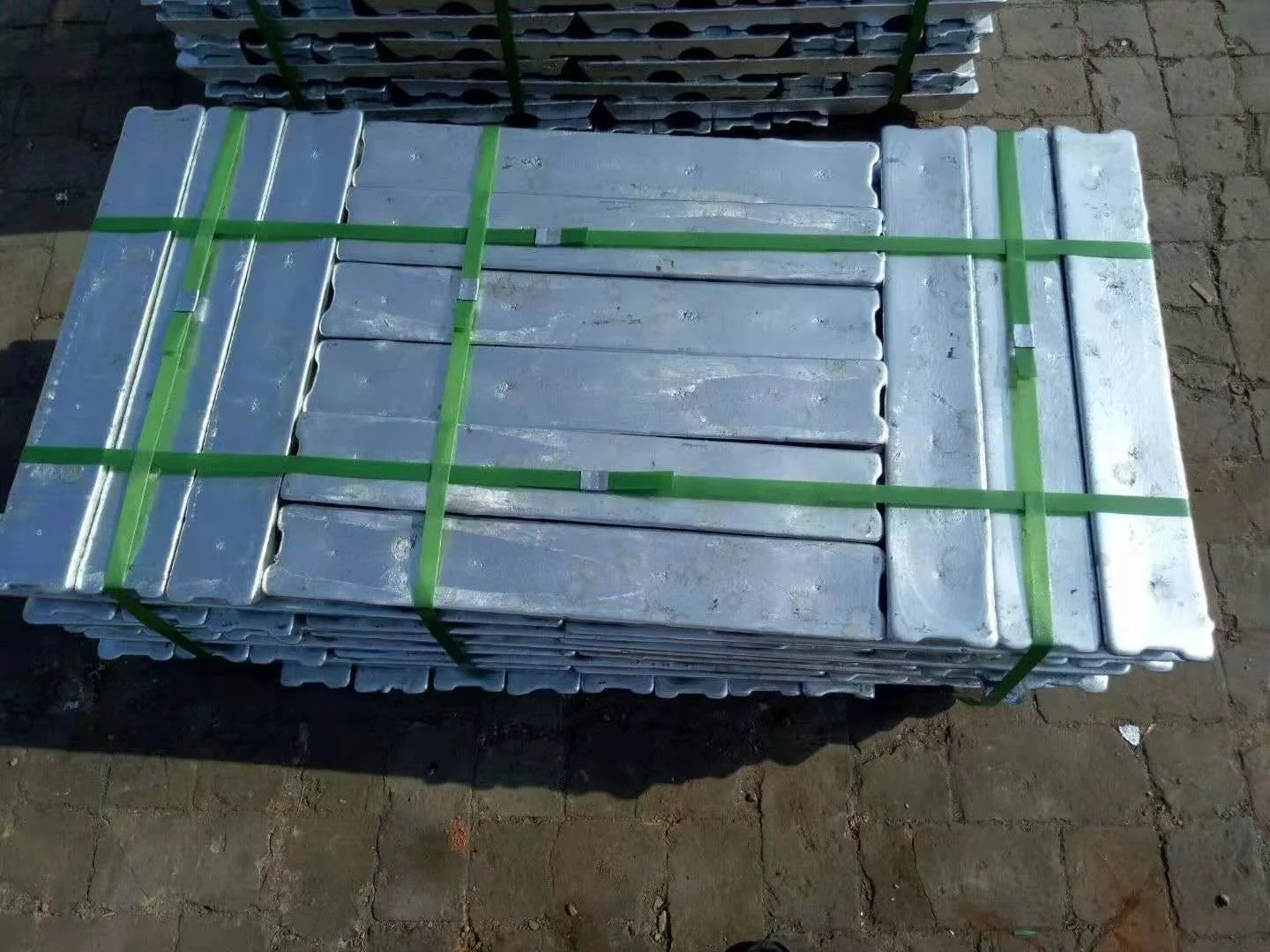

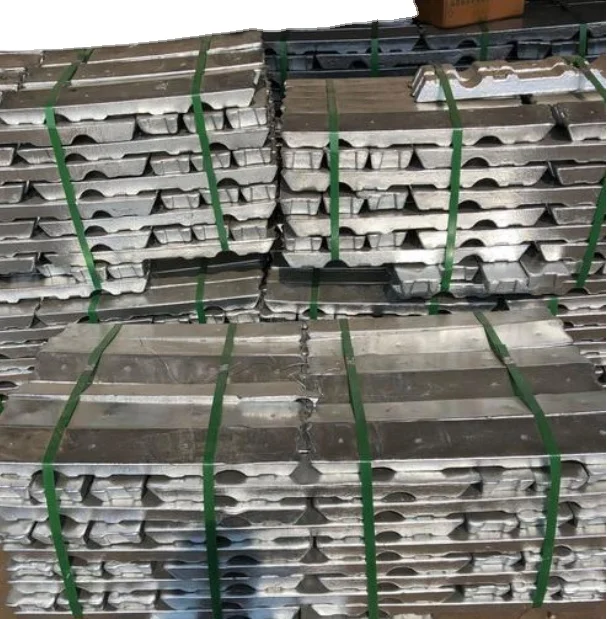

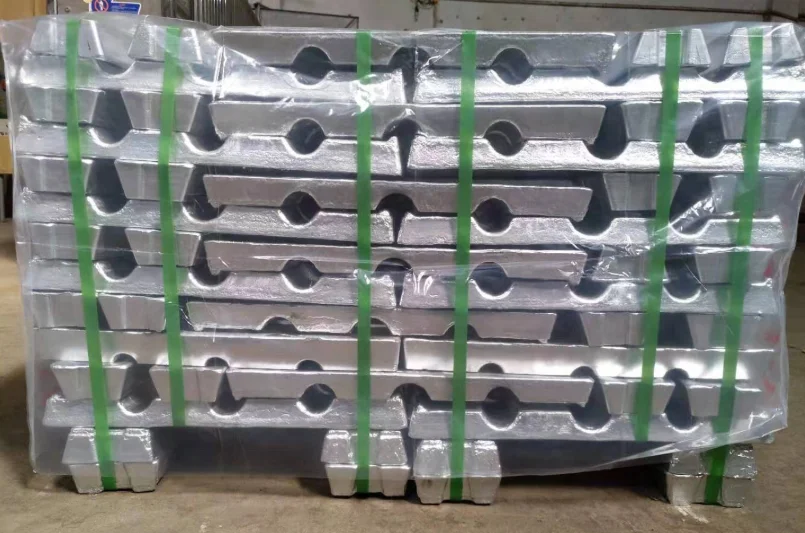

Name: zinc alloy ingot
Whole weight (average) : 1050KG
Whole piece quantity (item): 102 items
Size of the whole piece (mm):900 (length) * (width) *590 (height)
Packing tape: rubber
Weight per strip (average) : 10KG
Size of each strip (mm)440(length) *110 (width) "40 (height)
Whole piece quantity (item): 102 items
Size of the whole piece (mm):900 (length) * (width) *590 (height)
Packing tape: rubber
Weight per strip (average) : 10KG
Size of each strip (mm)440(length) *110 (width) "40 (height)
The characteristics of
1. Relative weight.
2. Good casting performance, can die casting complex shape, thin wall precision parts, casting surface is smooth.
3. Surface treatment: electroplating, spraying, painting, polishing, grinding, etc.
4. When melting and die casting, no iron absorption, no corrosion, no sticking mold.
5. Good mechanical properties and wear resistance at room temperature.
6. Low melting point, melting at 385℃, easy to die casting.
1. Relative weight.
2. Good casting performance, can die casting complex shape, thin wall precision parts, casting surface is smooth.
3. Surface treatment: electroplating, spraying, painting, polishing, grinding, etc.
4. When melting and die casting, no iron absorption, no corrosion, no sticking mold.
5. Good mechanical properties and wear resistance at room temperature.
6. Low melting point, melting at 385℃, easy to die casting.
No. 3 zinc alloy
No. 3 zinc alloy is always the preferred material in die casting industry, which can balance physical and mechanical properties.
With its excellent castability and durable size, over 70% of zinc-alloy die casting products are made of no. 3 zinc-alloy. No. 3
zinc-alloyis also particularly suitable for electroplating, oil injection and chromic surface treatment.
No. 5 zinc alloy
No. 5 zinc alloy is harder and stronger than no. 3 zinc alloy. But lower flexibility such as products need to fold, bend, roll,
force Such deformation process may be affected. Characteristics of No.5 zinc alloy The transition is due to the addition of 1%
copper to the force or high temperature Better than no. 3 zinc alloy suitable for electroplating and other surface treatment.
No. 8 zinc alloy
No. 8 zinc alloy was developed for gravity casting, but now it is widely used for high-pressure casting. It has higher hardness,
strengthand creep resistance (deformation at high temperature) than No. 3 and No. 5 zinc alloy. It is also suitable for
electroplating and surface treatment. Therefore, when the performance of No. 3 and no. 5 fails to meet the requirements, the high
strength and creep resistance of No. 8 is another choice
No. 12 zinc alloy
No. 12 zinc alloy was developed for gravity casting, but now it is widely used for high-pressure casting. lt has higher hardness,
strength and creep resistance than No. 3, No. 5 and No. 8No. 12 is also suitable for electroplating and other surface treatment.
Therefore, when the performance of No.3, No.5and No.8 fails to meet the requirements, the high strengthand creep resistance of
No.12 is another choice.
No. 3 zinc alloy is always the preferred material in die casting industry, which can balance physical and mechanical properties.
With its excellent castability and durable size, over 70% of zinc-alloy die casting products are made of no. 3 zinc-alloy. No. 3
zinc-alloyis also particularly suitable for electroplating, oil injection and chromic surface treatment.
No. 5 zinc alloy
No. 5 zinc alloy is harder and stronger than no. 3 zinc alloy. But lower flexibility such as products need to fold, bend, roll,
force Such deformation process may be affected. Characteristics of No.5 zinc alloy The transition is due to the addition of 1%
copper to the force or high temperature Better than no. 3 zinc alloy suitable for electroplating and other surface treatment.
No. 8 zinc alloy
No. 8 zinc alloy was developed for gravity casting, but now it is widely used for high-pressure casting. It has higher hardness,
strengthand creep resistance (deformation at high temperature) than No. 3 and No. 5 zinc alloy. It is also suitable for
electroplating and surface treatment. Therefore, when the performance of No. 3 and no. 5 fails to meet the requirements, the high
strength and creep resistance of No. 8 is another choice
No. 12 zinc alloy
No. 12 zinc alloy was developed for gravity casting, but now it is widely used for high-pressure casting. lt has higher hardness,
strength and creep resistance than No. 3, No. 5 and No. 8No. 12 is also suitable for electroplating and other surface treatment.
Therefore, when the performance of No.3, No.5and No.8 fails to meet the requirements, the high strengthand creep resistance of
No.12 is another choice.
Our Advantages
1. We offer the most competitive prices.
2. We provide relevant professional product consulting.
3. We are willing to help customers find any potential products and merchandise.
4. You can visit our factory by yourself. Our success is inseparable from your support and making friends from all over the world in good faith.
5. Our aim is: integrity first; reputation first, best reputation; once cooperation,friends for a lifetime.
2. We provide relevant professional product consulting.
3. We are willing to help customers find any potential products and merchandise.
4. You can visit our factory by yourself. Our success is inseparable from your support and making friends from all over the world in good faith.
5. Our aim is: integrity first; reputation first, best reputation; once cooperation,friends for a lifetime.
FAQ
Похожие товары
Лучший Серебряный слиток из цинкового сплава 99.99% ~ 99.995% для литья под давлением
500 кг 1000 кг 1.5ton 2ton цинковый слиток медный слиток из алюминиевого литья машина производственная линия для продажи цена
Установка для подземной очистки сточных вод FRP Литой септический
99.995% 4n5 сверхчистый цинковый слиток Shg по хорошей цене
Arame ovalado forte 17x15 овальная проволока 16/14 Alambre Ovalado
Китайский слиток чистого цинка по лучшей цене, сделано в Китае

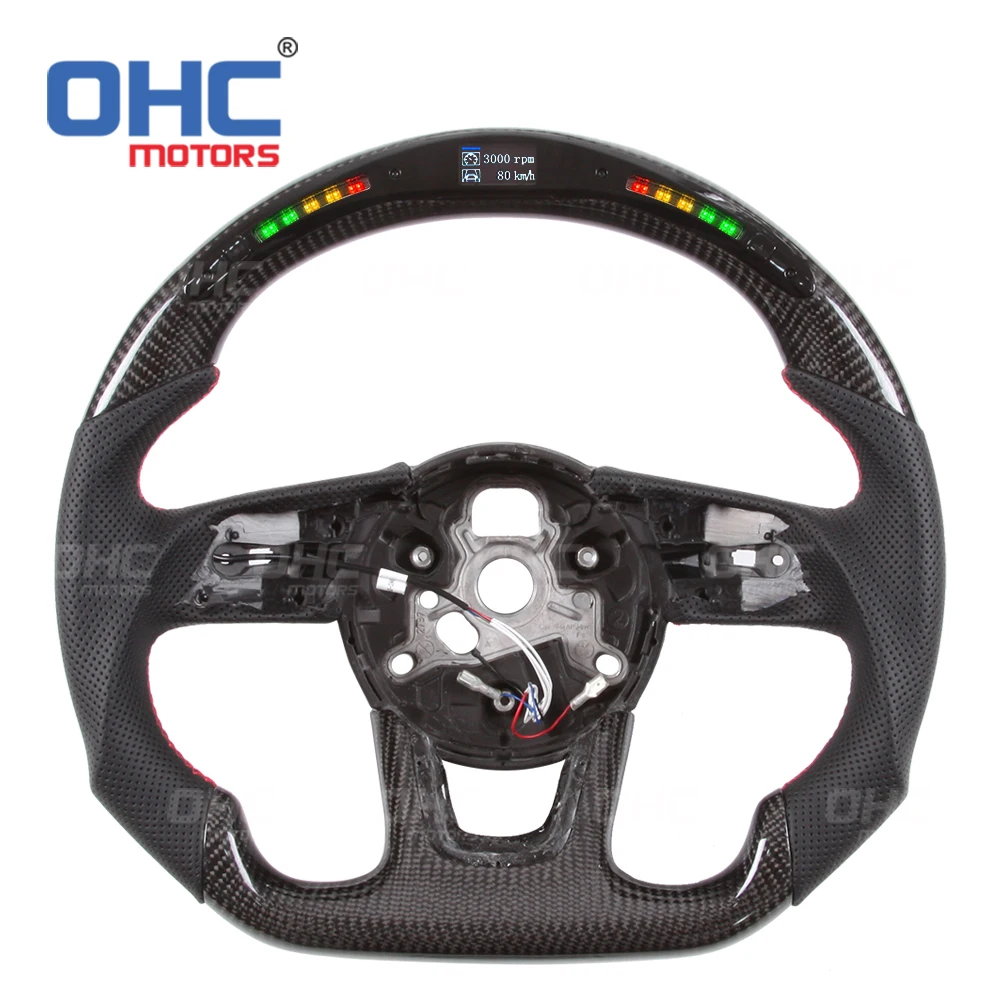

Рулевое колесо из углеродного волокна для Audi RS3 RS4 RS5 RS6 RS7 S3 S4 S5 100%-2018 ручной работы со светодиодной подсветкой, 2020 об/мин
