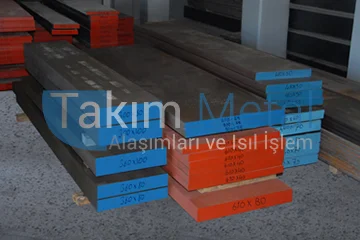

Стальной плоский стержень для продажи стандарт Cs Astm
670,00 $

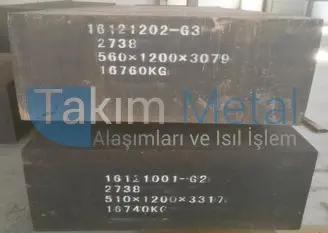

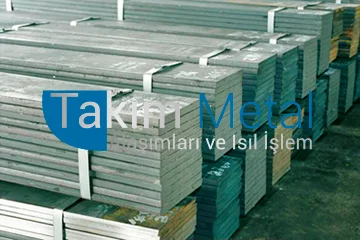

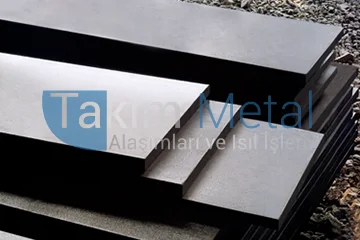

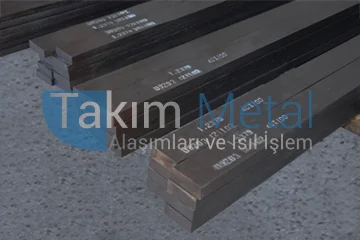

Отличная сделка 2379 X155CrVMo12 1 качественный кованый блок оптом Самый предпочтительный длинный продукт с черной
- Категория: Steel Flat Bars >>>
- Поставщик: TAM METAL ALASIMLARI VE ISIL ISLEM SAN. TIC. LTD. STI
Сохранить в закладки 10000007193498:
Описание и отзывы
Характеристики
Product Description
2379 is a molybdenum and vanadium based cold work tool steel containing high carbon and chromium. It is a steel with good hardenability, homogeneous hardness distribution ability and temper resistance. It is an alloy with high wear resistance, which is frequently used in cutting, forming and plastering tools.
Material Chemical Composition
C Si mn cr B.C Ni V W Other
1.53 0.35 0.4 12 one - 0.85 - -
Material Codes According to Standards
Mat. no. RELIGION MOST AISI/SAE JAPAN
1.2379 X155CrVMo12-1 X153CrMoV12 D2 SKD11
Description
It is a high carbon and chromium alloy cold work steel. Although its hardenability is very good, it can maintain its durability up to 62hrc. This material, which has very good abrasion resistance, is used in many applications.
Usage areas
This steel, which has very good abrasion resistance, can be used in all tools that need long-term use. Form dies, pipe dies,
cutting tools, stamping tools, wood forming dies, plastic die tooling. The toughness of this steel is better than D3, and its
hardening ability is also good.
Physical Properties
Elastic Module : {1000 XN/mm2}:210
Density g/cm3 :7,70
Thermal Conductivity 20.0(W/mK)
Electrical Resistance (Ohm.mm2/m):0.65
Heat Capacity 0.46 (J/gK)
Soft Annealing
It is heated to 840-880C and allowed to cool slowly. As a result of this process, it is possible to decrease up to 255 Brinell
hardness.
Stress Relief annealing
Thanks to this process, the stresses that occur in the material after machining are minimized. First of all, the piece is heated to 650-700C and kept at this temperature for 1 hour. It is then left to cool in air.
Hardening
The part, which is heated up to 1000-1040C, is kept in a 500-550C bath with a rapid cooling in oil. Depending on the tempering degree after processing, hardnesses of 62-64Hrc are reached.
tempering
It can be made in the range of 150-550C according to the desired hardness degree.
100C 200C 300C 400C 500C 525C 550C 600C 700C
63 61 58 58 59 58 56 51 35
Tempering Diagram
Forging Temperature
The product can be hot formed in the range of 850-1050C.
Machinability
2379 is a steel with low machinability. It has a 50% lower machinability compared to the water-hardening steel group.
Corrosion Resistance
Since 2379 is a steel alloy, it is not a metal with high corrosion resistance.
Welding Ability
It can be welded with special electrodes.
Material Chemical Composition
C Si mn cr B.C Ni V W Other
1.53 0.35 0.4 12 one - 0.85 - -
Material Codes According to Standards
Mat. no. RELIGION MOST AISI/SAE JAPAN
1.2379 X155CrVMo12-1 X153CrMoV12 D2 SKD11
Description
It is a high carbon and chromium alloy cold work steel. Although its hardenability is very good, it can maintain its durability up to 62hrc. This material, which has very good abrasion resistance, is used in many applications.
Usage areas
This steel, which has very good abrasion resistance, can be used in all tools that need long-term use. Form dies, pipe dies,
cutting tools, stamping tools, wood forming dies, plastic die tooling. The toughness of this steel is better than D3, and its
hardening ability is also good.
Physical Properties
Elastic Module : {1000 XN/mm2}:210
Density g/cm3 :7,70
Thermal Conductivity 20.0(W/mK)
Electrical Resistance (Ohm.mm2/m):0.65
Heat Capacity 0.46 (J/gK)
Soft Annealing
It is heated to 840-880C and allowed to cool slowly. As a result of this process, it is possible to decrease up to 255 Brinell
hardness.
Stress Relief annealing
Thanks to this process, the stresses that occur in the material after machining are minimized. First of all, the piece is heated to 650-700C and kept at this temperature for 1 hour. It is then left to cool in air.
Hardening
The part, which is heated up to 1000-1040C, is kept in a 500-550C bath with a rapid cooling in oil. Depending on the tempering degree after processing, hardnesses of 62-64Hrc are reached.
tempering
It can be made in the range of 150-550C according to the desired hardness degree.
100C 200C 300C 400C 500C 525C 550C 600C 700C
63 61 58 58 59 58 56 51 35
Tempering Diagram
Forging Temperature
The product can be hot formed in the range of 850-1050C.
Machinability
2379 is a steel with low machinability. It has a 50% lower machinability compared to the water-hardening steel group.
Corrosion Resistance
Since 2379 is a steel alloy, it is not a metal with high corrosion resistance.
Welding Ability
It can be welded with special electrodes.
item | value |
Grade | High Grade |
Width | 600-1000 MM |
Length | 3000 MM |
Place of Origin | Taiwan |
Brand Name | Gloria Steel |
Model Number | 1.2379/X155CrVMo121/D2 |
Application | High wear-resistant |
Alloy Or Not | Is Alloy |
Delivery Time | 1 week |
Attirbute | Flat bar block ESR |
Product | Cold Work Tool Steel-ESR |
Company Profile
Takım Metal; It is an e-commerce platform of metals managed by a group with experience in the field of engineering metals. Tool steels, structural steels, exotic metals, strategic metals, special alloys as well as the supply of many new generation metals are the main areas of interest of our company,. In today's conditions, where new shopping habits come to the fore, almost every product is sold on e platforms, and this issue has become a necessity in the metal sector. We will continue to work on the availability of innovative materials, while we plan to offer our valued customers with ease of payment with installment opportunities, by using the opportunities provided by digital commerce to the last limit. We thank you in advance for choosing us and wish you success in your business.
FAQ
1. who are we?
We are based in Istanbul, Turkey, start from null,sell to . There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
We are based in Istanbul, Turkey, start from null,sell to . There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packaging And Shipping | EXW |
Minimum Order Quantity | 500 KG |
Delivery Time | 1 week |
Contact Us
Phone | +90 (212) 501 42 00 |
E-mail | info@takimmetal.com |
Web site | www.takimmetal.com |
