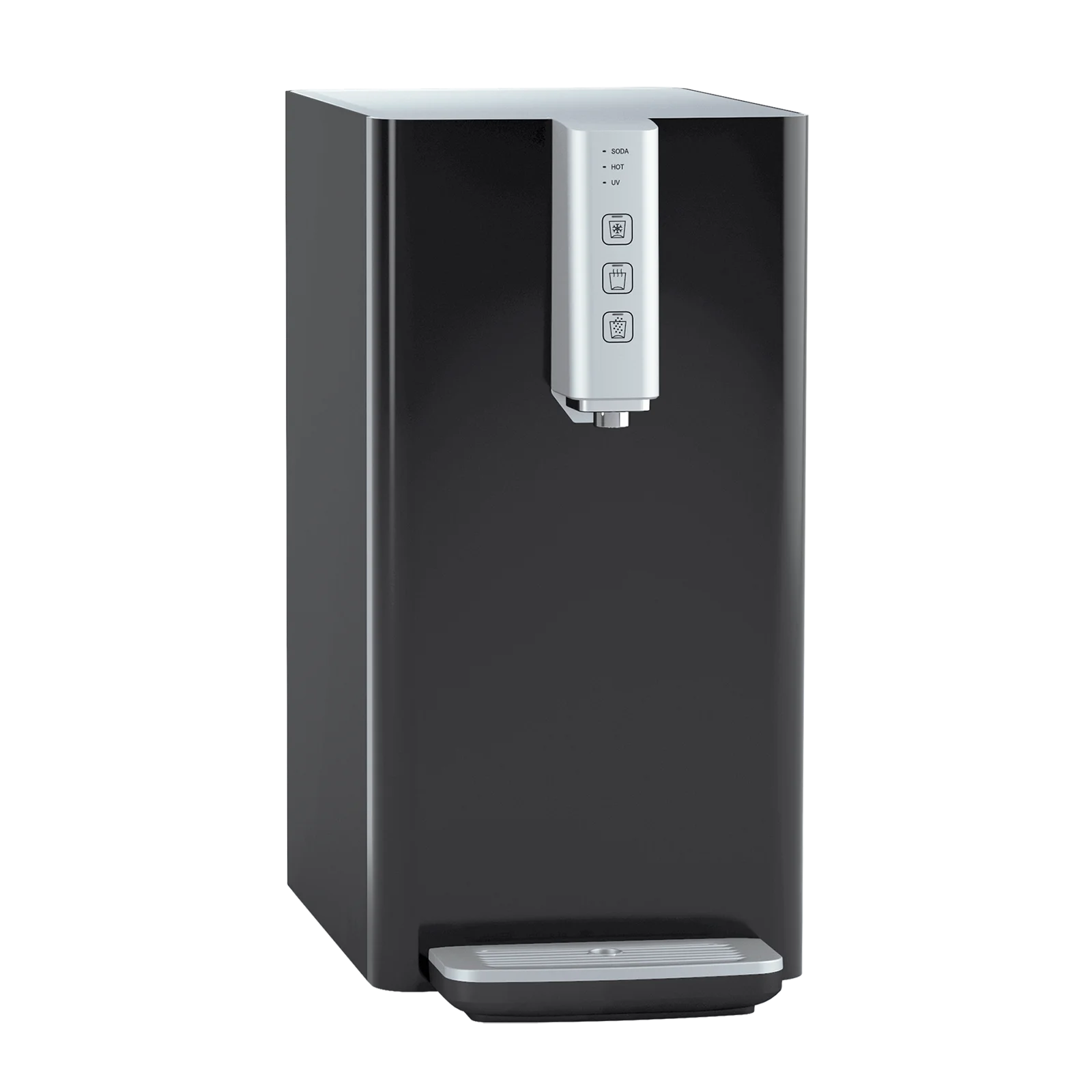

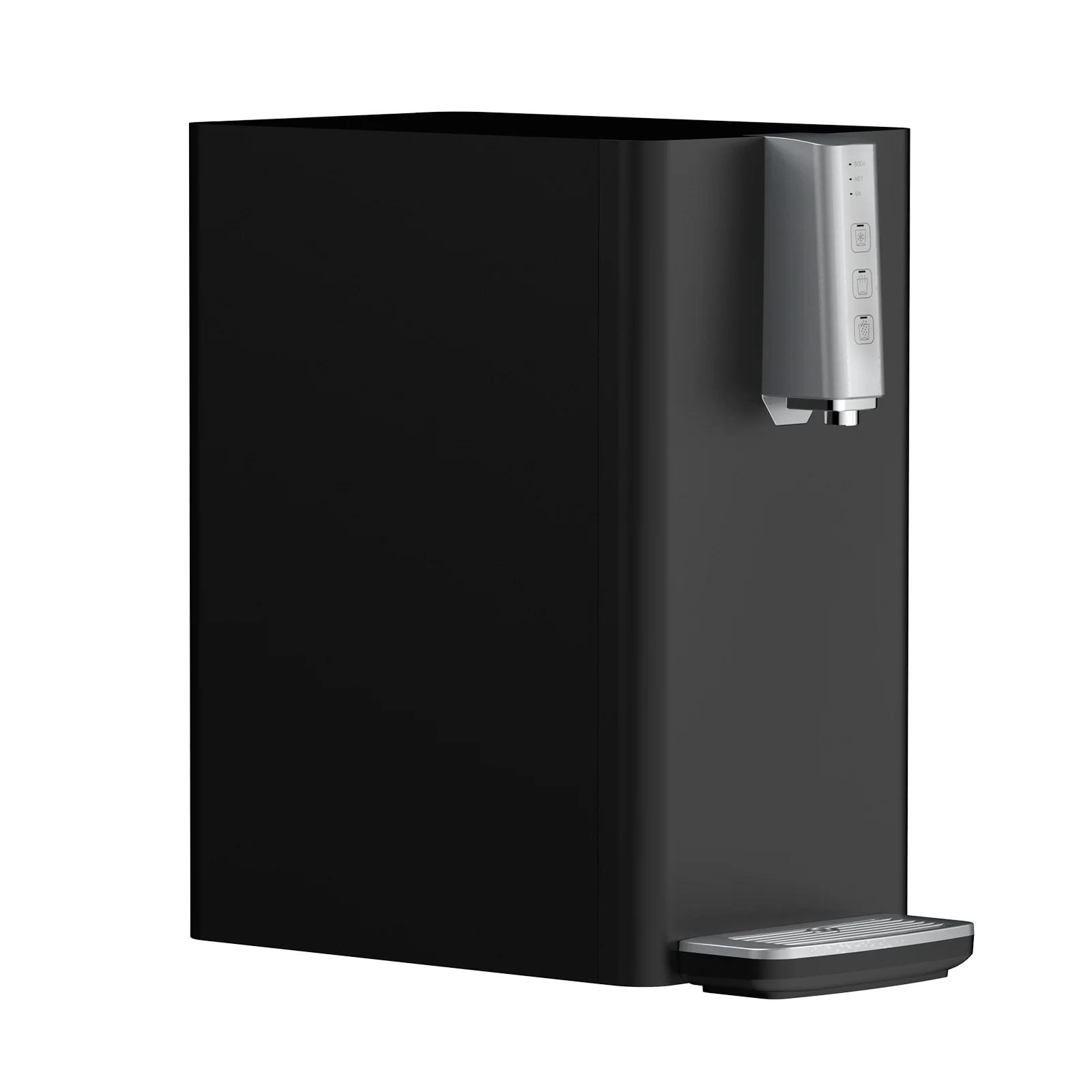

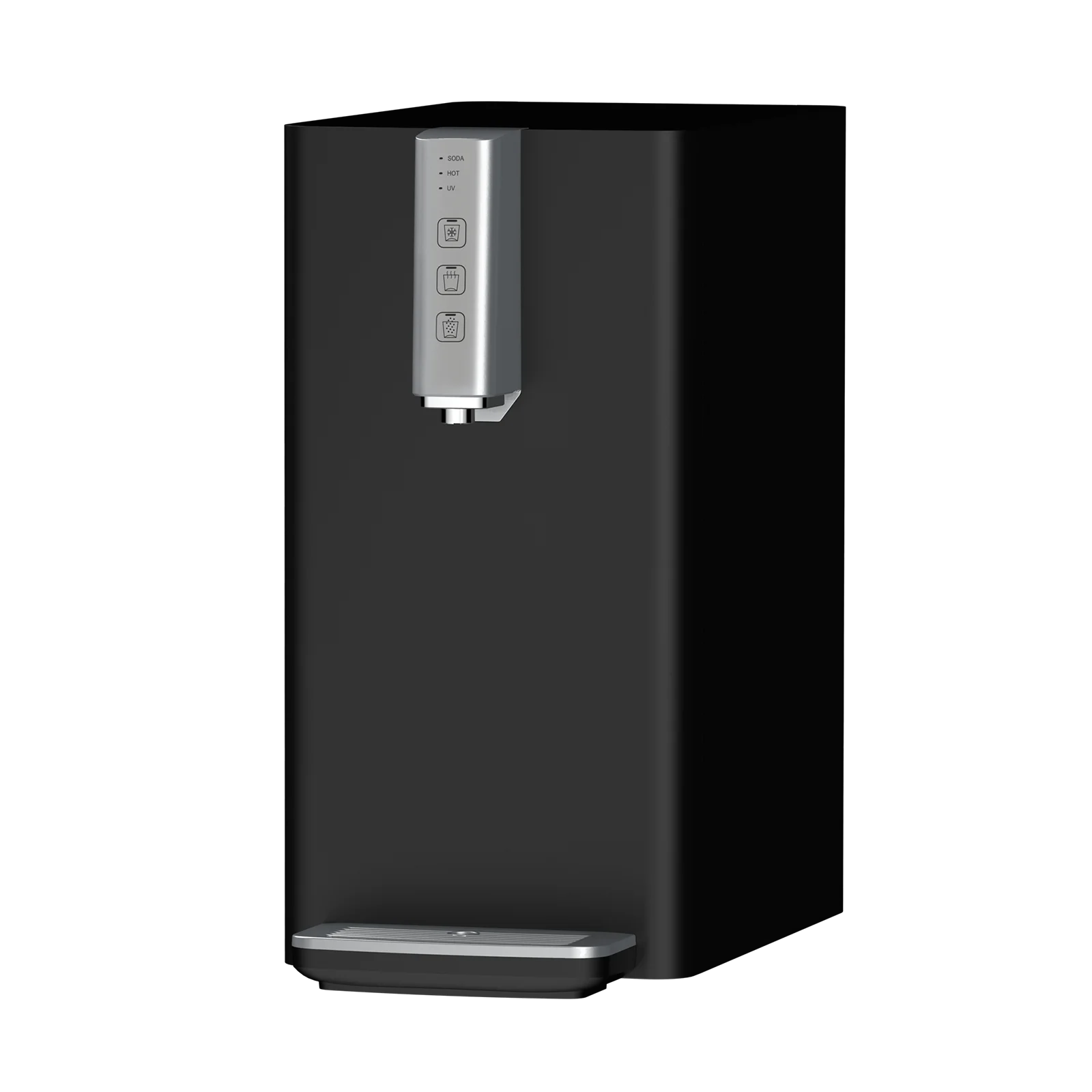

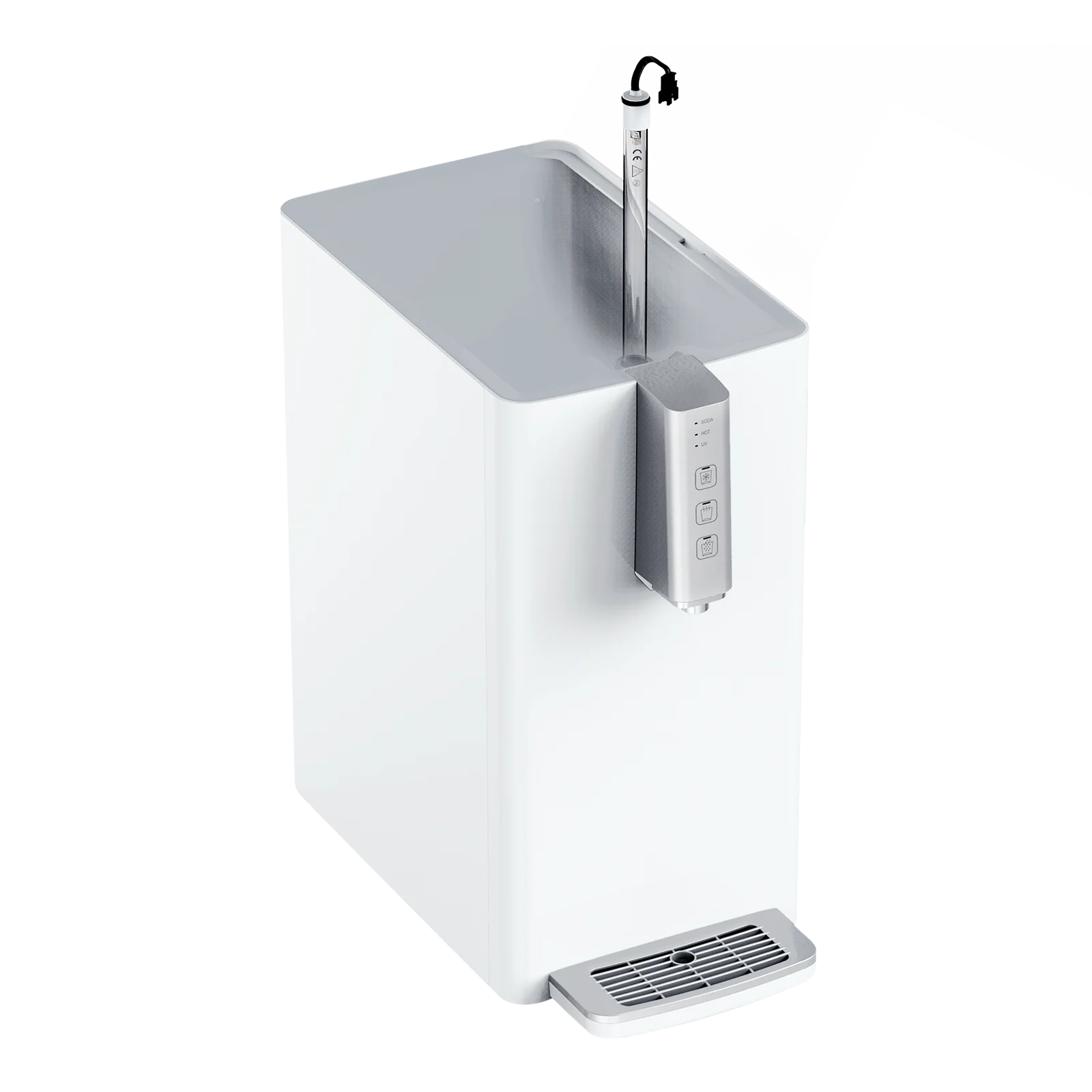

Фильтр UF CO2 цилиндрический диспенсер для сверкающей воды

Сохранить в закладки 10000007246323:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Spec & Features


Model
M106
Size
23(W) x 35(D) x 47(H) cm
Water Option
Cold/Hot/Sparkling, Cold/Ambient/Sparkling, Cold/Hot/Ambient
Heating Capacity
up to 12 liters per hour
Chilling Capacity
up to 20 liters per hour
Sparkling Tank Capacity
3 liter
Hot tank capacity
1.5 liter
Voltage
AC 110 / 220 V
Power consumption
Hot water 1000W / Cold Water 100W
Working inlet water pressure
20 to 80 psi
Water/CO2 inlet pipe size
1/4 inch (6.35 mm)


Products Description

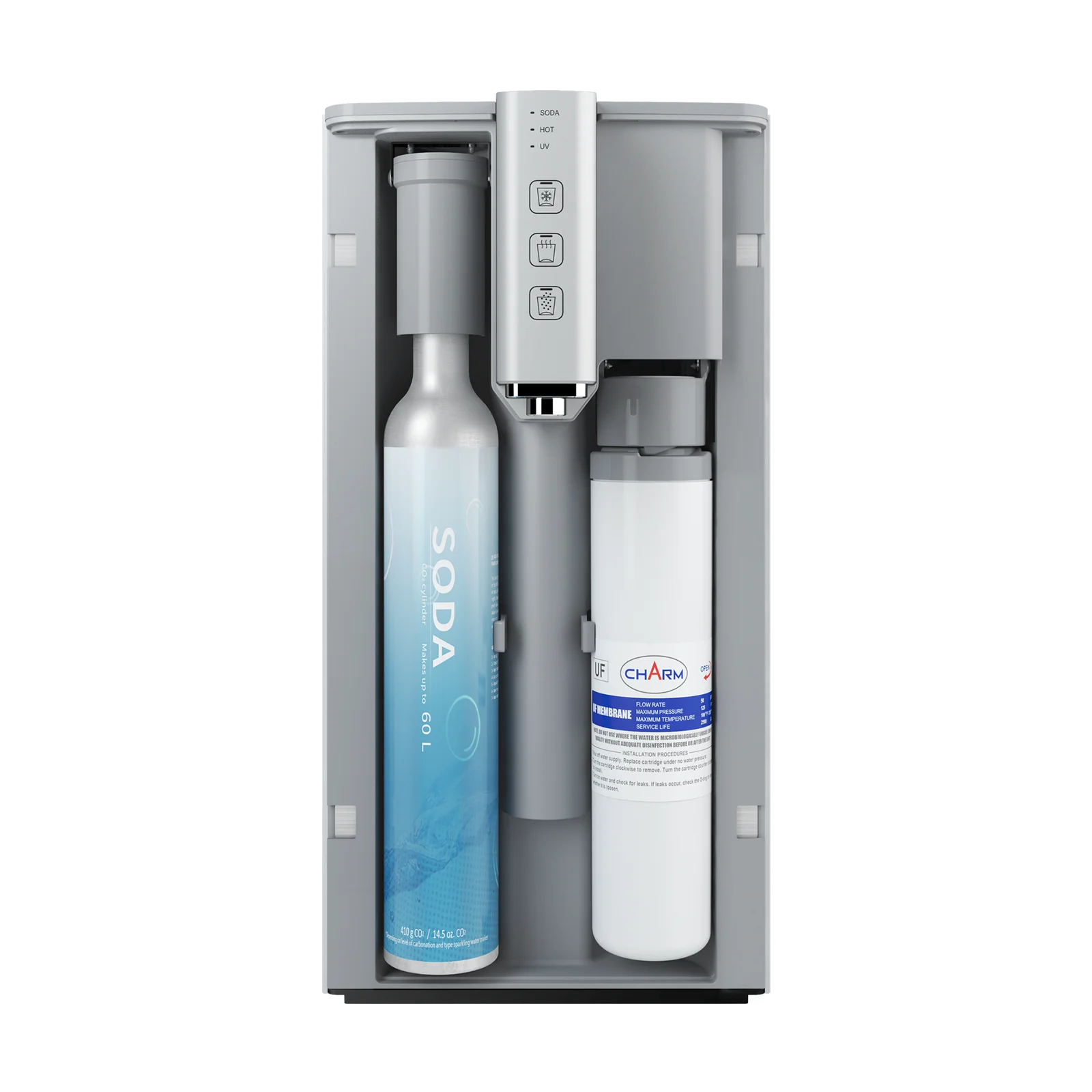

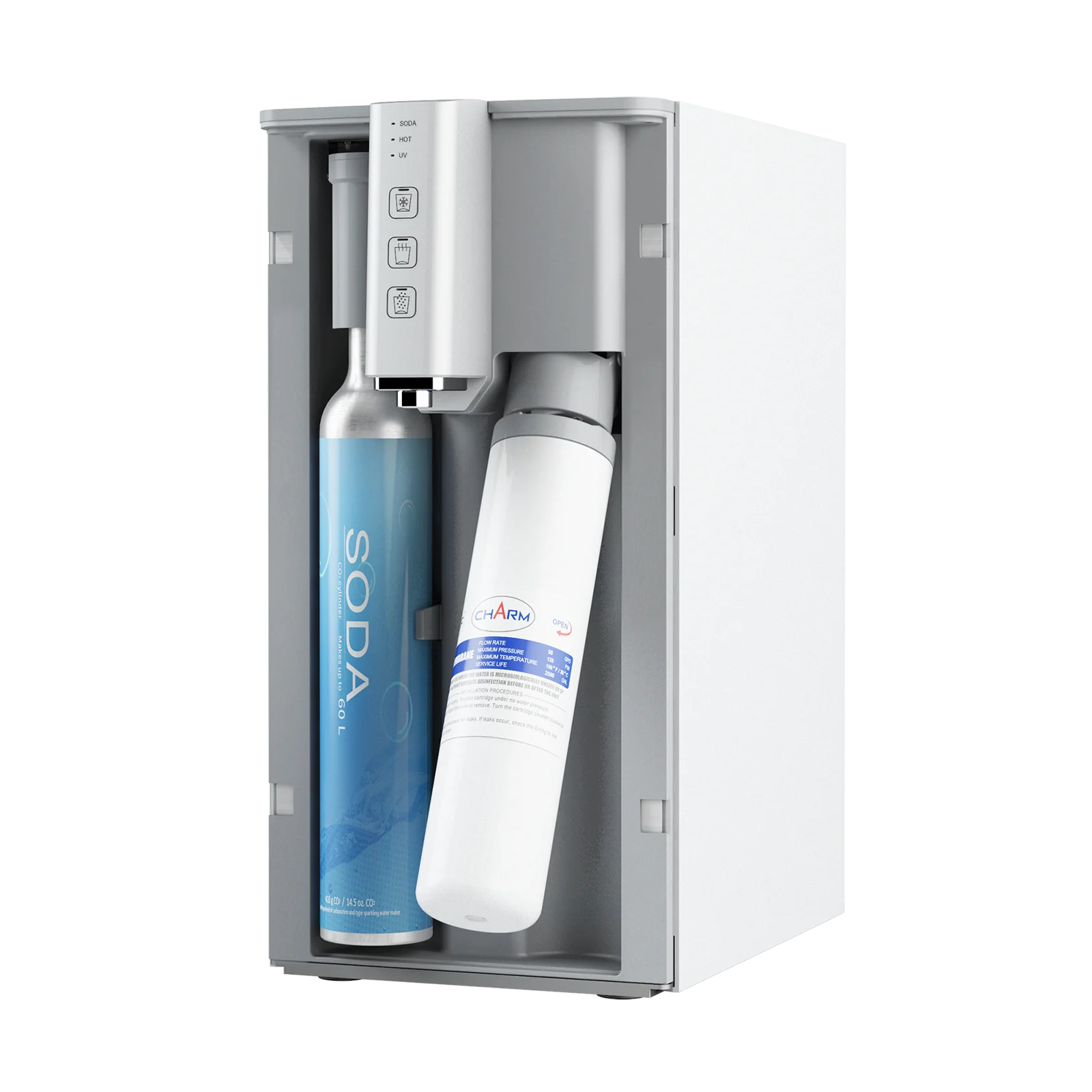

Replaceable Internal CO2 Cylinder
Create a neat and tidy counter surface with no external CO2 connection
Liftable (30º) connector makes cylinder change quick and easy
Compatible to the TR21-4(thread), 425g (60L) CO2 cylinder.


Rotational Replaceable Filter
Replaceable UF(Ultra-filtration) filter installed to the liftable (30o) connector, makes filter change done in less than 10 seconds.

Ultra-filtration (UF): Hollow Fiber Technology uses ultra filtration, a membrane filtration process which pushes water through the
semi-permeable membrane by standard home water pressure, to block away impurities and bacteria but leave minerals in water.


High Performance UV Instant Disinfection
Designed to locate near the outlet with instant start system to make sure water is fully sterilized before dispense. Replaceable
high efficiency UV light eliminates 99.9% of germs without increasing water temperature or affecting the taste of cold and sparkling water due to heat generated from continuously on UV light.

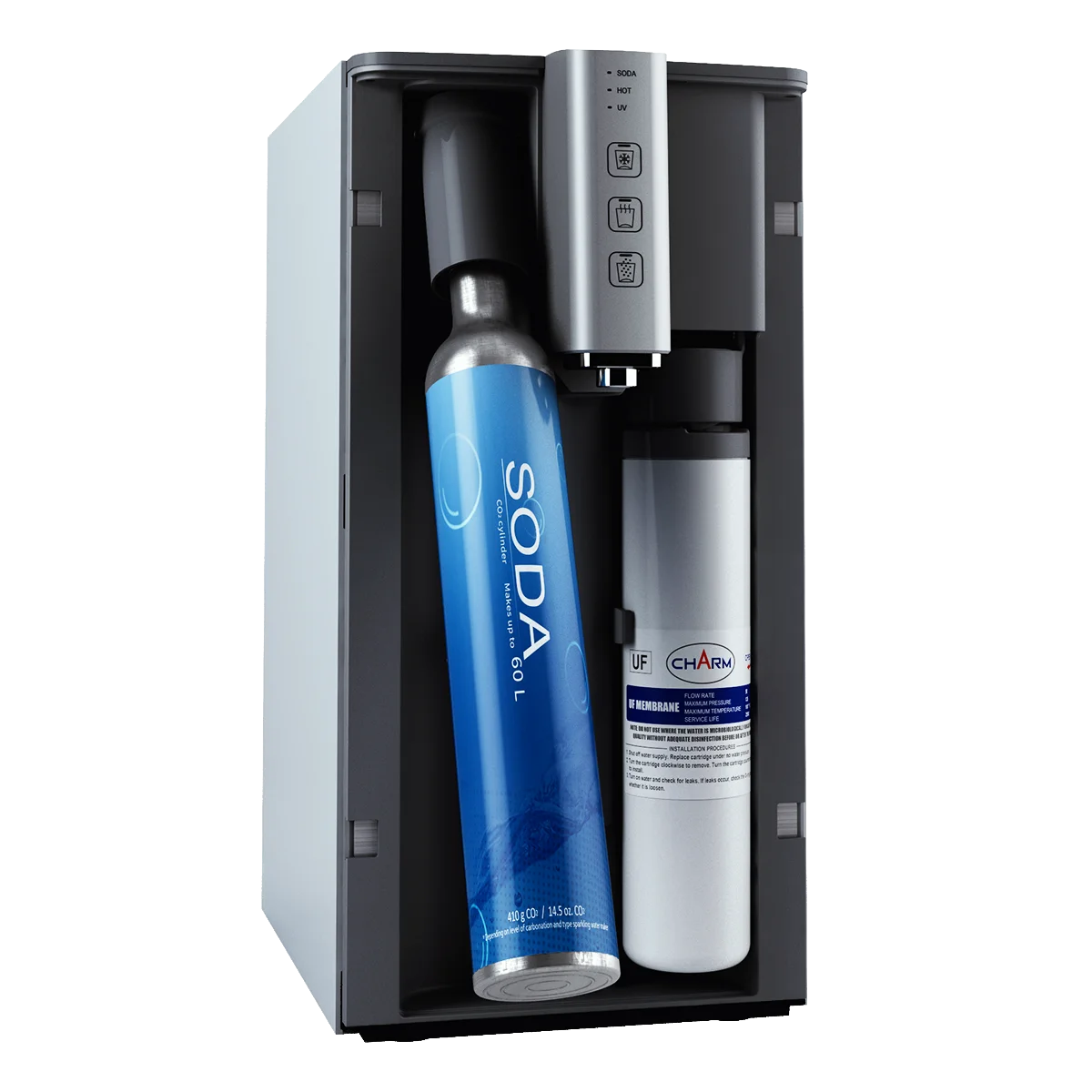

Space saver
Both filter and CO2 cylinder are placed inside of the water dispenser, save the external space.
All additional parts are combined.


Company Profile


Champ Design was established in 1992, located in Taiwan. We are professionalized in research, manufacture, and selling of water dispensing and treatment facilities. Champ Design have advanced CAD/CAM system, CNC molding equipment; approximately 70% of water contact plastic parts are made in Champ design factory to reach quality and hygiene standard of plastic part perfectly. Champ design also have automatic assembly line, testing line, pre-assembly factory, and injection factory to produce the major parts of each dispenser on our own with testing equipment and instrument. We also obtained certifications such as CE, ETL, EMC, ROHS, NSF, and etc.




We own injection machines to produce plastic outer cases. From filtration to chilling and heating systems, all products have been produced under modularization. We are now the biggest manufacturer of water dispensers in Taiwan, with markets mainly over Europe and U.S. World quality is the goal we aim for and so is a promise we make to the customers.

With a crew of expert engineers, product designers and high tech R&D facilities, we successfully successive developed and produced innovative products, such as ET filter, UV circulation system, leak detecting system, energy saving system, direct chilling system, sparkling/soda water dispensers and instant UV sterilization system. Champ design is professionalized in producing soda water dispenser in water treatment field. We have put an effort on improving the convenience and safety of our products in order to meet the international hygiene standard. In the year of 2007, our product, CW-798 (Bonnie), won the Reddot Design Award of Germany. This has brought a worldwide recognition to our brand, CHARM, as well as a good reputation to Champ Design. The designs of our products are original.
