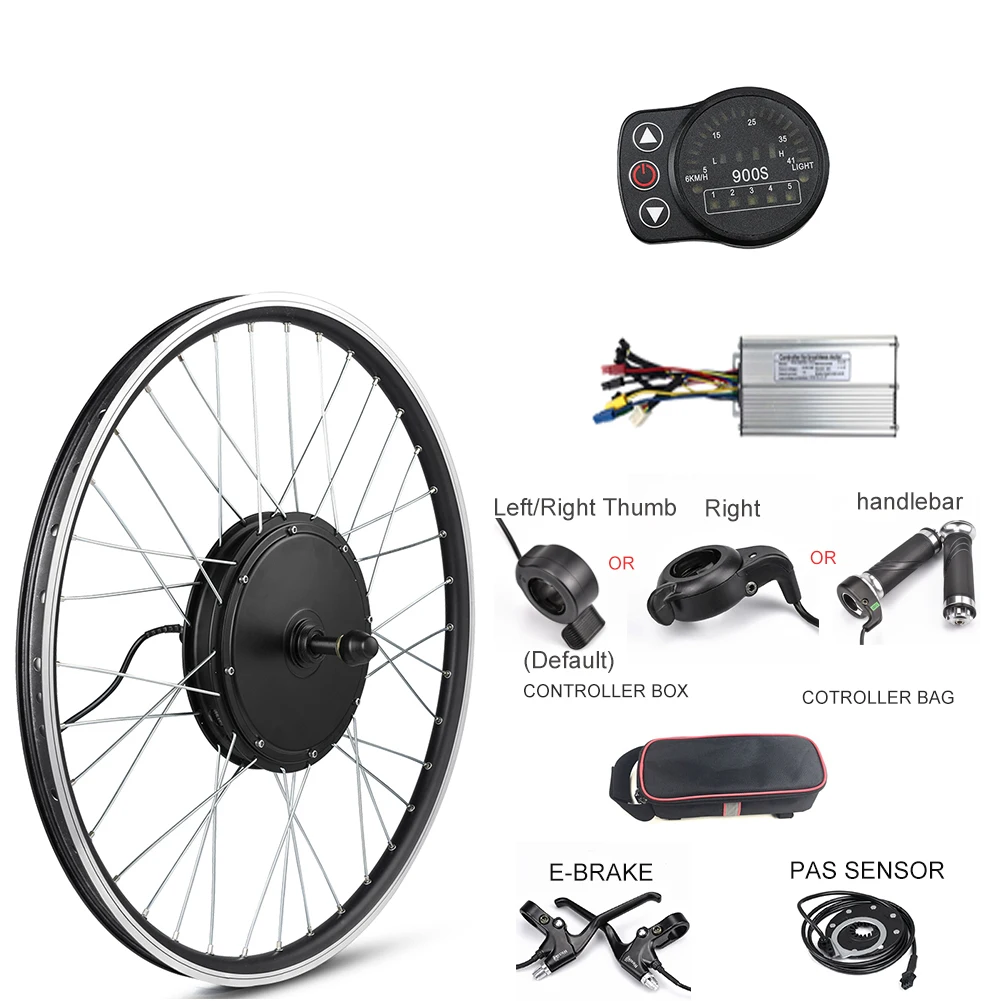

48 в 1000 Вт 40 км/ч светодиодный дисплей заднее моторное колесо Электрический велосипед моторный комплект
79,00 $ - 159,00 $
Y31125 ЧПУ 6 оси Зубофрезерный станок для продажи
- Категория: >>>
- Поставщик: Tengzhou Borui CNC Machine Tool Co. Ltd.
Сохранить в закладки 10000007373746:
Описание и отзывы
Характеристики

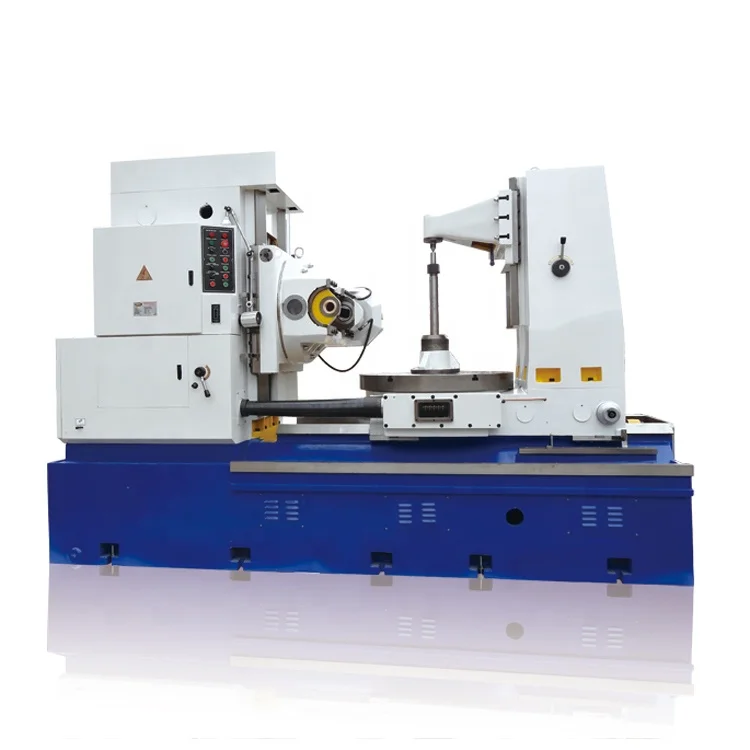

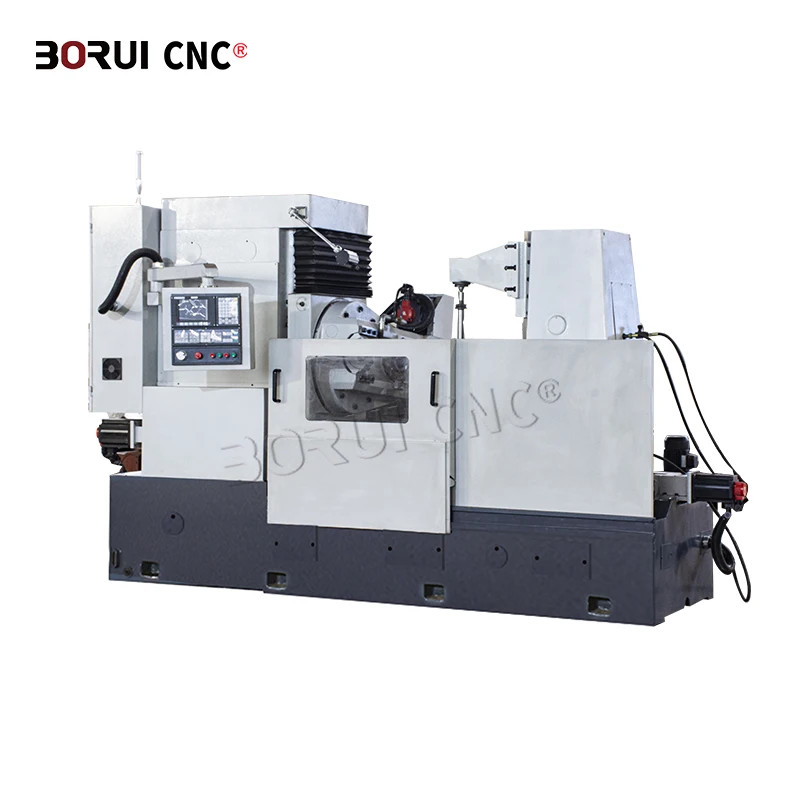

Y31125 CNC high-efficiency gear hobbing machine
Products Description
Main feature:
This machine is six-axis CNC gear hobbing machine, with radial feed axis (X axis), tangential feed axis (Y axis), axial feed axis
(Z axis), tool post rotary axis (A axis), hob spindle Rotary axis (B axis), worktable rotary axis (C axis).
1. The spindle motor is directly installed on the tool rest and is transmitted to the hob spindle through three pairs of
high-precision cylindrical helical teeth, which reduces the transmission error and improves the transmission accuracy.
2. The worktable adopts high-precision double-lead turbine worm drive, and is designed with a damping mechanism. There is also
an unloading oil cylinder under the worktable to reduce the load of the C-axis motor and prolong the service life of the
circular guide rail of the worktable.
3. The main guide rail is processed by hard rail quenching and plastic sticking, which ensuring the durability of the machine
tool.
4. The Z-axis movement adopts a new structure of balanced oil cylinder and chain counterweight, which makes the hob better
balance when cutting up and down, so cutting is more stable, and service life of the ball screw can be effectively extended.
5. The machine can be customized with four-axis or five-axis models according to user needs.
This machine is six-axis CNC gear hobbing machine, with radial feed axis (X axis), tangential feed axis (Y axis), axial feed axis
(Z axis), tool post rotary axis (A axis), hob spindle Rotary axis (B axis), worktable rotary axis (C axis).
1. The spindle motor is directly installed on the tool rest and is transmitted to the hob spindle through three pairs of
high-precision cylindrical helical teeth, which reduces the transmission error and improves the transmission accuracy.
2. The worktable adopts high-precision double-lead turbine worm drive, and is designed with a damping mechanism. There is also
an unloading oil cylinder under the worktable to reduce the load of the C-axis motor and prolong the service life of the
circular guide rail of the worktable.
3. The main guide rail is processed by hard rail quenching and plastic sticking, which ensuring the durability of the machine
tool.
4. The Z-axis movement adopts a new structure of balanced oil cylinder and chain counterweight, which makes the hob better
balance when cutting up and down, so cutting is more stable, and service life of the ball screw can be effectively extended.
5. The machine can be customized with four-axis or five-axis models according to user needs.
Specification | Y31125 | unit |
Maximum workpiece diameter | 1250 | mm |
Maximum modulus | 18 | mm |
Helical angle of machined helical gear | ±45° | ° |
Maximum diameter of installed hobbing cutter | 230 | mm |
Maximum length of installed hobbing cutter | 300 | mm |
Maximum axial movement of hobbing cutter | 150 | mm |
Replaceable mandrel diameter hobbing cutter | 22 27 32 40 | mm |
Conicity of hobbing cutter spindle taper bore | MT6# | |
Horizontal distance from t center of hobbing cutter to center of worktable | 130-700 | mm |
Vertical distance from center of hobbing cutter to surface of worktable | 240-700 | mm |
Distance from rear column center to worktable surface | 450-860 | mm |
Diameter of worktable surface | 950 | mm |
Maximum speed of hobbing cutter spindle | 625 | rpm |
Axial feeding speed range (Z- axis) | 0-1500 | mm/min |
Radial feeding speed range (X-axis) | 0-1500 | mm/min |
Maximum tangential motion speed | 2000 | mm/min |
Maximum speed range of worktable | 0-25 | rpm |
Maximum rotating speed of tool post | 4.5 | o/s |
Machine volume (L x W x H) | 4.26x2.05x2.56 | m |
Net weight of machine | 12000 | kg |
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Contact Us
Похожие товары
Современная роскошная дизайнерская домашняя мебель деревянный ТВ-стенд стол с выдвижным ящиком для гостиной высококачественный Мраморный
1 980,00 $

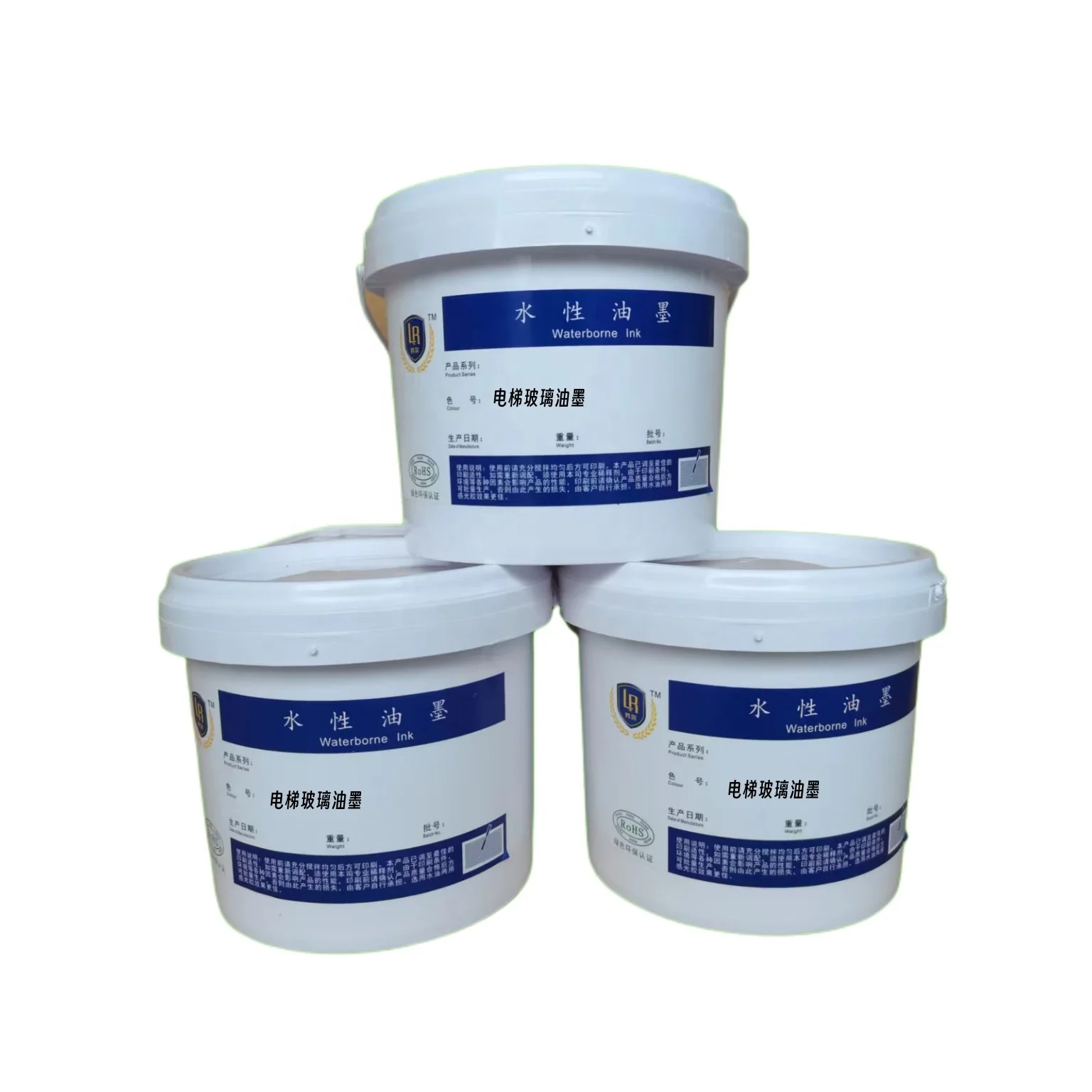

Бесплатный образец Высокой адгезии чернил низкая цена трафаретной печати химических веществ
12,16 $

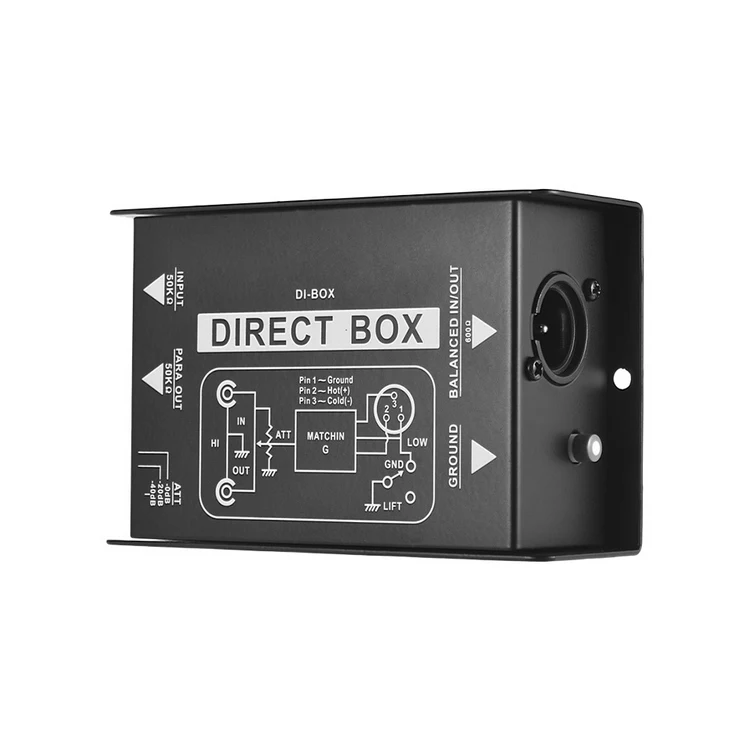

Профессиональный Одноканальный пассивный ди-бокс с прямым впрыском аудио-бокс с преобразователем сбалансированного и дисбаланса сигнала
8,99 $ - 11,99 $

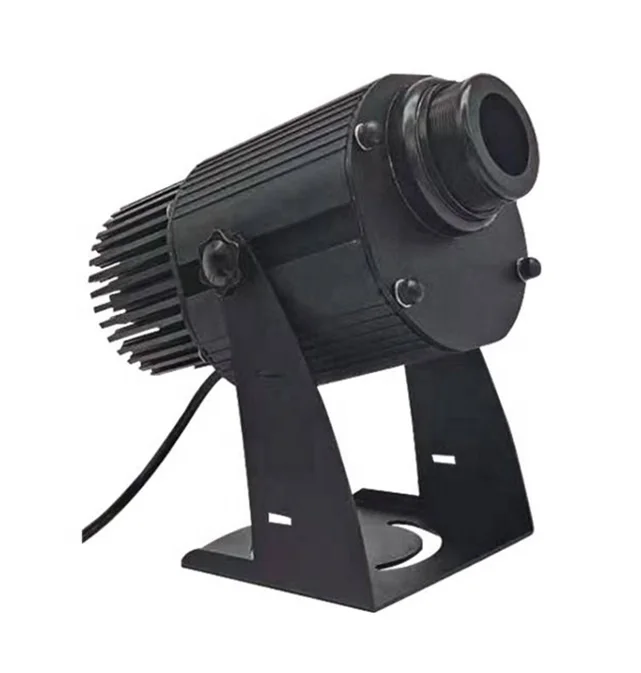

Портативный светодиодный мини-проектор 40 Вт светодиодный водяной волновой эффект проектор света
18,00 $ - 20,00 $

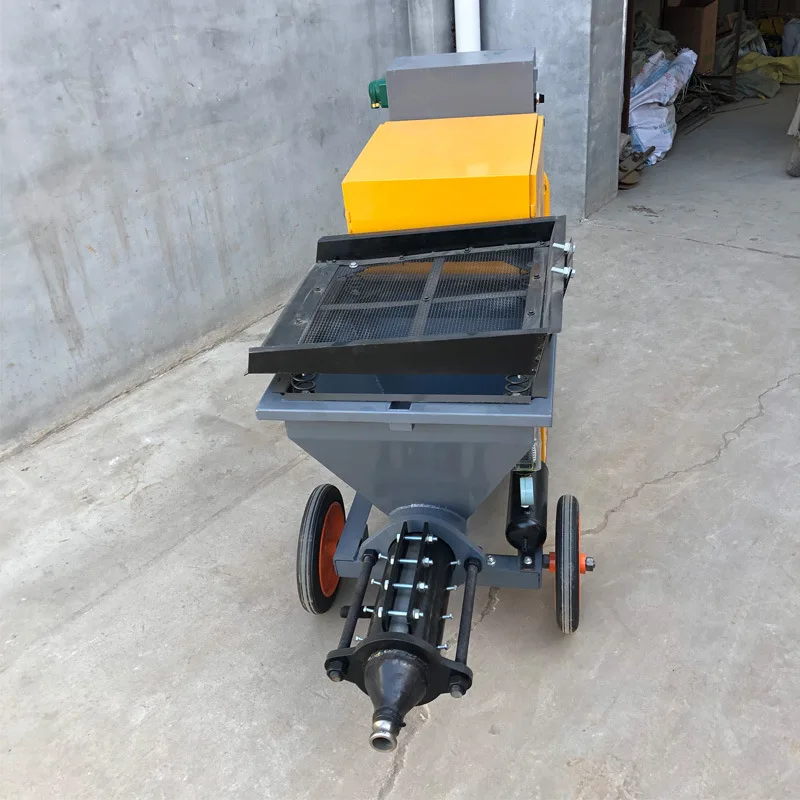

Штукатурная машина, настенный бетонный раствор, распылитель, сухой смешанный раствор, шпаклевка, гипсовая штукатурка, распылительная машина, минометный насос
53 862,02 ₽ - 67 327,52 ₽

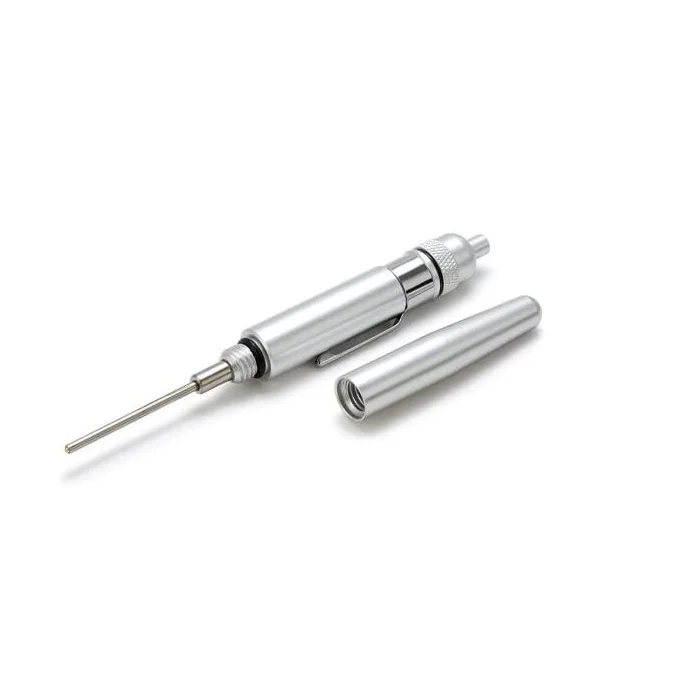

Точная масляная ручка точный масляный аппликатор

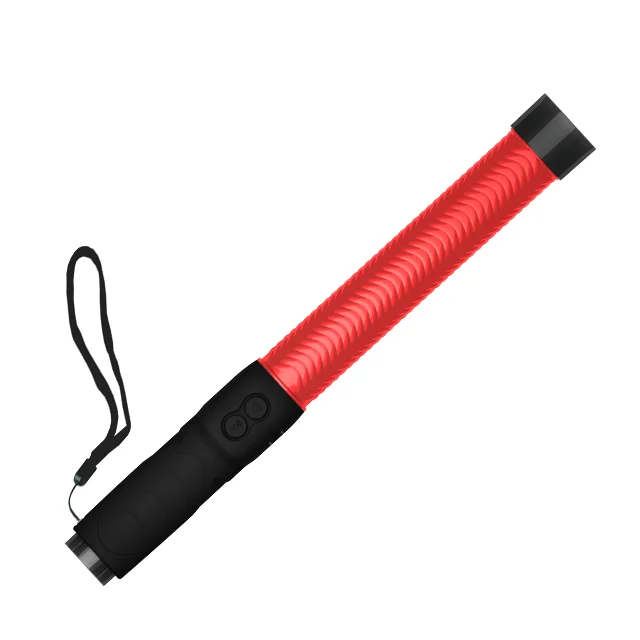

Предупреждающий фонарь дорожного движения, перезаряжаемый светодиодный красный мигающий фонарь, предупреждающий дорожный фонарь
